Asus Launches Thin Mini-ITX Motherboard for Alder Lake CPUs

Asus
(Image credit: Asus)

The thin Mini-ITX form-factor has numerous dimensions-related advantages over regular Mini-ITX for all-in-one and miniature desktops. But thin Mini-ITX motherboards are rare in retail (since many of us enjoy having loads of ports on the back of our PCs), which is why the form-factor has not received wide adoption in the DIY market. Fortunately, Asus quietly unveiled one of the industry's first thin Mini-ITX motherboards for LGA1700 CPUs. Alder Lake, welcome to the ultra-compact desktop class!

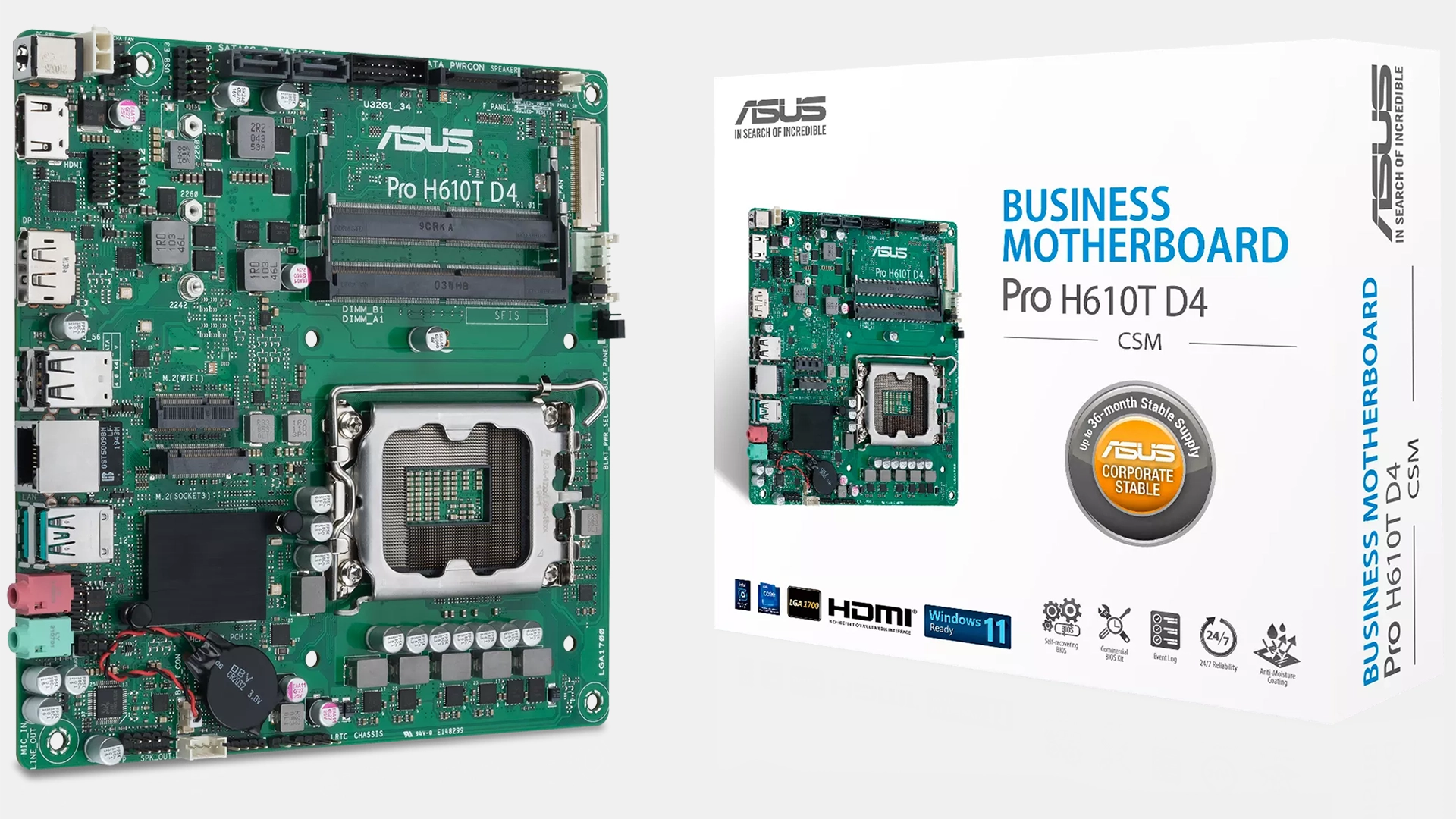

Since it's aimed primarily at small business desktops, the Asus Pro H610T D4-CSM motherboard is rather unpretentious in terms of features and capabilities. It supports all 12th Generation Core, Pentium, and Celeron LGA1700 processors (up to 65W TDP) and comes with a six-phase digital VRM that uses "high-quality components and rigorous testing to help ensure durability in harsh environments."

FanlessTech suggests to use this motherboard for fanless Alder Lake builds, which might be a good idea for HTPCs give Alder Lake's advanced Xe-LP GPU with premium media processing capabilities (12-bit end-to-end video pipeline, AV1/H.264/H.265 decoding, BT.2020 support, HDR10/Dolby Vision,4K/8Kp60 playback).

(Image credit: Asus)

As the Pro H610T D4-CSM name suggests, the motherboard uses an entry-level Intel H610 chipset (so do not expect any premium functionality here) and supports up to 64GB of widely available DDR4-3200 memory (using two SO-DIMM modules). In addition, the mainboard has an M.2-2230 slot for a Wi-Fi module, an M.2-2280 slot for an SSD featuring a PCIe 4.0 x4 or SATA interface, and two SATA ports. There is also an LVDS connector for built-in display for cases when the motherboard is used for an AIO desktop or an embedded machine (keep in mind that this motherboard does not come with a watchdog timer, so it is not exactly designed for embedded applications).

The connectivity department is relatively modest and comprises a GbE port (using a Realtek controller), two USB 3.2 Gen 2 connectors, two USB 2.0 ports, two display outputs (DisplayPort 1.4a and HDMI 2.1), 3.5-mm audio connectors, and a 19V DC input.

(Image credit: Asus)

Meanwhile, the CSM moniker means that the platform belongs to the Asus CSM (corporate stable model) program that ensures continuous 36-months availability, a 6-month end-of-life notification, and Asus Control Center Express software optimized for business/commercial environments to make serviceability easier. Also, the motherboard comes with a TPM module header, has a self-recovering BIOS with event log, a Q-LED diagnostic display, and even a COM debug header.

Asus provides no availability timeframe or pricing for the Pro H610T D4 motherboard, but expect the unit to arrive soon and relatively cheap given its modest capabilities.

(Image credit: Asus)
