DDR5-4800 Clashes With DDR4-3200 In Alder Lake Benchmarks

Alder Lake

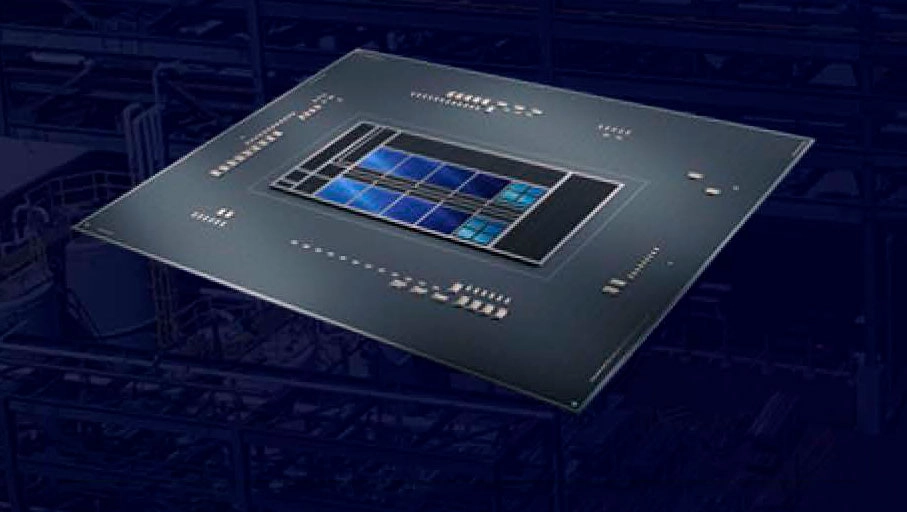

Alder Lake (Image credit: Intel)

The upcoming wave of 12th Generation Alder Lake processors from Intel have been rumored to support both DDR5 and DDR4 memory. However, a new UserBenchmark submission, courtesy of Tum_Apisak, showed that Alder Lake's performance could be affected if paired with the latter.

The Alder Lake sample reportedly features 16 CPU cores and 24 threads, which is a configuration that we've already seen before. Keeping in mind that Alder Lake is comprised of Golden Cove and Gracemont core but only the former has Hyper-Threading, the chip should be carrying eight Golden Cove cores and eight Gracemonet cores.

Today's submission marks the second appearance of an 16-core Alder Lake chip in UserBenchmark. This sample seemingly sports a 1.8 GHz base clock speed and 3.65 GHz average boost clock. The previous sample, on the other hand, has the same base clock, but a lower average boost clock that peaked at 3.05 GHz.

Given the core count, the engineering samples may be the Core i9-12900 or Core i9-12900K. Obviously, the faster chip will deliver better memory performance. Since we aren't certain if both Alder Lake samples are the same processor, we recommend a bit of salt when looking at the results.

Intel Alder Lake RAM Benchmarks

Kingston DDR4-3200 2x8GBMicron DDR5-4800 2x8GB
Multi Core Read41.533.6
Multi Core Write37.030.8
Multi Core Mixed28.830.2
Single Core Read15.415.4
Single Core Write30.231.4
Single Core Mixed22.122.4
Latency13686.7

The DDR5 platform consisted of two 8GB Micron DDR5-4800 memory modules. The C8C1084S1UC48BAW part number didn't yield any results. If the memory modules stick to JEDEC's specifications, they should be rated with a CAS Latency (CL) of 40.

The DDR4 platform, on the other hand, used a pair of 8GB Kingston HyperX Fury DDR4-3200 memory modules. We couldn't find a product page for the HP37D4U1S8ME-8XR, and several listings showed that these may be OEM memory modules.

DDR4-3200 outperformed DDR5-4800 by up to 24% in the read test and up to 20% in the write test. However, the latter delivered 5% higher performance in the mixed test. The performance deltas in the single-core tests weren't as substantial, though. There was no change in the read test, but DDR5-4800 offered 4% and 1% better write and mixed memory performance, respectively.

DDR5 put up its best performance in the latency tests. The Alder Lake with DDR5-4800 exhibited 36% lower memory latency.

Intel's Alder Lake processors might land late 2021 or early 2022. In addition to the rumored DDR5 support, the heterogeneous chips could also embrace the high-speed PCIe 5.0 standard. AMD has displaced Intel on the list of best CPUs so there are big expectations for Alder Lake even before its launch day.
