Only the Best: 9 Athlon Motherboards With The AMD 760 Chipset

Test Setup

Swipe to scroll horizontally
ProcessorAMD Athlon-C 1200 at 133 MHz FSB
Memory128 MB with 133 MHz DDR, CL2, Crucial Tech.
Hard DriveIBM DTLA 307030, 30,7 GB, UltraDMA/100
Graphics CardnVIDIA GeForce 2 Ultra, 64 MB
Drivers & Software
DirectX version8.0a
OSWindows 98 SE, Version 4.10.2222 A
Benchmarks and Settings
Quake III ArenaRetail Versioncommand line = +set cd_nocd 1 +set s_initsound 0Graphics detail set to 'Normal', 640x480x16Benchmark using 'Q3DEMO1'
Unreal TournamentVersion 4.23
ViewPerfVersion 6.1.21280x1024x16
Refresh Rate85 Hz for all Tests, V-Sync = off

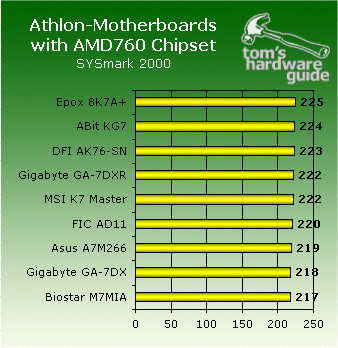

Benchmarks - SYSmark 2000 - Windows 98 SE

I chose to share these results with you, even though the SYSmark is not a useful performance indicator any more. With business applications, the system is waiting for user inputs most of the time, making the maximum system performance quite uninteresting.

Still it's interesting to see that there are obvious differences among the AMD760 boards.
