ASRock X570 Taichi Review: Jumping Into PCIe 4.0 With Ryzen 3000

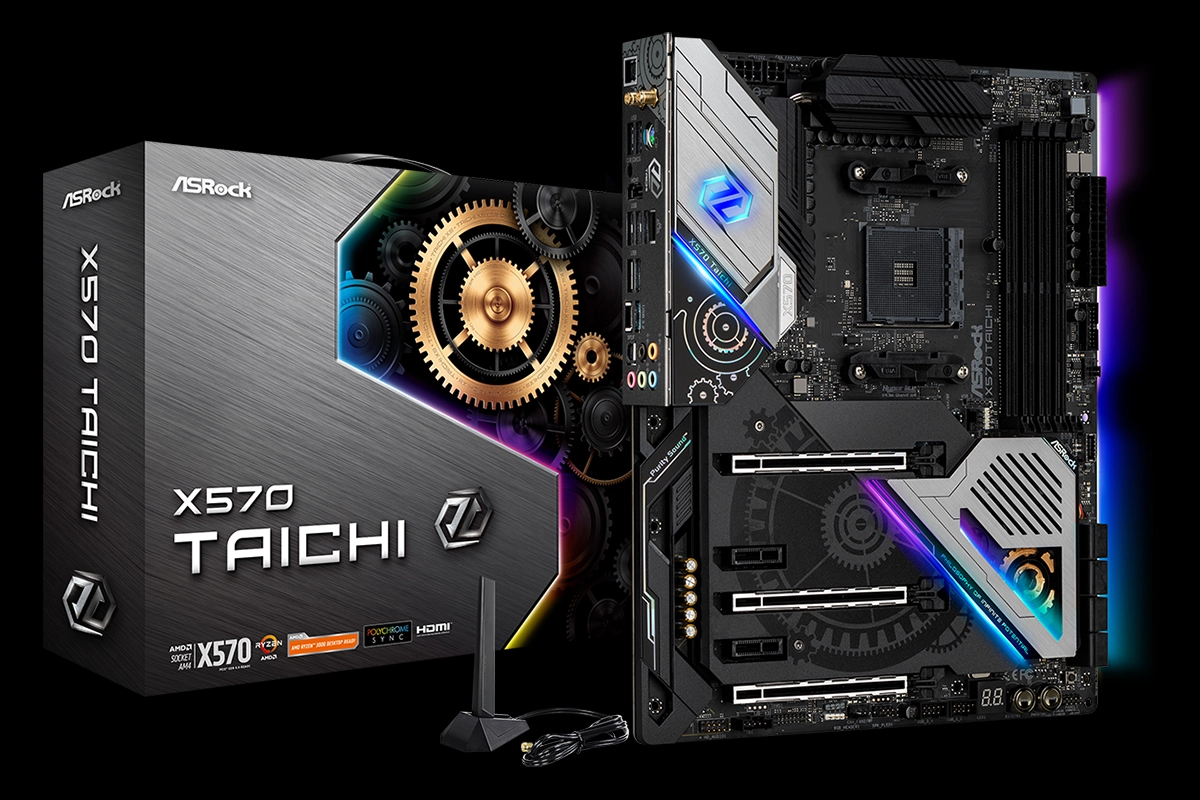

ASRock dresses for success with a loaded and shrouded X570 Taichi motherboard, enabling most of AMD’s latest platform feature set when paired with a Ryzen 3000-series processor.  Of course there are a few feature updates that weren’t addressed, such as that most of the board’s USB 3.x ports are of the Gen1 (5Gb/s) variety when the chipset supports Gen2 for all ports, but we expected a few small sacrifices from a sub-$300 X570 board. And sub-$300 it barely is, at $299.99.

ASRock X570 Taichi Specs

Socket

AM4

Chipset

AMD X570

Form Factor

ATX

Voltage Regulator

14 Phases

Video Ports

HDMI

USB Ports

10Gbps: (1) Type-C, (1) Type A
5Gb/s: (6) Type A

Network Jacks

Gigabit Ethernet, (2) Wi-Fi Antenna

Audio Jacks

(5) Analog, (1) Digital Out

Legacy Ports/Jacks

(1) PS/2

Other Ports/Jack

BIOS Flashback, CLR_CMOS Buttons

PCIe x16

(3) v3.0 (x16/x0/x4*, x8/x8/x4*)
(*Excluded by 3rd M.2)

PCIe x8

PCIe x4

PCIe x1

(2) v4.0

CrossFire/SLI

3x / 2x

DIMM slots

(4) DDR4

M.2 slots

(2) PCIe 4.0 x4 / SATA, (1) PCIe 4.0 x4
(3rd M.2 consumes four-lane x16 slot)

U.2 Ports

SATA Ports

(8) 6Gb/s

USB Headers

(1) v3.x Gen2, (1) v3.x Gen1, (2) v2.0, (1) AMD fan LED

Fan Headers

(6) 4-Pin, (1) AMD LED fan

Legacy Interfaces

System (Beep-code) Speaker

Other Interfaces

FP-Audio, Thunderbolt AIC, ARGB LED, RGB LED

Diagnostics Panel

Numeric

Internal Button/Switch

Power, Reset / ✗

SATA Controllers

Integrated (0/1/10)

Ethernet Controllers

WGI211AT PCIe

Wi-Fi / Bluetooth

Intel AX200 802.11ax (2.4 Gb/s) / BT 5.0 Combo

USB Controllers

HD Audio Codec

ALC1220

DDL/DTS Connect

DTS Connect

Warranty

3 Years


The X570 PCH’s expanded I/O means that slot layout is one of very few things that the new X570 Taichi has in common with its X470 predecessor’s design. Most of the previous board’s added features have been upgraded on the new model, such as Intel’s 2.4Gb/s AX200 module, bringing the new board up to 802.11ax / Wi-Fi 6 speed. The I/O panel adds firmware update and CLR_CMOS buttons, the third PCIe slot gets added metal reinforcement, and all slots support PCIe 4.0 mode.

Total I/O panel USB count is eight, but only two of those (a Type A and a Type-C) support 10Gbps transfers while the remainder have only 5Gbps. This, it turns out, is a matter of cost rather than platform capability, as both the CPU and PCH support both standards. The single PS/2, HDMI, Gigabit Ethernet, and S/PDIF ports remain, and the Ethernet and Audio connections are still fed from the same i211AT controller and ALC1220 codec, so that the extra buttons and newer Wi-Fi appear to be the only I/O updates.

One of the newer features that isn’t completely obscured by sinks and shrouds are the fourteen chokes, for which circuitry leads to fourteen 50A MOSFETs which are paired up using phase doublers rather than the teamed design of its predecessor’s sixteen 30A phases. More power and smoother delivery are a given, and the firm also claims a reduction in overall temperature as well. All this despite the lower phase count, which means ASRock picked quality over quantity.

Surrounding a shroud that covers the X570 Taichi’s lower half are front-panel audio, Thunderbolt add-in card, TPM, addressable and classic RGB, one (of six) four-pin fan headers, PC speaker and legacy power LED, two dual-port USB 2.0, Intel-style front panel button/LED, eight SATA, USB 3 Gen2, AMD LED fan and fan LED, and a second (of the six) four pin fan headers. The Gen2 USB header supports 10Gb/s front panel port, and its complimentary two-port USB 3 Gen1 header is located further up the front edge. A two-digit diagnostics code display, power, reset, and CLR_CMOS buttons border the main front-panel header.

Peeling off the cover (after removing three socket-head screws), we find that the X570 Taichi supports three M.2 drives rather than its ancestor’s two. The third slot even has the space for those unusually-long 22110 drives, but alas its interface is shared with the third PCIe slot, so that they can’t be used simultaneously.  Both PCIe x1 slots are open-ended to support longer cards (such as x4), but using the cover precludes that option as well. The PCH fan is factory configured to run at full speed, and even though it’s fairly quiet for its size, its nearly 6000 RPM makes the PC sound like it has a GeForce 2 constantly running Quake 3.

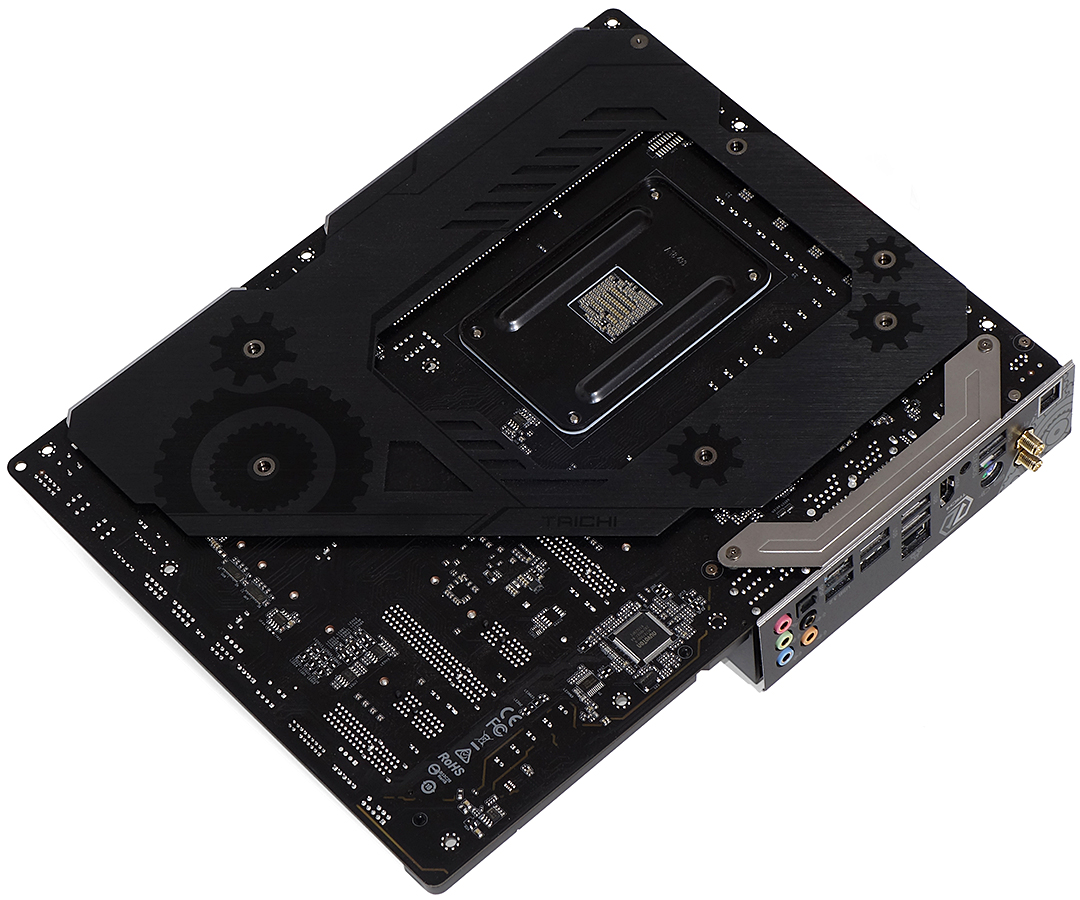

The back of the X570 Taichi is covered in black-anodized aluminum, which provides the builder the feel of increased quality even though we can’t think of any practical reason for that cover to be there once the PC has been assembled. It adds rigidity, but so does the case’s motherboard tray.

If similarities between the decorative gear on the top shroud to the techno-aesthetic reel-covers of late-80’s audio cassette decks didn’t catch the attention of older readers, perhaps the inclusion of a postcard will. Now where did I put those 35-cent stamps?

The rest of the support kit includes hardware and software manuals, a driver and application DVD, a classic high-bandwidth SLI bridge, a nicely-designed case-top Wi-Fi antenna with adhesive base, a 2mm hex socket screwdriver for the top shroud, four SATA cables, and a case badge.

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content
