Corsair RM750x PSU Review: Improving On A Classic

Teardown & Component Analysis

Before proceeding with this page we encourage you to a look at our PSUs 101 article, which provides valuable information about PSUs and their operation, allowing you to better understand the components we're about to discuss.

General Data
Manufacturer (OEM)CWT
Primary Side

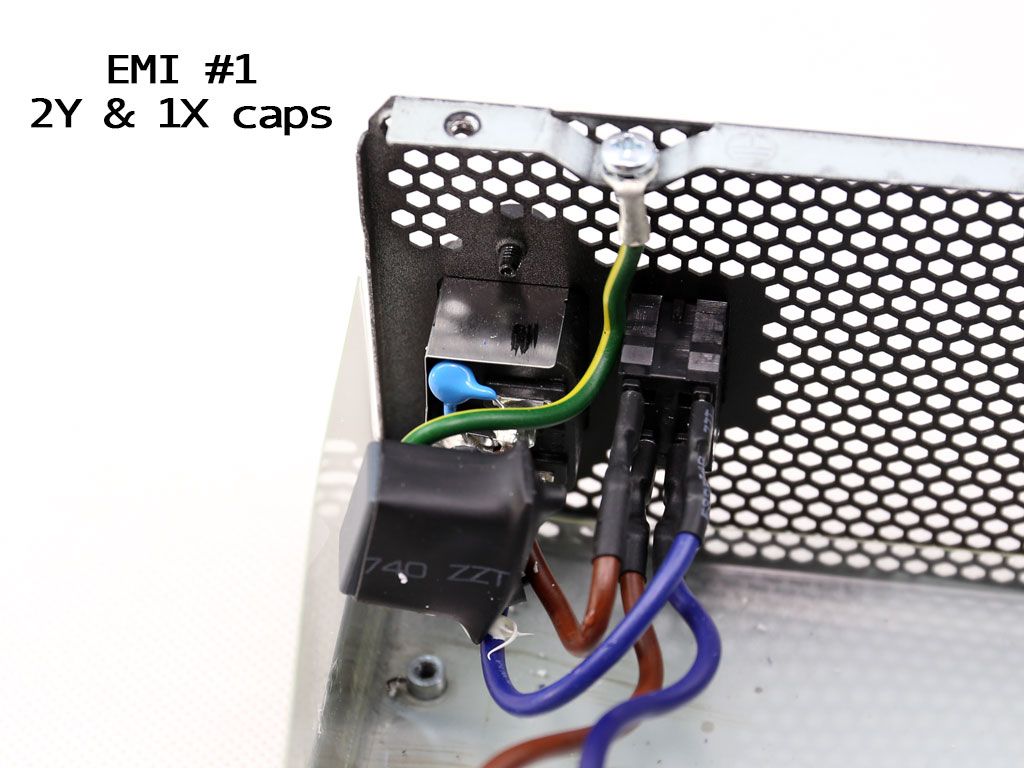

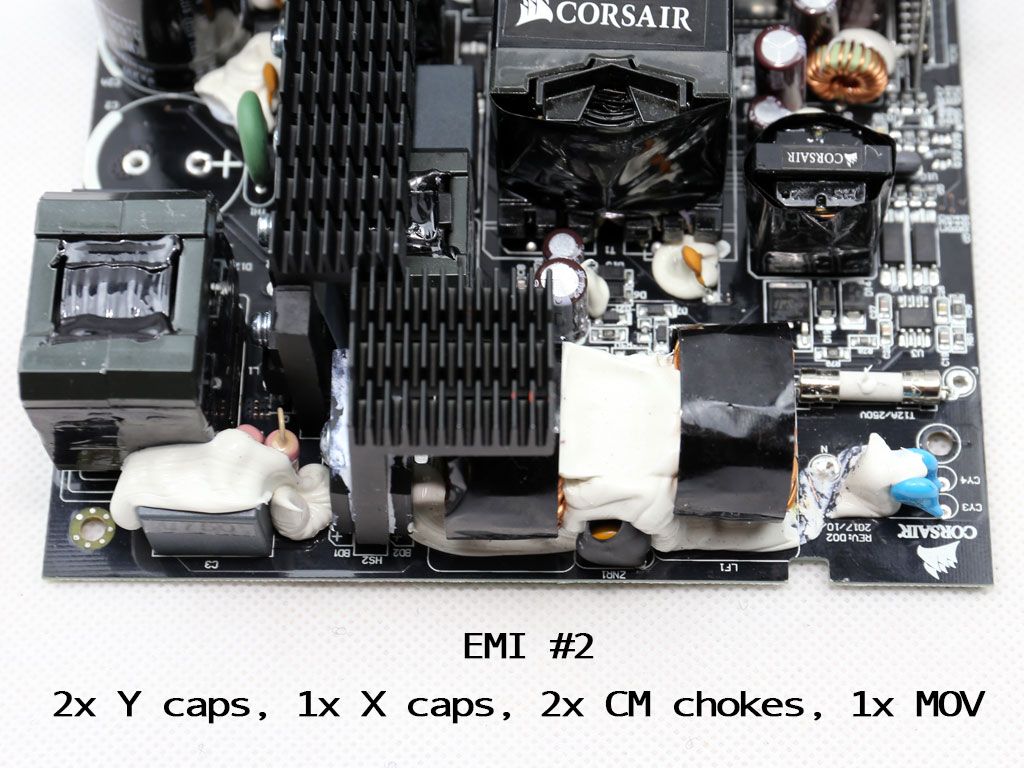

Transient Filter4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush ProtectionNTC thermistor & relay

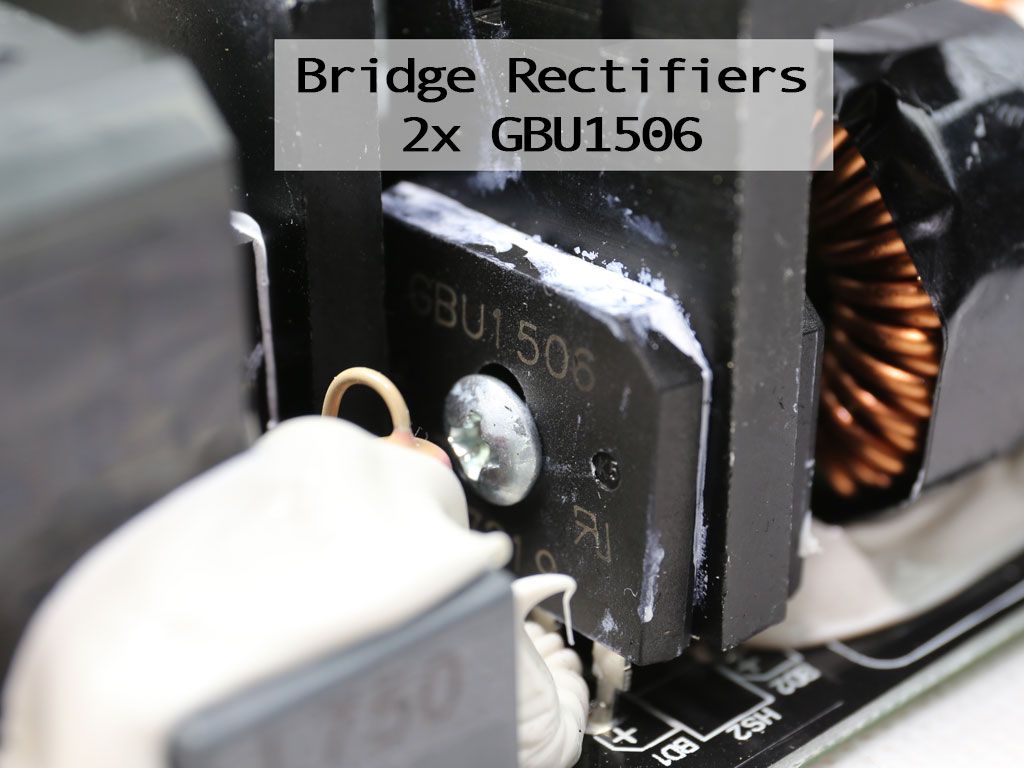

Bridge Rectifier(s)2x GBU1506 (600V, 15A @ 100°C)

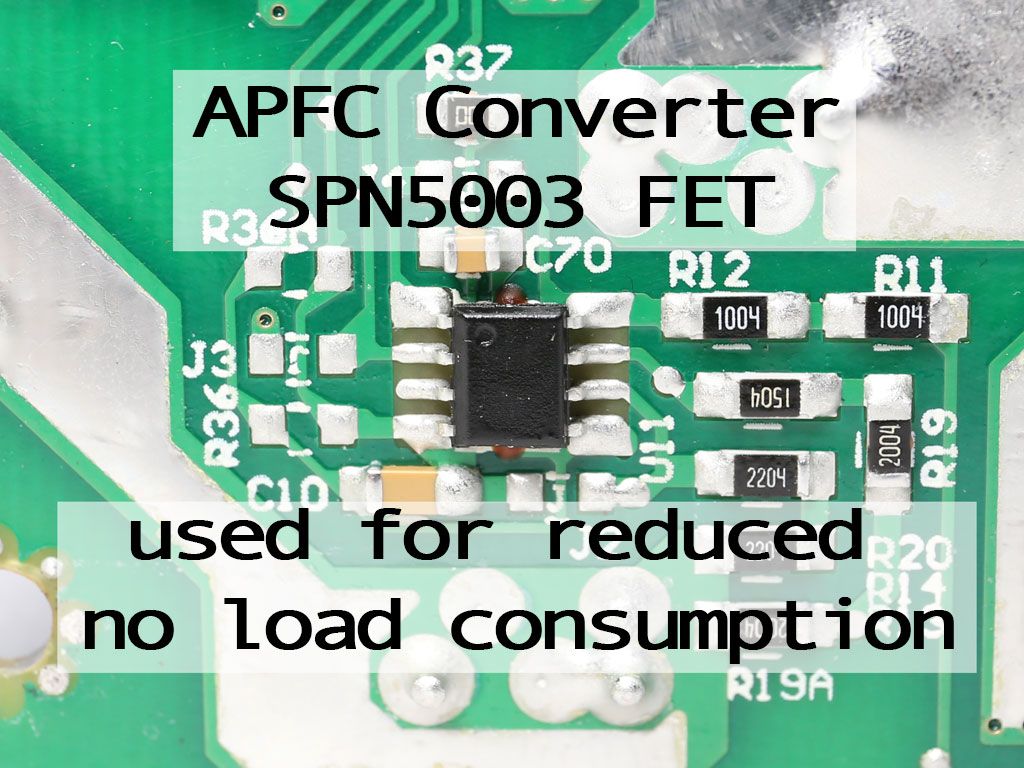

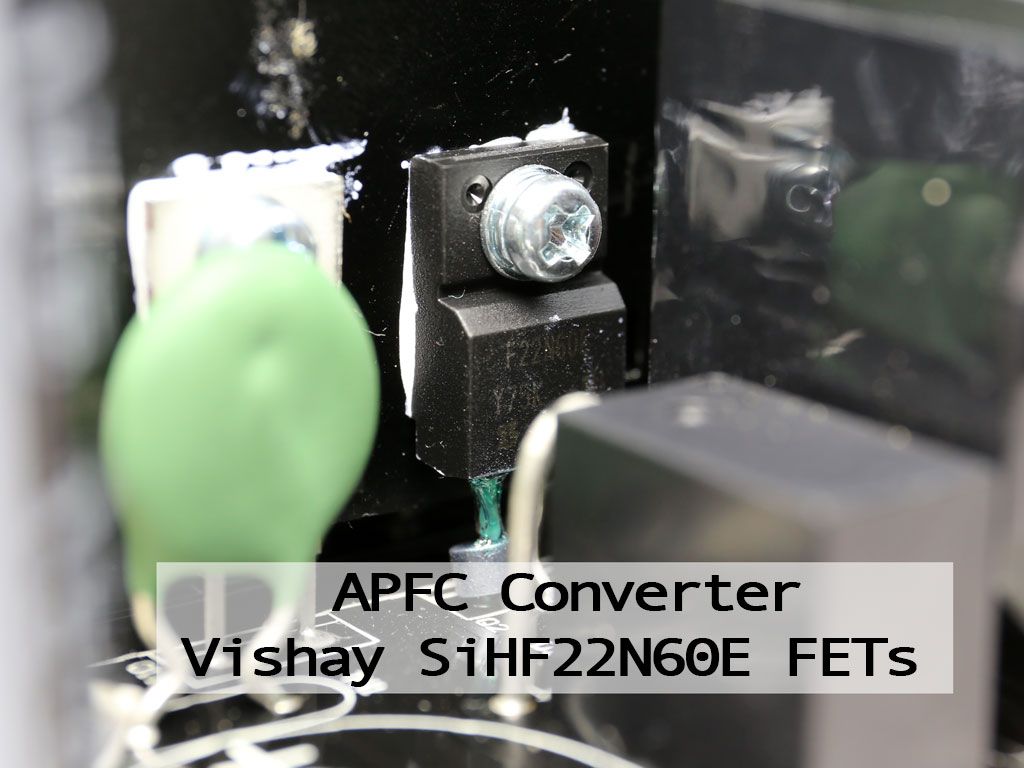

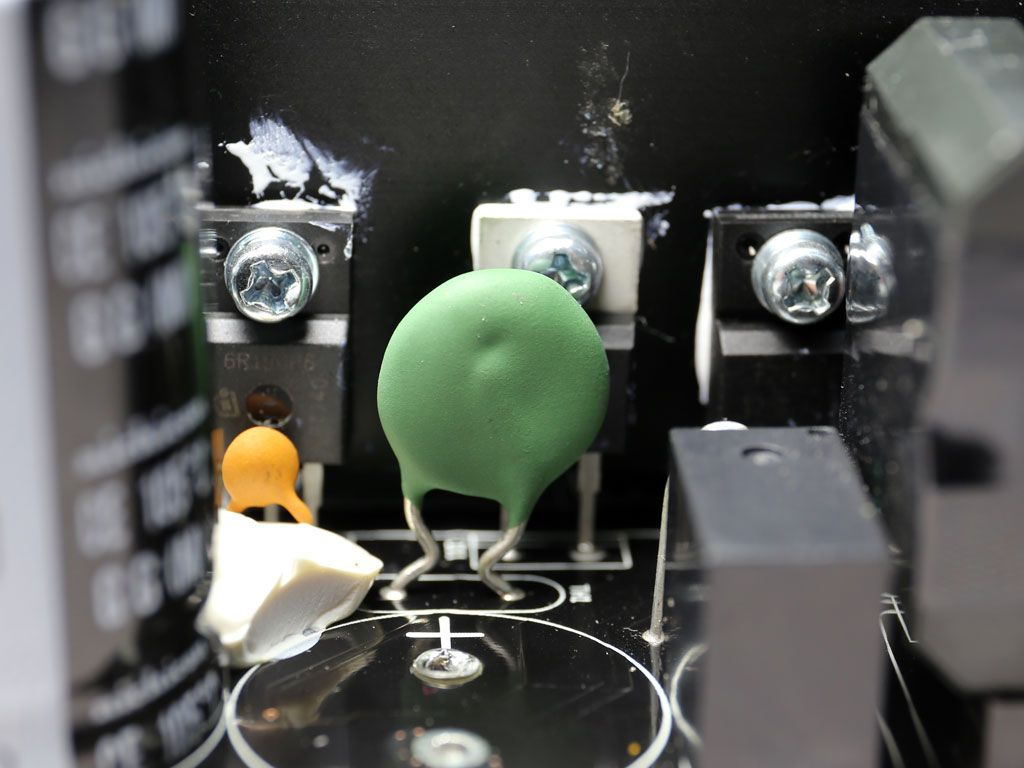

APFC MOSFETs2x Vishay SiHF22N60E (650V, 13A @ 100°C, 0.18Ω) 1x SPN5003 FET (for reduced no-load consumption)

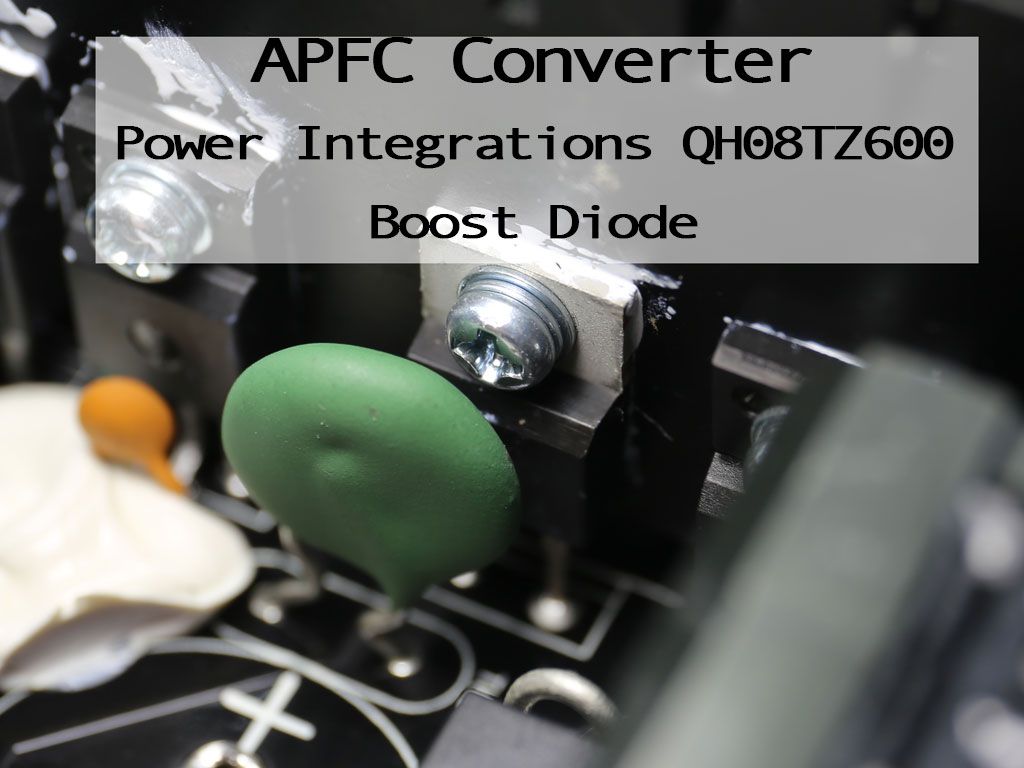

APFC Boost Diode1x Power Integrations QH08TZ600 (600V, 8A @ 150°C)

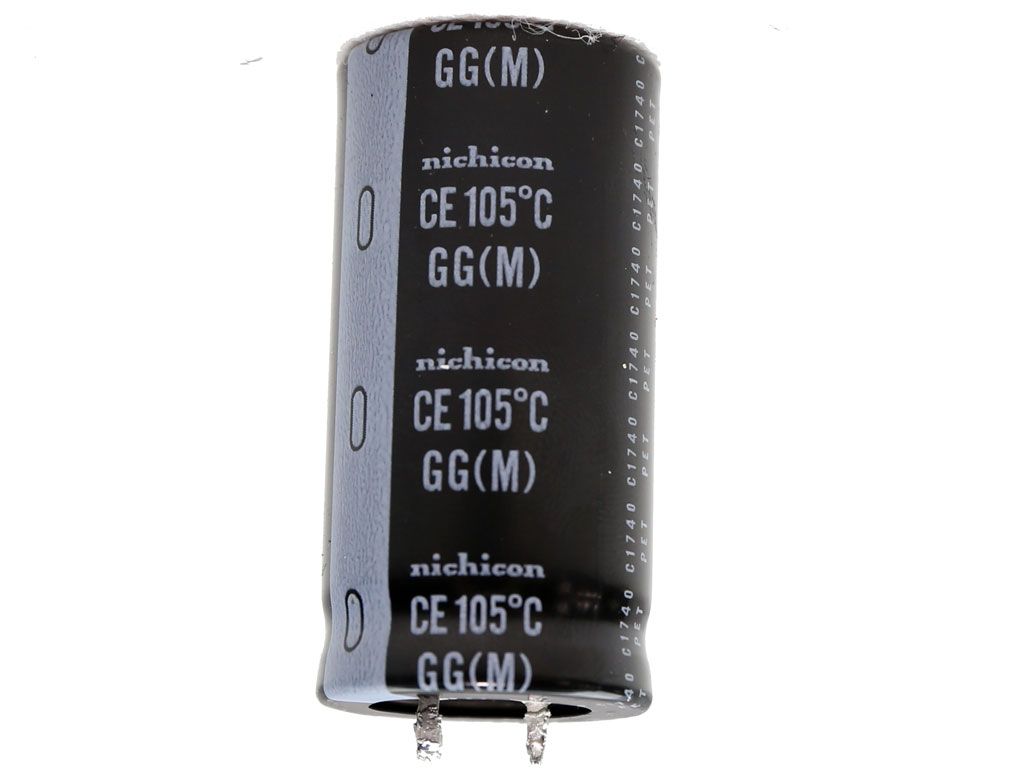

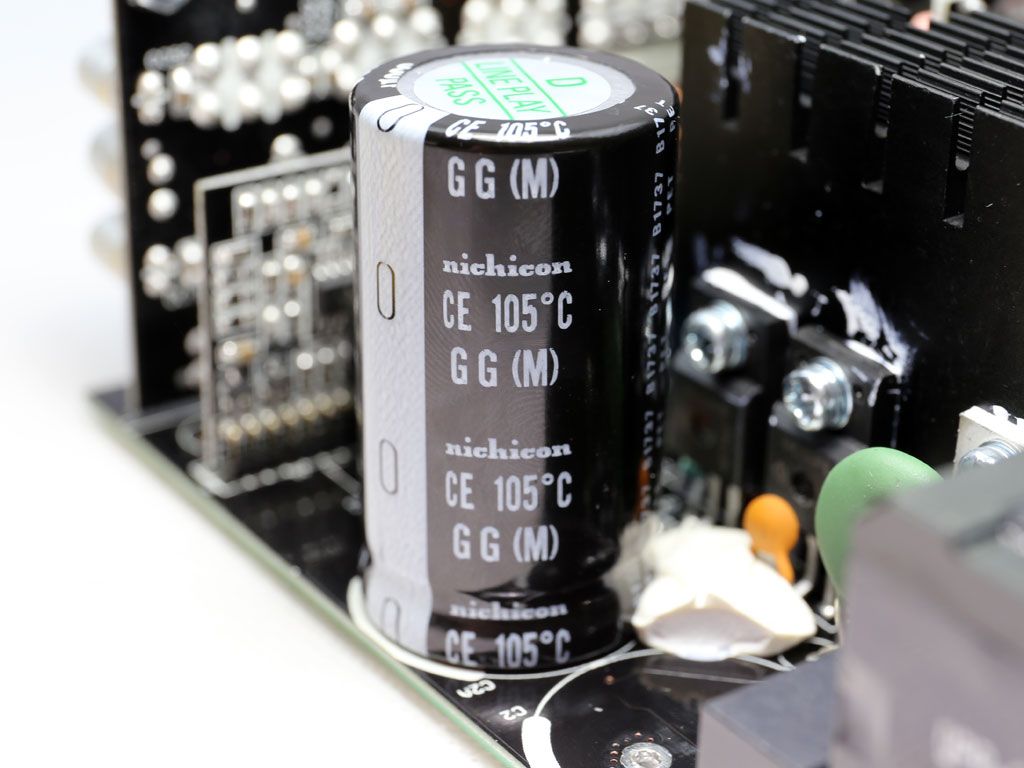

Hold-up Cap(s)2x Nichicon (400V, 1x 470uF, 1x 390uF, 2000h @ 105°C, GG)

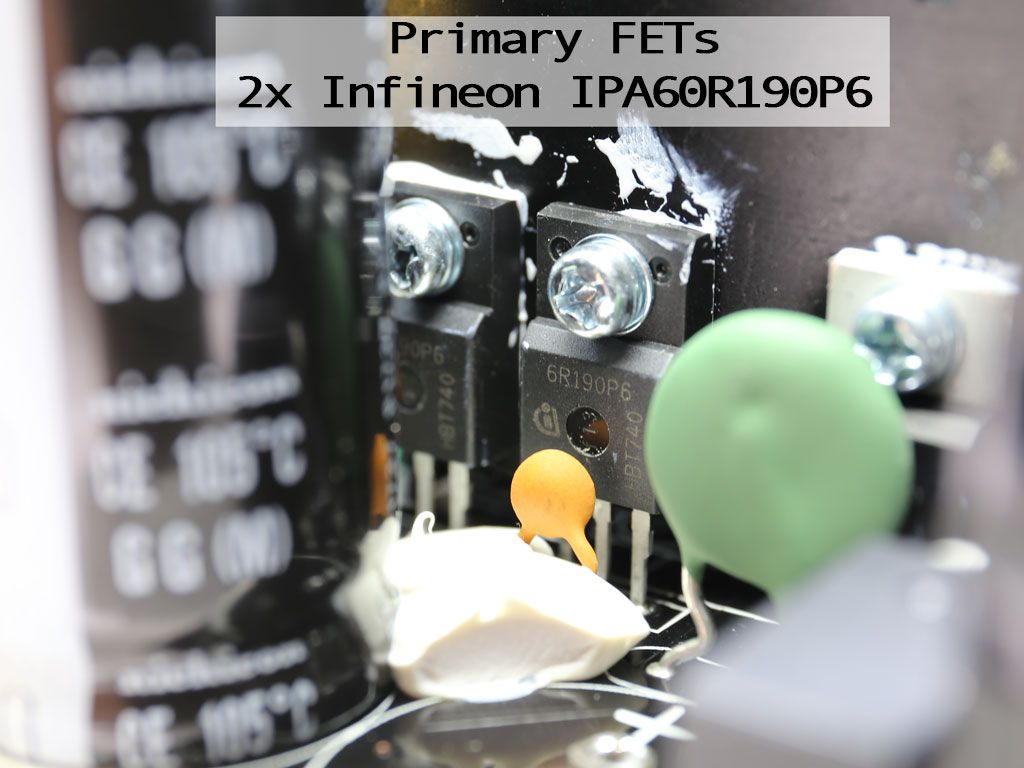

Main Switchers2x Infineon IPA60R190P6  (650V, 12.7A @ 100°C, 0.190Ω)

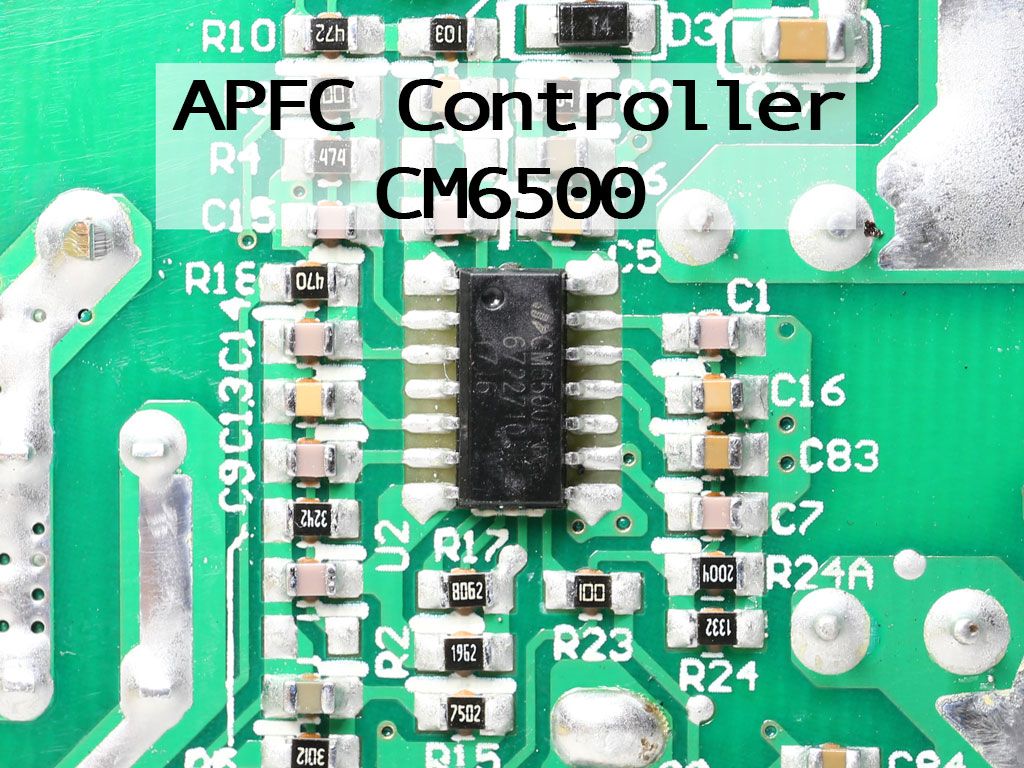

APFC ControllerChampion CM6500UNX

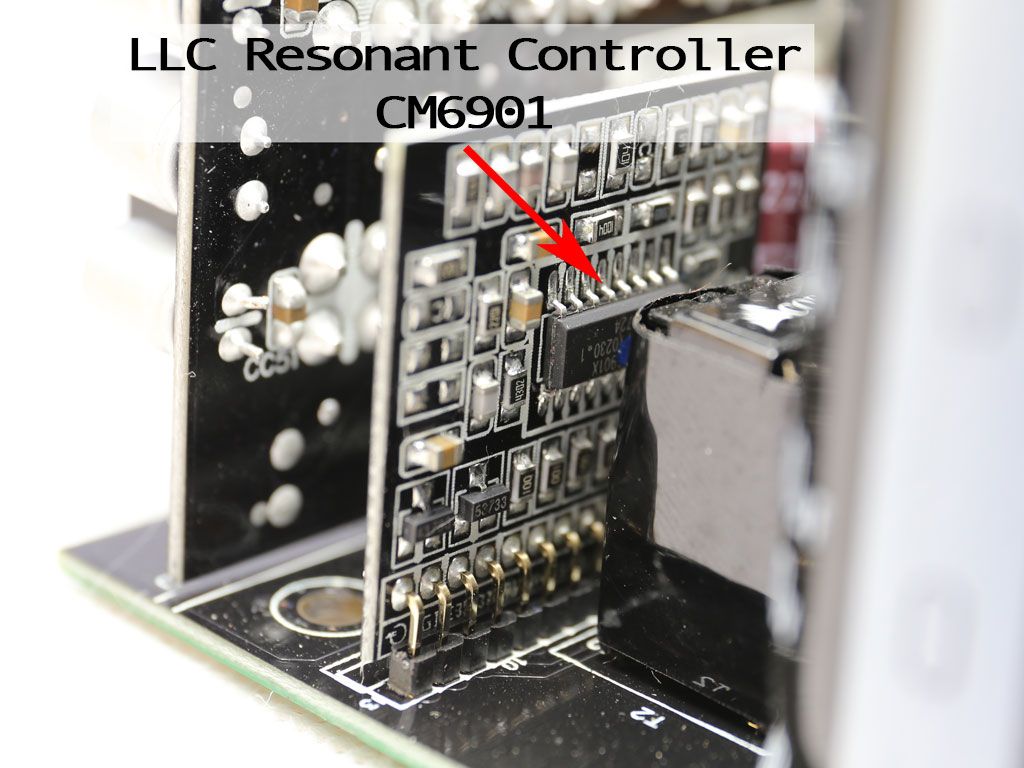

Switching ControllerChampion CM6901X

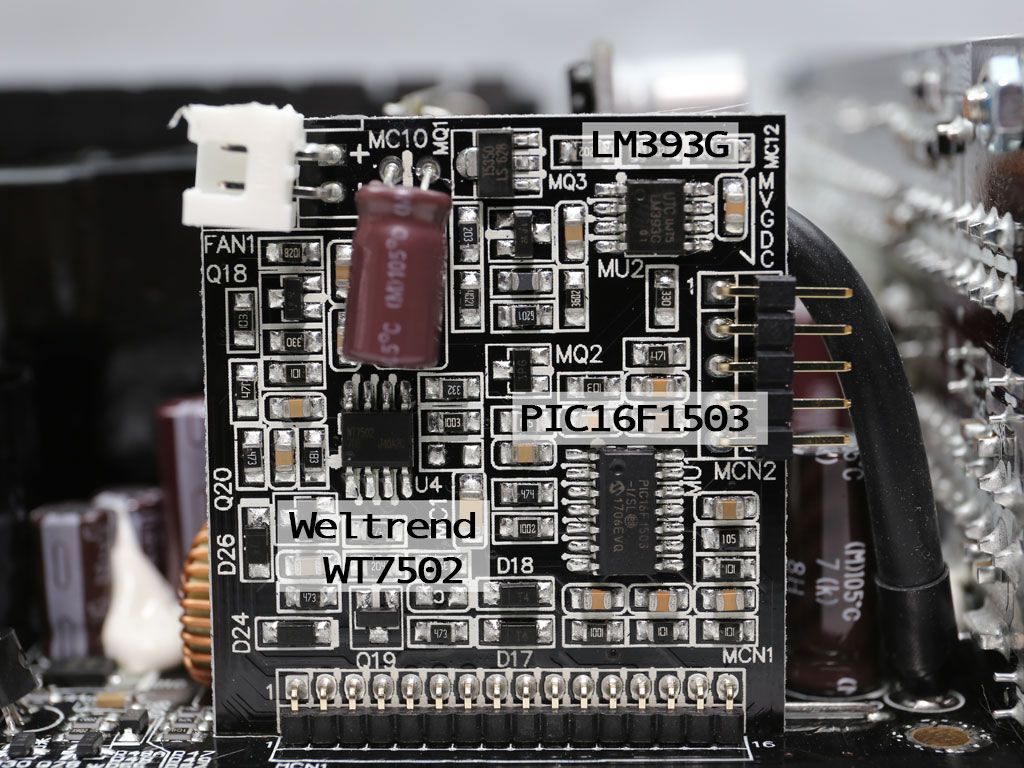

Fan ControllerPIC16F1503
TopologyPrimary side: Half-bridge & LLC resonant controller Secondary side: Synchronous rectification & DC-DC converters
Secondary Side

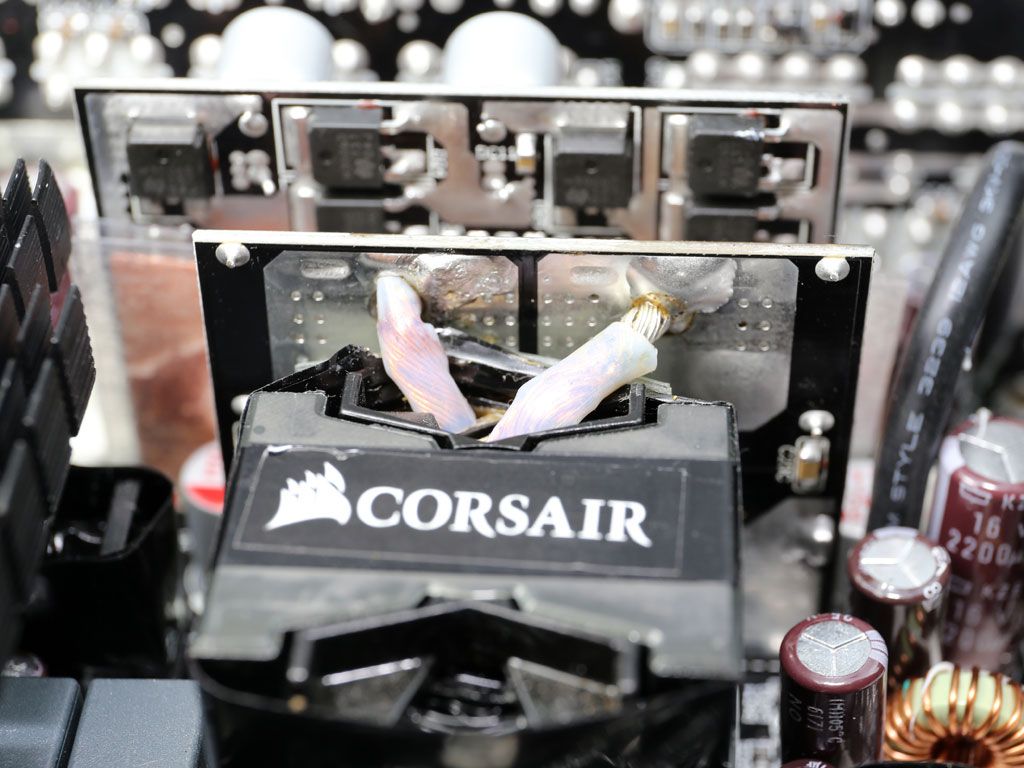

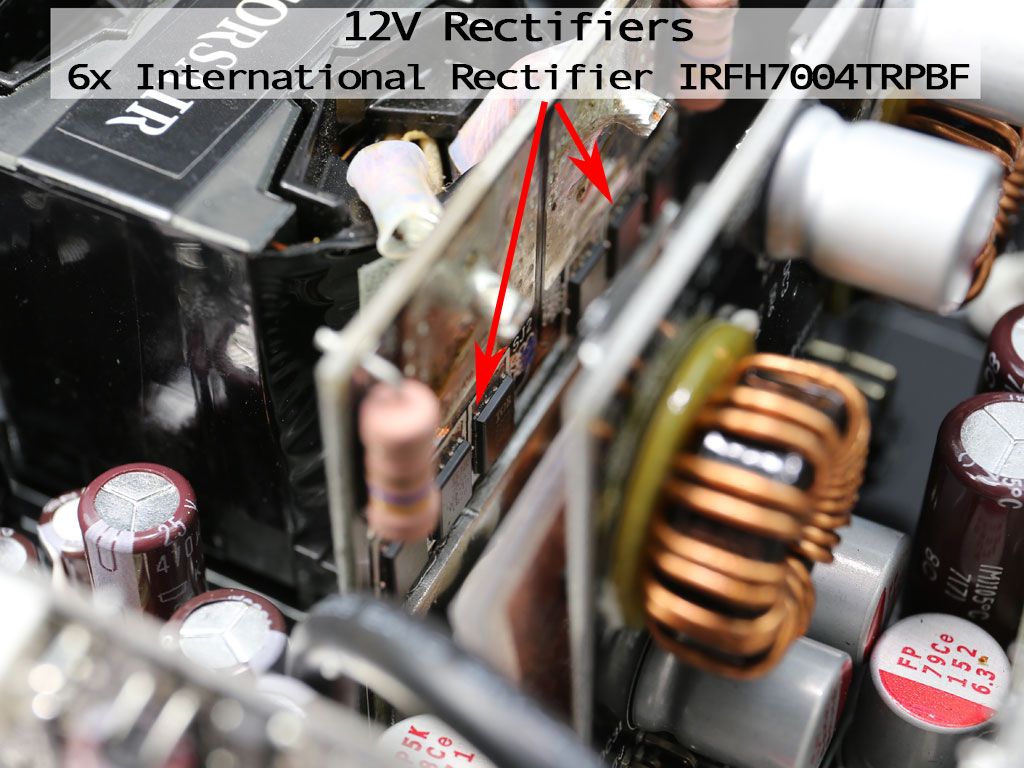

+12V MOSFETs6x International Rectifier IRFH7004TRPBF (40V, 164A @ 100°C, 1.4mΩ)

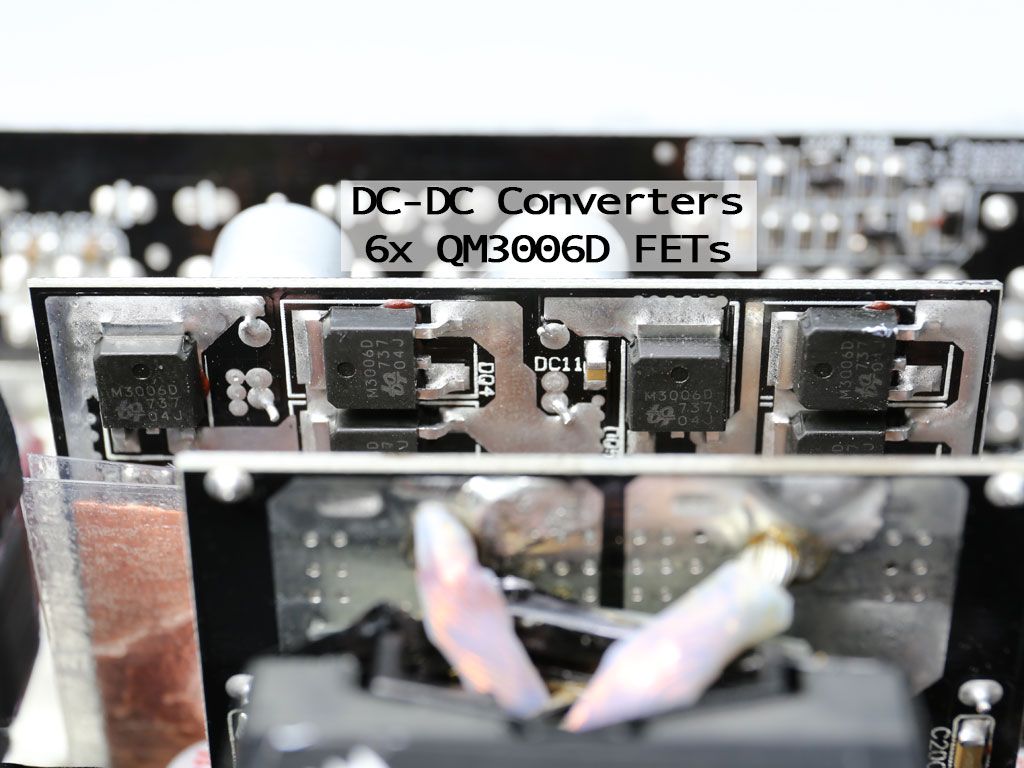

5V & 3.3VDC-DC converters: 6x QM3006D (30V, 57A @ 100°C, 5.5mΩ) PWM controller: ANPEC APW7159

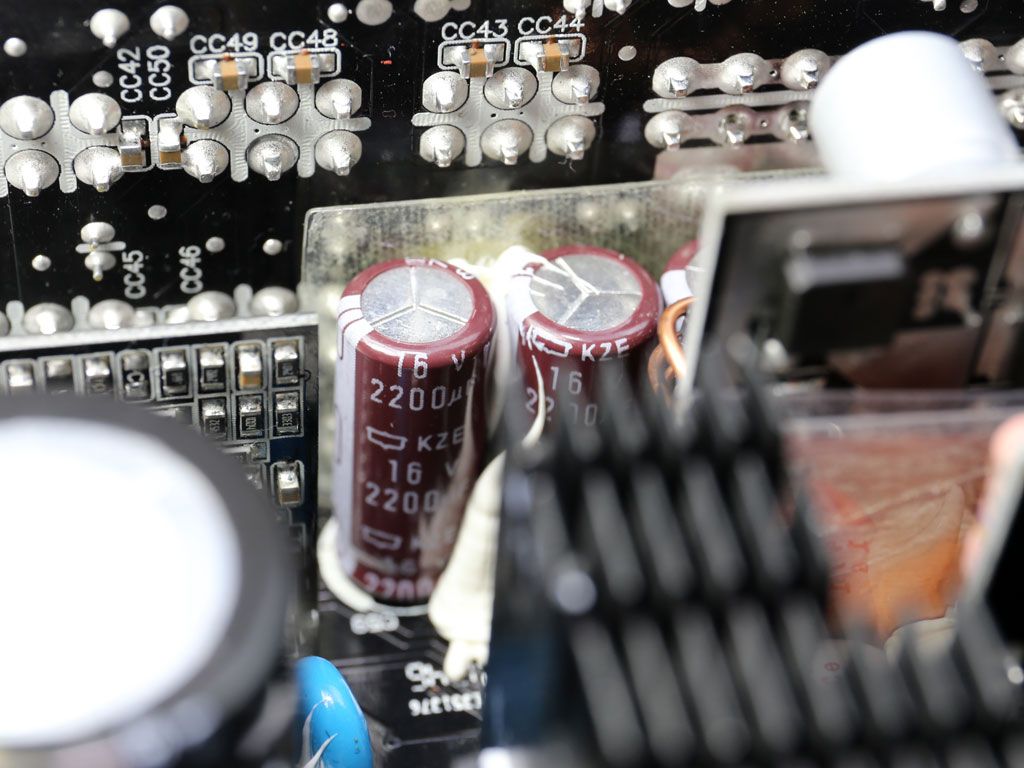

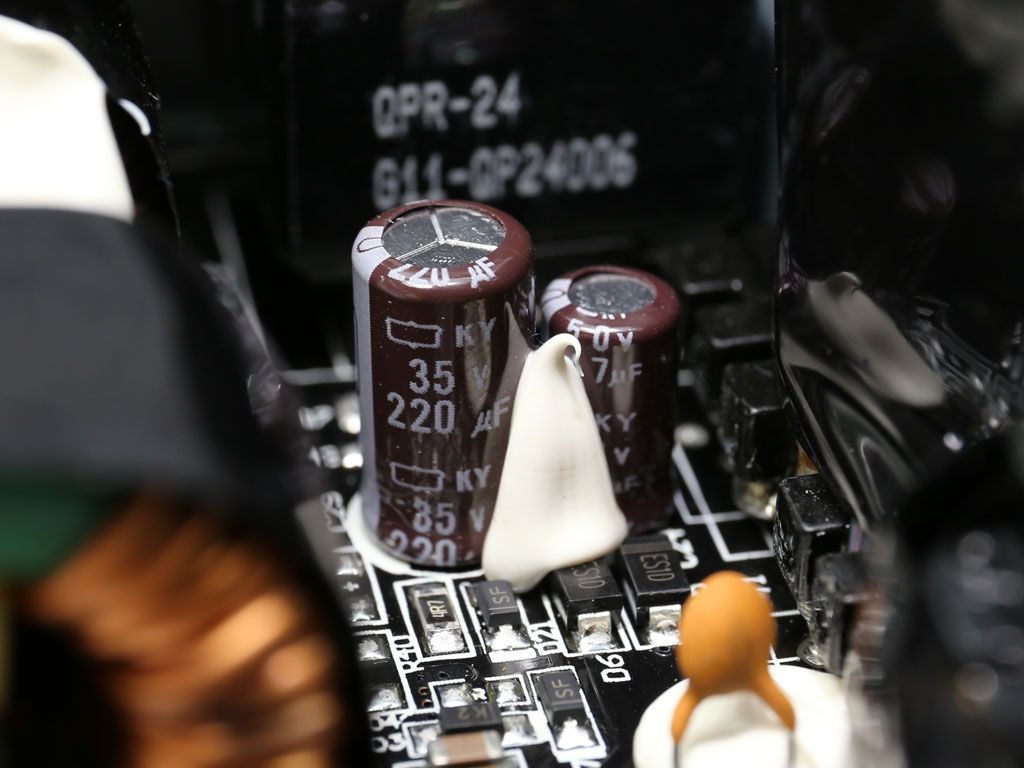

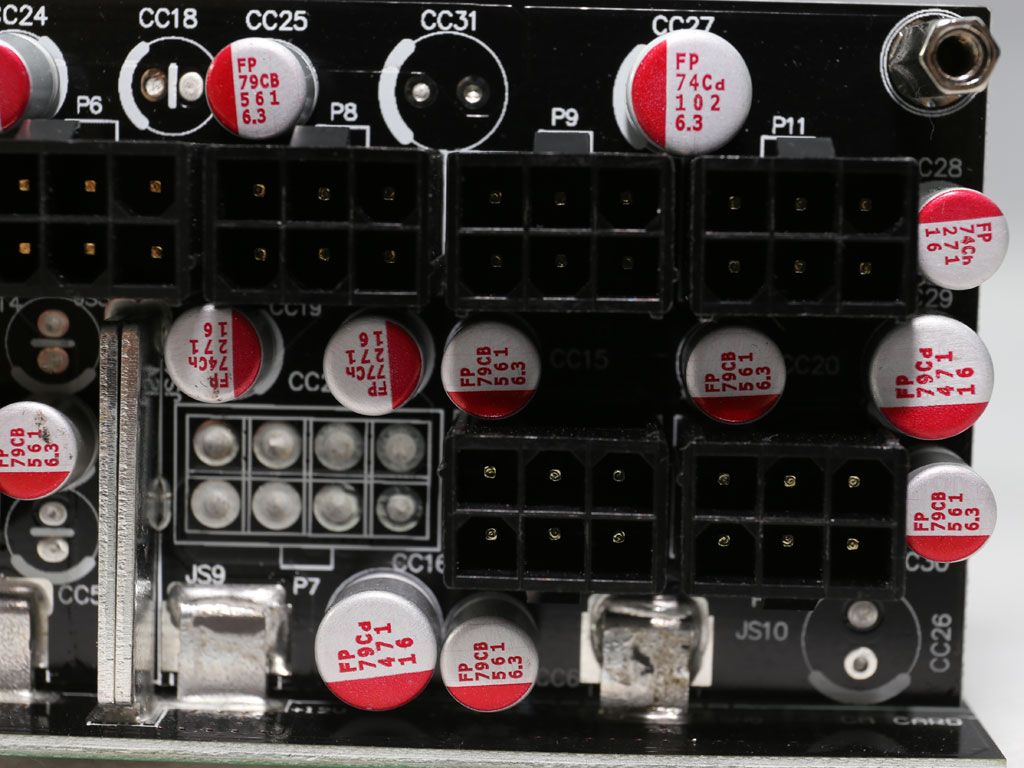

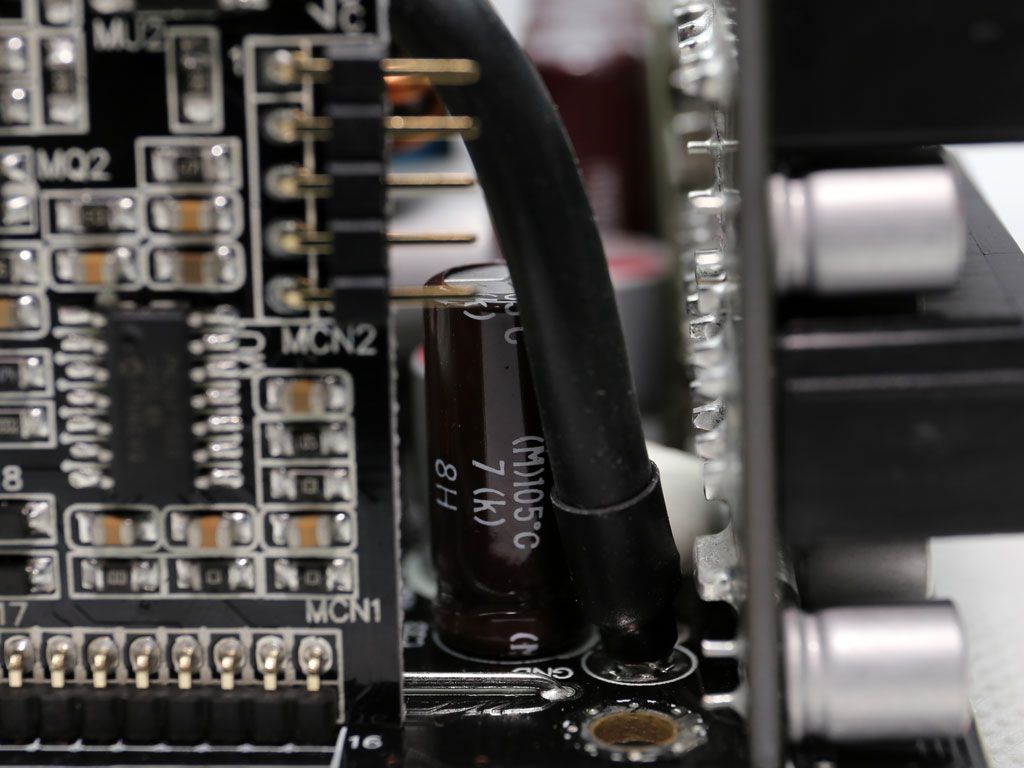

Filtering CapacitorsElectrolytics: Nippon Chemi-Con (1-5000 @ 105°C, KZE), Nippon Chemi-Con (4-10,000 @ 105°C, KY) Polymers: FPCAP
Supervisor ICWeltrend WT7502 (OVP, UVP, SCP, PG) & LM393G

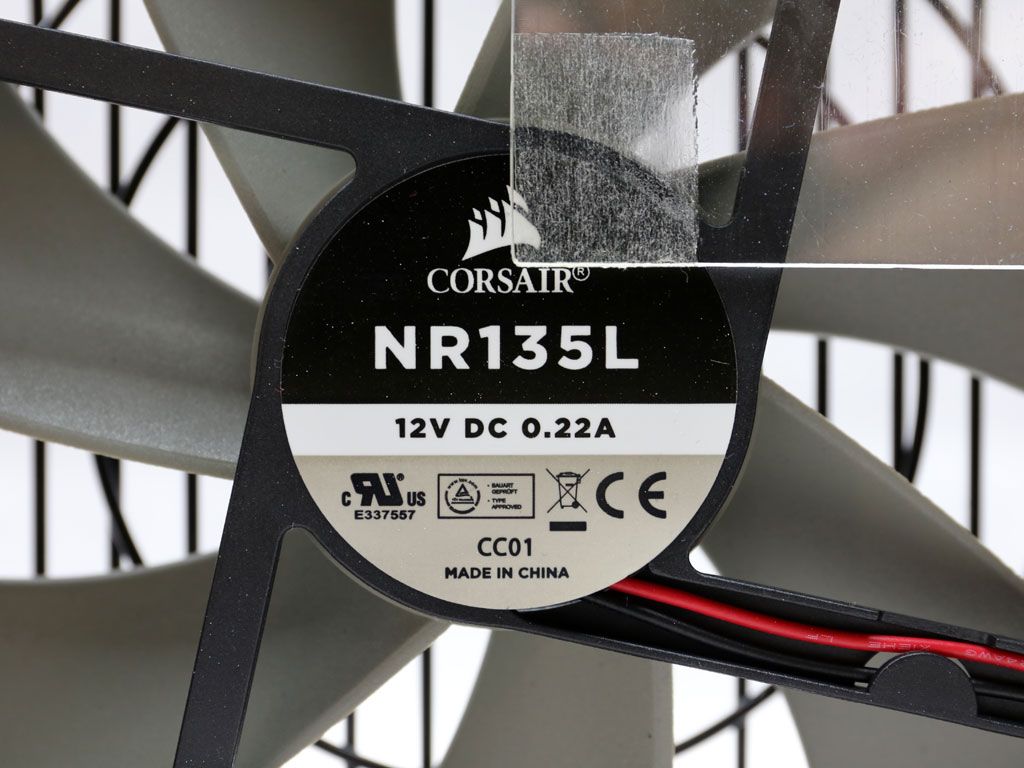

Fan ModelNR135L (12V, 0.22A, rifle bearing)
5VSB Circuit

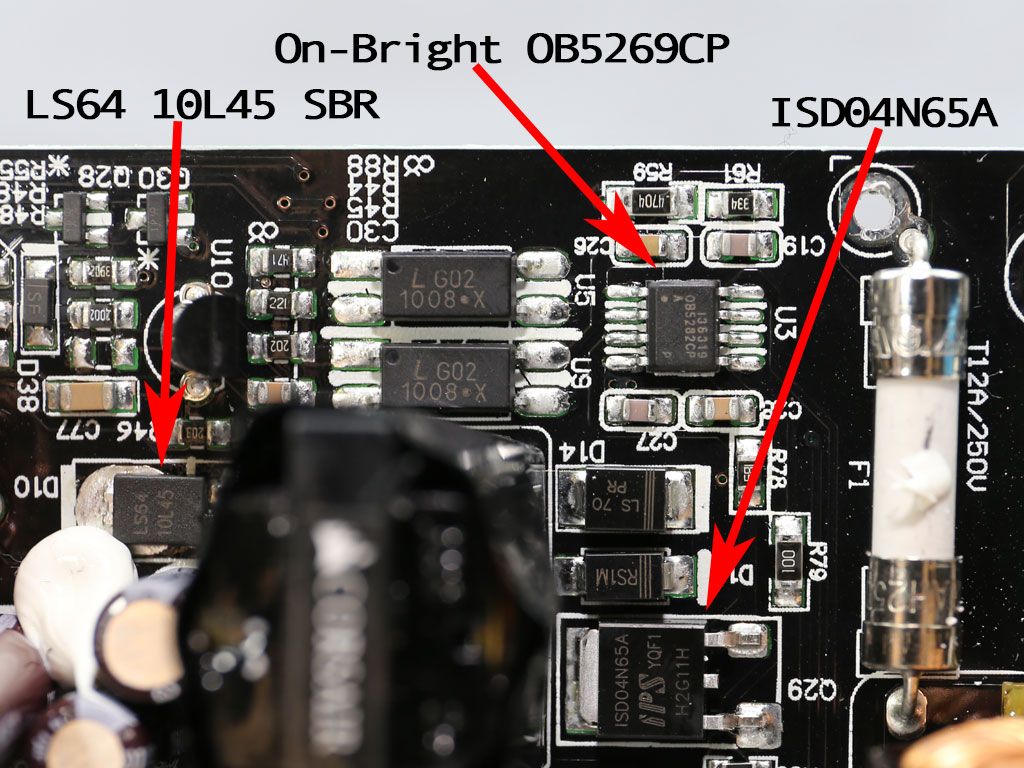

RectifierISD04N65A, QM3004D,  LS64 10L45 SBR

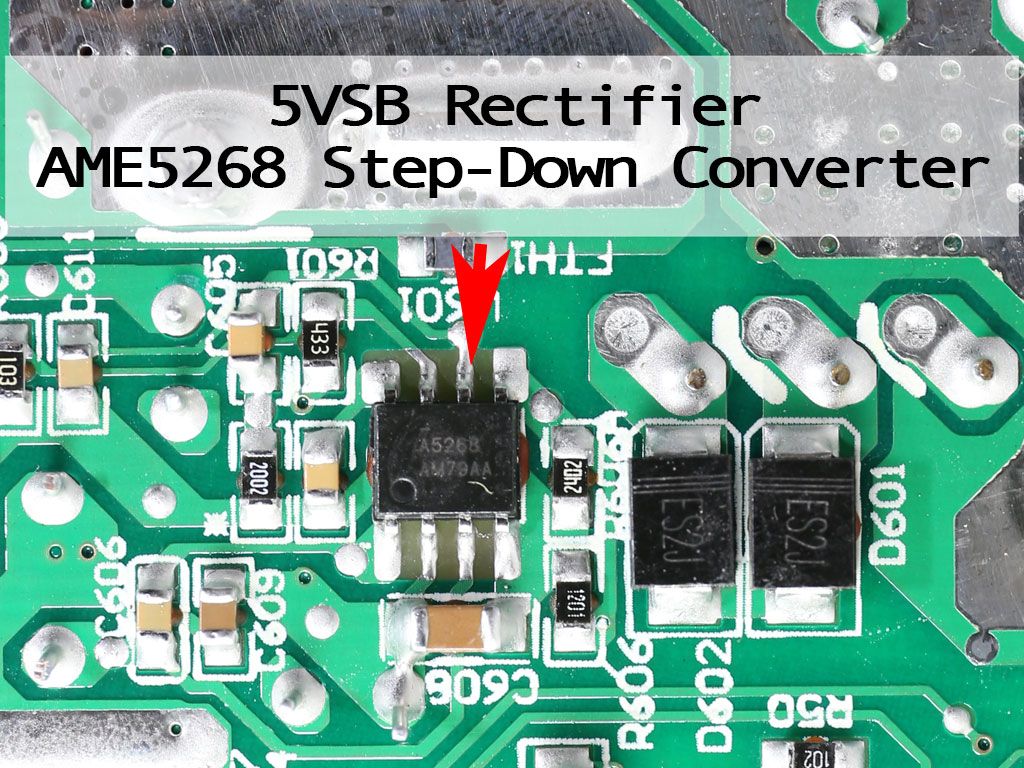

Step-Down ConverterAME5268
Standby PWM ControllerOn-Bright OB5269CP

Compared to the second-gen RM850x, this PSU employs different FETs in its PFC converter and another boost diode. The combined capacity of its bulk caps is lower as well. We didn't spot any differences between its secondary side's major components and the RM850x's, though.

All in all, this platform utilizes a modern design. We like seeing a microcontroller handle the fan's speed profile, facilitating lower noise output.

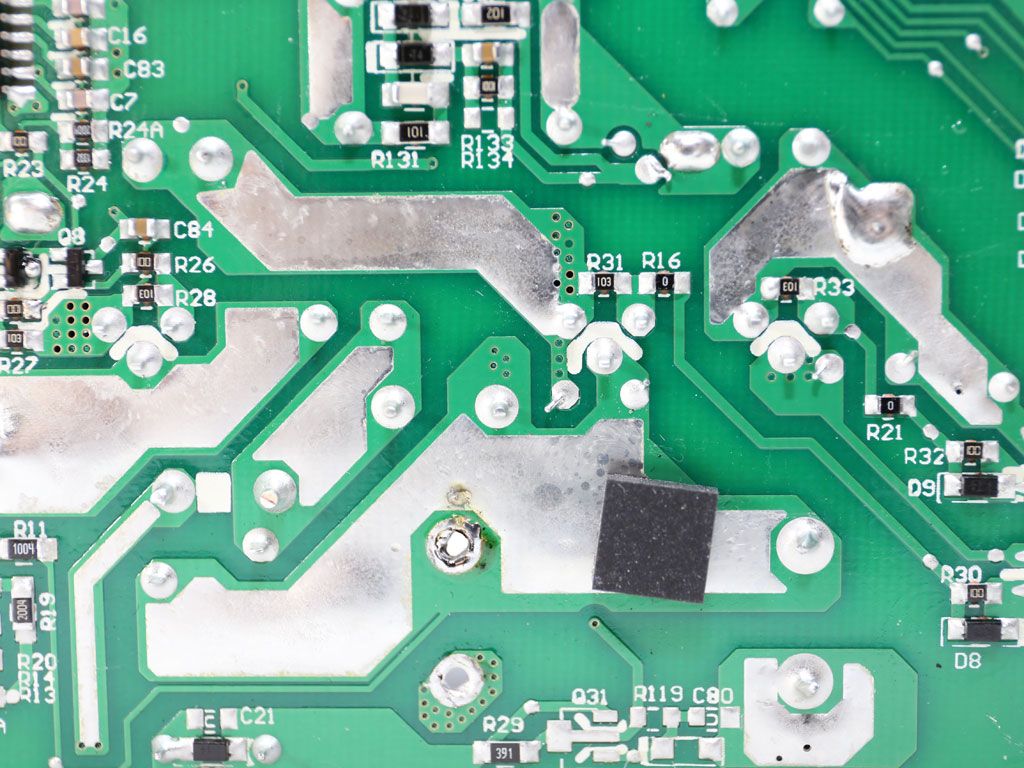

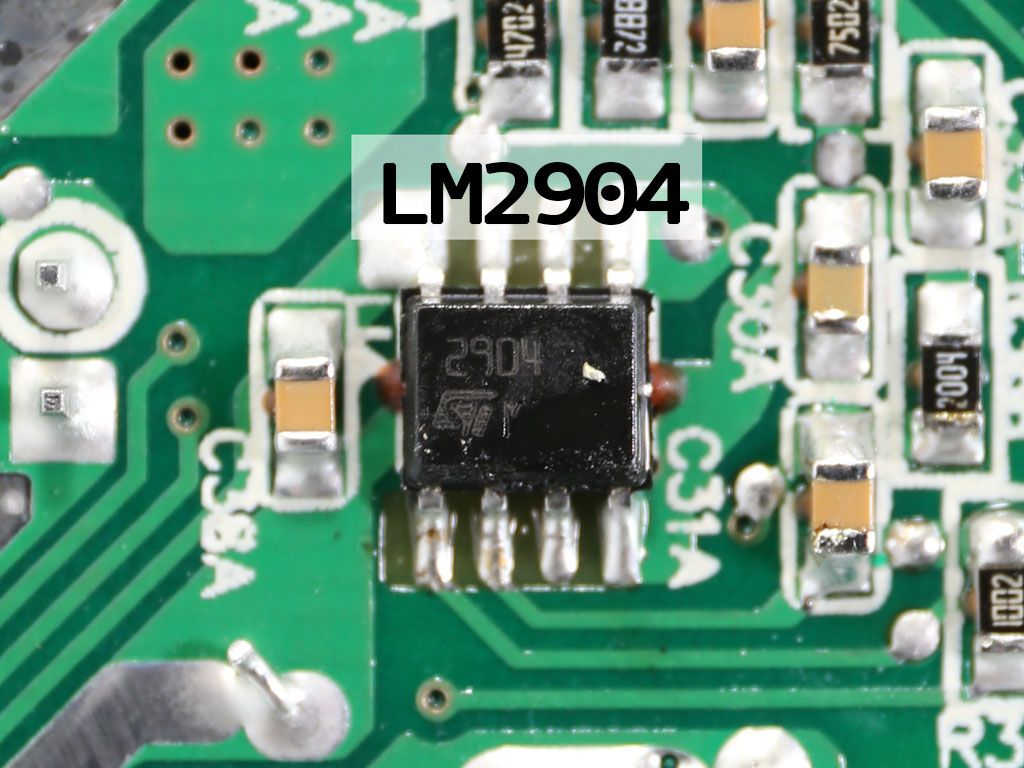

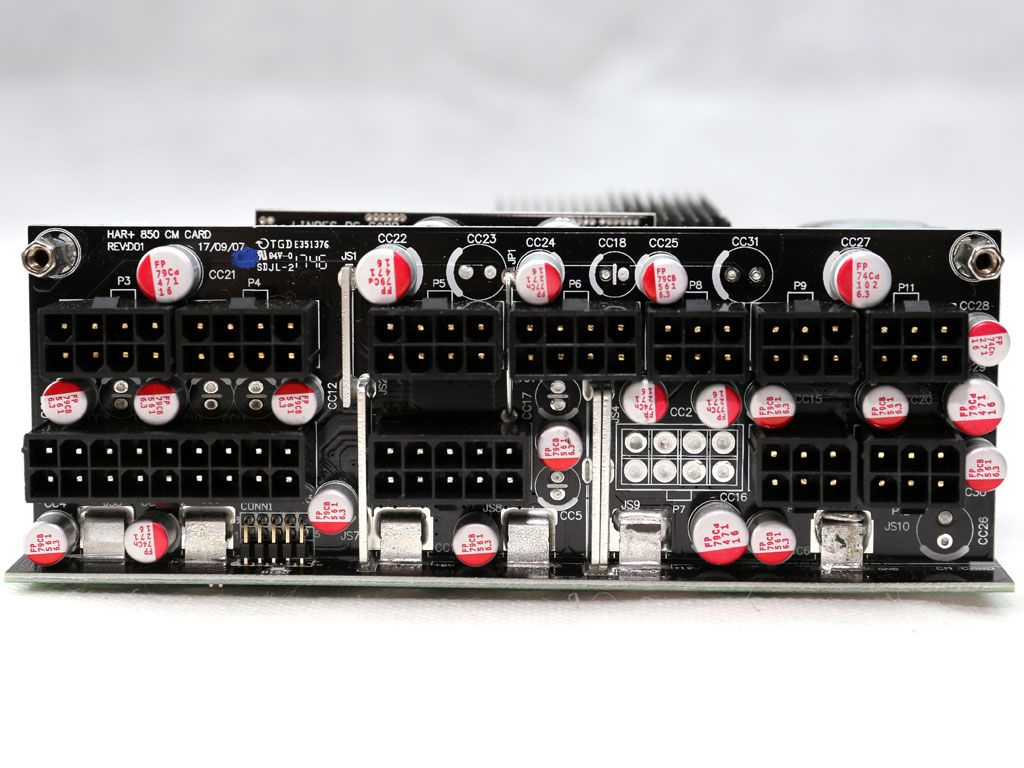

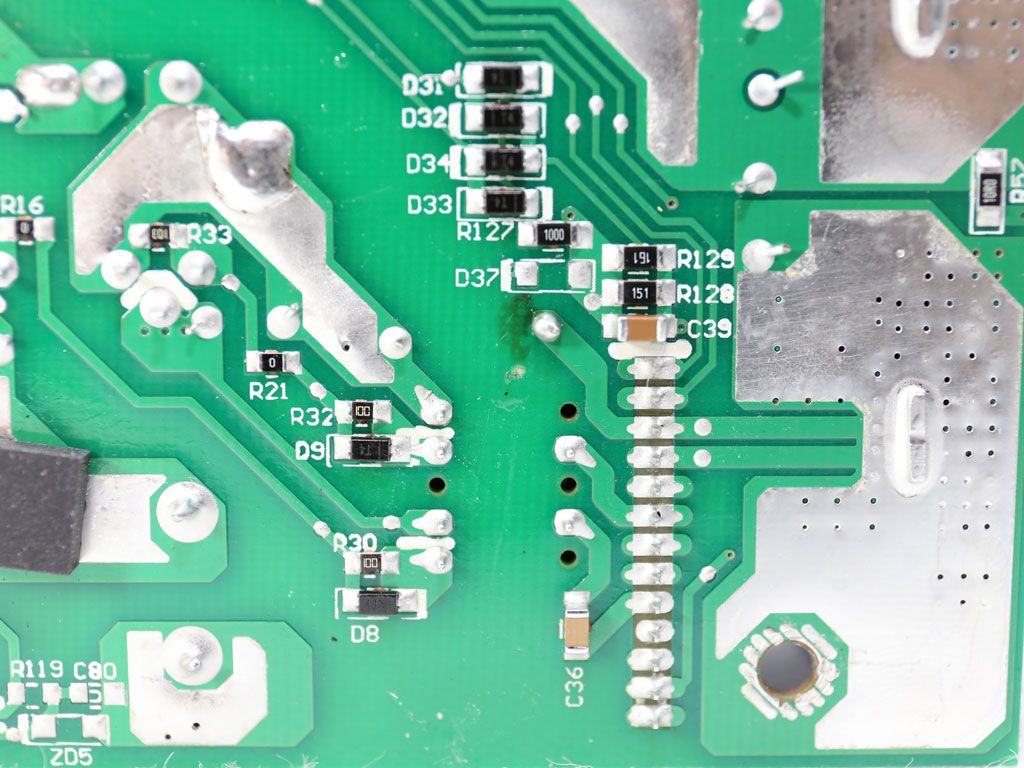

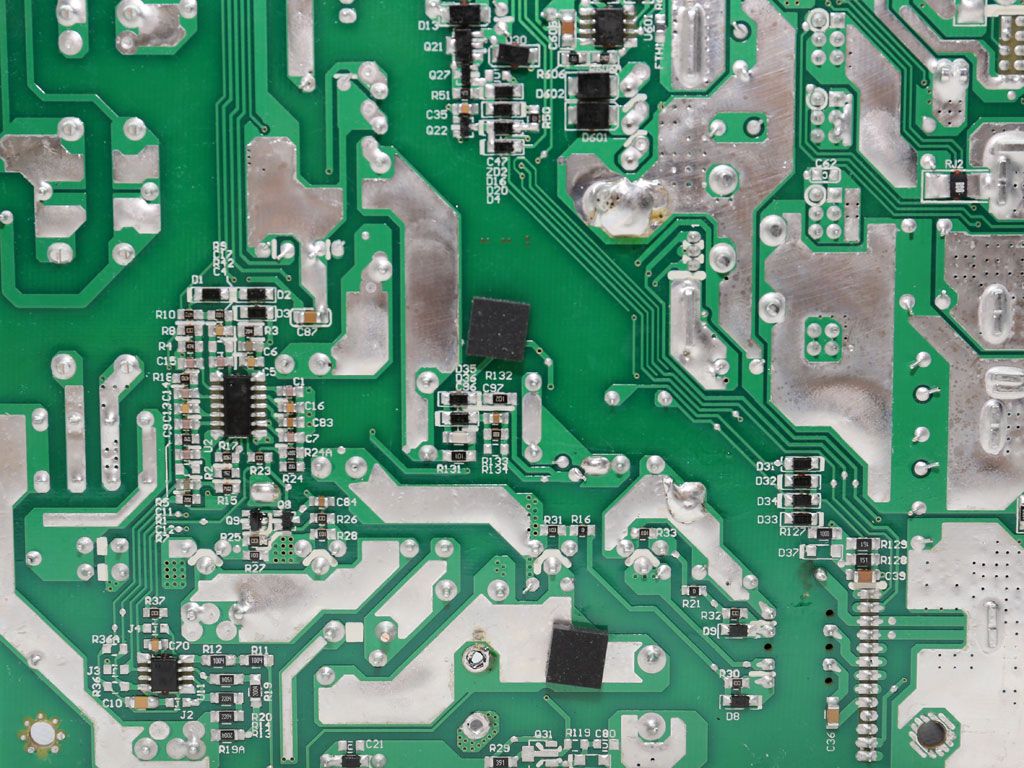

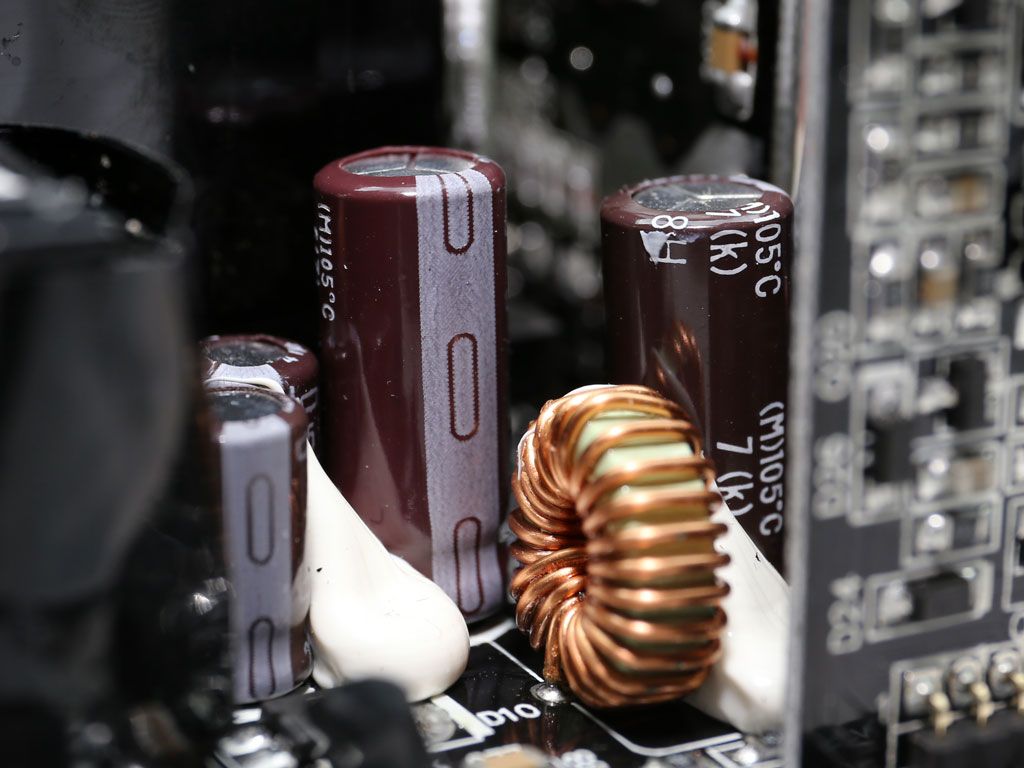

Image 1 of 38

Image 2 of 38

Image 3 of 38

Image 4 of 38

Image 5 of 38

Image 6 of 38

Image 7 of 38

Image 8 of 38

Image 9 of 38

Image 10 of 38

Image 11 of 38

Image 12 of 38

Image 13 of 38

Image 14 of 38

Image 15 of 38

Image 16 of 38

Image 17 of 38

Image 18 of 38

Image 19 of 38

Image 20 of 38

Image 21 of 38

Image 22 of 38

Image 23 of 38

Image 24 of 38

Image 25 of 38

Image 26 of 38

Image 27 of 38

Image 28 of 38

Image 29 of 38

Image 30 of 38

Image 31 of 38

Image 32 of 38

Image 33 of 38

Image 34 of 38

Image 35 of 38

Image 36 of 38

Image 37 of 38

Image 38 of 38

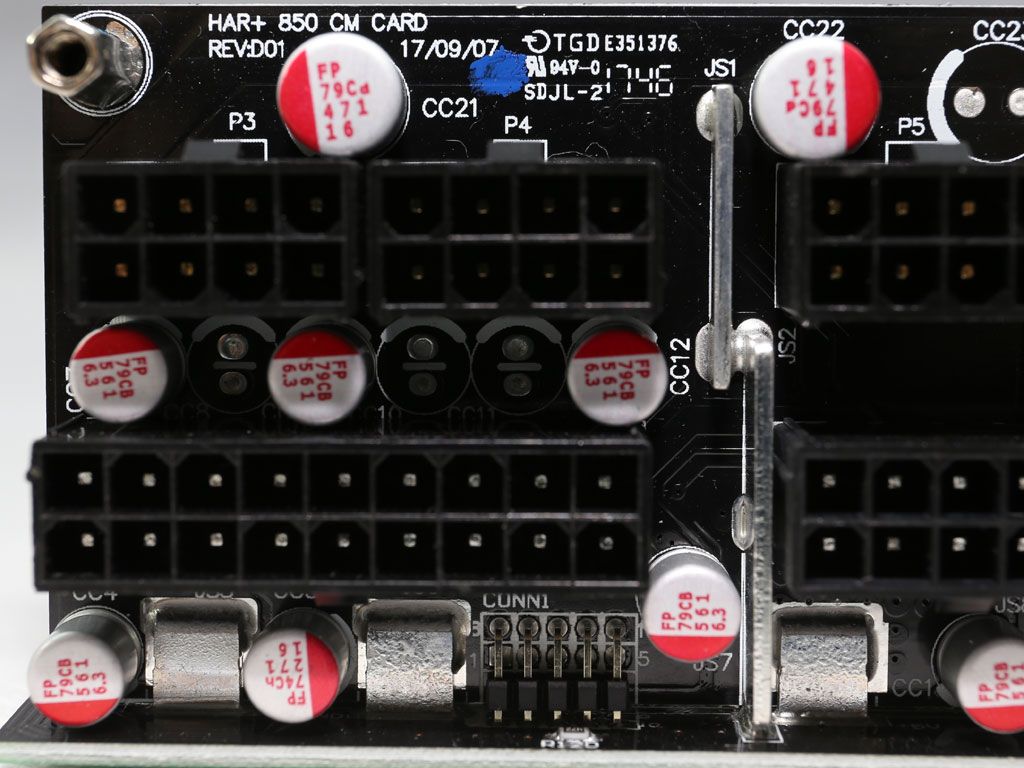

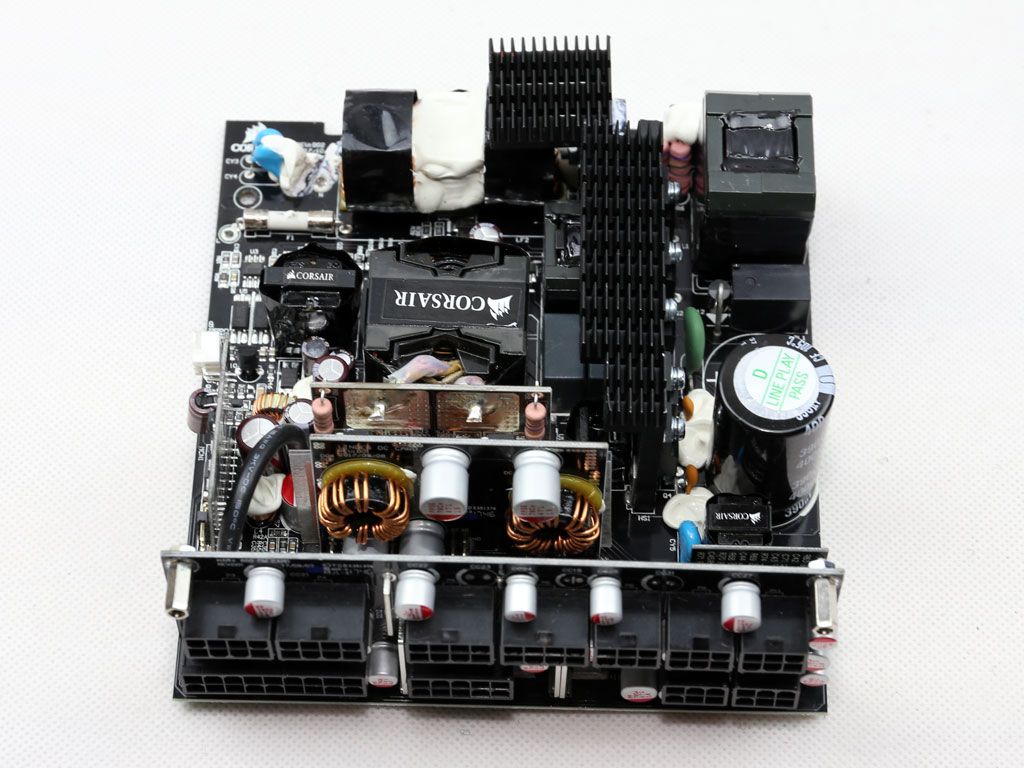

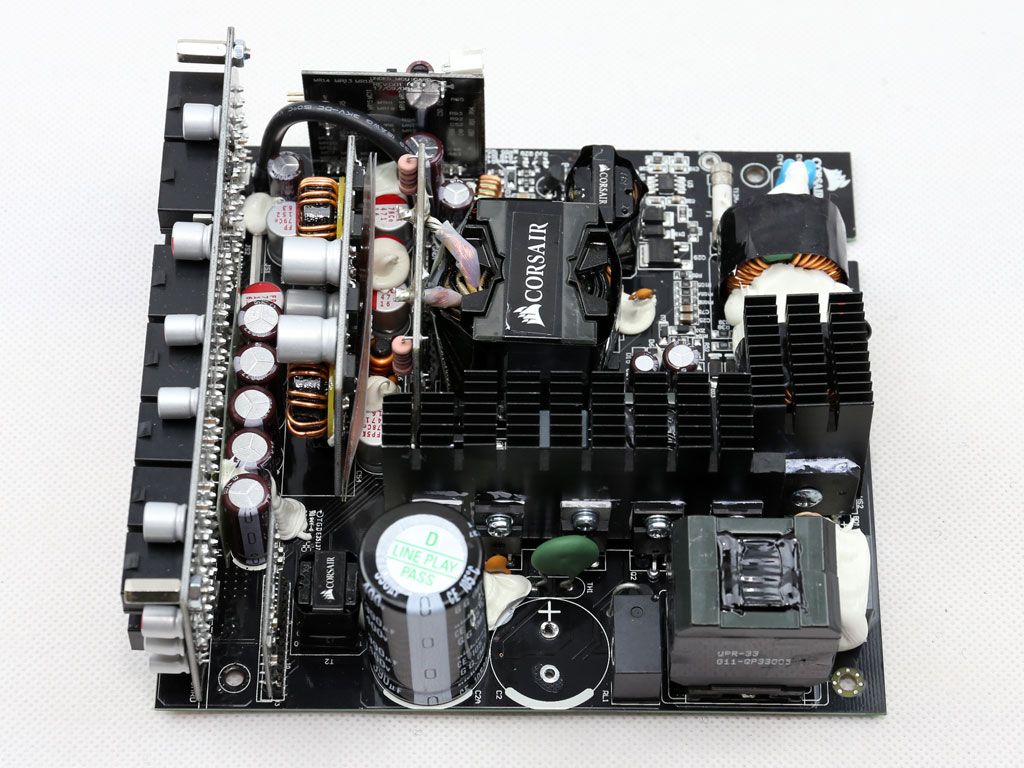

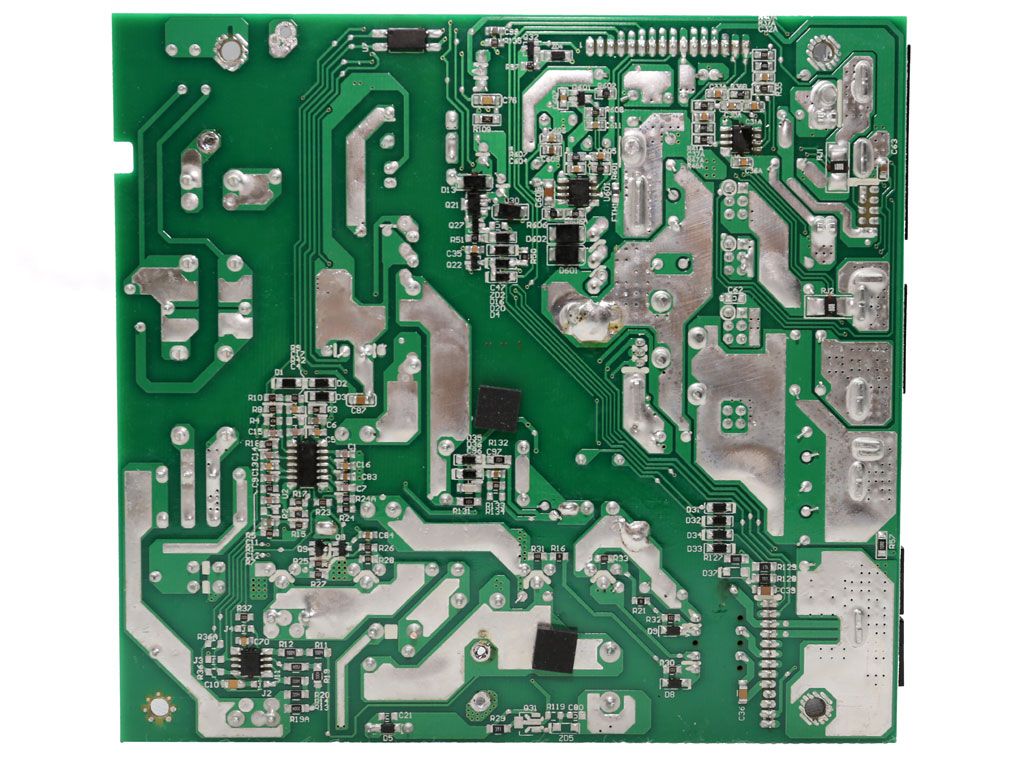

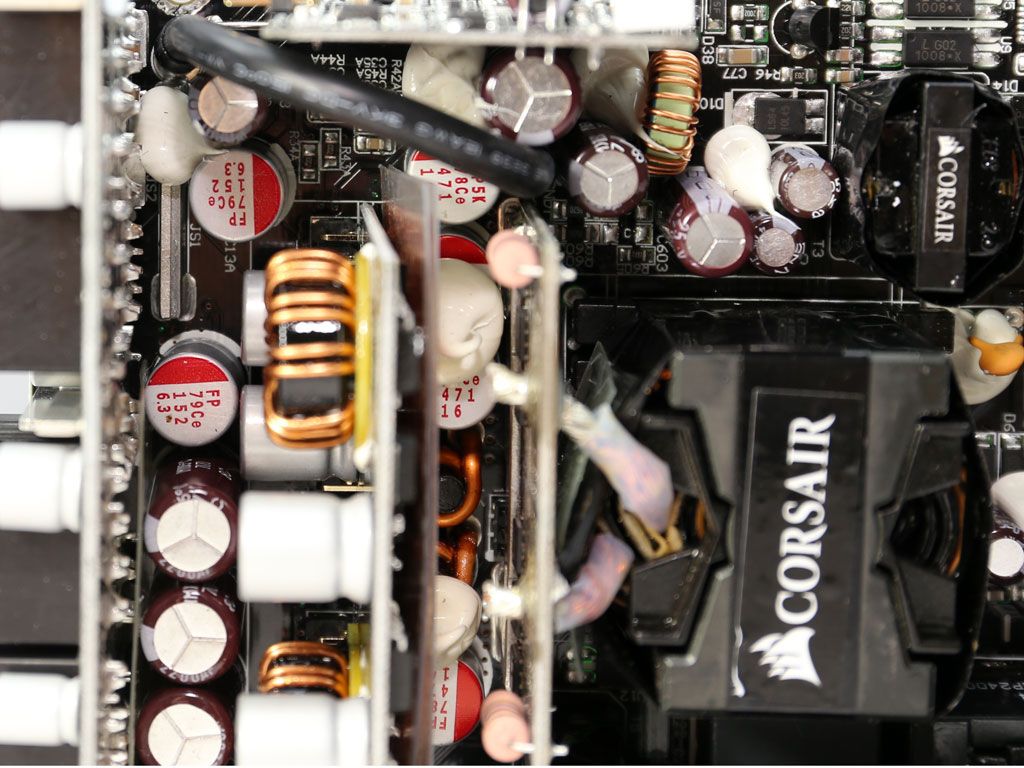

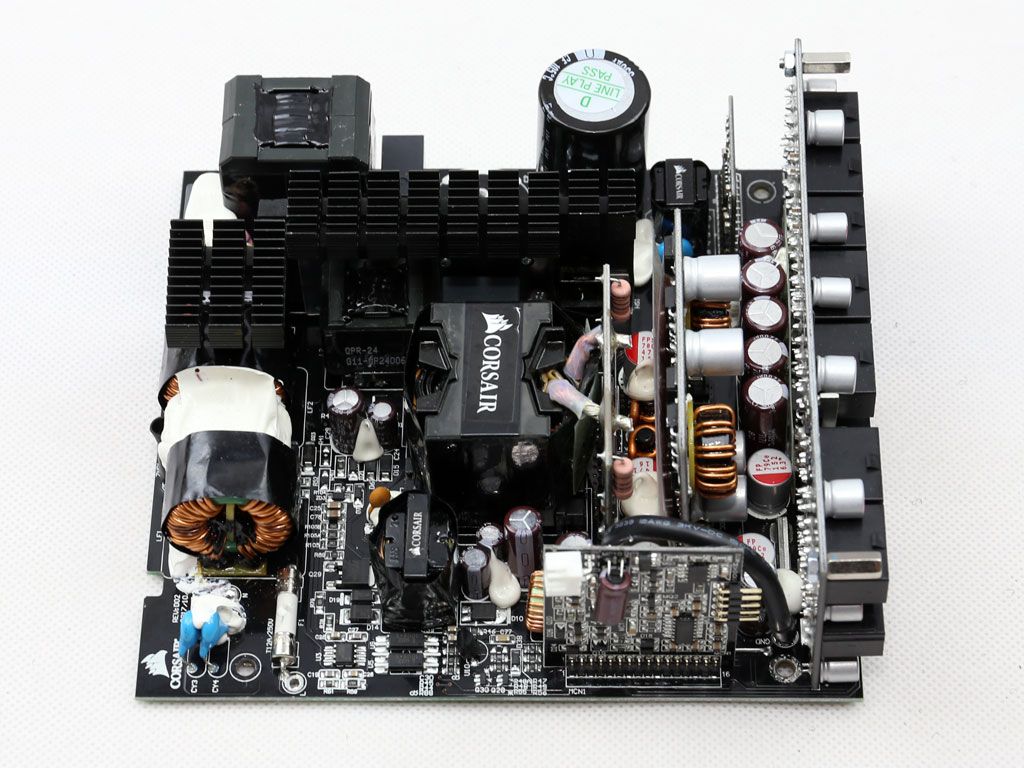

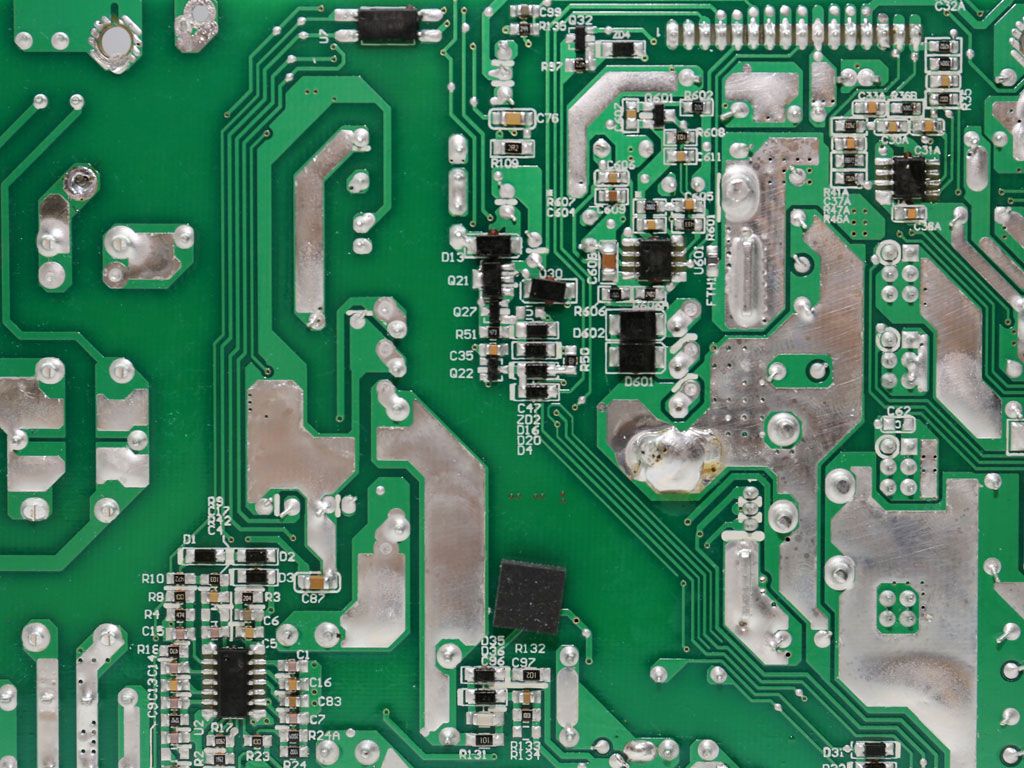

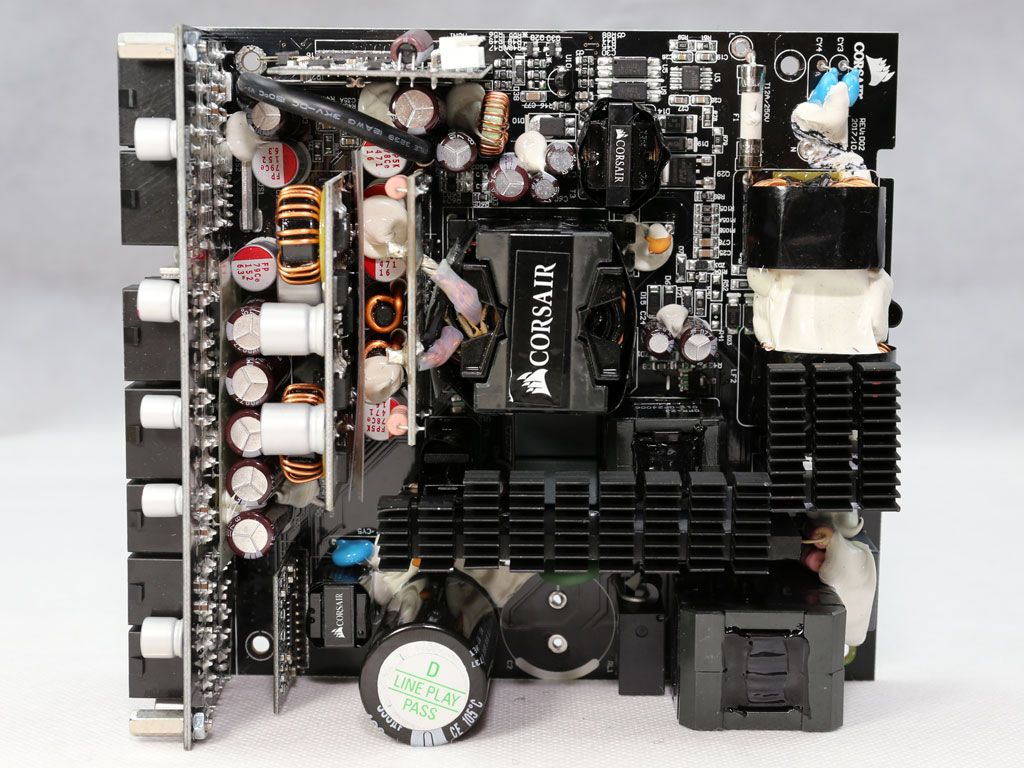

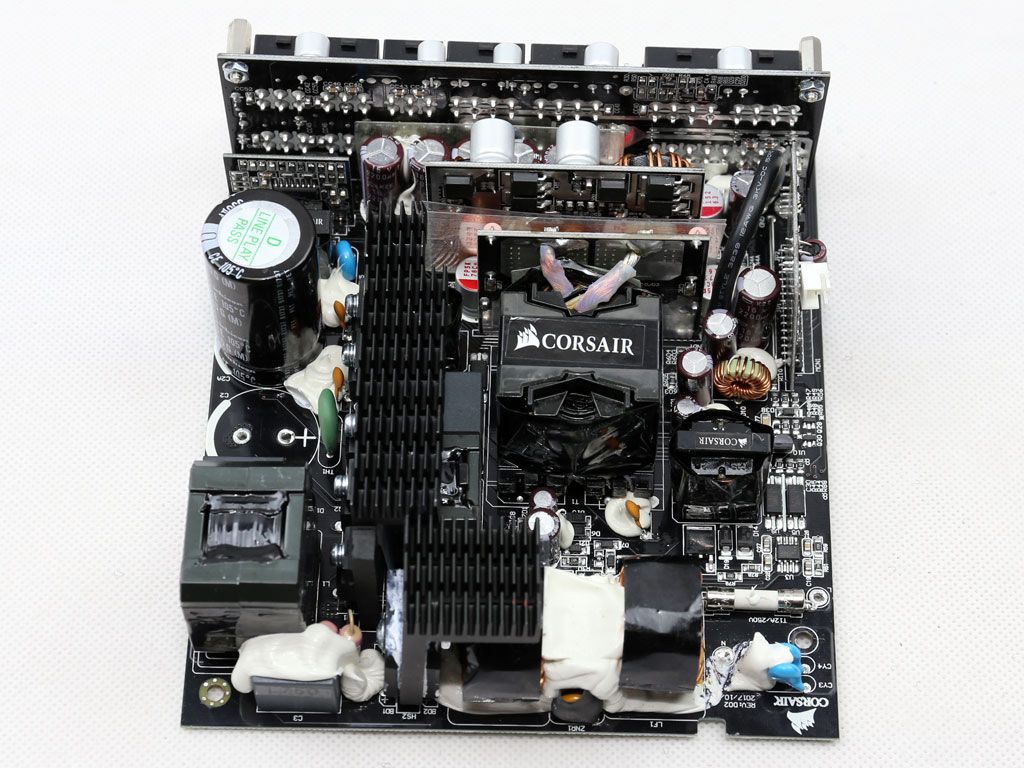

The photos above illustrate the RM750x's major components, while the following video shows its internals.
