Crucial MX500 SSD Review: Challenging Samsung on SATA

Update 3/22/2018: We have updated the article with testing of the 2TB, 512GB and 256GB MX500 models. The new models begin on page two. Our conclusions have also been updated on page six.

The SSD industry has been in a race to the bottom of the barrel, but due to the NAND shortage, we've often been given the bottom without the price drops to match. Micron's new 64-layer NAND, which makes its way into the Crucial MX500, promises to tip the scales in the other direction with competitive performance and superior pricing.

For years, we've overlooked the Crucial brand for our enthusiast recommendations. We've felt let down by the company that introduced us to the C300, which was the world's first SATA 6Gbps SSD. Since then, Crucial's consumer SSDs have trailed the competition, and the performance gap between Crucial and other tier-one manufacturers has grown. Some of Crucial's products even have similar performance to SSDs coming from tier-two and tier-three manufacturers. It isn't just the performance that links Crucial SSDs to products from companies you most likely have never heard of; in some cases, the components inside the drives are identical.

But now Micron, Crucial's parent company, has a revamped leadership team, many of which led SanDisk before it was sold to Western Digital. Familiar names are popping up in press releases, LinkedIn profiles have changed, and with the new blood comes a new spirit. Micron's conservative past is far from over, but suddenly there is an enthusiasm that we haven't seen in some time.

Micron's new 64-layer 3D NAND powers the MX500, and it's a needed upgrade. The previous-gen 384Gbit die presented challenges. Some SSD vendors populated fewer channels on the SSD controllers so the drives would adhere to “normal” capacity points. The problem, which stemmed from the unconventional die capacity, cropped up with numerous NVMe SSDs armed with the SMI SM2260 controller. Those controllers provide eight channels to the flash, but the odd die capacity forced companies to use just six. That led to reduced performance.

In early 2016, we learned that Micron's second-gen 3D NAND would use a 768Gbit die. The company pulled that goal back in favor of a more traditional 256Gbit capacity that vendors can use to populate all the channels on commodity SSD controllers fully. That should help to boost performance. The company also has a massive 512Gbit die coming in the future.

Micron made other changes to the new 64-layer memory that improves both performance and cost. The new second-gen die is physically 30% smaller than the first generation. That allows the company to yield more die per wafer, which reduces cost. The engineering teams have also developed new algorithms that improve performance by altering the way the data is distributed in the NAND cells.

The MX500 is Crucial's first consumer SSD to come armed with Micron's newest NAND, and it has the 850 EVO squarely in its sights. Today, we'll see if Crucial hit the target with a true Samsung 850 EVO competitor.

Specifications

The Crucial MX500 will eventually come in four capacities and two form factors, but only the 1TB model will be available at launch. The 2TB model will only ship in the 2.5" form factor while the 250GB, 500GB, and 1TB models will come in both 2.5" and single-sided M.2 2280.

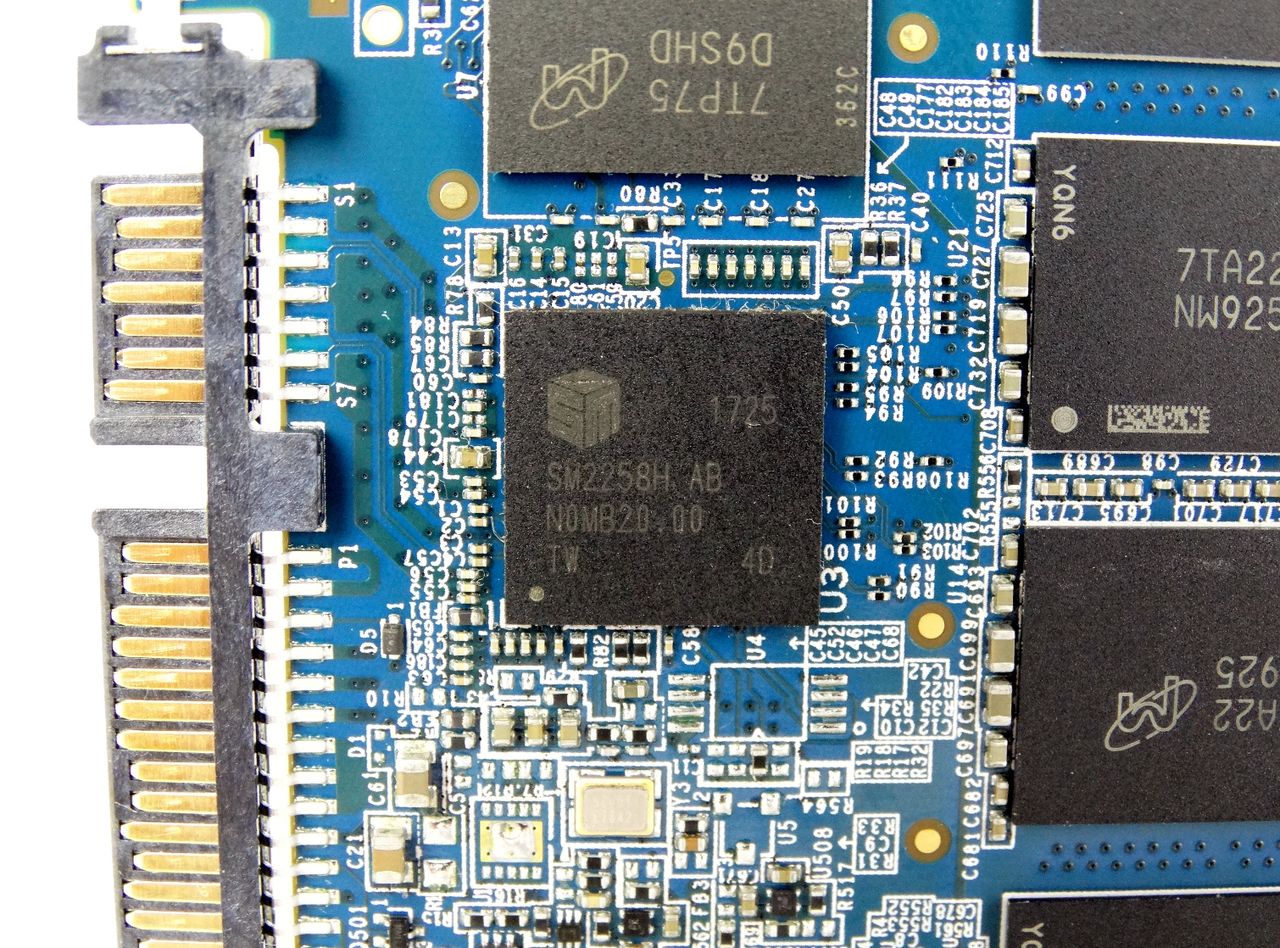

The MX500 uses the SMI SM2258 controller. We wrote a detailed preview of the SM2258's capabilities back in August of 2016. The controller is an older model, but Crucial says its LDPC (Low-Density Parity-Check) error correction algorithms are powerful enough for the new 64-layer 3D NAND.

We've tested several products with the SM2258 controller paired with various types of NAND, but they weren't that impressive. We've also tested Micron's first-gen 32-layer 3D NAND paired with several different controllers over the last year, but it was very difficult to recommend any of the SSDs. The same controllers often deliver better performance with Toshiba flash. Micron's new 64-layer 3D NAND is the key component that should improve the picture on both fronts.

All four capacities feature the same performance specifications. The MX500's 560/512 MB/s of sequential read/write throughput is common for high-performance SATA SSDs. Random performance peaks at 95,000/90,000 read/write IOPS. Crucial lists the write performance as "up to," but that's also common in this era where advanced caching technology increases TLC NAND's performance with an SLC buffer.

Features

The MX series debuted back in 2014, and many of the core features carry over from the early models. The drives feature self-encrypting drive (SED) and full disk encryption (FDE). Encryption always runs in the background, but you have to enable TCG/Opal or the ATA Security command via the system BIOS to take full advantage of the AES-256 encryption engine.

Crucial still protects data at rest during a power fail event, but the new technique doesn't require surface-mounted capacitors on the PCB. Micron has adjusted how it programs the upper and lower NAND pages to reduce the amount of power required to maintain signal integrity. This is a new technique for Micron's NAND, but it provides similar protection to what we've seen with the MX series for many years.

Crucial's Data Write Acceleration (DWA) feature uses an SLC buffer to boost the performance of the TLC SSD. Most SDDs utilize some type of SLC buffer, which is a designated portion of the NAND that runs in SLC mode (one bit per cell) to increase performance. The secret sauce changes from one company to the next, but the underlying algorithms are closely guarded. Most SSDs have a fixed SLC capacity, but Crucial's dynamic buffer shrinks or grows depending on the condition of the drive and the amount of data stored on the flash.

Capacity for accelerated performance is derived from the adaptive usage of the SSD's native NAND array without sacrificing user-addressable storage. Recent advances in Micron NAND technology enable the SSD firmware to achieve acceleration through on-the-fly switching between SLC and TLC modes to create a high-speed SLC pool that changes in size and location with usage conditions.

During periods of idle time between write bursts, the drive may free additional capacity for accelerated write performance. The amount of accelerated capacity recovered during idle time depends on the portion of logical addresses that contain user data and other runtime parameters. In applications that do not provide sufficient idle time, the device may need to perform SLC-to-TLC data migration during host activity.

Pricing, Warranty & Endurance

Crucial will only ship the 1TB model at launch, but it released pricing and specifications for all four capacities. The MX500 1TB will sell for $259.99. That's roughly $40 less than Samsung's 850 EVO 1TB.

Crucial will ship the 2TB ($499.99), 500GB ($139.99), and 250GB ($79.99) models soon. The 2TB and 250GB models are much less expensive than the 850 EVO, but the 500GB model has a comparable price point.

Endurance Rating
2TB
1TB
500GB
250GB
Crucial MX500 - TBW (Terabytes Written)700TB
360TB
180TB
100TB
Samsung EVO - TBW (Terabytes Written)300TB
150TB
150TB
75TB

Crucial matched the EVO's five-year warranty period, but the MX500 has a much higher endurance rating. You can write 700TB to the 2TB MX500 before exhausting the warranty, which is more than twice the 2TB EVO's endurance. The 1TB models follow the same formula, but the lead shortens in the smaller capacities. In either case, Crucial leads across the board.

Accessories & Software Package

Crucial is updating its Storage Executive software to support the MX500. The software allows you to monitor the SSD and provides a few standard tools, like secure erase, for drive maintenance. Storage Executive also features a useful tool to increase overprovisioning. That increases performance and endurance by providing the controller with more spare area for background operations.

Crucial's Momentum Cache uses a small amount of system memory to cache write data before it reaches the SSD. Random write data flows into the system DRAM at high speeds and flushes to the SSD as less damaging sequential data. We've measured explosive write performance with Momentum Cache, but it also increases power consumption. We've included further testing on the following page.

Crucial also includes Acronis True Image HD software for cloning drives. Crucial doesn’t include the software in the box, so you have to download it from the company’s website.

Packaging

Crucial changed the colors slightly from previous MX-series SSD packaging, but the style remains the same. Crucial doesn't list performance specifications on the box. It does give us some details about the warranty and software add-ons.

A Closer Look

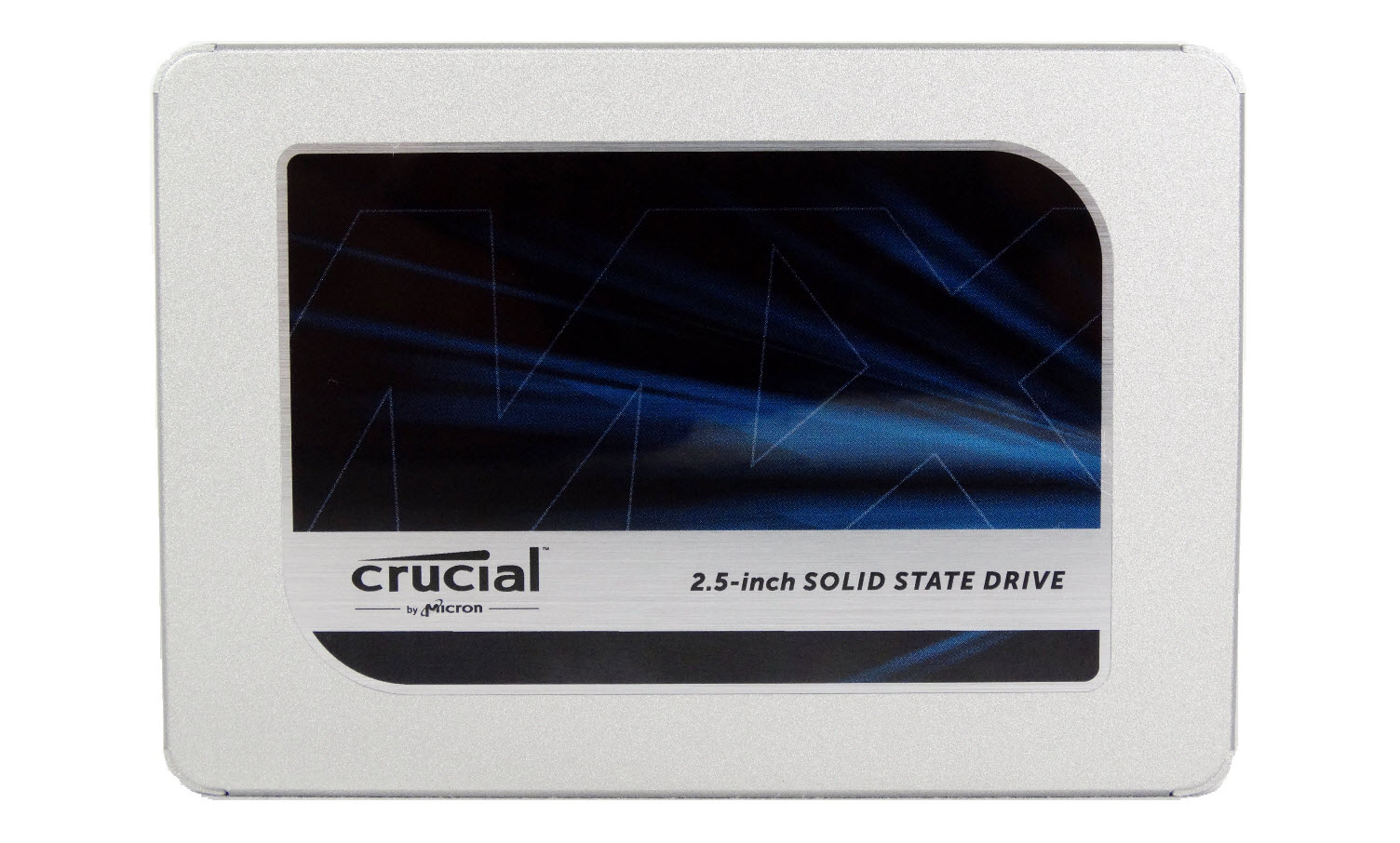

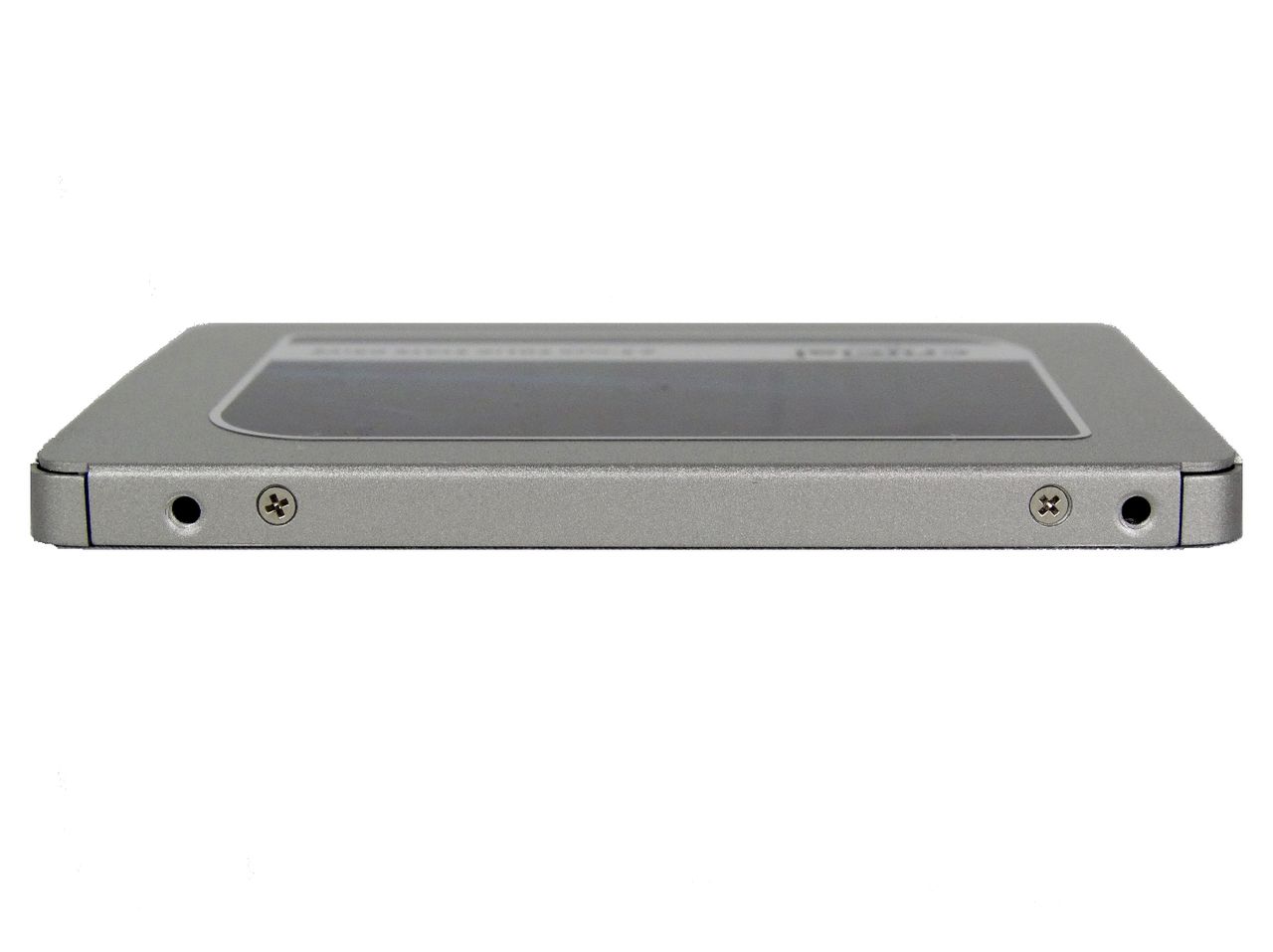

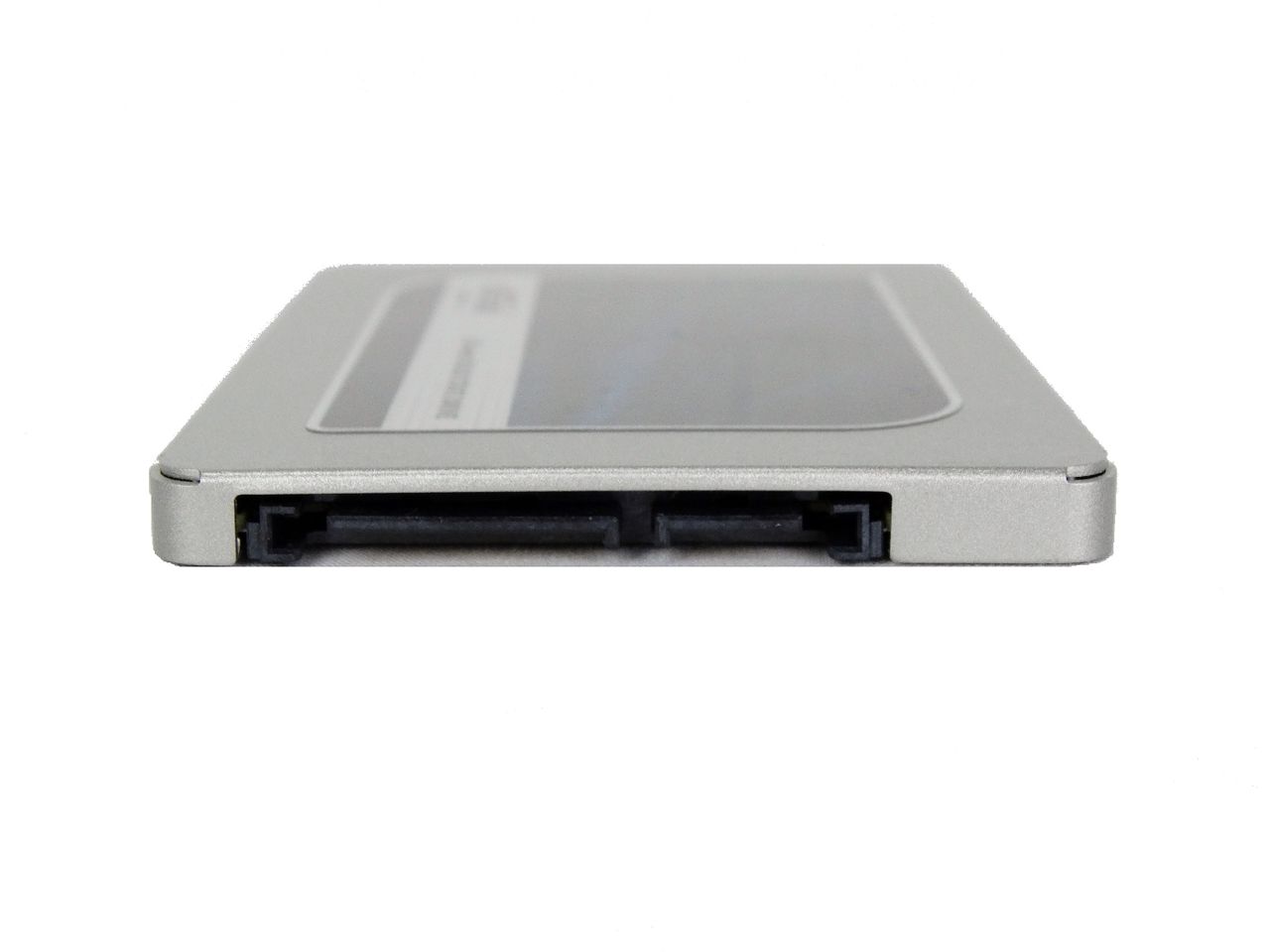

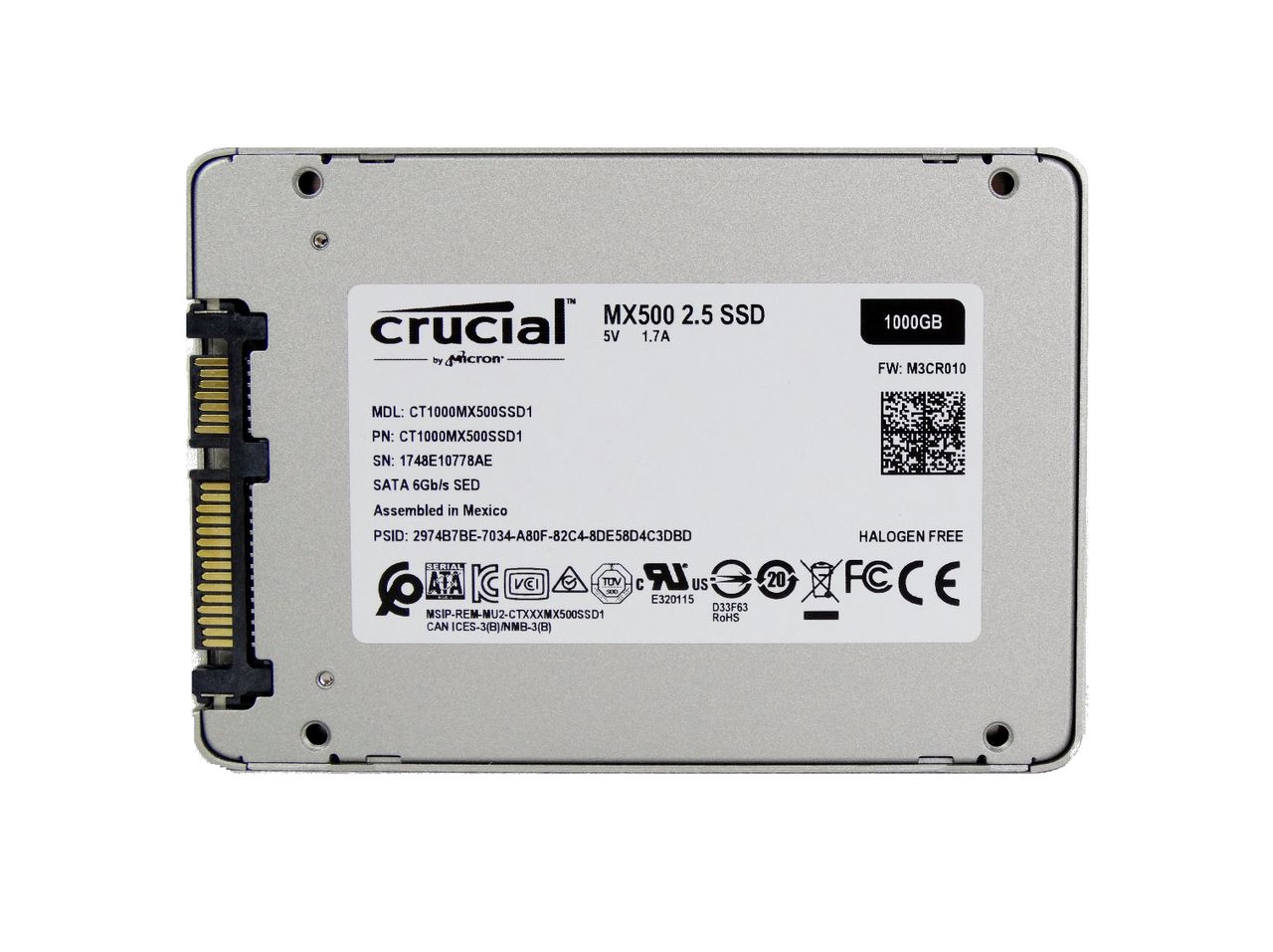

The packaging is slightly different, but the drive is almost identical. The label on the back with the model number is the only real difference. The MX500 uses a slim 7mm case design that's commonly used in thin notebooks. Crucial includes a 7mm to 9.5mm adapter bracket for use in drive sleds that require the thicker profile.

Internals

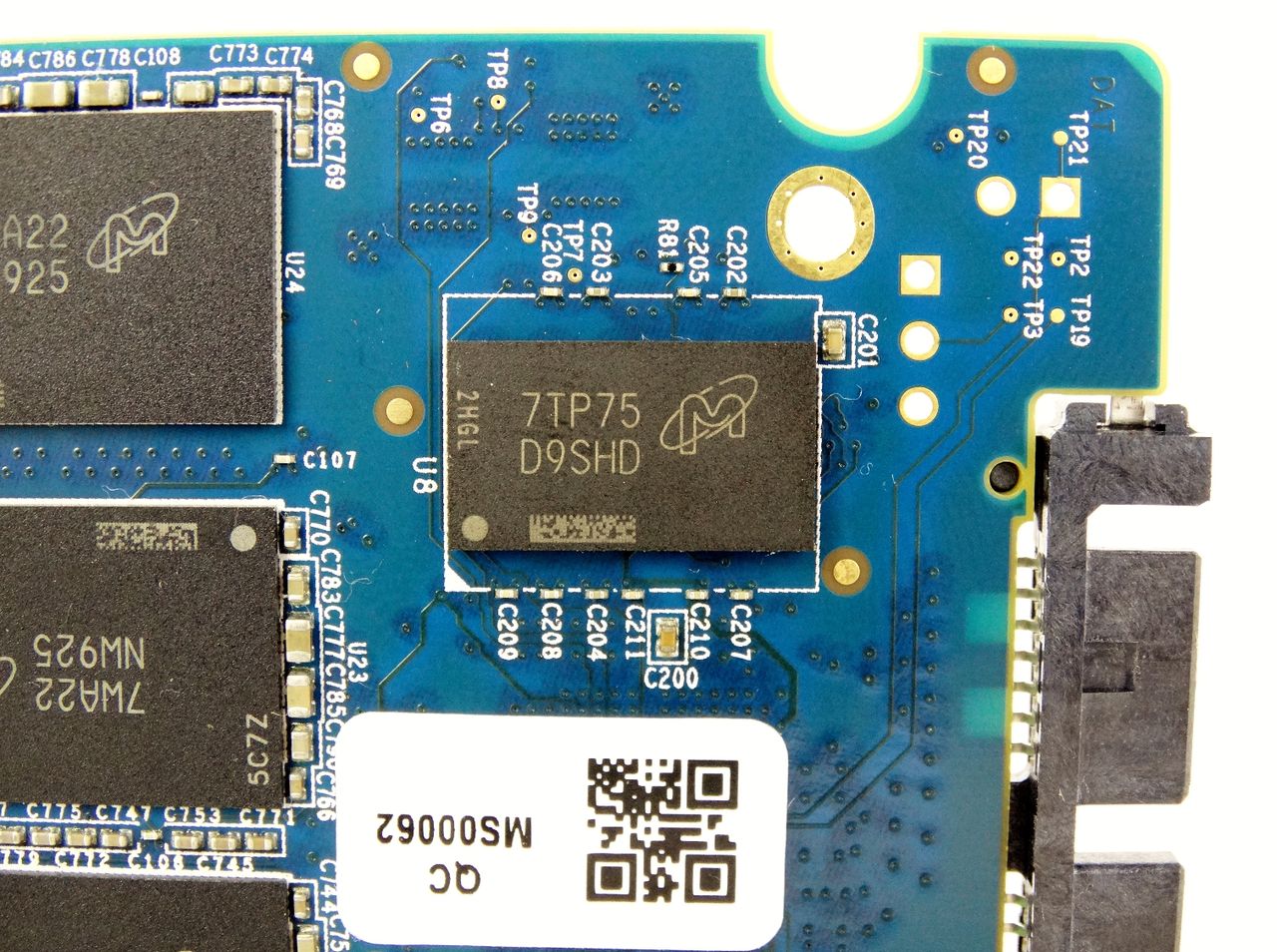

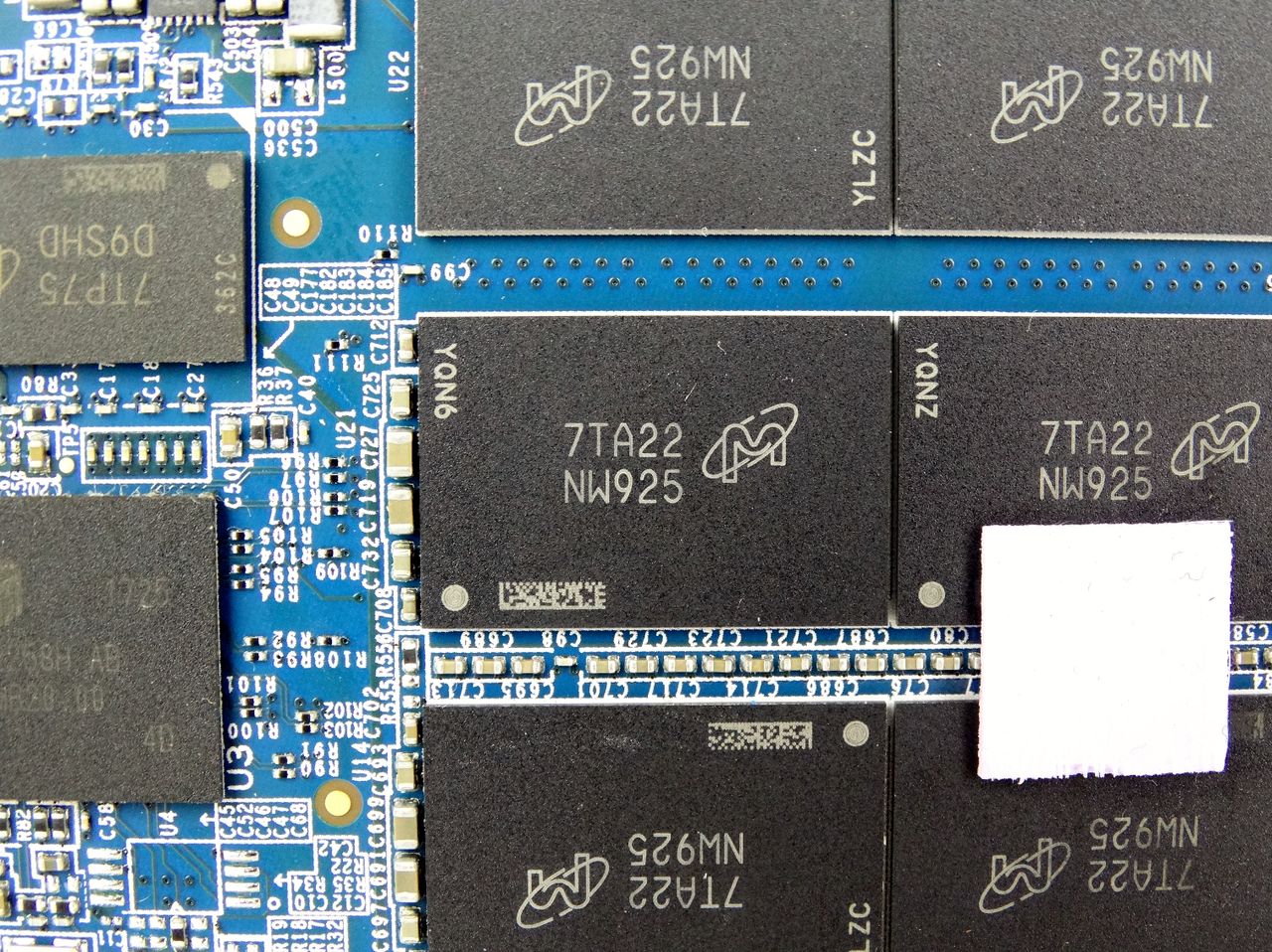

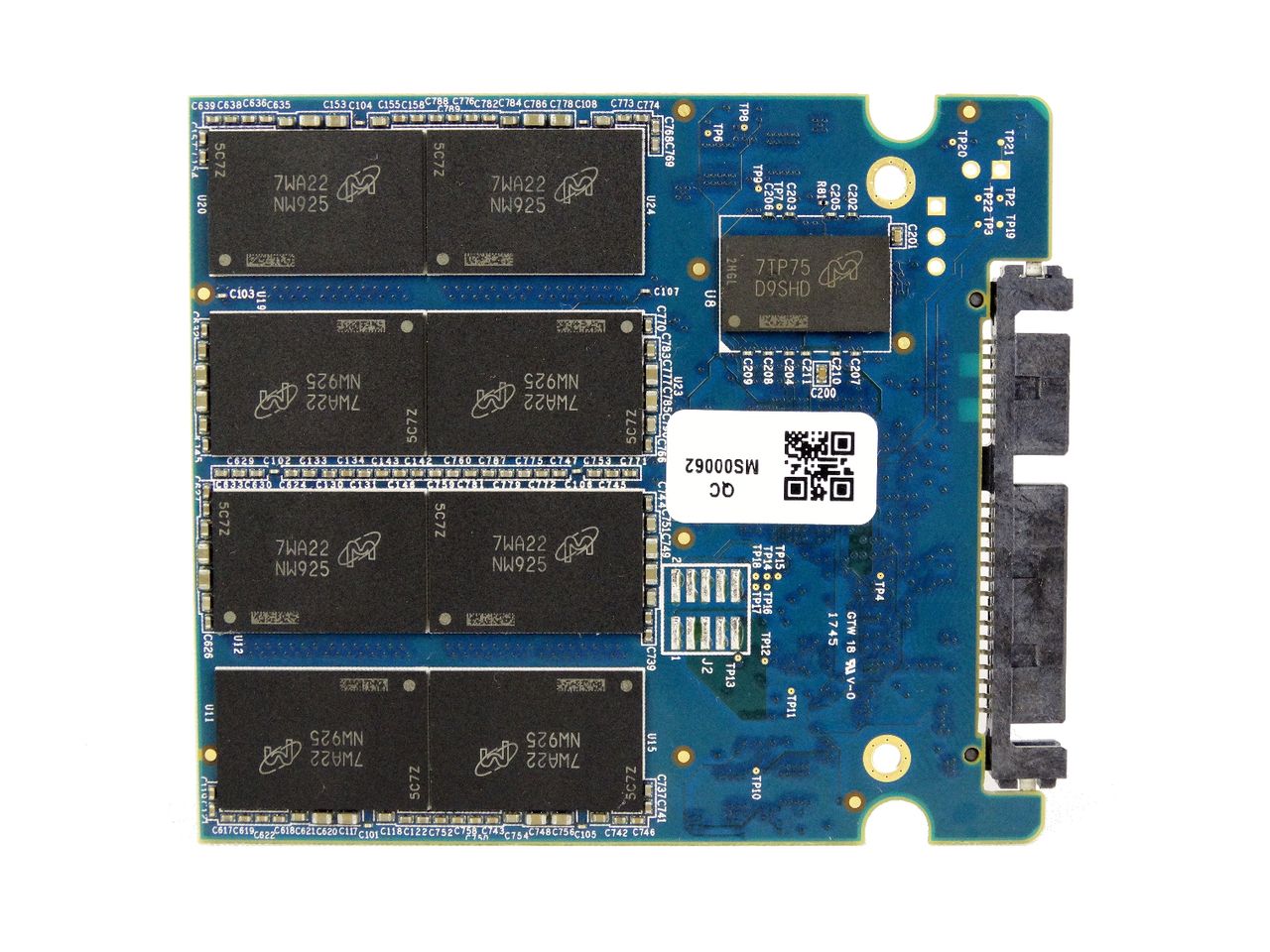

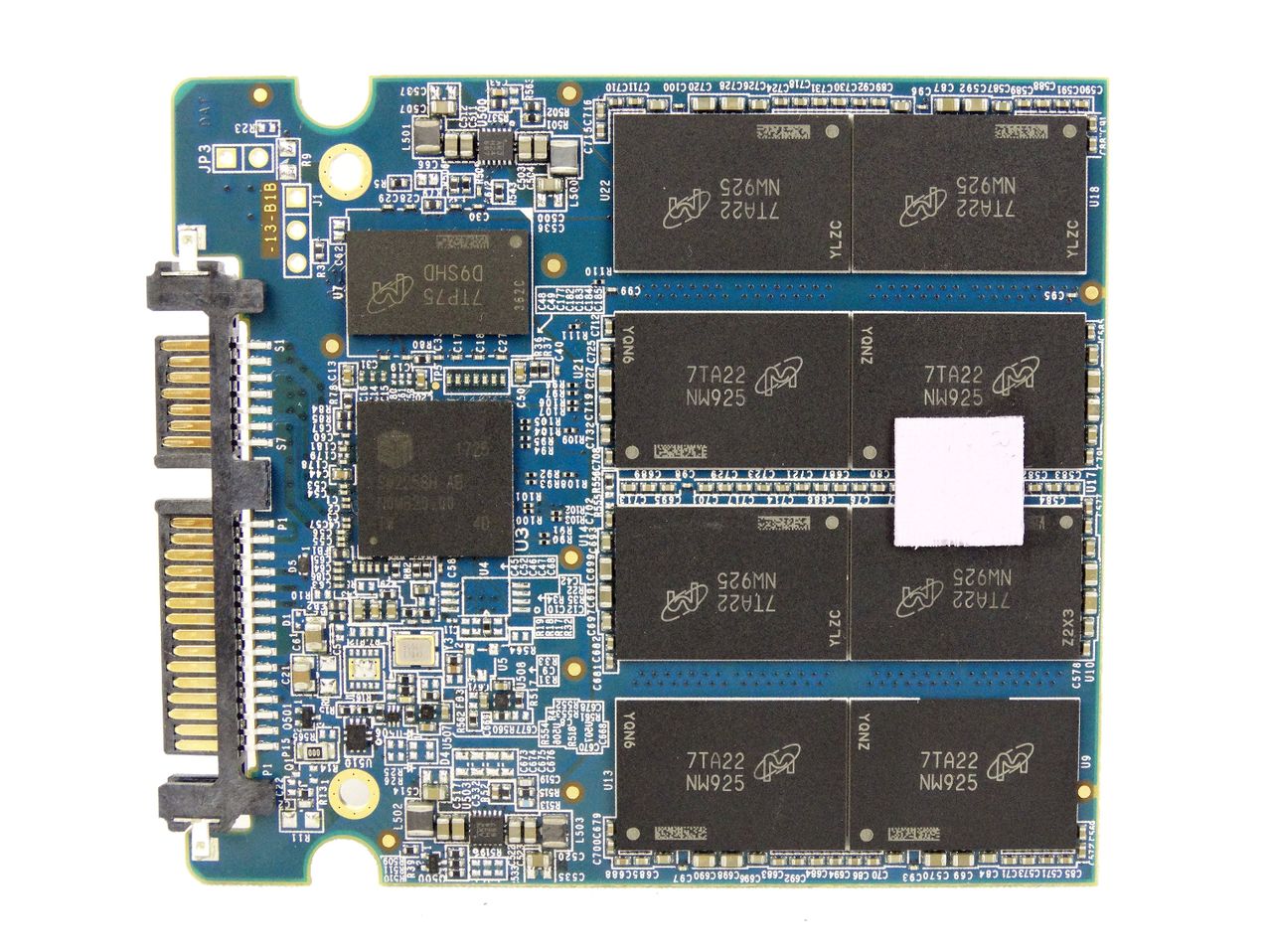

We found sixteen NAND packages with just two die apiece. This is very different from the MX300 that featured eight packages on the circuit board. The MX500 is also the first drive in this series with an SMI controller. Micron has used Marvell controllers for the MX series since it debuted in 2014. The MX300 came with a Marvell "Dean" controller.
