To learn how we measure ripple, please click here.

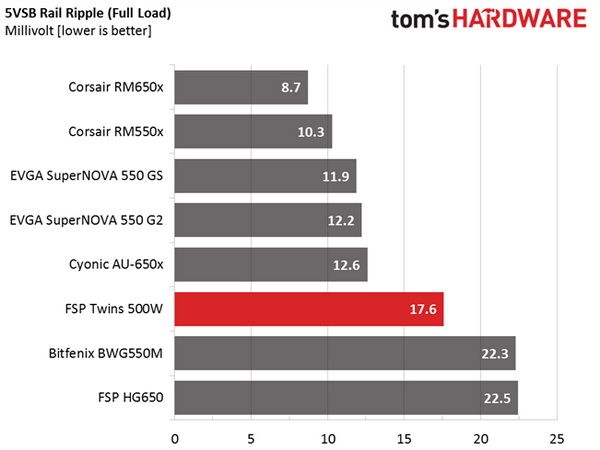

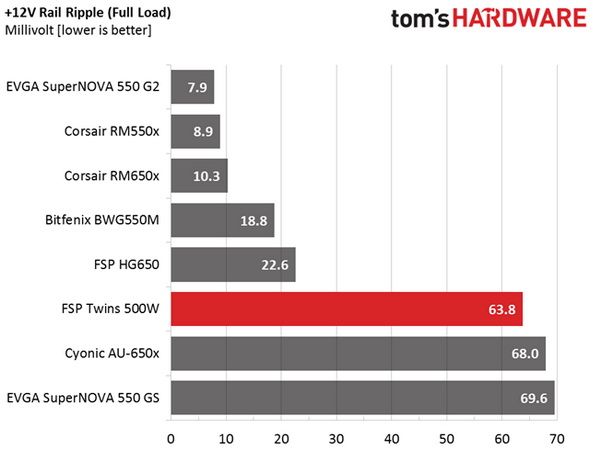

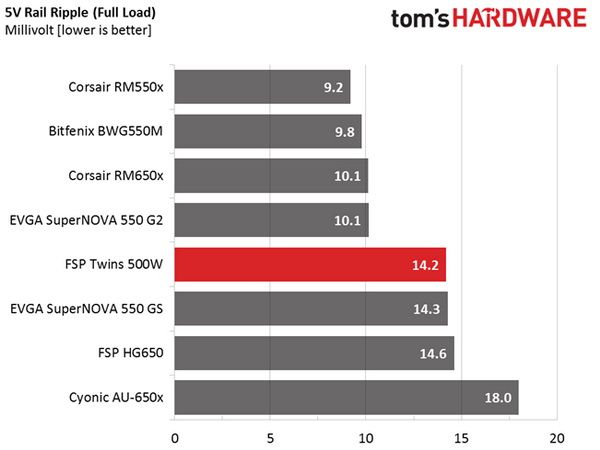

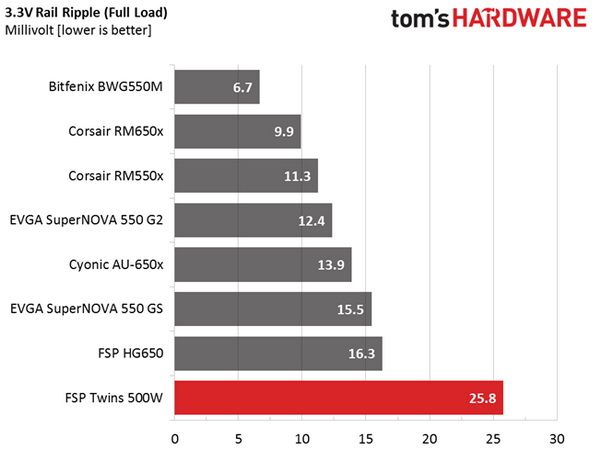

The following table includes the ripple levels we measured on the Twins 500W's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).
Ripple suppression at +12V isn't that good, but it's great on the 5V and 5VSB rails. It's decent at 3.3V, too.
Ripple Oscilloscope Screenshots

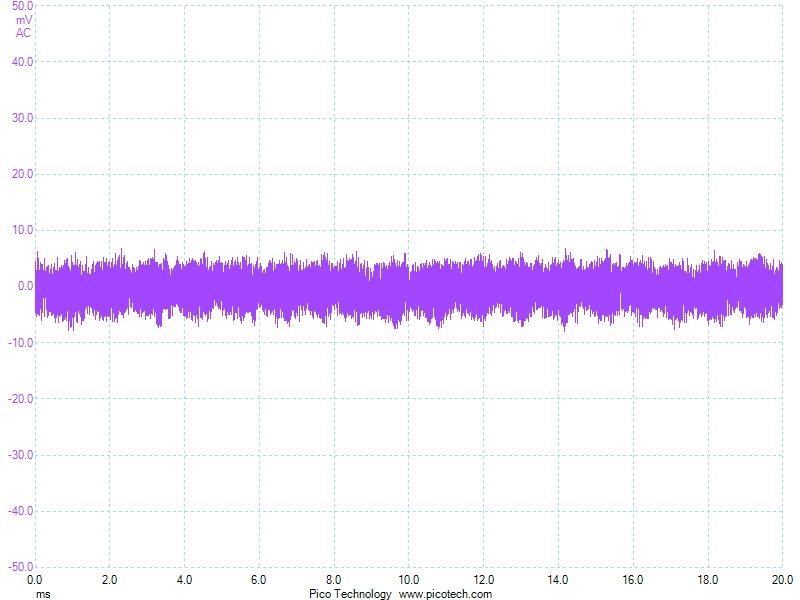

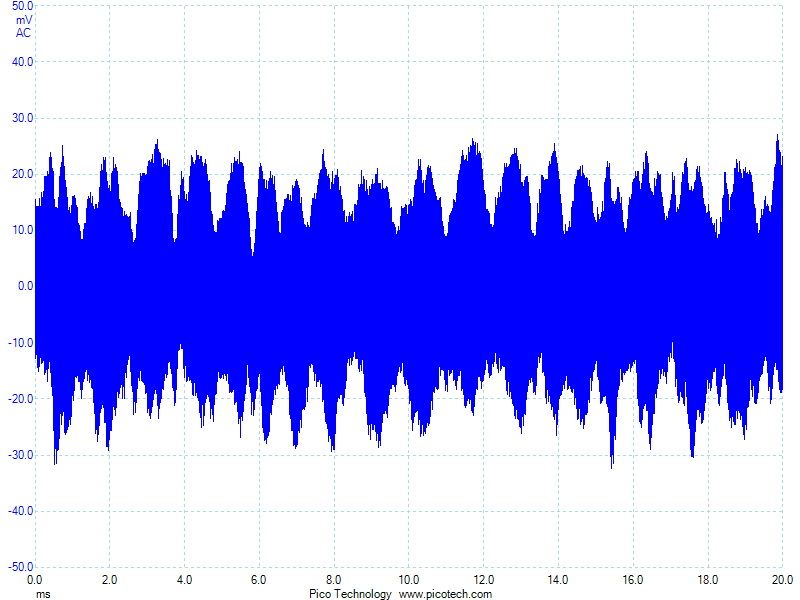

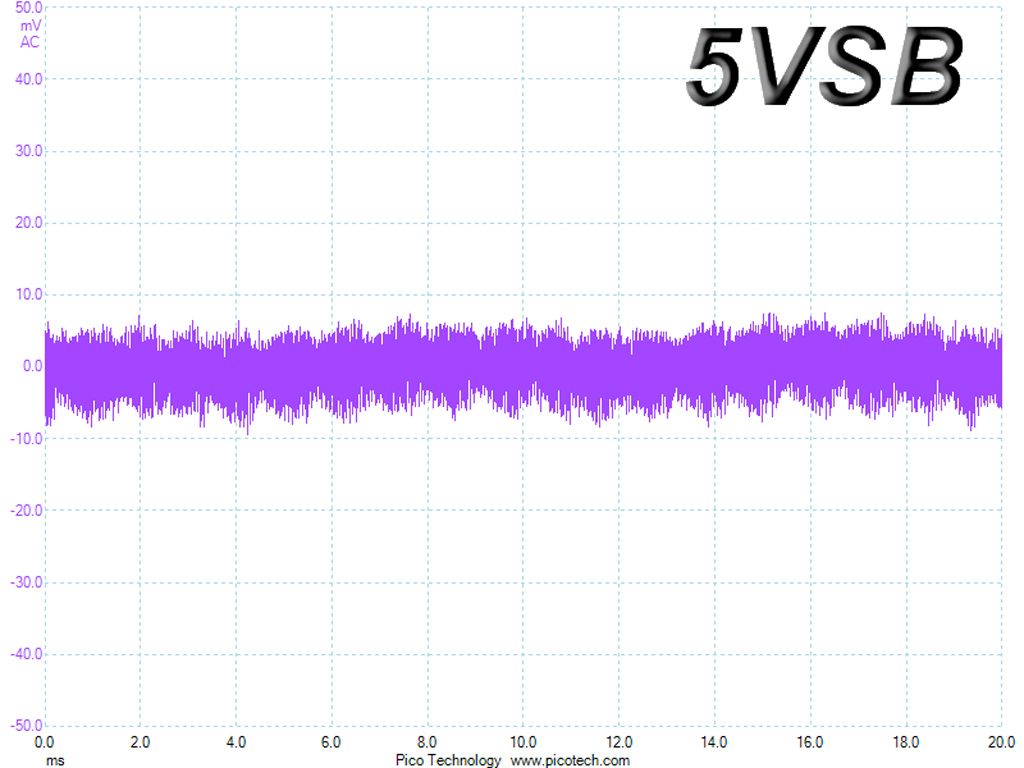

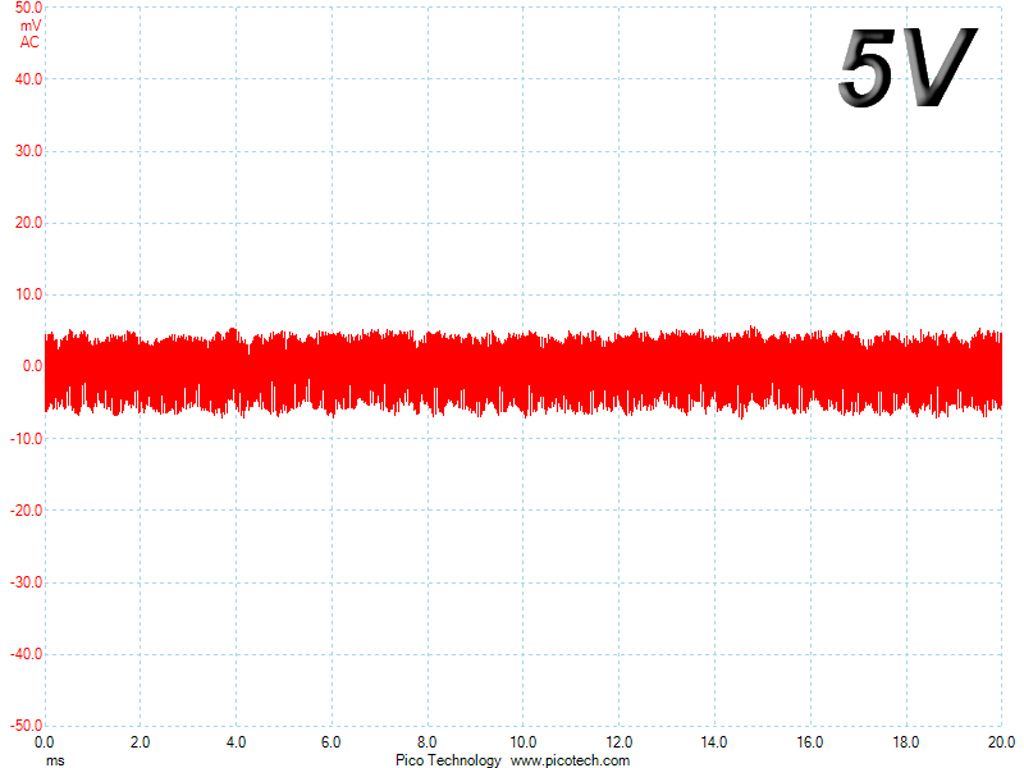

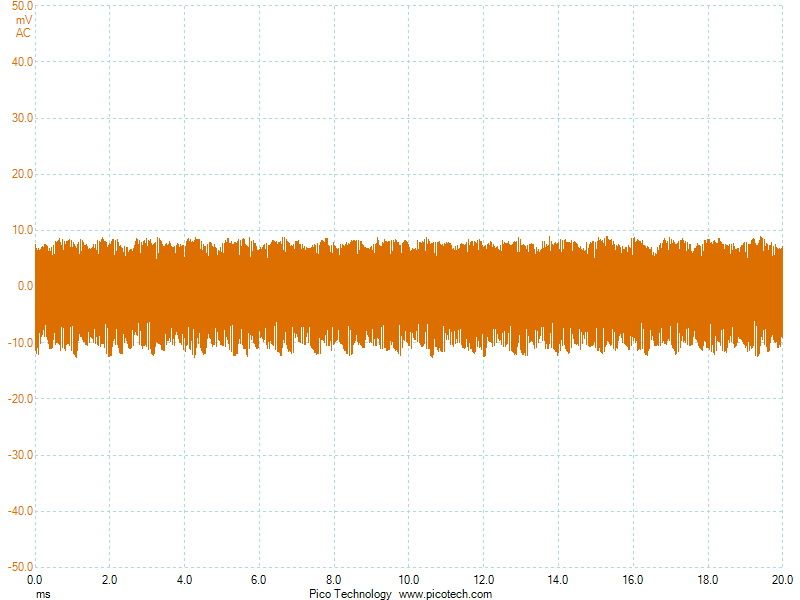

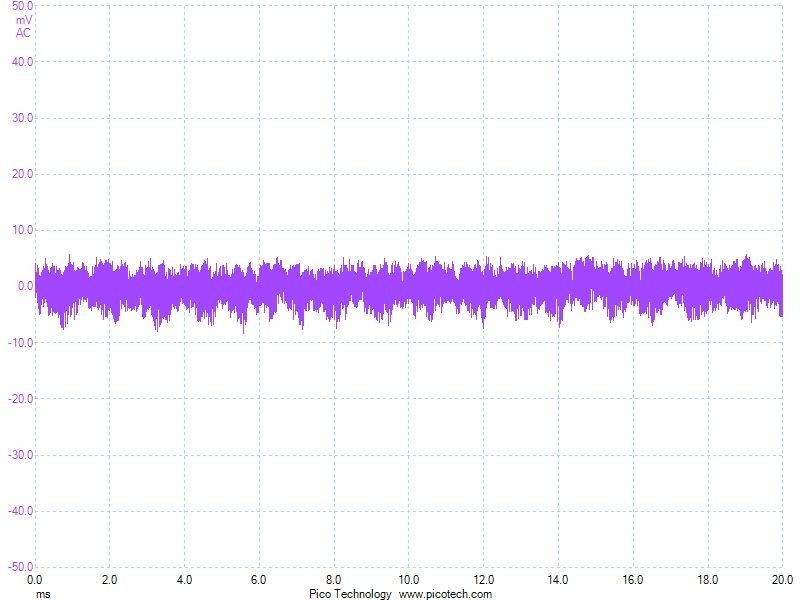

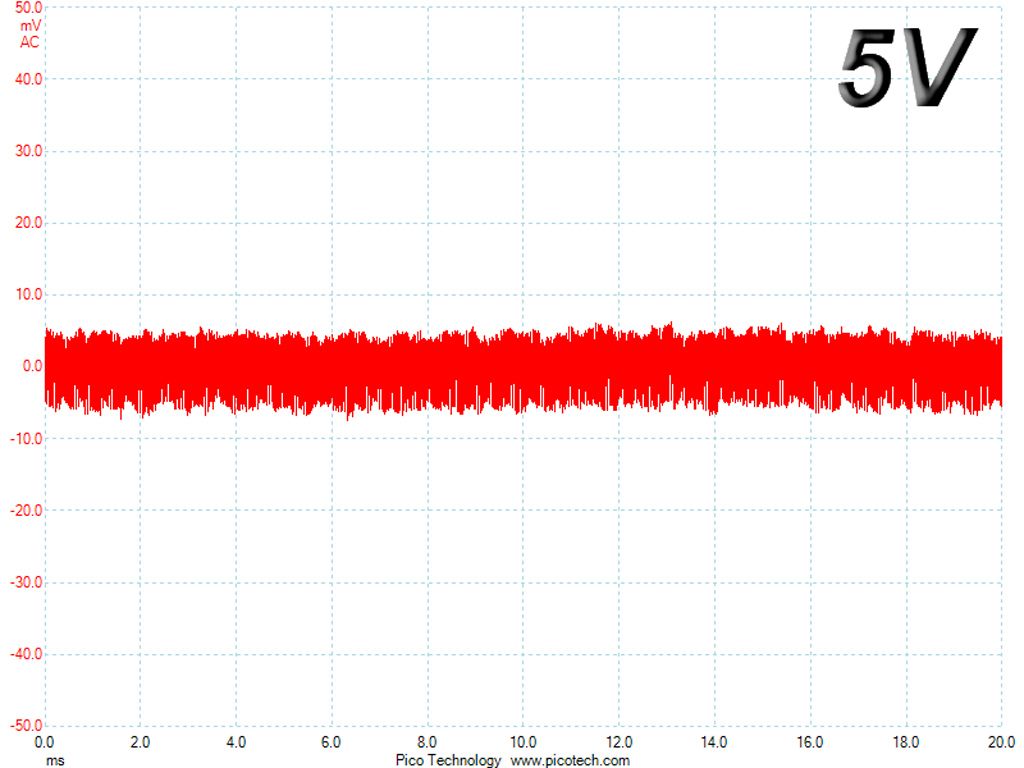

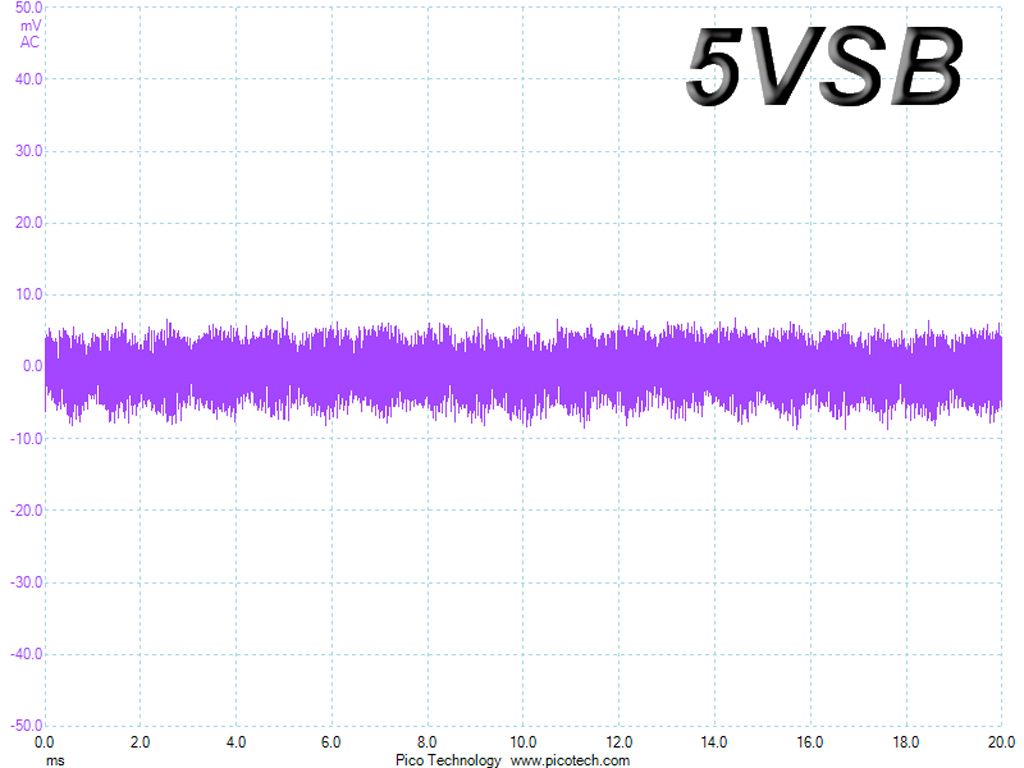

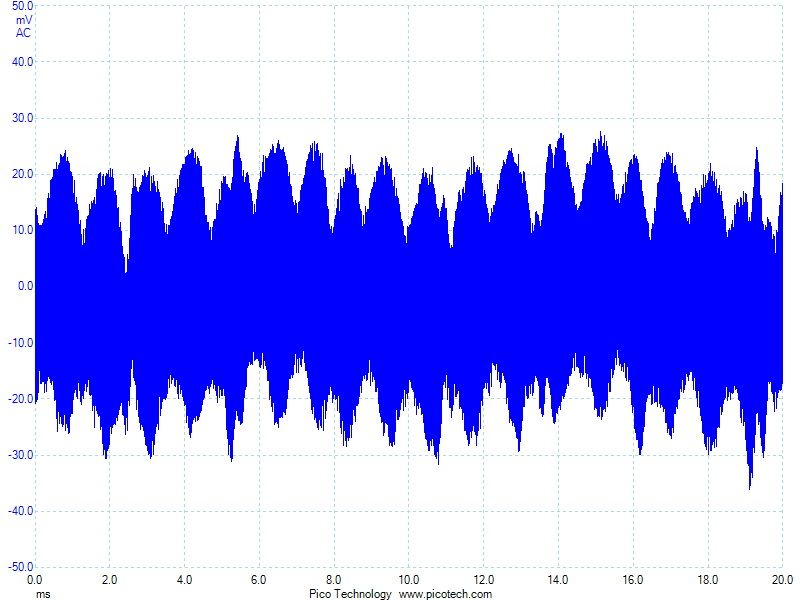

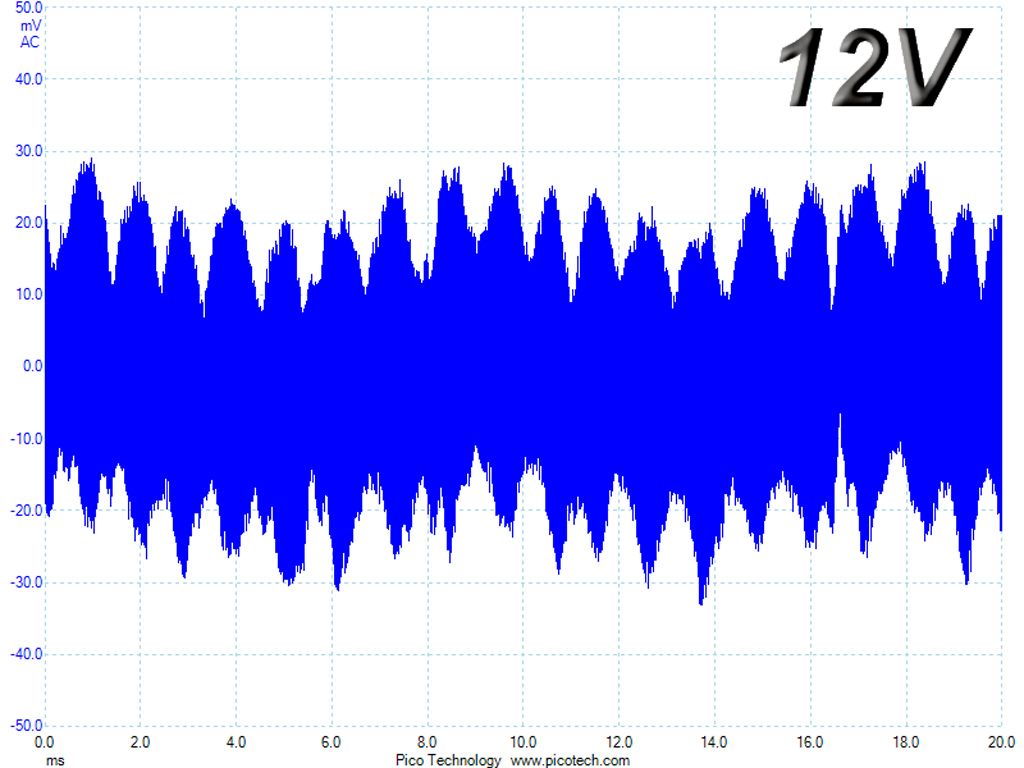

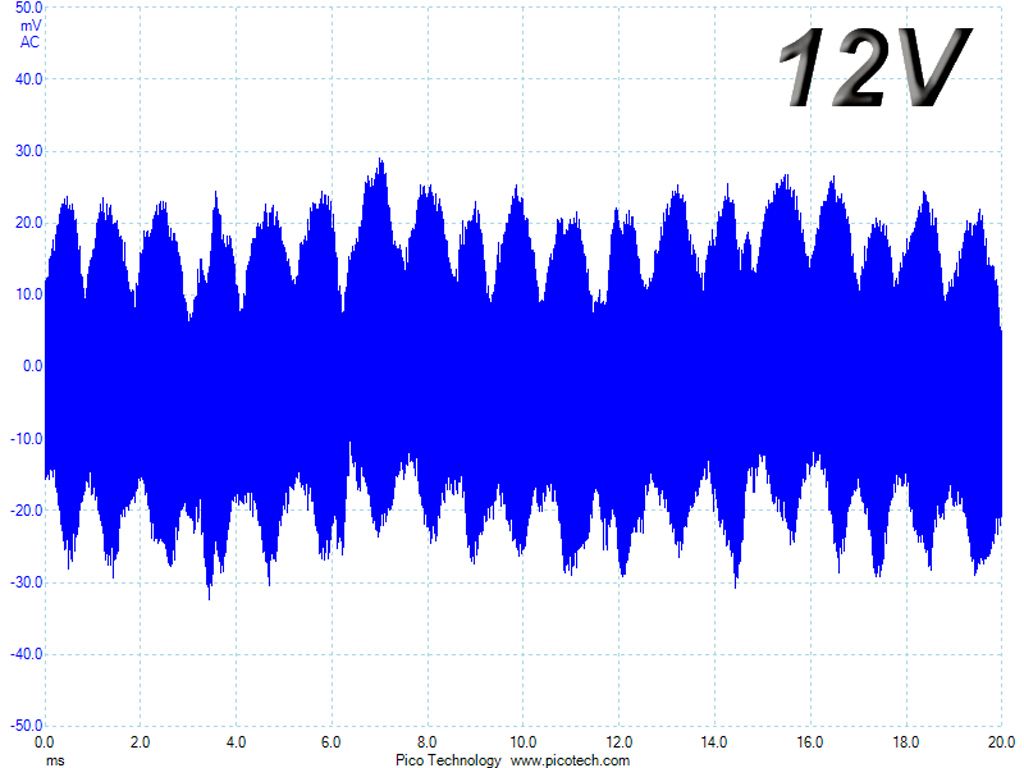

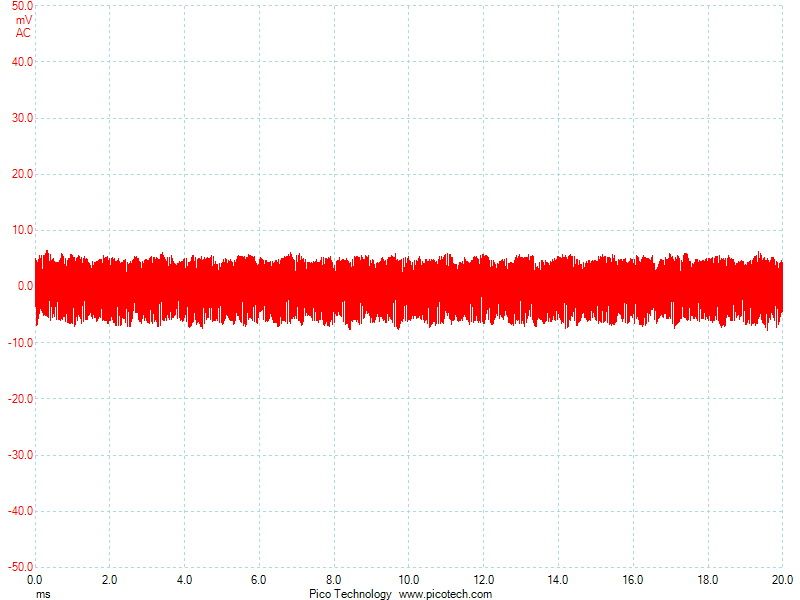

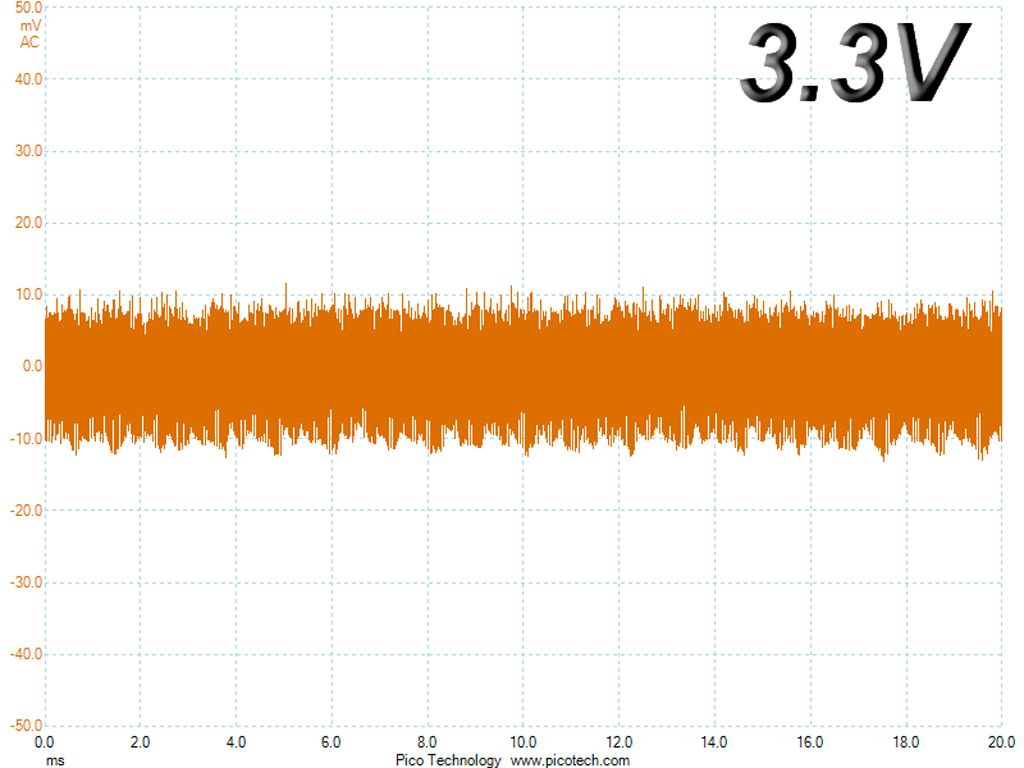

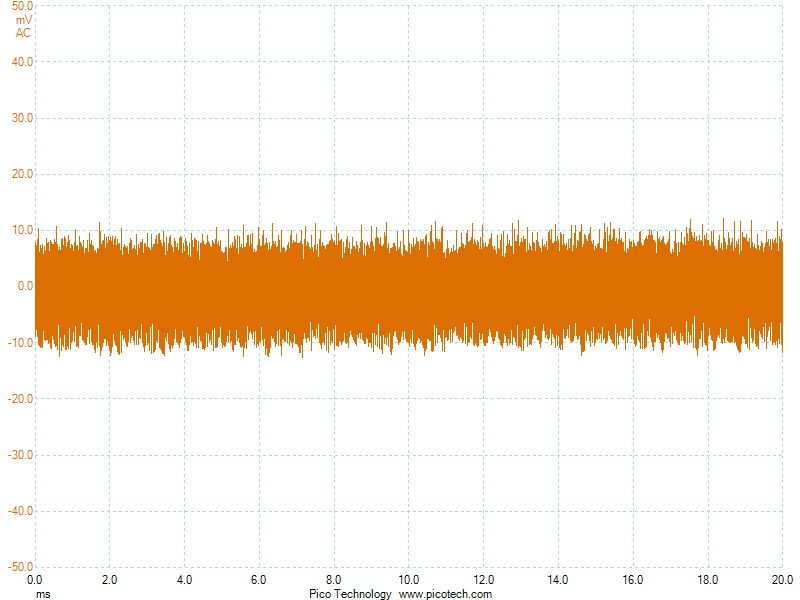

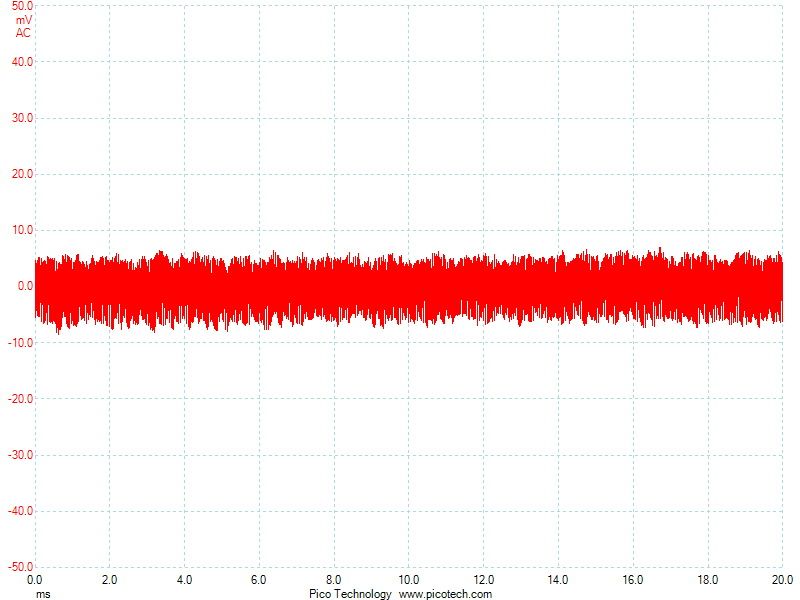

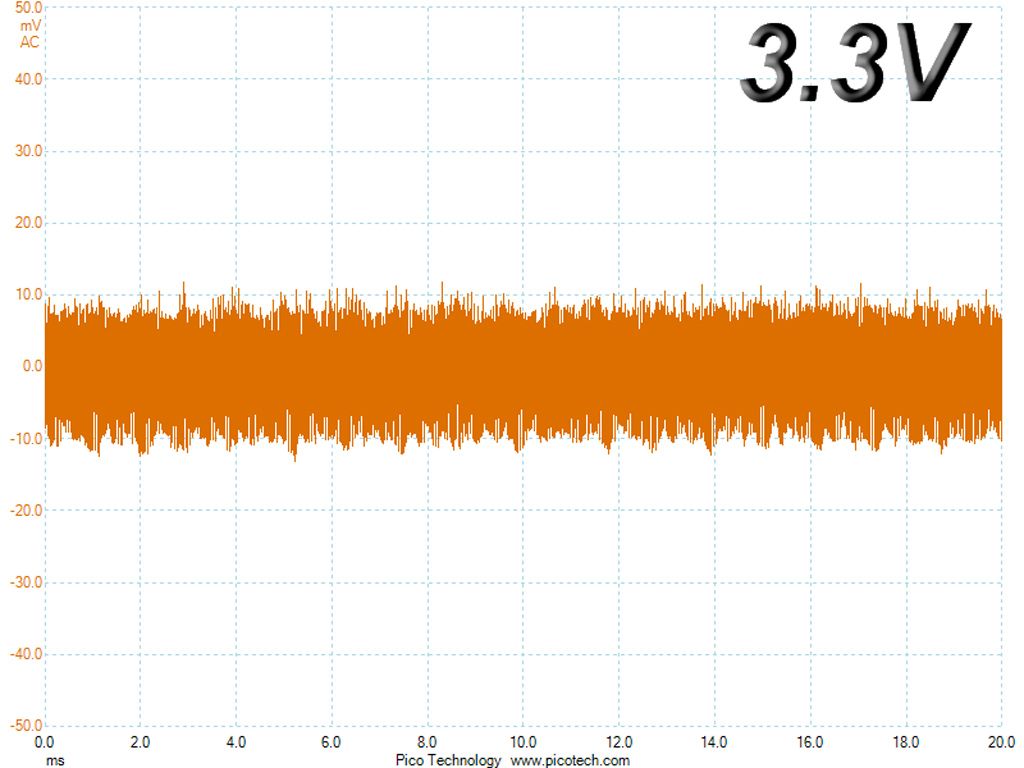

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V, and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.
