Multitalented: All-in-One Graphic Boards

ATI All In Wonder 128

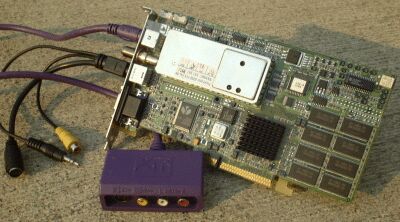

ATI has implemented separate combination input and output connectors. The adapters included in delivery make it possible to use audio, S-video and composite video.

ATI All In Wonder 128 - Hardware

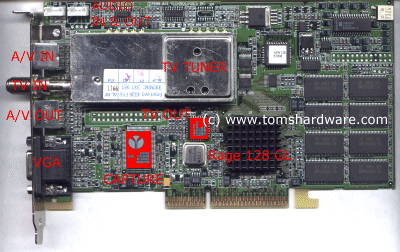

The lower area of the figure shows the capture chip, Brooktree/Conexant's BT829. This is only available on the 16 MB version of the AiW 128. The 32 MB variant incorporates a Rage Theater chip (an in-house ATI development) instead. ATI uses its ImpacTV2 as the TV out chip (on both versions of the AiW 128). The silver TV tuner can either be from Temic or Philips.
