Silicon Power UD90 SSD Review: New Value Champion

DRAM-less PCIe 4.0 budget drive that pulls no punches

Silicon Power UD90
Editor's Choice

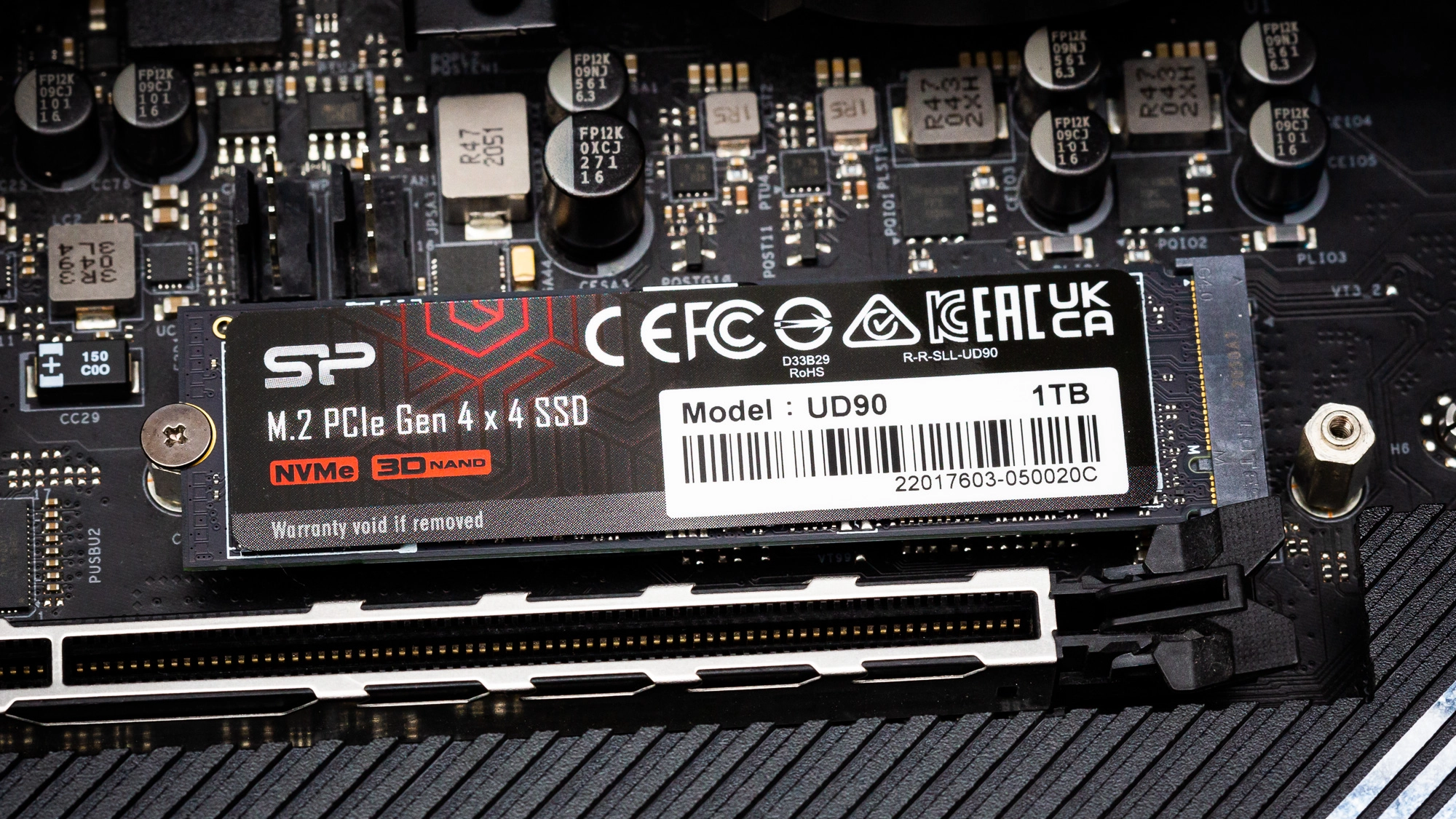

(Image: © Tom's Hardware)

Tom's Hardware Verdict

The Silicon Power UD90 is an excellent budget PCIe 4.0 SSD. Performance is competitive with similar drives and is more than enough for the average user. Basic software support and a good warranty are coupled with reasonable pricing, making it a good choice for builds that don’t need a lot of capacity.

Pros

  • +

    Good all-around performance

  • +

    Power efficient

  • +

    Affordable

  • +

    Good warranty

Cons

  • -

    May only be available at 1TB in some regions

  • -

    Runs a little hot

The Silicon Power UD90 is the first drive we’ve had on our testbed with Phison’s new E21T SSD controller. If you only need 1TB of capacity, this is a relatively inexpensive PCIe 4.0 drive that would work great in a Playstation 5 or desktop PC. Thanks to the DRAM-less controller and 176-layer TLC flash, it’s also power efficient enough to work great with laptops. It comes with a fairly decent warranty and some software support, too, earning a spot on our list of Best SSDs. However, we do recommend additional cooling, if possible.

The UD90 finds itself up against tough competition from drives we’ve recently reviewed, including the HP FX900 and Patriot P400. If you’re looking for a high-end PCIe 4.0 drive, there are better options, but this segment is the better value for your dollar. Many top-tier PCIe 3.0 drives with DRAM have come down significantly in price, so the real question is if it’s worth compromising with a drive like the UD90. For the PS5, absolutely; for PCs, it depends. These newer drives can be very efficient for laptops and make good primary or secondary drives for desktops, assuming you don’t need more than about 1TB of space.

The UD90 uses the same flash as many other great drives we’ve reviewed, but it has a new controller. We’re seeing more competition in this space as Silicon Motion has its SM2269XT controller on the way, too. This is a good thing as you have more choices, but it can make it challenging to pick the perfect drive. Perhaps the most significant factor here is cost, and the UD90 should launch at a very attractive price point on Amazon. Let’s see how it measures up to the excellent but more expensive FX900.

Specifications

Product250GB500GB1TB
Pricing N/A N/A $94.99
Capacity (User / Raw)250GB / 256GB500GB / 512GB1024GB / 1024GB
Form FactorM.2 2280M.2 2280M.2 2280
Interface / ProtocolPCIe 4.0 x4PCIe 4.0 x4PCIe 4.0 x4
ControllerPhison E21TPhison E21TPhison E21T
DRAMNo (HMB)No (HMB)No (HMB)
Flash Memory176-Layer Micron TLC (B47R)176-Layer Micron TLC (B47R)176-Layer Micron TLC (B47R)
Sequential Read3,900 MBps4,800 MBps4,800 MBps
Sequential Write1,800 MBps3,500 MBps4,200 MBps
Random Read200K450K570K
Random Write400K550K600K
SecurityN/AN/AN/A
Endurance (TBW)200 TB300 TB600 TB
Part NumberSP250GBP44UD9005SP500GBP44UD9005SP01KGBP44UD9005
Warranty5-year5-year5-year

The UD90 comes in three capacities of 250GB, 500GB, and 1TB. Silicon Power has informed us that it intends to launch with just the 1TB SKU in the U.S. The smaller SKUs are for other regions and markets for now. This drive reaches peak performance at 1TB, and that capacity tends to be the “sweet spot” for mid-range drives like this, so this is not too terrible. Some users prefer smaller drives for the OS in multi-drive builds, but it’s hard to get the most out of a fast PCIe 4.0 drive without a higher capacity for more flash and interleaving.

The 1TB drive reaches 4.8/4.2 GBps for sequential read and write and 570K/600K IOPS for random read and write, both respectively. These numbers are firmly in the mid-range against drives like the FX900 and P400, which use a different controller but the same flash. It’s faster than entry-level PCIe 4.0 drives like the S50 Lite and SN750 SE. The UD90 is warrantied for five years and 600 TB of data writes (TBW) at 1TB, which is pretty solid.

Silicon Power says this will arrive at $94.99, making it very competitive in its intended market segment. This is a bit cheaper than the HP FX900 and the Patriot P400, making it a good budget choice or alternative for the Playstation 5 as well as for cheaper PCIe 4.0 builds.

Software and Accessories

Silicon Power has a download of its “SP ToolBox” available on its site. This piece of software offers information about the drive, including SMART and other diagnostics. It’s basic but better than nothing. You can clone and image the drive with free software options.

A Closer Look

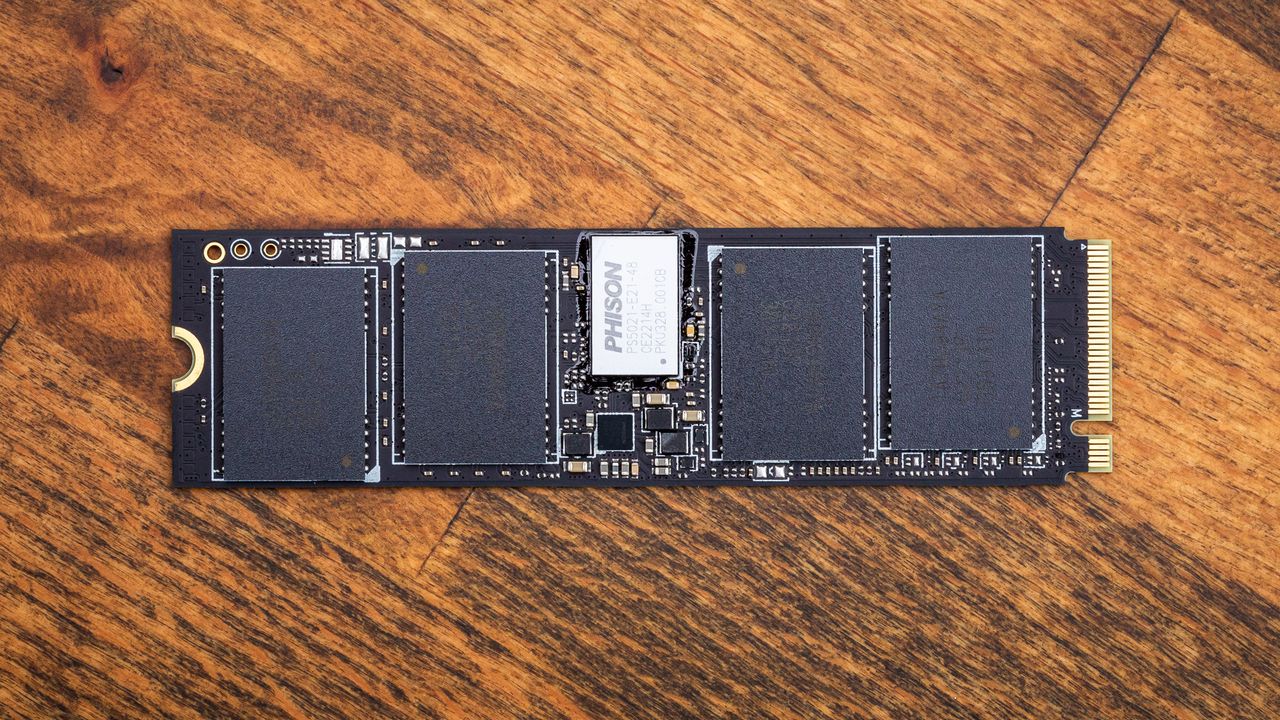

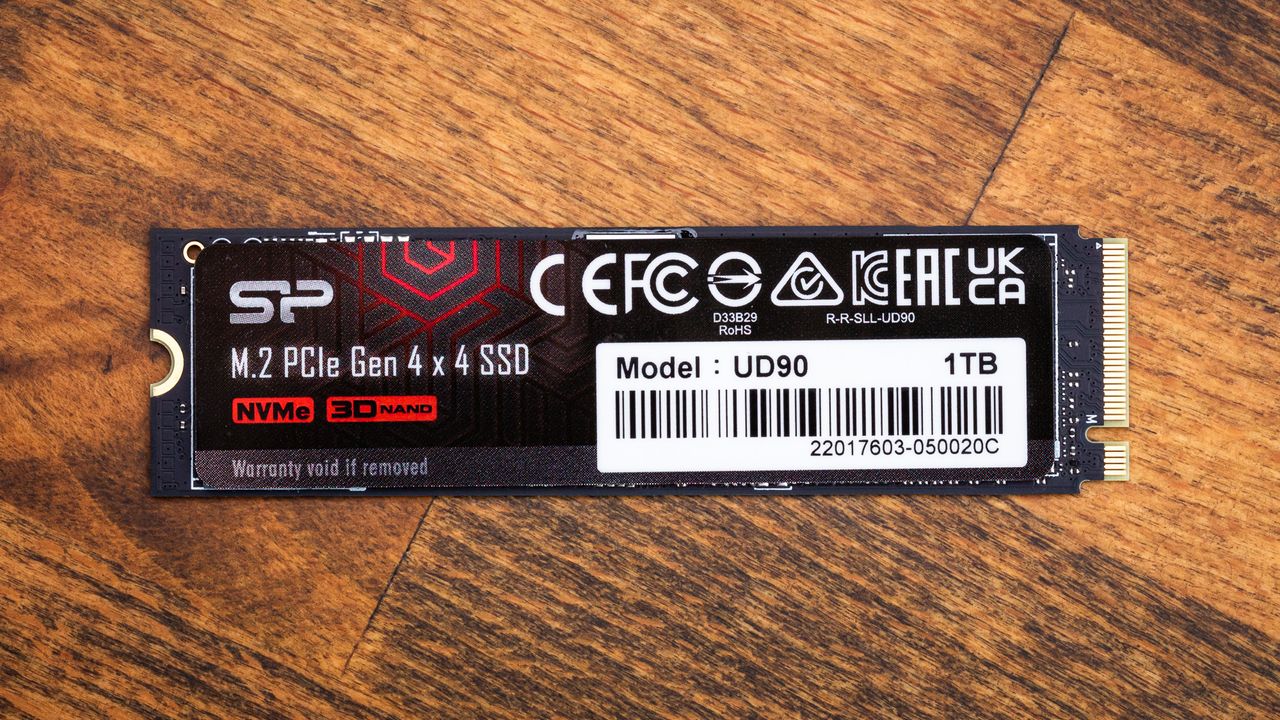

The UD90 has a label on top showing basic information about the drive, such as the capacity and serial number. Under the label, we see the controller in the middle along with a PMIC, flanked by two NAND packages to either side. There is no DRAM. This type of layout can have some advantages, for example as WD touted with its WD Black and SN750, but the average user can just look at it and imagine a balancing of heat dissipation.

(Image credit: Tom's Hardware)

The Phison E21T is Phison’s new PCIe 4.0 DRAM-less controller, positioned to compete with InnoGrit’s IG5220 and SMI’s SM2269XT. It also competes with WD’s proprietary controller used on the SN770. This controller has four channels with a bus speed of 1600 MT/s, capable of using current and upcoming TLC and QLC flash. It has Phison’s 4th-Gen LDPC error correction, end-to-end data path protection, and RAID error correction through Smart ECC 2.0. Encryption support for TCG OPAL 2.0 and Pyrite is optionally available but not activated on this drive.

Performance-wise, this controller can hit up to 5/4.5 GBps for sequential read and write, respectively, and up to 780K/800K random read and write IOPS, also respectively. This matches up nicely with the IG5220, which we’ve seen in past reviews of drives like the HP FX900 and Patriot P400. This is our first review of a drive using the E21T, but we expect to see more drives using this controller. We also expect it to be competitive.

(Image credit: Tom's Hardware)

The flash packages are labeled IA7BG94AYA which means they contain dies of Micron’s 176-layer TLC. Each package should host four dies, that is 4DP or QDP, at 64GB per die. The total of sixteen dies is ideal for this four-channel controller, allowing peak interleaving at 1TB.

MORE: Best SSDs

MORE: How We Test HDDs And SSDs

MORE: All SSD Content
