Efficiency, Temperature & Noise

Efficiency

Our efficiency testing procedure is detailed here.

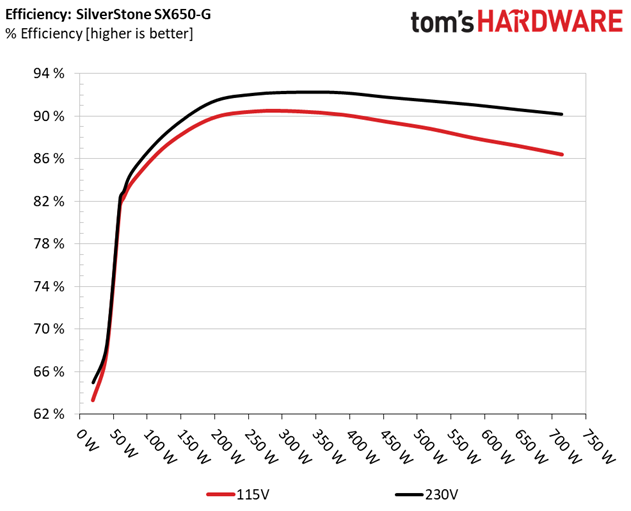

Using results from the previous page, we plotted a chart showing the SX650-G’s efficiency at low loads, and loads from 10 to 110 percent of its maximum-rated capacity.

Image 1 of 4

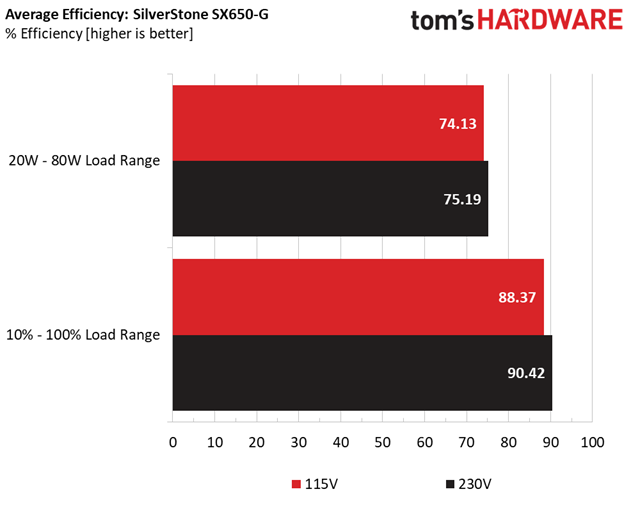

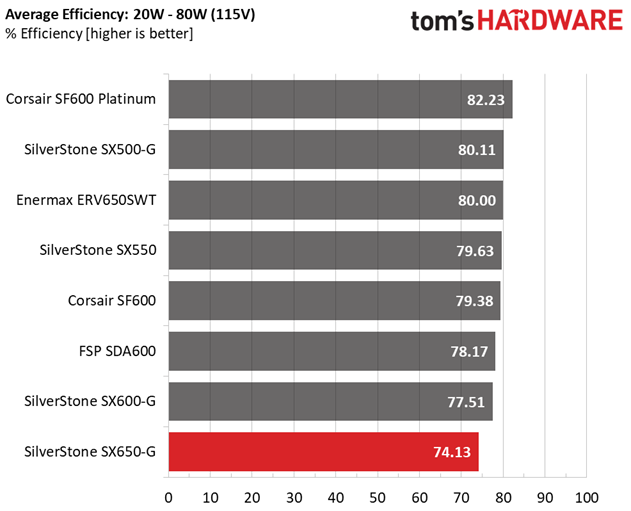

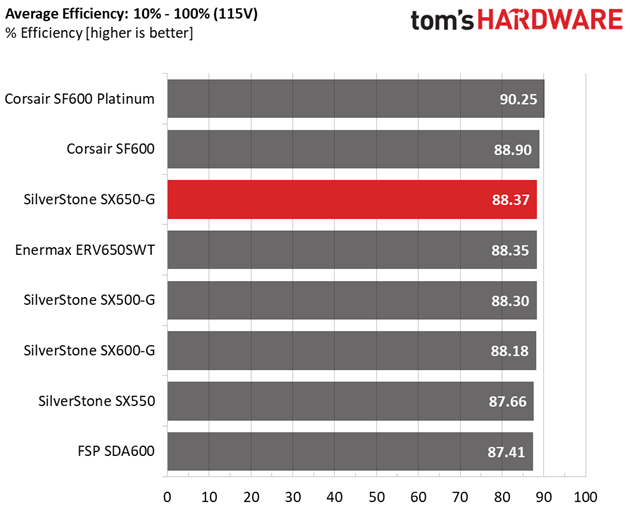

Measured efficiency under normal loads was high enough. However, it didn't look as good under light loads, at least compared to competing models with similar specifications.

Efficiency At Low Loads

In the following tests, we measure the SX650-G's efficiency at loads significantly lower than 10 percent of its maximum capacity (the lowest load the 80 PLUS standard measures). The loads we dial are 20, 40, 60, and 80W. This is important for representing when a PC is idle, with power-saving features turned on.

Swipe to scroll horizontally

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed	PSU Noise	PF/AC Volts
1	1.207A	0.491A	0.475A	0.196A	19.700	63.287%	1117 RPM	19.4 dB(A)	0.883
12.109V	5.072V	3.349V	5.114V	31.128	115.17V
2	2.436A	0.980A	0.983A	0.391A	39.749	67.701%	1117 RPM	19.4 dB(A)	0.967
12.109V	5.070V	3.345V	5.100V	58.713	115.17V
3	3.672A	1.475A	1.494A	5.093A	59.868	81.586%	1117 RPM	19.4 dB(A)	0.977
12.095V	5.068V	3.344V	5.093V	73.380	115.17V
4	4.895A	1.975A	1.974A	0.786A	79.781	83.941%	1117 RPM	19.4 dB(A)	0.981
12.091V	5.065V	3.340V	5.087V	95.044	115.17V

With 20W and 40W of load, we would like to see efficiency levels close to 70% and 80%, respectively. Also, the fan's speed was fairly high in these tests. It could have started spinning at a slower speed.

5VSB Efficiency

The ATX specification (revision 1.4), along with CEC, ErP Lot 3 2014 and ErP Lot 6 2010/2013, states that 5VSB standby supply efficiency should be as high as possible, recommending 75 percent or higher with 550mA, 1A, and 1.5A of load. The PSU should also achieve higher than 75% efficiency at 5VSB under full load, or with 3A if its maximum current output on that rail is higher than 3A.

We take six measurements: one each at 100, 250, 550, 1000, and 1500mA, and one with the full load the 5VSB rail can handle.

Swipe to scroll horizontally

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.102A	0.521	72.061%	0.114
5.130V	0.723	115.15V
2	0.252A	1.290	76.558%	0.218
5.124V	1.685	115.16V
3	0.542A	2.773	79.776%	0.314
5.114V	3.476	115.16V
4	1.002A	5.112	80.593%	0.376
5.101V	6.343	115.16V
5	1.502A	7.637	80.670%	0.408
5.086V	9.467	115.17V
6	2.501A	12.611	79.290%	0.442
5.042V	15.905	115.17V

Image 1 of 2

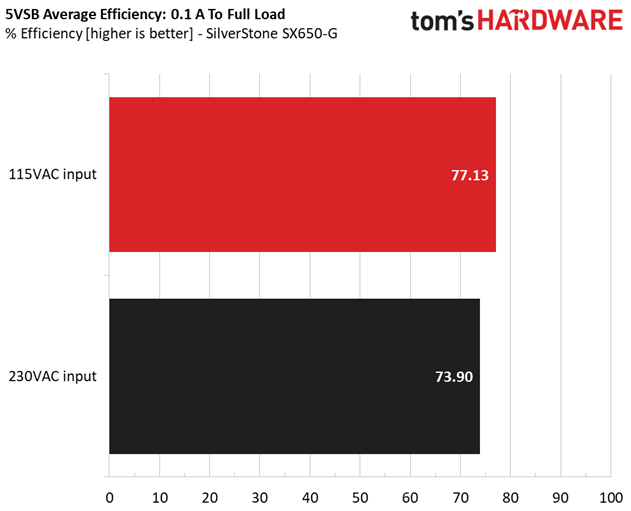

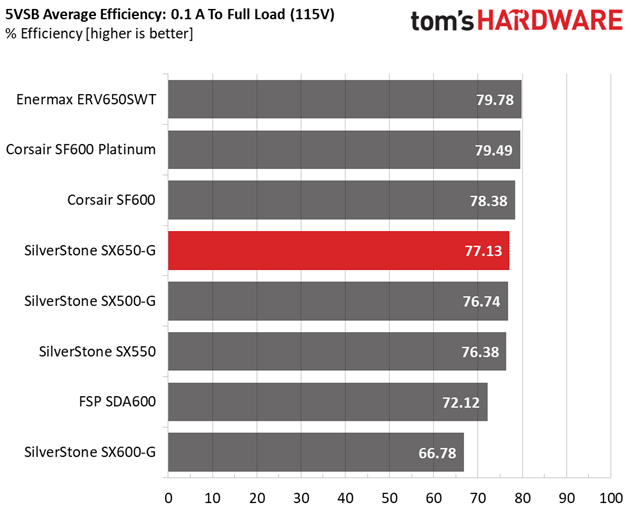

The 5VSB rail achieved high efficiency scores with 115V input.

Power Consumption In Idle And Standby

In the table below, you'll find the power consumption and voltage values of all rails (except -12V) when the PSU is idle (powered on, but without any load on its rails), and the power consumption when the PSU is in standby mode (without any load, at 5VSB).

Swipe to scroll horizontally

Mode	12V	5V	3.3V	5VSB	Watts	PF/AC Volts
Idle	12.117V	5.075V	3.353V	5.127V	5.163	0.453
115.2V
Standby	0.085	0.014
115.2V

Image 1 of 2

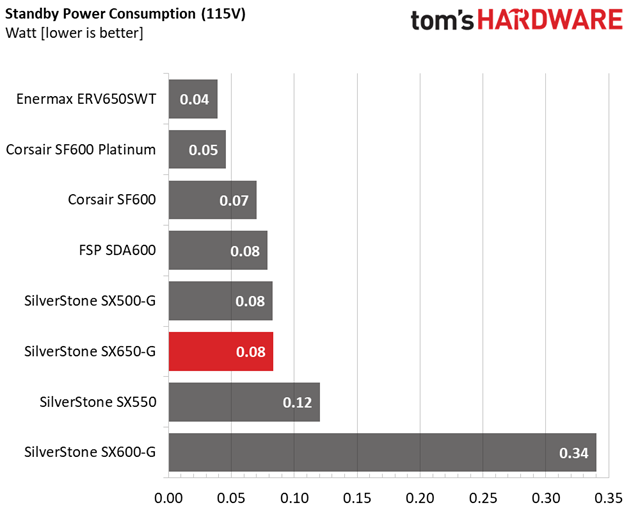

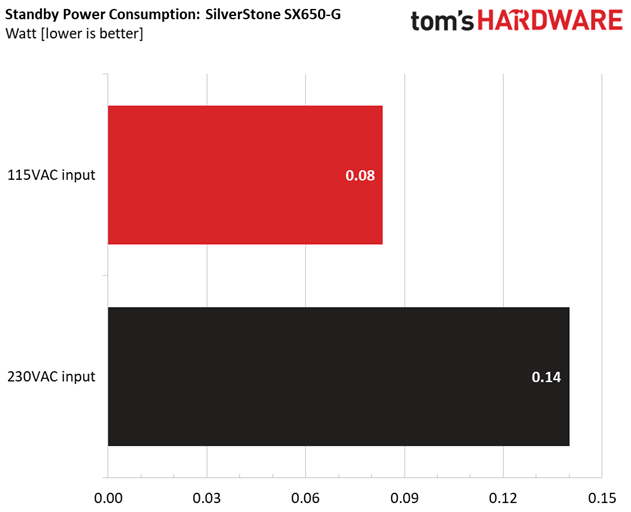

The SX650-G's power consumption in standby is low enough with 115V input and a bit higher with 230V.

Fan RPM, Delta Temperature, And Output Noise

Our mixed noise testing is described in detail here.

The first chart below illustrates the cooling fan's speed (in RPM), and the delta between input and output temperature. The results were obtained at 37°C (98.6°F) to 47°C (116.6°F) ambient temperature.

The next chart shows the cooling fan's speed (again, in RPM) and output noise. We measure acoustics from one meter away, inside a hemi-anechoic chamber. Background noise inside the chamber is below 6 dB(A) during testing (it's actually much lower, but our sound meter’s microphone hits its floor), and the results are obtained with the PSU operating at 37°C (98.6°F) to 47°C (116.6°F) ambient temperature.

The following graph illustrates the fan's output noise over the PSU's operating range. The same conditions of the above graph apply to our measurements, though the ambient temperature is between 30°C (86°F) to 32°C (89.6°F).

The PSU's lowest output noise was less than 20 dB(A). At normal operating temperatures, it remained there up through 270W of load. With 40 to 50W more, the 30 dB(A) mark was passed quickly. And beyond 390W, the SX650-G found itself in the 35-40 dB(A) region.

SilverStone's fan profile could be tuned better. After all, noise output increased by 15 dB(A) within a 50W range. We did notice that if load on the minor rails remained below 70W combined, the fan spun slower (even under high operating temperatures).

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content

Current page: Efficiency, Temperature & Noise

Prev Page Load Regulation, Hold-Up Time & Inrush Current Next Page Protection Features
