SSDs In RAID: A Performance Scaling Analysis

By Manuel Masiero, Achim Roos
published

RAID arrays with dozens of hard drives are not uncommon for reaching certain performance levels. We demonstrate how beautifully SSD RAID arrays can scale. There may come a time when a few flash-based drives will replace entire farms of hard disks.

Benchmark Results: PCMark Vantage

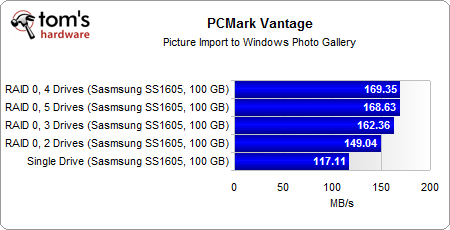

In contrast to Iometer and CrystalDiskMark, PC Mark Vantage shows significantly less differences when adding more SSDs. The RAID array is still better than a single drive, but the scaling is much worse. This is mostly due to the nature of the benchmark itself, however. It mainly focuses on consumer scenarios, and we chose to include it mostly for the sake of painting a bigger picture.

The difference is smallest in the gaming benchmarks, since the HDD data rate only plays a small part of gaming performance.

The greatest performance increase is seen in the Windows Media Center tests, as it measures the streaming capabilities of the system.

Manuel Masiero
