RTX 4060 vs RTX 3060 12GB GPU faceoff: New versus old mainstream GPUs compared

RTX 4060 vs RTX 3060 12GB Faceoff
(Image credit: Tom's Hardware)

Today, we're going to tackle the topic of how the RTX 4060 vs RTX 3060 12GB compare — both GPUs that have been on our list of the best graphics cards at one time or another. The Nvidia RTX 40-series Ada Lovelace GPUs have been a bit of a mixed bag, particularly on the lower end of the price and performance ladder. The RTX 4060 was widely criticized for cutting back on the VRAM relative to its RTX 3060 12GB predecessor, resulting in a relatively minor increase in performance — or sometimes even a performance regression. Or at least that's the common wisdom you'll see floating around online these days. But how bad is it really?

This GPU faceoff aims to answer that question, and since it's Nvidia versus Nvidia we have something of a war of the (green) roses. We've seen people suggest that the RTX 3060 12GB, today, is a better buy than the RTX 4060. Of course, finding a brand-new 3060 12GB for sale is getting to be a bit difficult, but we'll look at used card prices (for both GPUs) as well, as we draw the battle lines and pit the two cards against each other.

The RTX 4060 represents the lowest entry point (on desktops at least) for the 40-series cards. The RTX 3060 on the other hand is a step above the base model RTX 3050 8GB. Nvidia also muddied the waters later in the product cycle with the RTX 3060 8GB card (which we haven't reviewed), plus the more recent RTX 3050 6GB (also not reviewed here) that came out after the RTX 4060 launched. Needless to say, the 4060 looks quite a bit better when compared with the lower class 3060 8GB card.

But our focus is on the two primary cards, so let's dig into the details, looking at performance, price, efficiency, and other features — in rough order of importance.

RTX 4060 vs RTX 3060 12GB: Performance

We've seen plenty of people lamenting the "weak" performance of the RTX 4060, claiming that it's often not even faster than its predecessor. This is a generally false statement. Overall, across our full test suite, the RTX 4060 is around 20% faster at 1080p and 1440p, and still over 10% faster even at 4K ultra — a setting that neither card handles well.

While there are a few edge cases where the 3060 12GB does deliver superior performance, these are at best pyrrhic victories, with neither card running at acceptable levels. In fact, of the 19 games we tested, at four different settings/resolution combinations, the only cases where the 3060 12GB came out ahead are at 4K ultra — and neither GPU was able to average 30 fps or more in those games.

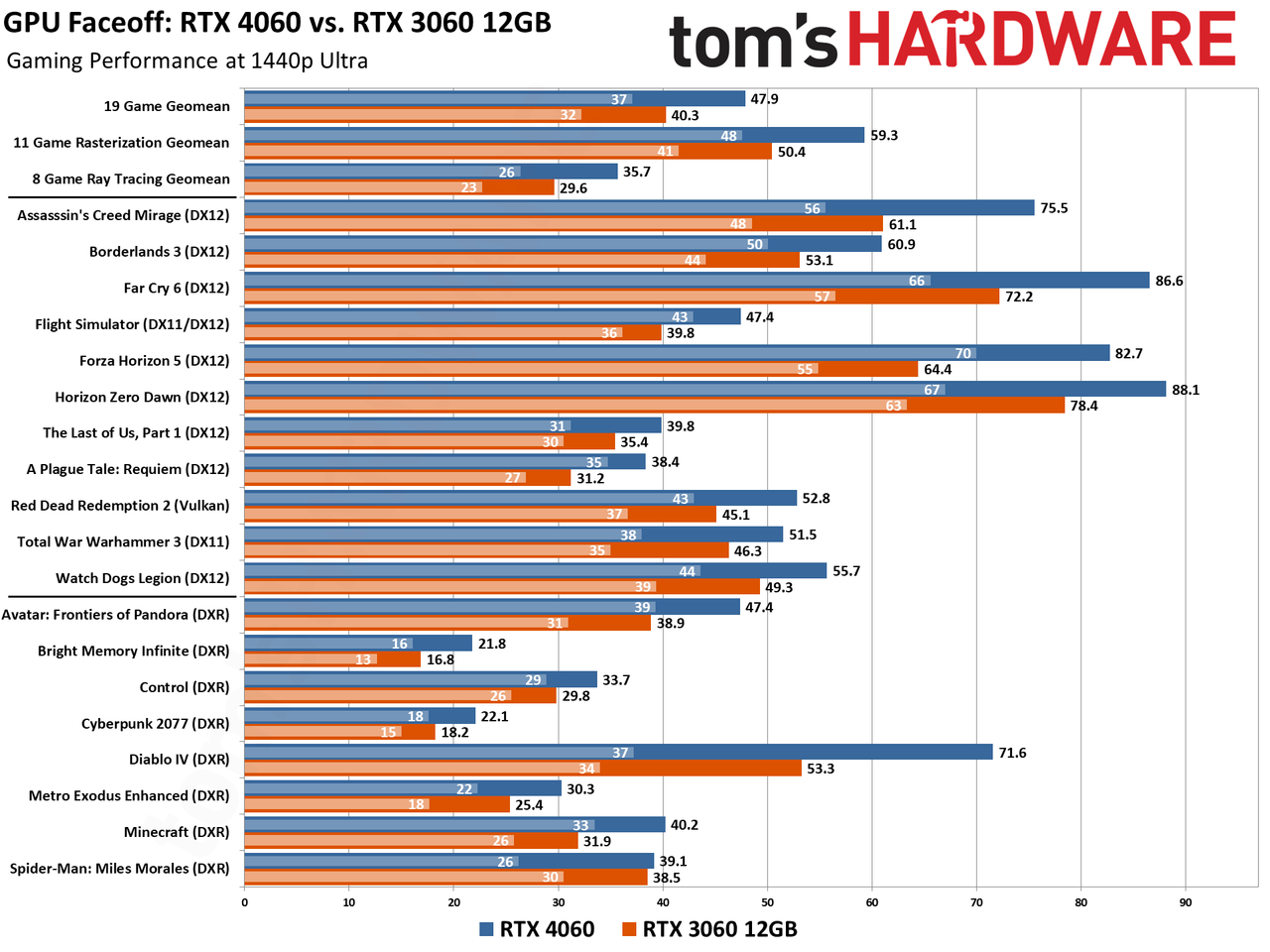

Granted, there's one exception to the above, sort of. In Spider-Man: Miles Morales, at 1440p ultra with maxed out RT settings, the 4060 averaged 39.1 fps while the 3060 got 38.5 fps. That's basically tied, but more importantly, 1% lows were 30.5 fps on the 3060 compared to 26.2 fps on the 4060. Overall, the 3060 does deliver a better experience in that one particular instance. There are almost certainly other instances of games that will run better on the 3060. But examples of such are few and far between.

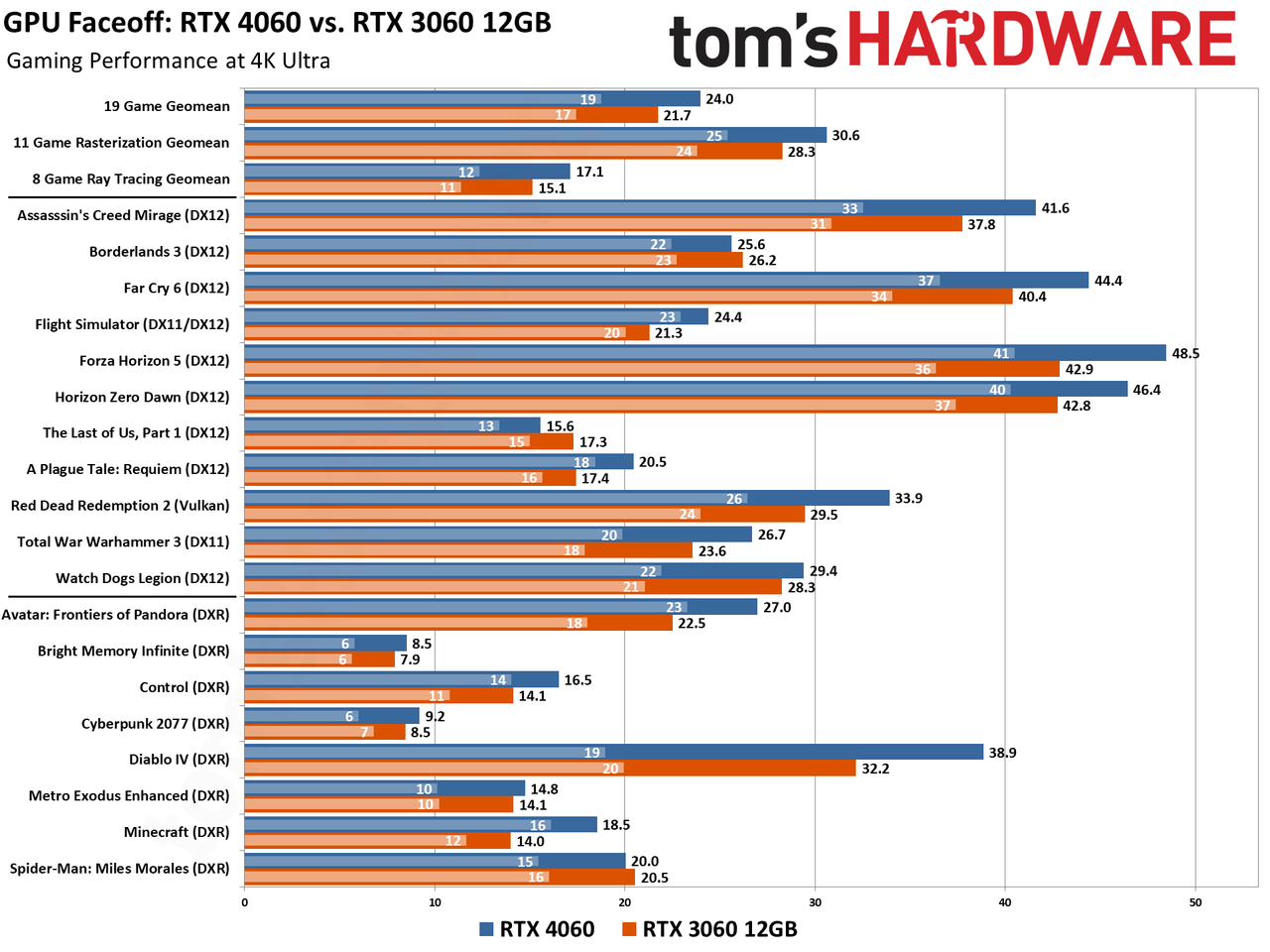

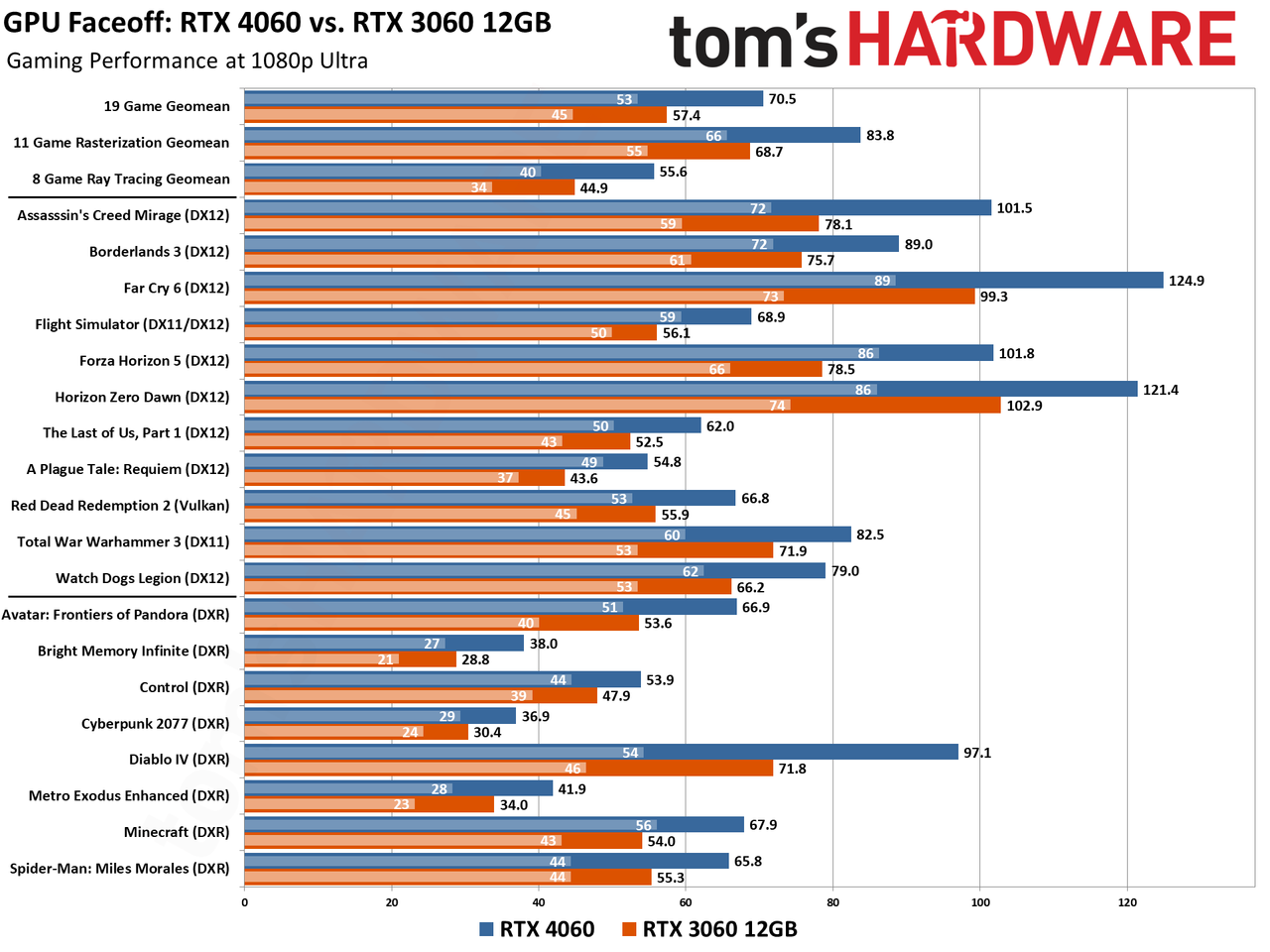

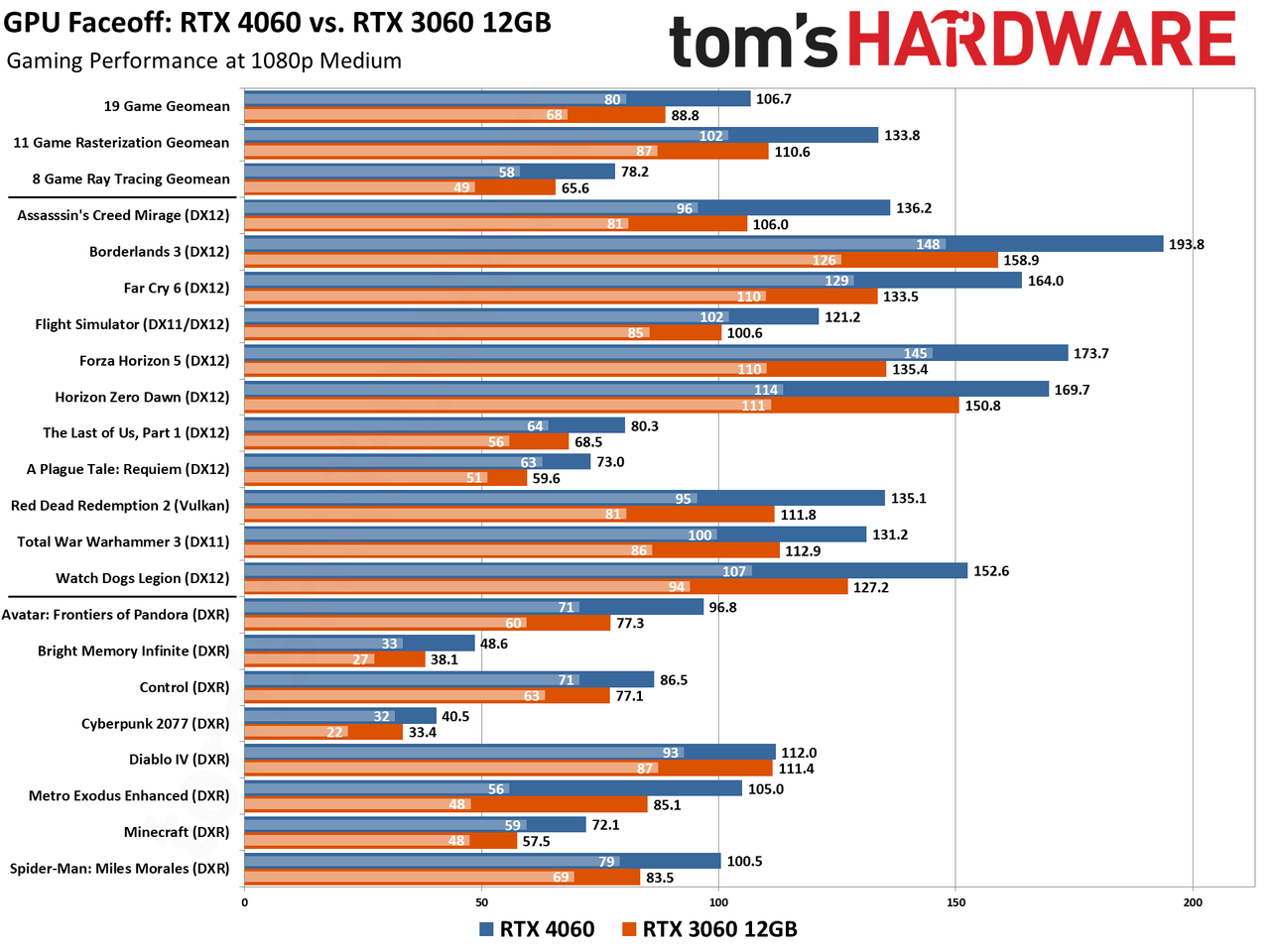

Our test suite is generally heavy on demanding games, with eight RT enabled games and quite a few others that can struggle on 8GB of VRAM. Diablo IV, Forza Horizon 5, The Last of Us, Spider-Man: Miles Morales, and Watch Dogs Legion all represent games that can benefit by having more than 8GB of VRAM, even at 1080p and 1440p. We know this by looking at Nvidia's RTX 4060 Ti in both 8GB and 16GB trim. But comparing the 4060 8GB and 3060 12GB, those same five games generally run better on the 4060 at 1440p and below.

This isn't to say that the RTX 4060 provides a massive uplift over the 3060 12GB, but keep in mind that it also comes in at a lower official MSRP. It ends up straddling the line a bit as a replacement for both the RTX 3050 and 3060 models. For the intended purpose, namely mainstream 1080p gaming, it does a decent job and easily outpaces AMD's alternative — check our RTX 4060 vs RX 7600 GPU faceoff to see how that matchup went down.

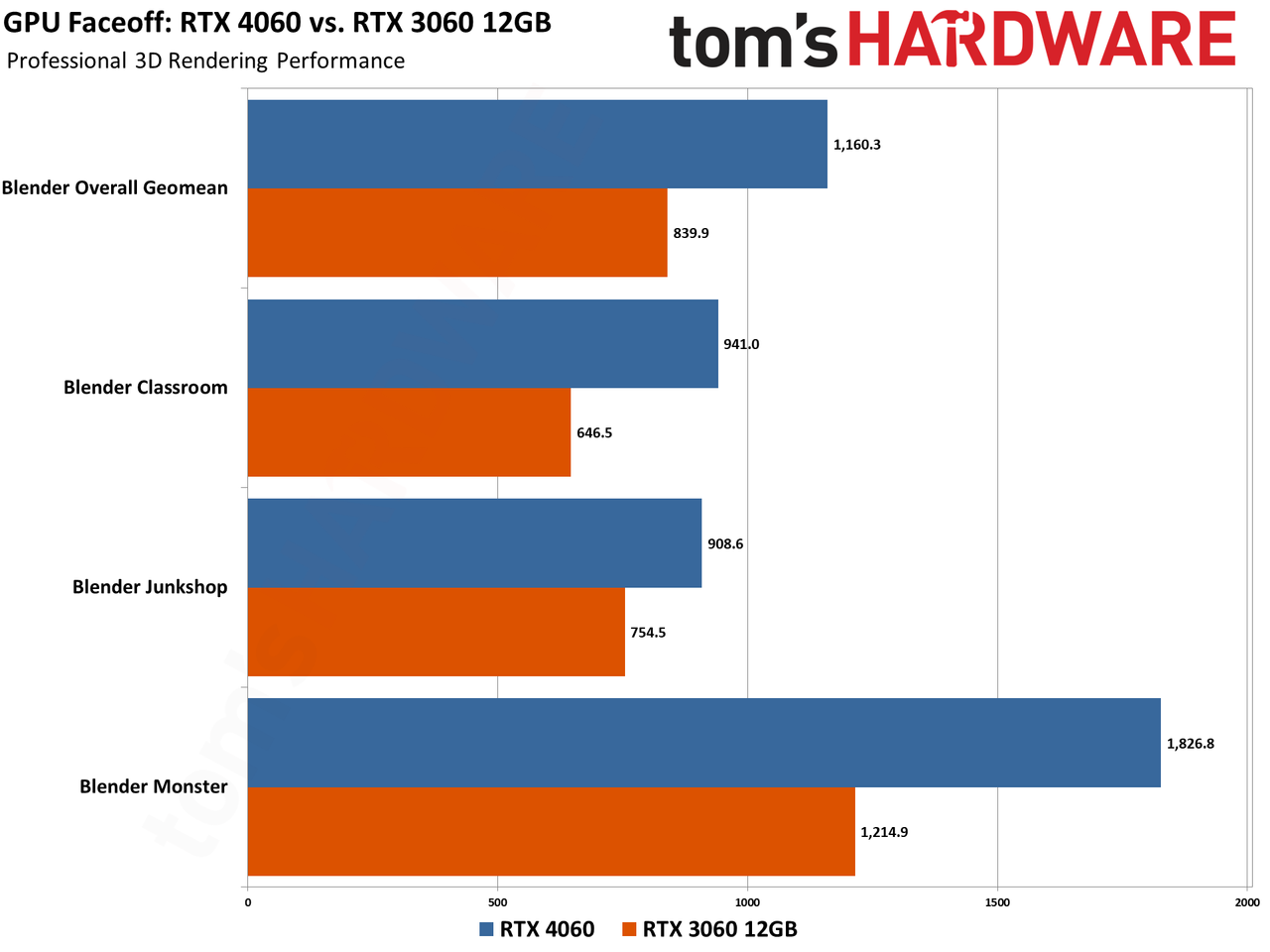

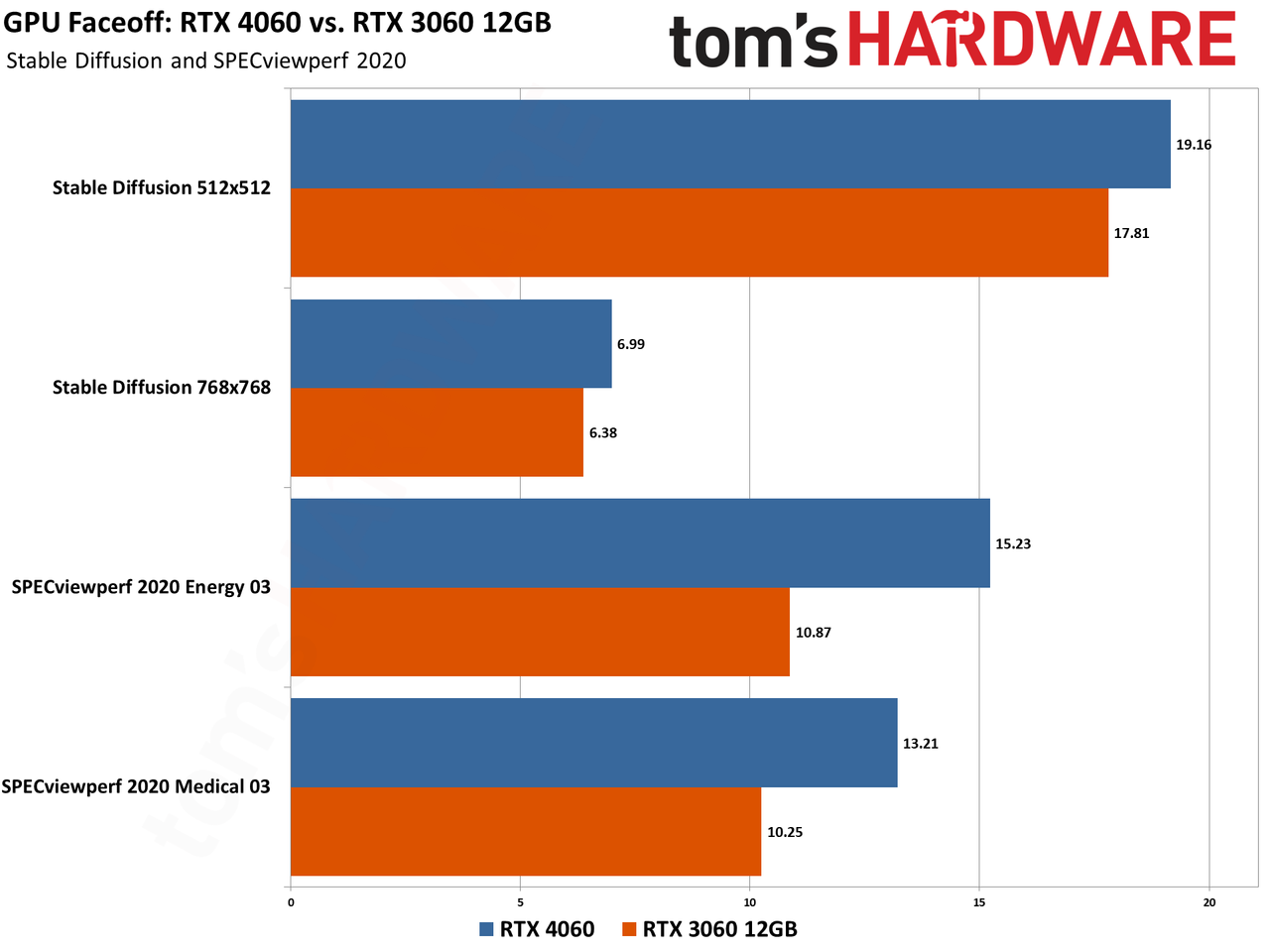

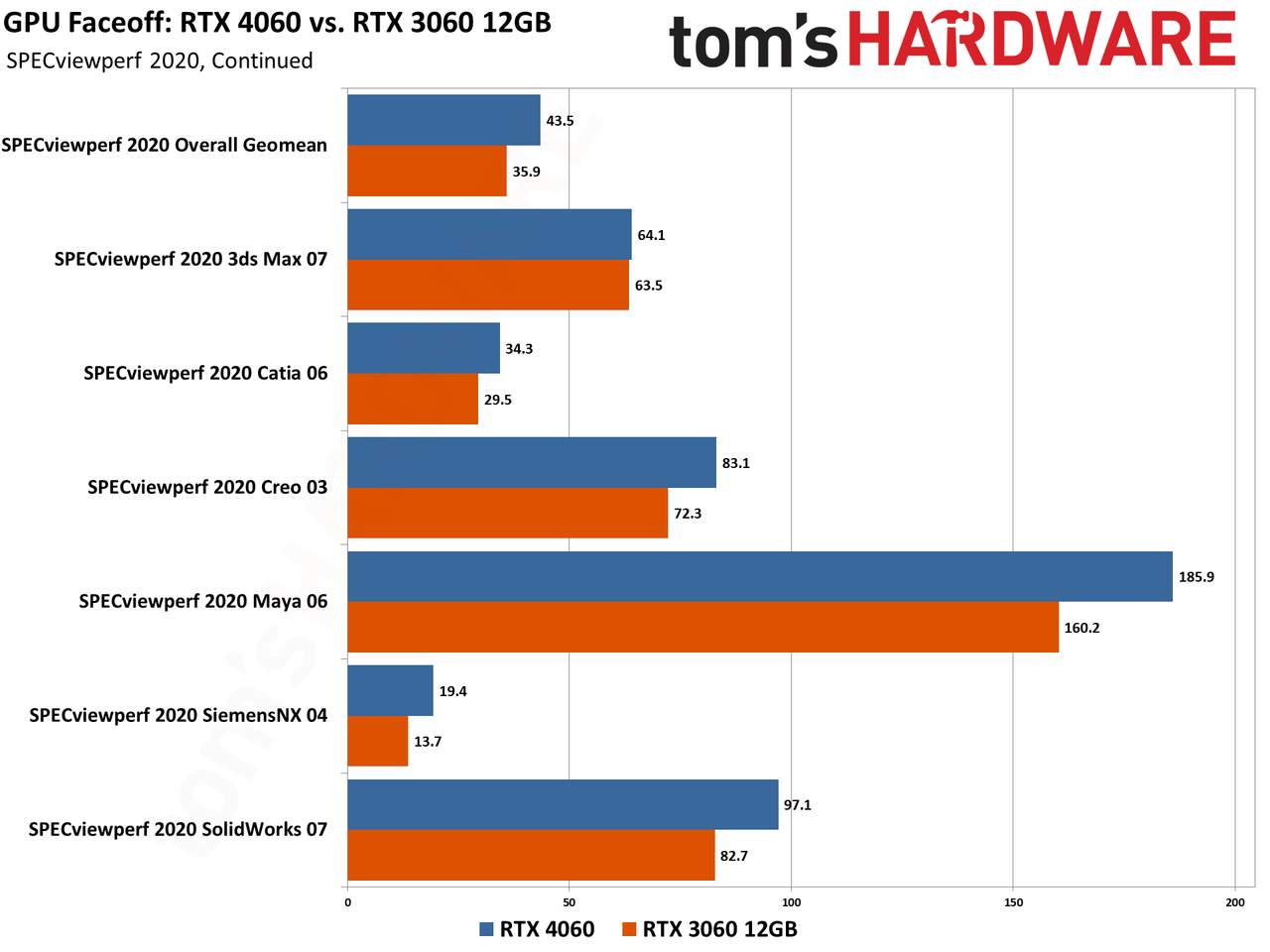

How do the two cards fare when running professional and AI workloads? The RTX 4060 sweeps the test results, leading by anywhere from around 10% to as much as 40%. There's a caveat here, however: AI workloads can often require more memory just to attempt running them. While we tested Stable Diffusion at 512x512 and 768x768, and the 4060 came out about 8~10 percent ahead of the 3060, there are LLMs that will need more than 8GB but could still work with 12GB.

We'd suggest upgrading to an even faster GPU than the 3060 12GB if you're actually looking into running AI workloads on consumer GPUs, and it's one of the few cases where the RTX 4060 Ti 16GB card makes sense. Otherwise, between the 4060 and 3060, the newer model will be the better pick.

RTX 4060 vs RTX 3060 12GB Faceoff

A table showing the full breakdown of RTX 4060 vs RTX 3060 12GB gaming performance — the red percentages are where the 3060 comes out ahead. (Image credit: Tom's Hardware)

Overall Performance Winner: RTX 4060

For pure performance, newer hardware is almost always going to be better. Sure, older GPUs from a higher tier would be faster than a new lower-tier graphics card, but if you're looking at the same relative level — like 4060 and 3060, or 4070 and 3070 — it's no real contest. The 4060 typically deliver around 20% more performance than the 3060.

Of course, we've also noted that the RTX 4060 really feels more like a replacement for the RTX 3050, considering both offer 8GB of VRAM on a 128-bit interface. If we were doing that comparison, the upgrade would massive — the 4060 beats the 3050 by around 65% on average. But that's a story for another day.

RTX 4060 vs RTX 3060 12GB: Price and Value

Comparing prices between the RTX 4060 and RTX 3060 12GB is going to be a bit tricky. The cards launched in June 2023 and February 2021, respectively, so we're looking at a one year old GPU against a card that's more than three years old and has been effectively discontinued for quite a few months now.

If you're trying to find a brand-new RTX 3060 12GB, the cheapest one we can find is this MSI RTX 3060 12GB Ventus 2X for $288 on Amazon, with several other cards costing right around $300. The lowest cost 4060 card right now is this MSI RTX 4060 8GB Ventus 2X for $293 on Amazon. Quite a few other RTX 4060 cards can be found for around $300 as well. We're not going to argue over $5~$10 on a $300 graphics card, so this would sort of be a tie — with the understanding that by virtue of being faster, the RTX 4060 still represents a better overall value.

What about used cards, though? As a three years old card, there should be lots of used RTX 3060 GPUs floating about... and there are. Looking just at sold listing from the past month, the average price on eBay for the 3060 12GB was $221, with over 300 different sellers. The RTX 4060 on the other hand has an average sold price of $268 with only 71 sellers. We'd be a bit more hesitant about buying a used 3060, simply because it's old enough that it could have been used for Ethereum mining for over a year, but there are worse ideas.

If you're patient, you might also score a better deal and pick up a 3060 card for under $150 on auction. The lowest price on a 4060 meanwhile was $160, with most cards costing $200 or more.

Price and Value Winner: RTX 4060

We're not sold on the idea of buying a used card, so for new cards you're mostly looking at the same price. Then we have to give some weight to the higher performance and lower power use from the RTX 4060. It typically uses 30–40 watts less than the 3060, which can start to add up depending on how much you use your PC for gaming purposes.

At four hours per day, every day of the year, that's a difference of around 44–58 kWh — it would be more or less than that depending on how much you're using the GPU. That gives a baseline electricity cost difference of about $4.40~$5.80 per year if you pay 10 cents per kWh. However, that increases to potentially $17 at 30 cents per kWh, or $29 if you pay 50 cents per kWh. Saving even $40 on the initial price only to pay more over the long haul thanks to power use will definitely point plenty of people toward the 4060.

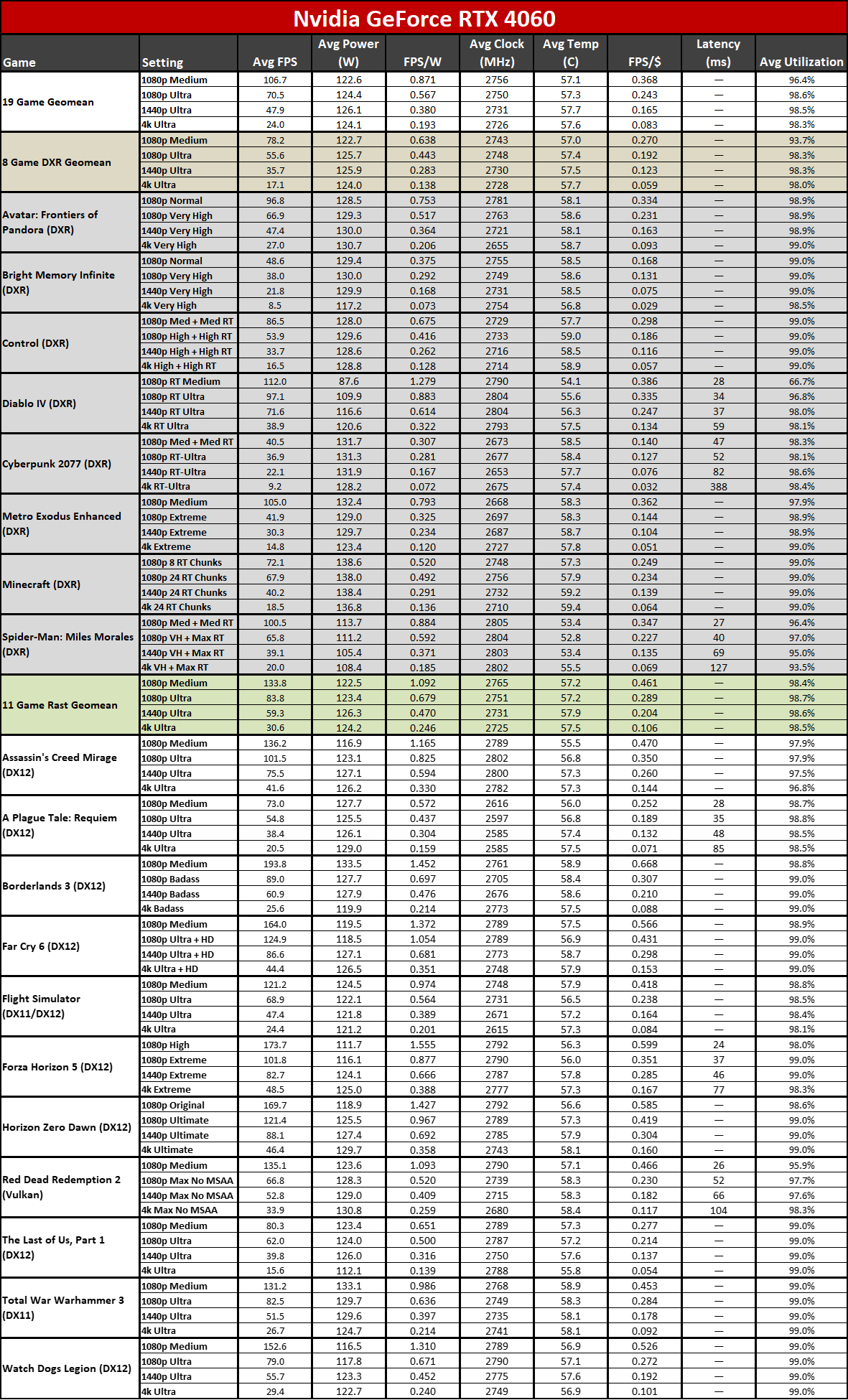

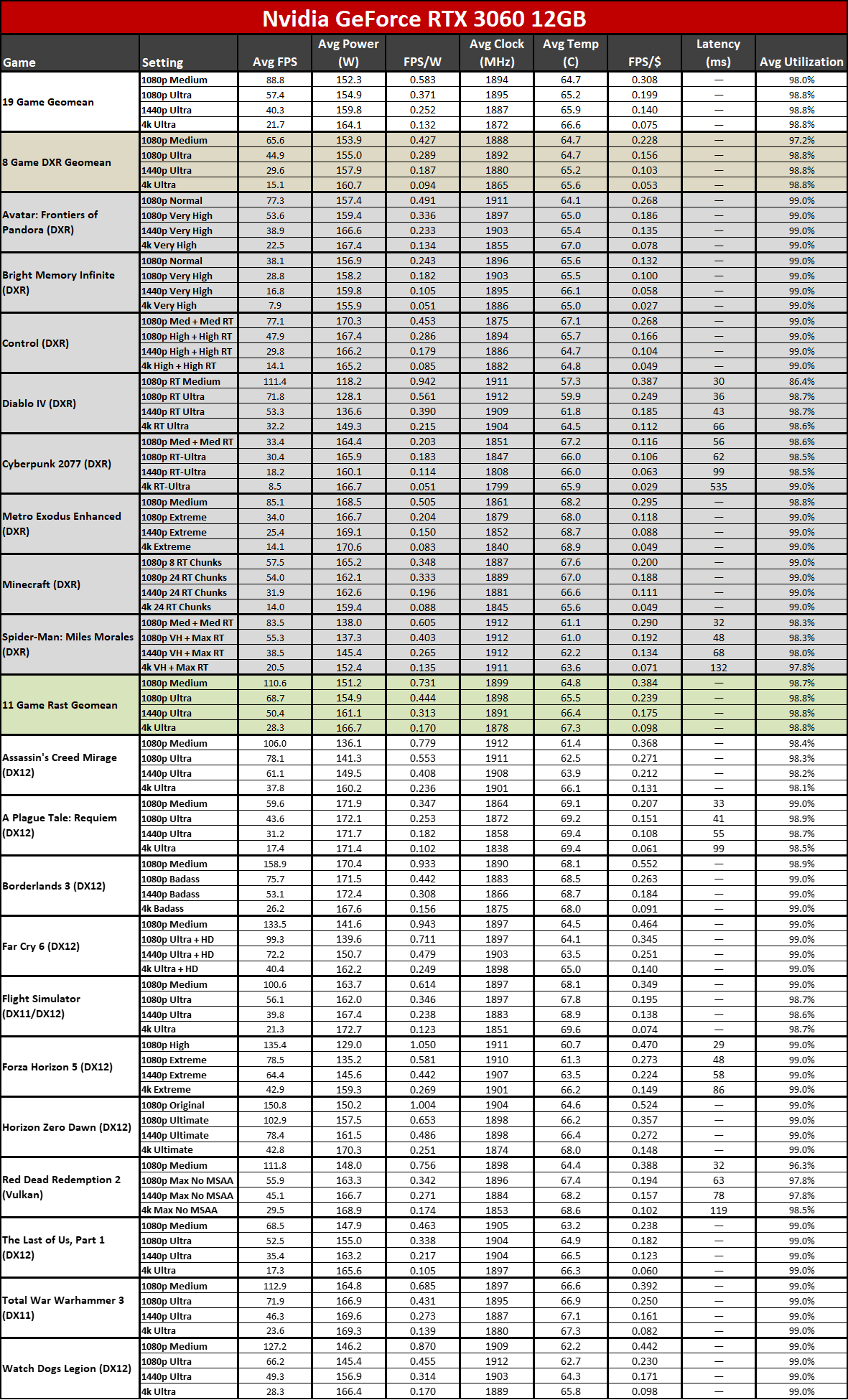

RTX 4060 vs RTX 3060 12GB: Power and Efficiency

Power use clearly favors the RTX 4060. It's rated for 115W TGP (Total Graphics Power), while the older RTX 3060 12GB has a 170W TGP rating. On average, using our two sample cards — a factory overclocked Asus RTX 4060 Dual OC and a reference clocked EVGA RTX 3060 12GB Black — we measured a typical power delta of 30W at 1080p and 1440p, with a 40W advantage for the 4060 at 4K.

30W or even 40W might not seem like much, and if you're not playing a lot of games it's perhaps a less critical factor. But if you're gaming on a regular basis, particularly if you're playing games for 20 or more hours per week, all of that additional power use will add up.

It's not just about raw power use, either. We've already shown that the RTX 4060 generally offers 20% higher performance. Doing so while drawing less power means that the overall efficiency ends up being massively improved. The 4060 offers around 50% higher performance per watt than the RTX 3060 12GB.

Much of that delta is thanks to TSMC's 4N (5nm-class) process node, where Samsung's 8N (10nm-class) node was already behind the state of the art 7nm-class nodes when the RTX 30-series launched in 2020. But the cause is less important than the pure efficiency improvements, and for now, the RTX 40-series easily bests anything else that's available.

Power and Efficiency Winner: RTX 4060

There's no contest on efficiency. The RTX 4060 is around 50% higher performance per watt than the RTX 3060, and that's across all tested resolutions and settings. Raw performance is higher, raw power use is lower, and that's double the pleasure and double the fun for power efficiency.

RTX 4060 vs RTX 3060 12GB: Features and Technology

Swipe to scroll horizontally
GPURTX 4060RTX 3060
Process TechnologyTSMC 4NSamsung 8N
Transistors (Billion)18.912
Die size (mm^2)158.7276
SMs / CUs / Xe-Cores2428
GPU Cores (Shaders)30723584
Tensor / AI Cores96112
Ray Tracing Cores2428
Boost Clock (MHz)24601777
VRAM Speed (Gbps)1715
VRAM (GB)812
VRAM Bus Width128192
L2 / Infinity Cache243
Render Output Units4848
Texture Mapping Units96112
TFLOPS FP32 (Boost)15.112.7
TFLOPS FP16 (FP8)121 (242)51 (102)
Bandwidth (GBps)272360
TDP (watts)115170
Launch DateJul 2023Feb 2021
Launch Price$299$329
Online Price$293$288

When it comes to specifications, the RTX 4060 and RTX 3060 have some interesting differences. The 3060 actually has more CUDA cores (GPU shaders), 3584 versus the 4060's 3072. However, clocks speeds are much, much higher on the 4060, so ultimately that's where the extra performance comes from, giving 15.1 teraflops of FP32 compared to 12.7 teraflops. Note that's a 19% advantage, which coincides almost perfectly with the performance differences shown above.

Memory bandwidth favors the 3060 on paper, but the large 24MB L2 cache on the 4060 more than makes up for that. What it can't do is overcome the deficit in VRAM capacity, but that mostly applies to 4K ultra gaming as a real concern. There will be other games where having 12GB results in a better experience, potentially even at 1080p, but in our view it's not a critical factor for a sub-$300 GPU.

In most other areas, the RTX 4060 is either equal to or better than the 3060. Obviously, the drivers and software are the same. Features like DLSS support are also basically the same, though the RTX 4060 also supports DLSS 3 frame generation — which ends up being a lot of marketing fluff for most use cases, particularly on this level of hardware.

There is one potentially noteworthy advantage to the RTX 4060, however. It supports AV1 video encoding. That's mostly going to matter if you're into streaming your gaming sessions, so again it's not a huge deal. The RTX 4060 also uses TSMC's superior N4 process node, with a 159mm^2 die size compared to the 3060's Samsung 8N node and 276mm^2 die size. The size itself doesn't really matter for end users, but TSMC 4N has clear efficiency advantages.

Features and Technology Winner: RTX 4060

The RTX 4060 doesn't offer too many major changes over the older 3060, but it does have AV1 encoding and DLSS 3 frame generation. It's also made on a newer process that boosts efficiency and performance. This isn't a landslide win, as mostly the two cards will offer similar features, but the 4060 does end up with a modest edge in features. It would be surprising if that weren't the case, given it uses a newer architecture.

RTX 4060 vs RTX 3060 12GB GPU Faceoff

(Image credit: Shutterstock / Tom's Hardware)

RTX 4060 vs. RTX 3060 12GB Verdict

Swipe to scroll horizontally
Row 0 - Cell 0 RTX 4060RTX 3060 12GB
PerformanceXRow 1 - Cell 2
Price and ValueXRow 2 - Cell 2
Power and EfficiencyXRow 3 - Cell 2
Features and TechnologyXRow 4 - Cell 2

The RTX 4060 easily wins this faceoff. That's sort of a no-brainer and we almost felt it wasn't even worth discussing, but there's enough talk that it's good to set the record straight. If anyone tries to tell you that the RTX 3060 12GB is a superior card to the RTX 4060, they're selling you on a story with no basis in reality.

For its time, the RTX 3060 12GB was arguably a better balanced card, but three years later, even if the RTX 4060 isn't a massive improvement in overall performance and does take a step back in VRAM capacity, it's still faster and better. All the architectural upgrades make it the superior card, sweeping all four of our faceoff categories.

That doesn't mean you should run off and sell your RTX 3060 12GB if you have one, of course. We generally want at least a 50% boost in performance to entice us to upgrade, and preferably double the performance. If you have a 3060 12GB and you're not happy with how it runs games right now, you'd be much better off upgrading to an RTX 4070 or RTX 4070 Super — or waiting for what will hopefully be a better card with the future RTX 5060. The 4070 would give a very noticeable improvement in performance, though it would cost significantly more money to get there, naturally.

We should also note that if you're currently on a PC that's five years old or more, you may need more than just a new graphics card to get a good overall increase in gaming performance. Upgrading your CPU, motherboard, and memory represents a significant investment, so it might be easier to sell off your old PC entirely rather than just trying to upgrade the GPU, but that's yet again a topic for another day.

The RTX 4060 isn't an amazing graphics card. We really wish Nvidia had given it 12GB or even 10GB of memory at least. But with a $300 starting price (we've seen it go for as little as $279), it's less expensive and faster than its direct predecessor. Hopefully, the upcoming Blackwell RTX 50-series GPUs will deliver additional improvements that will put the 8GB VRAM story to bed.

Until then, if you need a graphics card right now and you don't want to spend more than $300, the RTX 4060 remains the best current option. For previous generation GPUs, it's slightly slower than an RTX 3060 Ti or RX 6750 XT — with the latter being a viable alternative, particularly if you don't care about ray tracing and DLSS.
