Quad-Monitor Configuration
Swipe to scroll horizontally
4-TFT Configuration | |
---|---|
Monitor 1: | On-board - VGA |
Monitor 2: | On-board - DVI |
Monitor 3: | Graphics Card - DVI |
Monitor 4: | Graphics Card - VGA |

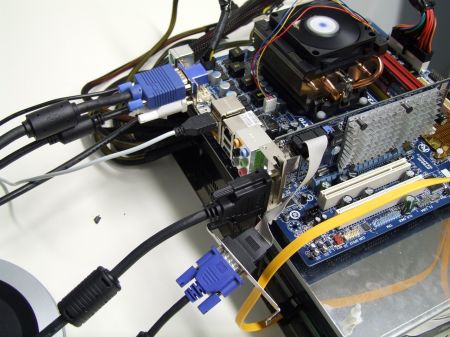

Connecting four TFT monitors
Configuring the four monitors in Windows
Settings in ATI's driver.
The test system with four displays attached.
A Windows desktop measuring 5120 pixels in width.
Both DVI and HDMI support the HDCP copy protection system used by Blu-ray and HD-DVD media. Thus, an HDCP-capable TFT without an HDMI interface can be used on the DVI interface. One such TFT is the Samsung SyncMaster 245B we use in the lab for tests and reviews.
