Imitation To Innovation: AMD's Best CPUs

Am286: Manufactured Under License, But Faster

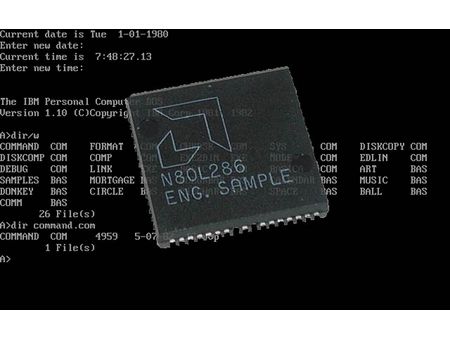

AMD’s Am286, a clone of the Intel 80286 manufactured under license, was identical to the chip from Intel, but it had a big advantage: its higher clock speed. Whereas Intel’s 286s topped out at 12.5 MHz, AMD sold 20 MHz versions. Because the 286 was more economical than the 386, whose innovations weren’t fully exploited for several years, AMD was already the value choice more than 20 years ago.

Code name ?
Date released 1983
Architecture 16-bits
Data bus 16-bits
Address bus 24-bits
Maximum memory 16 MB
L1 cache no
L2 cache no
Clock frequency 8-20 MHz
FSB same as clock frequency
FPU 80287
Fabrication process 1,500 nm
Number of transistors 134,000
Power consumption ?
Voltage 5 V
Die surface area 49 mm²
Connector 68 pins
