AMD Ryzen Threadripper 1950X Game Mode, Benchmarked

Testing Ryzen's Infinity Fabric & Memory Subsystem

Infinity Fabric Latency And Bandwidth

The 256-bit Infinity Fabric crossbar ties the resources inside of a Zeppelin die together. Tacking on a second Zeppelin die to create Threadripper introduces another layer of the fabric, though. Cache accesses remain local to each CCX, but a large amount of memory, I/O, and thread-to-thread traffic still flow across that second layer.

It didn't take long for enthusiasts to figure out that AMD's Infinity Fabric is tied into the same frequency domain as the memory controller, so a memory overclock reduces latency and increases bandwidth through the crossbar. Performance in latency-sensitive applications (like games) consequently improves.

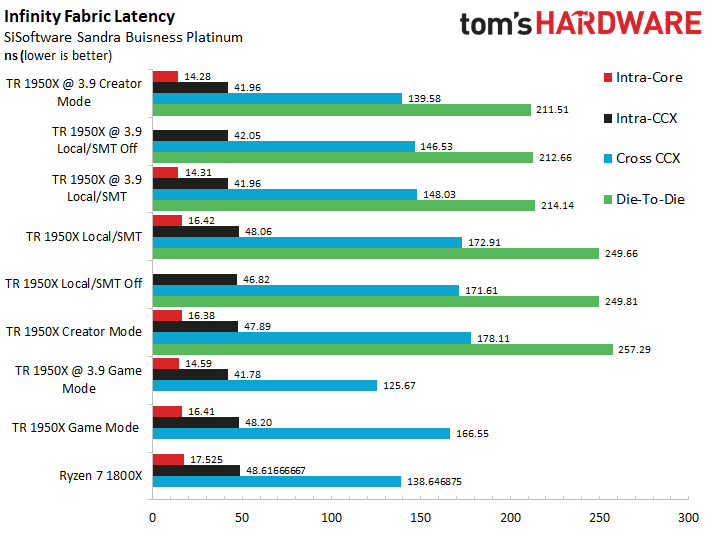

SiSoftware Sandra's Processor Multi-Core Efficiency test helps us illustrate the Infinity Fabric's performance. We use the Multi-Threaded metric with the "best pair match" setting (lowest latency). The utility measures ping times between threads to quantify fabric latency in every possible configuration.

The intra-core latency measurements represent communication between two logical threads resident on the same physical core, and as we can see, disabling SMT eliminates that measurement entirely. For the remaining setups, tuning reduces latency by a few nanoseconds. But this is attributable to higher clock rates. As we've seen in the past, increased memory frequencies have little effect on intra-core latency.

Intra-CCX measurements quantify latency between threads on the same CCX that are not resident on the same core. Increasing the clock rate yields larger ~6ns latency reductions.

Cross-CCX quantifies the latency between threads located on two separate CCXes, and we see a similar reduction thanks to overclocking. Notably, the Ryzen 7 1800X features much lower Cross-CCX latency than the stock Threadripper and most overclocked configurations. This is likely due to some form of provisioning, possibly in the scheduling algorithms, for Threadripper's extra layer of fabric.

As we can see, the overclocked Threadripper CPU in Game mode, which doesn't have an active fabric link to the other die, has the lowest Cross-CCX latency.

Die-To-Die measures communication between the two separate Zeppelin dies. Game mode effectively disables the second Zeppelin die at an operating system level, eliminating die-to-die latency entirely. The second die's uncore is still active though, which is necessary to ensure its I/O and memory controllers are still accessible.

Creator mode suffers the worst die-to-die latency, but tuning reduces it considerably. The two SMT options (on and off) receive large reductions from our overclocking efforts as well.

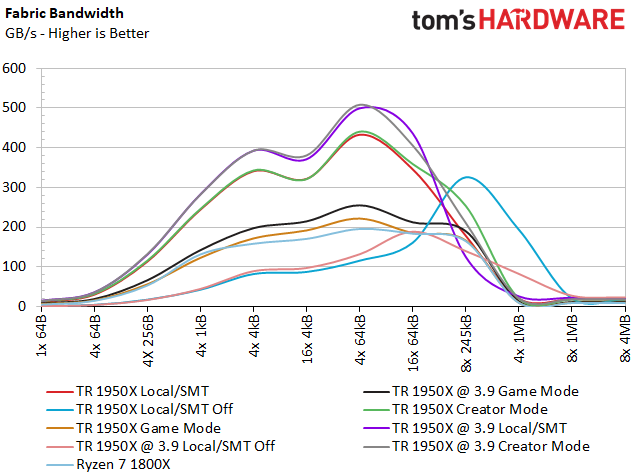

The utility measures fabric bandwidth too, which is critical for performance since data fetches from the remote memory also flow across the fabric. As such, AMD over-provisions the fabric and memory subsystem to optimize the distributed memory architecture.

Both the Creator mode and Local/SMT configurations offer the best fabric bandwidth, enjoying big boosts from overclocking. The Ryzen 7 1800X falls into the middle of the chart alongside Threadripper's Game mode, which is logical considering they are both effectively 8C/16T processors. Disabling SMT but leaving both dies active (Local/SMT off) yields a unique profile that provides higher performance with larger accesses and lower performance with smaller accesses.

Cache And Memory Latency

We tested with DDR4-2666 memory at stock settings and increased to DDR4-3200 for our overclocked configurations.

The Translation Look Aside Buffer is a cache that reduces access times by storing recently accessed memory addresses. Like all caches, the TLB has a limited capacity, so address requests that land in the TLB are "hits," while requests that land outside of the cache are "misses." Of course, hits are more desirable, and solid prefetcher performance yields higher hit rates.

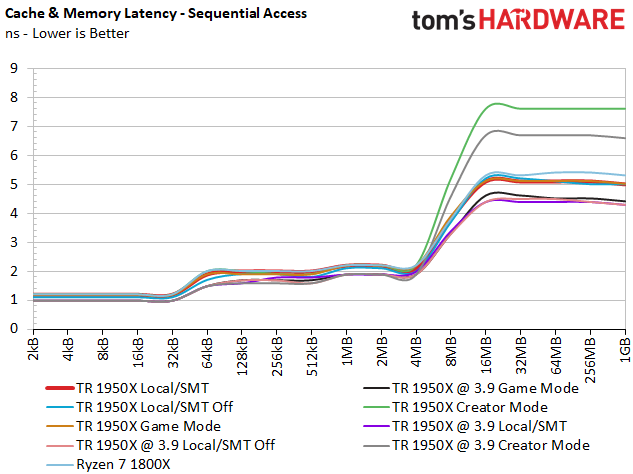

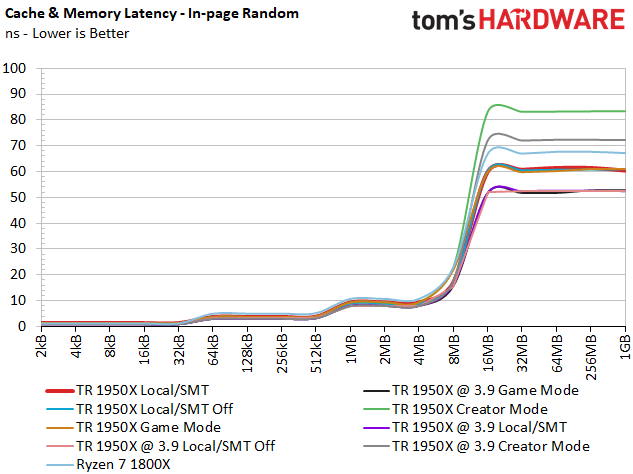

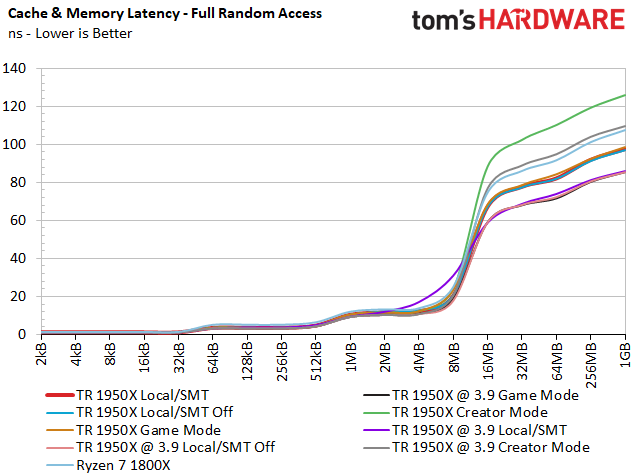

Sequential access patterns are almost entirely prefetched into the TLB, so the sequential test is a good measure of prefetcher performance. The in-page random test measures random accesses within the same memory page. It also measures TLB performance and represents best-case random performance (this is the measurement vendors use for official spec sheets). The full random test features a mix of TLB hits and misses, with a strong likelihood of misses, so it quantifies worst-case latency.

Regardless of the memory access pattern, the smallest data chunks fit into the L1 cache. And as the size of the data increases, it populates the larger caches.


L1
L2
L3
Main Memory
Range
2KB - 32KB
32KB - 512KB
512KB - 8MB
8MB - 1GB

Threadripper 1950X features better L2 and L3 latency than the Ryzen 7 1800X with every type of access pattern. Also, we spot notable latency reductions via overclocking for Threadripper's L1, L2, and L3 caches.

That changes as the workload flows out to main memory. Threadripper's Creator mode (the default setting) has the highest latency with every access pattern. This is a direct result of memory accesses landing in the remote memory. Our in-page measurements mirror AMD's 86.9ns specification, but worst-case full random access exceeds 120ns. Overclocking the processor and memory lowers latency, but Creator mode still doesn't overtake any of the configurations we compare it to.

Switching into NUMA mode with the Local setting improves main memory access dramatically for the other configurations. We measure ~60ns for in-page near memory access, again in line with AMD's specifications, while worst-case latency weighs in at 100ns.

Cache Bandwidth

Each CCX has its own caches, so a Threadripper CPU features four distinct clusters of L1, L2, and L3 memory. Our bandwidth benchmark illustrates the aggregate performance of these tiers.

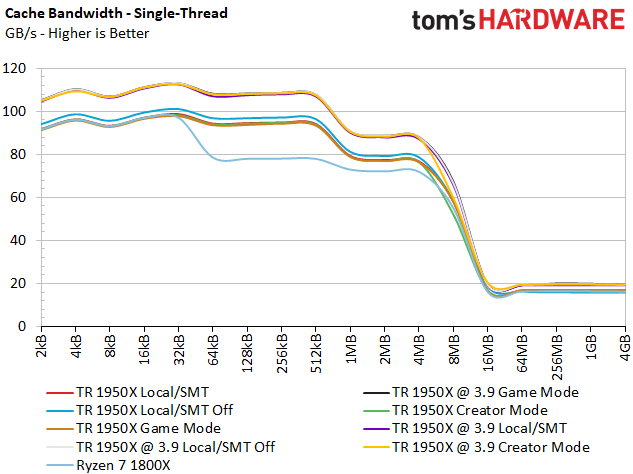

During the single-threaded test, Ryzen 7 1800X demonstrates lower throughput than the Threadripper processors. The other configurations clump together in familiar stock and overclocked groups.

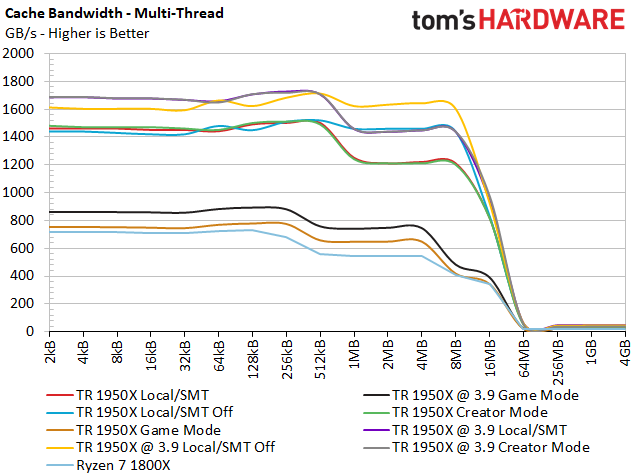

The multi-threaded tests are more interesting; we see Ryzen 7 1800X and the two Threadripper Game modes fall to the bottom of the chart. Because Game mode disables the cores on one die, it effectively takes the corresponding cache out of commission.
