Grayscale, Gamma & Color
The AG322QCX is a two-gamut monitor covering both sRGB and just under 84% of DCI-P3 color. Only the Standard mode can be calibrated and it's DCI-only. sRGB is available as one of the color temp presets and grays out all adjustments. Output is then fixed at 225 nits. For gaming, the other presets stay with the higher saturations of DCI.
Grayscale Tracking
A detailed description of our grayscale and gamma tests are available here.

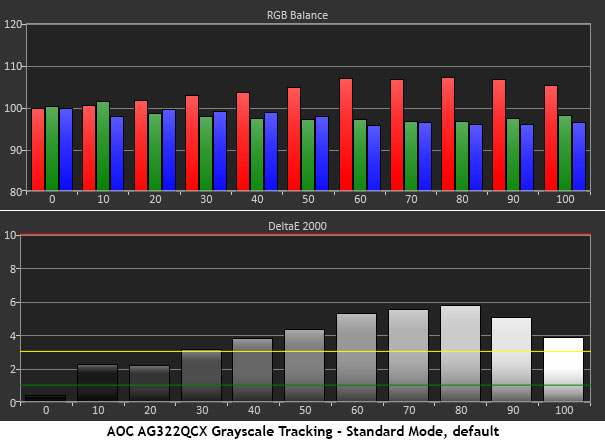

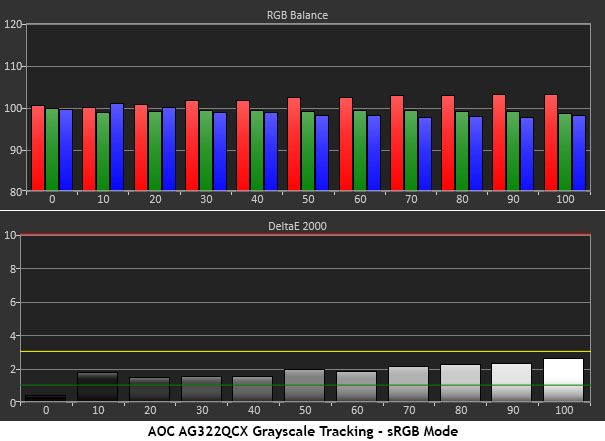

The default Standard mode delivers fairly warm grayscale tracking with a pronounced red tint. You can select a cooler color temp if you wish, but none of the presets are as close to D65 as the sRGB option. That will also dial back color saturation a bit. However, it is accurate as none of its errors are above the visible point. We only wish AOC would make the brightness control available - 225 nits is a little bright for most work or play environments.

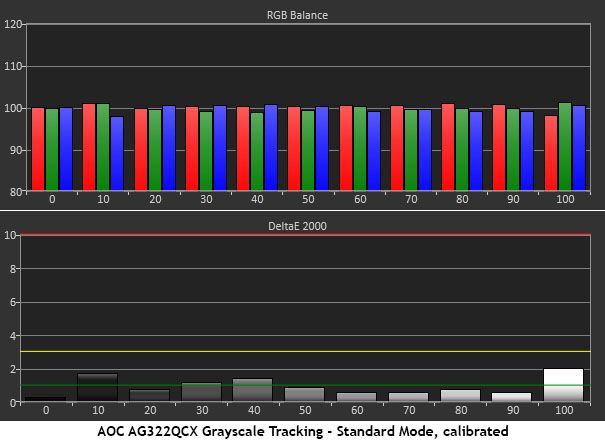

If you use our calibration settings, tracking is excellent with all errors below 2dE and most under 1dE. To eliminate the clipping at the brightest steps, reduce contrast from 50 to 45.
Comparisons

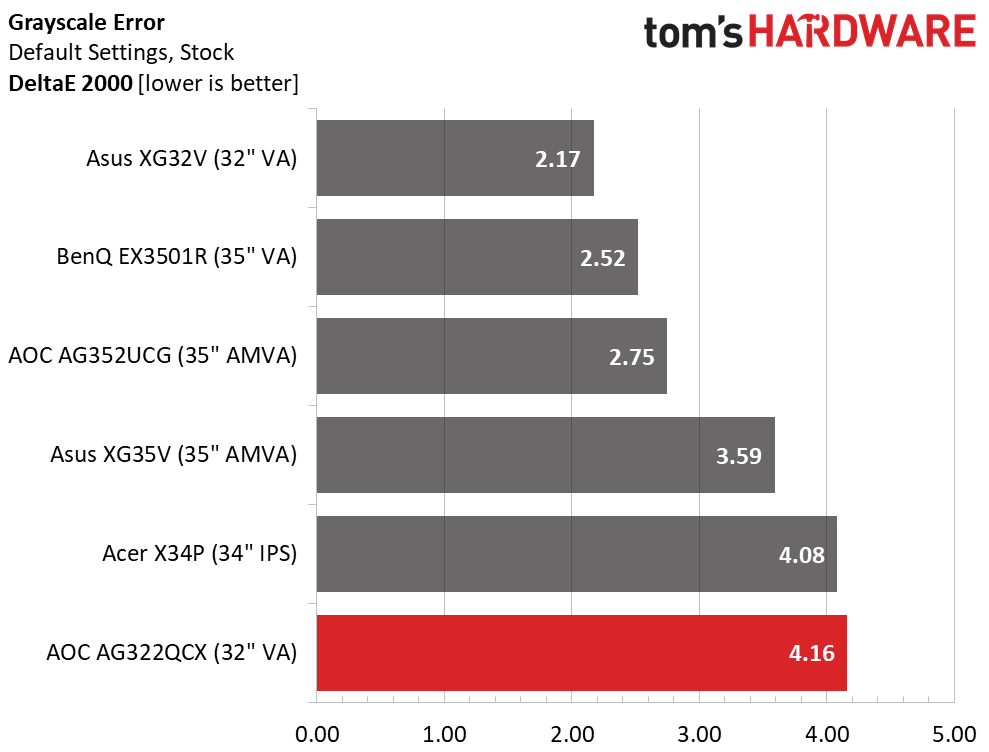

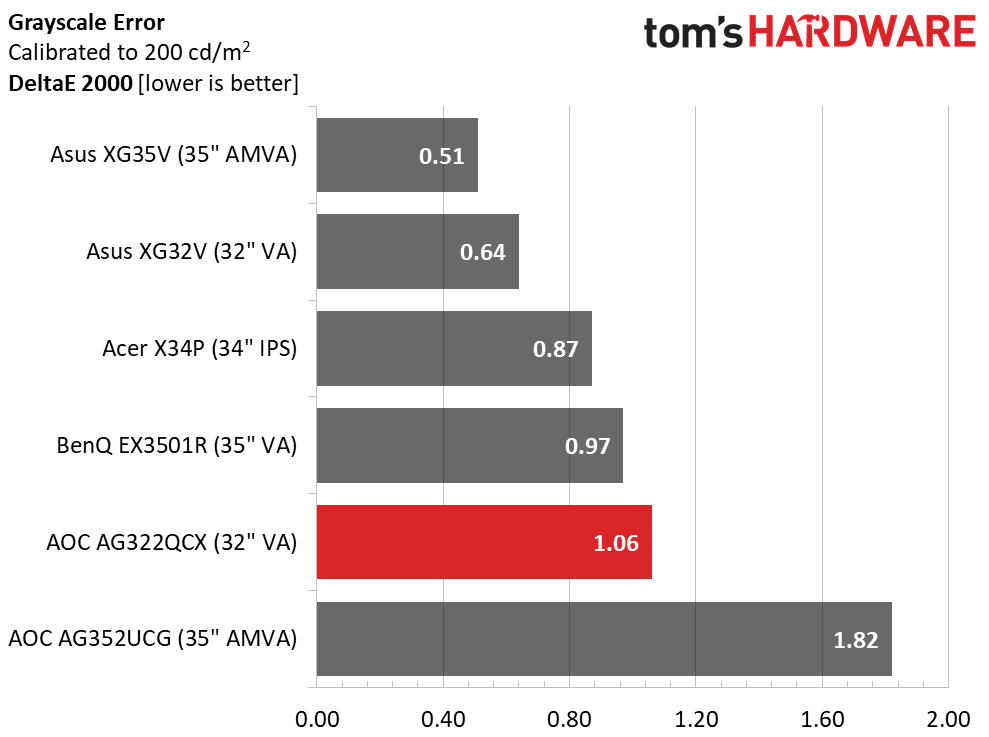

The AG322QCX’s out-of-box grayscale performance is a little below-average among the comparison group. Many gaming monitors don’t require calibration, but you should adjust this one for best results. After a few tweaks to the RGB sliders, the average error is 1.06dE. If you simply choose the sRGB preset, the error is a decent 1.97dE.
Gamma Response
Setting gamma is tricky as there are several controls that interact, namely contrast, gamma and shadow control. We’ll explain.

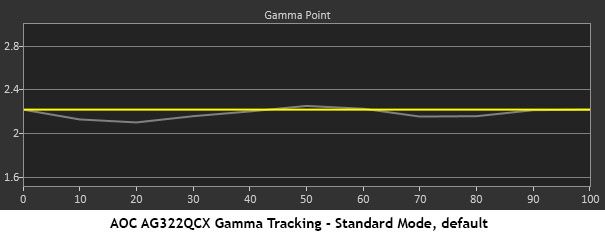

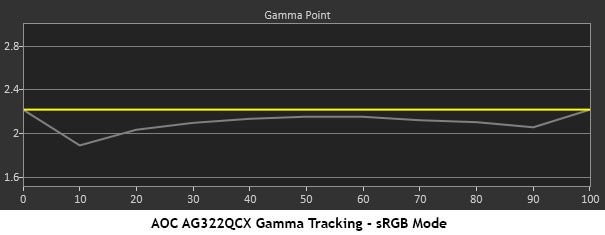

Gamma tracks well by default with only slight variations on either side of 50-60%. If you left the AG322QCX unadjusted, you’d be fine, but grayscale accuracy won’t be optimal. Once you select the User color temp, gamma changes for the worse.

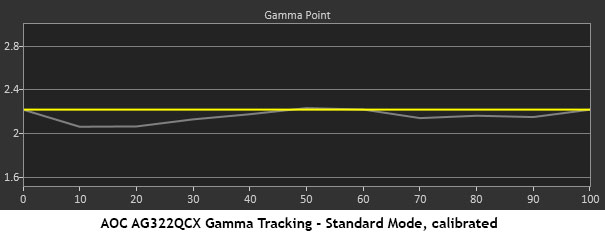

Shadow Control, which affects clipping at both ends of the brightness scale, helps some but causes other issues that we couldn’t resolve. Our solution was to return that slider to its default setting of 50 and lower Contrast instead. Fortunately, that action didn’t cost us any contrast. In the end, gamma looks about the same, and there's minimal impact to color saturation.
Comparisons

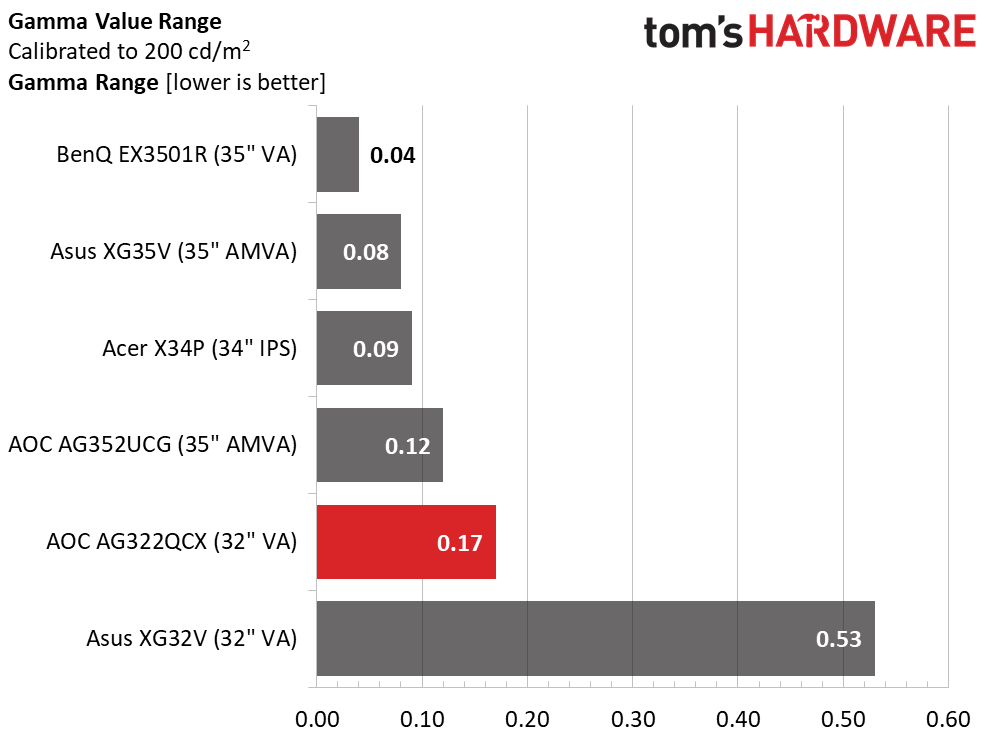

The variations shown in the CalMAN charts take down the AG322QCX’s gamma tracking accuracy a bit. A .17 range of values isn’t bad, but it doesn’t stack up well when compared to more expensive gaming screens. An average value of 2.13 is a small amount of light for such a high-contrast VA panel.
Unfortunately, the other gamma presets create issues that aren’t worth the tradeoffs. Basically, those options clip detail and create color inaccuracies. It’s best to stick with the default Gamma 1 setting.
Color Gamut & Luminance
For details on our color gamut testing and volume calculations, click here.

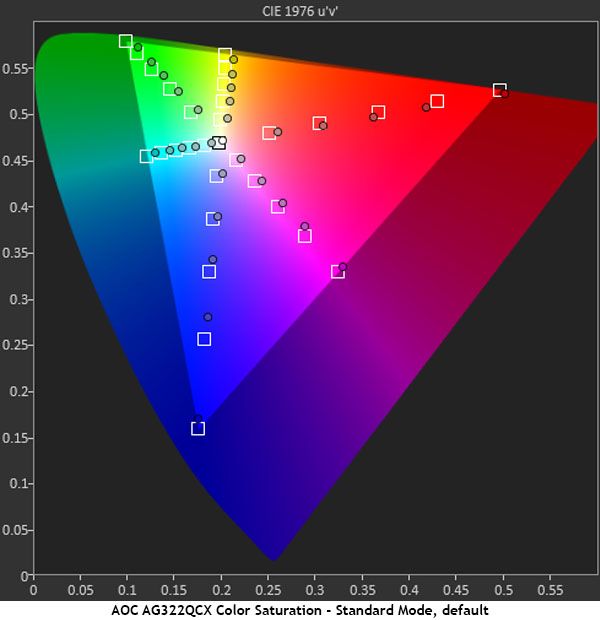

The differences between the default and calibrated Standard mode charts are subtle. The average error level changes from 2.64 to 1.72dE, a nearly invisible shift.

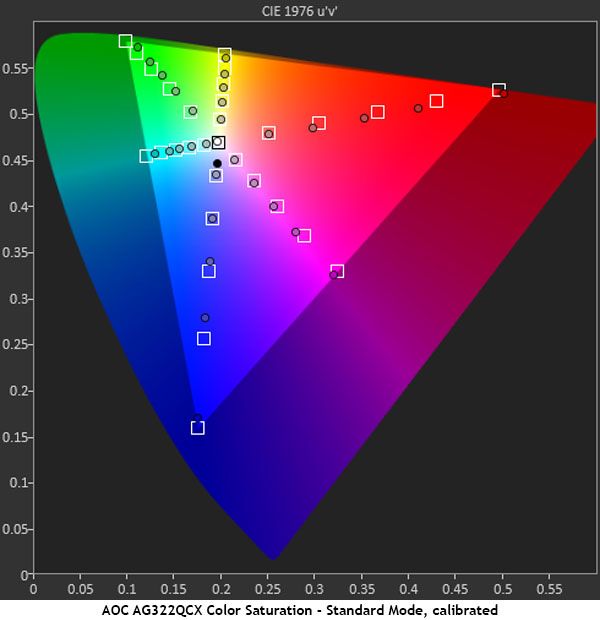

Our biggest gain was in the grayscale tracking test where we saw a much more obvious difference. We also see better highlight and shadow detail after performing adjustments. The AG322QCX tracks the DCI-P3 standard reasonably well. Outermost points are right on for red and blue but a little undersaturated in green.

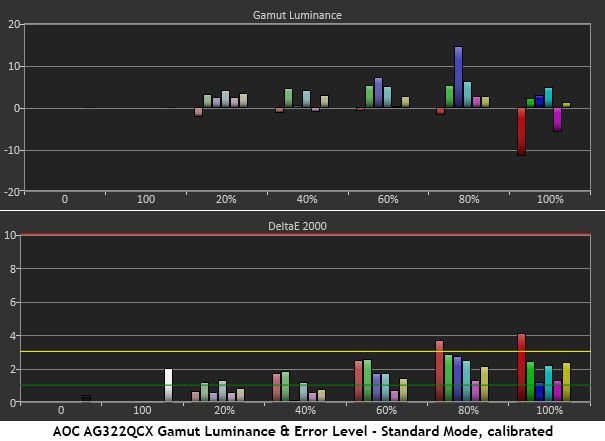

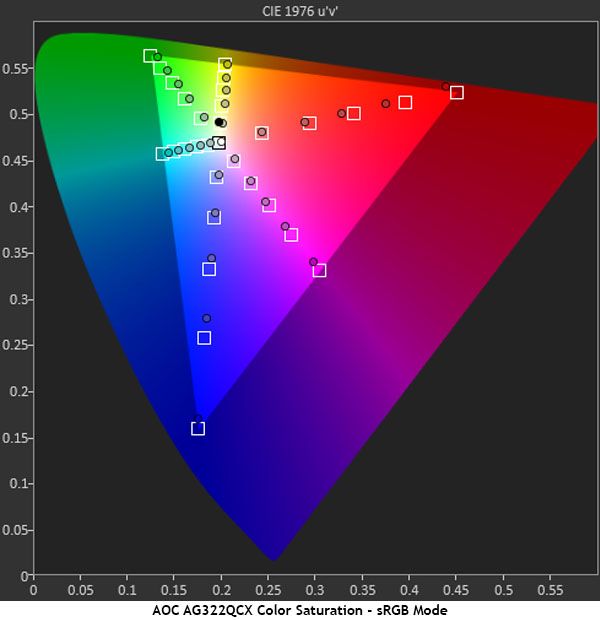

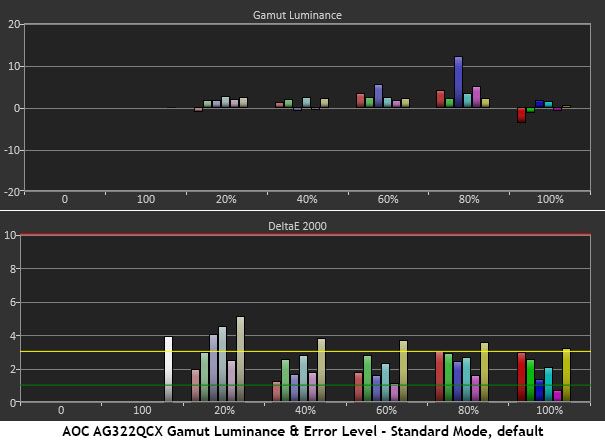

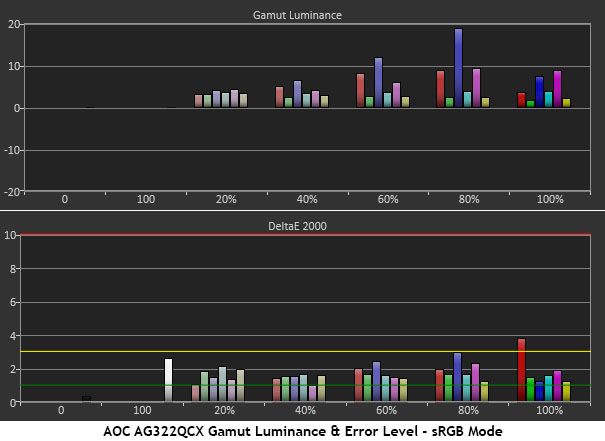

The only other flaws are misses in 60-80% red and 80% blue. Luminance levels are close to neutral with no visible aberrations. Users requiring sRGB color will find this monitor a bit light in red and magenta. However, the average sRGB gamut error is low at just 1.79dE.
Comparisons

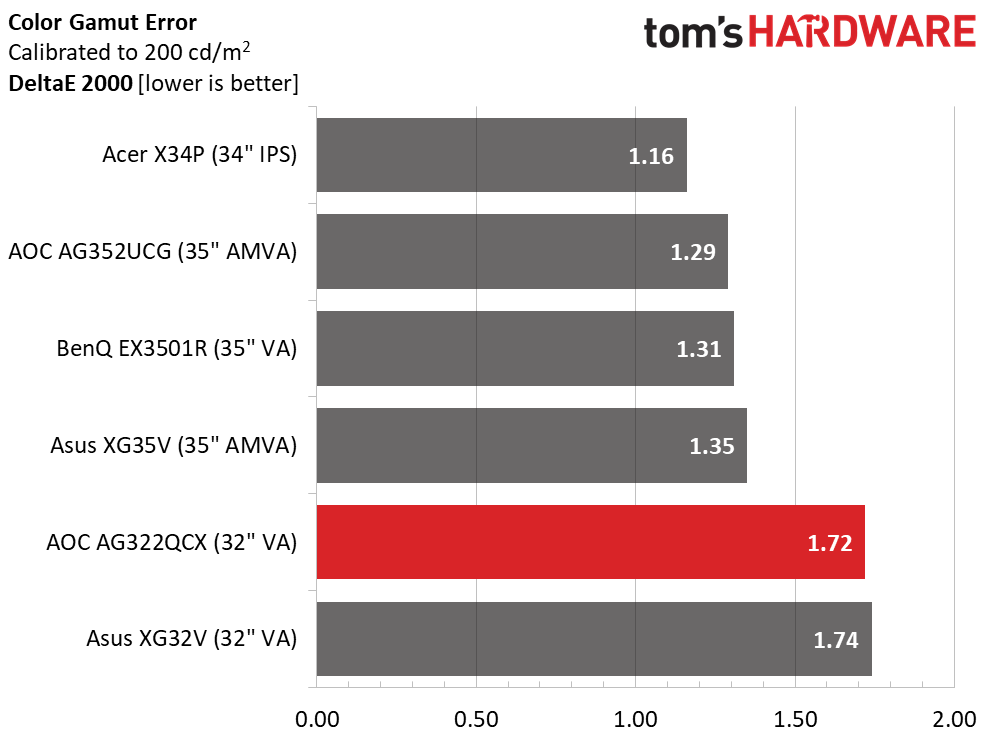

None of the monitors in this group have any visibly significant color accuracy problems. Though the AG322QCX comes in fifth place here, the margin from first to last is quite small. We started out at 2.64dE DCI color error, so our calibration didn’t do much for this test result. Our adjustments had a greater impact on grayscale accuracy.

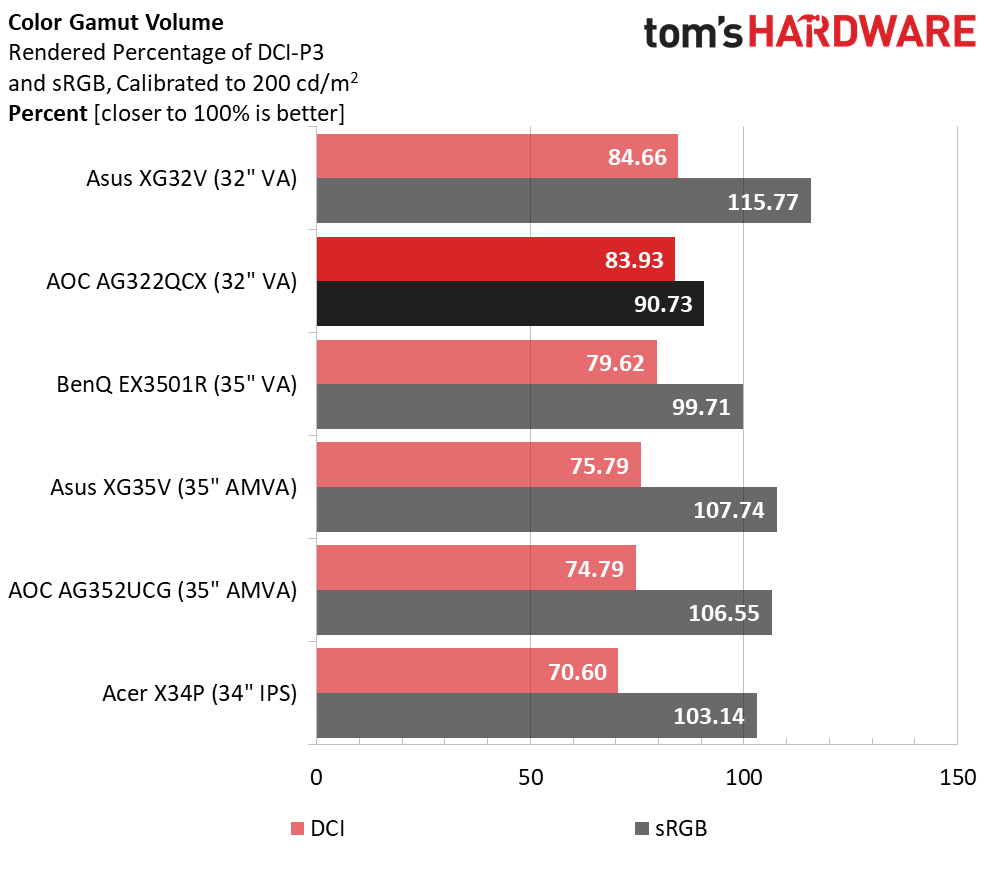

For the gamut volume comparison, we made sure to show DCI-P3 numbers for all monitors. Not all the screens claim to cover the extended colors, so this is just to show which screen has the largest volume. All exceed the sRGB volume except the AG322QCX because it doesn't have an sRGB option available.
If you need color accuracy in the sRGB realm, we suggest using the Standard picture mode with a calibrated white point, then controlling color saturation with software.
