ASRock TRX40 Taichi Review: Overbuilt Impressiveness

Packed with features, ASRock’s $500 TRX40 Taichi leads the way for AMD's Threadripper 3000.

Editor's Choice
(Image: © Tom's Hardware)

Our Verdict

The TRX40 Taichi’s huge CPU voltage regulator, great overclocking and out-of-the-box support for six NVMe drives all impress. We just have minor concerns about installing two super-thick graphics cards and the M.2 expansion card simultaneously.

For

  • Supports up to six NVMe M.2 drives
  • Superior overclocking
  • High-capacity voltage regulator and cooler
  • Includes 2.5GbE, Gigabit Ethernet and Wi-Fi 6

Against

  • Four-drive expansion card eats one (of three) x16 slots
  • Spacing conflicts when using two three-slot graphics cards
  • Minor (less than 1%) performance deficit

Meet the new boss. With eventually up to twice as many CPU cores serving 64-lanes of PCIe at bandwidth-bumping Gen4 speed makes the new third-gen Ryzen Threadripper an HEDT platform that Intel simply can’t match. Oh, there are a few specific applications where Intel can win, but most of those are already over-served by the CPU (do you really need 200 fps?) or rely heavily on Intel’s architectural specifics (there must be a reason its AVX 512 eats so much power).

For those who need a multithreaded CPU to do CPU-things across a high number of threads, and a platform that can provide high bandwidth to a slew of devices, you should be looking to AMD. Because Intel’s still stuck with fewer cores, fewer lanes, and slower PCIe Gen3. Also, Intel hasn’t yet integrated USB3 Gen2 into its aging HEDT platform, let alone prepared it for the bandwidth voraciousness of a PCIe 4.0 SSD.

(Image credit: Tom's Hardware)

AMD’s diagram above shows an additional 28 PCIe 4.0 lanes for the TRX40 chipset, but the diagram itself doesn’t indicate which features can be converted to other features. Everything connected to the chipset is limited to the bandwidth of the 8-lane CPU-to-chipset interface. So we’re certain that most boards will maximize deployment of the CPU’s onboard controller first.

Assuming every interface in the chart is fixed leaves us looking at only one specific oddity: There’s no integrated audio controller. Yet before you discrete-card types run off to celebrate, we’d like to note that every board we’ve seen so far has used a Realtek ALC4050H USB-base controller—as shown in the diagram—to drive the familiar ALC1220 codec.

(Image credit: Tom's Hardware)

For its part, ASRock prepared its TRX40 Taichi for today’s launch with an enormous dual-fan heatsink covering its sixteen 90A voltage regulator phases, its 55mm height butting up against the motherboard’s top edge is certain to make a few builders cry for not having considered radiator fan to motherboard overlap in their purchase. So it’s designed for a heavy power load, but what else does this board have to offer.

Specifications

SocketsTRX4
ChipsetAMD TRX40
Form FactorATX
Voltage Regulator16 Phases
Video Ports
USB Ports - 20Gb/s20Gb/s: (1) Type-C 2x2
USB Ports - 10Gb/s10Gb/s: (2) Type A; 5Gb/s: (4) Type A
Network Jacks2.5GbE, Gigabit Ethernet, (2) Wi-Fi Antenna
Audio Jacks(5) Analog, (1) Digital Out
Legacy Ports/Jacks(1) PS/2
Other Ports/JackBIOS Flashback button
PCIe x16(3) v4.0 (x16/x16/x16)
PCIe x8
PCIe x4
PCIe x1(1) v4.0
CrossFire/SLI3x / 3x
DIMM slots(8) DDR4
M.2 slots(1) PCIe 4.0 x4, (1) PCIe 4.0 x4 / SATA
U.2 Ports
SATA Ports(8) SATA 6Gb/s
USB Headers(1) v3.x Gen2, (2) v3.x Gen1, (1) v2.0
Fan Headers(5) 4-Pin
Legacy InterfacesSystem (Beep-code) Speaker
Other InterfacesFP-Audio, (2) ARGB LED, (2) RGB LED
Diagnostics PanelNumeric
Internal Button/SwitchPower, Reset, CLR_CMOS / ✗
SATA ControllersIntegrated (0/1/10)
Ethernet ControllersRTL8125AG PCIe, WGI211AT PCIe
Wi-Fi / BluetoothIntel AX200 802.11ax (2.4 Gb/s) / BT 5.0 Combo
USB ControllersASM3242 PCIe x4
HD Audio CodecALC1220
DDL/DTS ConnectDTS Connect
Warranty3 Years

It’s nice to see a 20Gbps Type-C connector (USB 3.2 Gen 2x2) on the I/O panel, even if it does require an extra controller. The IO Panel also has two 10Gbps and four 5Gbps USB ports, a 2.5GbE port, in addition to Gigabit Ethernet, antenna connectors for its onboard Intel AX200 2.4Gb/s Wi-Fi controller, a BIOS Flash button to get the system moving even if a yet-undocumented future-model CPU is used, a PS/2 port, five audio jacks, and a digital optical audio output with DTS Connect support. We have but one complaint: As with ASRock’s old boards, the antenna jacks are not supported by a bracket but are instead bolted directly to the somewhat-flimsy I/O shield. Worse, they must be unbolted from that shield in order to remove the clear plastic protective shield that the board ships with, and then bolted back in place.

(Image credit: Tom's Hardware)

Zooming out, we find a larger (50mm) chipset fan than typically seen on AMD’s X570 boards, which benefits the user by being able to spin far more slowly at far quieter noise levels. Inaudible during operation, its screaming maximum speed is only heard for a few seconds at bootup. Hopefully that can be minimized in a future firmware update.

(Image credit: Tom's Hardware)

Also above, we can see the seam where the lower M.2 heatsink splits from the upper PCH sink shroud, which integrates the upper M.2 cover. The means that the lower M.2 slot is far easier to access than the upper one.

Image 1 of 2

(Image credit: Tom's Hardware)
Image 2 of 2

(Image credit: Tom's Hardware)

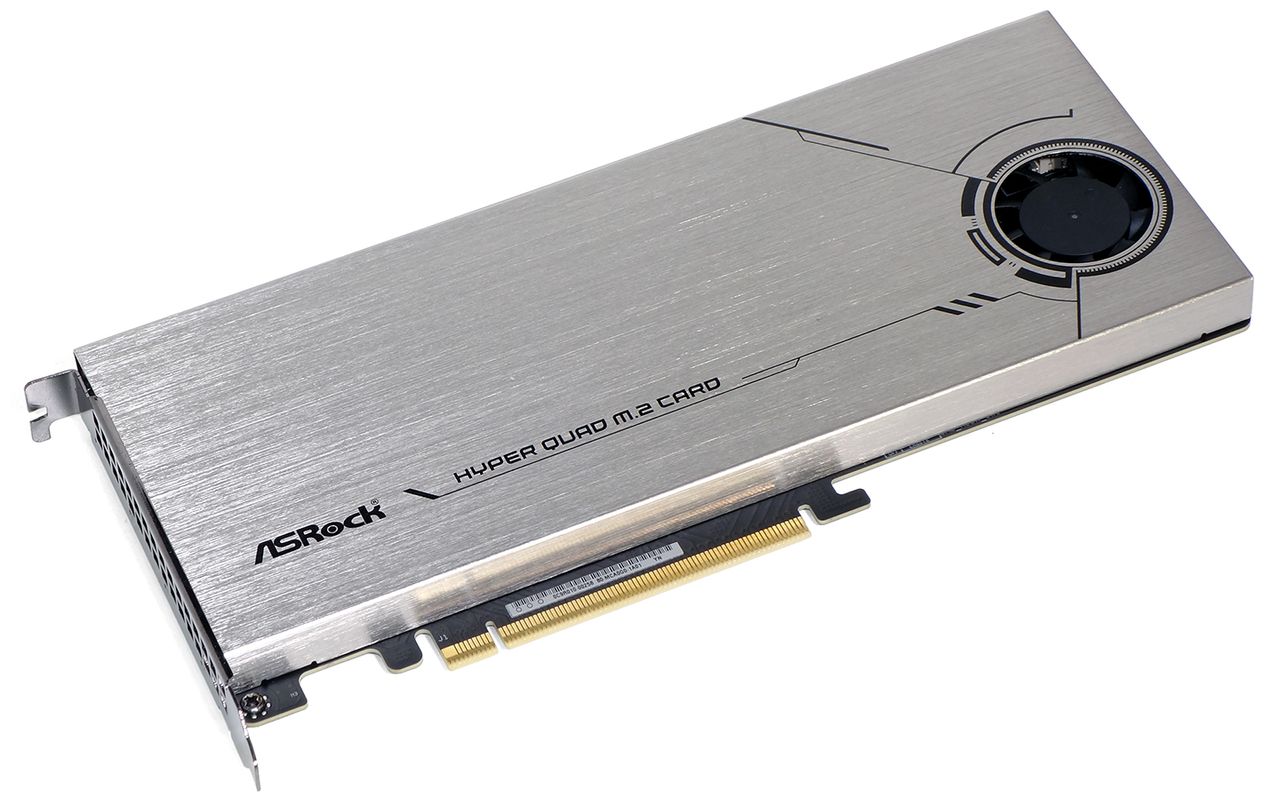

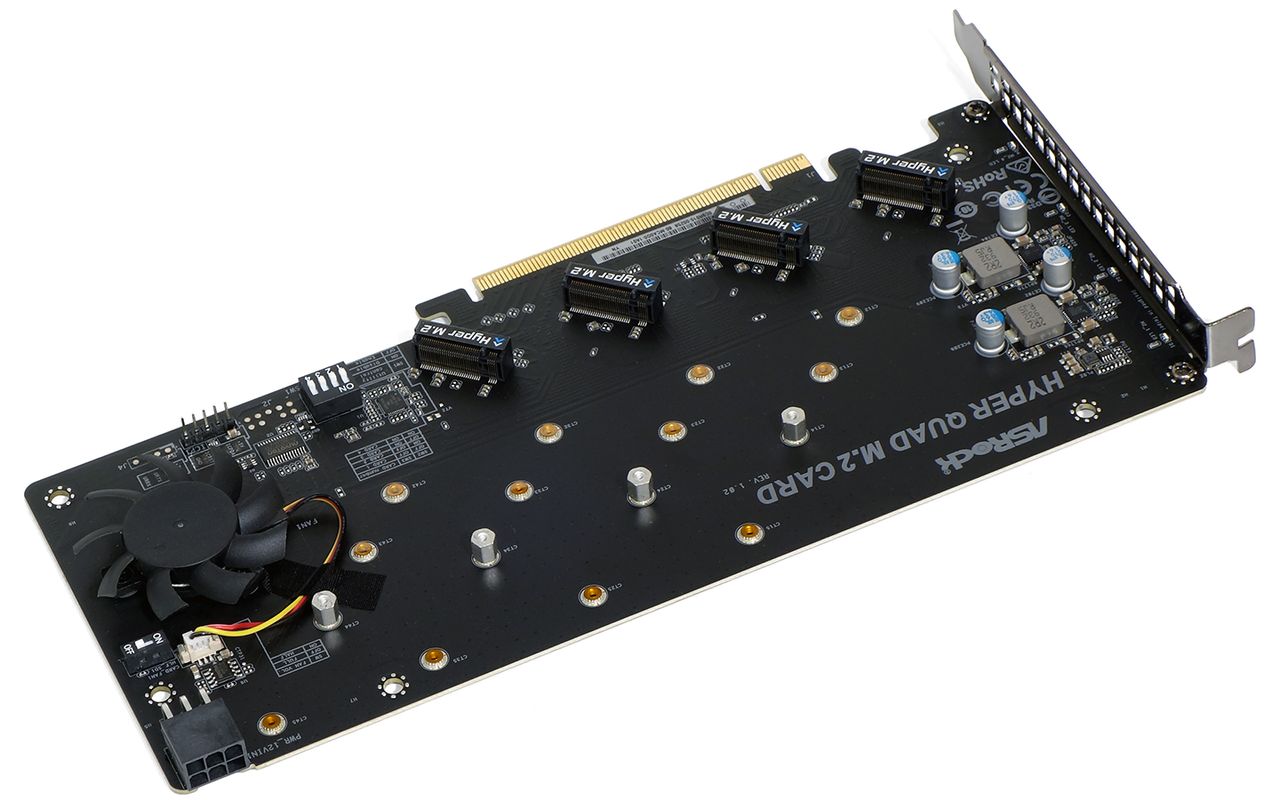

Since two M.2 drives aren’t enough to satisfy the HEDT market, the TRX40 Taichi also includes ASRock’s “Hyper Quad M.2” four-drive adapter. Permanently wiring it as x16 allows ASRock to produce these without any PCIe switches at incredible cost savings, which is fine since the company is including it with a board that has fully-populated pathways on all three x16 slots. Total possible NVMe 4.0 drive count jumps to six with the card installed.

(Image credit: Tom's Hardware)

Two 40mm, 7600 RPM fans cool the voltage regulator, but even our heartiest overclocking and stress testing efforts never forced them break past a quiet 2400 RPM. If you’re wondering how speeds over 2000 RPM can be quiet, remember how small these spinners are.

(Image credit: Tom's Hardware)

The TRX40 Taichi uses two EPS12V (8-pin CPU) power connectors to feed its capacious regulator. If you’re wondering how the math works, remember that the higher voltage/lower amperage input is converted to a higher amperage/lower voltage output. Visually represented by its enormous heat sink, the oversized voltage regulator pushes the DIMM slots southward into card slot space, forcing the top expansion slot to align with the case’s second slot hole.

This common design concession means that ASRock couldn’t put two empty spaces between each of its x16 slots. And that means that users who want to run two triple-slot-thickness graphics cards along with the M.2 expander card will need to find a case with at least nine slots in standard orientation, which we haven’t seen in a while.

We’d have been tempted to move the third slot up a space, but restricting the second x16 slot to single-space cards such as the included M.2 riser would have eliminated the familiar three-way graphics layout. That said, multi-GPU machines are becoming increasingly niche in the consumer space. If you're building a workstation you plan to load up with beefy GPUs, just be aware of the layout here and plan your cards accordingly.

(Image credit: Tom's Hardware)

Removing the M.2 covers reveals three M.2 slots, if we count the Key-E slot that’s factory filled with Intel’s AX200 Wi-Fi module.  In front of the top M.2 cover / fan shroud, six of the board’s eight SATA ports are bounded by two forward-facing USB 3.0 dual-port front-panel connectors, and south of those is a CLR_CMOS button.

Lined up across the TRX40 Taichi’s bottom edge is an impressive collection of connectors: the HD-Audio front-panel header, secondary RGB and ARGB cable headers, two of the board’s five fan headers, a beep-code speaker and 3-pin-spaced power LED header, a two -port USB 2.0 header, two additional SATA ports, a status code display, and power and reset buttons.

(Image credit: Tom's Hardware)

The giant voltage regulator heatsink is partially supported by a black anodized-aluminum backplate, which loses much of its function once the board is screwed down tightly to a rigid chassis. That plate is sill handy for reviewers who like to plop a board down on a desk or table, and of course it looks cool. Furthermore, the plate encapsulates the plastic RGB LED lighting diffuser at the board’s front edge, reducing the bright spots that would otherwise be seen in an open-frame type chassis.

(Image credit: Tom's Hardware)

The TRX40 Taichi installation kit is a little sparse beyond its inclusion of a four-drive M.2 adapter card. We find a manual and software guide, a driver/application disc, Wi-Fi antenna, Torx-head driver for M.2 covers, four SATA cables, a case badge, and several screws.
