Building An Intel-Based MicroATX Gaming PC On A Budget

Deepcool Steam Castle


Deepcool packages its unique-looking Steam Castle in foam. You can easily grab both pieces and dump them into the recycling bin.

All necessary accessories are enclosed. There is an instruction booklet, screws, a tiny wrench for the motherboard stand-offs, lots of cable ties, and even a piezo speaker. The bundle covers the bases; nothing is missing.

Technical Specifications

Exterior: Look And Feel

This Deepcool case is attracting case modders who associate its shape with steampunk and fancy jukebox designs. But even if you don’t alter the enclosure, it's unique enough to stand out from the crowd and draw attention.

Yes, we understand that its looks are polarizing. While the German online retailer Caseking deemed the case unsellable and refused to stock it, apparent successes in other countries suggest that there's at least a market for the Steam Castle.

Let’s take a look at the exterior of the case:

The dull rubber-coated surface is homogenous and easy to work with; you can remove stains and fingerprints with a soft cloth. It looks much better than brushed or dull plastic. We suggest going with the black model. More brightly-colored alternatives may lack the dark finish's higher-end appeal.

Interior and Construction

The interior warrants a closer look as well. Deepcool went for a feature-rich cross between mid-tower and cube, and appears to have achieved its goal.

Frankly, we view the 3.5” drive bay not as a feature, but a nuisance. Most problematic is when it interferes with long, thick graphics cards, though some folks will understandably want a single high-capacity storage drive in a machine like this one.

The back plate for the motherboard seems perfect, and the PSU mounting bay is at the bottom of the case, allowing your power supply to draw intake air through openings down there. A filter keeps the dust out.

Since this is a particularly wide case, a cage for two SSDs sits behind the PSU. Solid-state drives can be mounted without tools, which is something we really appreciate.

The front bezel and lid are easily removed. You need to do the former when you want to install an optical drive, though removing the lid is only necessary if you want to install two additional fans or a radiator.

For what it's worth, what appear to be four small wind turbines up top, well, aren’t.

Instead of four fans, those domes house multi-color LEDs. They're purely for show. Several different light effects can be selected. There really are slots in the top though, which may help with ventilation.

Fans, Fan Control, and the Front Panel

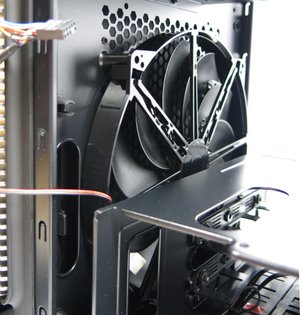

Speaking of air, two fans comes installed in the case, and their speeds can be electronically controlled. While the rear fan is all but inaudible, the front fan is, paradoxically, quite noisy at low RPM settings and nearly quiet at full throttle.

The front panel is really a side panel, which sits at the right side of the case and sports two USB 2.0 and two USB 3.0 ports, HD Audio jacks, the on/off button, a reset button, and a knob for controlling fan speed. That knob doubles as a push-button for selecting different LED effects.

The rear side of the panel is nicely laid-out. If necessary, all cables can be unplugged.

Whether or not you like the Steam Castle's looks is a matter of personal preference. But Deepcool does manage to show us something new in a well-made product.

Deepcool Steam Castle
