Overclocking Temperature and Sound
If you end up buying MSI's H97M-G43 and the download the BIOS from one of our links, CPU overclocking is completely straightforward. And remember that MSI has several other models that have seen beta firmware leaked (the $45 H81M-P33 used in The Pentium G3258 Cheap Overclocking Experiment, for example).
We picked a low-hanging goal of 4.4 GHz because none of our five test CPUs required an increased voltage to support it stably. At 4.5 GHz, the processor's power consumption increased noticeably since voltage had to go up (1.3 V or more was necessary). The small performance bump just didn't justify the extra time messing around in the UEFI and subsequently troubleshooting crashes.

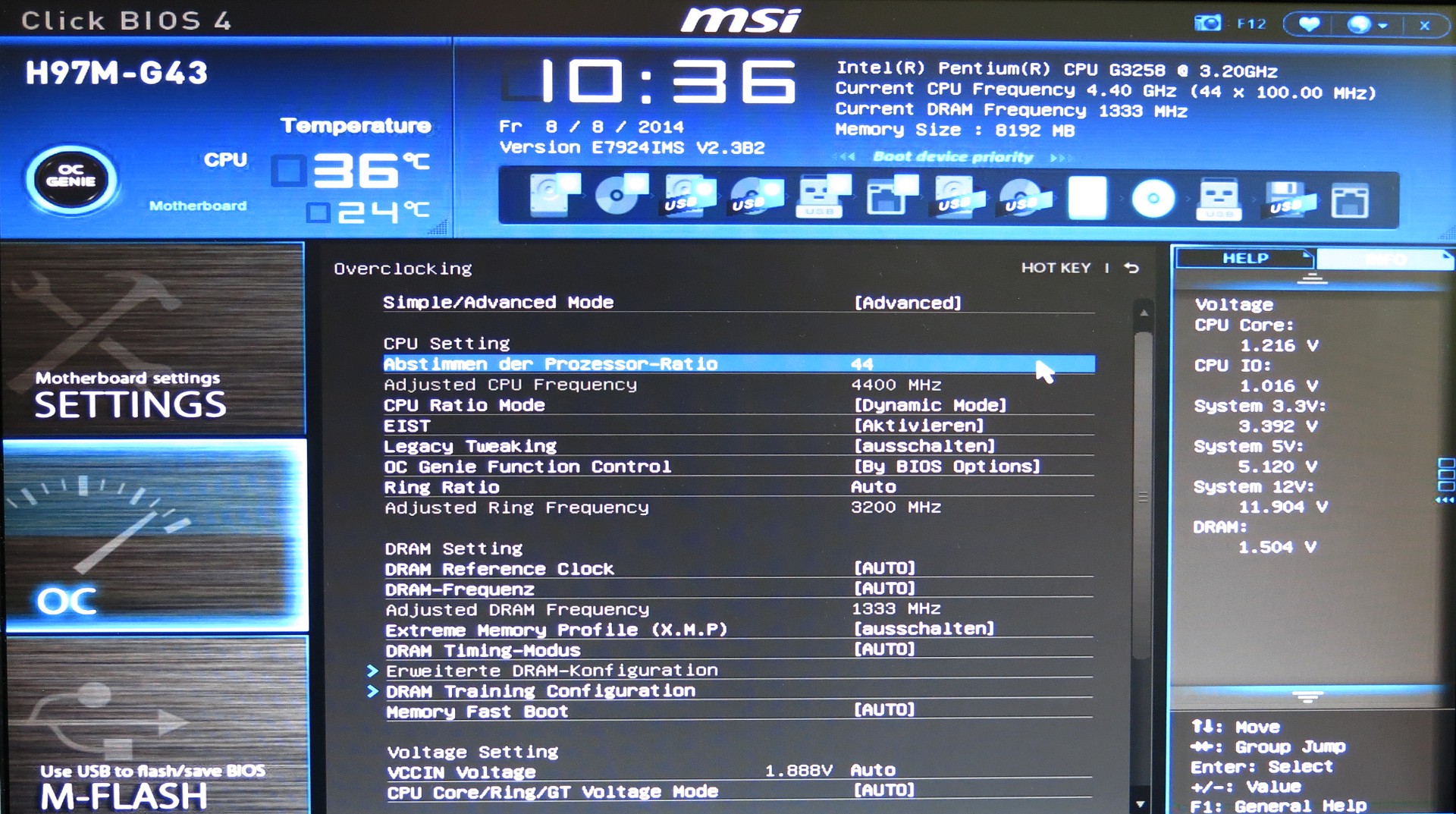

Simply increase the processor's multiplier to 44, exit the setup screen, and save the changes. Don’t use MSI's OC Genie for this basic overclocking process.
If necessary (for instance, when you use faster graphics cards), enter a more aggressive fan curve in the BIOS. In case of the GeForce GTX 750 Ti, we didn’t need to do that.
Test Results: Stress Test
And now let’s put the pedal to the metal with 20 minutes of LinX. Prior to this test, we already tested the stability of the overclocked system with Aida64. Here is a look at the core temperatures:
Just one core hits 60 °C, and only barely. The average is well below that. Even at 4.7 GHz using a 1.325 V core voltage, we did not top 75 °C. This proves the mettle of closed-loop liquid cooling. Of course, most value-minded gamers aren't going to spend that much, which is why we revisited Pentium G3258 overclocking in the previously-linked experiment.

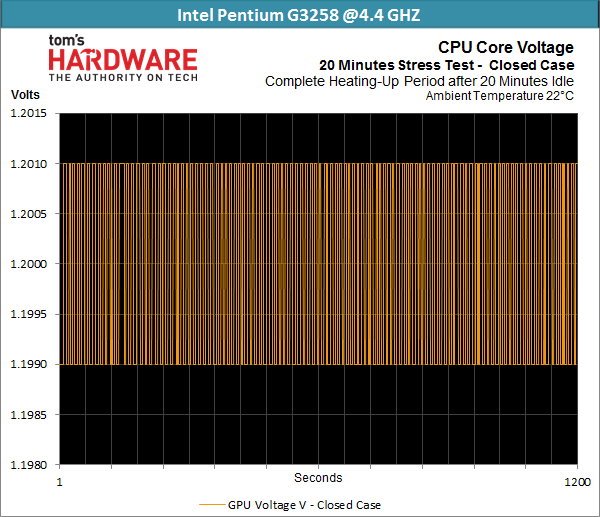

What about the core voltage at 4.4 GHz? We measured 1.2015 V at the socket, since the motherboard applies some voltage automatically. You don't need to increase this setting manually.

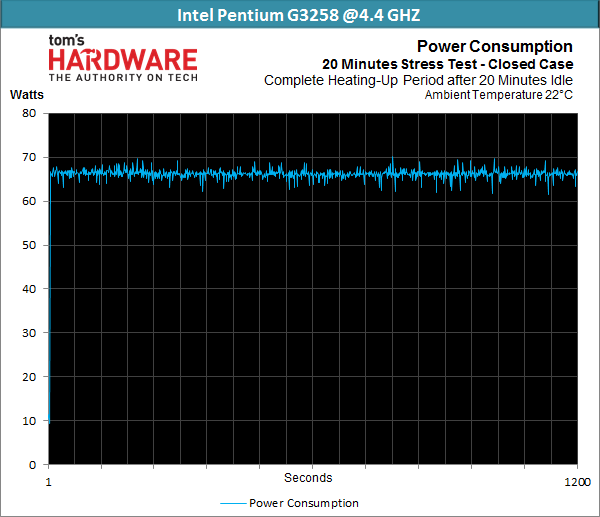

How much power does the overclocked system draw? Occasionally, the 4.4 GHz system reached 70 W, which is completely acceptable. Had we manually raised the CPU’s core voltage, the wattage would be much higher.
At 4.7 GHz, we saw power peaks in excess of 90 W. While power consumption rises dramatically, the system's performance doesn’t keep pace. We may publish a separate article on extreme overclocking of the Pentium G3258 at a later time, but that's not the focus today.
Test Results: Sound Level
We measured the sound level diagonally from the left side towards the upper-right corner of the case at a distance of 20” and an angle of 35 degrees. This simulates a system under the right side of the desk you're sitting at.
A mere 37.3 dB(A) after 20 minutes of full load is impressive, though the pump's rumble is somewhat annoying. You can experiment with throttling that component, or simply do without the expense of liquid cooling altogether. Just keep an eye on the CPU's temperature as you swap parts in and out, or alter settings associated with performance.
If you can live with 70 to 72 °C core temperature during a stress test, the sound level drops to a mere 33.5 dB(A). That's barely audible.
