Tom's Hardware Verdict
Corsair’s H100i Elite is a very quiet AIO with an impressive software suite and in-depth customization options.
Pros
- +
Quietest cooler I’ve tested thus far
- +
Software Suite with in-depth controls
- +
Capable of cooling up to 200W when paired with Alder Lake CPUs
Cons
- -
Fan Speeds are tied to coolant temp by default, rather than CPU temp
Why you can trust Tom's Hardware
Corsair started out in 1994 selling L2 cache modules for OEMs. After Intel integrated the L2 cache into the Pentium Pro CPU lineup, it pivoted to DRAM. Today the company sells a wide variety of components and peripherals, like the Corsair 5000X case and CX750M Power Supply. But cooling has also been a staple of the company's lineup for a long time, with the Corsair iCUE H100i Elite 240mm AIO Liquid Cooler being the latest model to land on our test bench. Can it tame Intel’s 12900K and earn a spot on our best AIO coolers list? We’ll have to put it through testing to find out. But first here are the specifications, dired from Corsair.
Specifications for the Corsair H100i Elite
Cooler | Corsair iCUE H100i RGB Elite |
MSRP | $139 USD |
Radiator Dimensions | 277 x 120 x 27mm |
Net Weight | 0.91 pounds |
Socket Compatibility | Intel Socket LGA 115X / 1200 / 1366/ 1700 / 2011 / 2066 |
Row 5 - Cell 0 | AMD AM4 / AM5 / sTRX4 / sTR4 |
Rated Noise Level | Up to 31.5 dBa |
CPU Block | Copper |
Row 8 - Cell 0 |
Packing and Included Contents
Like most modern mid-sized AIOs, Corsair’s H100i Elite ships in a medium-sized box with molded cardboard and soft plastic coverings of the individual parts for protection.
Included with the package are the following:

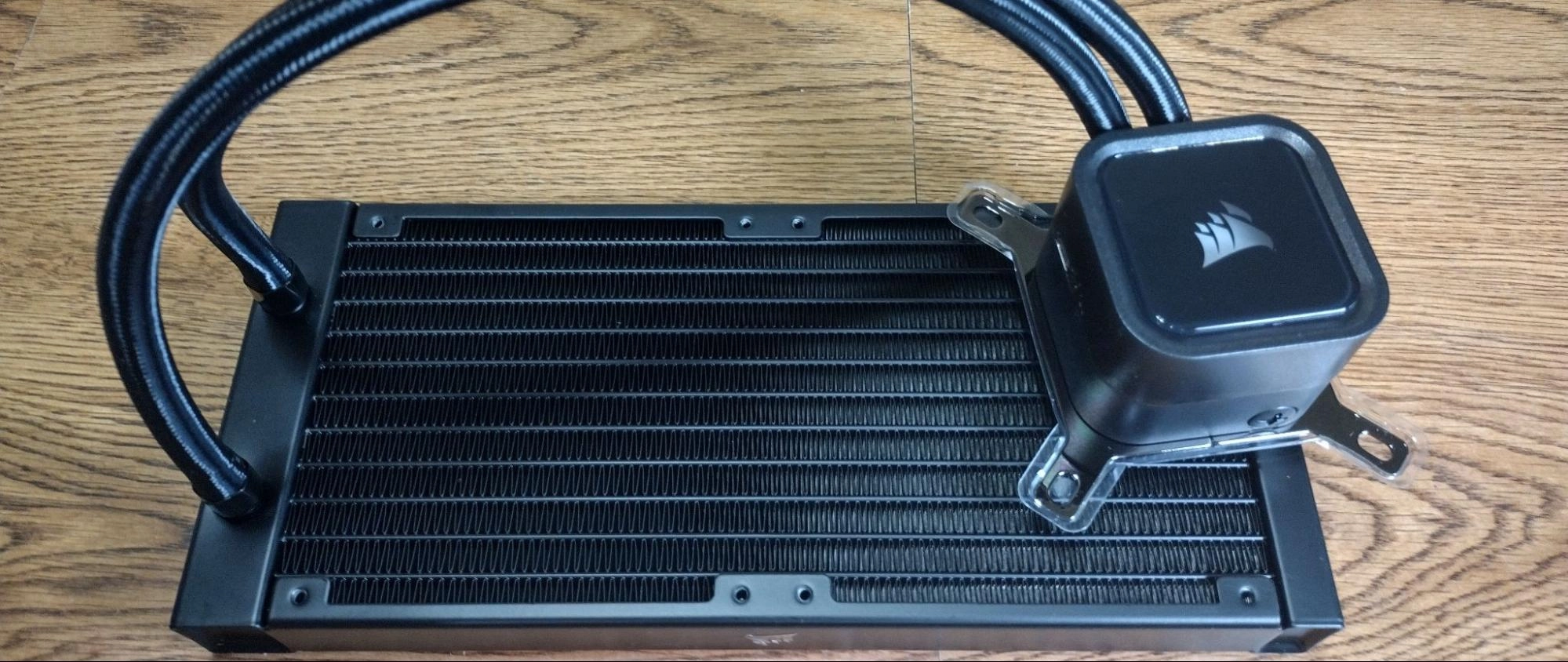

- CPU Block with pre-applied thermal paste + Radiator
- 2x AF ELITE FDB PWM 120mm Fans
- Mounts for all modern CPU sockets, including LGA1700, TR4, and AM4/AM5 motherboards
- USB-C Wiring Harness
- Warranty Leaflet
Cooler Installation

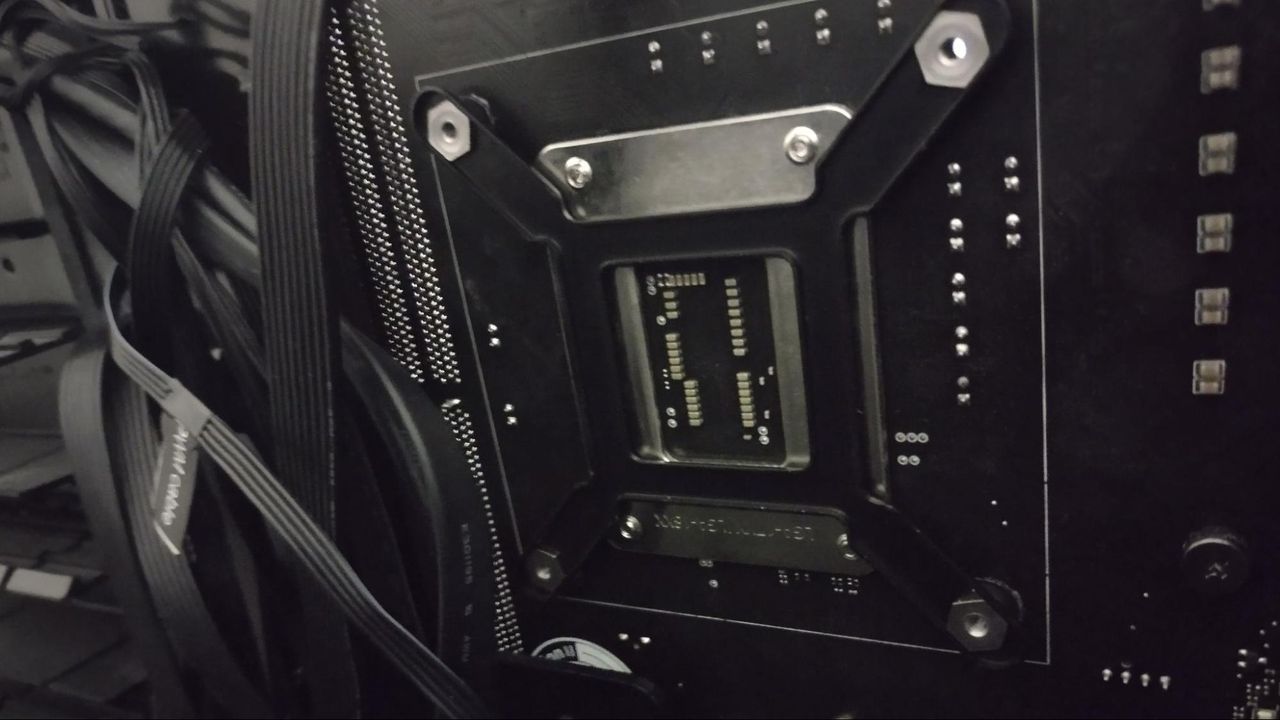

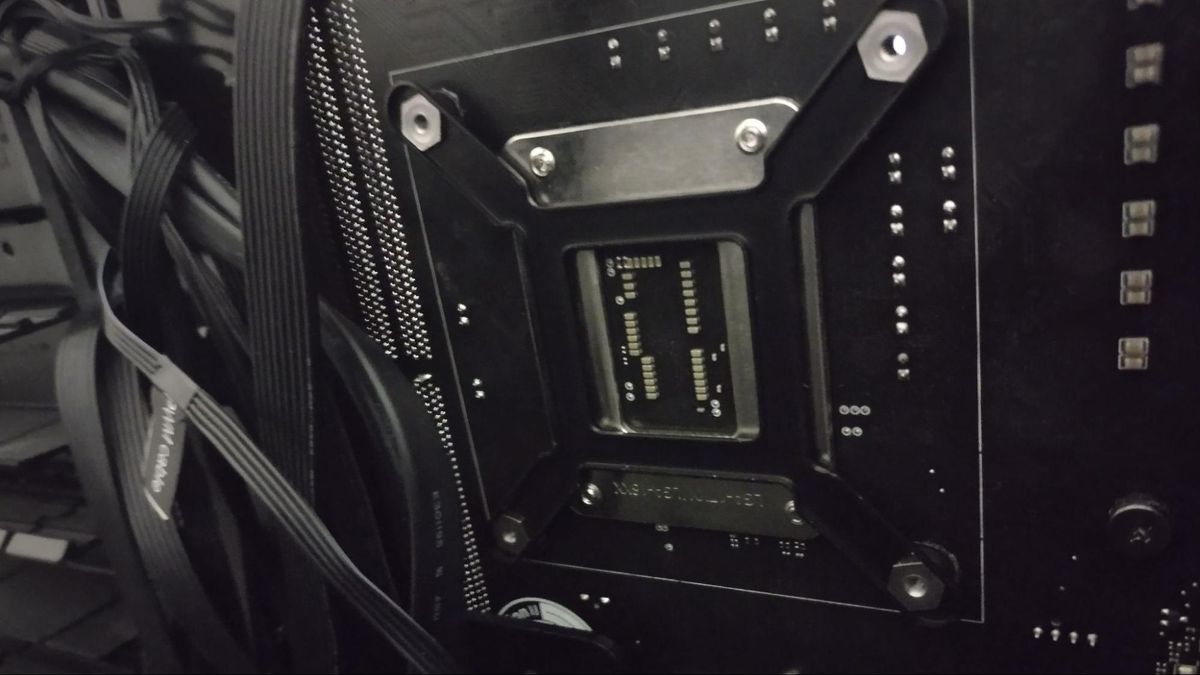

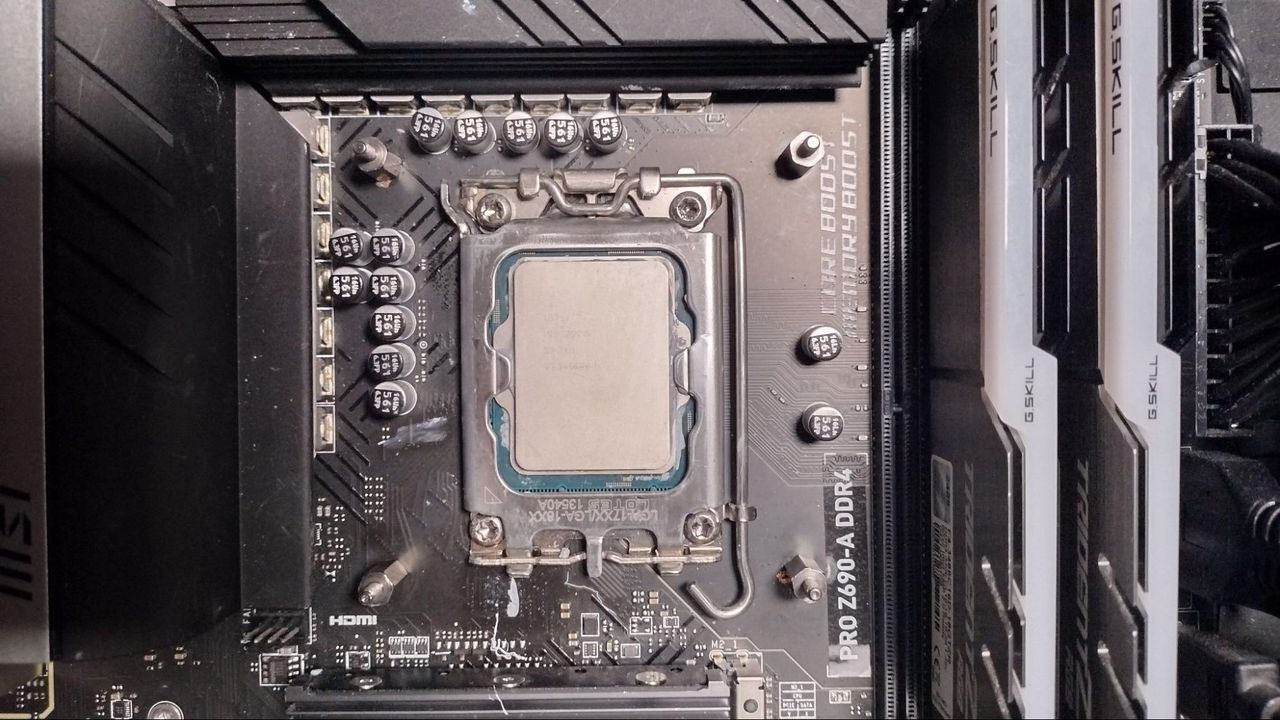

Installing the H100i Elite was simple enough. To begin, you’ll first want to secure the radiator to your case via the provided screws. Next, press the backplate against the motherboard and secure it using stand-offs.
You won’t need to worry about thermal paste, as it is pre-applied to the CPU block. Press the CPU block against the standoffs, and then use the included thumb screws to secure it.
What's different than other coolers?
- Software Suite with in-depth customization options

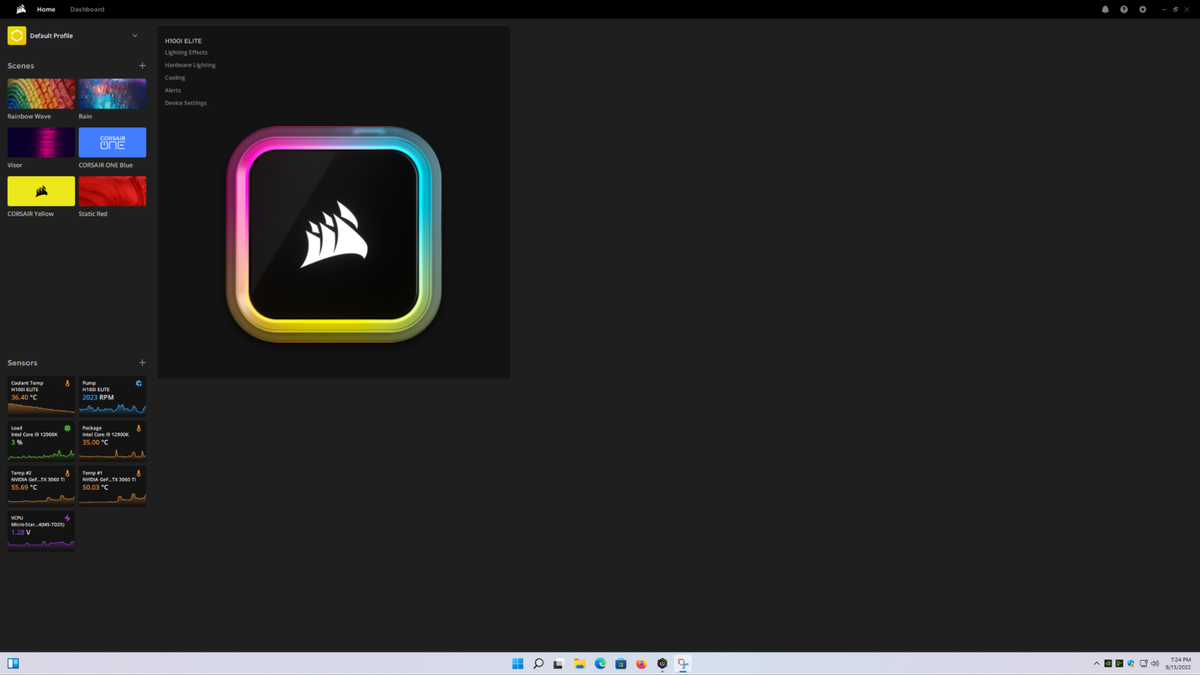

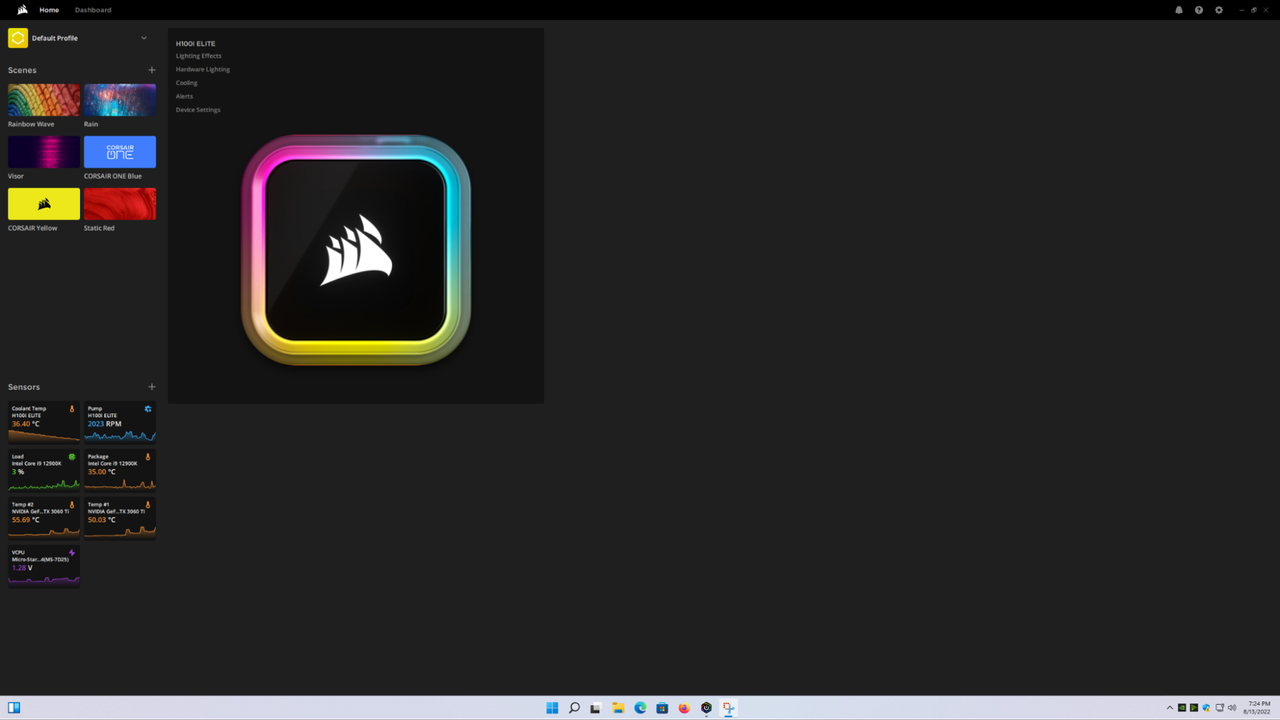

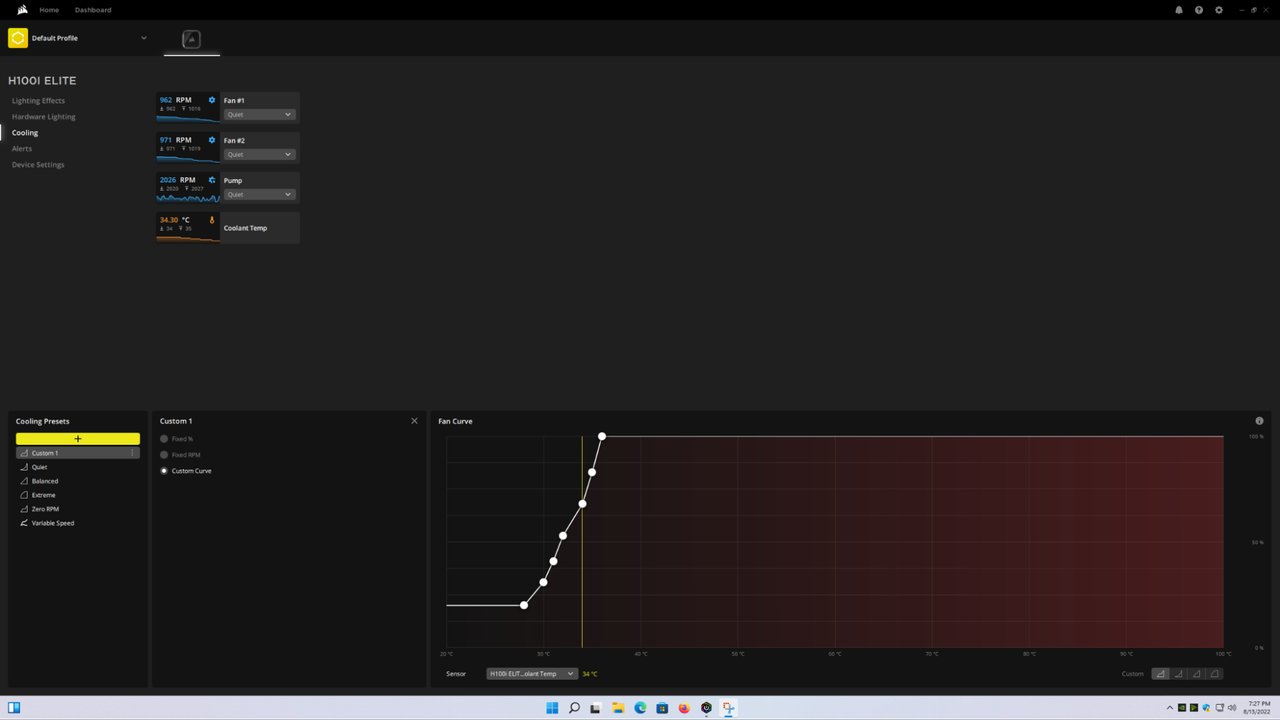

The iCue software suite is a little bulky, with a 1GB download size (3.5GB after installation), but has a variety of in-depth customization options available. Three preset noise profiles are available, and when customizing noise levels you can change what sensor it responds to – it defaults to the coolant temperature, but you can set it to the CPU Package temperature or a variety of other sensors.

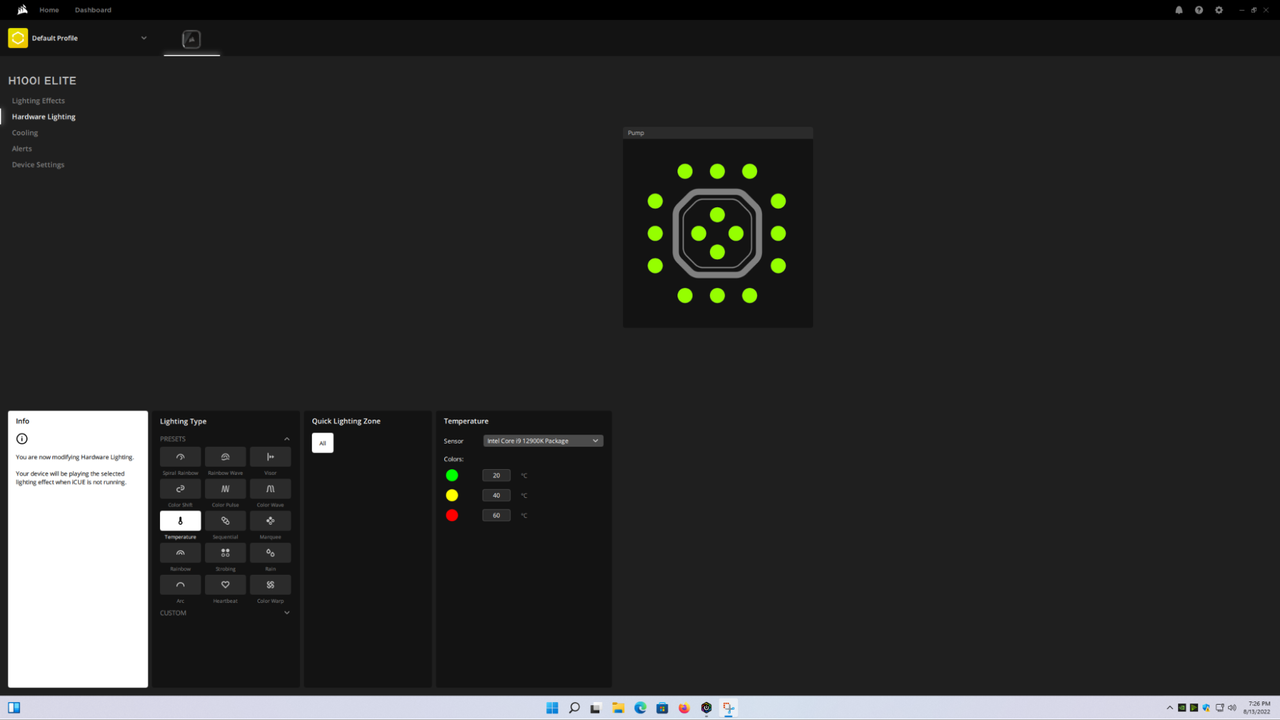

In addition to fan and noise profile controls, there are of course a variety of ARGB lighting presets, as well as the ability to independently control each LED.

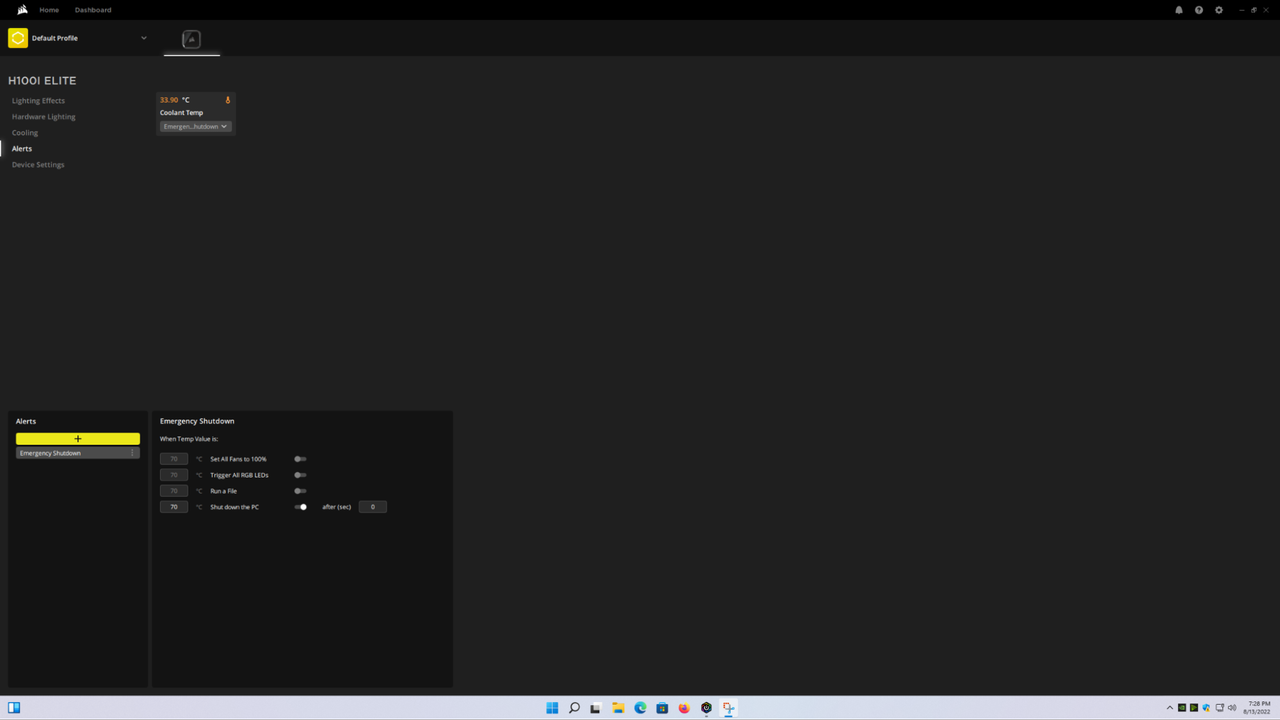

A unique aspect of Corsair’s software is the ability to set “Alerts” which can set fans to 100%, trigger all RGB LEDs, shut down the computer, or even run a program when the CPU temperature hits your desired value.
- Corsair AF Elite FDB PWM 120mm Fans
There’s more to a liquid cooler than just the radiator and pump. The fans included have a significant impact on cooling and performance. Included with the H100i Elite are two AF Elite FDB fans, which have a solid black color and run very quietly.
Model | AF Elite FDB |
Dimensions | 120 x 120 x 25 mm |
Fan Speed | 400 - 1850 RPM±10% |
Air Flow | 10.9 - 59.1 CFM |
Air Pressure | 0.09 - 1.93 mm H2O |
Noise Level | Up to 32.9 dB(A) |
Lighting | None |
Testing Configuration
Cooler | Corsair iCUE H100i Elite 240mm AIO Liquid Cooler |
MSRP | $139.99 USD (Base Model) $259.99 USD (LCD Model) |
Comparison Coolers Tested | BeQuiet Pure Loop 2 FX, 360mm AIO |
Row 3 - Cell 0 | Cooler Master Master Liquid PL360 Flux 360mm AIO |
Row 4 - Cell 0 | Cougar Poseidon GT 360, 360m AIO |
Row 5 - Cell 0 | Corsair iCUE H100i Elite 240mm AIO |
Row 6 - Cell 0 | DeepCool AK500 Air Cooler |
Row 7 - Cell 0 | DeepCool LS520, 240mm AIO" |
CPU | Intel i9-12900K |
Motherboard | MSI Zz690 A-Pro DDR4 |
Case | BeQuiet! Silent Base 802 Window |
PSU | DeepCool PQ1000M |
'll be testing Corsair’s iCUE H100i Elite with Intel's Core i9-12900K. Due to the increased thermal density of the Intel 7 manufacturing process, as well as changes to core and component layouts, Alder Lake CPUs are more difficult to cool than previous generation CPUs in the most heat-intensive of workloads.
This means that coolers that kept previous generation products like the i9-10900K nice and cool sometimes struggle to keep Intel's i9-12900K under Tj max–the max temperature before the CPU starts to throttle. Many coolers I’ve tested have failed to keep the i9-12900K under TJ max when power limits are removed in workloads like Cinebench and OCCT.
Note there are many factors other than the CPU cooler that can influence your cooling performance. A system's motherboard can especially influence this, as there are motherboards on the market with CPU sockets that aren't up to Intel's spec, which can cause warping or poor contact with the CPU. The case you use will also influence cooling results.
With Alder Lake's cooling demands in mind, I'll be rating CPU Coolers in 3 different tiers.
Tier 1: These coolers are able to keep the i9-12900K below TJ max in most loads, with no power limits enforced. I expect only the best liquid coolers to meet this standard.
Tier 2: These coolers are able to keep the i9-12900K under the TJ max threshold with CPU power limits of 200W enforced. I expect most liquid coolers and the best air coolers to meet this standard.
Tier 3: These coolers are able to keep the i9-12900K under TJ max with CPU power limits of 140W enforced.
Testing Methodology
Cooler Master’s iCUE software has a variety of presets that you can choose, which can impact noise levels and overall cooling performance. During these tests, I ran the cooler using the “Balanced” profile, which is the default setting in Corsair’s iCUE software.
To test the limits of a cooler's thermal dissipation capabilities, I run two primary stress tests: Cinebench and OCCT each for 10 minutes. While this may be a short amount of time, it is sufficient to push most coolers - air and liquid - to their limits.
While stress testing in Cinebench, I run both with power limits removed and with an enforced 200W CPU power limit. In this test setup using MSI’s Z690 A Pro DDR4 Motherboard and Be Quiet’s Silent Base 802 Computer Case, only the best coolers are able to pass Cinebench testing when power limits are removed.
I don’t test OCCT without power limits because attempting to do so results in CPU package power consumption jumping to over 270W and instantly throttling with even the best AIO coolers. Instead, I test at 200W to give coolers a chance at passing. I also include 140W and 95W results to give data comparable to a lower-end CPU, such as AMD’s Ryzen 5600x or Intel’s i5-12400.
MORE: Best AIO Coolers
MORE: How to Buy the Right CPU Cooler
Albert Thomas is a contributor for Tom’s Hardware, primarily covering CPU cooling reviews.
