Gigabyte X299X Designare 10G Review: Twice as Nice

Dual 10 GbE and two Thunderbolt 3 ports!

Editor's Choice
(Image: © Tom's Hardware)

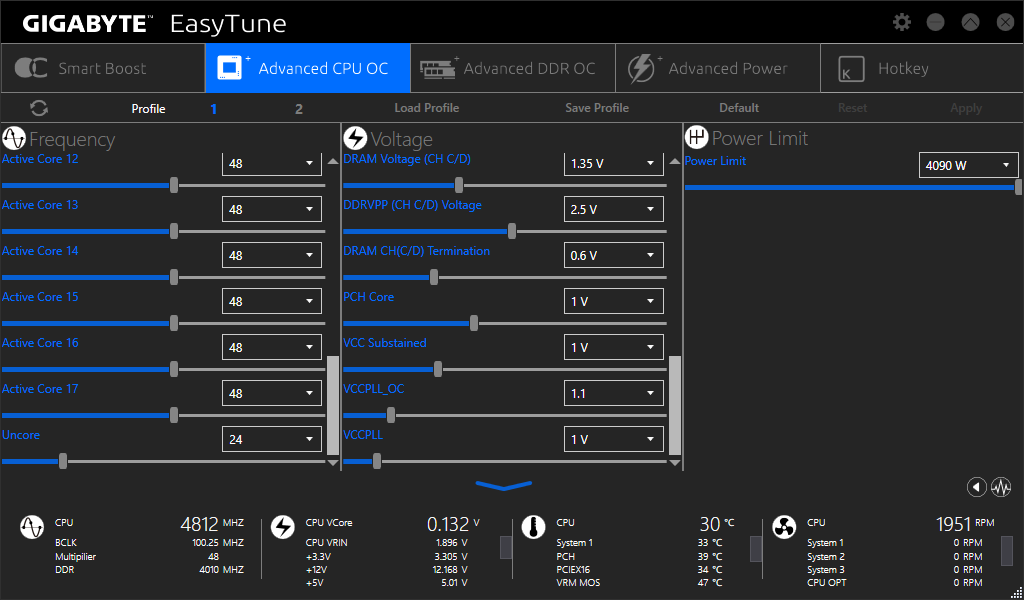

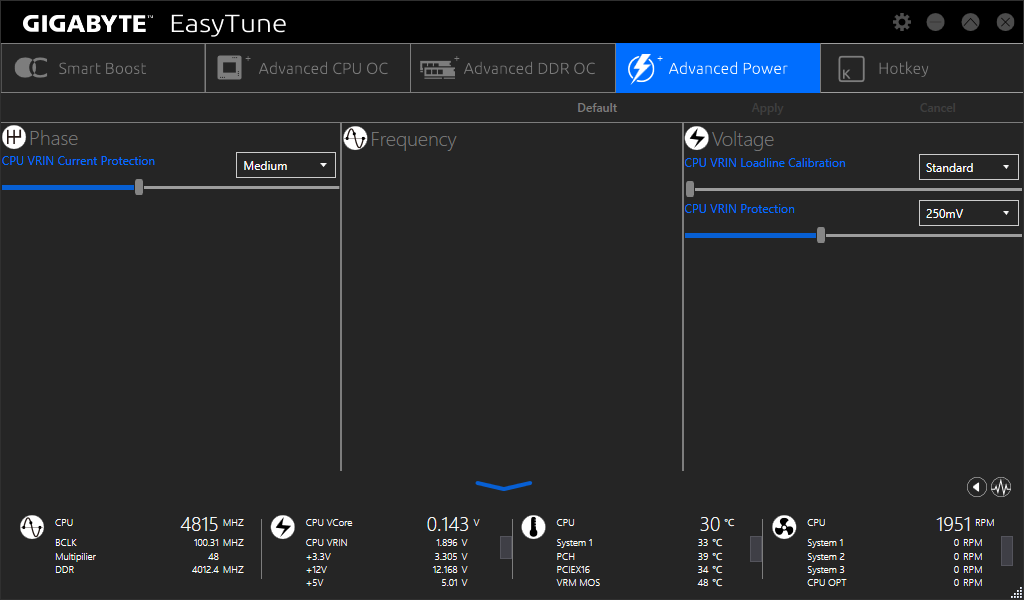

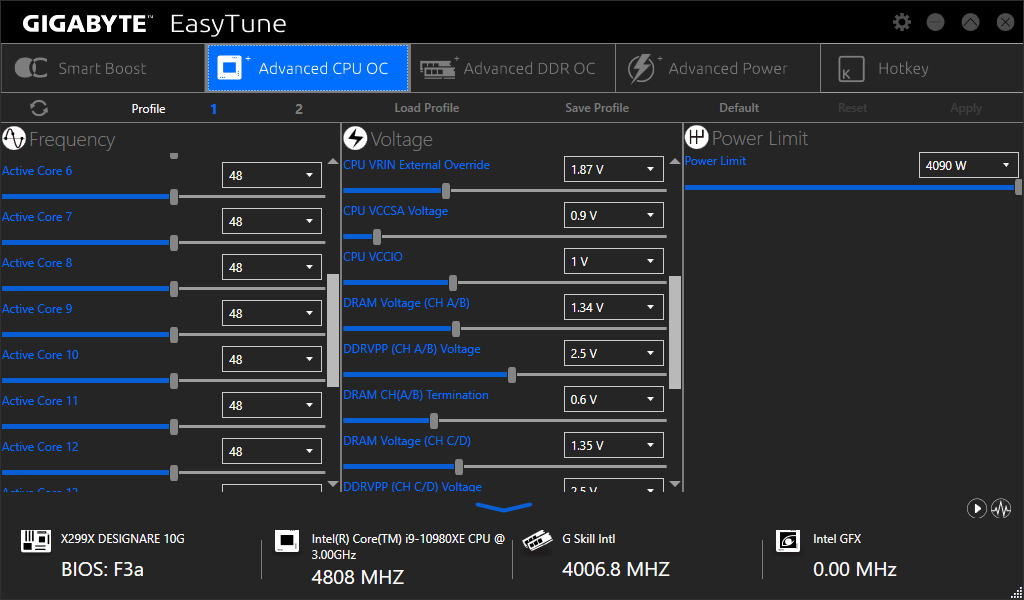

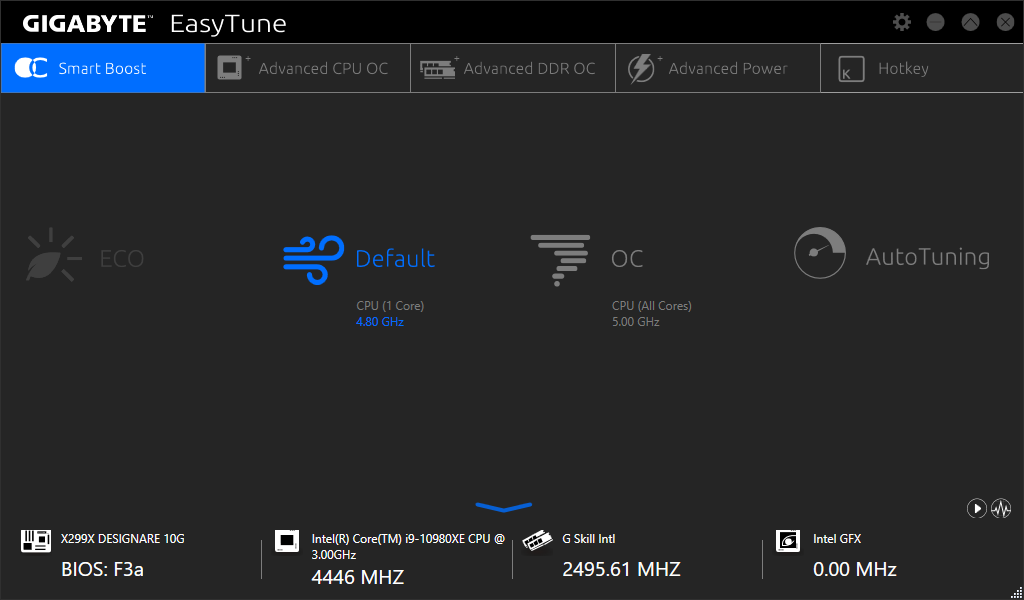

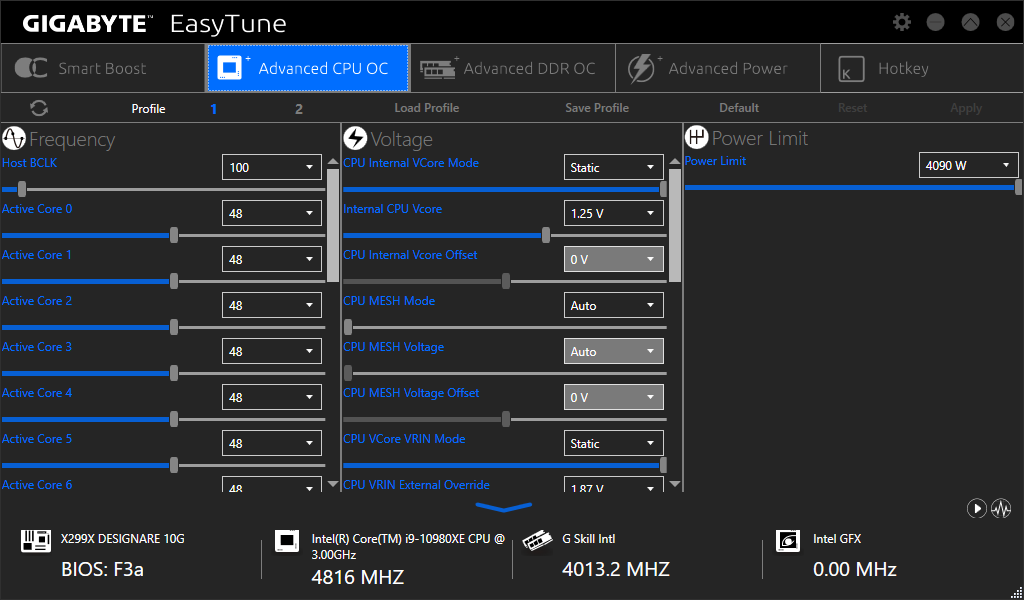

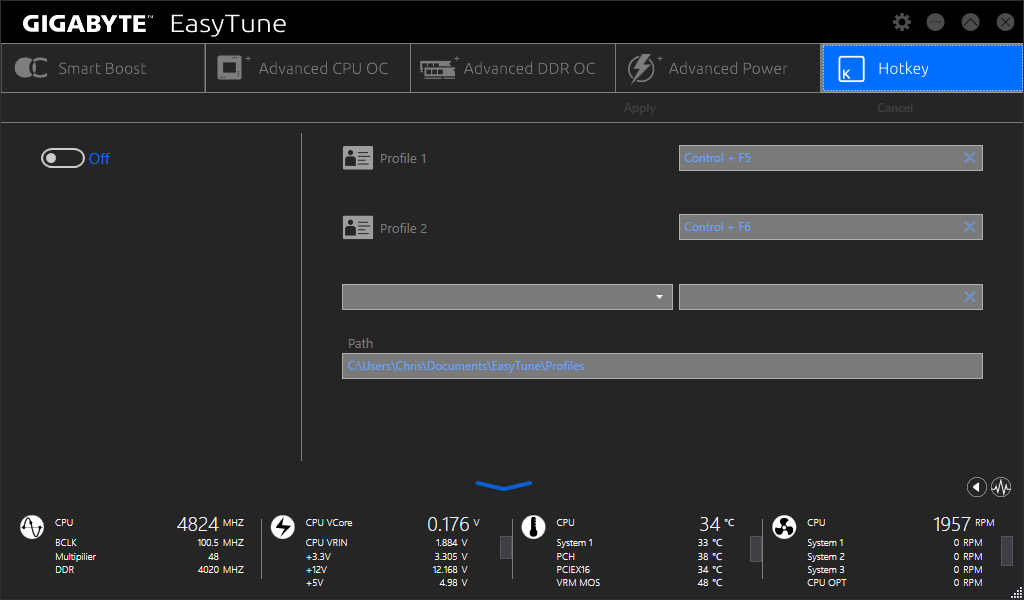

Gigabyte EasyTune lets you adjust CPU frequency and voltage levels within Windows, and even has a programmed overclock and an auto-tuning algorithm. Unfortunately for Gigabyte, those “easy” overclocks did not produce stable results in our stress tests.

Image 1 of 7

(Image credit: Tom's Hardware)
Image 2 of 7

(Image credit: Tom's Hardware)
Image 3 of 7

(Image credit: Tom's Hardware)
Image 4 of 7

(Image credit: Tom's Hardware)
Image 5 of 7

(Image credit: Tom's Hardware)
Image 6 of 7

(Image credit: Tom's Hardware)
Image 7 of 7

(Image credit: Tom's Hardware)

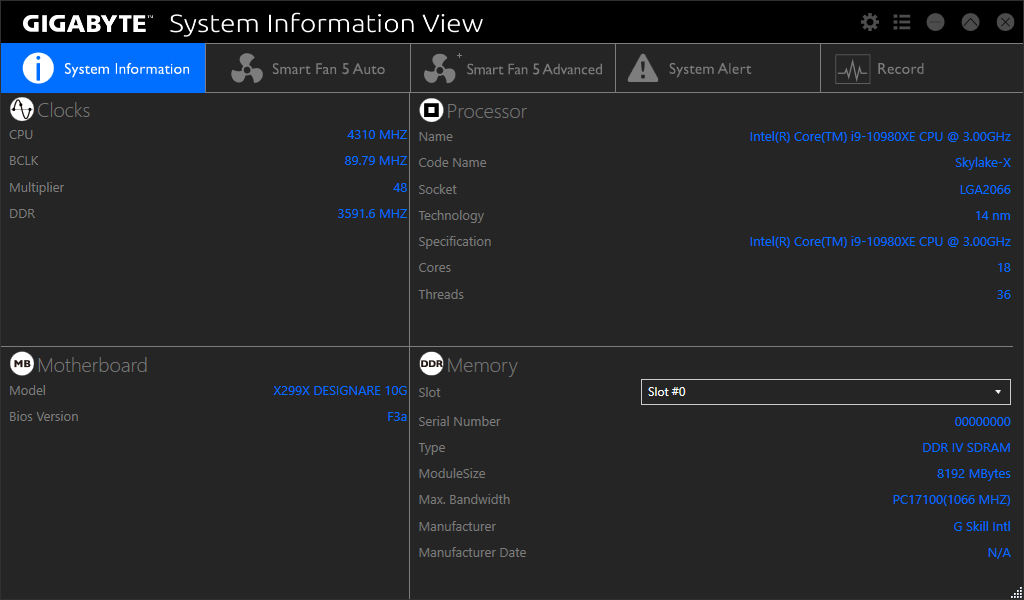

An icon on the lower-right side of the EasyTune interface opens Gigabyte Hardware Monitor, which is an applet from its System Information Viewer (SIV) that displays system stats on the right side of your viewscreen. Clicking Hardware Monitor’s “return” icon opens SIV.

(Image credit: Tom's Hardware)

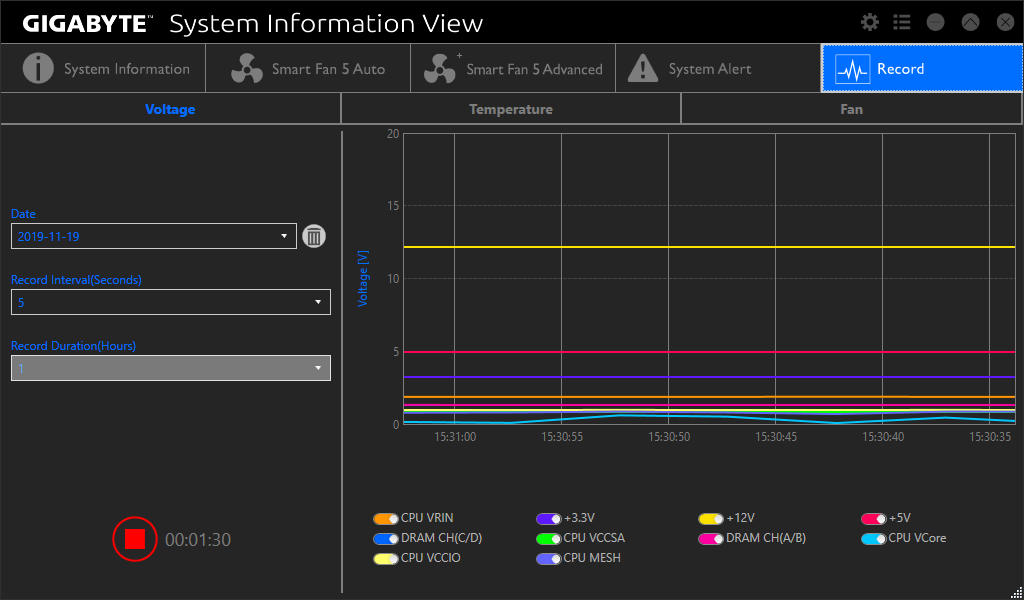

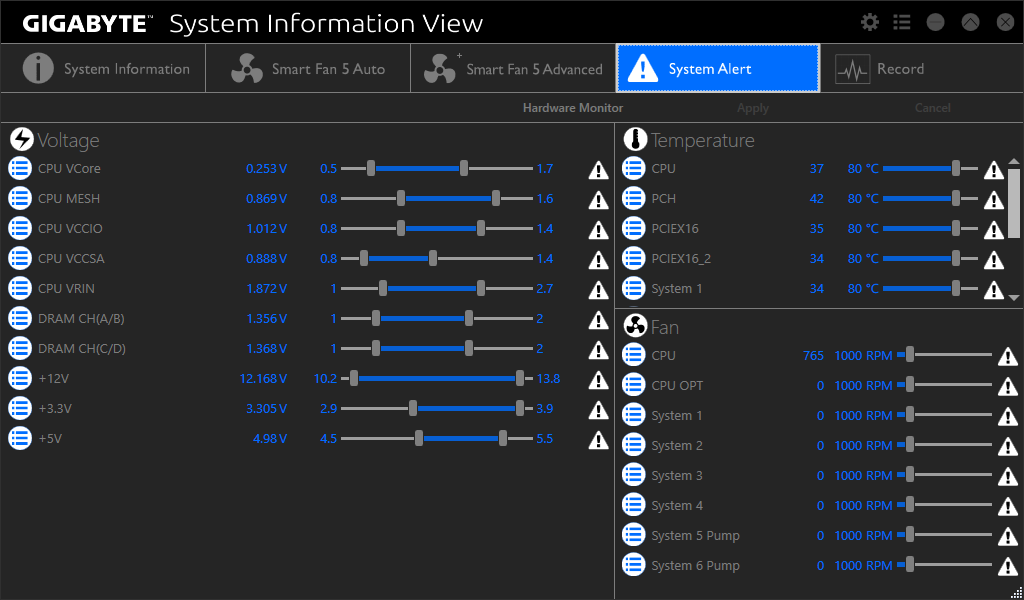

After running a lengthy fan-tuning session upon first launch, Gigabyte SIV becomes a reasonable utility for tracking system stats and changing fan settings. Users can even choose their own monitoring alerts and log system readings, if they’d like.

Image 1 of 5

(Image credit: Tom's Hardware)
Image 2 of 5

(Image credit: Tom's Hardware)
Image 3 of 5

(Image credit: Tom's Hardware)
Image 4 of 5

(Image credit: Tom's Hardware)
Image 5 of 5

(Image credit: Tom's Hardware)

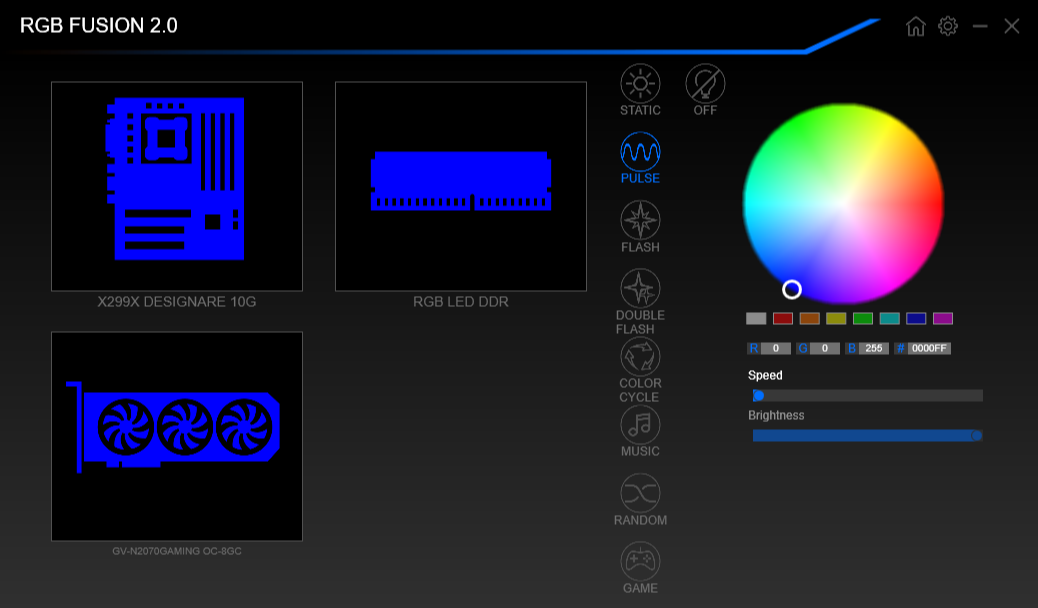

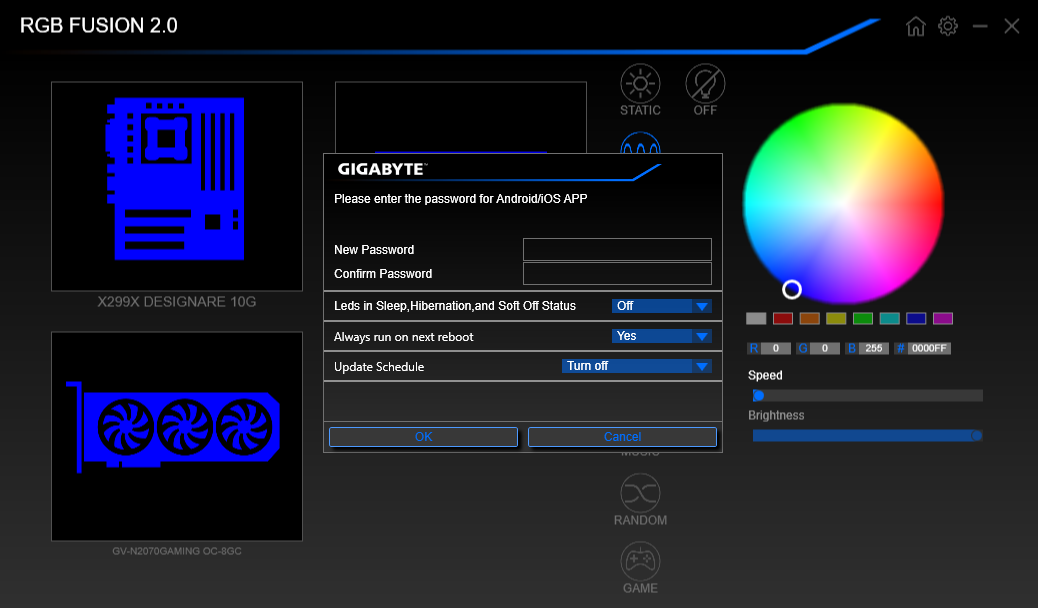

RGB Fusion 2.0 reads the RGB controllers of our memory and graphics card as well as the motherboard. These can set to various pulsating patterns and colors in full synchronicity, but nothing so complicated as a rainbow pattern is available. Furthermore, at least in our test rig, once you close the window, synchronization is lost.

Image 1 of 2

(Image credit: Tom's Hardware)
Image 2 of 2

(Image credit: Tom's Hardware)

Firmware



X299X Designare 10G firmware opens to an Easy Mode GUI, which limits user interaction primarily to settings that aren’t difficult to recover from. Anyone who really wants to push their hardware must first gather the courage to press the “F2” key at the top of their keyboard.

(Image credit: Tom's Hardware)

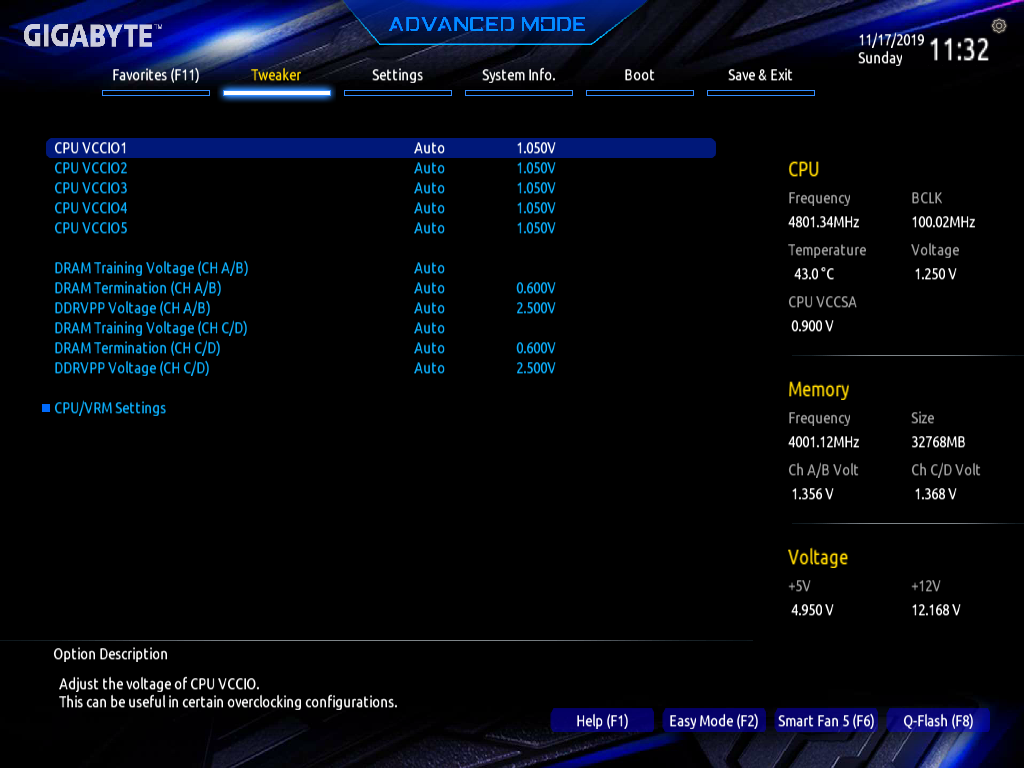

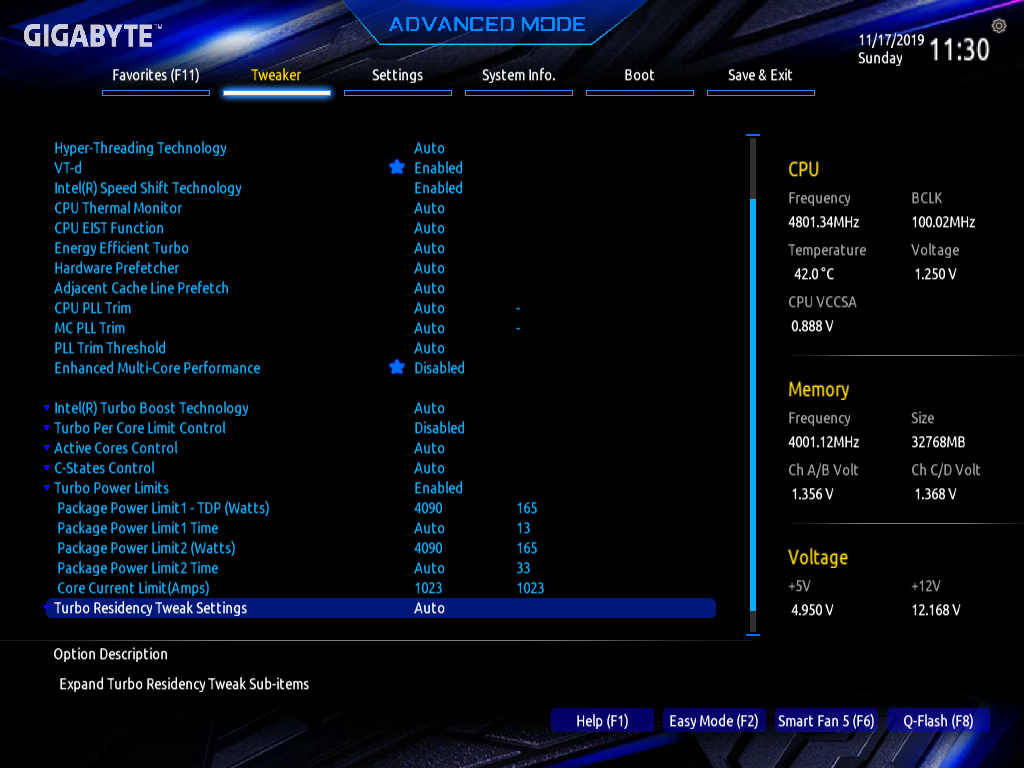

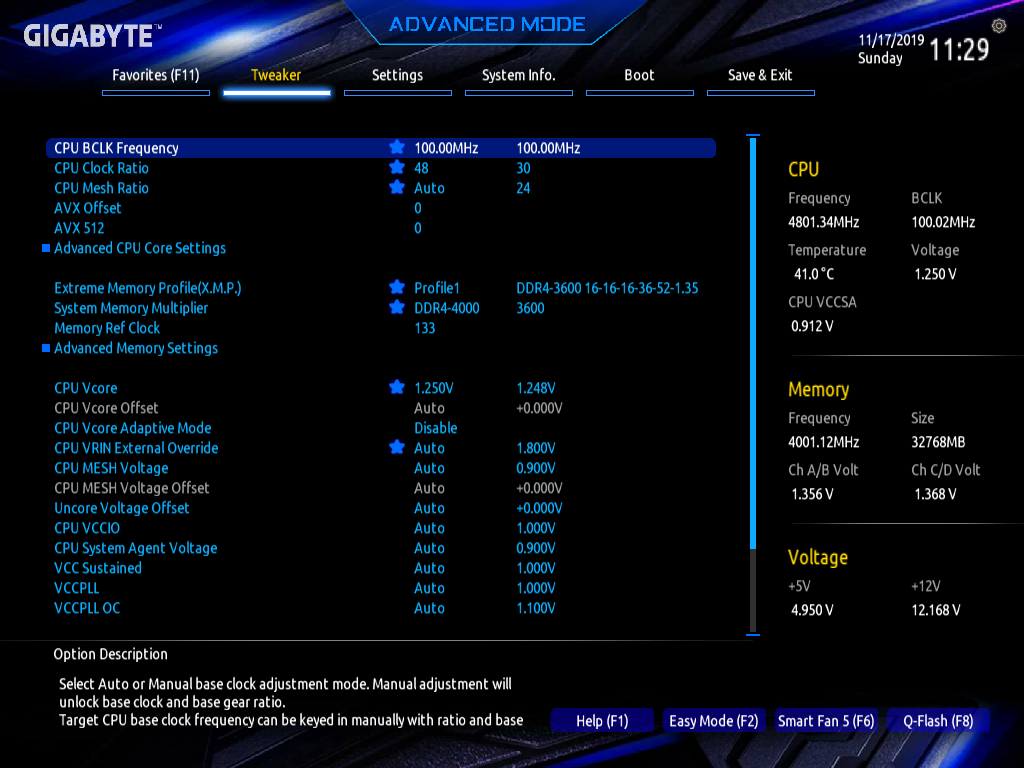

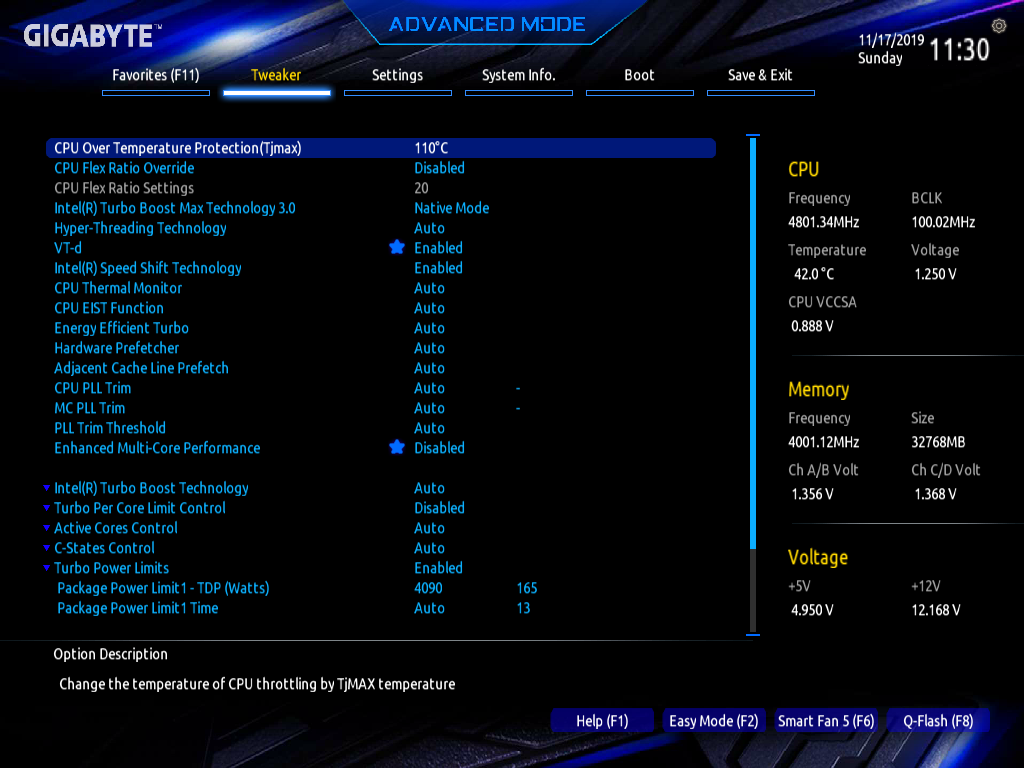

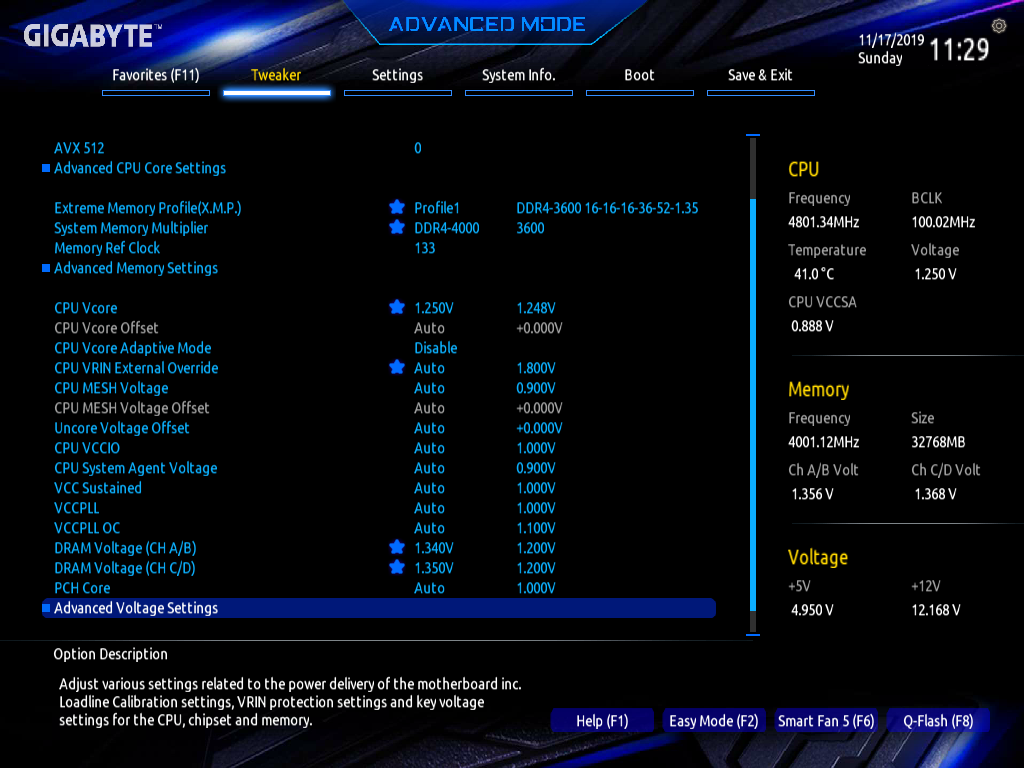

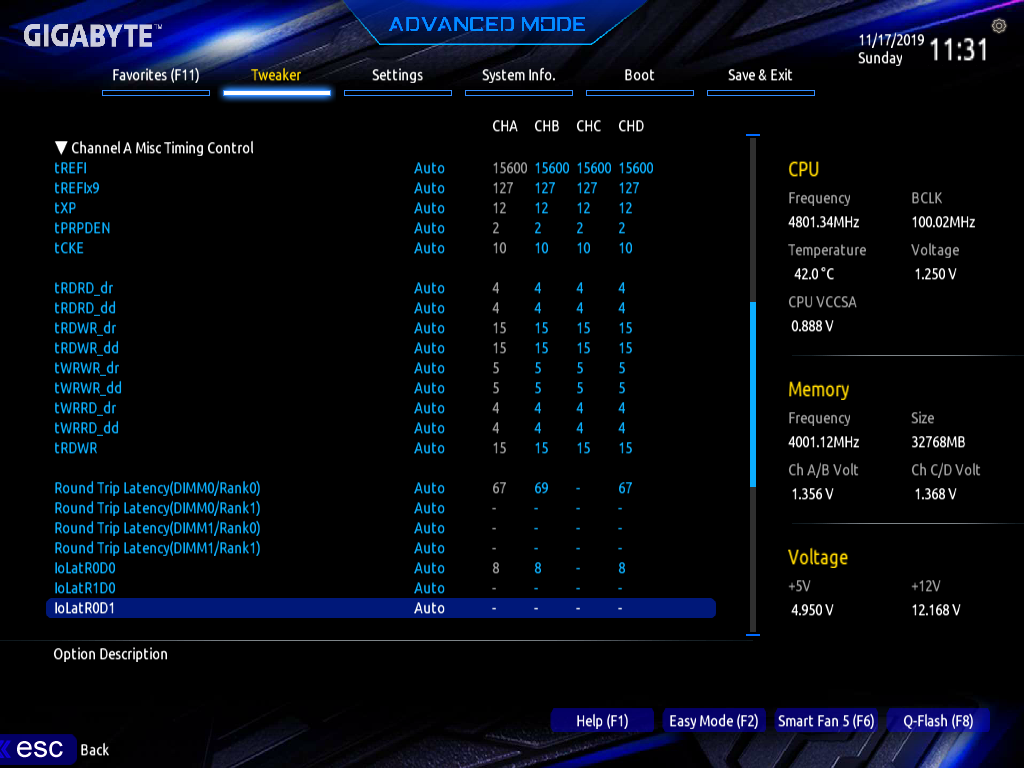

Once inside Advanced Mode, users can play within the Tweaker menu to their overclocking heart’s delight. Thermal issues prevented us from using more than 1.25V CPU core with our Core i9-10980XE on any motherboard, and we found that the roughly +5v bias on the board’s front bank of memory was roughly +15mV on the rear.

Image 1 of 4

(Image credit: Tom's Hardware)
Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

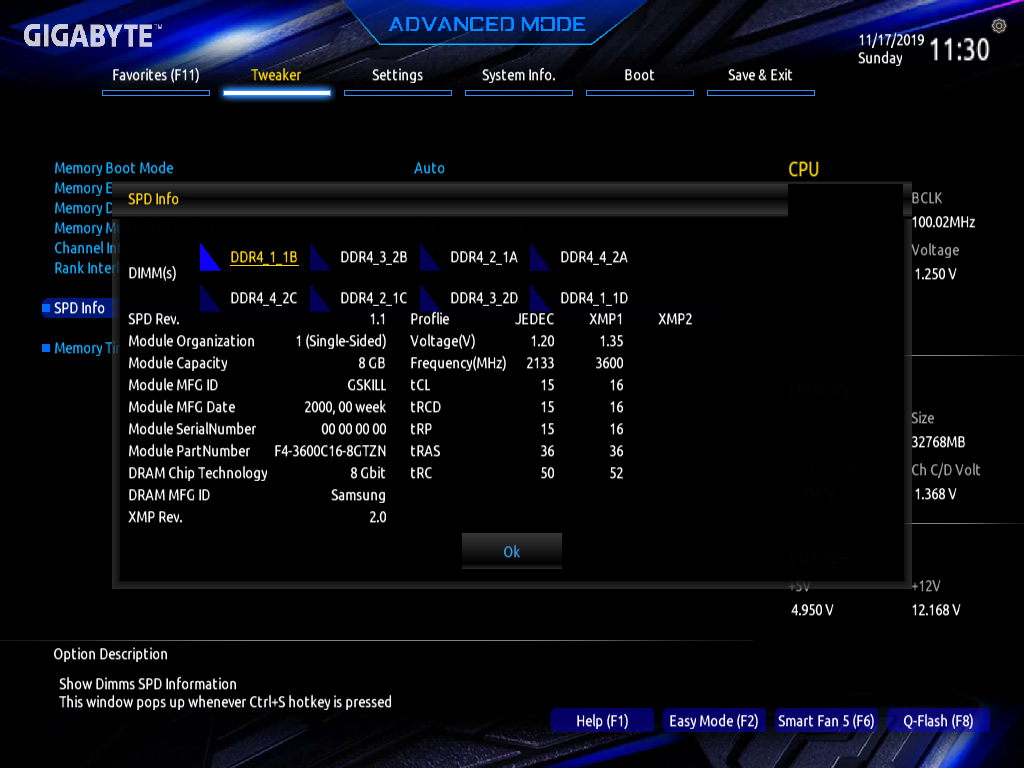

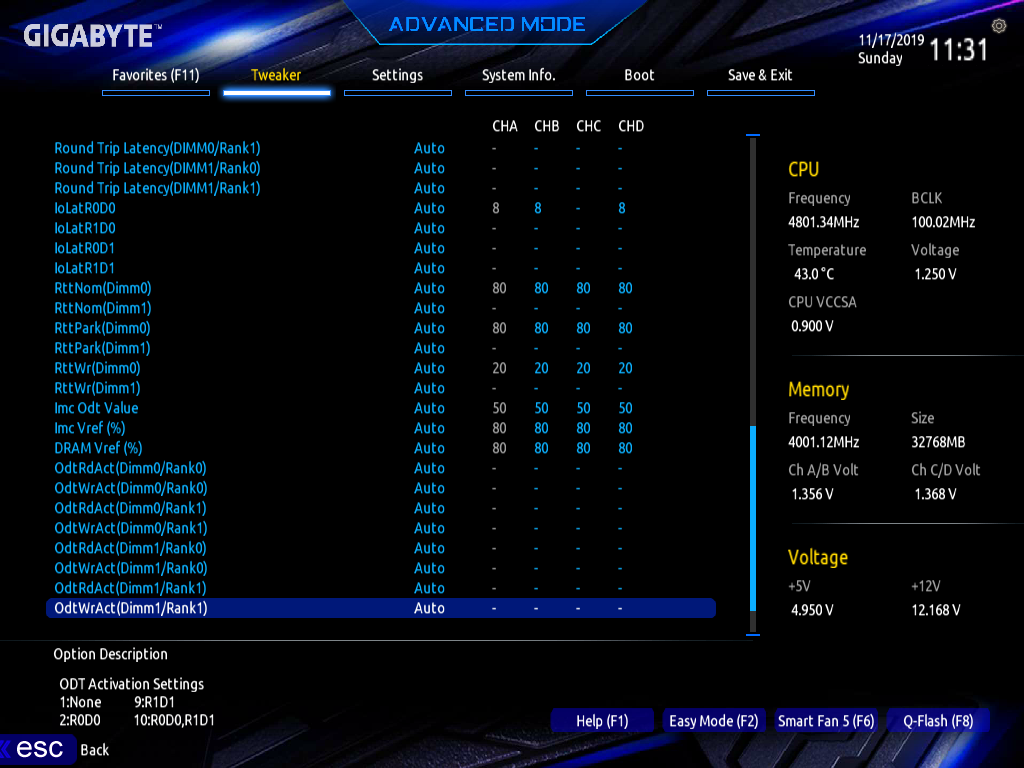

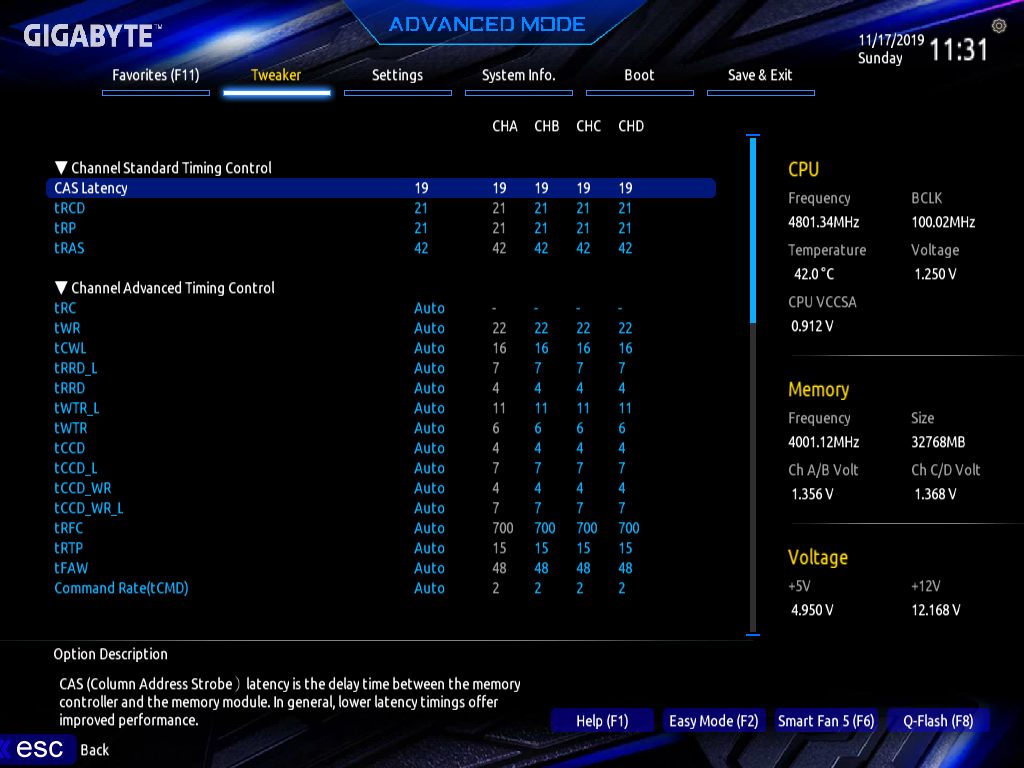

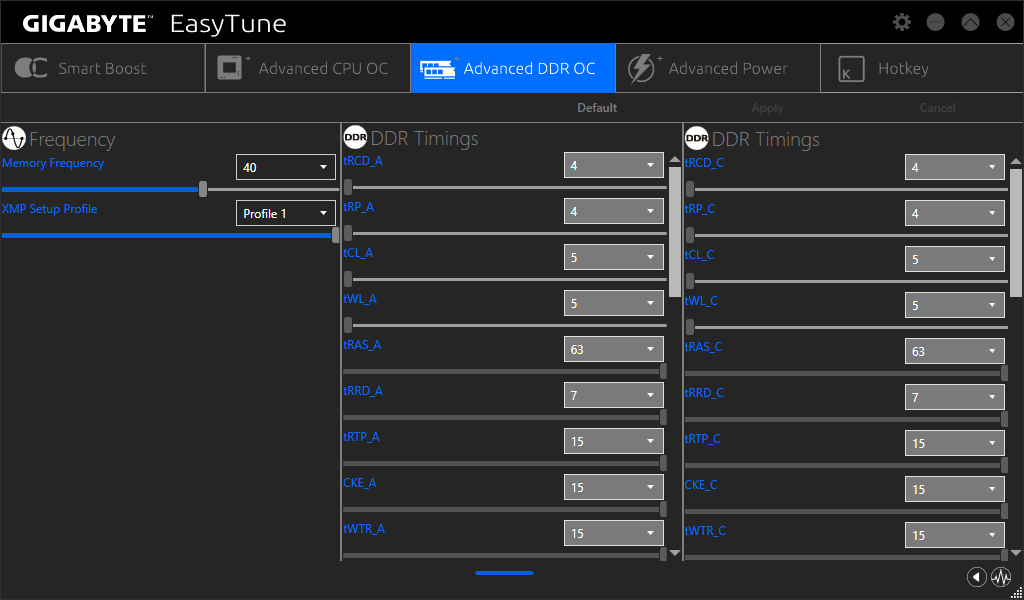

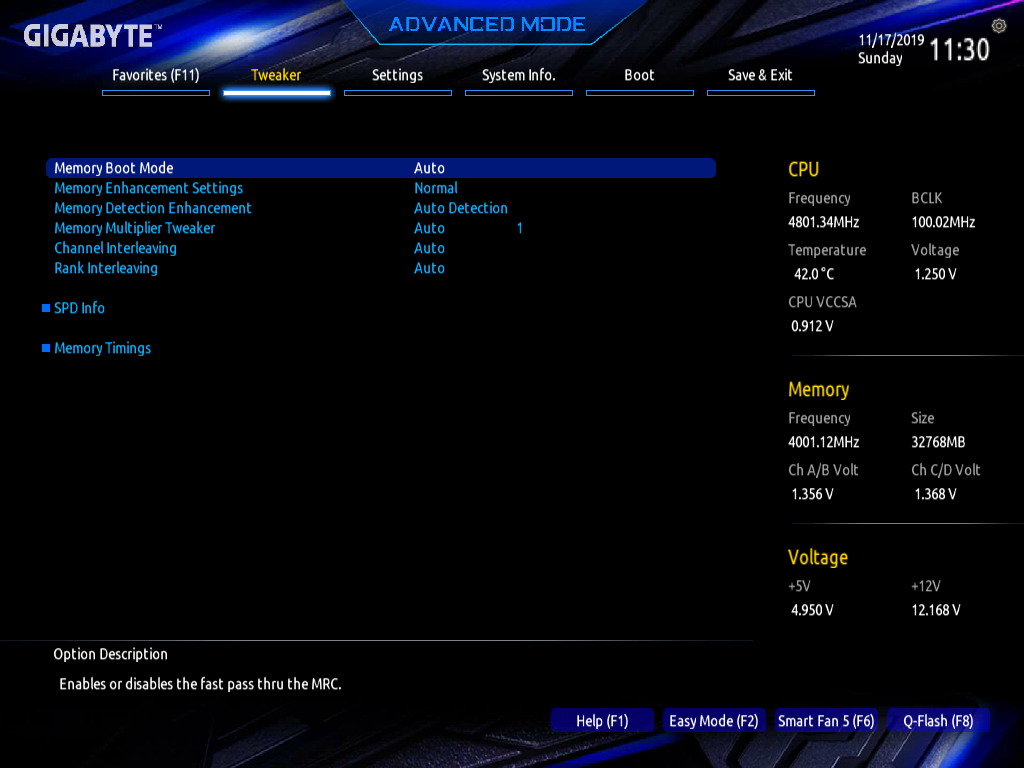

Speaking of memory, the X299X Designare 10G offers users a peak at module programming, along with a comprehensive set of primary, secondary, and tertiary latency controls.

Image 1 of 5

(Image credit: Tom's Hardware)
Image 2 of 5

(Image credit: Tom's Hardware)
Image 3 of 5

(Image credit: Tom's Hardware)
Image 4 of 5

(Image credit: Tom's Hardware)
Image 5 of 5

(Image credit: Tom's Hardware)

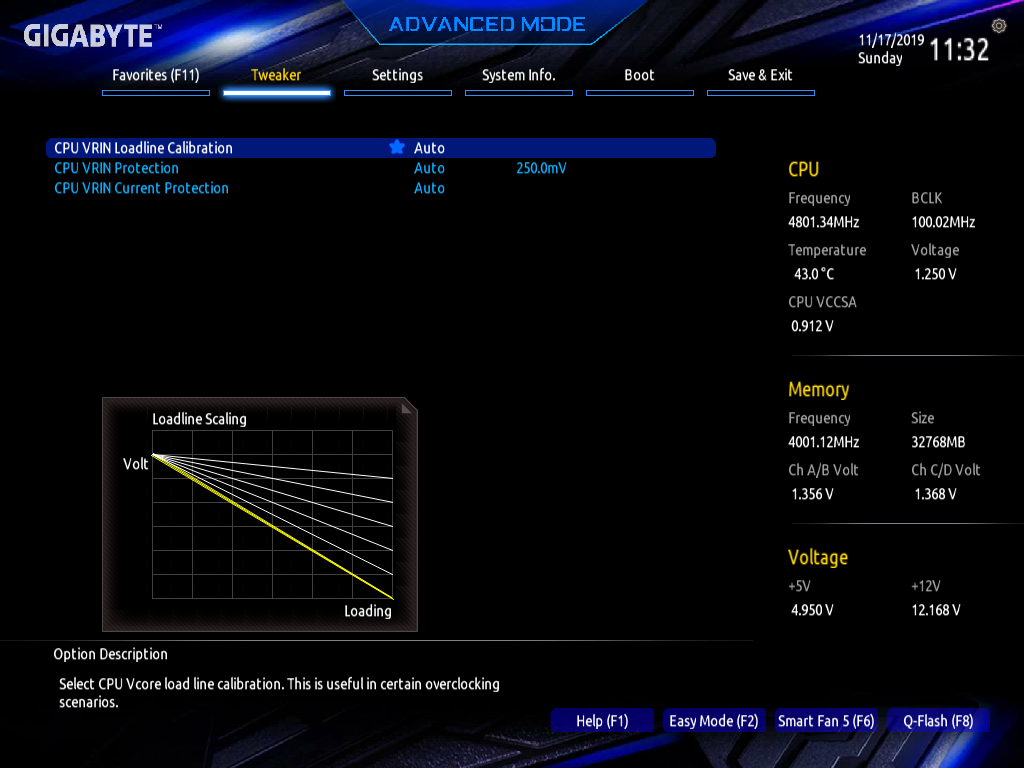

We found “Auto” to be the best “VRIN Loadline Calibration” setting to keep our CPU near our 1.25V setting during changing software loads.

Image 1 of 4

(Image credit: Tom's Hardware)
Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

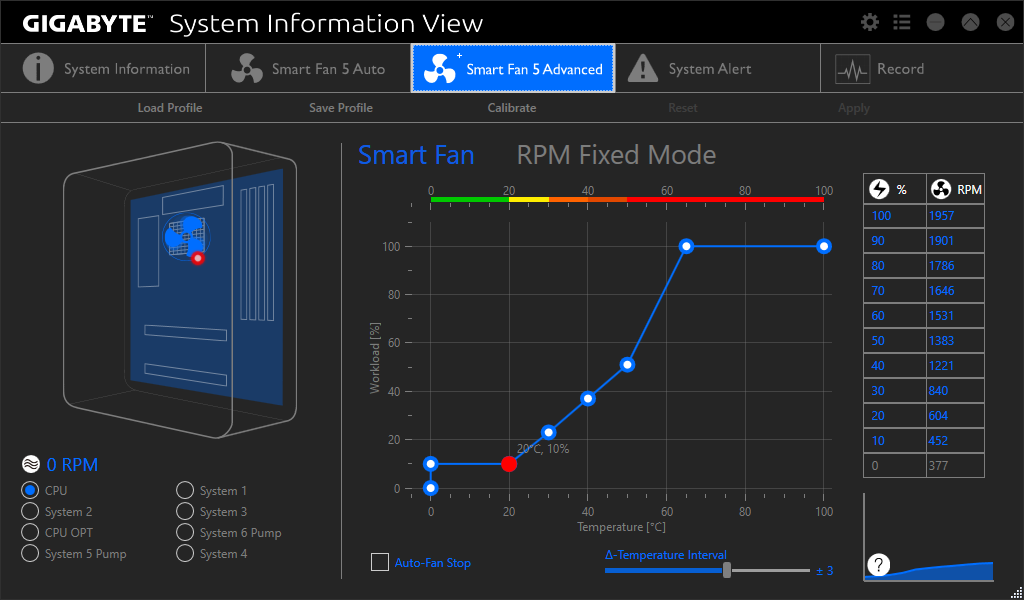

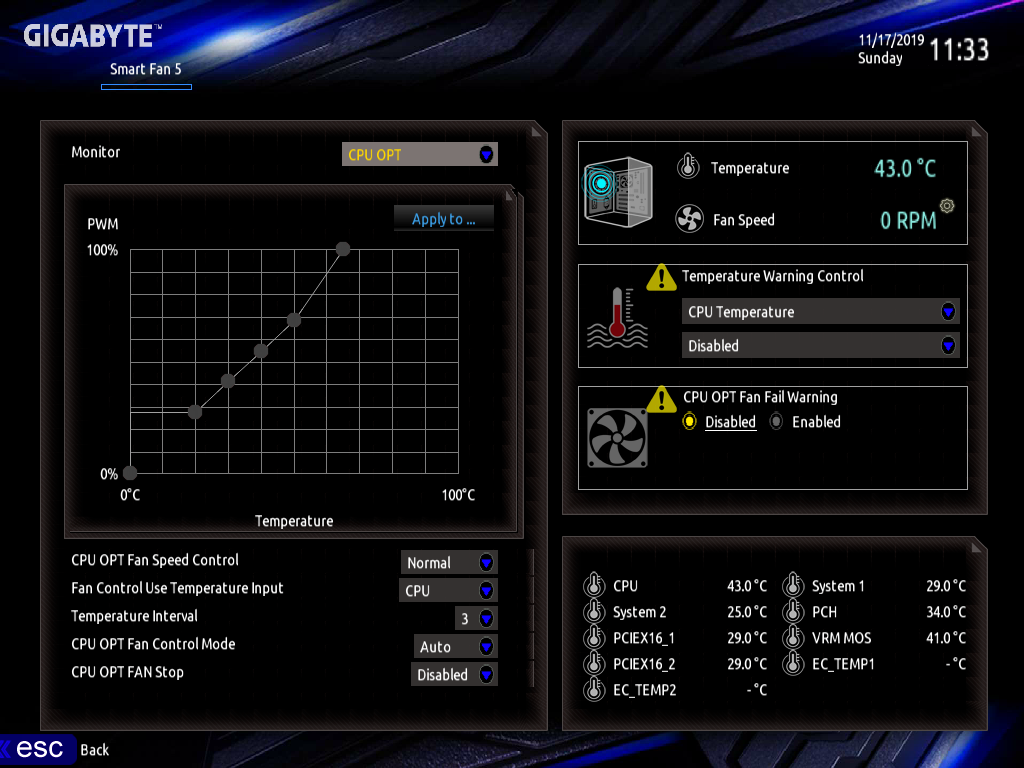

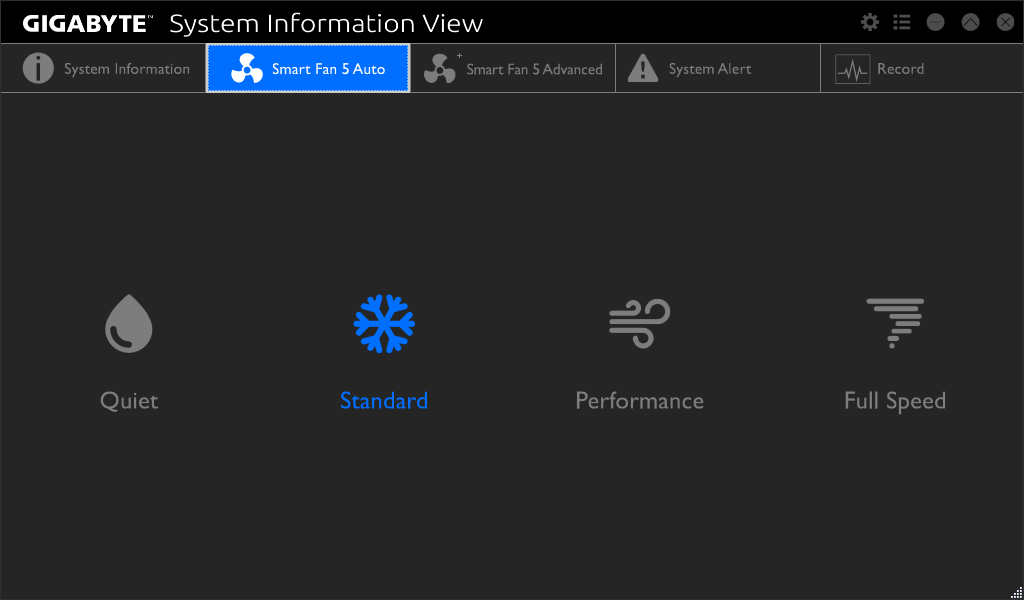

Fan settings can be changed at any time using Gigabyte’s Smart Fan 5, by pressing the keyboard’s “F6” key. Other quick access settings include firmware programing via the “F8” key.

Frequency and Voltage settingsGigabyte X299X Designare 10GASRock X299 Taichi CLX
BIOSF3a (10/21/2019)P1.20 (10/07/2019)
Base Clock80-500 MHz (10kHz)90-2000 MHz (50 kHz)
CPU Multiplier7-80x (1x)7-80x (1x)
DRAM Data Rates800-5000 (200/266.6MHz), 5266/5533/5800 800-4400 MHz (200 / 266.6 MHz)
CPU Vcore0.90-1.70V (1 mV)0.90-1.55V (6.25 mV)
System Agent0.85-1.40V (5 mV)0.80-2.00V (5 mV)
CPU I/O0.80-1.40V (5 mV)0.90-1.50V (10 mV)
PCH Voltage0.80-1.30V (20 mV)0.95-1.35V (25 mV)
DRAM Voltage1.00-2.00 mV (10 mV)1.10-2.40 mV (6 mV)
CAS Latency5-31 Cycles1-31 Cycles
tRCD1-31 Cycles1-31 Cycles
tRP1-31 Cycles1-31 Cycles
tRAS1-63 Cycles1-63 Cycles

Gigabyte’s X299X Designare 10G takes on ASRock’s X299 Taichi CLX using a custom Alphacool liquid cooling configuration based upon its Eisblock XPX water block, Eisbecher D5 reservoir with included pump, and NexXxoS UT60 X-flow radiator.

(Image credit: Tom's Hardware)

Remaining components include Gigabyte’s GeForce RTX 2070 Gaming OC 8G, Toshiba’s OCZ RD400, and G.Skill’s Trident-Z DDR4-3600 from our Ryzen 3000 memory evaluation

Overclocking

(Image credit: Tom's Hardware)

The only things really worth mentioning in our frequency chart is that AIDA64 presents so light a load that it allowed us to run 1.25V and reach 4.80GHz on all cores, while the heavier load of Prime95 forced us to drop our CPU to 1.00V just to keep heat in check. Both boards reached the same CPU frequencies, though the X299X Designare 10G edged out the X299 Taichi CLX in memory data rate.

(Image credit: Tom's Hardware)

Bandwidth is more important than data rate, and the X299 Taichi CLX’s lower overclock outpaced the higher clock from the X299X Designare 10G. Differences like this are typically caused by firmware attempting to compensate for the higher frequencies by using looser advanced timings, in a configuration where we’re only using fixed primary timings.

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content
