Six A75-Based Motherboards For AMD’s A8 And A6 APUs

Features
By published

Advanced on-board graphics put AMD’s Llano-based APU far ahead of Intel’s Sandy Bridge architecture, at least when it comes to 3D apps. But you’ll still need a new motherboard to support the Socket FM1 platform. Today we test six affordable contenders.

Overclocking ASRock's A75M

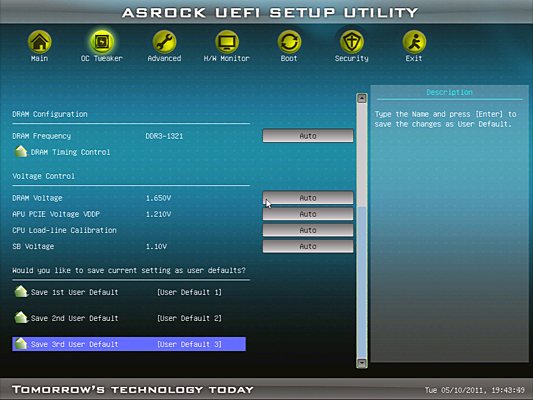

ASRock doesn’t let a low price stand in the way of an overclocker’s desires, instead equipping the A75M with most of the settings needed to extract optimal performance from the finished build.

Builders can set the CPU multiplier up to 47x, and CPU-Z even shows the added frequency. However, our multiplier-locked processor stayed true to its 26x ratio, in spite of that errant reading (as determined by benchmarking the overclocked system). The only useful method for overclocking is via the APU's reference clock, and the A75M is very good at using this method.

Our VGA output stopped working above a 107 MHz base clock setting, necessitating the use of HDMI to retain integrated GPU functionality.

The A75M even includes CPU Load-Line Calibration to assist in the removal of “droop” under high CPU loads. We didn’t need it, as the board pushed our CPU to 1.40 volts under four threads of Prime95 using its 1.365 V core setting.

Primary and secondary memory timings are also adjustable within realistic ranges. Each menu item must be changed from “Auto” to “Manual” to reveal a second menu beneath it.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
