Thermalright AXP-200 And AXP-200R
A red-and-black fan color scheme differentiates Thermalright’s AXP-200R from its more pedestrian sibling, and the firm even rates both product's fans at the same speed. Since they employ the same fan motor and design, readers should be confident of identical performance. The AXP-200 sells for $64-$80, and we estimate the special edition version in our lab is at the upper end of that range.
The AXP-200R includes a multi-sized fan adapter plate in addition to its Intel LGA and AMD four-hole mounting kits. Users can substitute the original slim fan for full-sized fans up to 140 mm, as well as Thermalright’s own 150 mm x 26.5 mm unit.

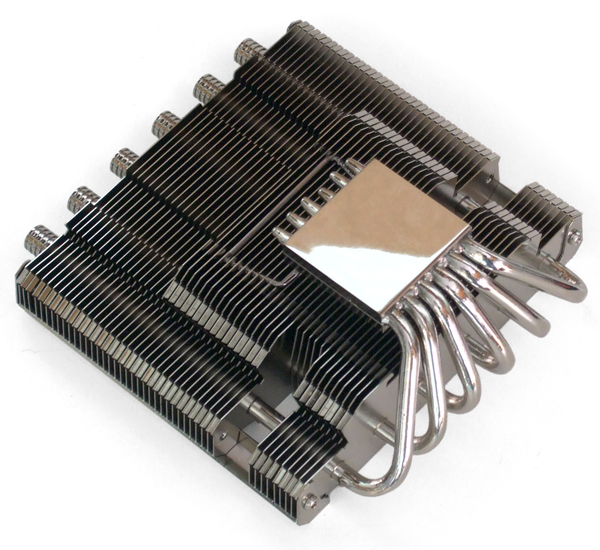

Thermalright polishes its CPU interface better than most competitors, though this does appear to affect flatness slightly near its edge. Nickel plating prevents surface oxidation.
The AXP-200's support plate is drilled for all consumer-oriented Intel and AMD processors, replacing manufacturer-supplied brackets for AMD coolers as far back as Socket 462. Extra holes near its center fit around the screws of Intel’s original support plates, and LGA 2011 users can instead use their original threaded mounts with a set of supplied standoffs.
