Building A Liquid-Cooled MicroATX Gaming Monster

Features
By published

You don't need a massive case to cram in tons of computing muscle. With a little help from a few manufacturers, our excessively-overclocked GeForce GTX 580 SLI build is small enough to sit atop most desks (and smoke our $2000 SBM machine).

Benchmark Results: Just Cause 2 And Metro 2033

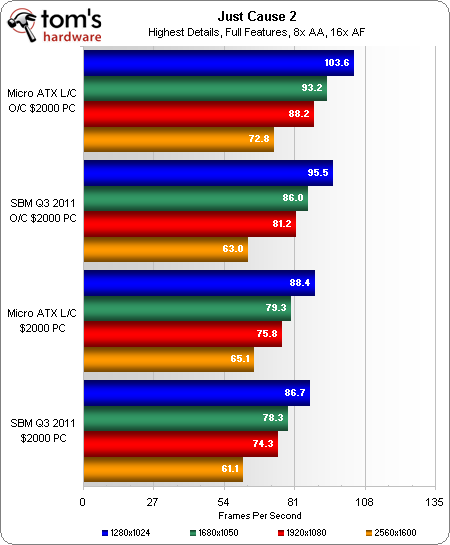

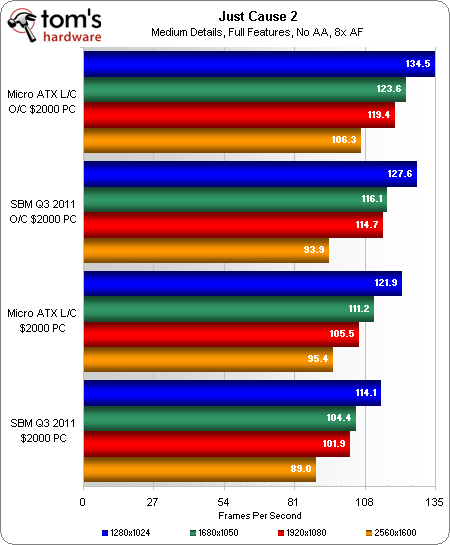

Just Cause 2 appears CPU-bottlenecked, with the baseline microATX system’s faster graphics outpacing the overclocked SBM machine’s higher-frequency CPU only when screen resolution is pushed to 2560x1600. This observation applies even at our highest test settings.

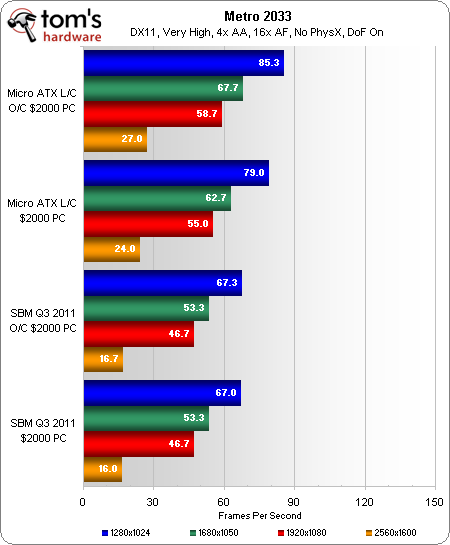

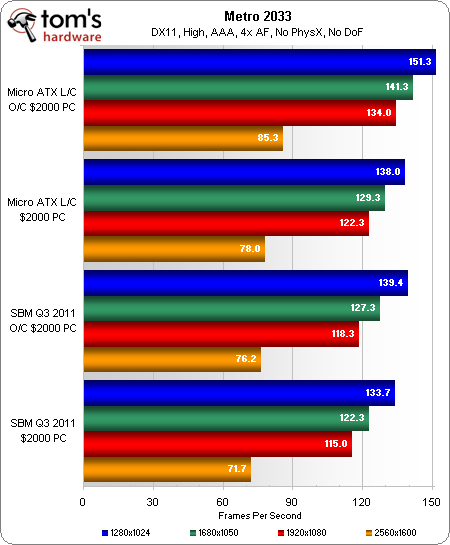

Conversely, Metro 2033 appears to be GPU-bottlenecked even at our lower test settings, with the baseline microATX machine's faster GPUs leading the overclocked SBM machine’s faster CPU from 1680x1050 upward. Higher details further aggravate that bottleneck as the microATX machine always leads.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
