Patriot Ignite 480GB SSD Review

By Chris Ramseyer
published

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Mixed Workload and Steady State Performance

In the past, we could look at four-corner performance to get a good idea of how a product would act in the real world. That's no longer the case, though. Mixed-workload tests yield more useful info on what your SSD does while multitasking and running background software.

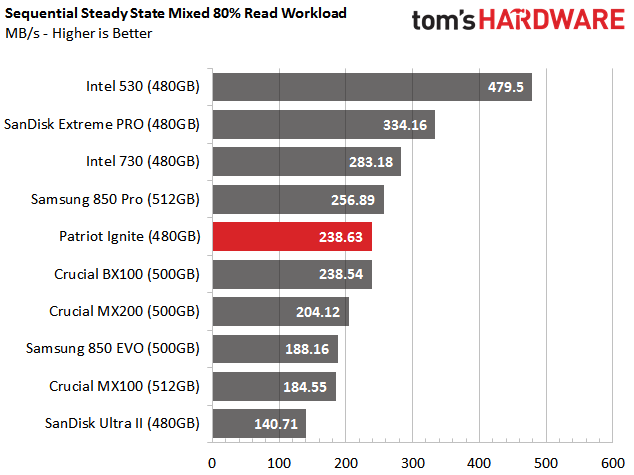

128K Sequential, 80% Read Mixed-Workload Performance

Mixed workload performance is important because we never just read or just write data with an operating system drive. Unfortunately, the Ignite scores lowest in our sequential metric. Until recently, very few companies focused on this discipline, though that's starting to change now that these tests are part of our suite.

4KB Random, 80% Read Mixed-Workload Performance

Flash plays an important role in determining mixed workload performance. Advances in SLC cache layers help improve throughput in these scenarios. However, the Ignite doesn't take advantage of those performance-enhancing tricks. Asynchronous flash does successfully keep prices low, but it hurts in our benchmarks.

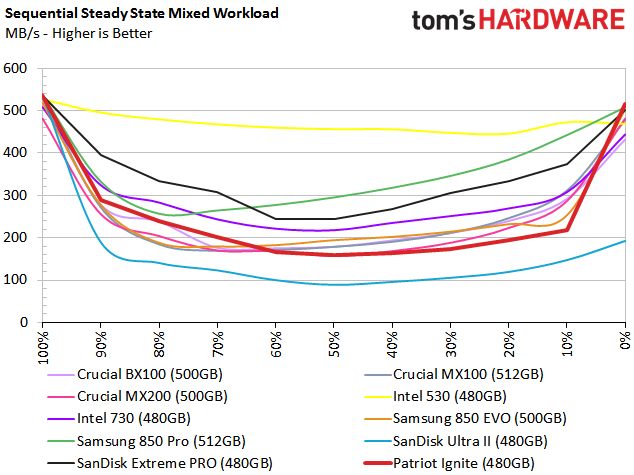

128KB Sequential Mixed-Workload Steady State Performance

Image 1 of 2

At this price point, we don't see the Ignite being used in professional video editing workstations. The drive does manage to sustain high sequential performance under steady state conditions, though.

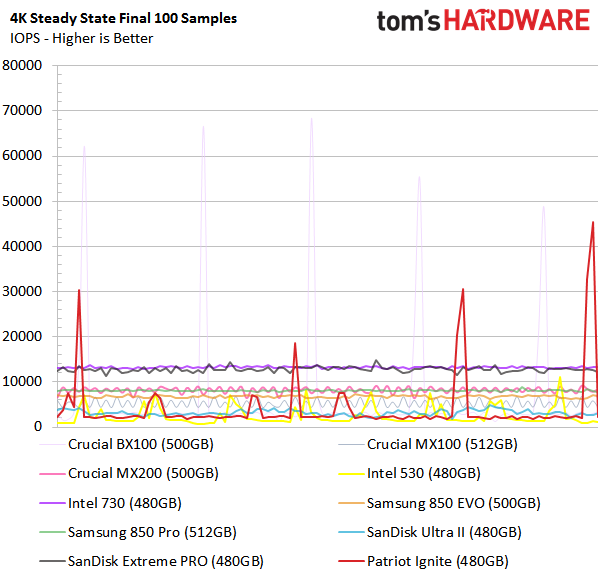

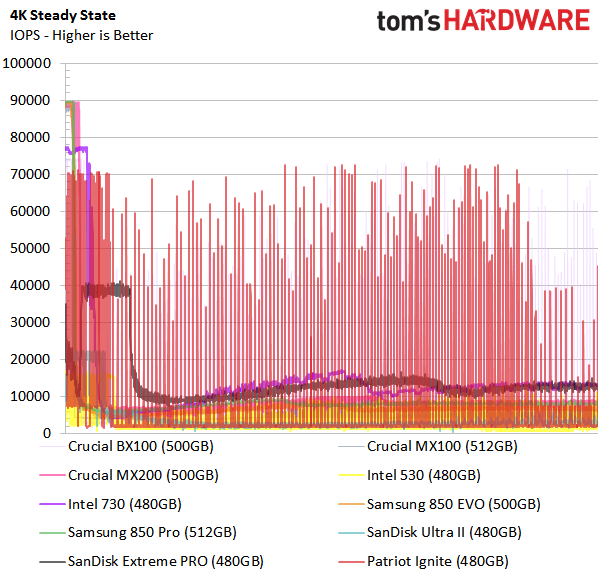

4KB Random Write Steady State Performance

Image 1 of 2

Random performance is the Ignite's obvious weak link. Phison plans to introduce firmware that's expected to increase 4KB steady state performance to 10,000 IOPS or more, but we doubt it'll achieve those lofty figures with IMFT 16nm asynchronous flash. Still, it'd be nice to see 4KB random write performance double from the low level it's currently at.

Chris Ramseyer
Chris Ramseyer
Chris Ramseyer is a Contributing Editor for Tom's Hardware US. He tests and reviews consumer storage.
15 Comments Comment from the forums
  • gnarr
    "A few tenths of a second in each service time benchmark might not seem like a lot, but over the course of a day, they add up. Admittedly, choosing one SSD over another won't double your productivity. Would you turn down an extra 10 or 20 minutes of getting stuff done, though?"
    Your reaction time is around 150-300ms, so having an SSD that is 200ms slower than the fastest SSD is not going to slow you down the least. It won't even give you 10 seconds of extra "getting stuff done" over a whole workday unless your work resolves around only opening and closing applications.

    It might maybe save you 2-3 seconds when opening large Photoshop, After Effects, Premiere or Resolve projects, but as a video editor, I know you will most likely be working on the same project the entire day, and if you're opening many projects per day, they are usually rather small and thus will load in a blink of an eye.
    Reply
  • 2Be_or_Not2Be
    @gnarr - I think the main point is being glossed over - if a SSD can finish a task x% slightly faster than another SSD/HDD, then it's allowing you x% more time to do *anything* on your computer. It doesn't matter if you went off to get coffee or if you were sitting there waiting on it to finish the task, your computer is now waiting on your input that x% faster. This has nothing to do with your reaction time or even opening files.

    During the course of a year, anything that allows you more time to do work on your computer makes you more efficient.
    Reply
  • damric
    How well does this controller respond to loss of power or hard reset?

    Too many SSDs on the market become bricked and unrecognized by the motherboard even after just a single loss of power.

    I recommend reviewers do about 50 hard power-offs and see if the SSD survives.
    Reply
  • mf Red
    How well does this controller respond to loss of power or hard reset?

    Too many SSDs on the market become bricked and unrecognized by the motherboard even after just a single loss of power.

    I recommend reviewers do about 50 hard power-offs and see if the SSD survives.

    My R9 290x was causing hard power-offs when loading into games and my 840 Pro is still functioning just fine. I probably only did 20 hard resets though not 50 so maybe you're right.
    Reply
  • killerchickens
    Nice price I might have buy one. :)
    Reply
  • damric
    15539409 said:
    How well does this controller respond to loss of power or hard reset?

    Too many SSDs on the market become bricked and unrecognized by the motherboard even after just a single loss of power.

    I recommend reviewers do about 50 hard power-offs and see if the SSD survives.

    My R9 290x was causing hard power-offs when loading into games and my 840 Pro is still functioning just fine. I probably only did 20 hard resets though not 50 so maybe you're right.

    The Samsungs usually don't have that problem, lucky for you.
    Reply
  • palladin9479
    15539409 said:
    How well does this controller respond to loss of power or hard reset?

    Too many SSDs on the market become bricked and unrecognized by the motherboard even after just a single loss of power.

    I recommend reviewers do about 50 hard power-offs and see if the SSD survives.

    My R9 290x was causing hard power-offs when loading into games and my 840 Pro is still functioning just fine. I probably only did 20 hard resets though not 50 so maybe you're right.

    The Samsung drives are of exceptionally high stability, almost enterprise level. I've never heard of one getting bricked by unexpected loss of power.

    The thing to realize is that SSD's are basically a computer within a computer. Inside a SSD is a CPU, memory and an OS. When the drive powers on, it loads it's OS off the firmware which then goes about managing the flash cells and acting like a miniature SAN storage processor. From your computers point of view you only see a storage device, but that's being abstracted by the SSD's OS. You actually have between four to eight storage devices that are organized in a pseudo RAID configuration with the SSD's OS presenting it as a single device.

    So unexpected loss of power will have the same effect on the SSD's OS as it does on your OS, corrupted data. Now modern OS's are written in such a way as to cope with potential data corruption caused by a random loss of power, but not all SSD's firmwares (OS's) are capable of doing that and thus the bricking occurs.

    Reply
  • pilsner
    I really do not like it, but it seems that at this point in time, choosing a Samsung 850 Pro SSD is still the thing to do.
    Reply
  • giantbucket
    15536551 said:
    @gnarr - I think the main point is being glossed over - if a SSD can finish a task x% slightly faster than another SSD/HDD, then it's allowing you x% more time to do *anything* on your computer. It doesn't matter if you went off to get coffee or if you were sitting there waiting on it to finish the task, your computer is now waiting on your input that x% faster. This has nothing to do with your reaction time or even opening files.

    During the course of a year, anything that allows you more time to do work on your computer makes you more efficient.

    this would only be relevant if an SSD was just too darned slow and was holding you up, and YOU were waiting for IT to do something. 99.973% of the time, the SSD / computer is done while you're still thinking or you're distracted on the phone with a client or coworker. the gating item isn't the SSD, so the fact that it's 3% faster is irrelevant outside of a benchmark.
    Reply
  • 2Be_or_Not2Be
    15541542 said:
    15536551 said:
    @gnarr - I think the main point is being glossed over - if a SSD can finish a task x% slightly faster than another SSD/HDD, then it's allowing you x% more time to do *anything* on your computer. It doesn't matter if you went off to get coffee or if you were sitting there waiting on it to finish the task, your computer is now waiting on your input that x% faster. This has nothing to do with your reaction time or even opening files.

    During the course of a year, anything that allows you more time to do work on your computer makes you more efficient.

    this would only be relevant if an SSD was just too darned slow and was holding you up, and YOU were waiting for IT to do something. 99.973% of the time, the SSD / computer is done while you're still thinking or you're distracted on the phone with a client or coworker. the gating item isn't the SSD, so the fact that it's 3% faster is irrelevant outside of a benchmark.

    No, what I'm saying is that if the SSD finishes x task faster, that in itself makes it more efficient. It doesn't matter if the end-user doesn't make use of the time after the SSD finishes the task; the SSD itself is more efficient.

    If we try to say, "well, making something faster won't help the end-user because they're doing other things or reacting too slowly", then you almost might as well not try to make *anything* more efficient. That was the point of my responding to @gnarr - the end-user's reaction time doesn't really matter.

    Thinking solely of the end-user directly using the SSD in his computer also doesn't include the consideration of SSDs being used by servers. Against, if a SSD performs faster (finishes x task even seconds faster), then that allows the next I/O request to be serviced even faster. All of that aggregated over time equals more performance & true efficiency gains, especially on a server that is heavily used.
    Reply
