Efficiency Analysis: Atom D510 Vs. Atom D525/ION2

Features
By ,
published

Intel's Atom D525 offers a faster clock rate than its predecessor at the same 13 W TDP. Obviously, the new dual-core chip is going to be faster. But after we determined that the Core i3 is more efficient, can Atom D525 usurp the desktop contender?

Round 2: Application Benchmarks

Application Benchmarks

These tests more closely match the workloads encountered during everyday operation, so it's interesting to note whether the synthetic benchmark results correspond to real life.

Benchmarks and Settings:

Swipe to scroll horizontally
Benchmark Details
7-ZipVersion 9.1 beta, LZMA2, Syntax "a -t7z -r -m0=LZMA2 -mx=5", Benchmark: 2010-THG-Workload
WinRARVersion 3.92, RAR, Syntax "winrar a -r -m3", Benchmark: 2010-THG-Workload
WinZip 14Version 14.0 Pro (8652), WinZIP Commandline Version 3, ZIPX, Syntax "-a -ez -p -r", Benchmark: 2010-THG-Workload
AutoDesk 3ds Max 2010Version: 10 x64, Rendering Space Flyby Mentalray (SPECapc_3dsmax9), Frame: 248, Resolution: 1440 x 1080
Adobe Photoshop CS4 (64-Bit)Version: 11, Filtering a 16 MB TIF (15000x7266), Filters: Radial Blur (Amount: 10; Method: zoom; Quality: good), Shape Blur (Radius: 46 px; custom shape: Trademark sysmbol), Median (Radius: 1px), Polar Coordinates (Rectangular to Polar)
Adobe Acrobat 9 ProfessionalVersion: 9.0.0 (Extended), == Printing Preferenced Menu ==, Default Settings: Standard, == Adobe PDF Security - Edit Menu ==, Encrypt all documents (128 bit RC4), Open Password: 123, Permissions Password: 321

Archiving Tools

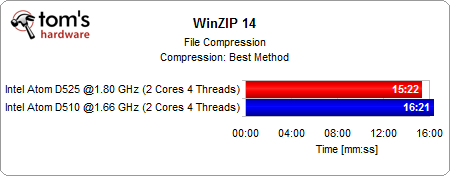

We found that WinZip benefits the least from the new processor, as it only takes advantage of one processing core.

Graphics and Rendering

Most of these applications are probably not ideal for a low-power Atom solution, since they typically require lots of memory and computing power. However, they also show that Atom scales nicely with the D525's additional clock speed bump.
