Partner Cards: Two Radeon R9 290s And Five 290Xs, Updated

Name: Radeon R9 290 And 290X Temperatures
Author: Igor Wallossek

by Igor Wallossek February 26, 2014 at 1:00 AM

Temperatures

We're using Metro: Last Light for our thermal benchmarks. This should be a good representation of a high-end graphics workload. As a bonus, it's incredibly repeatable and easy to loop over and over through the built-in tool.

After publishing Does Radeon R9 290X Behave Any Differently In A Closed Case?, we decided to test these cards on an open bench table and in a closed case, since we found that dropping them into the right enclosure helped lower temperatures thanks to optimized airflow.

Model	Idle	Gaming, Open-Air Bench	VRM	Gaming, Closed Case
Sapphire Tri-X OC R9 290	32 °C	72 °C	78 °C	60-71 °C
Gigabyte GV-R929OC-4GD R9 290X Windforce OC	34 °C	72 °C	77 °C	73-74 °C
Radeon R9 290 Reference + Arctic Accelero Extreme III	30 °C	68 °C	90 °C	72 °C
Radeon R9 290 Reference + NZXT Kraken G10 + X40	28 °C	49 °C	66 °C	49 °C

Model	Idle	Gaming, Open-Air Bench	VRM	Gaming, Closed Case
Asus R9290X-DC2OC-4GD5 R9 290X DirectCU II OC	34 °C	76 °C	92 °C	84-85 °C
Sapphire Tri-X OC R9 290X	35 °C	73 °C	85 °C	70-72 °C
Gigabyte GV-R929XOC-4GD R9 290X Windforce OC Press Sample	34 °C	84 °C	86 °C	83 °C
Gigabyte GV-R929XOC-4GD R9 290X Windforce OC Mass Production	34 °C	83 °C	87 °C	81 °C
HIS R9 290X IceQ X² Turbo	35 °C	78 °C	70 °C	81-82 °C
MSI R9 290X Gaming 4G	34 °C	76 °C	73 °C	75-76 °C

Temperature Graphs

These graphs slow how the temperatures change over time, influenced by the heat sink, the fan, and the firmware's fan profile.

Asus' R9 290X DirectCU II OC has a bit of a problem; its cooler was actually designed for the larger GK110 GPU on its GeForce GTX 780 Ti board. You can see this in the image below, where two of the heat pipes don't tough Hawaii at all, and two others make partial contact.

Sapphire solves this with a group of three heat pipes that better fit AMD's GPU. The result is made clear in our testing.

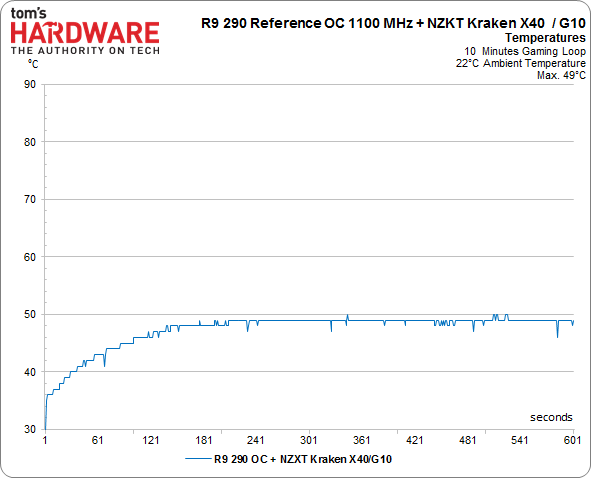

Radeon R9 290 Temperatures

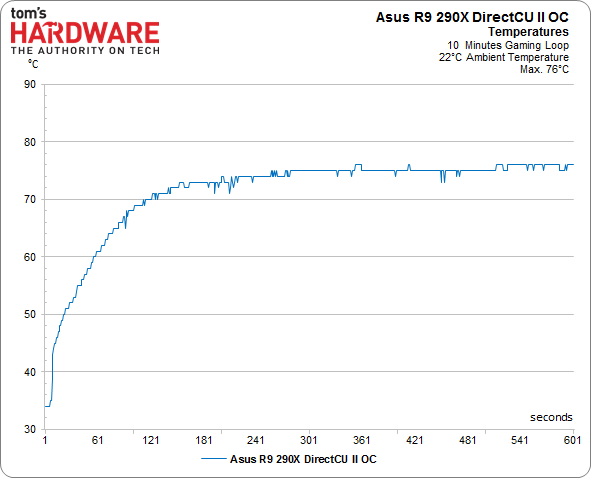

Radeon R9 290X Temperatures
