Do you ever wonder what goes on inside a router? In this article, we take a close look at the SoCs inside of them, which help us manage and maintain our connected lives.

Smaller Chipset Manufactures

Marvell Technology Group creates SoCs for networking devices, often pairing them with Broadcom transceivers. Chips in Marvell's Armada 38x family are equipped with ARMv7 Cortex-A9 dual-core processors (with the 88F6810 chip, Armada 380, being an exception). They feature GbE, DDR3/3L/4, PCIe 2.0 links and a host of other features that make Marvell competitive. We're not seeing many devices with the company's hardware, though. Armada XP (MV78XXX) chips, with up to a quad-core ARM v7 PJ4 processors, seem to share the same fate.

A new addition to Marvell's Avastar SoC family was announced in Q1 2015, targeted at enterprise APs, hotspots and residential multi-stream (video or gaming) applications. An earlier iteration, the 88W8864, supported up to 1.3 Gb/s and 4x4 MIMO. It was used in the Linksys WRT1200AC and WRT1900AC wireless routers.

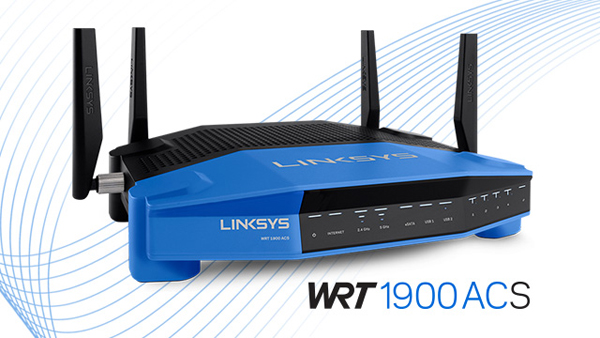

Linksys WRT1900ACS Router featuring the Marvell Armada 385 SoC

We're calling it a "smaller" manufacturer, but in reality, Realtek is one of the largest chip makers in the world. But the company's networking segment peaked with its 10/100 Ethernet controllers. Its wireless offering haven't enjoyed the same level of market penetration. So it's not the most popular chip on the block, but it does deserve a mention: the 2013 ADSL2+ modem/router from RealTek, based on its Lextra LX processor (a 32-bit implementation of the MIPS architecture) held its own for a while. It was used in D-Link's DSL-2740E, Huawei's WS319 and other routers.

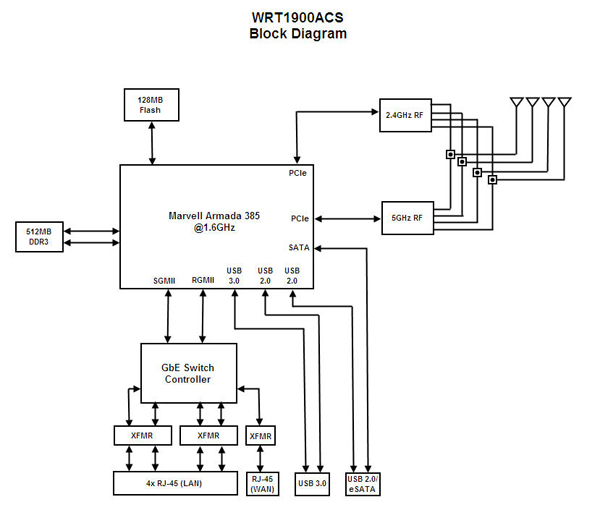

WRT1900 ACS Router Block Diagram Featuring the Marvell Armada 385 SoC, Source: Linksys

Quantenna specializes in wireless SoC transceivers. Its R&D focused on high-end 802.11ac and 802.11n devices. Competing neck and neck with the giants of the industry, Quantenna introduced a number of new devices in 2015, all on the cutting edge. It was first to launch a 4x4 MU-MIMO 802.11ac chipset, and has demonstrated a 10G system. The QSR2000 Wave 2 is a transceiver designed for high-speed Wi-Fi routers. It is marketed as an integrated chipset for 802.11an/ac or 802.11b/g/n Wave 2 applications, dual-band switchable, with 4x4 MU-MIMO four spatial streams. It has 80MHz channels (for the 5GHz band), PCIe 2.0 connectivity and a peak PHY of 1700 Mb/s.

The QSR10G family of chipsets supports 10Gb speeds. There are four variants, ranging from the "U"—a top-tier 12-stream, dual-band device with a peak PHY rate of 10 Gb/s—down to the "5" variant, with eight-stream 5GHz single-band operation with a peak PHY rate of 8.6 Gb/s.
