SK hynix Platinum P41 SSD Review: The Best Around (Updated)

The fitting successor to the popular Gold P31 is finally here

SK hynix Platinum P41
Editor's Choice
(Image: © Tom's Hardware)

Tom's Hardware Verdict

The SK hynix Platinum P41 delivers on expectations with unrivaled performance and power efficiency. It’s the best consumer PCIe 4.0 SSD we’ve tested to date, proving that a winning formula can be made even better.

Pros

  • +

    Class-leading all-around performance

  • +

    Competitive performance in sustained workloads

  • +

    Class-leading power efficiency

  • +

    Competitive pricing

Cons

  • -

    Runs hot; no heatsink

  • -

    No 4TB option yet

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Update 13th July 2022: We've updated this article with new testing for the 1TB SK hynix Platinum P41 SSD on page 2. This drive is also now featured on our list of Best SSDs for the PS5

Original Review published 4th June 2022:

We can say, without hyperbole, that SK hynix’s Platinum P41 is one of the most anticipated consumer SSDs in recent memory due to the pairing of its new Aries SSD controller with 176-Layer TLC flash, thus delivering headline specs of up to 1.4 million IOPS that will pose a challenge to the leaders on our list of best SSDs. Storage enthusiasts have looked askance at drives like the Samsung 980 Pro, instead holding out for the P41’s inevitable arrival. There was every reason to believe that the day would soon come as SK hynix had announced the drive earlier this year with a general date in mind.

SK hynix’s proprietary Cepheus controller has been a noteworthy champion even as Crucial’s in-house controllers for the P5 and P5 Plus have demonstrated growing pains. However, SK hynix stepped up to the new Aries SSD controller in the Platinum P41. This new Aries controller offers 33% higher bus speeds, twice the number of channels, and more than doubles the IOPS compared to the previous-gen Cepheus, making us wonder if it can retain its throne as the efficiency king. Moreover, Micron beat Sk hynix to 176-Layer flash, with SK hynix playing catch-up. We’re particularly curious to see how this rivalry plays out.

Specifications

Swipe to scroll horizontally
Product500GB1TB2TB
Pricing $104.99 $149.99 $259.99
Capacity (User / Raw)500GB / 512GB1000GB / 1024GB2000GB / 2048GB
Form FactorM.2 2280M.2 2280M.2 2280
Interface / ProtocolPCIe 4.0 x4 / NVMe 1.4PCIe 4.0 x4 / NVMe 1.4PCIe 4.0 x4 / NVMe 1.4
ControllerSK hynix AriesSK hynix AriesSK hynix Aries
DRAMSK hynix LPDDR4SK hynix LPDDR4SK hynix LPDDR4
MemorySK hynix 176L TLCSK hynix 176L TLCSK hynix 176L TLC
Sequential Read7,000 MBps7,000 MBps7,000 MBps
Sequential Write4,700 MBps6,500 MBps6,500 MBps
Random Read960,000 IOPS1,400,000 IOPS1,400,000 IOPS
Random Write1,000,000 IOPS1,300,000 IOPS1,300,000 IOPS
SecurityAES-256AES-256AES-256
Endurance (TBW)500TBW750TBW1200TBW
Part NumberSHPP41-500GMSHPP41-1000GMSHPP41-2000GM
Warranty5-Year5-Year5-Year

The Platinum P41 has a five-year warranty with 500TBW, 750TBW, and 1200TBW ratings for the 500GB, 1TB, and 2TB SKUs, respectively. You might be dismayed by the lack of awe-inspiring endurance, but the TBW rating (terabytes written - endurance) only refers to total writes during the warranty period, and 99% of users will never exceed that amount of writes within the given time frame. The drive also supposedly supports AES-256 encryption and TCG Pyrite (but not OPAL) this time around, unlike the company's Gold P31 SSDs, although the value in that is questionable for consumers.

Otherwise, this is a typical M.2 2280 NVMe drive that's designed to be a high-end PCIe 4.0 option. The 1TB and higher-capacity models claim 7/6.5 GBps of sequential read/write throughput and up to 1.4M/1.3M random read/write IOPS, exceeding anything we’ve seen before in this space. These numbers separate the P41 from the rest of the pack, but the market is competitive and the P41's MSRP is arguably most competitive at 1 and 2TB, particularly the latter. The real-world value may be dependent on sales pricing, however, as other products have been on the market longer.

Software and Accessories

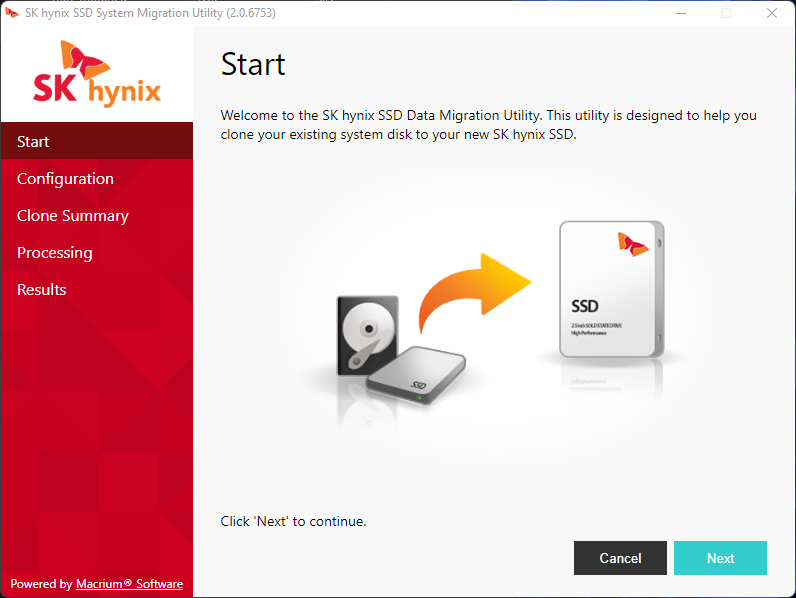

The Platinum P41 comes pretty barebones, but SK hynix has some useful software available on its website. The first is the SK hynix SSD System Migration Utility, or clone tool, which assists with data migration. This utility is powered by Macrium, which makes the popular Reflect software, which is useful for backups, cloning, and disk imaging.

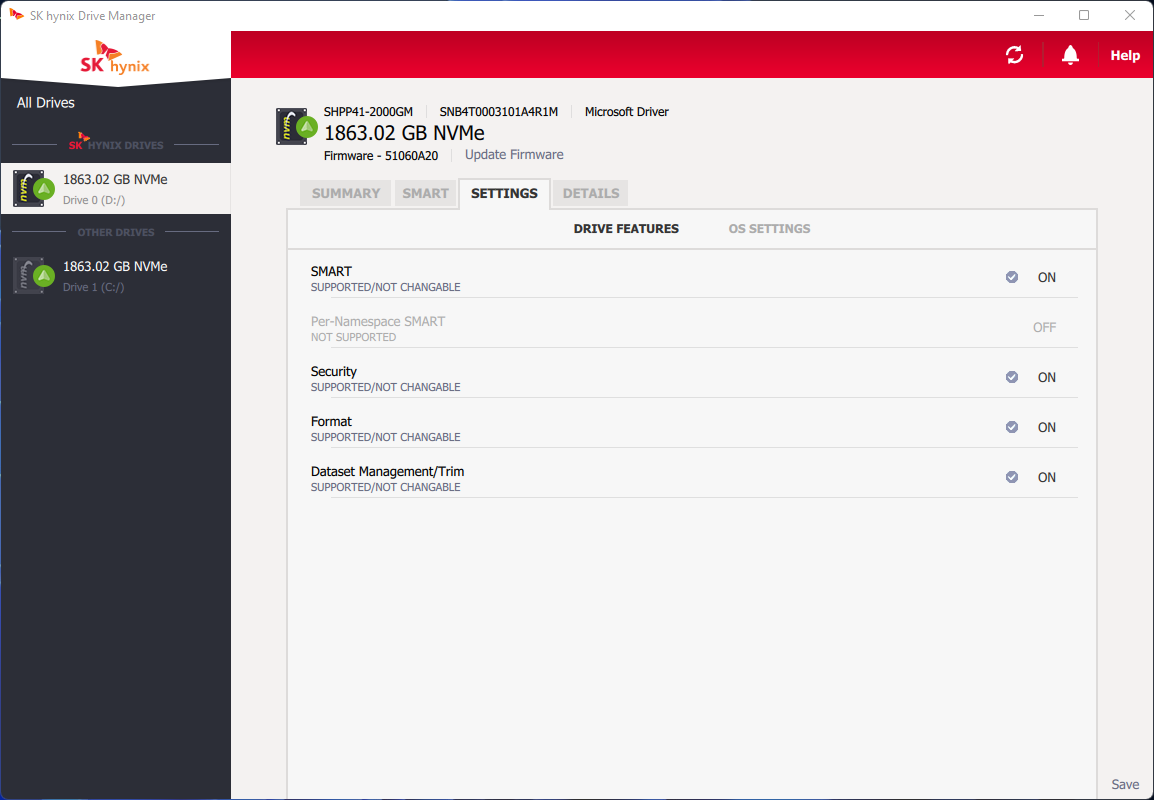

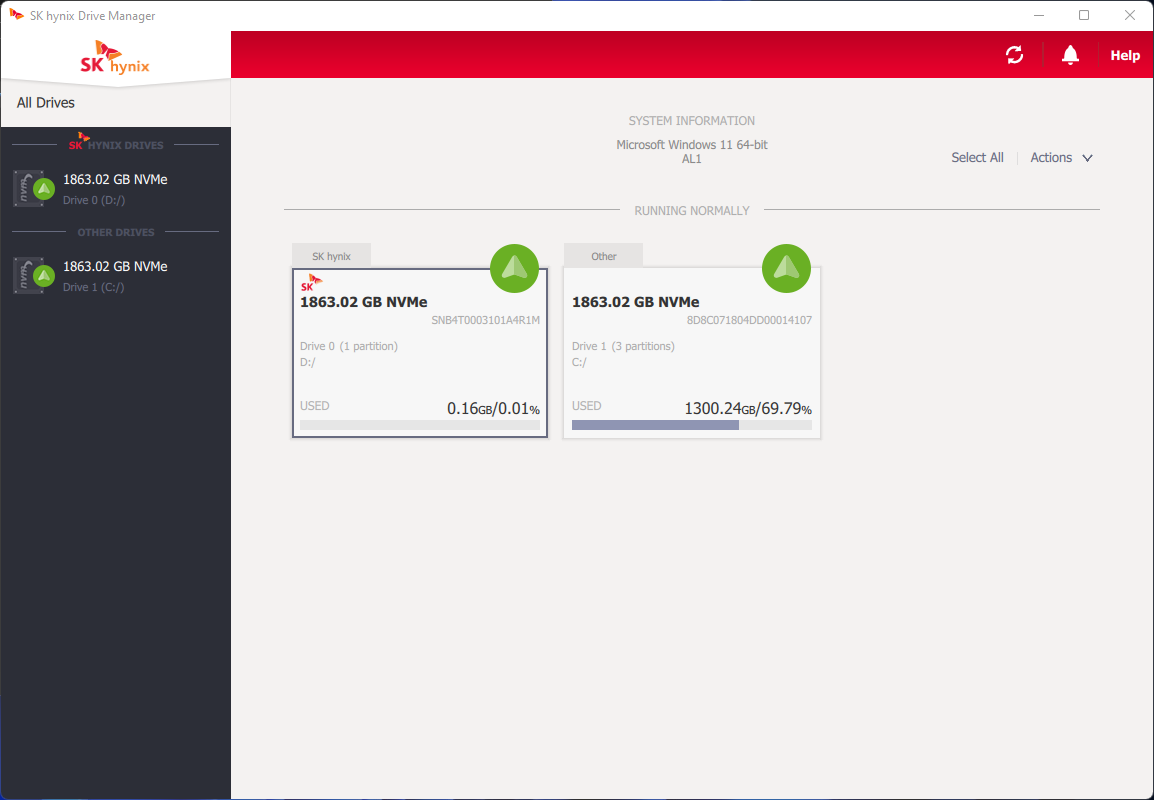

SK hynix also includes Drive Manager, or Easy Kit, which has typical SSD toolbox options. This includes providing information about the drive, S.M.A.R.T. data, a firmware check, an update function, etc. Software is often an afterthought, so it’s nice to see this type of support from SK hynix.

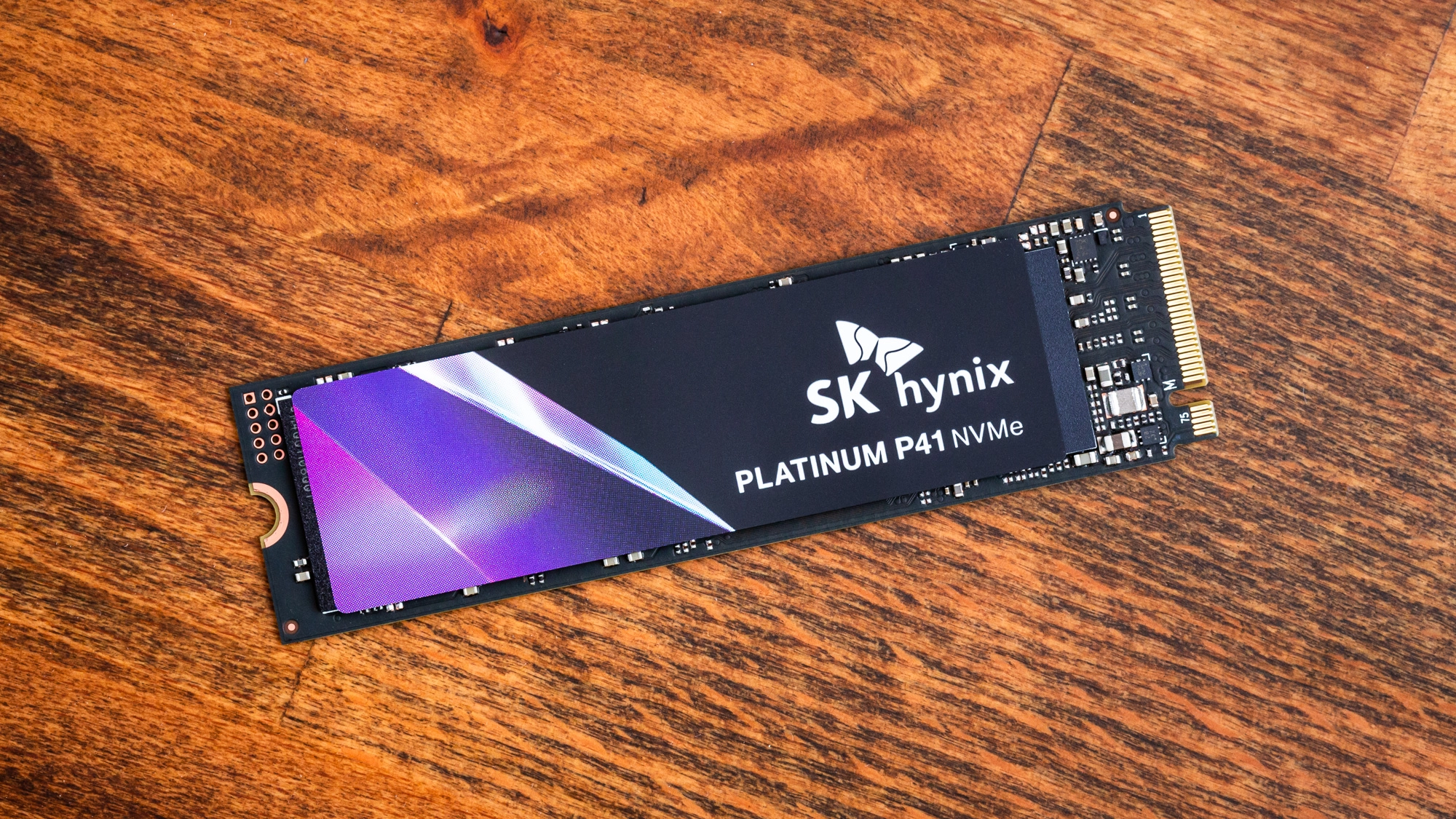

A Closer Look

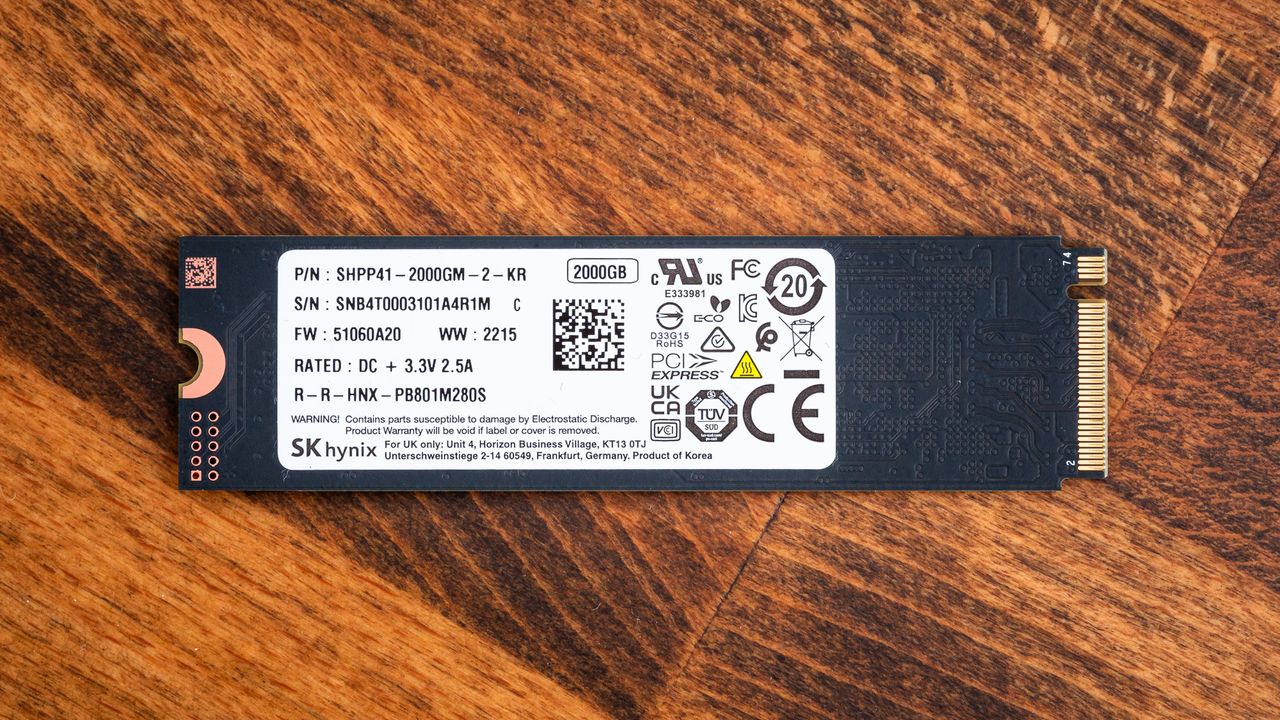

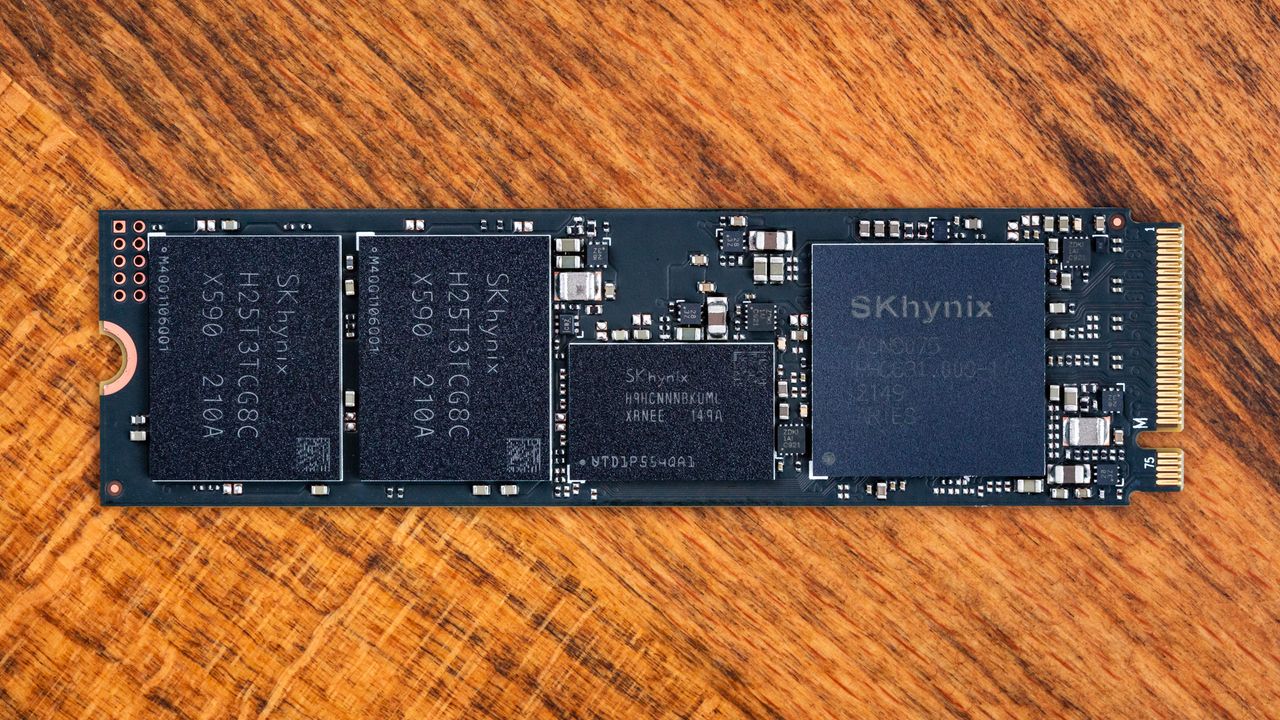

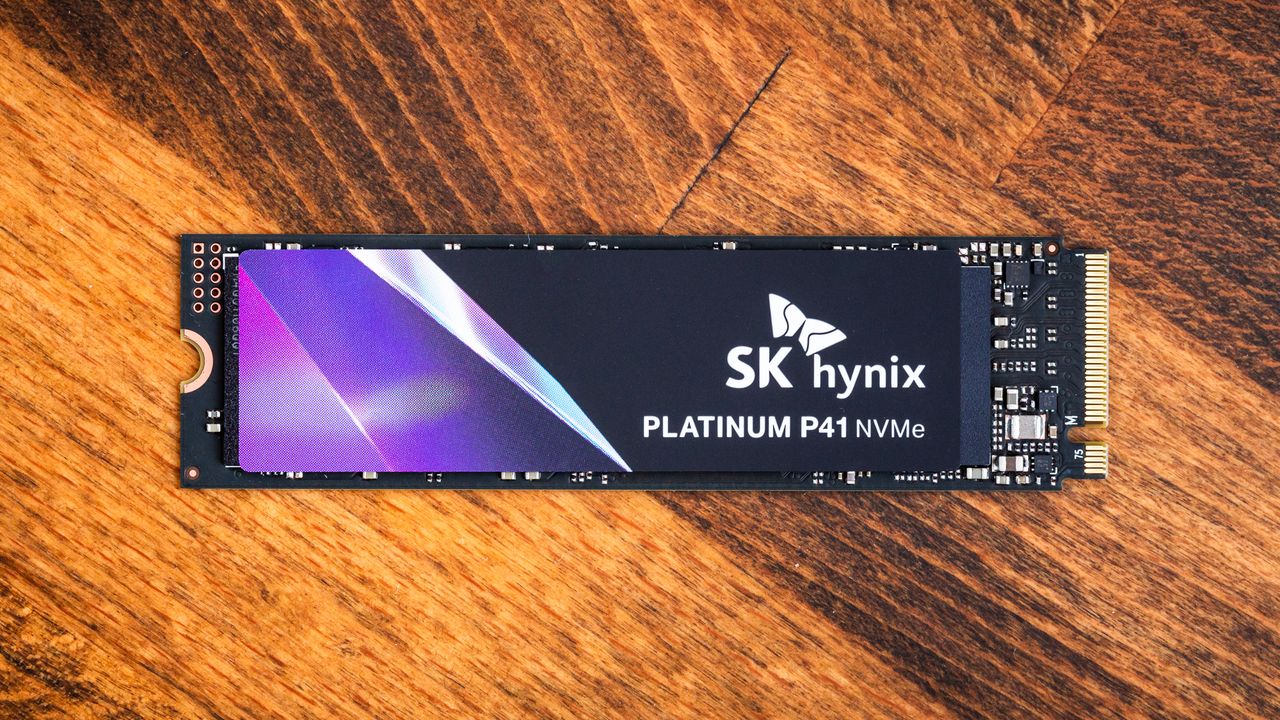

The Platinum P41 is plain-looking, with just top and back labels. The drive is single-sided with a controller, DRAM, and two NAND packages. The back label offers some basic information about the drive, including the fact it’s rated to pull up to 8.25 watts. Continuous and peak draws are separate stories, of course, but users have been curious about this drive’s power efficiency. SK hynix states 7.5W for the drive, which is also stated in the S.M.A.R.T. data. For comparison, the 1TB Kingston Fury Renegade is rated at 8.8W.

The M.2 specification has a nominal power limit of around 7W. However, we’ve seen many PCIe 4.0 drives rated for more than this, from 2.5A with the 1TB Kingston KC3000 to 3A with the 2TB MP600 XT Pro - and we have seen a drive pull over 10W with the 8TB Sabrent Rocket 4 Plus. As drives get faster, power draw is increasingly a concern - especially for laptops — and extraordinary efficiency is one reason the Gold P31 has been so popular.

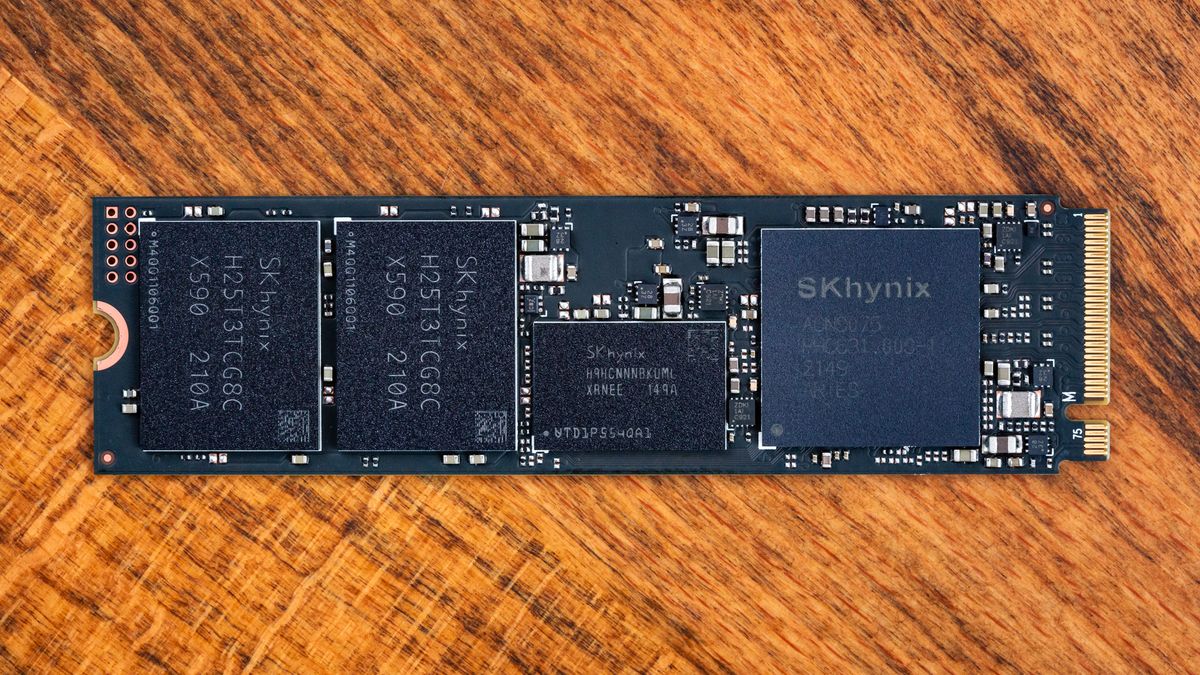

This drive is single-sided, but there’s clearly only enough space for two NAND packages. Double-sided designs, as with the Phison E18 controller, can reach up to 8TB, and NAND packages can contain up to 16 dies - although eight tends to be more reasonable unless you’re very constrained. Dies have to meet physical requirements for area and height. SK hynix has stated the launch Platinum P41 drives use 512Gb dies, so the 2TB here has two sixteen-die, or 16DP, packages.

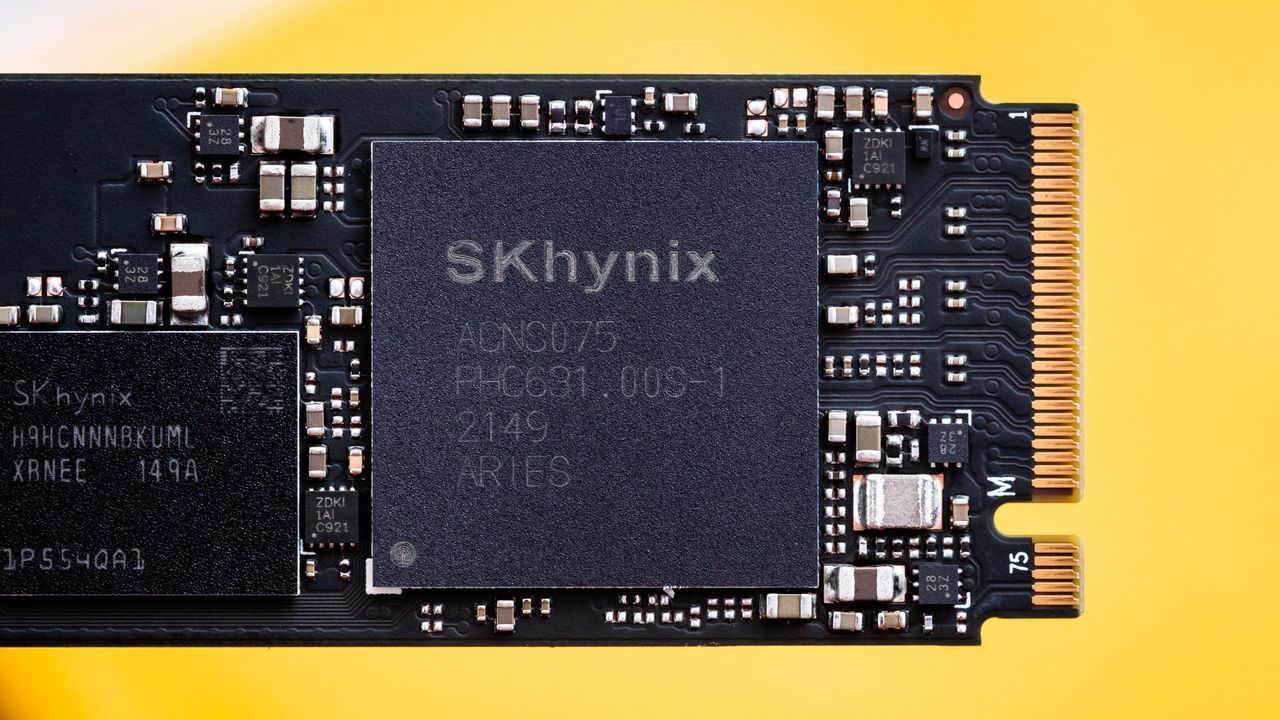

Most consumer NVMe controllers use architectures based on ARM’s Cortex-R series, which are processor cores specialized for real-time applications such as latency-sensitive I/O. The new 12nm Sk hynix Aries SSD controller is larger than its previous-gen Cepheus, and the increased surface area will play a part in heat dissipation. SK hynix has confirmed this is an eight-channel design with a doubling of cores over the Cepheus. The package measures 17 x 17mm, which is larger than the 15 x 15mm specified by SMI for the SM2264. The '2149' on the controller likely refers to the manufacturing date — week 49 in 2021. This is not unusual, but the current marketplace is struggling to provide microcontrollers, so perhaps SK hynix stockpiled or otherwise waited for flash production to ramp up.

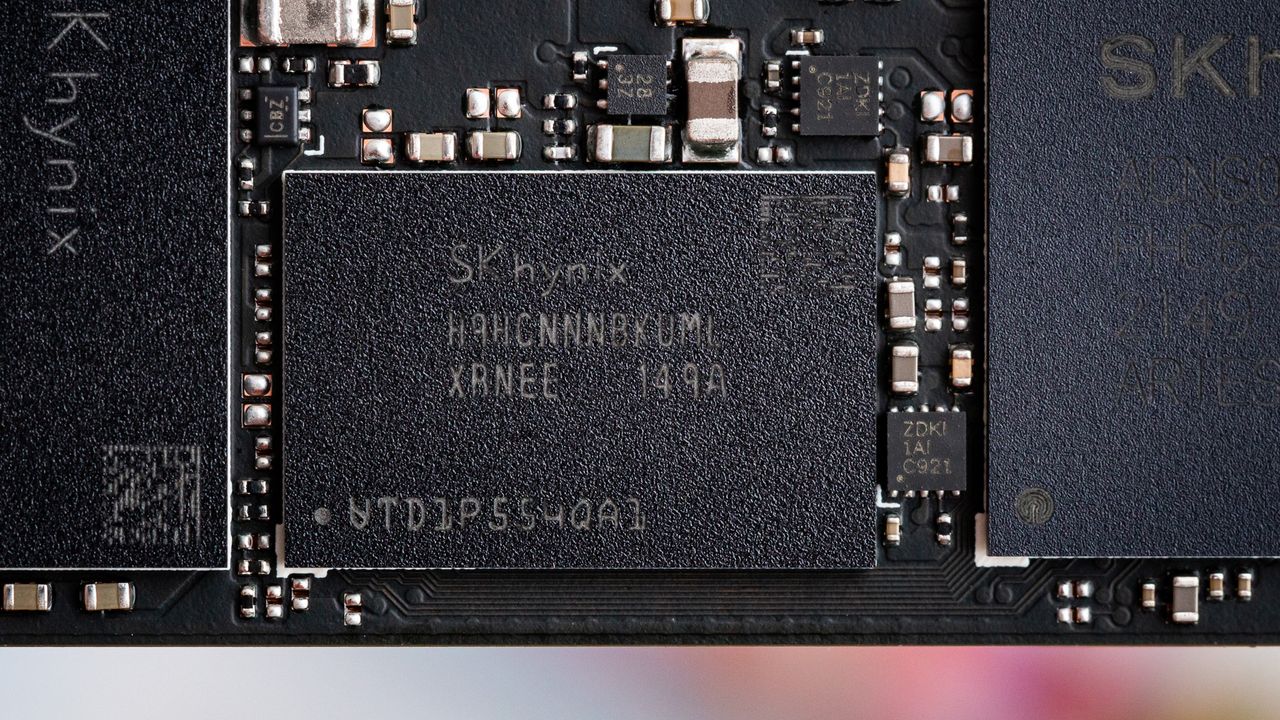

SK hynix also uses its own LPDDR4 DRAM on the P41, matching what it used on the Gold P31. This is a specialized DDR designed for mobile applications with lower power usage. DRAM for SSDs is most commonly used for metadata, particularly, mapping and addressing for translation between physical and logical data locations. DRAM has far lower latency than NAND, so it is particularly useful for many small and random I/O operations. This is especially true for writes as they require an update of the look-up table (LUT). DRAM works optimally by storing the most recent or “hottest” data accesses.

We often talk about DRAM configuration in reference to the bus bit width. A lower bit width tends to have more bandwidth, but a higher bit width is cheaper. Due to the type of access used on SSDs, the latter is a better choice, so we typically see a 16-bit configuration.

(Image credit: Tom's Hardware)

SK hynix listed several challenges in its 2021 ISSCC technical digest for the 176-layer TLC flash it uses on this drive. We don't list flash density on our specs table. This is an important characteristic as it is one factor that limits capacity. Flash manufacturers constantly try to increase the number of cells and bits they can cram into a given surface area, encouraging improvements like CMOS-under-Array (CuA). SK hynix’s 176-layer 512Gb TLC is rated for 10.8Gb/mm2, which is comparable to Micron’s 10.27Gb/mm2 and BiCS6’s 10.4Gb/mm2. SK hynix has therefore improved density by more than a third over its previous generation of TLC flash, keeping up with the competition. For comparison, Micron’s 176-layer 1Tb QLC, with 33% more bits per cell, should be at 14.7Gb/mm2.

SK hynix’s specifications for this flash came from the 2021 International Solid-State Circuits Conference (ISSCC), which referenced their 512Gb die design. The Gold P31 uses both 512Gb and 1Tb dies depending on capacity, while SK hynix states 512Gb for the three launch SKUs. There are similarities to the previous 128-layer generation, with the 176-layer flash being somewhat faster in latency but with a much faster I/O interface speed — 1066 MT/s versus 1600 MT/s. While this can improve response time to some degree, any bandwidth limitation is dependent on the controller, that is, the bus rate and the number of channels.

Array efficiency, the ratio between total gate layers, and the number of word lines for data have continued to improve. Some layers might be relegated for use as dummy word lines, generally at either end of the data word lines and between decks to mitigate electron injection effects at the edges. Others may be used for source and drain gate selectors. All of this is relevant if one is trying to gauge the “real” layer count, although, in practice, that just gives an idea of architectural efficiency. It suffices to say we expect this flash to perform reasonably well as SK hynix has addressed height concerns.

MORE: Best SSDs

MORE: How We Test HDDs And SSDs

MORE: All SSD Content

Comparison Products

We compared the 1TB SK hynix Platinum P41 to its predecessor, the Gold P31, and multiple prominent PCIe 4.0 SSDs. The list includes drives with proprietary designs such as the WD Black SN850, the Samsung 980 Pro, and the Crucial P5 Plus. The remaining drives use the Phison E18 controller paired with Micron TLC flash. In the case of the Kingston Fury Renegade, this means 176-layer flash, while the Corsair MP600 Pro and Sabrent Rocket 4 Plus use the older 96-layer flash.

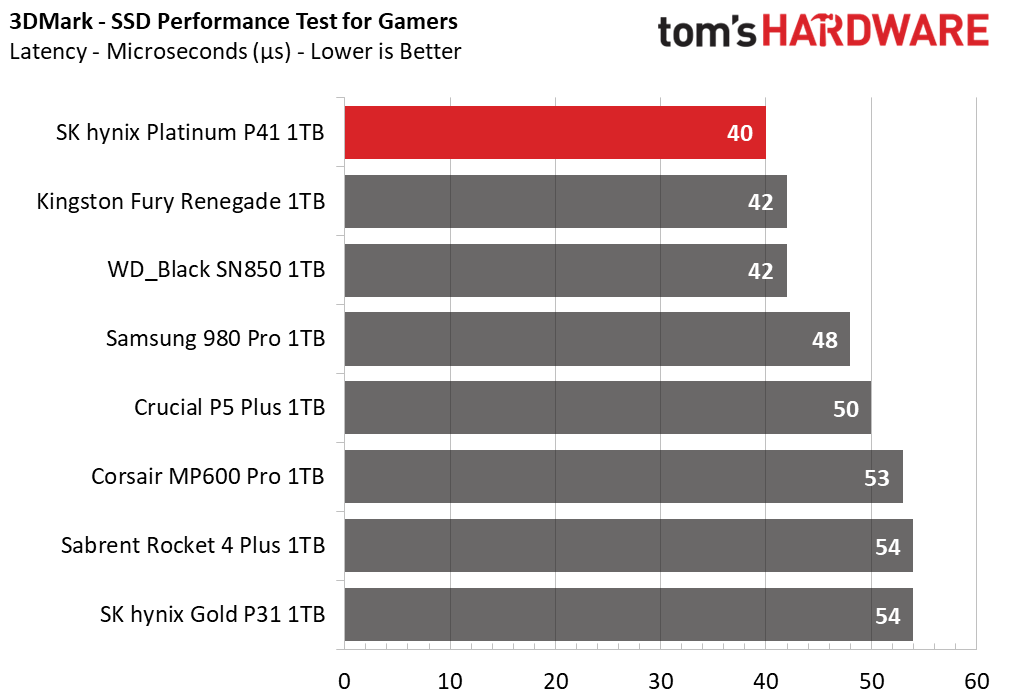

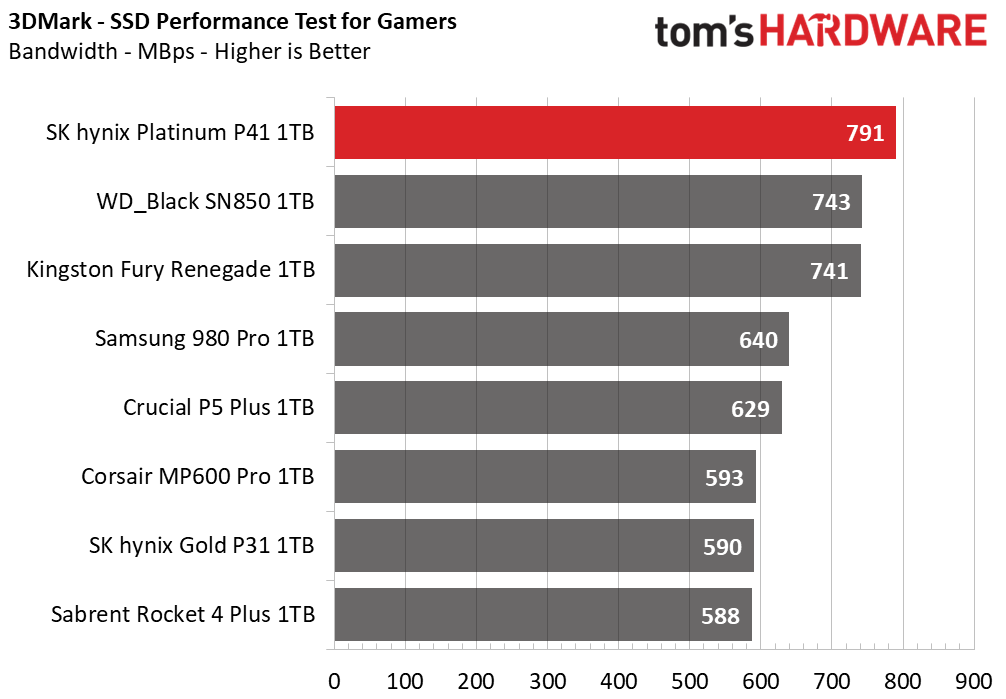

Trace Testing - 3DMark Storage Benchmark

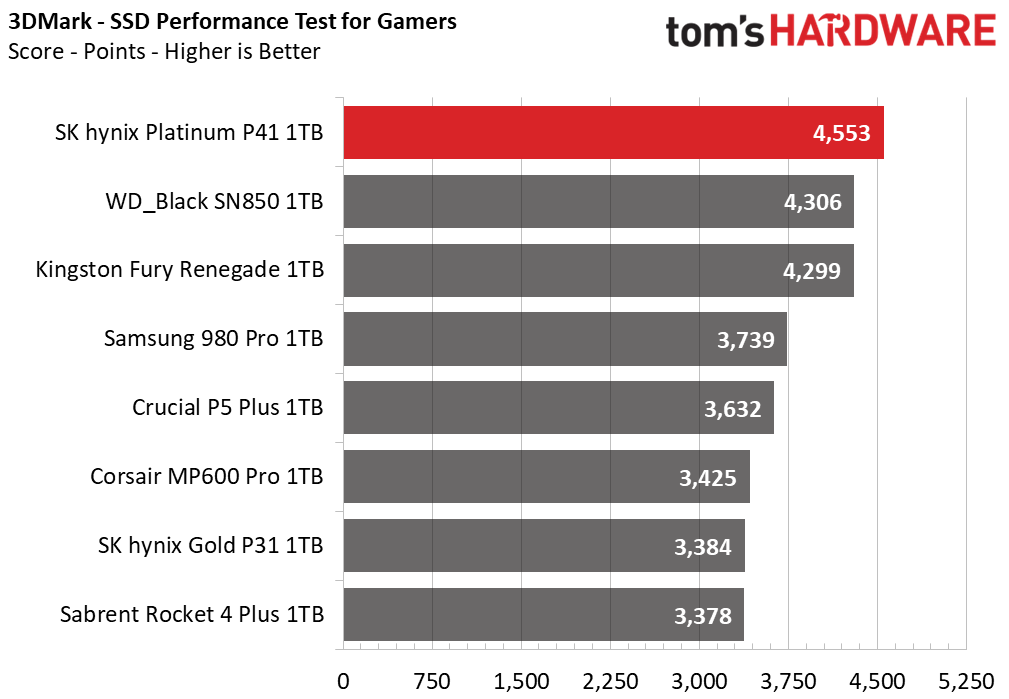

Built for gamers, 3DMark’s Storage Benchmark focuses on real-world gaming performance. Each round in this benchmark stresses storage based on gaming activities including loading games, saving progress, installing game files, and recording gameplay video streams.

The Platinum P41 tops the charts. We suspect some drives might be optimized to do well on this benchmark, but the P41 beats them all regardless.

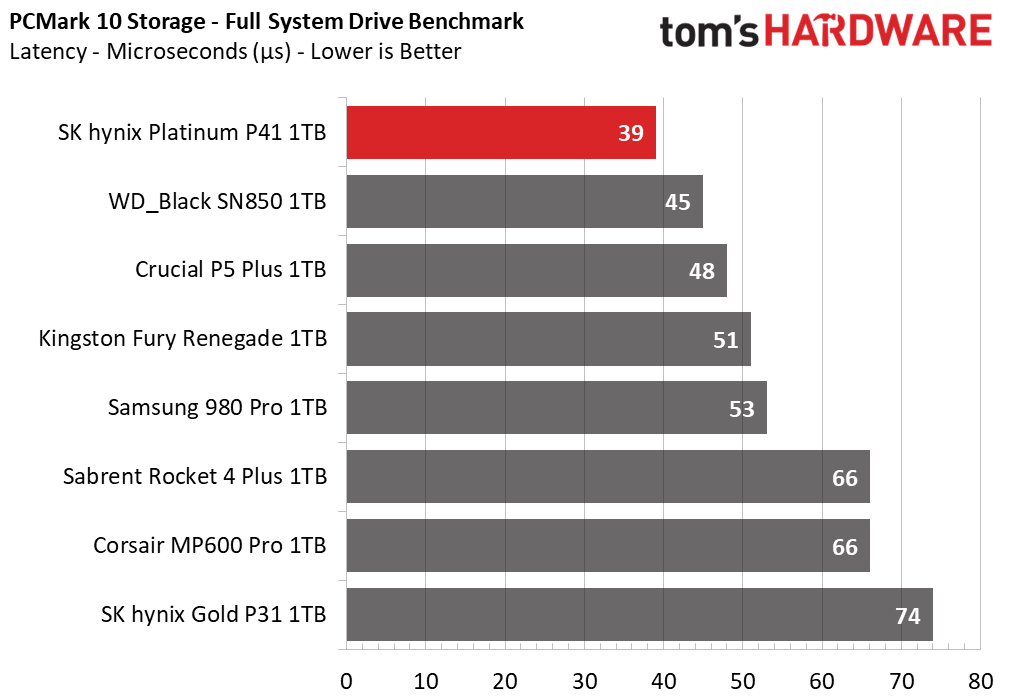

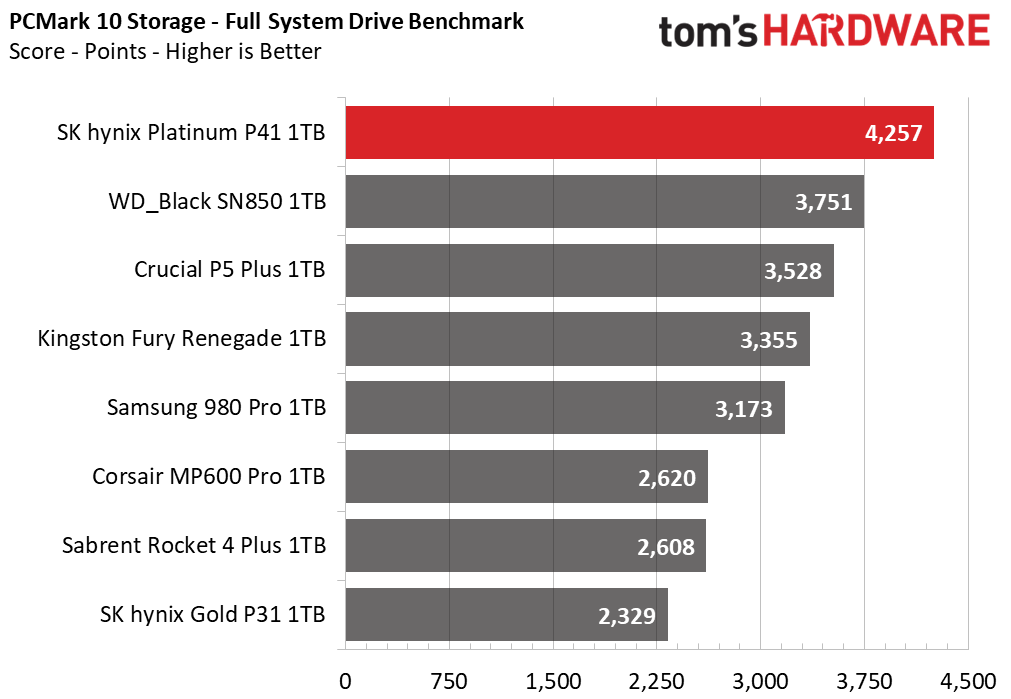

Trace Testing – PCMark 10 Storage Benchmark

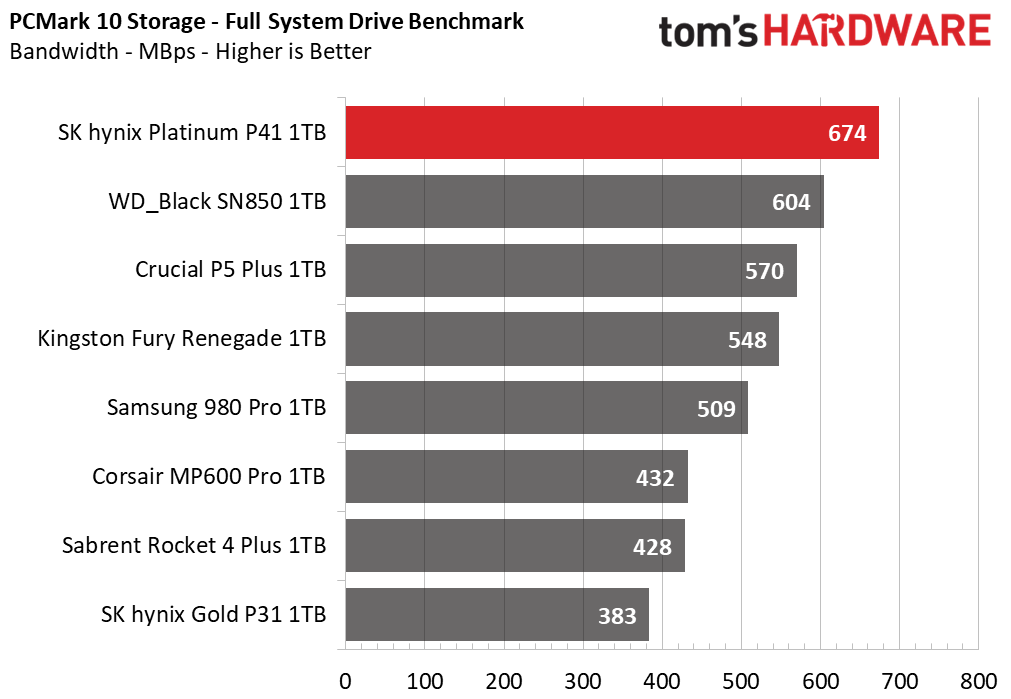

PCMark 10 is a trace-based benchmark that uses a wide-ranging set of real-world traces from popular applications and everyday tasks to measure the performance of storage devices.

The P5 Plus does better here than it does in 3DMark. The PCIe 3.0 Gold P31 falls behind, with the Rocket 4 Plus and MP600 Pro next-to-last due to their older flash.

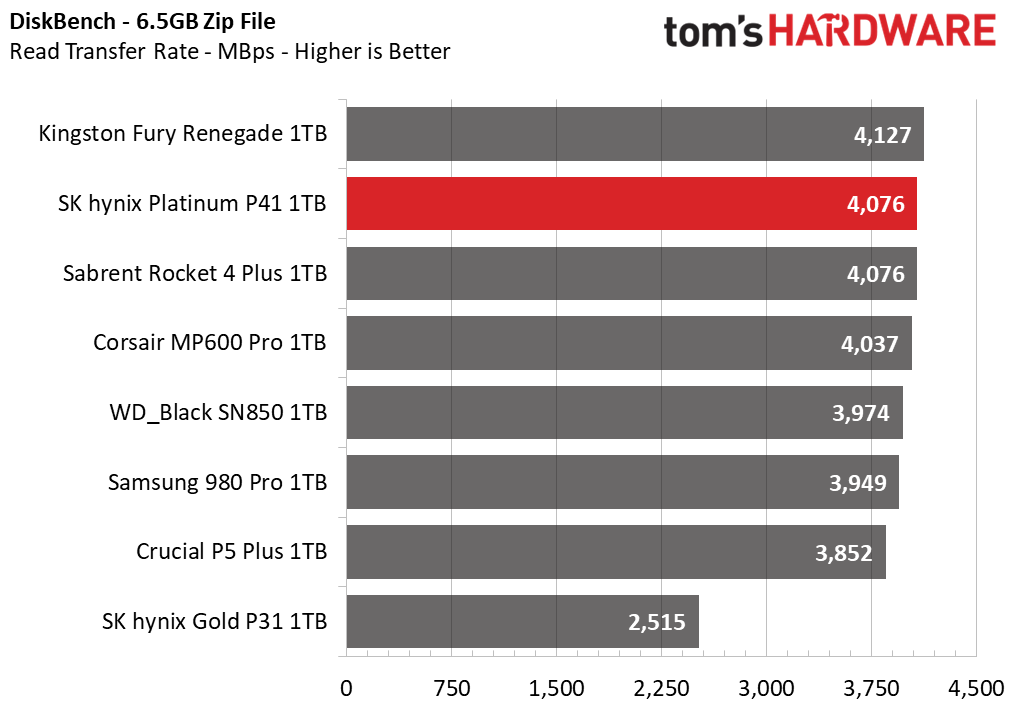

Transfer Rates – DiskBench

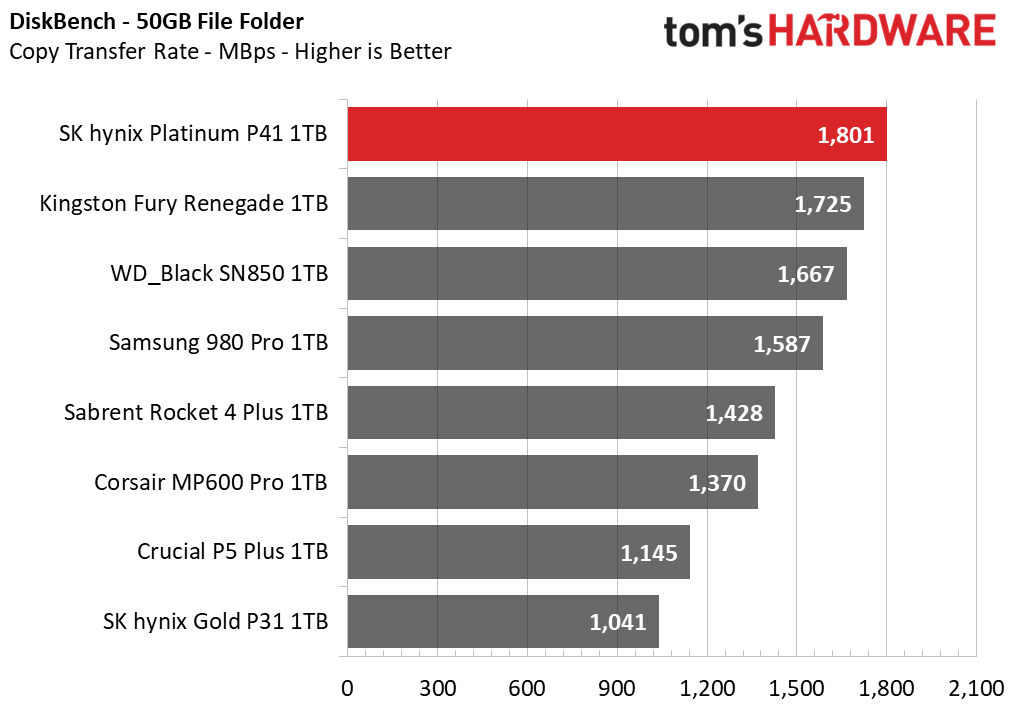

We use the DiskBench storage benchmarking tool to test file transfer performance with a custom, 50GB dataset. We copy 31,227 files of various types, such as pictures, PDFs, and videos to a new folder and then follow-up with a reading test of a newly-written 6.5GB zip file.

The P41 essentially ties, or beats, the best in DiskBench. The read transfer rate is similar for all PCIe 4.0 drives, showing that the test is bandwidth-limited; as a result, the P31 falls behind. However, the P41 stands out a bit in the file copy test, and we see that the newer flash on the Fury Renegade helps it stand apart from the Rocket 4 Plus and MP600 Pro.

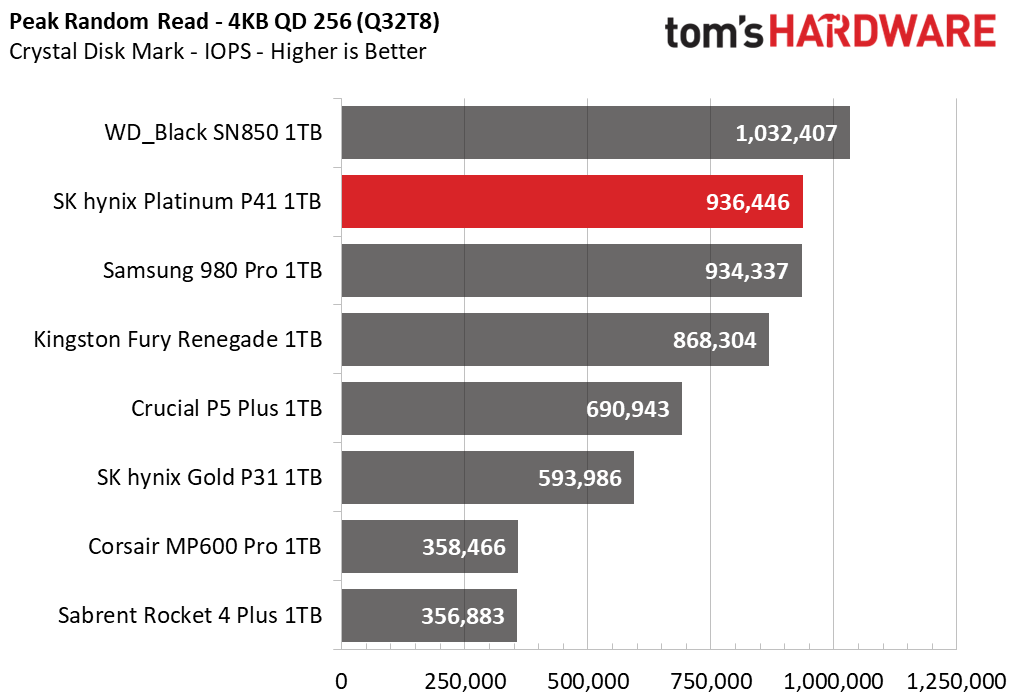

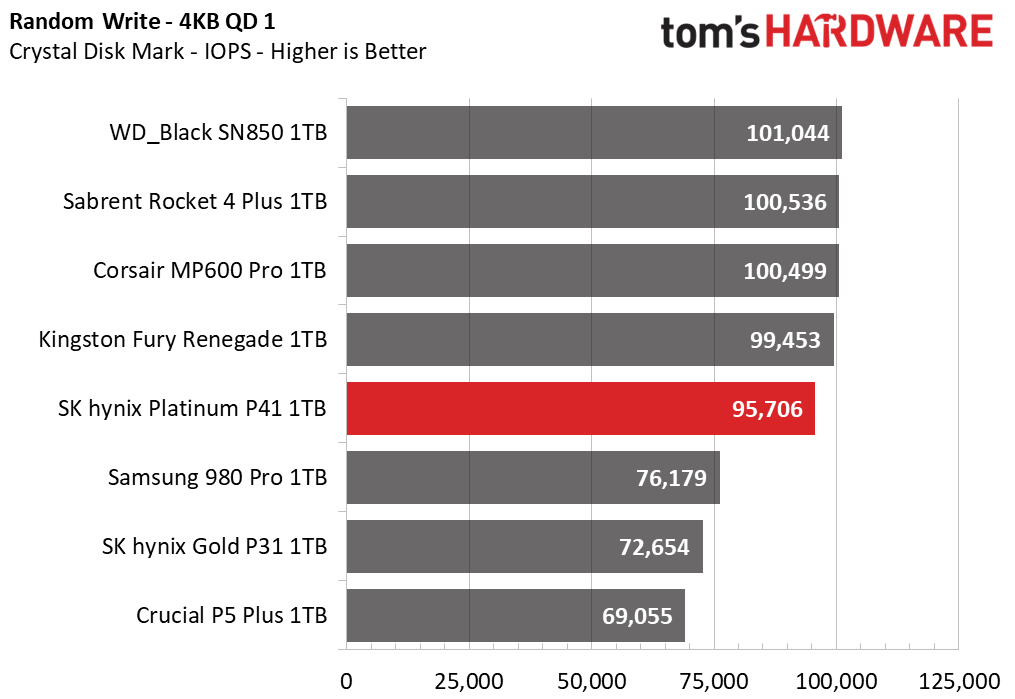

Synthetic Testing - ATTO / CrystalDiskMark

ATTO and CrystalDiskMark (CDM) are free and easy-to-use storage benchmarking tools that SSD vendors commonly use to assign performance specifications to their products. Both of these tools give us insight into how each device handles different file sizes.

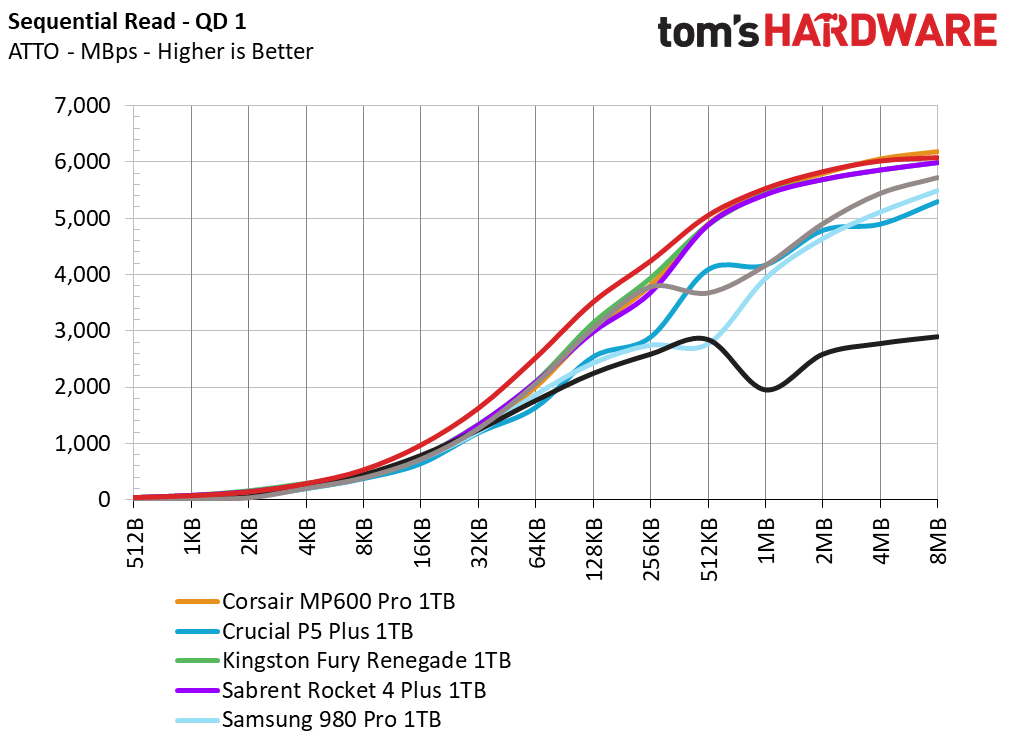

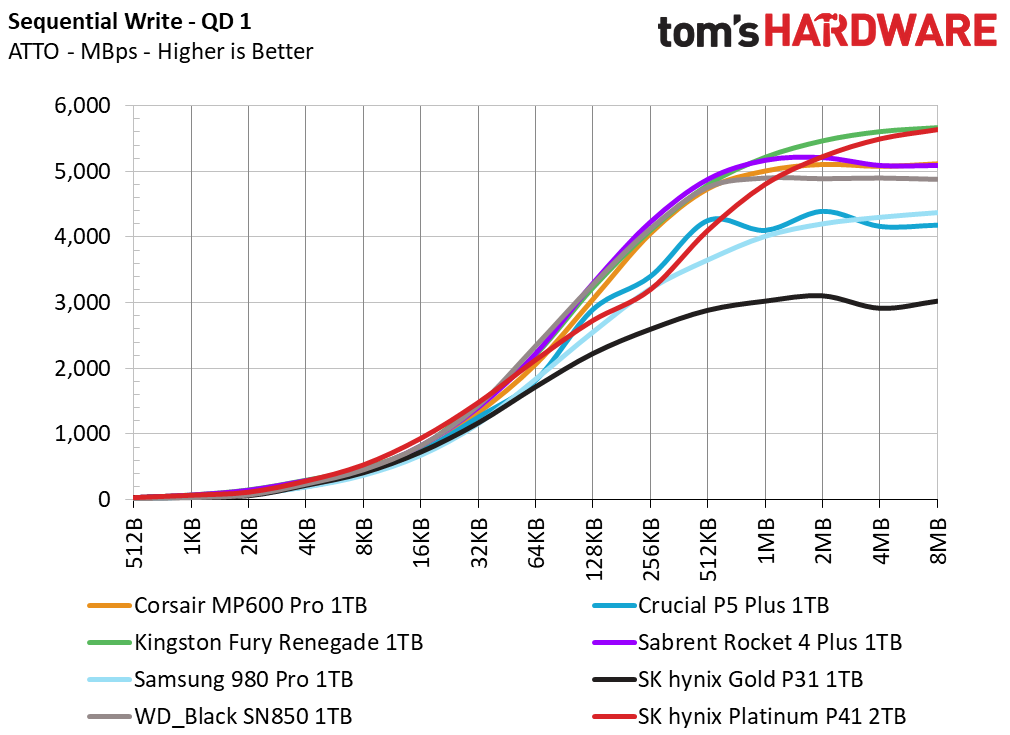

The P41 shines during the ATTO read benchmark, matching the best drives that favor such peak performance. There is a bit of a drop during the write test, though it still musters a strong showing against the proprietary drives. The Fury Renegade is on top with the PCIe 3.0 P31 at the bottom, as would be expected.

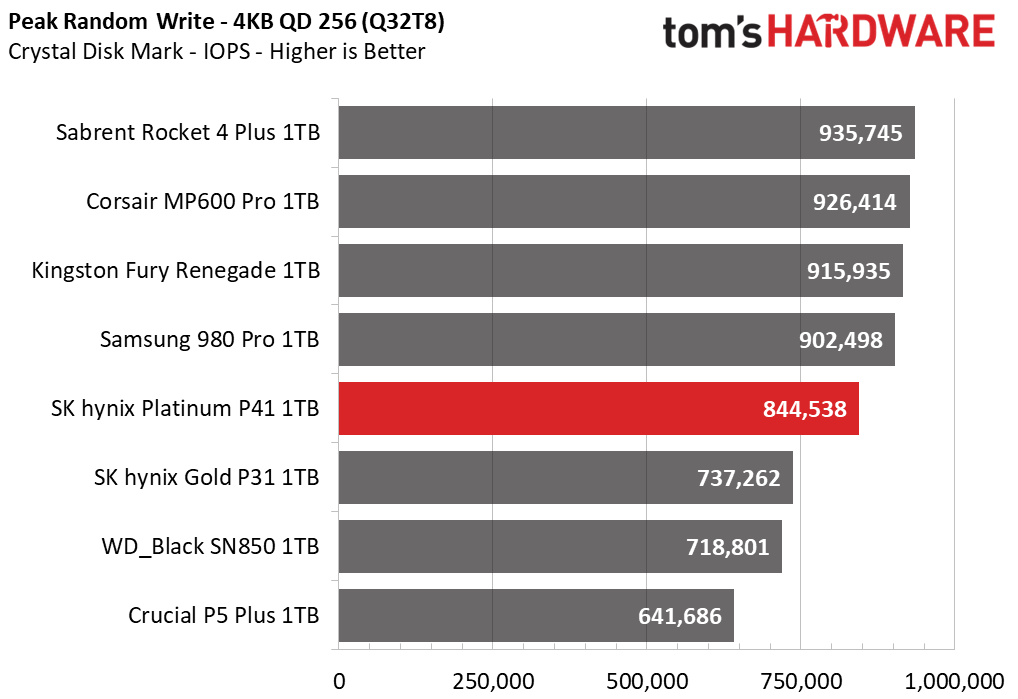

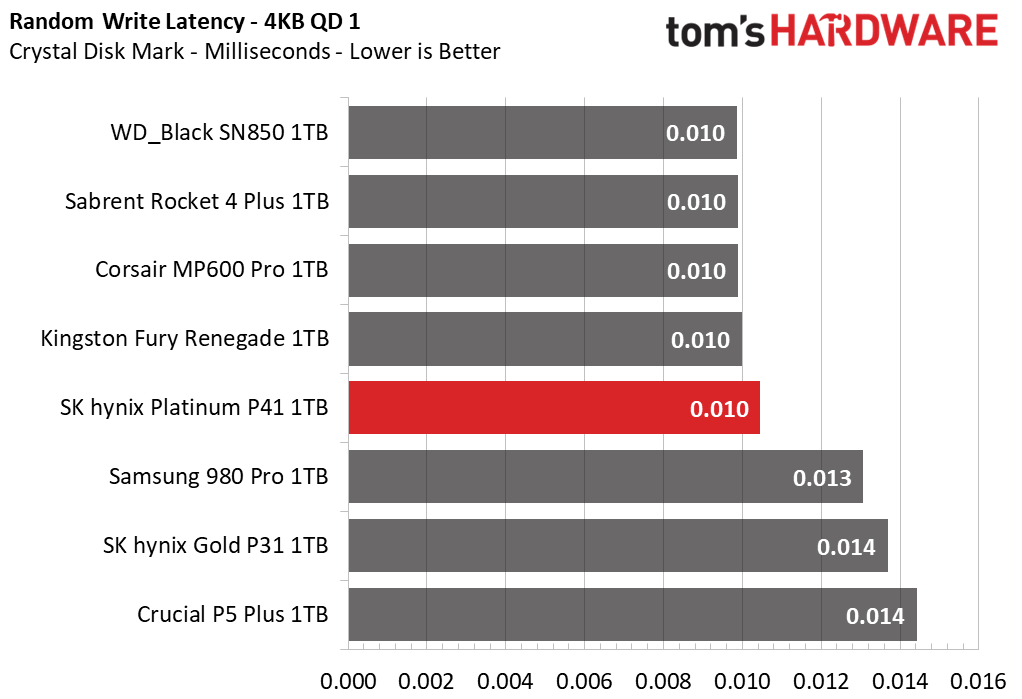

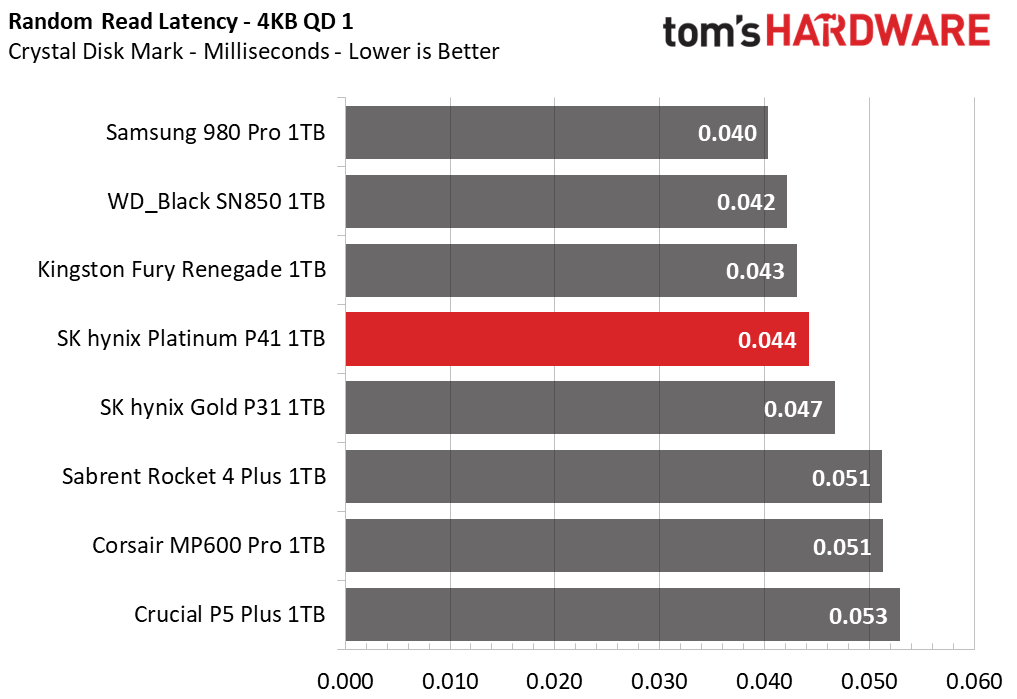

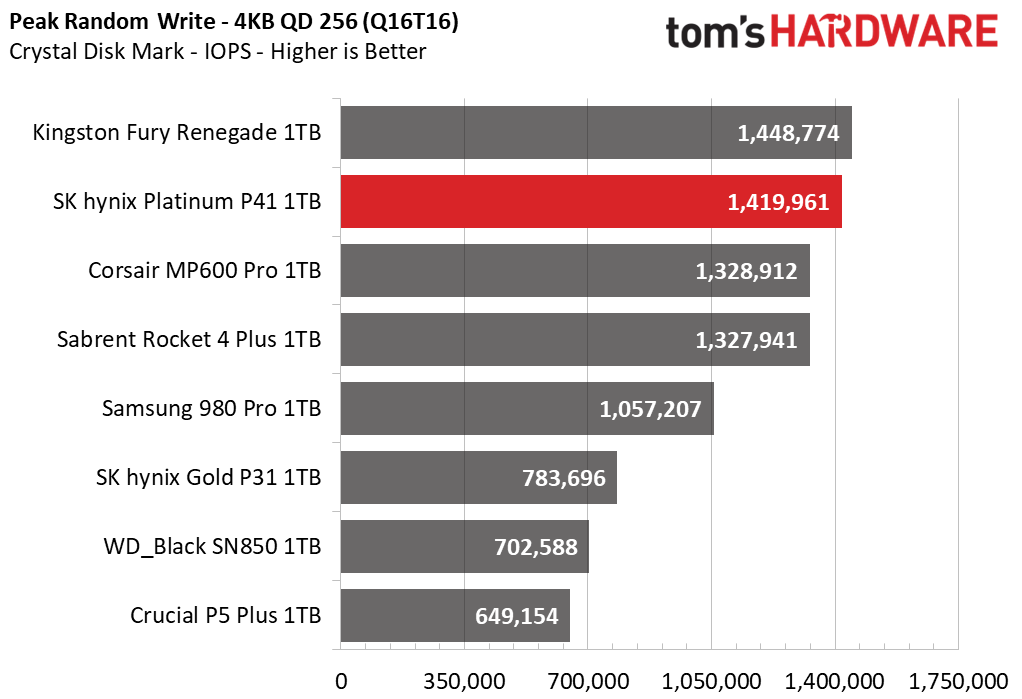

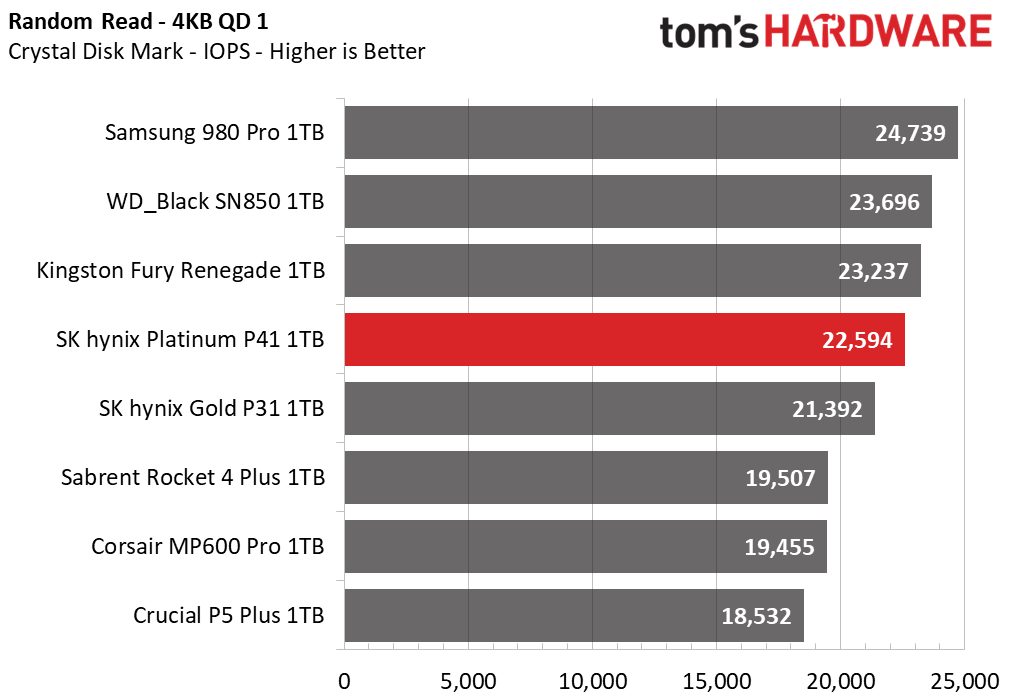

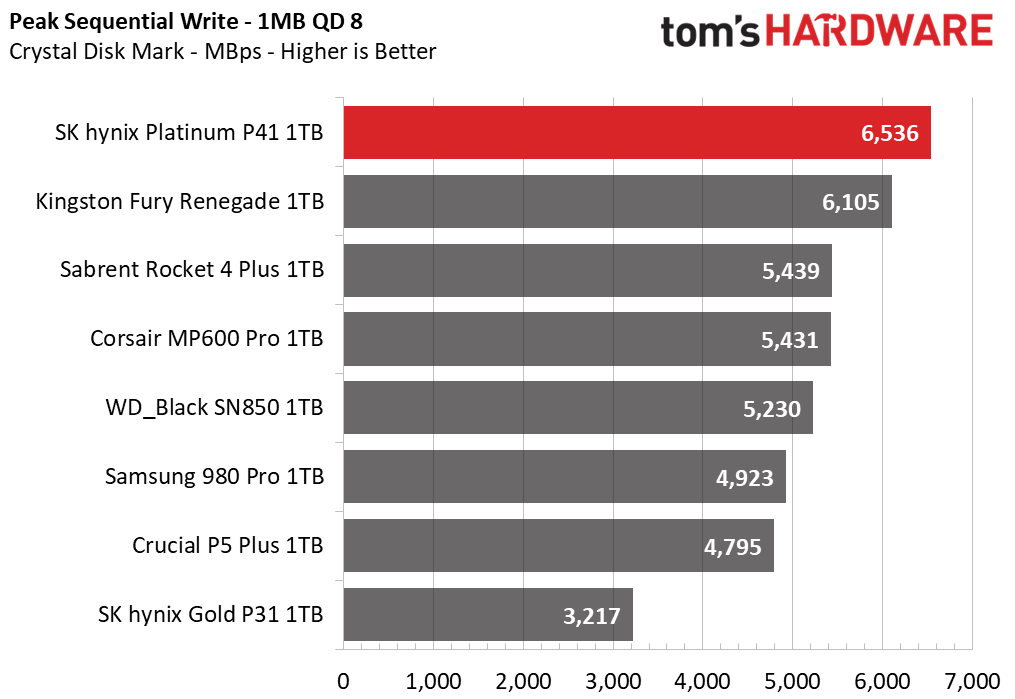

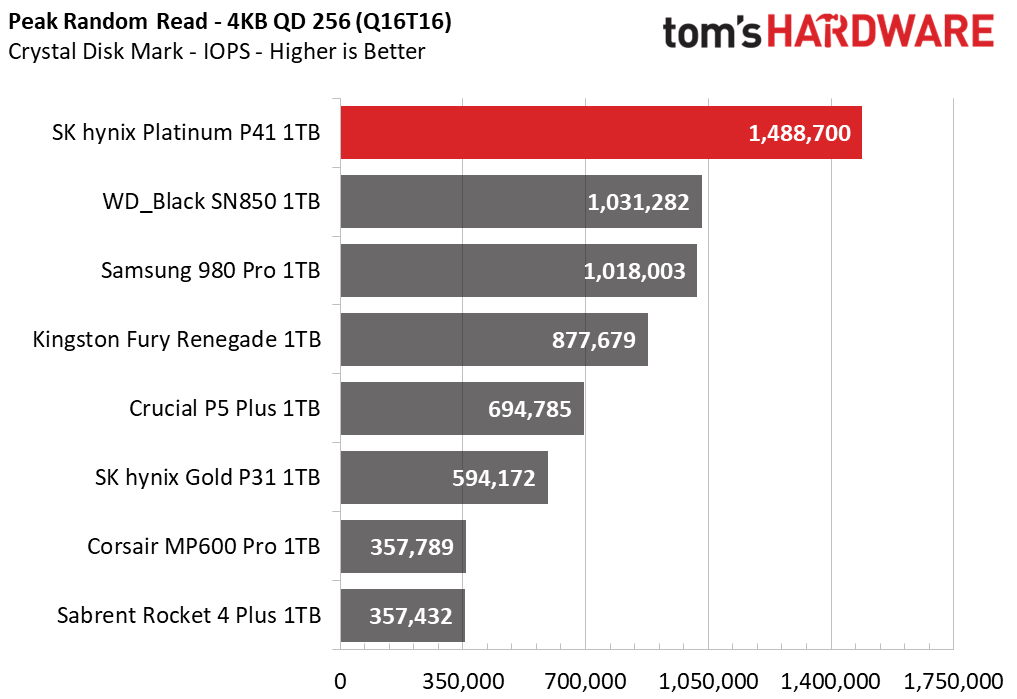

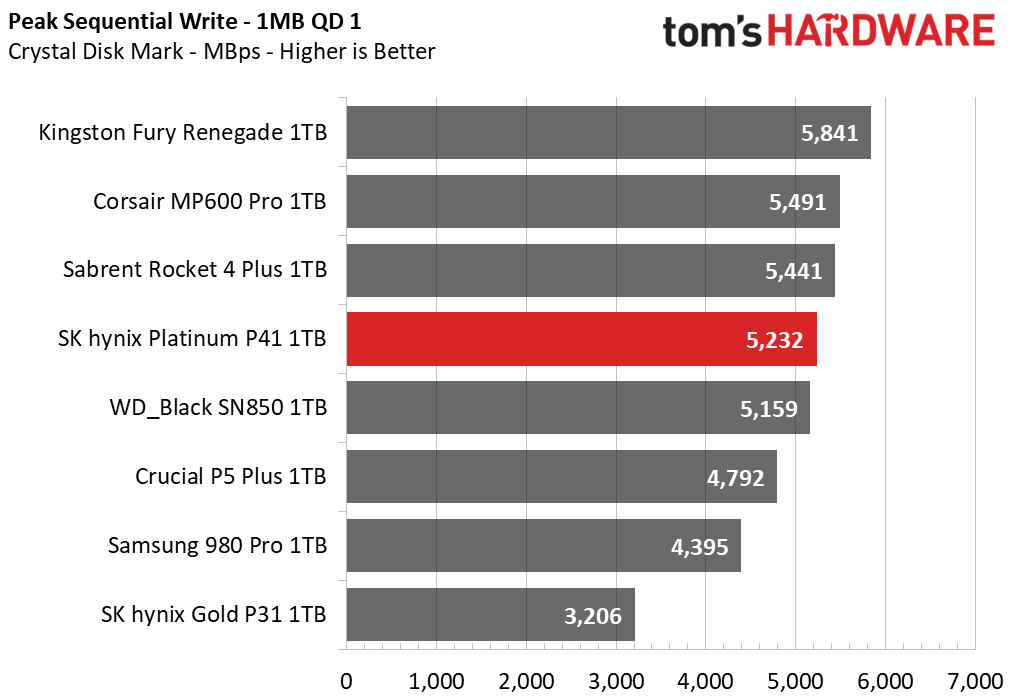

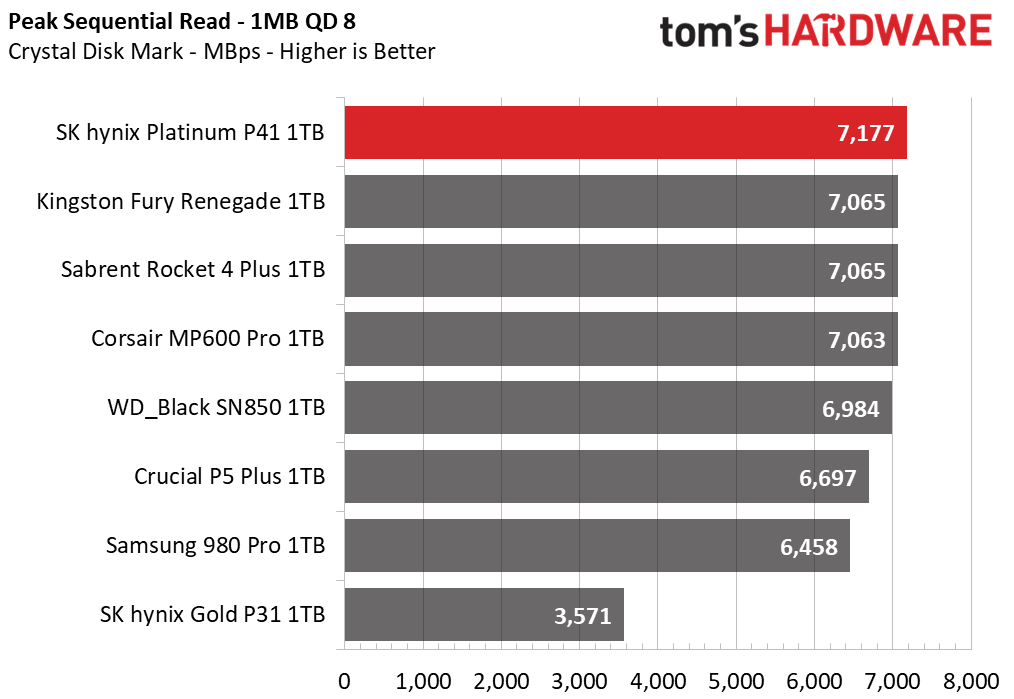

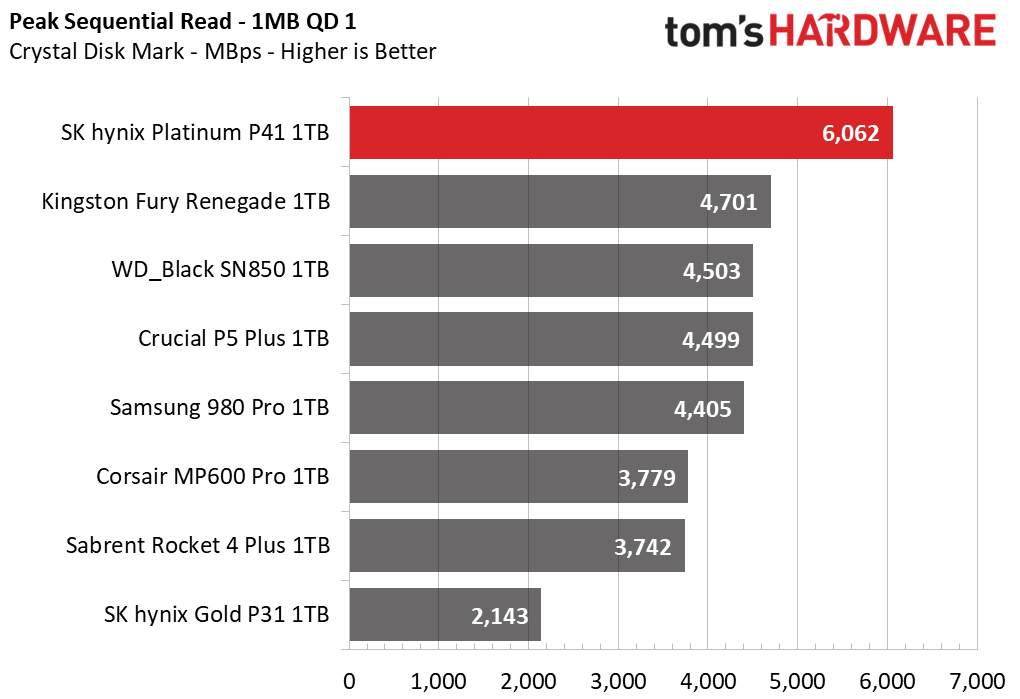

The P41 does exceptionally well with sequential results during the CrystalDiskMark benchmark. But, again, the Fury Renegade's newer flash also helps it pull away from the pack. The P31, limited by its interface, conversely struggles to keep up. When looking at the results for random performance, users often look at queue depth one (QD1) to get a good feel for SSD responsiveness, and the P4 does quite well enough. Its incredible maximum IOPS is also shown off in the Q16T16 random read result.

Sustained Write Performance and Cache Recovery

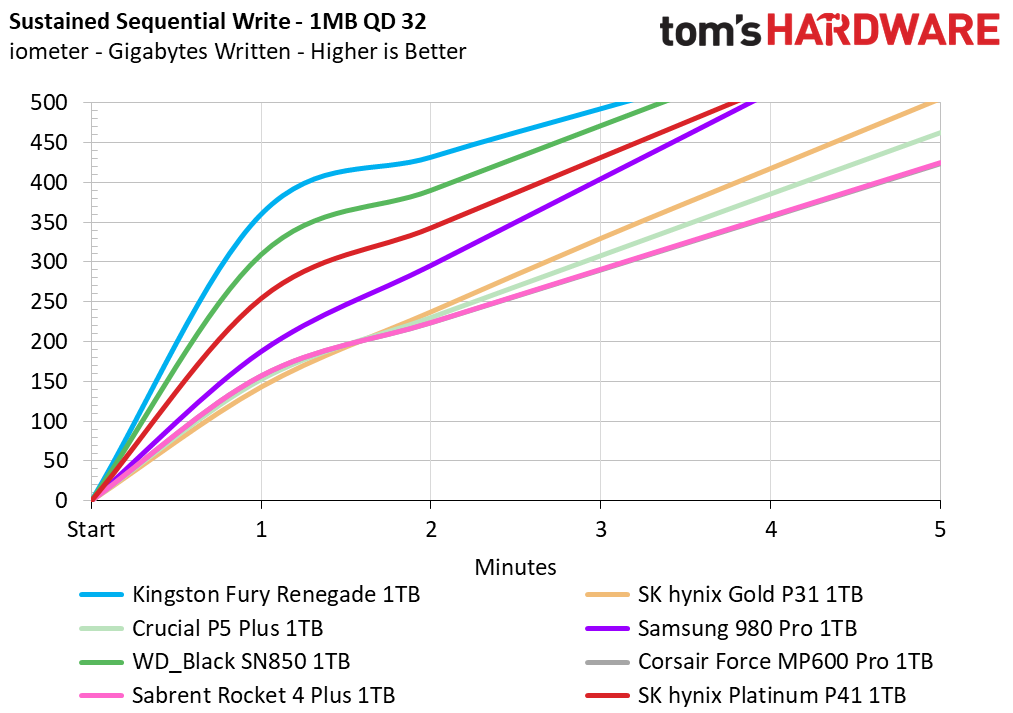

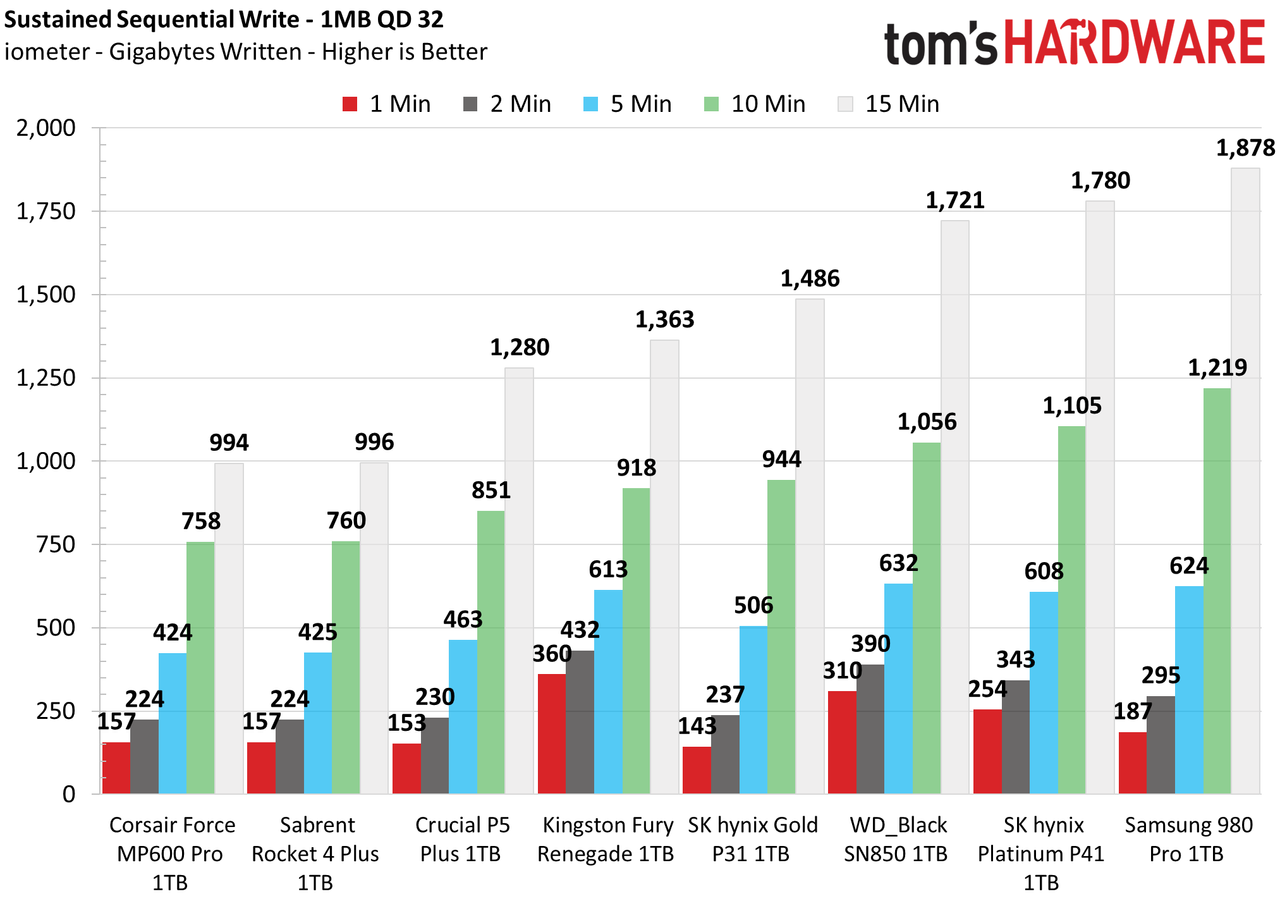

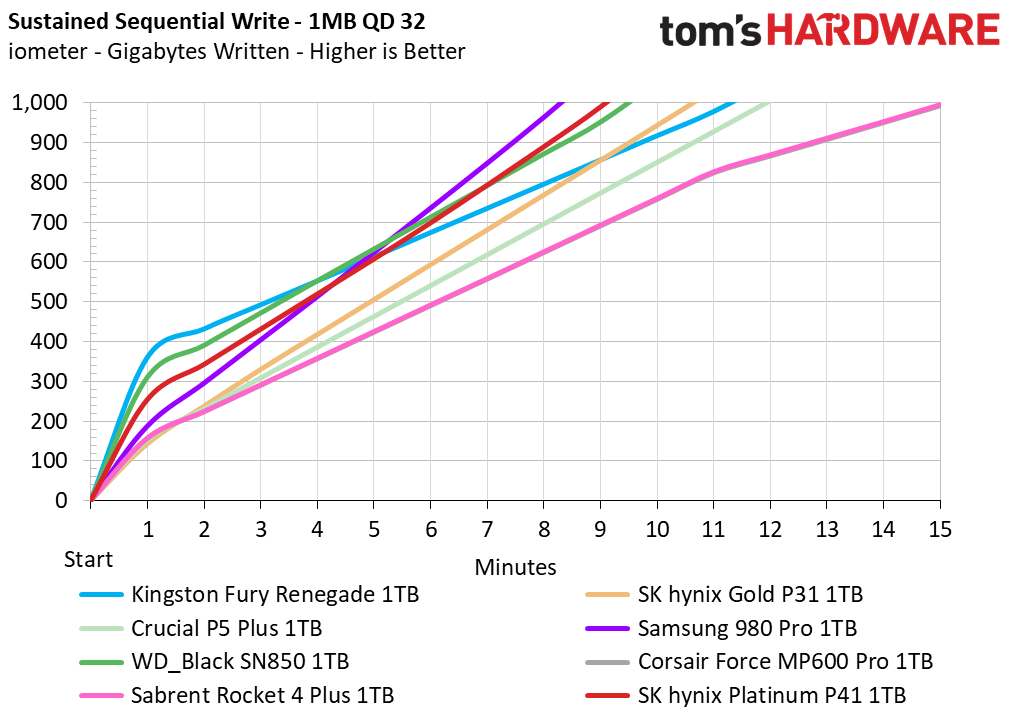

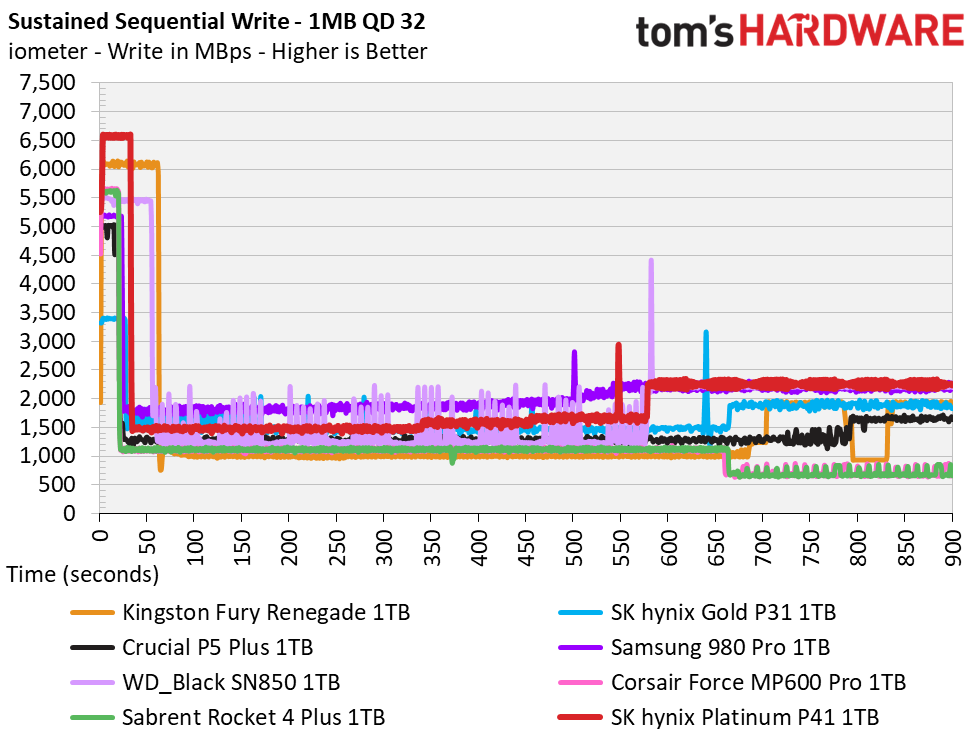

Official write specifications are only part of the performance picture. Most SSDs implement a write cache, which is a fast area of (usually) pseudo-SLC programmed flash that absorbs incoming data. Sustained write speeds can suffer tremendously once the workload spills outside of the cache and into the "native" TLC or QLC flash. We use Iometer to hammer the SSD with sequential writes for 15 minutes to measure both the size of the write cache and performance after the cache is saturated. We also monitor cache recovery via multiple idle rounds.

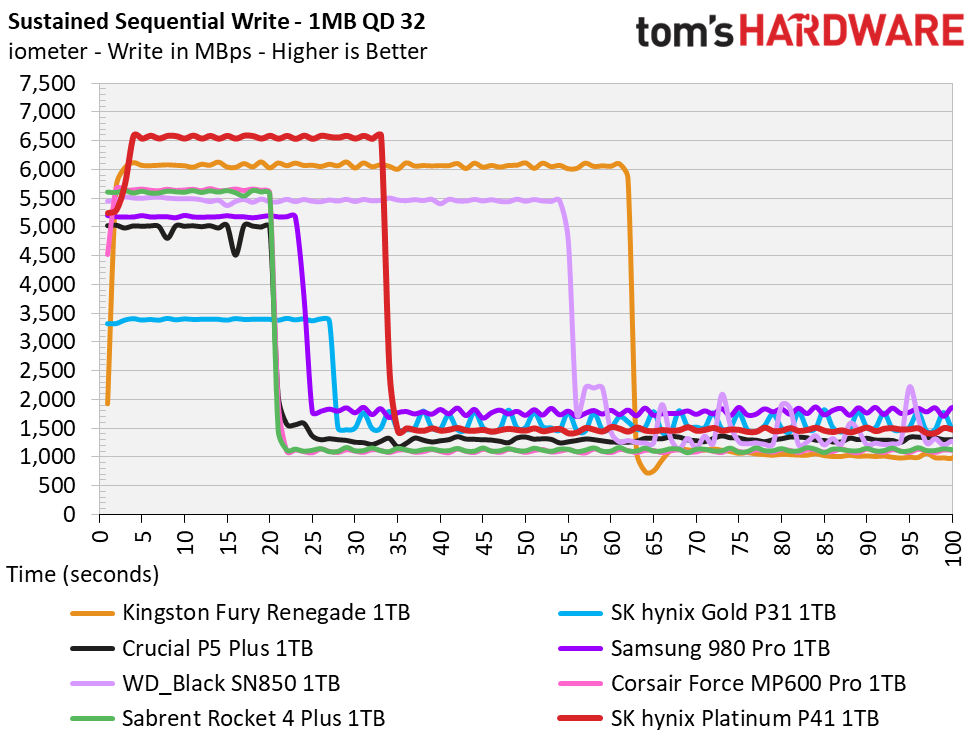

The Platinum P41 starts a little slow, between 5.2 and 5.8 GBps, with what appears to be an anomaly. This is probably the static portion of the SLC cache, as we also see with the 2TB model. This may be an artifact of testing or something SK hynix can fix later in firmware. In either case, the drive then hits its stride at 6.55 Gbps for 30 additional seconds, suggesting a cache of around 213GB in total size.

After that, the direct-to-TLC period is around 1.45 GBps, which is fairly quick compared to most drives. This speed is a bit higher with the 2TB SKU, which does have a smaller cache in relative terms. There are faster TLC drives, for example, some using Micron’s 176-layer B47R flash, but the exact write response depends on cache capacity. Having a more conservative scheme, as on the P41, ensures a responsive drive that can sustain relatively high levels of performance. This can be indicative of full drive and steady-state performance.

The 1TB P41 rebounds to 2.2-2.3 GBps, a faster intermediate state. This is also where the drive heads when given some time to idle, as it does not quickly recover to full SLC speeds. This is pretty impressive for a 1TB drive and is what we would expect given the speed of this 176-layer flash with this much interleaving. While many high-end PCIe 4.0 drives seem to peak at 2TB, the P41 is quite happy at 1TB in this test, following an overall pattern similar to the previous-gen P31.

The 1TB SKU can write almost as much data in cache mode as the 2TB, given sufficient time. SK hynix told us all launch capacities use 512Gb flash, which should show higher speeds at 2TB after SLC. With 1Tb dies, we’d expect about the same. The cache is not so large as to force that condition otherwise, so this might be a purposeful or expected limitation as it ends up being quite consistent. SK hynix has room to improve write performance if it ever decides to release a 4TB SKU.

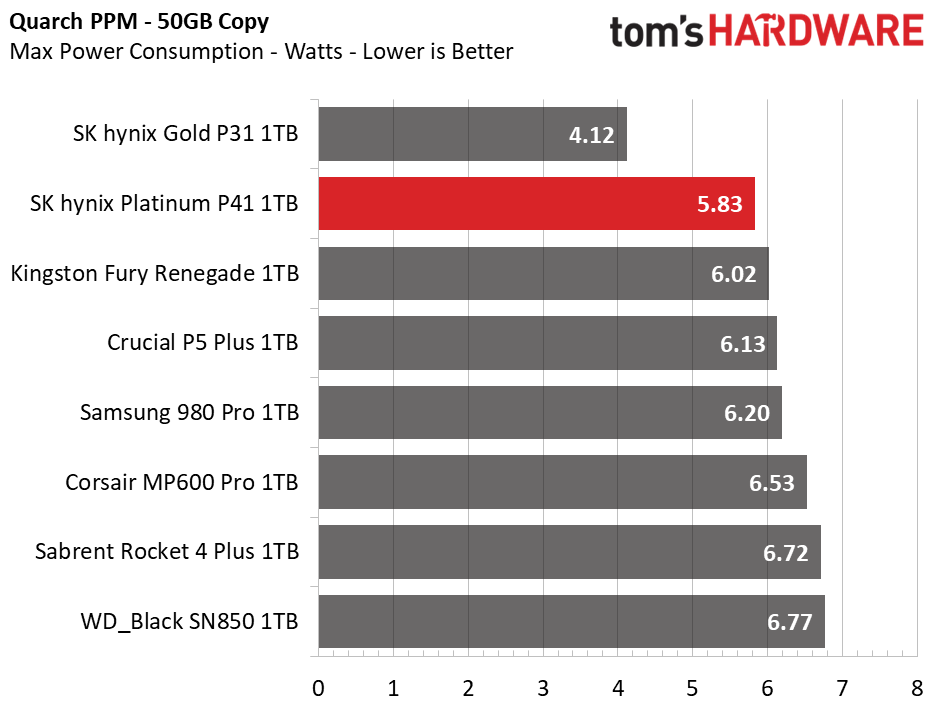

Power Consumption and Temperature

We use the Quarch HD Programmable Power Module to gain a deeper understanding of power characteristics. Idle power consumption is an important aspect to consider, especially if you're looking for a laptop upgrade as even the best ultrabooks can have mediocre storage.

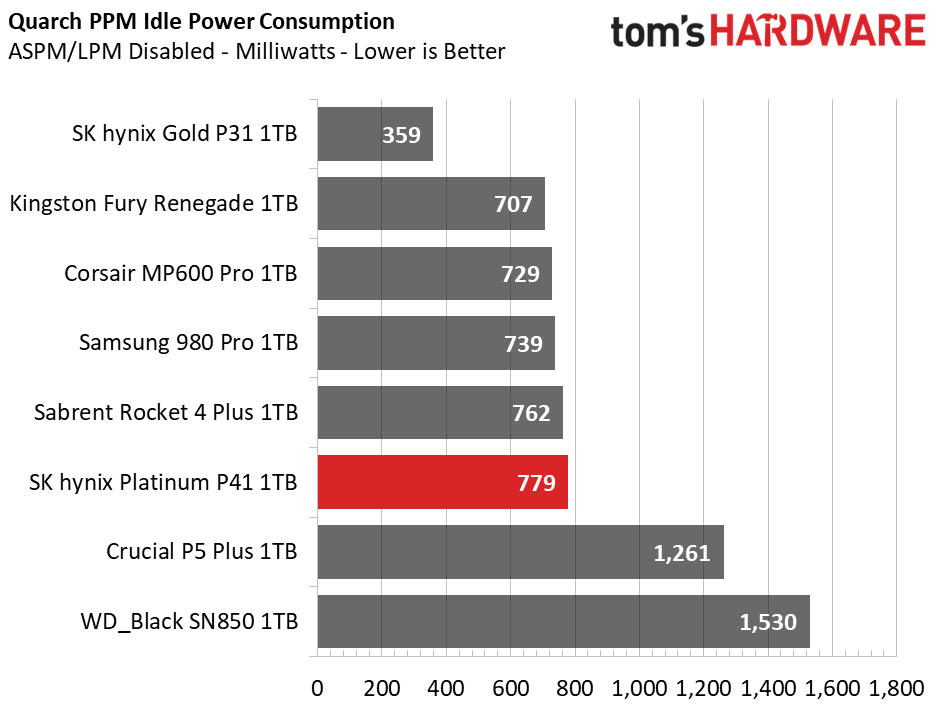

Some SSDs can consume watts of power at idle while better-suited ones sip just milliwatts. Average workload power consumption and max consumption are two other aspects of power consumption, but performance-per-watt is more important. A drive might consume more power during any given workload, but accomplishing a task faster allows the drive to drop into an idle state more quickly, ultimately saving energy.

We also monitor the drive’s temperature via the S.M.A.R.T. data and an IR thermometer to see when (or if) thermal throttling kicks in and how it impacts performance. Remember that results will vary based on the workload and ambient air temperature.

Those users who embraced the Gold P31 for its excellent power efficiency, which is especially great for laptops, can tentatively celebrate. The Platinum P41 is the most efficient drive we’ve tested to date, including at the 1TB capacity.

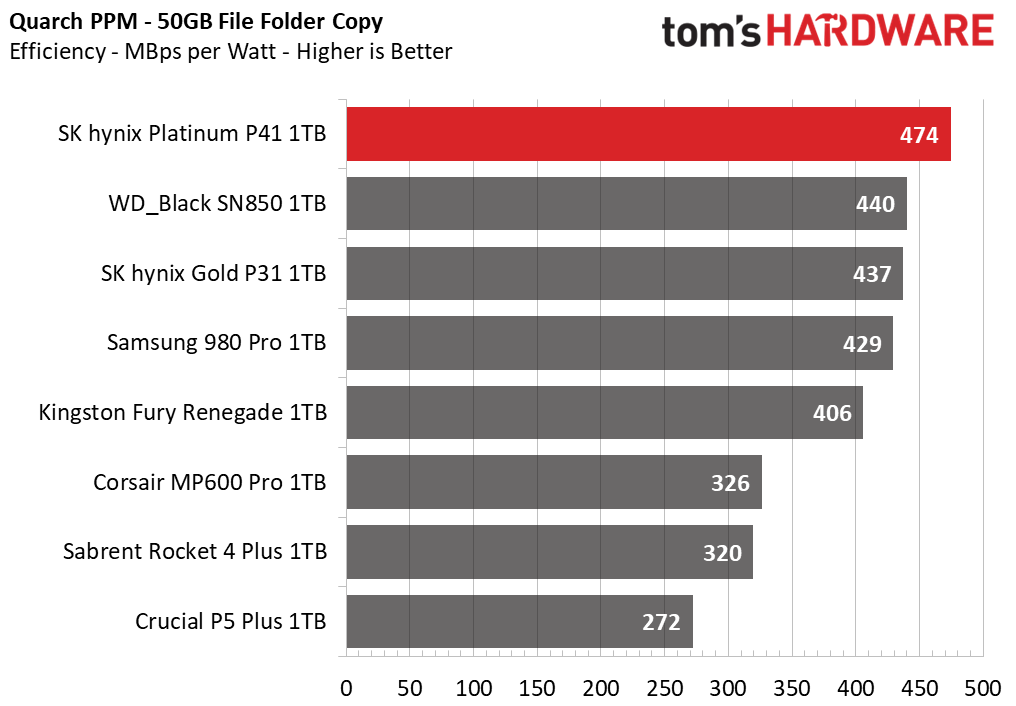

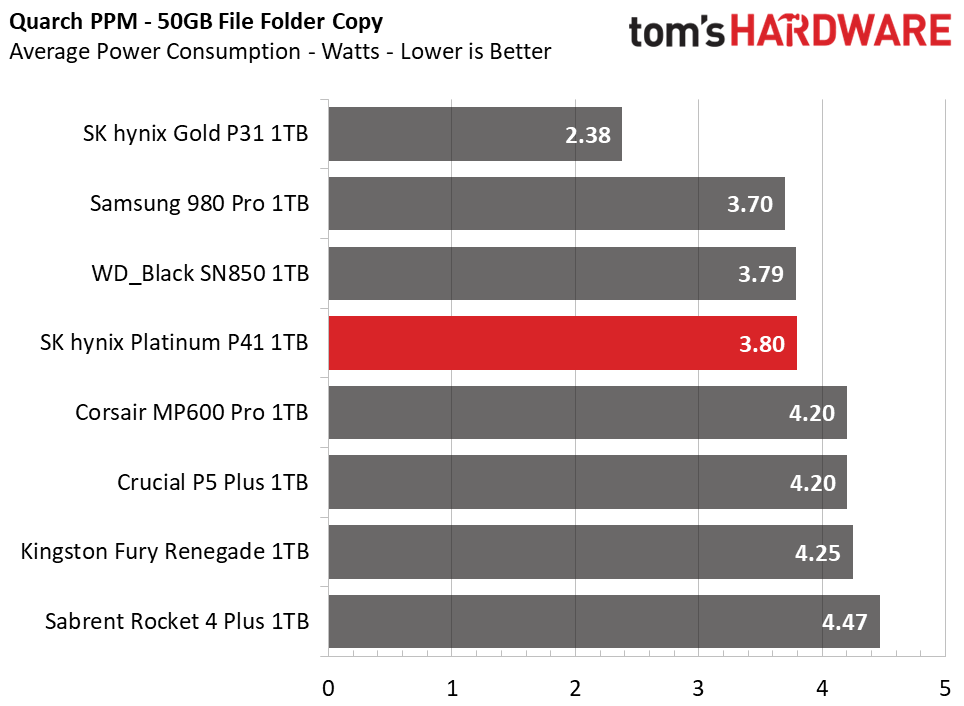

Our test is simple and uses a file copy, which tends to favor faster drives but does give a solid measure of efficiency. Any proper laptop will idle just fine with an NVMe drive and most of your time is probably spent in idle; testing a wider range of workloads can be more difficult since every laptop is different with unique battery wear over prolonged testing. Desktops tend to engage in higher power states, and users often want this for gaming and productivity. So, a quick file copy gives a snapshot of everyday use.

The Gold P31 is still excellent here, but some of the more recent PCIe 4.0 drives do rather well. Newer 176-layer flash tends to be more efficient, and new PCIe 4.0 controllers are produced with an efficient process node. We may see a four-channel PCIe 4.0 drive that mimics the P31 once we have appropriate flash — 232-layer or higher at up to 2400 MT/s — that will offer a new tier of efficiency, but that’s down the line. Initial PCIe 5.0 drives will take time to saturate that interface. For the time being, then, the P41 is as good as it gets.

The 1TB Platinum P41 idled around 40-45C, measured by SMART and temperature gun, eventually reaching over 80C after we nearly filled the drive with an extended write workload. The drive began to throttle at around 80C, but the write speeds were still high. However, throttling became more serious at 82C+. This is not a realistic workload, but it does indicate a heatsink might be a good addition, particularly in warmer environments.

Test Bench and Testing Notes

Swipe to scroll horizontally
CPUIntel Core i9-11900K
MotherboardASRock Z590 Taichi
Memory2x8GB Kingston HyperX Predator DDR4 5333
GraphicsIntel UHD Graphics 750
CPU CoolingAlphacool Eissturm Hurricane Copper 45 3x140mm
CaseStreacom BC1 Open Benchtable
Power SupplyCorsair SF750 Platinum
OS StorageWD_Black SN850 2TB
Operating SystemWindows 10 Pro 64-bit 20H2

We use a Rocket Lake platform with most background applications such as indexing, windows updates, and anti-virus disabled in the OS to reduce run-to-run variability. Each SSD is prefilled to 50% capacity and tested as a secondary device. Unless noted, we use active cooling for all SSDs.
