Experiment: Build a (Profitable) Ethereum Mining Rig From Spare Parts

Mining For Crypto Currency: Why Power Draw Is As Important As Hash Rate

If you were to look at the hash rate data and nothing else, you would likely choose the highest performing cards, but hash rate isn’t the only metric that matters. Power draw is crucial, and maybe the more important metric.

When you’re mining crypto currency, you are effectively swapping electricity cost for crypto coins. The key is to ensure that you are paying out less than you’re bringing in. Considering your relative lack of control over the volatile crypto market, it's in your best interest to control something you can manage, namely that power draw.

For example, if you built a miner using my R9 390 and two R9 390Xs (no, I'm not offering), the rig would be able to produce roughly 90 MH/s, which is enough mining power to produce a single Ether coin in a little more than a month at the current difficulty level. However, there are better GPU combinations that would net more efficient numbers. Let's crunch the numbers.

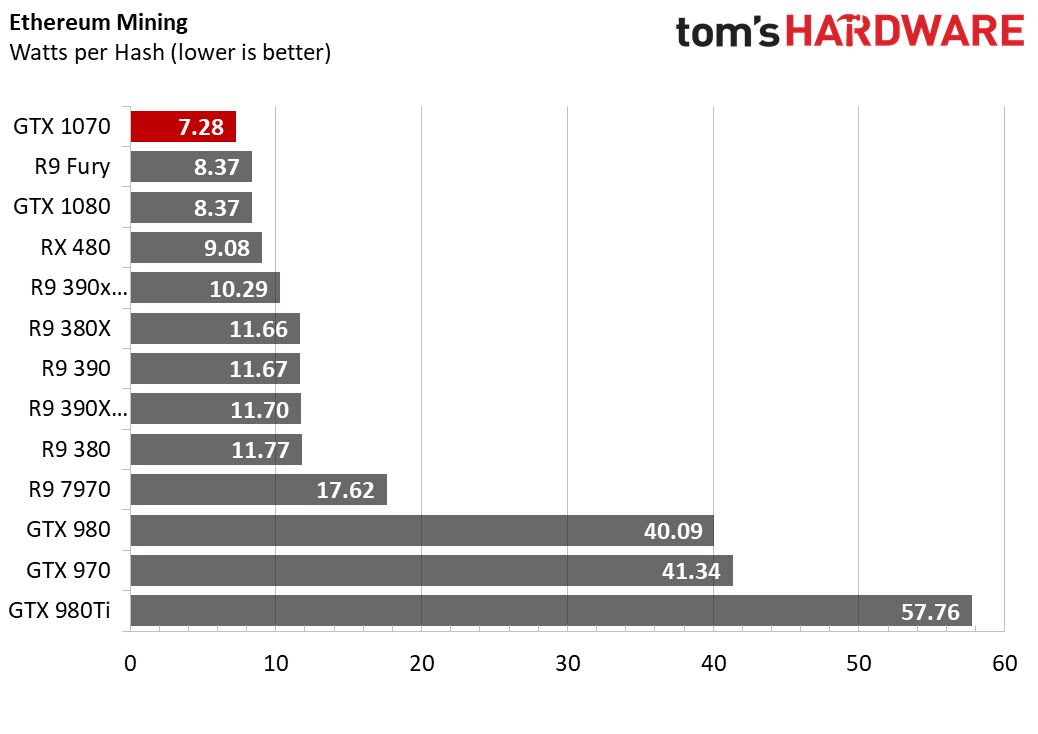

To calculate which cards offer the most efficient performance, I took power draw readings of the system while mining with each graphics card. We then divided the power draw rating of each card by its hash rate performance to calculate the Watts per Hash value. The best mining cards would have the lowest Watt per Hash rating.

The R9 390 series cards in the above example fall squarely in the middle of the efficiency scale. The two air-cooled cards draw roughly 11W-per-hash, and the water-cooled R9 390X is slightly more efficient at 10.3W-per-hash. They have a slight edge on the R9 380 and R9 380X, which draw about 12W-per-hash.

The older HD 7970 card is much less efficient than its more modern counterparts at 17W-per-hash. But the worst performing setups feature the GTX 970 and GTX 980, which demand more than 40W-per-hash. Ironically, the GTX 970 and GTX 980 draw less power than any other GPU in the roundup, but their mining performance is so pathetic that they are the most expensive mining cards when power is factored in.

The RX 480 and the GTX 10-series cards are some of the most efficient mining cards around, which isn’t surprising, but there’s one outlier that caught me off guard. The R9 Fury, which isn’t well known for being a power efficient graphics card, is the second most efficient miner in terms of Watt per Hash (and we haven’t even undervolted it yet). The GTX 1070 takes the crown for the most effective Ethereum mining card, but the R9 Fury pumps out a significantly higher hash rate.

Ethereum mining relies heavily on your graphics card’s memory, so we surmise that the bandwidth of the Fury’s HBM memory plays a significant role in its mining performance.

Don’t Forget Heat

[Update: 4:28 p.m. PT, 8/15/2017: This section has been updated to correct a few technical details.]


Don’t neglect the heat output of these cards running at full tilt. If your mining rig lives in an office in your home, this is something to weigh heavily. You could also add more cooling for the room.

For these bare metrics, I'm relying on software temperature reporting. I launch the mining software and let it run for at least 10 minutes on each card, and then I use MSI Afterburner to read the GPU's operating temperature. The temperature tests are performed on an open test bench, with no additional cooling. I wouldn’t recommend running a crypto miner without additional fans to move the hot air away from the GPUs, but I chose to run it that way for the test to help bring the temperatures close to their peak in a short period.

It's important to monitor the GPU temperatures so they don't cook themselves. Some GPUs also use different fan curves to trade off temperature and noise characteristics. It's no surprise to see the air cooled 390X as one of the hottest cards, as it draws the most power. However the 480 runs even hotter despite consuming considerably less power.

This is a good reminder that not all GPU manufactures use the same fan curve on the GPU BIOS. Some allow the chip to run hotter in the interest of quieter fans. In your interest of prolonging the life of your mining GPU, we recommend enabling the more aggressive fan settings, where available.

Heat generated by the mining system also has to go somewhere, which generally means into the air in the room. In general, the more power a GPU draws, the more heat it outputs. Keep this in mind, as the profits you make with your system could disintegrate with the cost of increasing the amount of time your home's air conditioning runs.

MORE: The Ethereum Effect: Graphics Card Price Watch

MORE: Best Graphics Cards

MORE: Best PC Builds

Create a new thread in the Reviews comments forum about this subject
This thread is closed for comments
39 comments
Comment from the forums
    Your comment
  • badirontree
    THis is an EXTRA geto build :D
  • badirontree
    *Ghetto
  • bloodroses
    Next, add a Solar Panel/battery setup so you can get off the power grid. It will save you even more money.
  • shrapnel_indie
    Interesting read. Unfortunately for me, I don't have the luxury of hanging to test products (for free, especially)... then again I don't have anything to test, beyond what I grab for my own use. I've got old hardware, but only one GPU with more than a Gig of RAM and I need that for my everyday driver.
  • TJ Hooker
    Quote:
    Believe it or not, the Power Color RX 480, which is otherwise a very efficient mining card, dumps more heat into the room than any other GPU in this roundup. After a little more than 10 minutes of mining, the card reaches nearly 80°C.

    That's not how it works...
    There is not a direct relationship between GPU temperature and heat output (it also depends on the cooling solution). There is a direct relationship between power draw and heat output (they're equal). R9 390(X) are going to heat up your room significantly more than a 480.
  • doktorv
    If you live in a hot region and use air conditioning, you actually consume more than double the listed electricity because the heat being produced in the computer has to be subsequently removed by the air conditioning, which is not 100% efficient. Texas might seem to be attractive for mining because the electricity is cheap, but if you do the full energy calculation you'll realize it's only worthwhile in the winter.
  • Blake_24
    If you would plan to run this for a longer time, you should try to lower the clock speed on the GPU core to lower power consumption and increase the memory clock speed to increase hash rate. Since Ethereum is not very dependent on the core clock and basically only the memory clock it would make performance better while also increase the profit margin
  • AnimeMania
    Could you write an article about how the cryptocurrencies get the money to pay to their miners. What they do with all the computations your graphic cards are making and if every time they increase the difficulty of mining a coin, does the additional calculations produce something of value or just create busy work. How safe is it allow somebody you don't know to have unlimited, unmonitored access to you computer.
  • TJ Hooker
    Anonymous said:
    If you live in a hot region and use air conditioning, you actually consume more than double the listed electricity because the heat being produced in the computer has to be subsequently removed by the air conditioning, which is not 100% efficient.

    Yes, you need additional power to remove the heat via AC, but it's not double. An AC unit does not take 1 W to remove 1W of heat.
  • JoeMomma
    Thanks. I needed that.
    Now if only they could rig a hamster wheel to a generator to help pay the electric bill.
  • 1brianpburris
    How is $100 every 2 mos. profitable when you factor in electricity to run the beast.???
  • takeshi7
    TJ Hooker, an AC unit takes MORE than 1W of electricity to remove 1W of heat. Air conditioning (and all heat exchangers for that matter) are not energy efficient. 2nd law of thermodynamics, and all that jazz. If he's pumping 1000W of heat into the room, he's probably using close to 1500W-2000W of air conditioning to offset it.
  • takeshi7
    When you measured the Hashes/Watt efficiency, did you leave the cards at stock settings? I think you could have gotten much better efficiency results if you tuned the power levels of the cards.
  • TJ Hooker
    Anonymous said:
    TJ Hooker, an AC unit takes MORE than 1W of electricity to remove 1W of heat. Air conditioning (and all heat exchangers for that matter) are not energy efficient. 2nd law of thermodynamics, and all that jazz. If he's pumping 1000W of heat into the room, he's probably using close to 1500W-2000W of air conditioning to offset it.

    No, they don't, I don't think you fully understand how a heat pump works.

    One measure of AC efficiency is EER. It's a measure of cooling capacity (in BTU per hour) by input power (W). A typical AC unit might have a EER of 10. If you convert the units, that's 2.9 W of heat removed per watt of power consumption by the unit. So your cooling costs would result in an extra ~33% on your power bill, not an extra 100% (double).
    https://energy.gov/energysaver/room-air-conditioners
  • Ncogneto
    Great article, wish you would take it a step further and play with tuning the system to see how significant of a change you might be able to dial in. Also, In regards to heat, maybe it makes sense not to mine during the summer cooling months, but run it 7-9 months out of the year were the heat it produced would not be wasted completely? I understand it's not the most efficient way to heat a house, but, at least your not doubling down on your costs?
  • RedJaron
    Anonymous said:
    How is $100 every 2 mos. profitable when you factor in electricity to run the beast.???
    Because if you only spend $40 or less a month on power, you're still netting $10 / month.
  • extremepcs1
    Just a hypothetical, but say someone had (legal) remote access to 5,000+ normal desktop computers. If he/she were to install the software on them, could it be profitable? On-board Intel graphics type machines.
  • TJ Hooker
    Anonymous said:
    Just a hypothetical, but say someone had (legal) remote access to 5,000+ normal desktop computers. If he/she were to install the software on them, could it be profitable? On-board Intel graphics type machines.

    Eth mining is memory-bound, and needs high bandwidth, low latency VRAM. Integrated graphics using system memory as VRAM would likely perform very poorly. Also, you would need to allocate > 2GB of system RAM as VRAM, so the machines would probably need to have >4 GB of system memory.

    If you're paying for electricity for these machines, I'm skeptical it'd be very profitable if at all.
  • ubercake
    Does the mining process use much data bandwidth over an internet connection? If so, this would have to be added to the calculations in regions such as the outskirts of the Metro Detroit area where cable providers have no competition and have begun to implement data caps on cable internet.
  • extremepcs1
    Quote:
    Eth mining is memory-bound, and needs high bandwidth, low latency VRAM. Integrated graphics using system memory as VRAM would likely perform very poorly. Also, you would need to allocate > 2GB of system RAM as VRAM, so the machines would probably need to have >4 GB of system memory.


    I was thinking along the lines of schools/universities where computer labs are running all day anyway. Like a background task kind of thing. Generate extra revenue for the school.

    If you're paying for electricity for these machines, I'm skeptical it'd be very profitable if at all.
