Is A SATA 3Gb/s Platform Still Worth Upgrading With An SSD?

By Manuel Masiero, Achim Roos
published

Today's fastest SSDs already bounce off the SATA 6Gb/s interface's throughput ceiling. Does a 3 Gb/s link kill the performance of those drives? We run a number of synthetic and real-world tests to assess the damage when you upgrade an older platform.

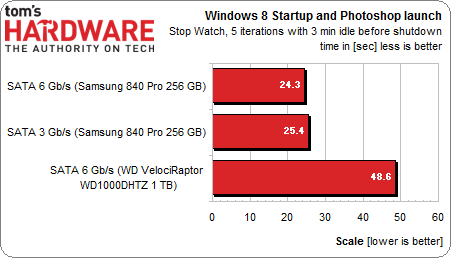

Real-World Benchmarks: Booting Up Windows 8 And Adobe Photoshop

Again, we're looking at a near-draw as Windows 8 boots up, Adobe Photoshop CS6 starts, loads a picture, and then closes. Samsung's 840 Pro takes about a second longer to complete this sequence when we hook it up to a 3 Gb/s port, compared to its 6 Gb/s performance. That's not going to affect your productivity.

What might, however, is the extra 23 seconds you spend waiting on the same powerful machine hamstrung with a mechanical hard drive (even one as fast as the VelociRaptor).

Manuel Masiero
78 Comments Comment from the forums
  • Combat Wombat
    Far Out! I didnt realise there was such a big difference between my Raptor, and a Samsung's 840,

    Thanks toms, Samsung will get a few hundred out of me next pay day. :P
    Reply
  • nukemaster
    I have been using an M4(on SATA 3gigabit/sec) on my older media center as a boot drive and for some games. The difference from the hard drive it replaced was massive. The old hard drive is still great for storing media and files.
    Reply
  • DarkSable
    This... was a kind of stupid test. Of COURSE an SSD is a good thing even on a SATA II connection.

    Does Tom's not remember the early days of SSDs, when everyone wanted one and noone could afford one? There was no such thing as SATA III back then, and if SSDs didn't give a benefit, nobody would have payed attention with how expensive they were.
    Reply
  • LordConrad
    Even With SATA 3Gb/s, An SSD Makes Sense
    I could've told you that. I put a OCZ Vertex 2 in my HP dv6t-2100 laptop a while ago and the difference was like night and day. SATA II is definitely SSD worthy!
    Reply
  • Onus
    This article measured what was intuitively obvious. My primary system's boot drive is a 3Gb/s mSATA Crucial M4; I've felt no need to upgrade. Just today I put a 128GB 6 Gb/s SSD on an old 790GX board, and the difference is amazing.
    Reply
  • rdc85
    IMO It well worth it, if u had the budget... (even it in sata2 mode)

    still the price is the issue...
    hope the price will continue to decline, so it became affordable for (most of) everyone....
    Reply
  • CommentariesAnd More
    Yes it is
    Reply
  • jimmysmitty
    Combat WombatFar Out! I didnt realise there was such a big difference between my Raptor, and a Samsung's 840,Thanks toms, Samsung will get a few hundred out of me next pay day.
    Any SSD on 3Gb/s kill Raptors outright. Even my older X25-M does due to the sheer IOPS compared to a Raptor or any mechanical HDD.

    I do need to upgrade but not for the speed, mostly for size. 80GB is not enough even for OS and a few apps. I have messed with everything from a SATA II SSD to a PCIe SSD (Revo 3) and as long as you are on SATA II or better its going to be more than fast enough.

    But that said, I might just wait for Broadwell and SATA Express.
    Reply
  • mayankleoboy1
    1. This test feels kind of incomplete. What i felt was the right comparison was to add a native SATA2 SSD on a SATA2 port, and then compare it to a SATA3 drive on a SATA2 port.

    2. The startup and shutdown times will increase once you start adding softwares to the system. Specially, an Antivirus (kaspersky internet security) makes me weep on startup on a mechanical disc.

    3. Kind of stupid question : Will overclocking the CPU improve the startup/shutdown times, now that the storage bottleneck is largely removed ?

    4. Can we have the time taken by each system to install all the Windows updates, just after the fresh install ?
    Reply
  • coolbz
    DarkSableThis... was a kind of stupid test. Of COURSE an SSD is a good thing even on a SATA II connection.Does Tom's not remember the early days of SSDs, when everyone wanted one and noone could afford one? There was no such thing as SATA III back then, and if SSDs didn't give a benefit, nobody would have payed attention with how expensive they were.
    This article does give very important guideline, where people evaluate different upgrade options. Conclusion is, you don't need to replace a SATA2 computer with SATA3 computer for the mere of SSD speed benefit.

    Reply
