Super Flower Leadex V Platinum Pro 1000W Power Supply Review

With only 130mm depth, the Super Flower Leadex V Platinum Pro is the smallest 1000W ATX12V PSU.

Super Flower Leadex V Platinum Pro 1000W
(Image: © Tom's Hardware)

Performance Rating

(Image credit: Tom's Hardware)

The average performance is high, meeting the performance of the EVGA 1000 P6, which is based on a modified Seasonic Focus Platinum platform. The Leadex unit has even smaller dimensions, though.

Noise Rating

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).

(Image credit: Tom's Hardware)

Because the PSU has only 130mm depth and 1000W maximum power, we didn't expect great things in noise output and indeed the Leadex V Pro is noisy.

Efficiency Rating

The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.

(Image credit: Tom's Hardware)

The average efficiency is at the lower end of the Platinum category.

Power Factor Rating

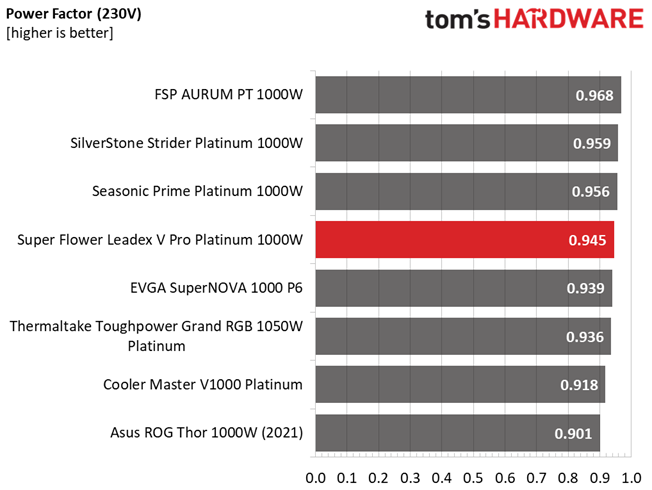

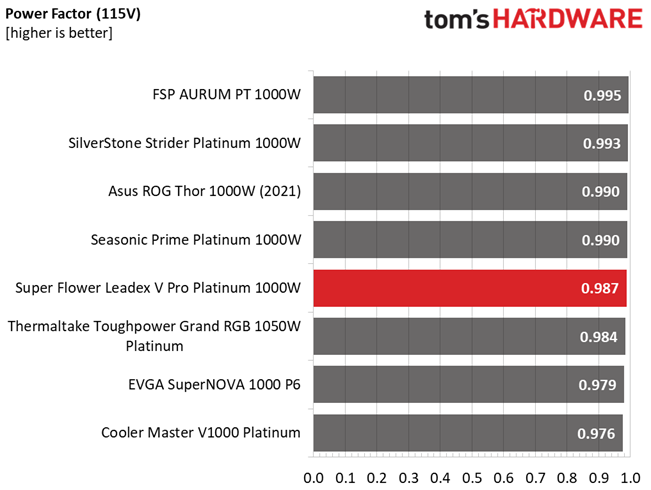

The following graphs show the PSU's average power factor reading throughout its operating range with an ambient temperature close to 30 degrees Celsius and 115V/230V voltage input.

The APFC converter operates fine with 115V, but needs a little tuning to deliver higher PF readings with 230V input.

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content

Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.
