Phison E26 SSD Preview: PCIe 5.0 SSDs Are Finally Here

Phison E26 SSD
(Image credit: Tom's Hardware)

The Phison PS5026-E26 SSD controller will bring PCIe 5.0 performance to the masses in Q1 of this year. Our reference design sample pairs it with Micron’s new 232-layer TLC, which improves upon the excellent 176-layer NAND flash utilized in a wide range of products. The result is unprecedented sequential speeds and immense potential IOPS, although these do not come without some caveats. High-end PCIe 5.0 drives will require proper cooling and the right platform to reach and maintain the best levels of performance.

Our Phison E18 controller preview from mid-2021 demonstrated that Phison was serious about bringing top-tier performance to consumers earlier than other controller manufacturers. The E26 reflects this mindset and manufacturers will begin to advertise SSDs based on the controller sooner rather than later. PCIe 5.0 drives can offer very high levels of sequential performance, but the newer controllers can also raise the IOPS bar for heavier workloads, blowing away all the PCIe 4.0 contenders on our current list of the best SSDs. This is not too surprising as the E26 is based on an enterprise controller design, and in fact it has optional enterprise features.

These drives will also be among the first with cutting-edge flash which will improve latency and power efficiency. We did not see direct benefits with the E26 in these two areas, but the technology will be optimized and the future DirectStorage API should also benefit from the additional all-around speed improvements. For now it does feel a bit like overkill, but pushing the limits is necessary to make use of increasing PCIe bandwidth. This drive shows that it can leave PCIe 4.0 solutions in its dust.

Specifications

Swipe to scroll horizontally
Tested Capacity2TB
Form FactorM.2 2280
Interface / ProtocolPCIe 5.0 x4 / NVMe 2.0
ArchitectureDual-R5 & Triple CoX
Process12nm
Bus8-channel (32CE), up to 2400 MT/s
ControllerPhison PS5026-E26
DRAMSK hynix LPDDR4
MemoryMicron 232-Layer TLC (B58R) @ 1600 MT/s
Sequential ReadUp to 14,000MBps
Sequential WriteUp to 11,800MBps
Random ReadUp to 1,500K
Random WriteUp to 2,000K
SecurityAES-256/SHA512/RSA4096, Opal 2.0/Pyrite
FirmwareRC2; I/O+ Technology
OptionalDual Port, SR-IOV, ZNS, up to 64 NS

The Phison E26 ES (engineering sample) SSD is rated for up to 14,000/11,800MBps for sequential read and write and 1,500/2,000K IOPs for random read and write, both respectively. This is a PCIe 5.0 SSD and is capable of almost double the sequential read performance of previous-generation, PCIe 4.0 SSDs that use the Phison E18 controller. Maximum IOPS has also increased significantly. Actual performance is dependent on the flash type and amount of flash, as well as the platform. In fact, performance variance may be more significant with PCIe 5.0 SSDs, and even come down to which M.2 or PCIe slot is utilized for the drive.

The Phison E26 controller is based on the enterprise E20 controller used in Phison’s X1 SSD solution and it therefore has optional features not commonly available in client products. This includes encryption but also SR-IOV, ZNS, and up to 64 namespaces support. This is coupled with Phison’s I/O+ Technology which is designed for DirectStorage gaming, first implemented in the Sabrent Rocket 4 Plus-G. Our sample SSD is using Release Candidate 2 (RC2) firmware and is not a retail sample. Performance for this controller may also improve with faster flash.

Software and Accessories

Software support will depend on the individual manufacturers which choose to use the Phison E26 controllers in their SSD products. Free software for benchmarking, health monitoring, and imaging are widely available, but many manufacturers prefer to offer their own SSD toolboxes to provide firmware updates. Heatsinks may be considered accessories if they are self-applicable, but PCIe 5.0 drives are bound to run hot so will typically arrive with a heatsink pre-installed.

A Closer Look

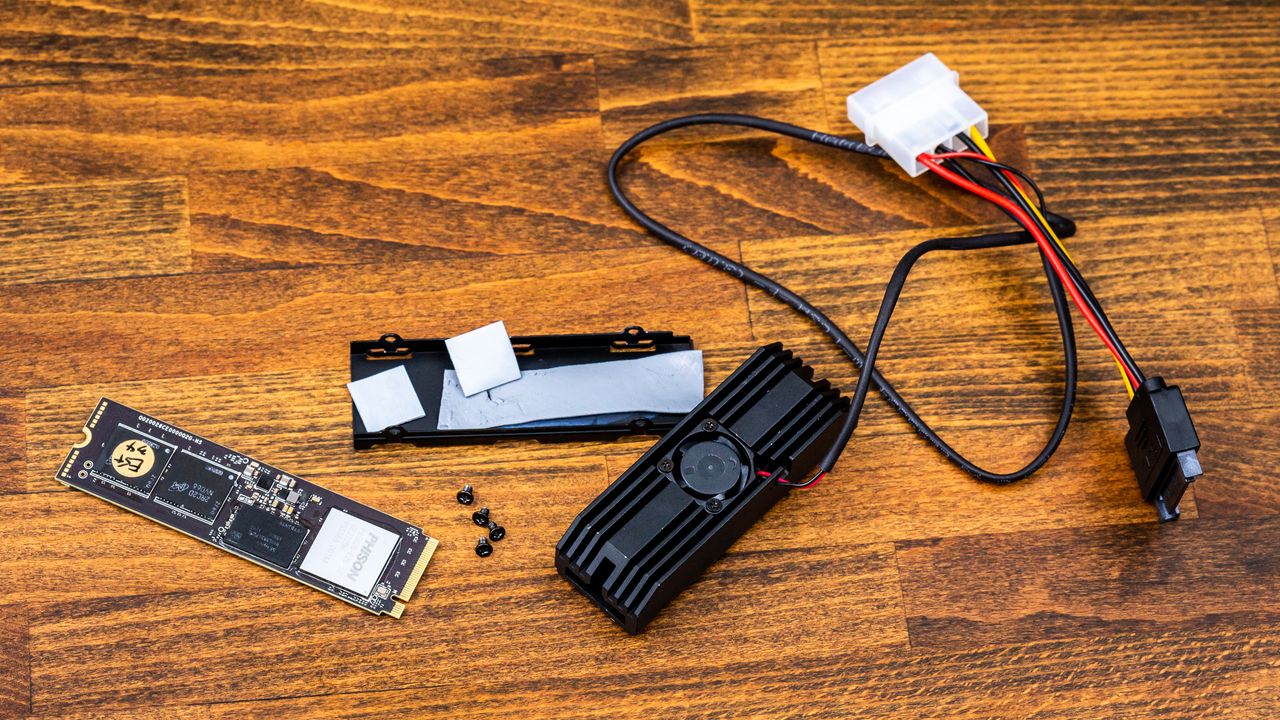

Our E26 SSD sample (ES) arrived with an actively-cooled heatsink. This is a necessity to keep high-performance drives from overheating, although proper passive cooling may be sufficient. Active cooling is not always desirable as small fans can be noisy and present another point of failure to the product.

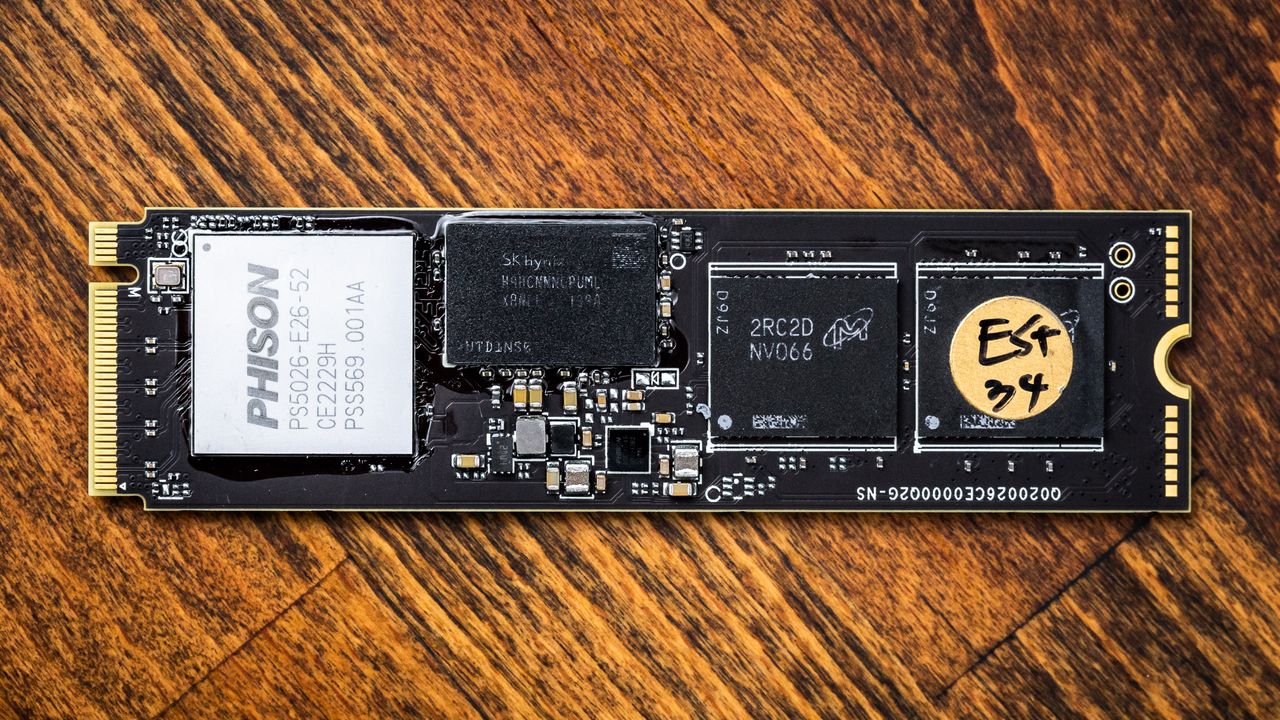

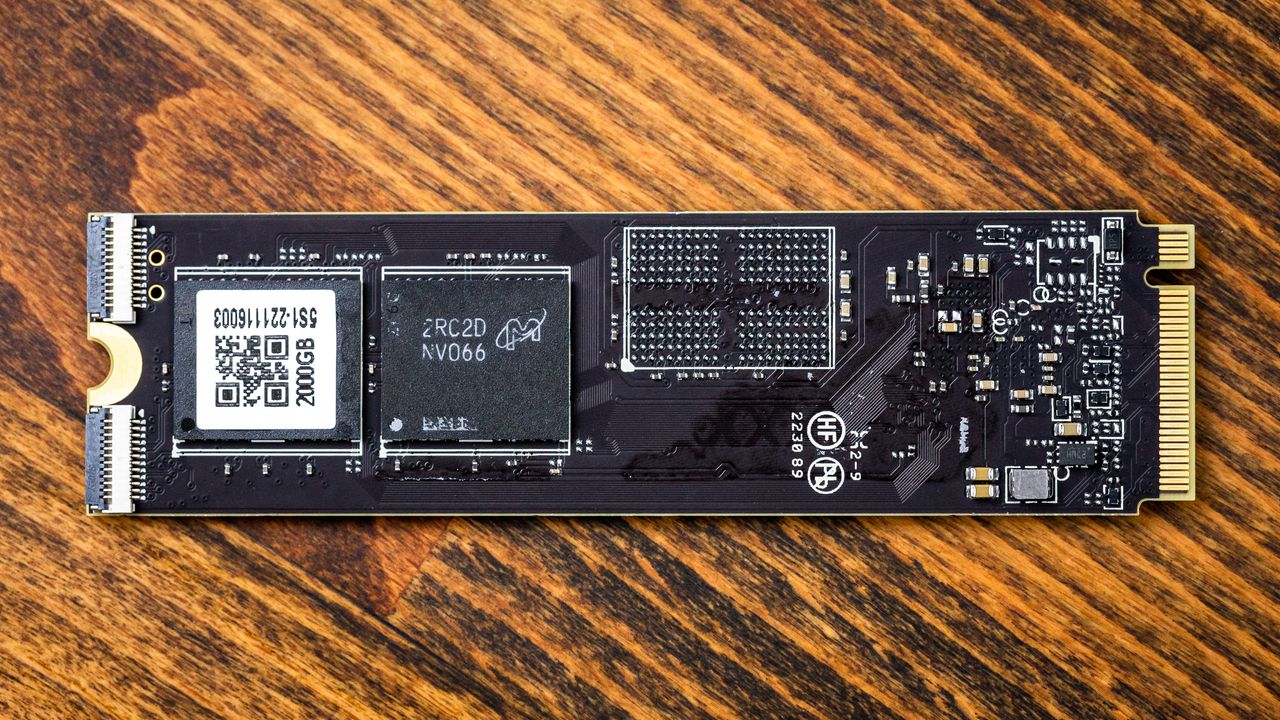

Underneath the heatsink the Phison E26 controller is paired with a memory module, four NAND packages, and Phison’s power management integrated circuit (PMIC). This is not an unusual layout for high-end Phison drives - the Phison E12 controller also only mounted up to four NAND packages until it was later shrunk with the E12S revision. This could limit capacity to some extent but the controller is designed for 1Tb/128GB dies with 32 of them being optimal, easily manageable with four NAND packages.

The E26’s architecture is similar to Phison’s previous controllers, utilizing a dual ARM Cortex-R5 design with triple-core CoXProcessors. The R5 is a proven basis for the majority of consumer SSD controllers but some based on the Cortex-R8 are showing up on the market. This includes the SM2269/XT in the Solidigm P41 Plus and the SM2264 in the ADATA Legend 960. The R8 is more powerful and has more features than the R5, but Phison believes the R5 makes more sense for scalability. This works particularly well with its co-processor design which offloads common processes.

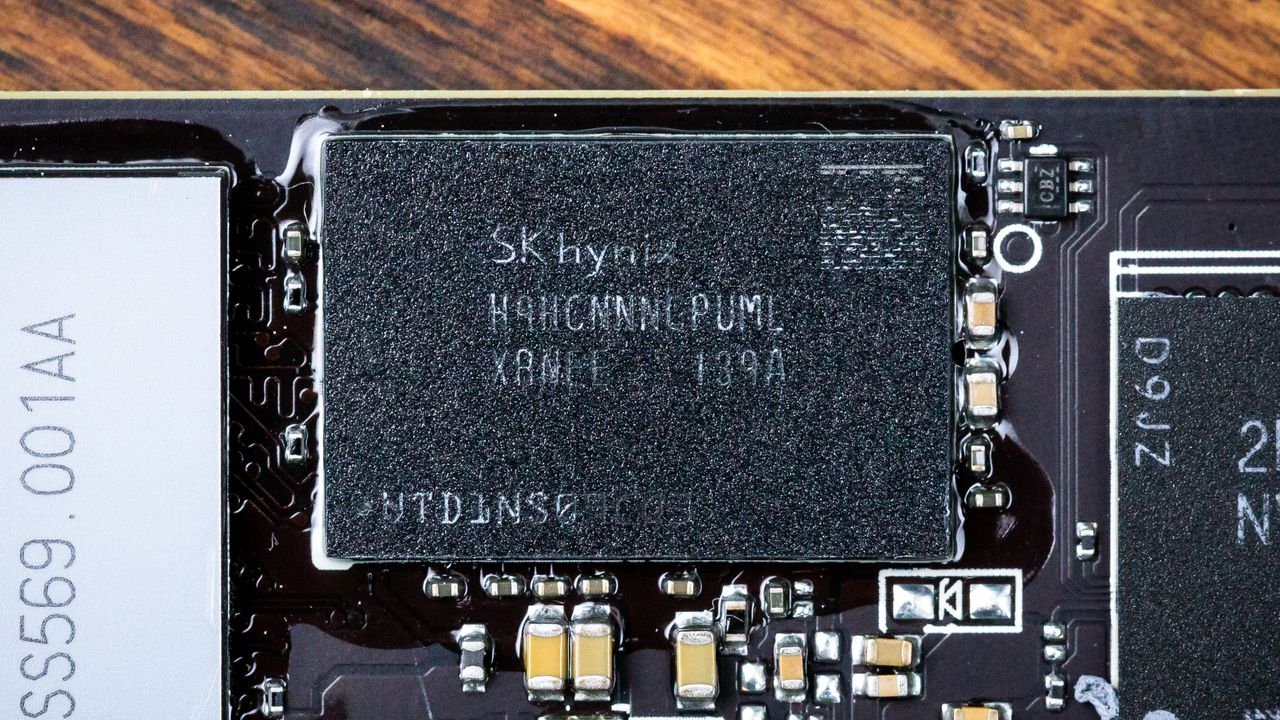

The memory is SK hynix H9HCNNNCPUMLXR-NEE which is 32Gb/4GB of LPDDR4. This is lower-power memory but is also larger in capacity than what is typical for a 2TB drive. The E26 can easily handle 4TB of flash and there’s also a free spot for a second memory package on the PCB’s rear. Some NVMe 2.0 features could make use of extra memory on the SSD while on the other hand some, like Zoned Namespaces (ZNS), can reduce memory overhead. 4GB makes sense for an ES and the extra amount has no bearing on our testing today.

(Image credit: Tom's Hardware)

The flash modules are labeled NV066 which is Micron’s 232-layer TLC (B58R), a generational improvement over the now-ubiquitous 176-layer TLC (B47R). These modules are 4Tb/512GB each for a total of 2TB. Micron’s 232-layer TLC uses 1Tb/128GB dies so each package has four dies (4DP) for a total of sixteen, which provides per-channel interleaving but peak performance would be with thirty-two at 4TB. Inter-die interleaving is improved with this generation of flash as each die has six planes rather than four. All else being equal, this should lead to at least a 50% improvement in maximum performance.

Along with the addition of more planes, it is expected that 4K read and write latency will be improved. Micron implements independent plane reads with this architecture, a technique used in its 176-layer QLC to good effect with the Crucial P3 and Crucial P3 Plus. The independent word-line technology was introduced with its 176-layer TLC, first spotted on the Crucial P5 Plus. This particular 232-layer flash is running at an I/O speed of 1600 MT/s but is capable of 2000 and 2400 MT/s.

MORE: Best SSDs

MORE: Best External SSDs and Hard Drives

MORE: How We Test HDDs And SSDs

MORE: All SSD Content

Shane Downing
Freelance Reviewer

Shane Downing is a Freelance Reviewer for Tom’s Hardware US, covering consumer storage hardware.
