Nvidia's Tiny RTX 4000 SFF 20GB Offers RTX 3070 Performance at 70W

Nvidia

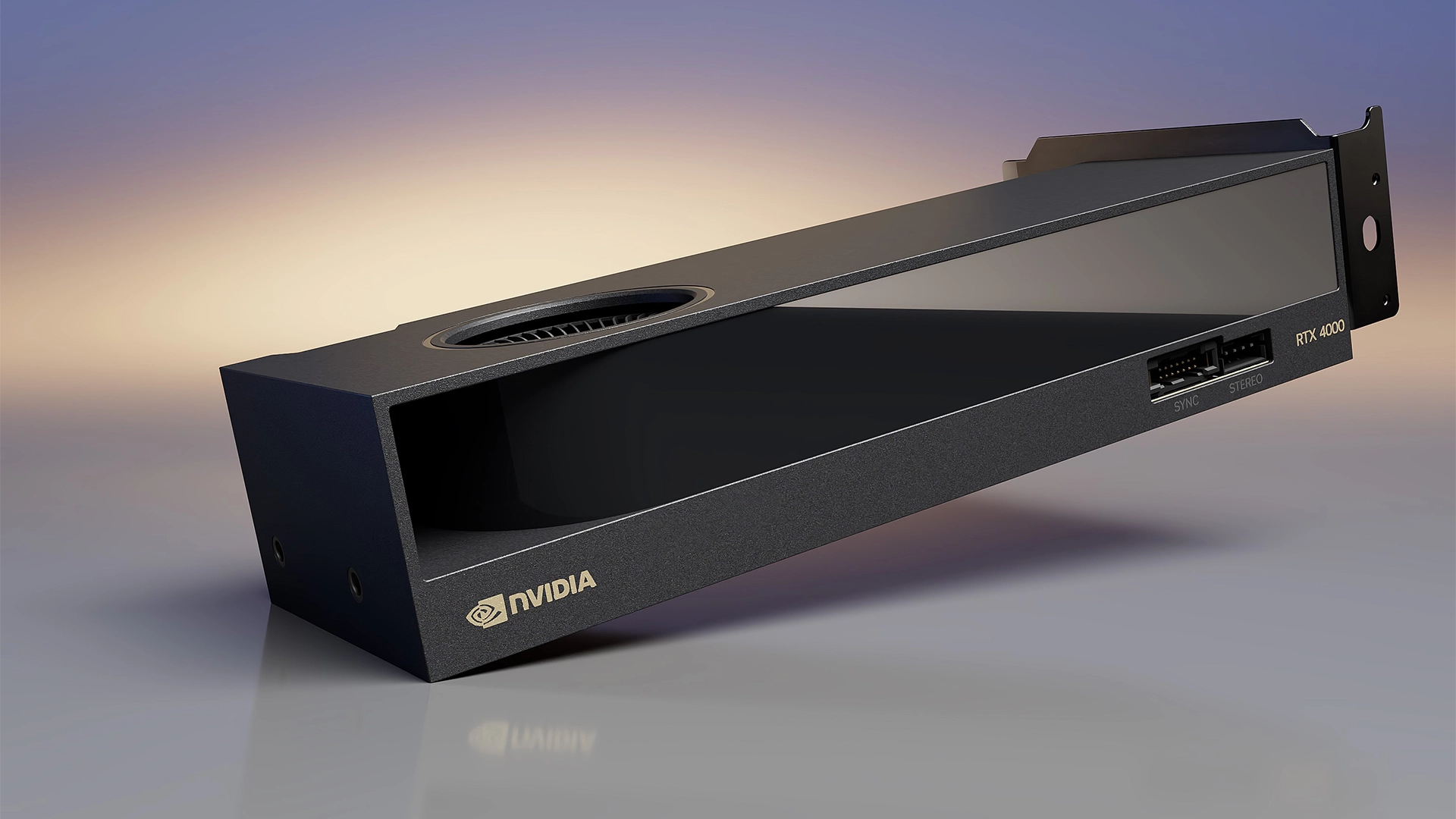

(Image credit: Nvidia)

There are loads of compact modern workstations that pack quite capable CPUs, but at the same time they lack the space to accommodate a standard high-performance workstation-grade graphics card. That typically limits them to entry-level GPUs with mediocre performance. For those that want a compact SFF workstation with more graphics oomph, Nvidia has introduced a new ProViz-oriented RTX 4000 SFF Ada Generation graphics card. It's one of the more interesting offerings in the recent years, packing a high-end GPU into a low-profile form-factor, with a power consumption of just 70W.

The Nvidia RTX 4000 SFF Ada board uses the company's AD104 graphics processing unit with 6144 CUDA cores enabled (out of 7680 in total). That's the same GPU as the RTX 4070 Ti but with fewer active cores, and the boost frequency gets capped at around 1560 MHz to lower total board power. On the other hand, the graphics card comes with 20GB of GDDR6 memory with ECC that connects to the GPU using a 160-bit interface, so lots of memory for workstation use.

The GPU comes with two NVENC encoders and two NVDEC decoders activated, though Nvidia has not touched upon exact capabilities of these units. They should be similar to the NVENC and NVDEC used in other Ada cards, and you can see the video encoding performance and quality in our recent roundup of GPUs.

The GA104 chip in this configuration delivers peak single precision performance of 19.2 TFLOPS, making it theoretically comparable to a GeForce RTX 3070. It has peak RT performance of 44.3 TFLOPS, and peak FP8/INT8 tensor performance of 306.8 TFLOPS/TOPS.

Nvidia

(Image credit: Nvidia)

Almost 20 FP32 TFLOPS may be dwarfed by the overwhelming performance of Nvidia’s RTX 6000 Ada Generation or GeForce RTX 4090, but the RTX 4000 SFF is a low-profile dual-slot graphics card that can fit into almost any desktop computer, even one that does not have a spare auxiliary PCIe power connector. Interestingly, RTX 4000 Ada’s 153/306.8 INT8 TFLOPS (without and with sparsity, respectively) performance is very close to that of Nvidia’s GeForce RTX 3090 Ti that is both more expensive and far more power hungry.

Swipe to scroll horizontally
Nvidia RTX 40-Series Specifications
Row 0 - Cell 0 GPUFP32 CUDA CoresFP32 TFLOPSINT8 TFLOPSMemory ConfigurationTBPMSRP
GeForce RTX 4070 TiAD104768040 TFLOPS160/320 TFLOPS12GB 192-bit 21 GT/s GDDR6X285W$799
GeForce RTX 4070AD1045888 (?)??12GB 192-bit 21 GT/s GDDR6X250W (?)?
RTX 4000 Ada GenerationAD104614419.2 TFLOPS153/307 TFLOPS20GB 160-bit 16 GT/s GDDR6 ECC70W$1,250
GeForce RTX 3090 TiGA10210,75240 TFLOPS160/320 TFLOPS24GB 384-bit 20 GT/s GDDR6X450W$1,999
GeForce RTX 3070GA104588820.31 TFLOPS81/160 TFLOPS8GB 256-bit 14 GT/s GDDR6220W$499

Since this is a workstation-grade add-in-board, it comes with four DisplayPort 1.4a connectors, has a 3-pin mini-DIN connector for stereoscopic 3D output (e.g. Nvidia 3D Vision), and supports Frame Lock capability for multi-display applications.

Speaking of multi display applications, one of the benefits of the compact dimensions, low power consumption, and broad compatibility of Nvidia’s RTX 4000 Ada Generation graphics card is the ability to install a number of such boards into a relatively compact system. It wouldn't need a high-wattage PSU and could still drive multi-display and video wall applications. Such systems are widely used by various industries, including aerospace, healthcare, military, pro A/V, digital signage, and security, just to name a few.

Starting in April, the newly released Nvidia's RTX 4000 SFF graphics cards for professional visualization applications will be available from the company's distribution partners like Leadtek, PNY, and Ryoyo Electro, with a recommended price of $1,250. Additionally, workstation manufacturers will offer this product later in the year.

Anton Shilov
Contributing Writer

Anton Shilov is a contributing writer at Tom’s Hardware. Over the past couple of decades, he has covered everything from CPUs and GPUs to supercomputers and from modern process technologies and latest fab tools to high-tech industry trends.
