Brightness and Contrast

To read about our monitor tests in-depth, please check out Display Testing Explained: How We Test PC Monitors. We cover brightness and contrast testing on page two.

Uncalibrated – Maximum Backlight Level

Image 1 of 3

Asus ROG Swift PG42UQ — (Image credit: Tom's Hardware)

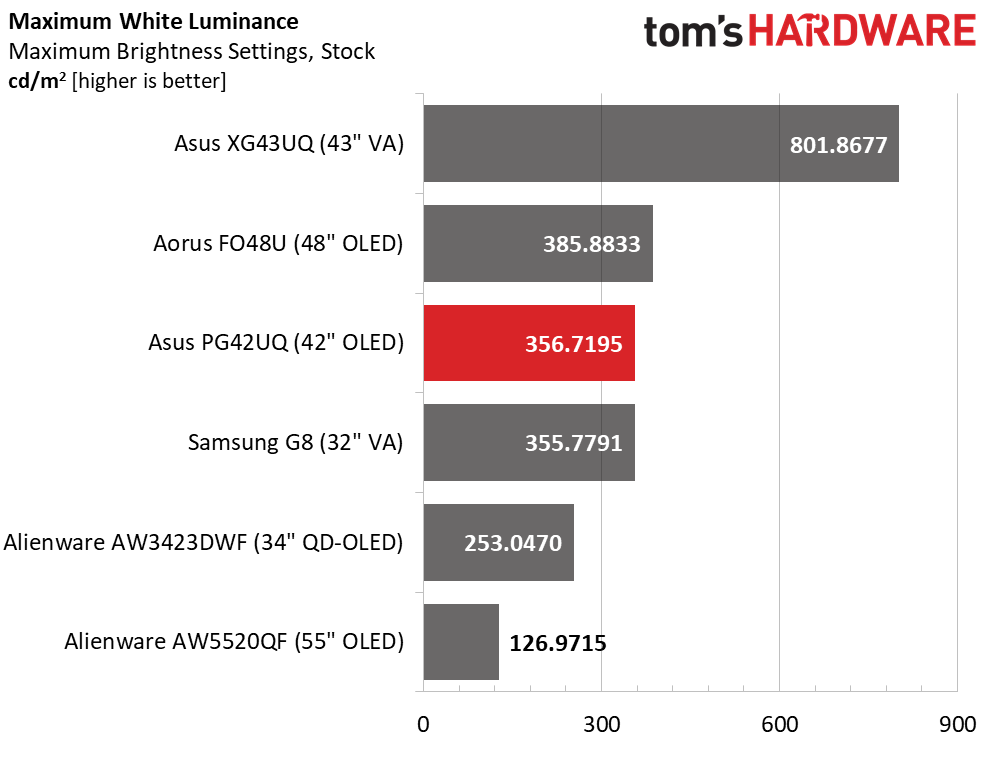

If you need a super-bright monitor, OLED is not the tech for you. The PG42UQ is on par with its competition at just over 350 nits for SDR. This was determined by measuring a 25% window pattern. A full field pattern returned around 190 nits. If you turn on the Uniform Brightness option, windows and fields will measure the same, about 190 nits peak. The AW5520QF is an early-generation product and cannot muster the light output of newer panels. The XG43UQ’s VA panel is the obvious choice for those needing a light cannon in their office.

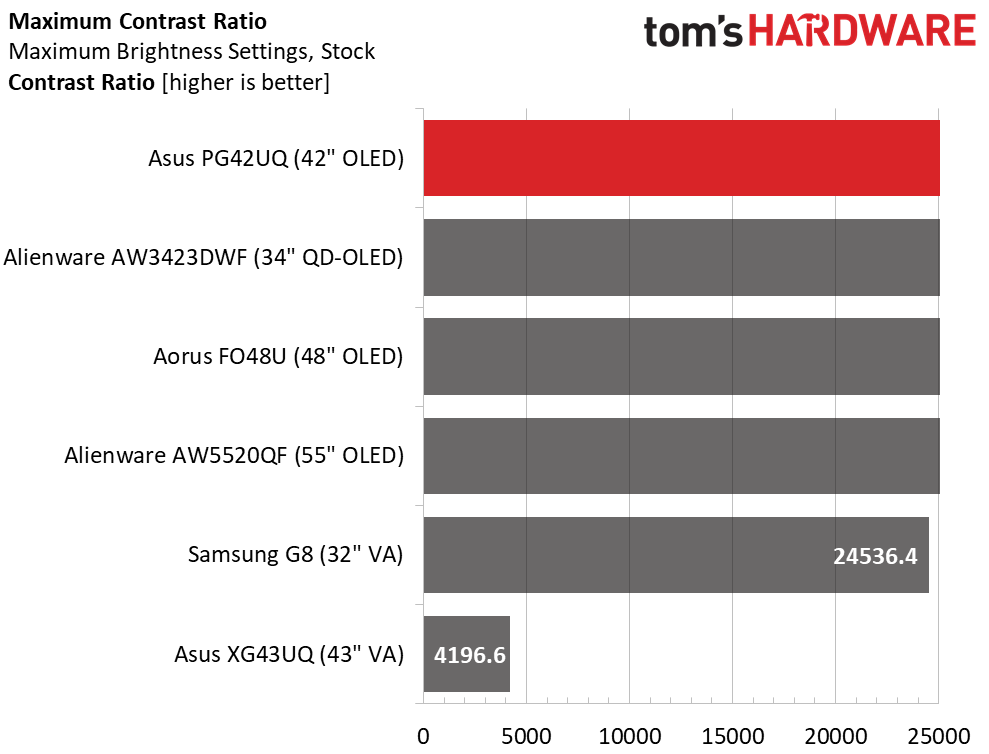

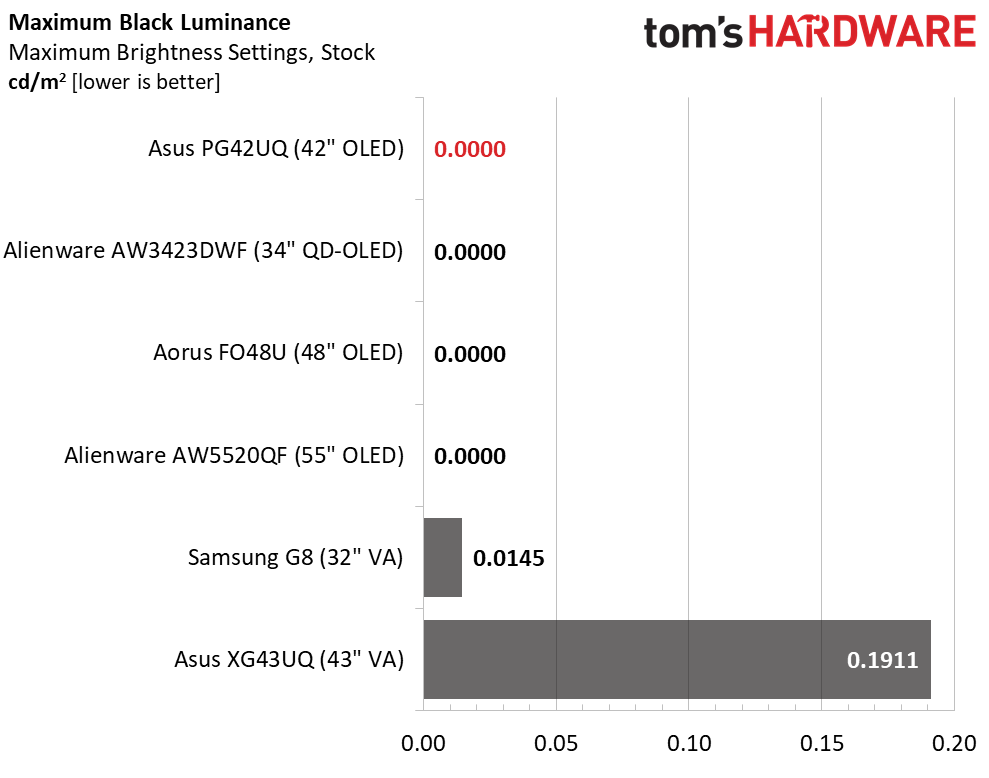

All four OLEDs have unmeasurable black levels and, therefore, infinite contrast. I’ve formatted the charts to reflect this. The G8 uses an always-active zone-dimming Mini LED backlight to achieve over 24,000:1 contrast which is impressive. The XG43UQ’s result is in the panel’s native state with no dynamic contrast in play.

After Calibration to 200 nits

Image 1 of 3

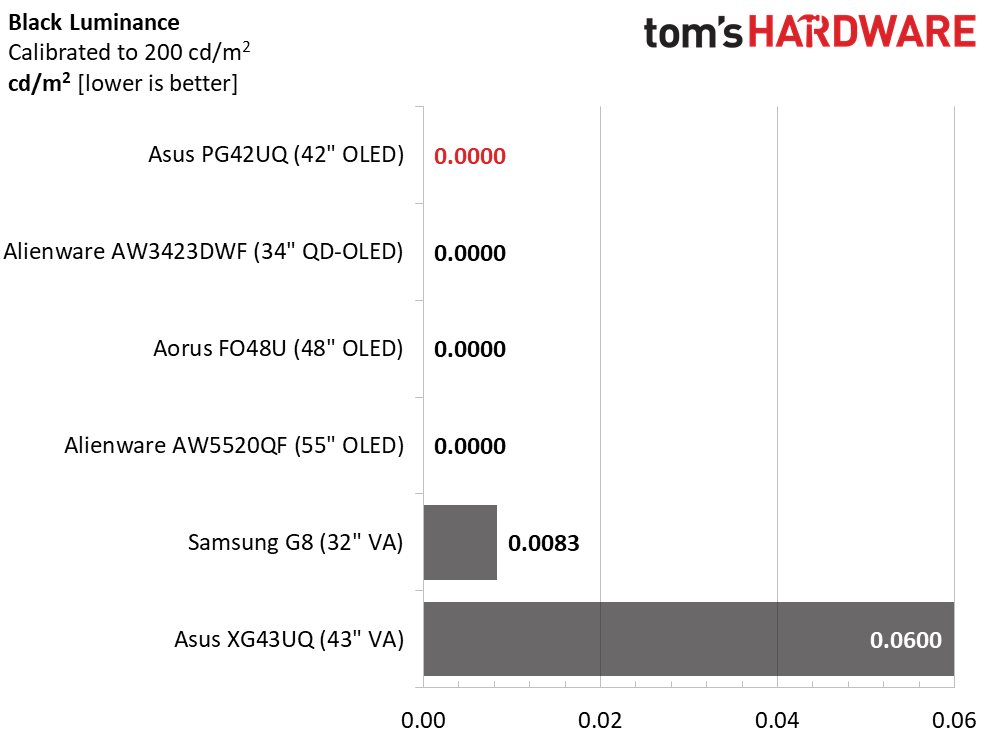

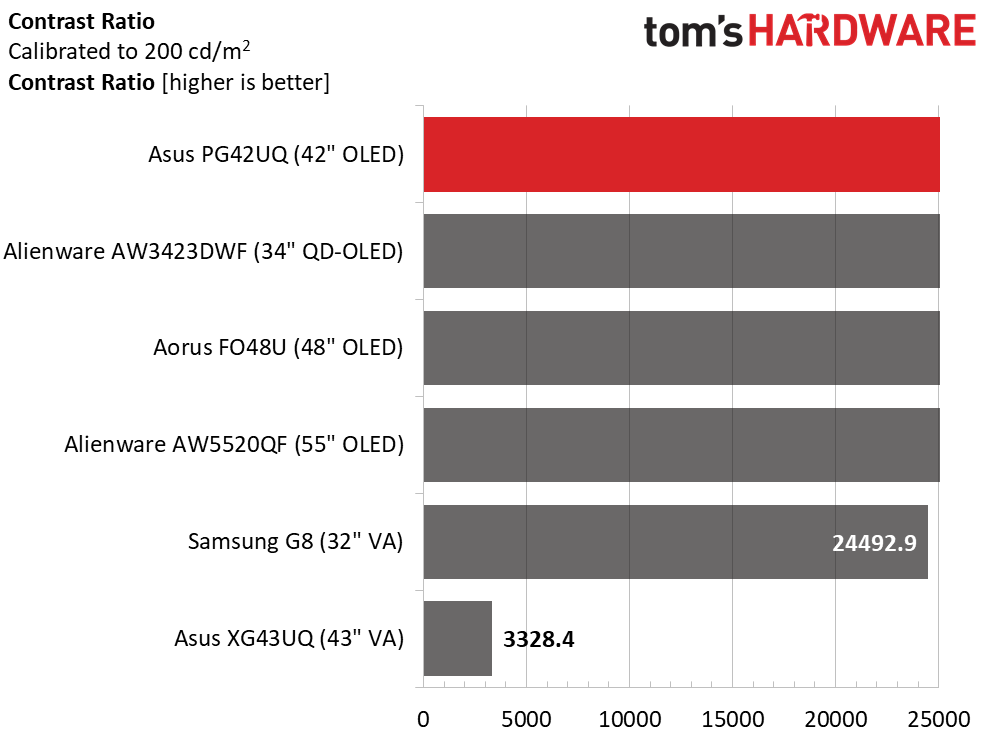

I set the PG42UQ to 200 nits with a window pattern to level the playing field for the calibrated comparison. In practice, I leave its brightness slider maxed because the picture is never too bright. Black levels remain impossible to measure.

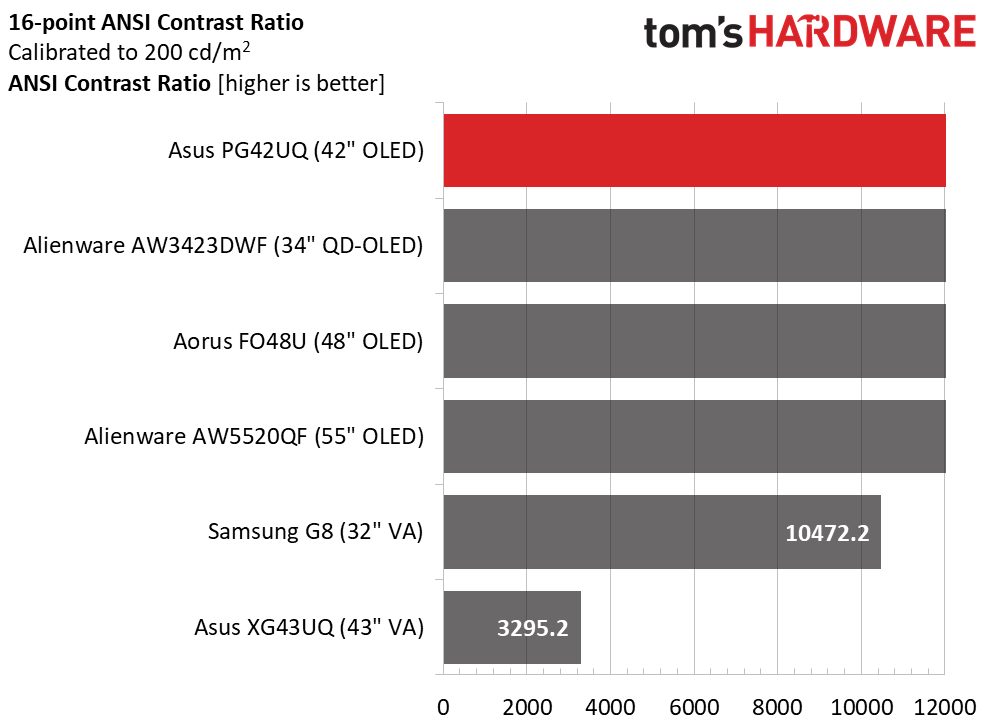

The ANSI test yields the same results though the G8’s value is cut in half. It’s still an incredible monitor among LCDs and can deliver over 2,000 nits in HDR mode. But it still won’t have the look of an OLED. Their contrast and black levels are something that no LCD can match.

MORE: Best Gaming Monitors

MORE: How We Test PC Monitors

MORE: How to Buy a PC Monitor: A 2022 Guide

MORE: How to Choose the Best HDR Monitor

Current page: Brightness and Contrast

Prev Page Response, Input Lag, Viewing Angles and Uniformity Next Page Grayscale, Gamma and Color

Christian Eberle is a Contributing Editor for Tom's Hardware US. He's a veteran reviewer of A/V equipment, specializing in monitors.
