Corsair AX1600i PSU Review

Efficiency, Temperature & Noise

Efficiency

Our efficiency testing procedure is detailed here.

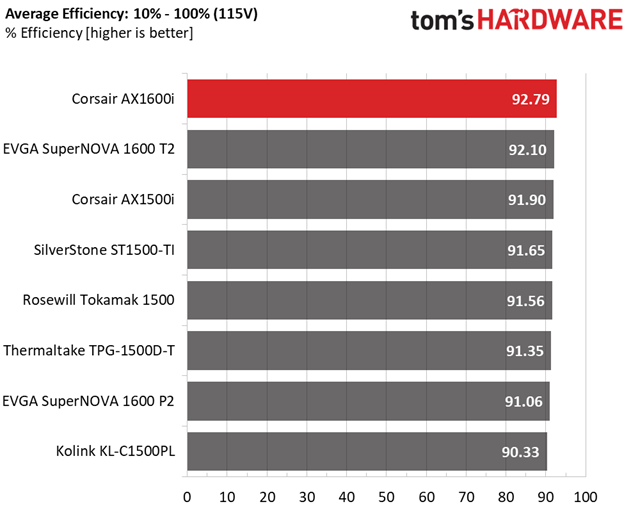

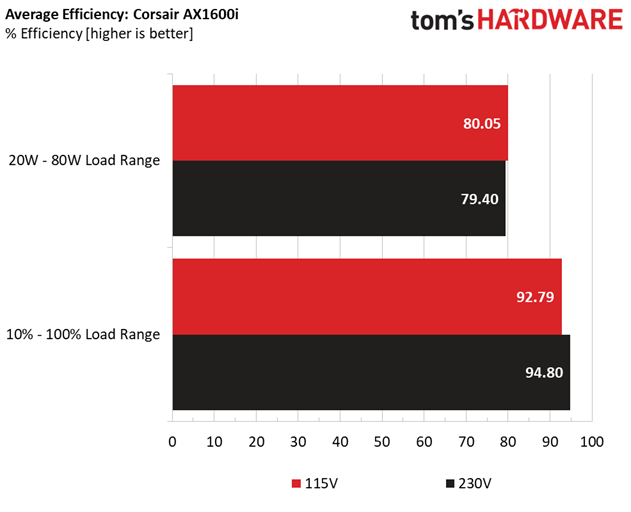

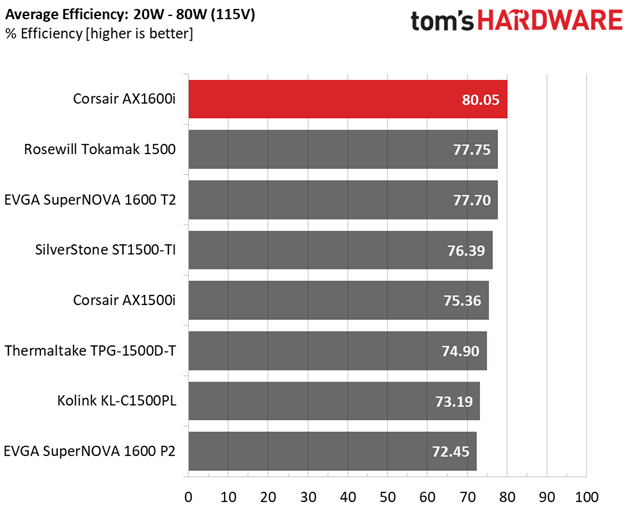

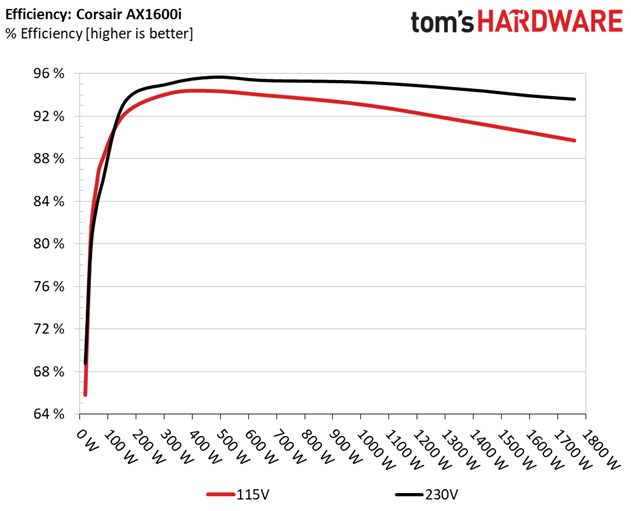

Using results from the previous page, we plotted a chart showing the AX1600i's efficiency at low loads, and loads from 10 to 110 percent of its maximum-rated capacity.

This PSU's efficiency is out-of-this-world, especially under light loads.

Efficiency At Low Loads

In the following tests, we measure the AX1600i's efficiency at loads significantly lower than 10 percent of its maximum capacity (the lowest load the 80 PLUS standard measures). The loads we dialed were 20, 40, 60, and 80W. This is important for representing when a PC is idle, with power-saving features turned on.

Test #12V5V3.3V5VSBDC/AC (Watts)EfficiencyFan Speed
PSU Noise
PF/AC Volts
11.212A0.502A0.482A0.201A19.67965.803%0 RPM
<6.0 dB(A)
0.887
12.027V4.991V3.305V4.988V29.906115.10V
22.455A0.999A0.995A0.401A39.80280.976%0 RPM
<6.0 dB(A)0.944
12.027V4.991V3.307V4.986V49.153115.10V
33.696A1.497A1.508A4.985A59.91085.527%0 RPM
<6.0 dB(A)0.920
12.027V4.993V3.307V4.985V70.048115.10V
44.926A2.005A1.995A0.801A79.84387.882%0 RPM
<6.0 dB(A)0.917
12.026V4.994V3.307V4.983V90.853115.10V

With only 20W load (1.25% of this unit's capacity), the efficiency we measure is quite high at almost 66%. During the other three tests, our efficiency results improve significantly, easily surpassing the 80% mark. We would like to see higher PF readings, though, given that the PFC converter is digitally controlled. It probably needs some fine-tuning under light loads.

Corsair Link Screenshots

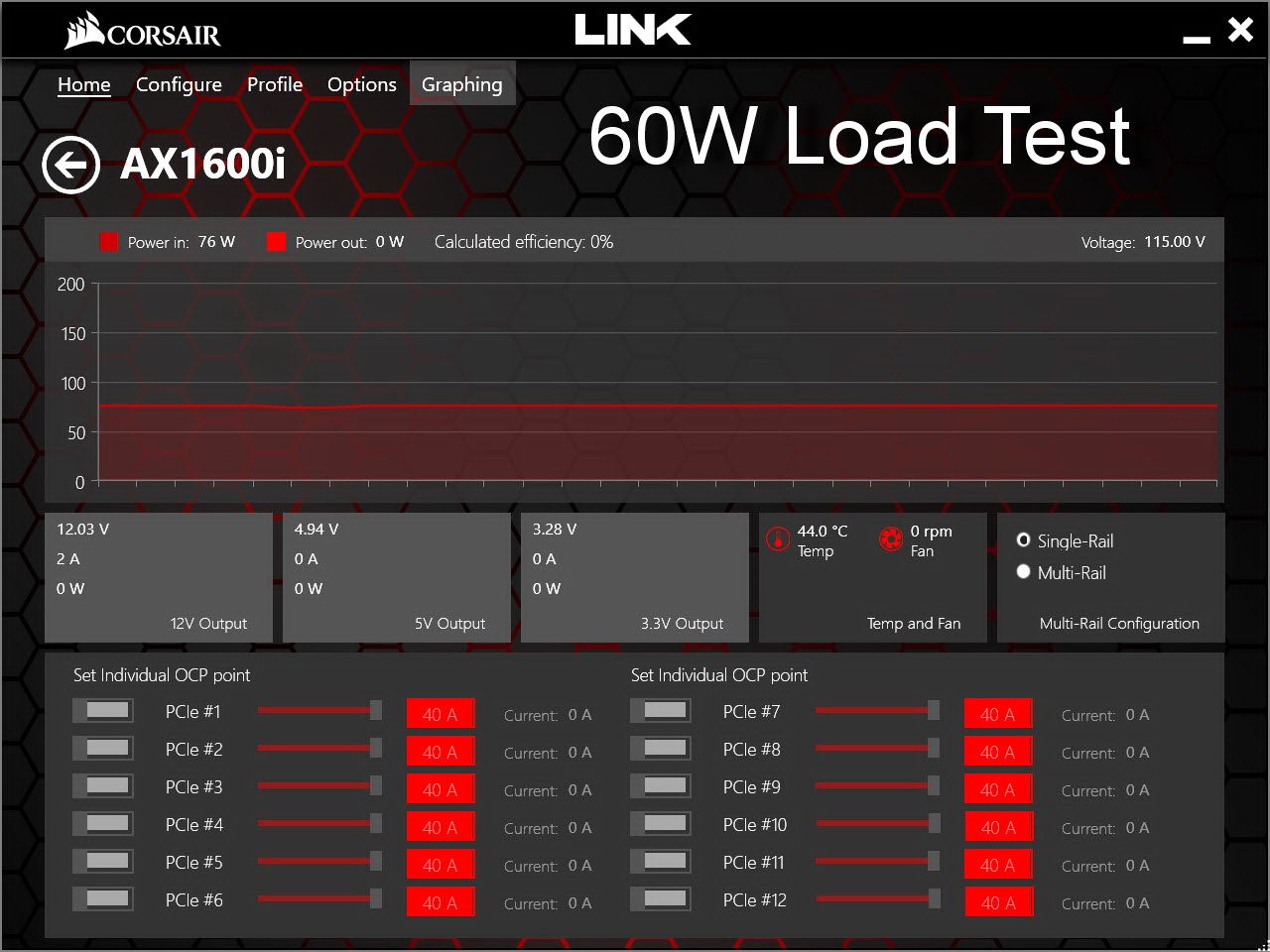

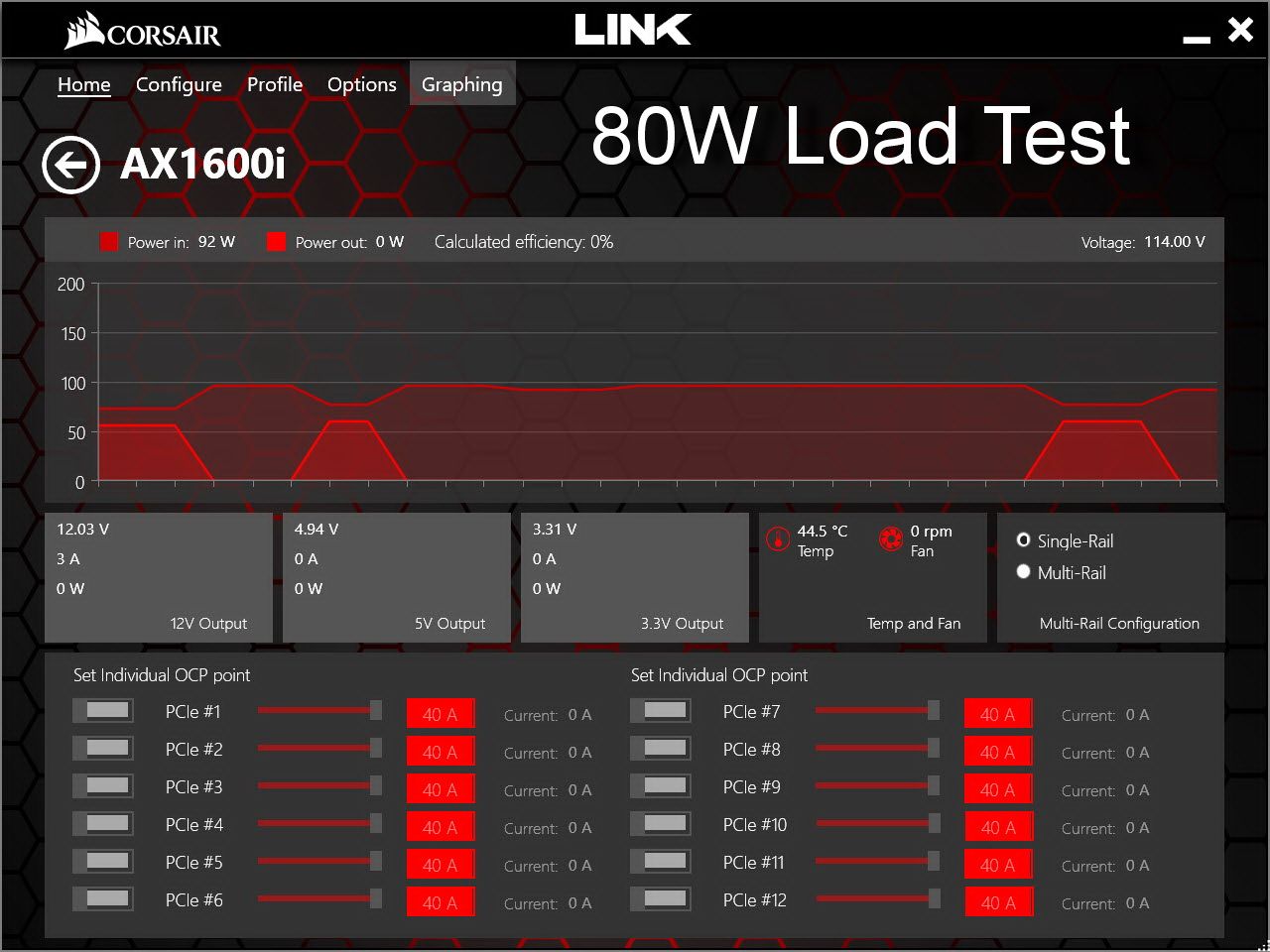

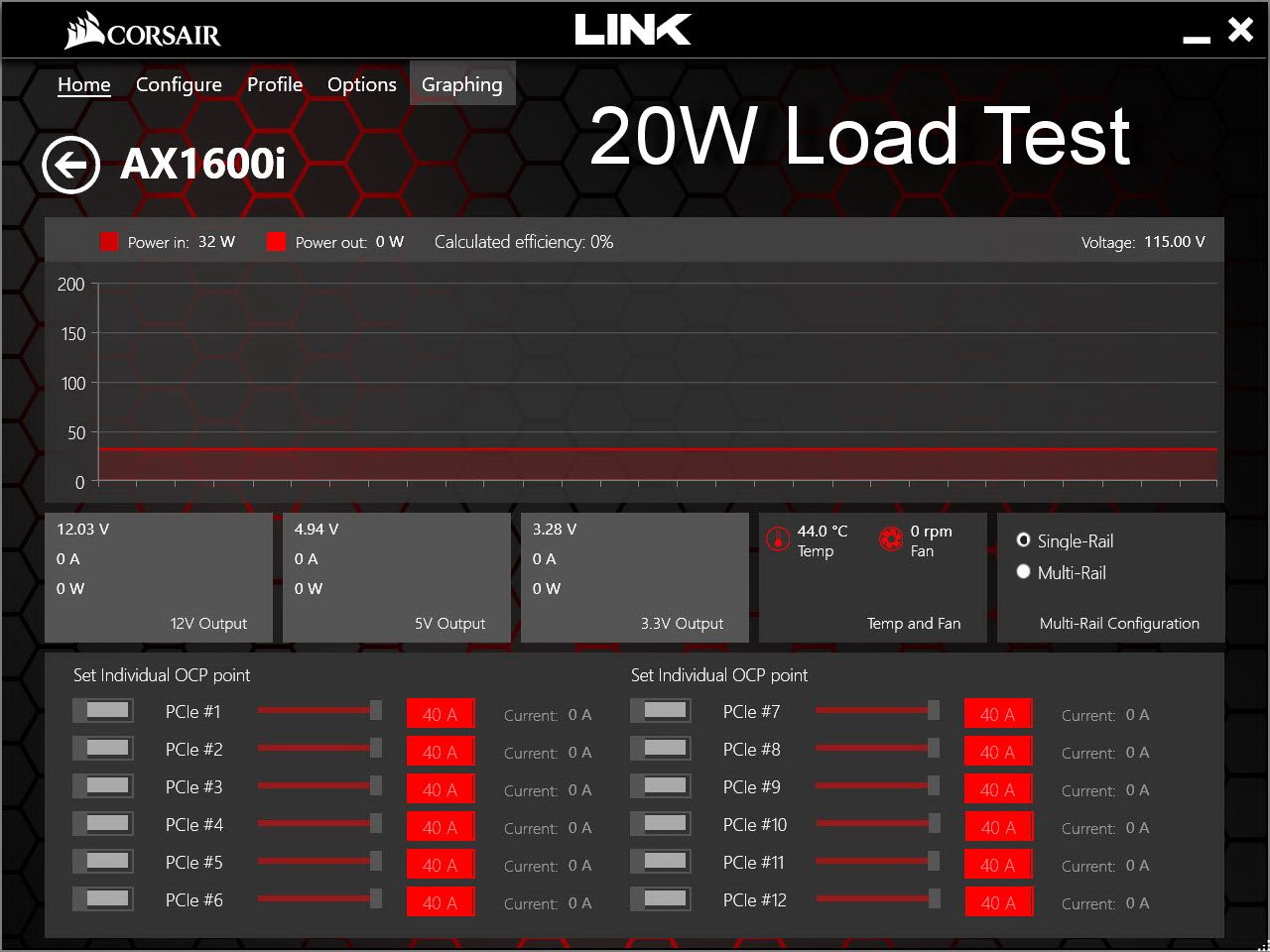

Below you will find screenshots of the Corsair Link software, which we took during the light-load test sessions.

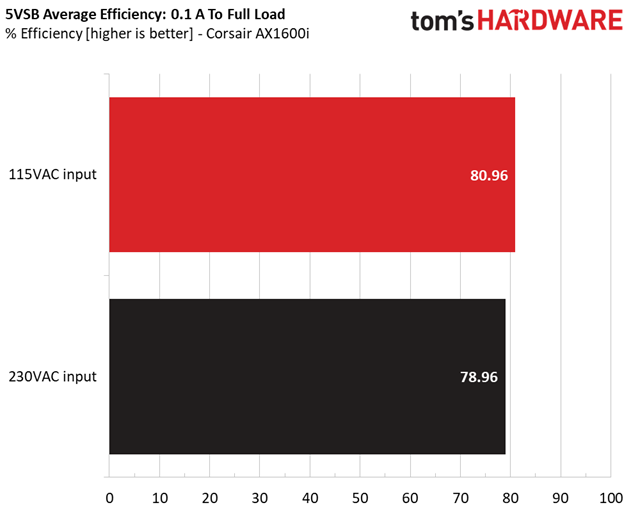

5VSB Efficiency

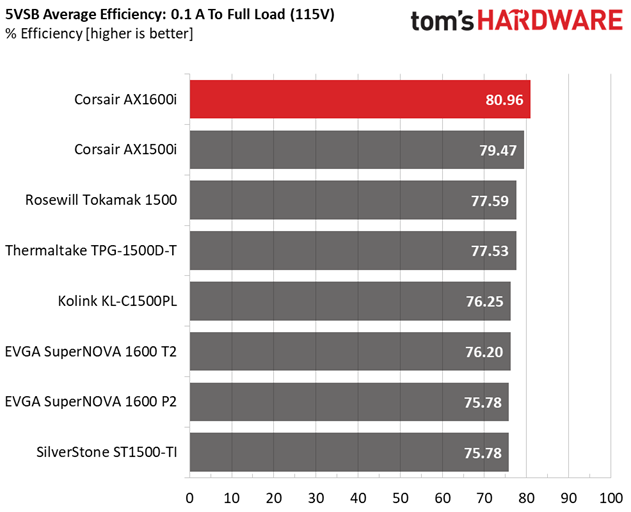

The ATX specification, along with CEC, ErP Lot 3 2014 and ErP Lot 6 2010/2013, states that 5VSB standby supply efficiency should be as high as possible, recommending 75 percent or higher with 550mA, 1A, and 1.5A of load. The PSU should also achieve higher than 75% efficiency at 5VSB under full load, or with 3A if its max current output on this rail is higher than 3A.

We take six measurements: one each at 100, 250, 550, 1000, and 1500mA, and one with the full load the 5VSB rail can handle.

Test #5VSBDC/AC (Watts)EfficiencyPF/AC Volts
10.101A0.51177.778%0.039
5.038V0.657115.14V
20.252A1.26881.074%0.092
5.035V1.564115.12V
30.542A2.72980.123%0.185
5.032V3.406115.16V
41.002A5.03683.075%0.290
5.025V6.062115.11V
51.502A7.53583.444%0.371
5.018V9.030115.14V
63.502A17.47681.897%0.516
4.991V21.339115.16V

The 5VSB rail is very efficient as well. Flextronics obviously put some effort into this circuit's design.

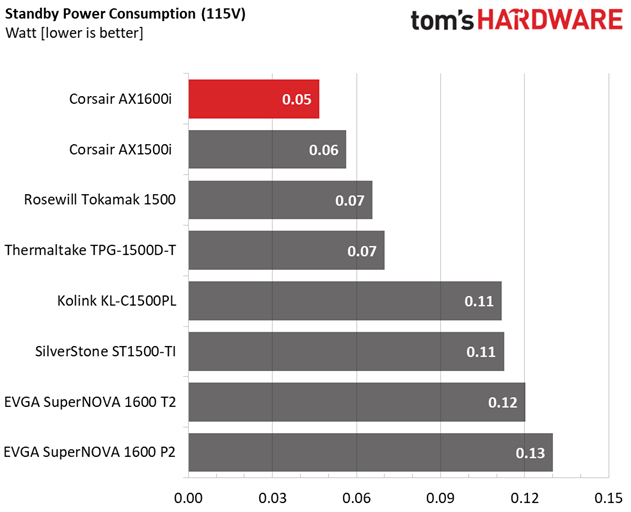

Power Consumption In Idle And Standby

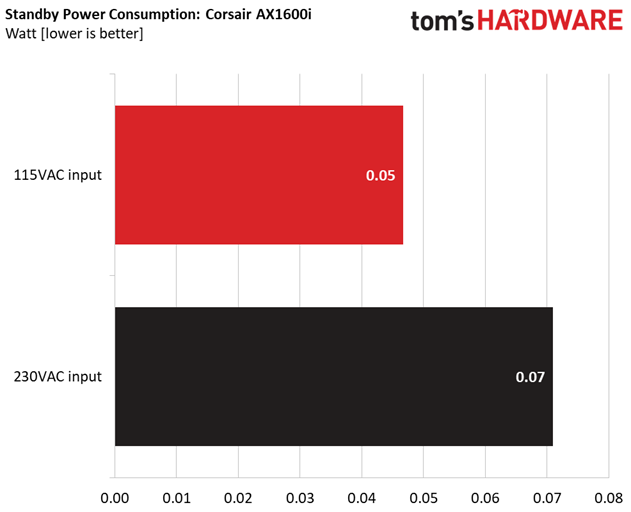

In the table below, you'll find the power consumption and voltage values of all rails (except -12V) when the PSU is idle (powered on, but without any load on its rails), and the power consumption when the PSU is in standby mode (without any load, at 5VSB).

Mode12V5V3.3V5VSBWattsPF/AC Volts
Idle12.027V5.011V3.305V5.009V9.4720.536
115.1V
Standby0.0480.003
115.1V

The power consumption at idle is kept super low with both 115V and 230V input.

Fan RPM, Delta Temperature, And Output Noise

Our mixed noise testing is described in detail here.

The first chart below illustrates the cooling fan's speed (in RPM), and the delta between input and output temperature. The results were obtained at 38°C (100.4°F) to 48°C (118.4°F) ambient temperature.

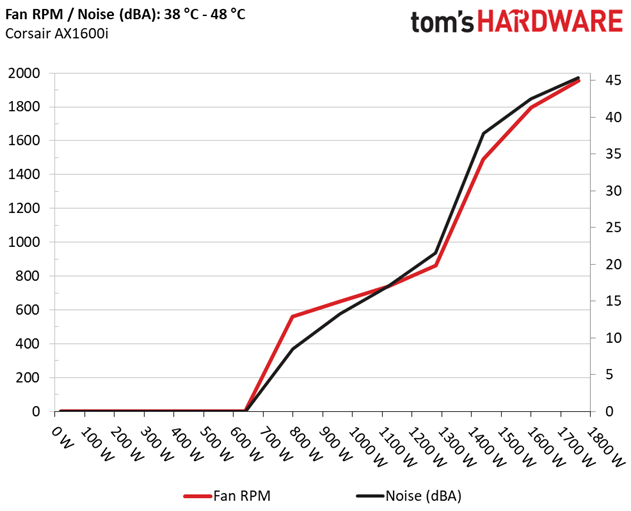

The next chart shows the cooling fan's speed (again, in RPM) and output noise. We measured acoustics from one meter away, inside a hemi-anechoic chamber. Background noise inside the chamber was below 6 dB(A) during testing (it's actually much lower, but our sound meter’s microphone hits its floor), and the results were obtained with the PSU operating at 38°C (100.4°F) to 48°C (118.4°F) ambient temperature.

The following graph illustrates the fan's output noise over the PSU's operating range. The same conditions of the above graph apply to our measurements, though the ambient temperature was between at 30°C (86°F) to 32°C (89.6°F).

The fan profile is highly relaxed, especially if we take into account that this is a 1.6kW PSU.

The last graph illustrates the fan's speed over the PSU's operating range. The same conditions with the previous graph apply to our measurements, including the ambient temperature.

Once you push the minor rails hard, the semi-passive mode doesn't last long, however the fan's speed is kept low.

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content
