Corsair AX1600i PSU Review

Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the AX1600i's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).

Test12V5V3.3V5VSBPass/Fail
10% Load5.7mV3.1mV5.1mV2.6mVPass
20% Load7.3mV3.3mV5.3mV2.9mVPass
30% Load8.3mV3.5mV5.5mV3.0mVPass
40% Load8.8mV3.7mV5.6mV2.9mVPass
50% Load8.2mV3.6mV5.4mV2.8mVPass
60% Load8.7mV3.9mV6.0mV2.9mVPass
70% Load8.4mV4.0mV5.9mV3.0mVPass
80% Load8.5mV4.6mV6.4mV3.3mVPass
90% Load8.8mV4.6mV7.1mV3.7mVPass
100% Load9.8mV5.5mV6.9mV3.8mVPass
110% Load11.1mV4.7mV6.4mV3.2mVPass
Cross-Load 16.5mV5.2mV4.7mV2.6mVPass
Cross-Load 210.2mV4.2mV6.4mV3.3mVPass

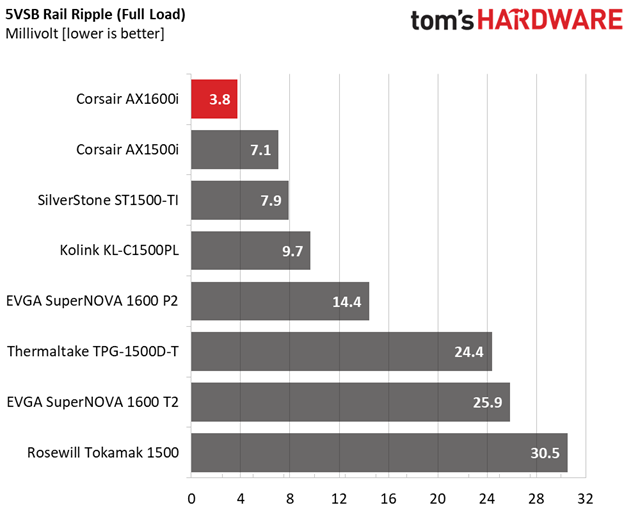

The AX1600i's ripple suppression is amazing! Besides super-tight load regulation, this digital platform also allows for DC rails that are clear of ripple.

Ripple Oscilloscope Screenshots

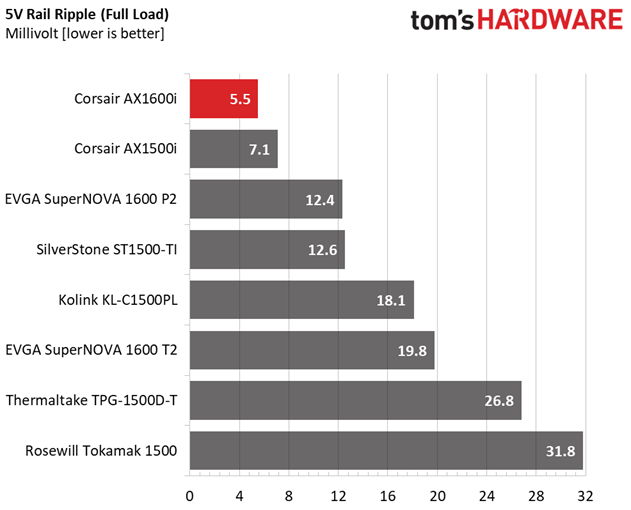

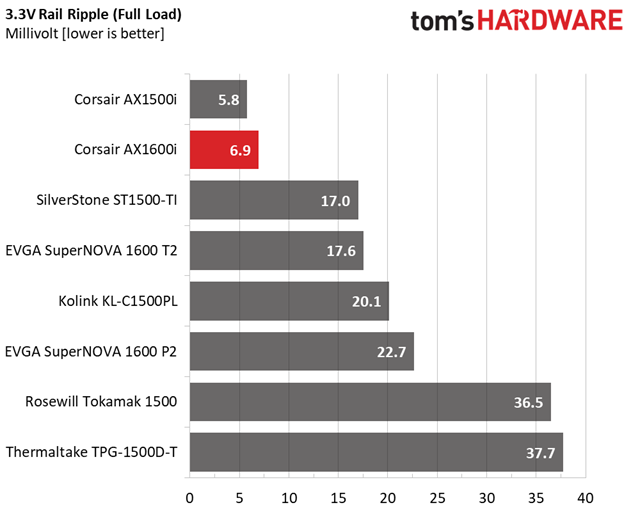

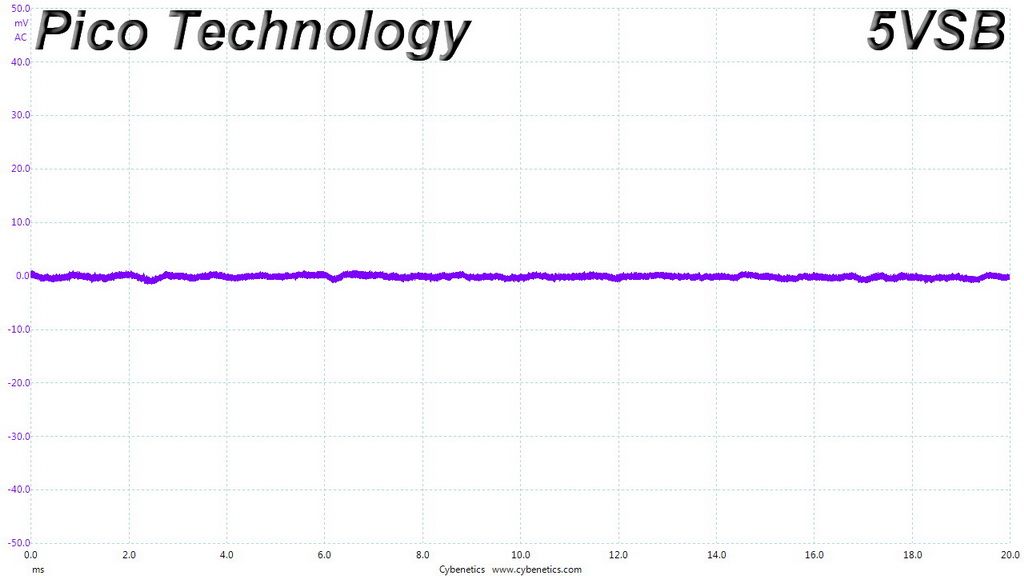

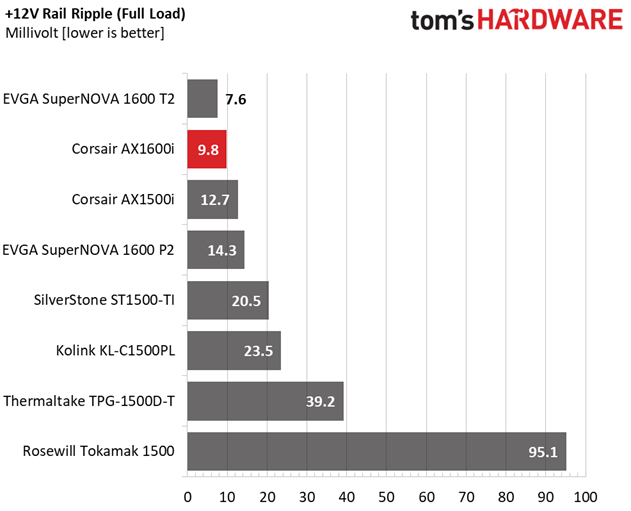

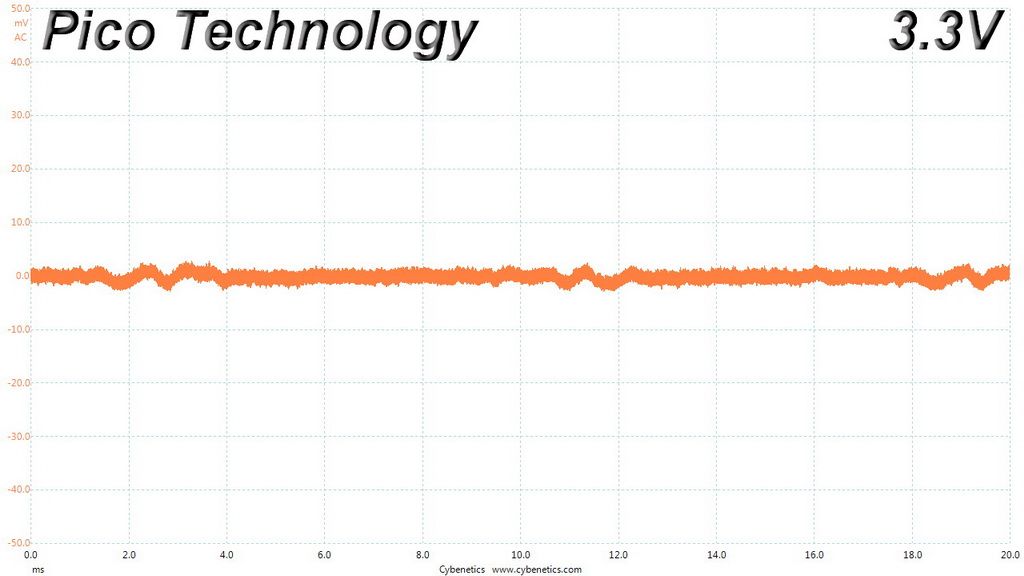

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

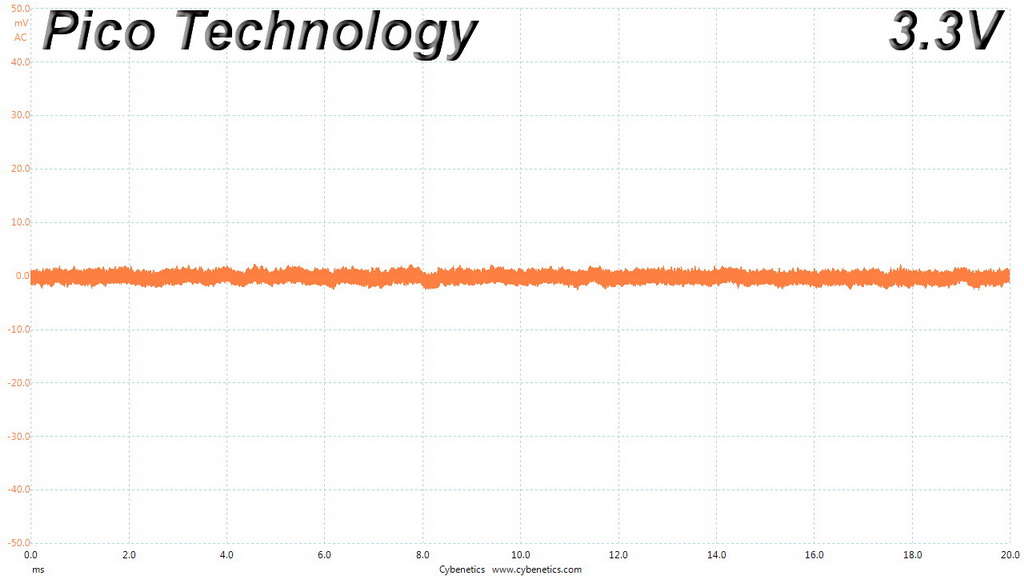

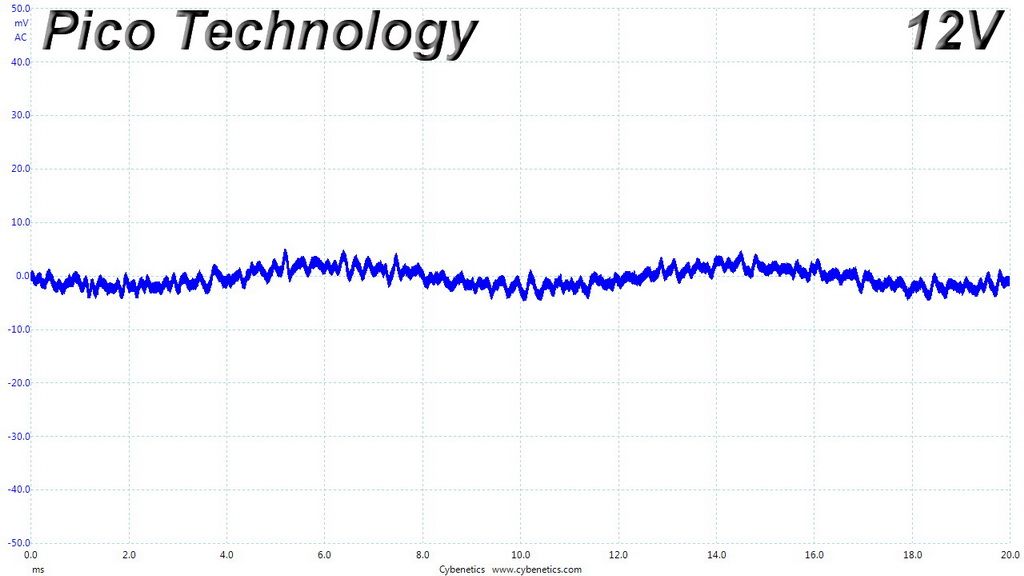

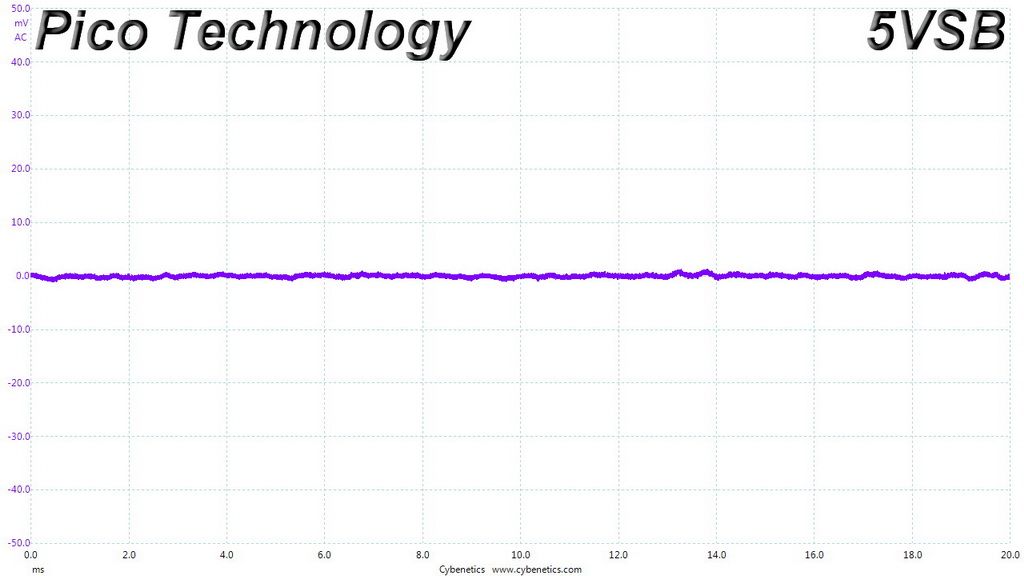

Ripple At Full Load

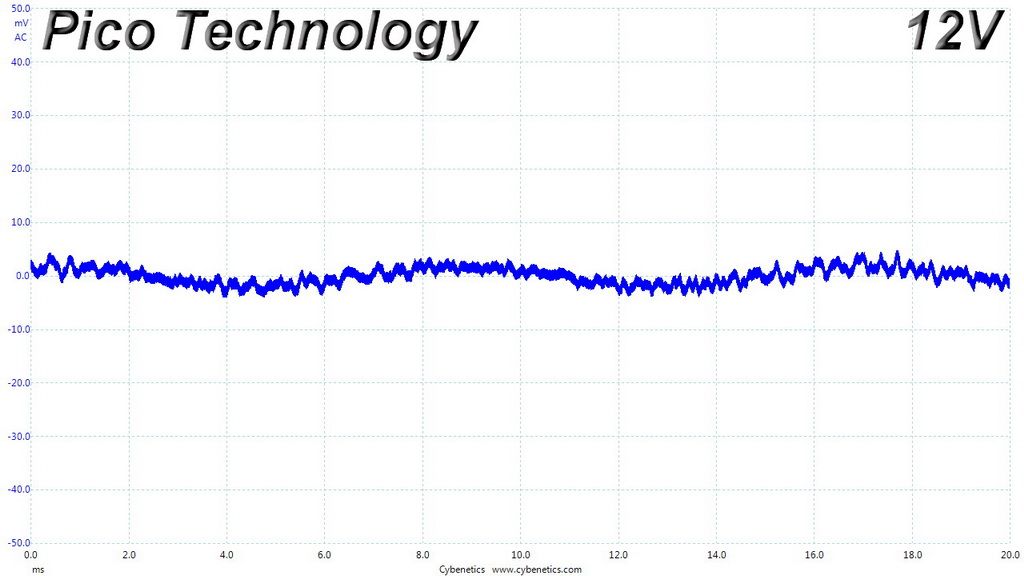

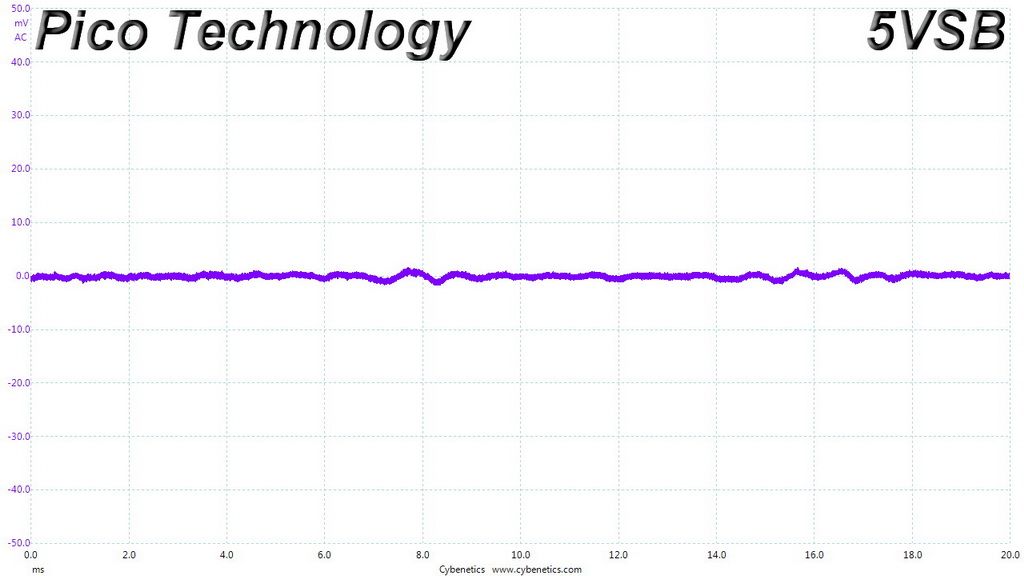

Ripple At 110-Percent Load

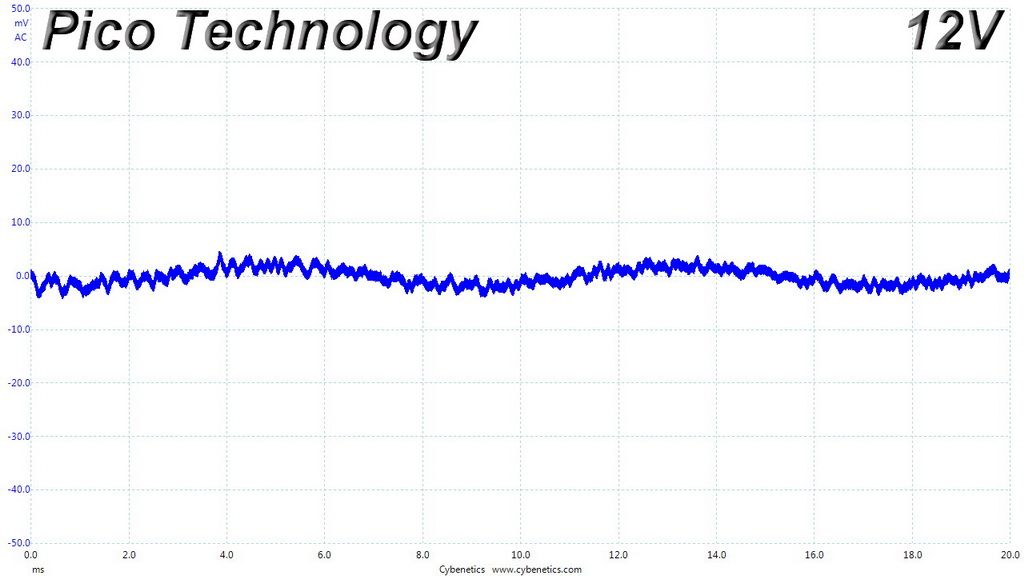

Ripple At Cross-Load 1

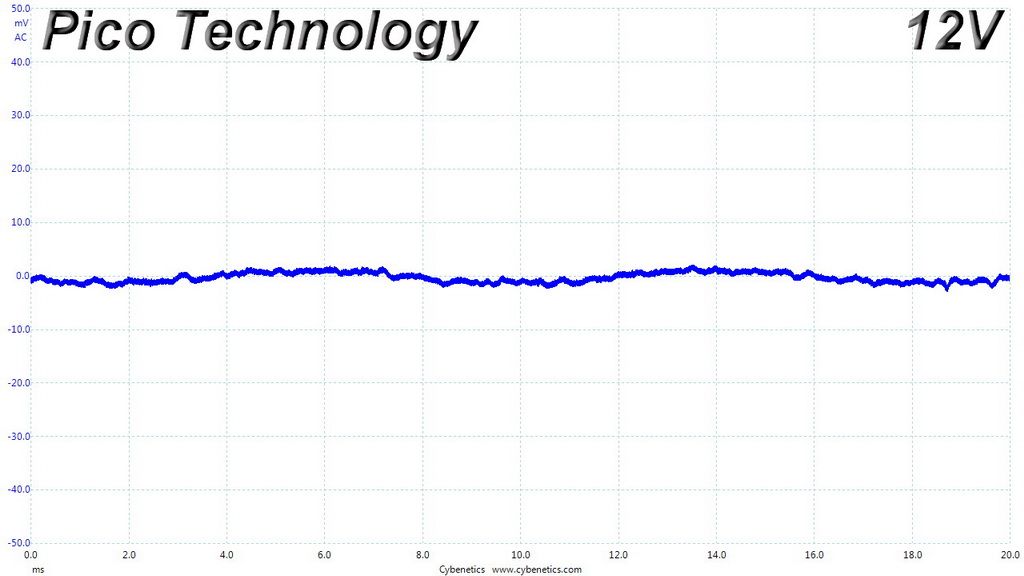

Ripple At Cross-Load 2

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content
