Performance, Value, Noise & Efficiency
The following graph shows the AX1600i's total performance rating, comparing it to other units we have tested. To be more specific, the tested unit is shown as 100 percent, and every other unit's performance is shown relative to it.
We have a new king! The AX1600i leaves its predecessor, the AX1500i, behind. This is the best-performing PSU for now, and it'll be difficult for any of Corsair's competitors to come up with anything notably better.
Performance Per Dollar
The following chart may be the most interesting to many of you because it depicts the unit's performance-per-dollar score. We looked up the current price of each PSU on popular online shops and used those prices and all relative performance numbers to calculate the index. If the specific unit wasn't available in the United States, we searched for it in popular European Union shops, converting the listed price to USD (without VAT). Note that all of the numbers in the following graph are normalized by the rated power of each PSU.
Despite its extraordinary performance, the AX1600i's high price tag doesn't leave much room for a value argument. Corsair managed though to keep the same price with its predecessor, providing a great asset to the new model.
The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30°C and 32°C (86°F to 89.6°F).
This is a massive-capacity PSU that keeps noise output in check. Corsair's high-end offerings are the only ones that stay below 30 dB(A) overall noise.

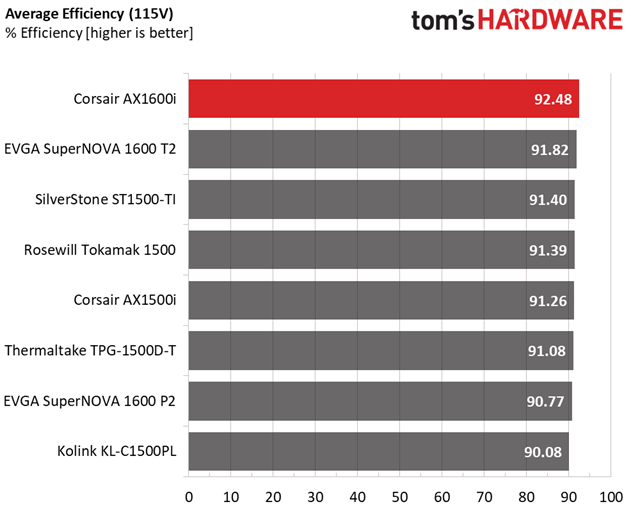

The following graph shows the PSU's average efficiency throughout its operating range, with an ambient temperature close to 30°C.
The AX1500i was starting to show its age; several competing power supplies passed it in this comparison (though not by much). So far, the AX1600i is the only high-capacity model in our charts to achieve >92% overall efficiency.
MORE: Best Power Supplies
MORE: All Power Supply Content
Current page: Performance, Value, Noise & EfficiencyPrev Page EMC Pre-Compliance Testing Next Page Final Analysis
Stay on the Cutting Edge
Join the experts who read Tom's Hardware for the inside track on enthusiast PC tech news — and have for over 25 years. We'll send breaking news and in-depth reviews of CPUs, GPUs, AI, maker hardware and more straight to your inbox.
Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.
Chinese foundry SMIC is bruised but not broken by U.S. sanctions — revenue still much higher than in 2021 and 5nm node on track
HP begins subscription plans for its printers and ink — up to $36 per month, includes limits and cancellation fees
Analyst estimates Nvidia is now TSMC's second largest customer accounting for 11% of revenue in 2023
Excellent review , thanks!Reply
Excellent review. But I cannot view the video's, what format do you use?Reply
all of we need is 500w class digital titanium++ psu with this advance technology..Reply
Well, pc is much more efficient right now..
I wonder how many people will use it anyway...
Videos working fine here.Reply
PCs are more efficient, however graphics cards once pushed are not and many users tend to overclock their GPUs. Moreover, those units are intended for multi-GPU systems.
Do you do you fan and noise measurements with 110V or 220V? That should make a difference in this case at least.Reply
20574970 said:Do you do you fan and noise measurements with 110V or 220V? That should make a difference in this case at least.
115V but I also take noise measurements with 230V because of Cybenetics.
115V: 23.25 dB(A)
230V: 23.29 dB(A)
Specifically at what point does it change from passive to active cooling using either 110V or 220V?Reply
please check the CL noise graph of the review.Reply
Primary DSC should be NXP Freescale MC56F8236Reply
Secondary DSC is Texas Instruments UCD3138064A
