Corsair CX450 PSU Review: Two Flavors, Tested and Compared

Corsair's budget-oriented CX450 is unique in that it's manufactured by two different OEMs--Great Wall and Channel Well Technology (CWT)--each of which uses a distinct platform. The only way to tell them apart is by their RPS numbers, reference designators given to each model. Both configurations share the CX450's principal weakness: fixed cables. However, they both utilize modern platforms featuring LLC resonant converters and voltage regulation modules, along with high-quality fans.

Priced at $49.99 on Corsair's website (and cheaper elsewhere), Corsair's CX450 isn't the cheapest name-brand 450W power supply out there. That honor goes to EVGA's 450 BT with a list price of $45 (and a street price closer to $30). Although the 450 BT is a solid option, it's based on an outdated platform, comes equipped with a lower-quality sleeve bearing fan and includes a three-year warranty. Meanwhile, Corsair covers the CX450 with five years of protection. It's worth spending the extra money for a more modern design and extra warranty coverage.

Corsair has a habit of quietly updating its products without changing their names, but still improving them. As a result, it's sometimes difficult to distinguish between the older and newer designs. Further complicating matters, if you buy the PSU online there's no telling if you have Great Wall's or CWT's version. Fortunately, there's not much difference between their performance. Noise output is another matter entirely, though.

The aforementioned RPS numbers help with identification. Corsair CX450s that CWT made are stamped with RPS0053, while the ones Great Wall made say RPS0063. Since we have both versions in our lab, we tested them side-by-side to determine if one is better than the other.

Specifications

On paper, the specifications of both platforms are identical. The only notable difference is their fans: CWT's is technically a higher-quality model.

Manufacturer (OEM)CWT (RPS0053), Great Wall (RPS0063)
Max. DC Output450W
EfficiencyCWT (RPS0053): 80 PLUS Bronze, ETA-S (82-85%)
Great Wall (RPS0063): 80 PLUS Bronze, ETA-A- (85-88%)
NoiseCWT (RPS0053): LAMBDA-A- (25-30 dB[A])
Great Wall (RPS0063): LAMBDA-S+ (35-40 dB[A])
Modular
Intel C6/C7 Power State Support
Operating Temperature (Continuous Full Load)0 - 40°C
Over-Voltage Protection
Under-Voltage Protection
Over-Power Protection
Over-Current (+12V) Protection
Over-Temperature Protection
Short Circuit Protection
Surge Protection
Inrush Current Protection
Fan Failure Protection
No Load Operation
CoolingCWT (RPS0053): 120mm rifle bearing fan (HA1225M12F-Z)
Great Wall (RPS0063): 120mm rifle bearing fan (D12SM-12)
Semi-Passive Operation
Dimensions (W x H x D)152 x 87 x 143mm
Weight1.74 kg (3.84 lb)
Form FactorATX12V v2.4, EPS 2.92
WarrantyFive years

A five-year warranty is on the long side for a budget power supply. Plus, all of the protection features we'd expect from a name-brand PSU are there. Moreover, we're big proponents of the CX450's 143mm depth measurement, which makes it fairly compact.

Power Specifications

Rail3.3V5V12V5VSB-12V
Max PowerAmps202037.430.8
Watts110448.8159.6
Total Max Power (W)450

The minor rails offer up to 110W combined power, though they're capable of much more in practice. Meanwhile, the +12V rail can deliver the PSU's full power on its own. This is a clear indication that both platforms utilize DC-DC converters for generating the minor rails. And at a maximum of 15W, the 5VSB rail serves up sufficient capacity.

Cables & Connectors

Native Cables
DescriptionCable CountConnector Count (Total)GaugeIn-Cable Capacitors

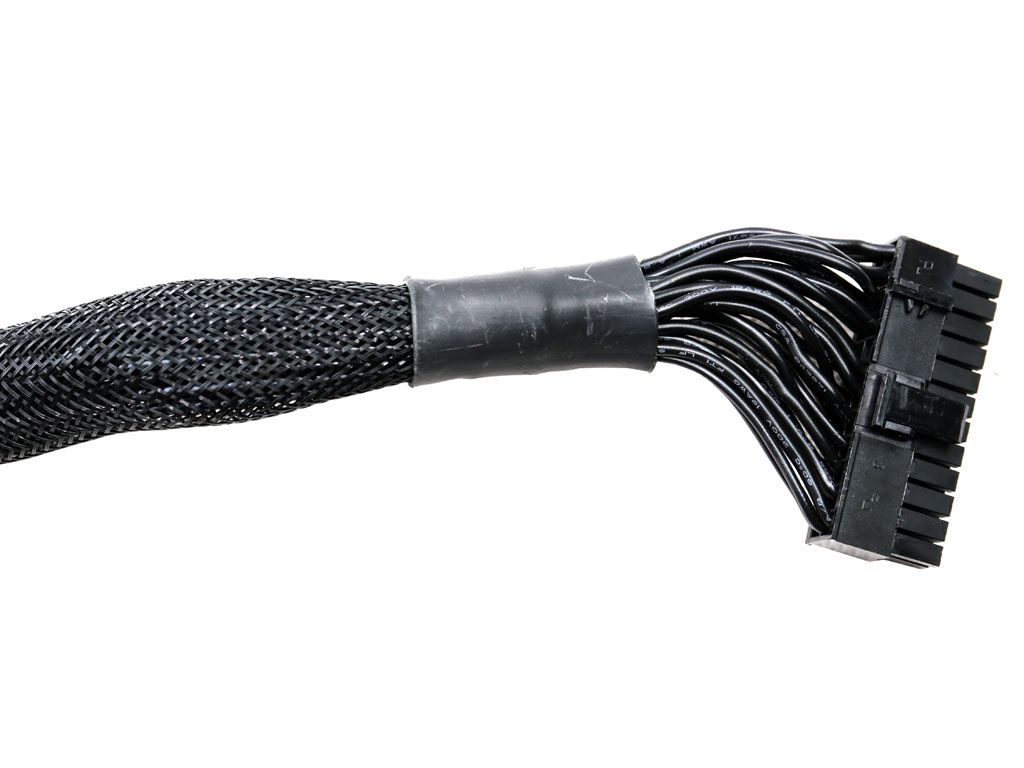

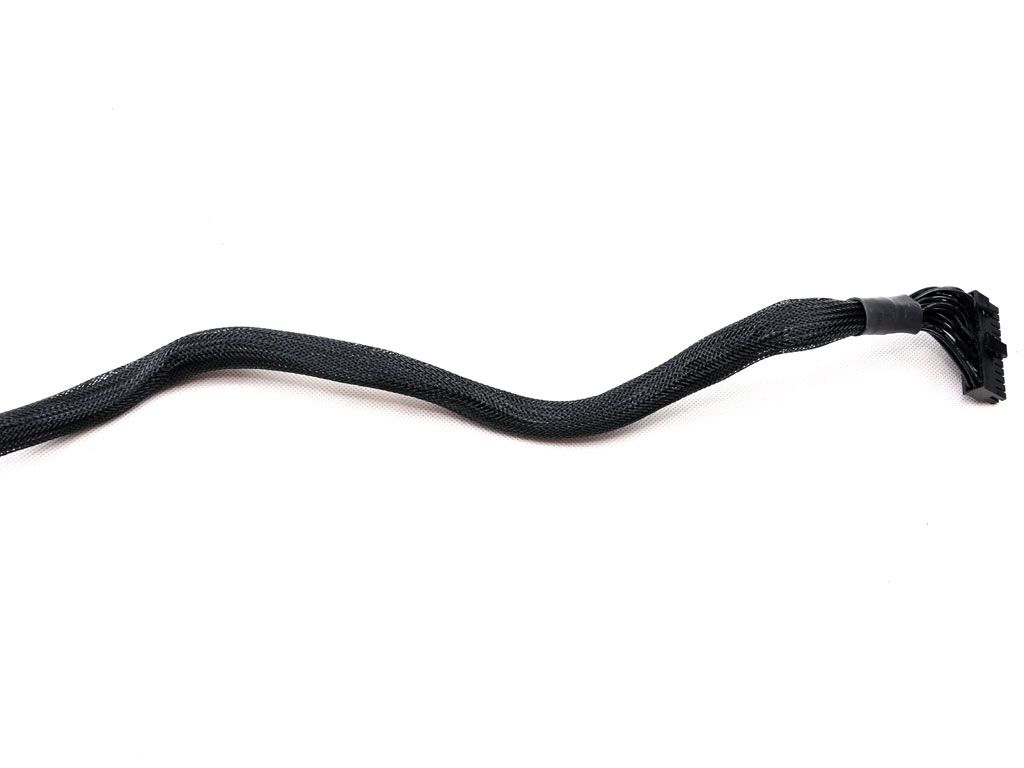

ATX connector 20+4 pin (600mm)1118-22AWGNo

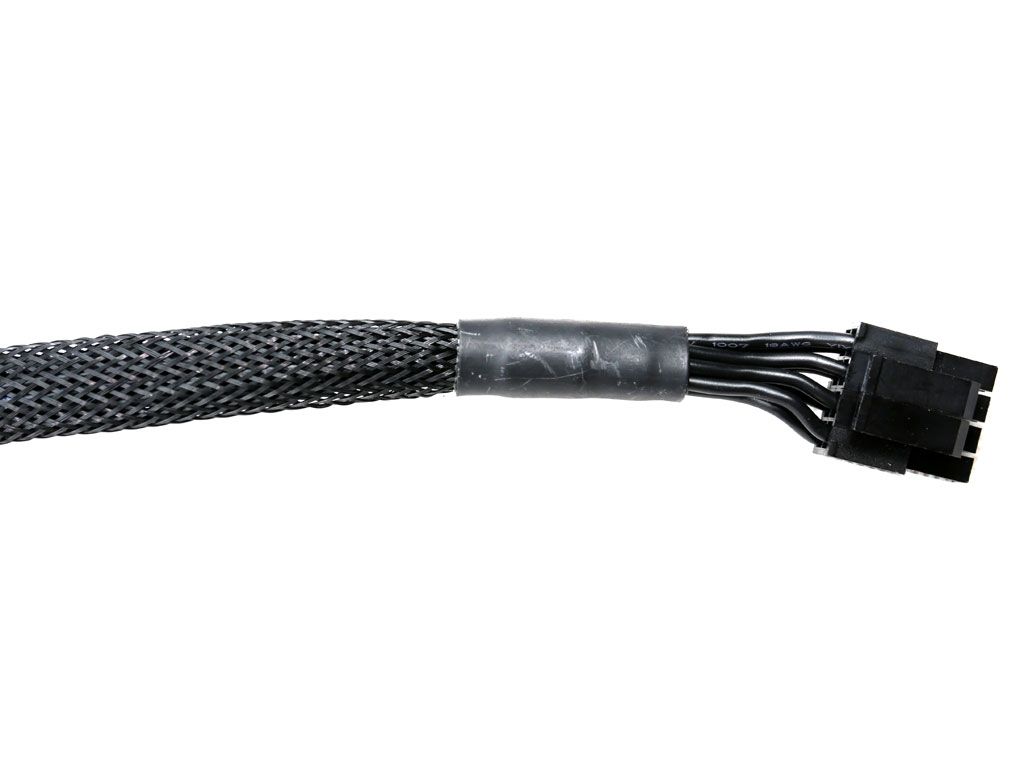

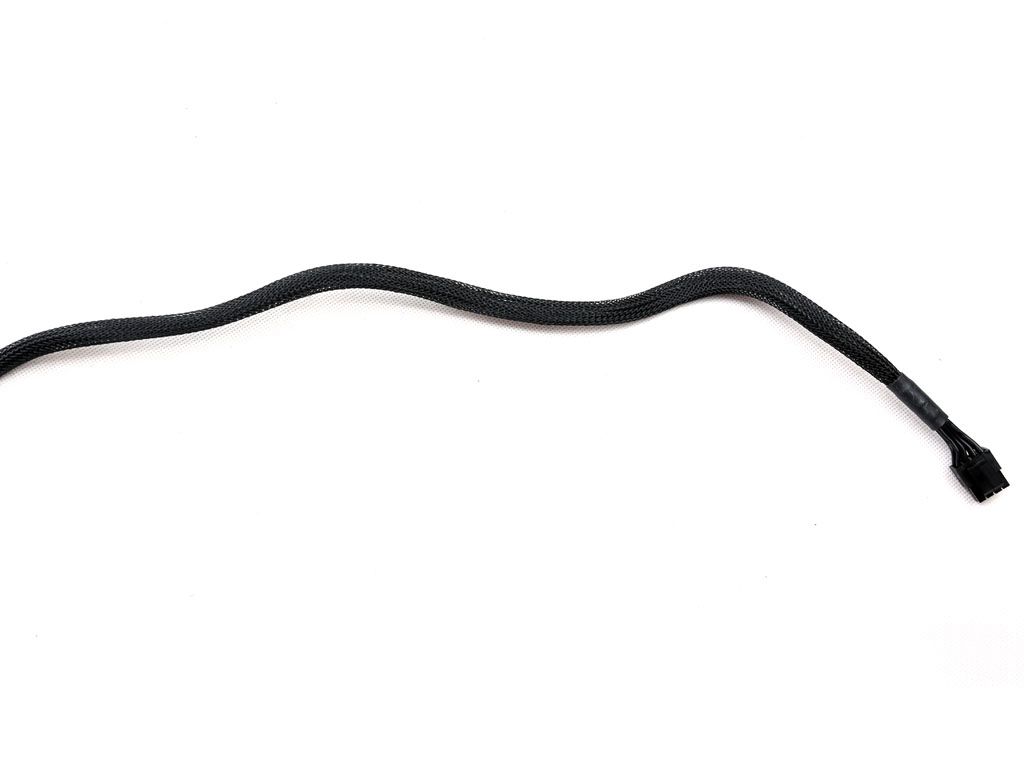

4+4 pin EPS12V (670mm)1118AWGNo

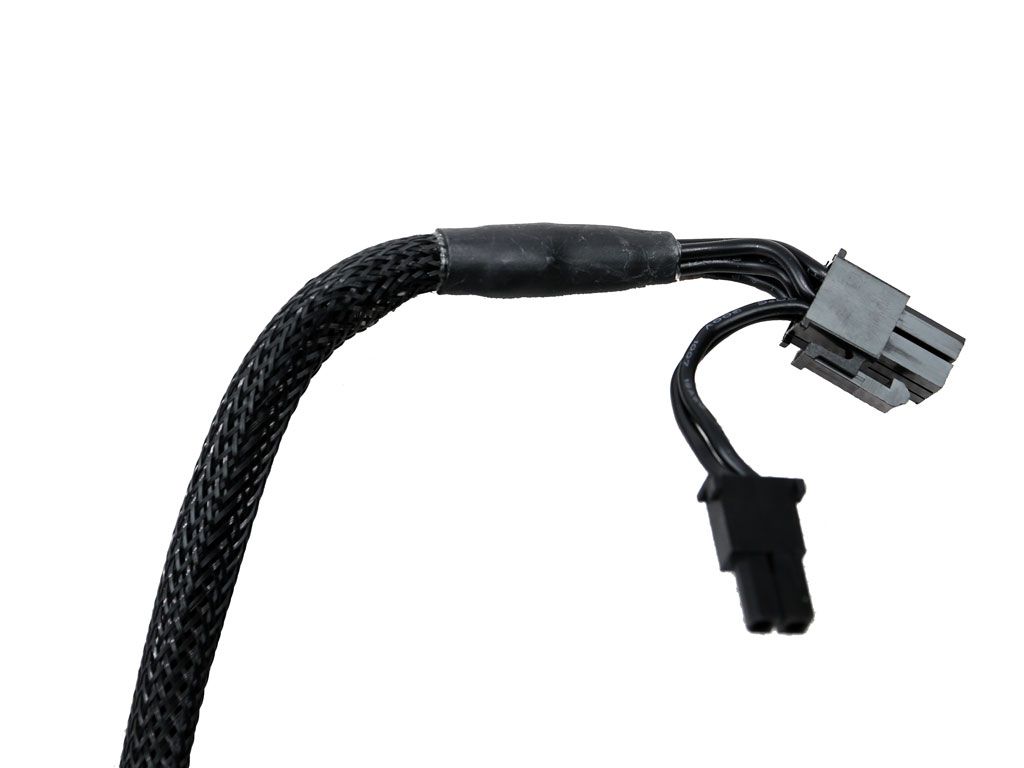

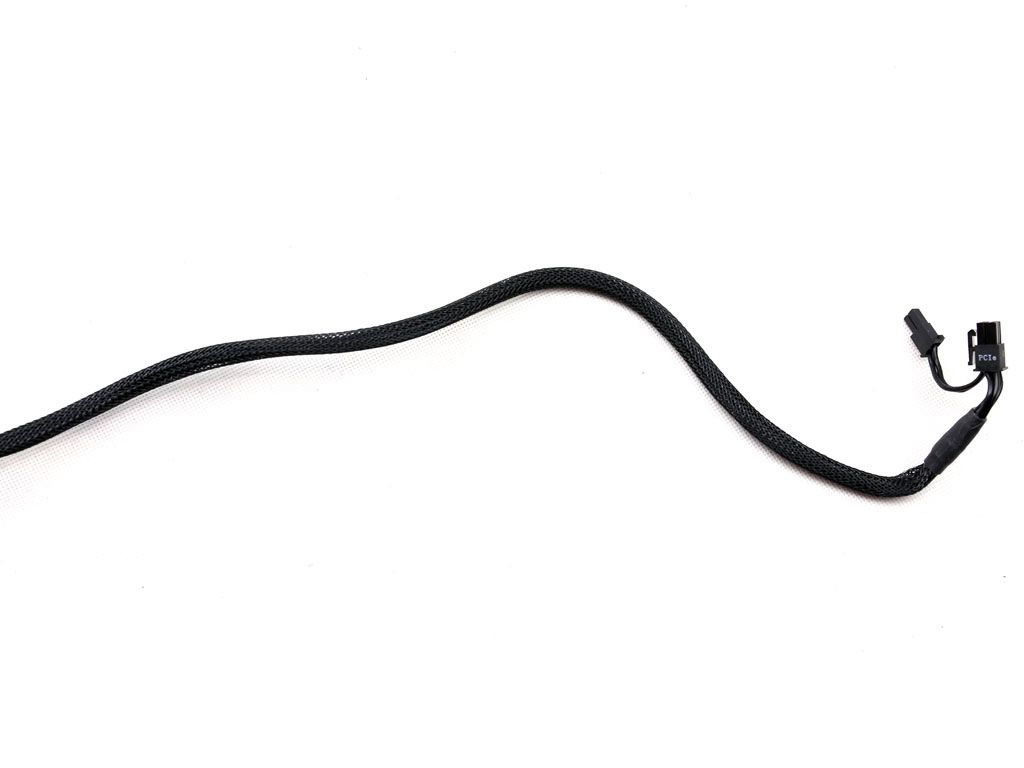

6+2 pin PCIe (600mm) 1118AWGNo

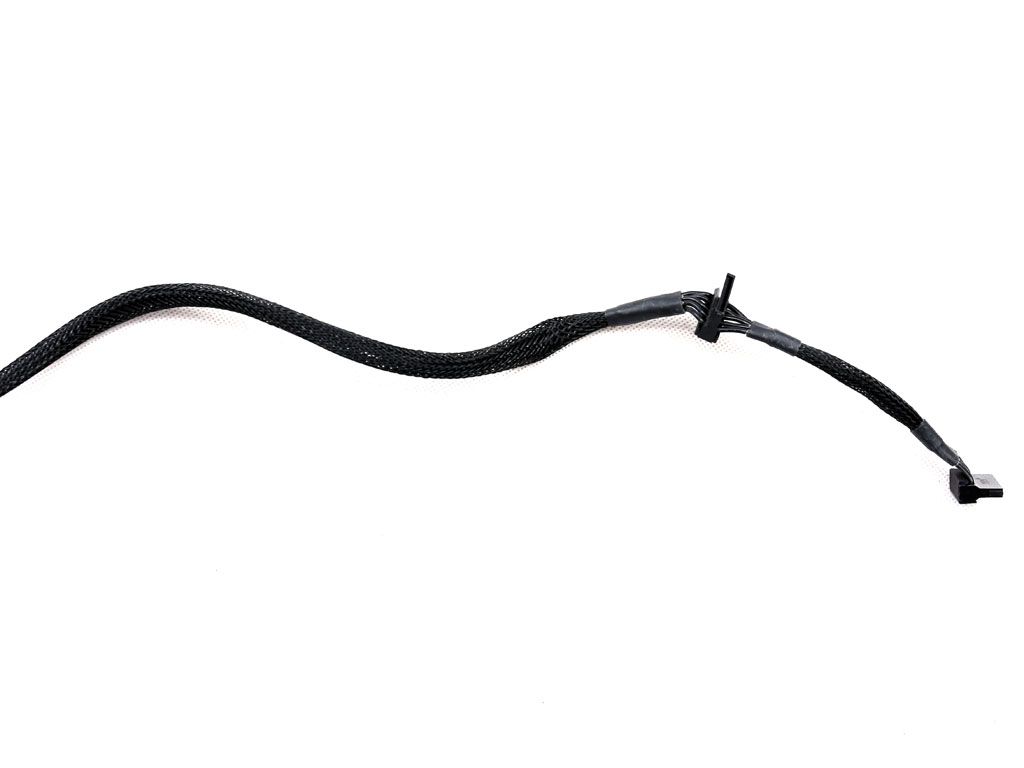

SATA (410mm+120mm)2418AWGNo

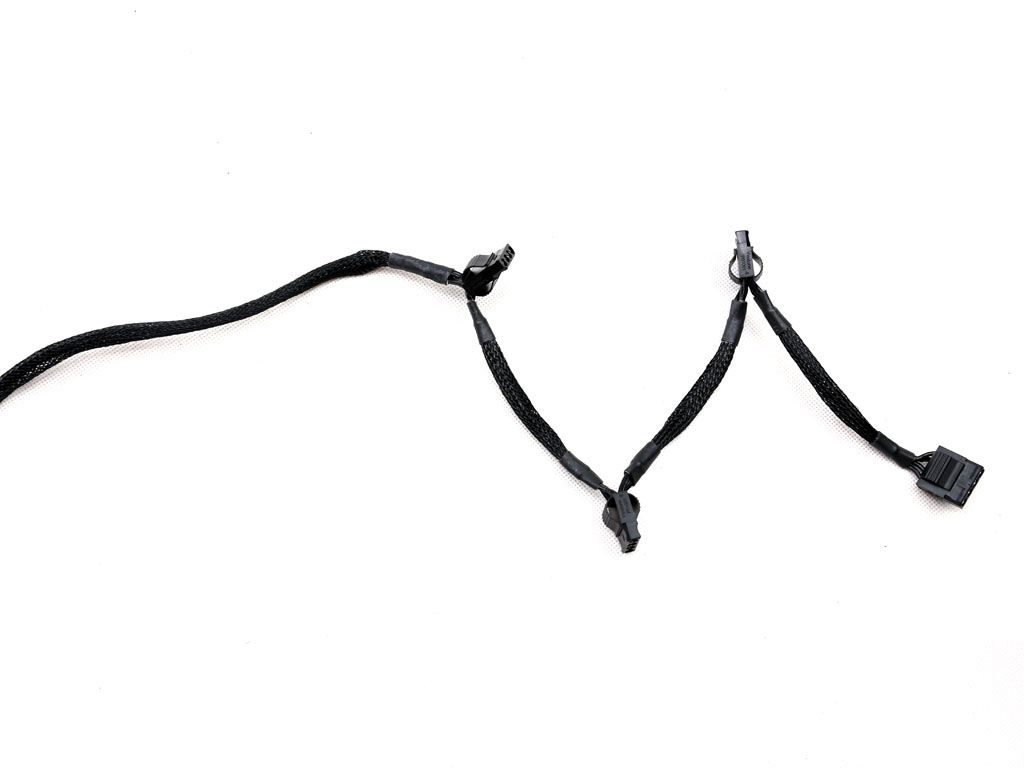

Four-pin Molex (410mm+120mm+120mm+120mm)1418AWGNo

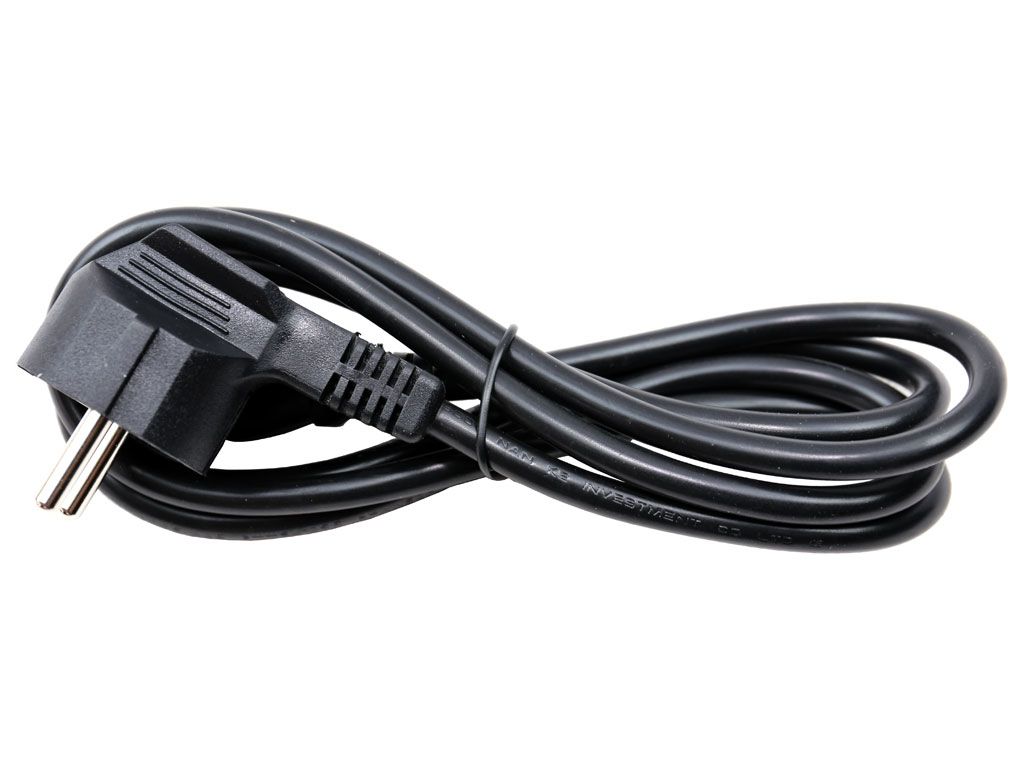

AC Power Cord (1370mm) - C13 coupler1118AWG-

There is only one PCIe connector available. After all, the CX PSUs are mostly for office PCs with integrated graphics engines or low-end discrete boards. Still, it'd be nice to see Corsair offer a couple of PCIe connectors since the CX450 has enough capacity to support them (particularly since there's only one EPS (entry-level power supply specification) connector, too). You don't get a ton of SATA connectivity, though four connectors should be plenty for a $45 PSU. Meanwhile, the four-pin Molex connectors are all made available through a single cable.

Overall, we're satisfied with the cable lengths. However, the distance between four-pin Molex connectors should be at least 15cm.
