Tom's Hardware Verdict
If you're are looking to add in some etra RGB to your build and want blazing-fast NVMe SSD performance, Klevv’s CRAS C700 RGB is worth a look. With a sleek finish and RGB lighting, this M.2 SSD will both brighten up and speed up your PC.
Pros
- +
Good sustained performance
- +
RGB lighting
- +
5-year warranty
- +
Cloning software included
Cons
- -
Only available in Europe and Asia
- -
Premium price
Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.
No, it won’t add to your in-game fps or speed up app responsiveness just because it glows. And, who would have thought years ago that even your SSD would shine bright like a rainbow in the night? RGB products are everywhere in the PC world these days. Manufacturers develop RGB SSDs to add some speed and bling to your build. But, while most are faster than your standard HDD, more often than not these RGB SSDs have been rather pricey for the level of performance they offer. That’s the infamous "RGB tax" you'll have to pay to experience a light show coming straight from your from your boot drive.

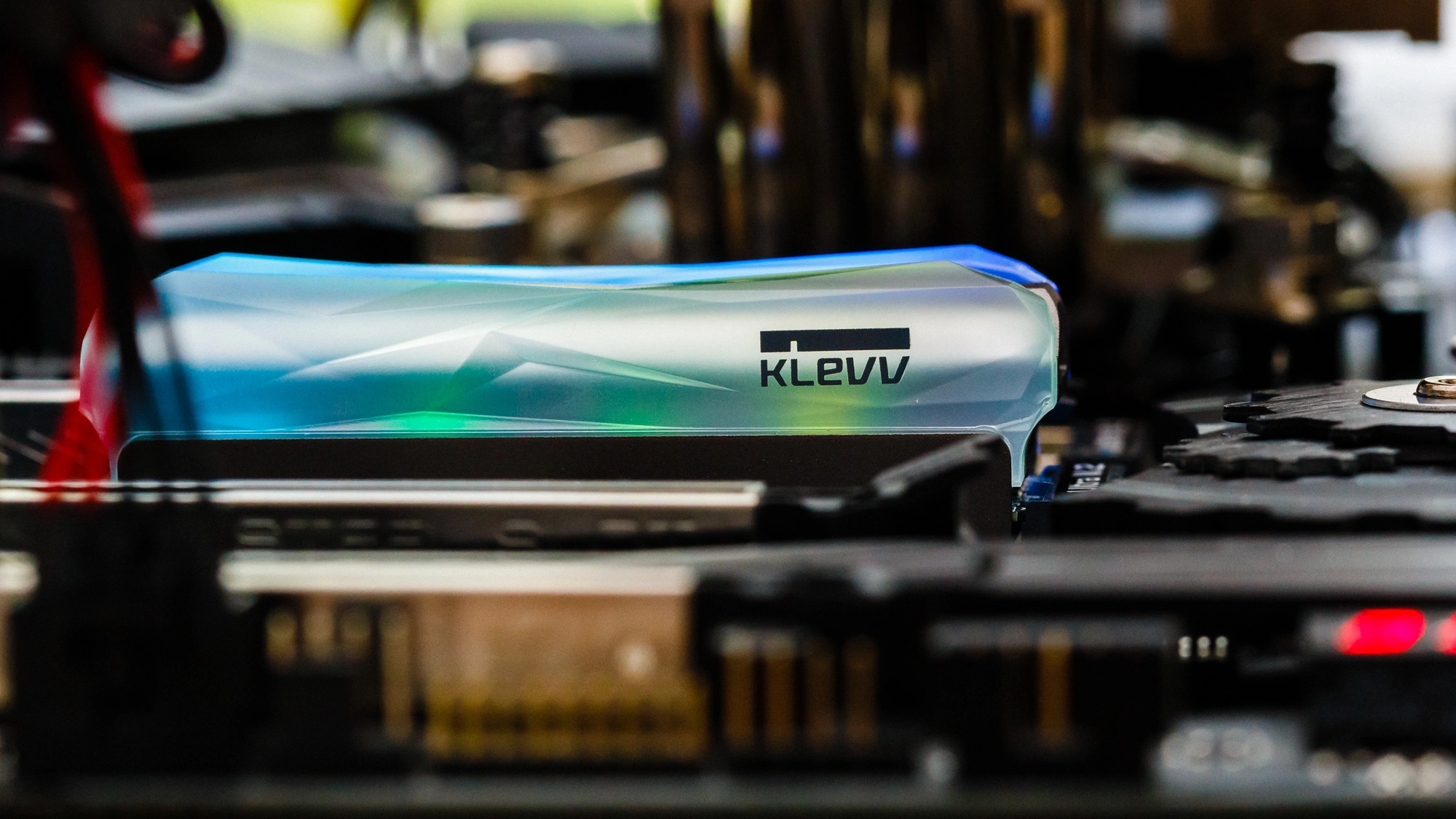

Klevv is one of a few companies that sells RGB SSDs (Team Group is another), but the company's products are only available in Asia and Europe, including the CRAS C700 RGB SSD that we're looking at here. This little guy isn’t so little with the bulky heatsink/lighting module that the company threw on, though. Aiming for a gem-like finish, the CRAS C700 RGB’s unique heatsink design keeps the SSD cool, no matter the workload. And the RGB lighting is fully compatible with ASUS, MSI, GIGABYTE, ASRock and Razer’s RGB software. So you should be able to sync the show with whatever other RGB components there are in your rig.
The drive's low temps are also partially due to the company’s choice of hardware. Underneath the heatsink, Klevv’s CRAS C700 RGB hosts a Silicon Motion SM2263EN PCIe 3.0 x4 NVMe flash controller. This is the same controller packed into Crucial’s P1 and Intel’s SSD 660p. With fewer lanes than Silicon Motion’s top consumer NVMe controller, the SM2262EN, it’s more simplistic and yet still offers some pretty speedy performance.
Specifications
| Product | CRAS C700 RGB 240GB | CRAS C700 RGB 480GB | CRAS C700 RGB 960GB |
|---|---|---|---|
| Pricing | 60 | 80 | ??? |
| Capacity (User / Raw) | 240GB / 256GB | 240GB / 256GB | 240GB / 256GB |
| Form Factor | M.2 2280 | M.2 2280 | M.2 2280 |
| Interface / Protocol | PCIe 3.0 x4 / NVMe 1.3 | PCIe 3.0 x4 / NVMe 1.3 | PCIe 3.0 x4 / NVMe 1.3 |
| Controller | SMI SM2263EN | SMI SM2263EN | SMI SM2263EN |
| DRAM | DDR3 | DDR3 | DDR3 |
| Memory | SK Hynix 72L TLC | SK Hynix 72L TLC | SK Hynix 72L TLC |
| Sequential Read | 1,500 MBps | 1,500 MBps | 1,500 MBps |
| Sequential Write | 1,000 MBps | 1,300 MBps | 1,300 MBps |
| Random Read | 255,000 IOPS | 255,000 IOPS | 255,000 IOPS |
| Random Write | 210,000 IOPS | 220,000 IOPS | 220,000 IOPS |
| Encryption | N/A | N/A | N/A |
| Endurance | 100 TBW | 200 TBW | 400 TBW |
| Part Number | K240GM2SP0-C7R | K480GM2SP0-C7R | K960GM2SP0-C7R |
| Warranty | 5-Years | 5-Years | 5-Years |
Features
Compared to most SSDs these days, the CRAS C700 RGB has a bit more over-provisioning for sustained performance, but it comes at the cost of end-user space. The CRAS C700 RGB is available in capacities of 240GB, 480GB, and 960GB.
The higher capacity options are the fastest, with speeds rated for up to 1.5/1.3GBps read/write. The 240GB model peaks at just 1GBps write. In terms of random IOPS, the SSD is capable of up to 255,000 / 220,000 IOPS read/write too.
The CRAS C700 RGB comes with an endurance rating of up to 400TB at the 960GB capacity, and it halves as capacity halves. As well, it comes backed by a 5-year warranty. Pricing is about $60 for the 240GB model and $85 USD for the 500GB model, based on Amazon Japan’s pricing.
The drive supports standard features like S.M.A.R.T. reporting, TRIM, and the ability to be securely erased.
Furthermore, the controller features a hardware LDPC ECC Engine and NANDXtend ECC technology, along with end-to-end data path protection, to enable competitive endurance and data reliability over time. An intelligent SLC caching algorithm helps aid high endurance and performance under consumer workloads, as is common among NVMe drives these days.
Software and Accessories
Klevv throws in Acronis True Image HD 2018 as a value add. This software allows you to perform full disk-imaging, backup, and universal restore. Hence, end-users will be able to transfer data from existing drives seamlessly.
There is no software included from the manufacturer to control the SSD’s RGB lighting effects. But as we mentioned earlier, the RGB control is fully compatible with ASUS, MSI, GIGABYTE, ASRock and Razer’s RGB software.
A Closer Look

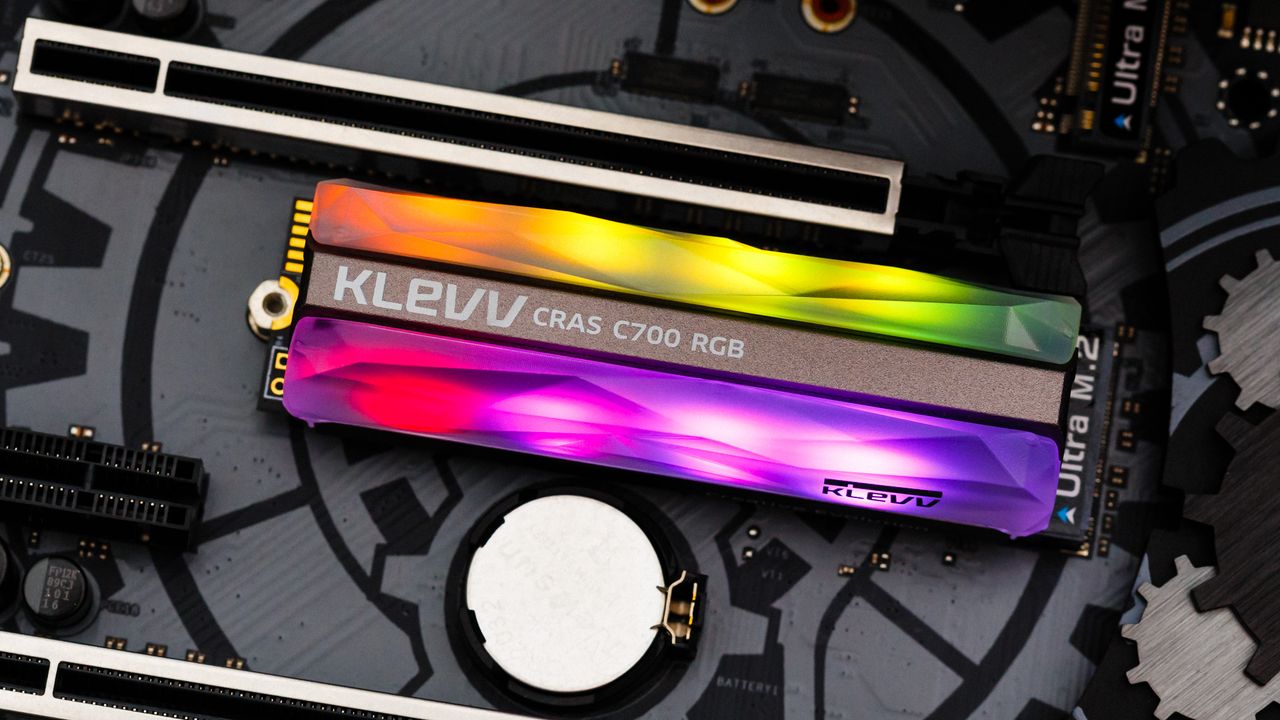

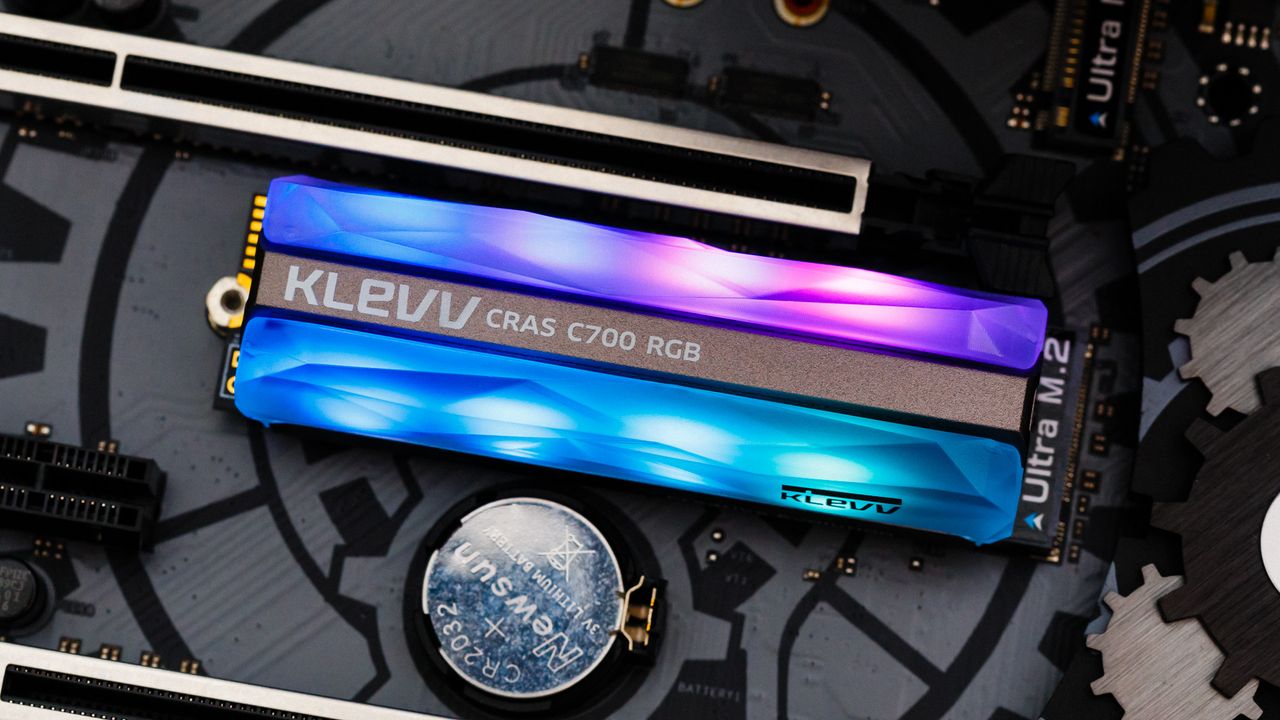

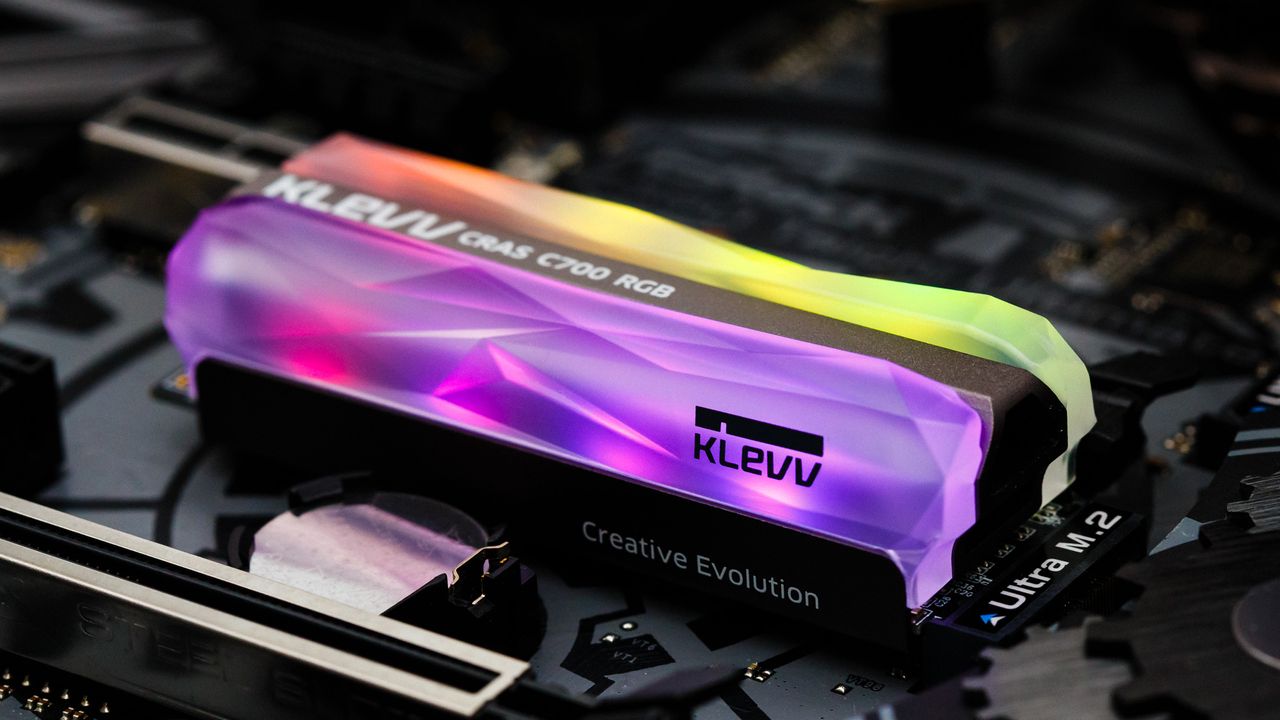

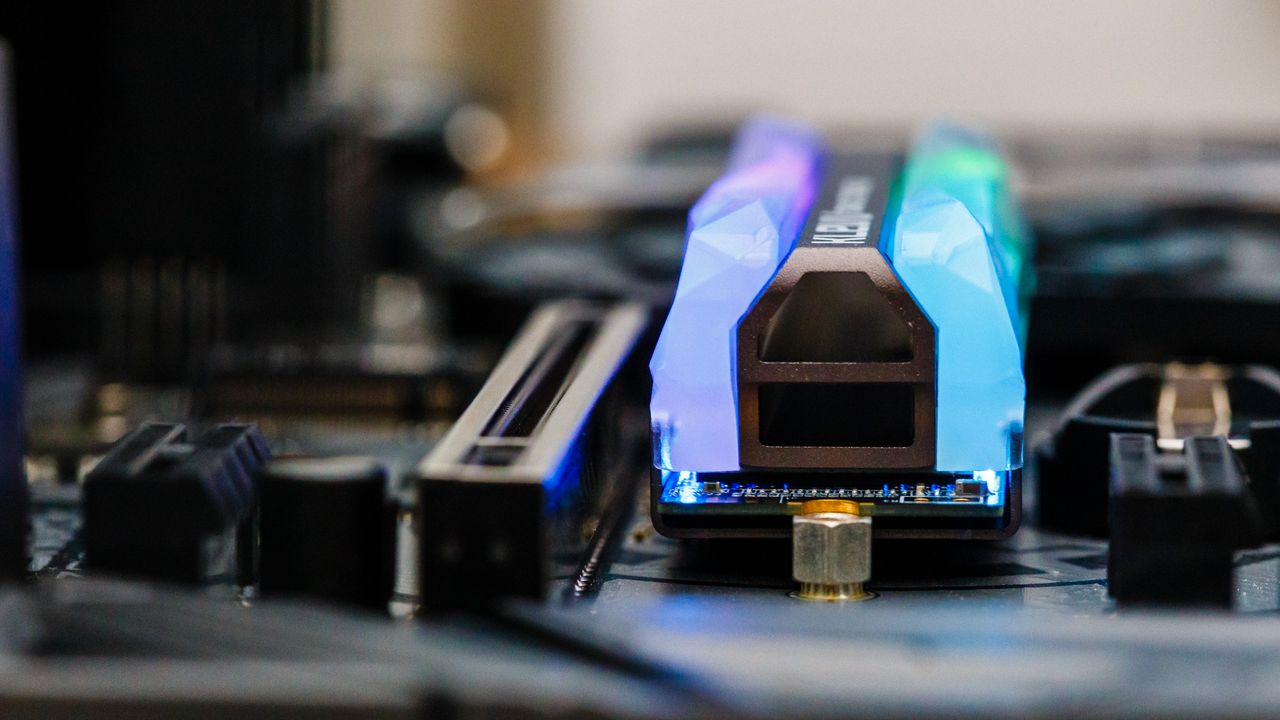

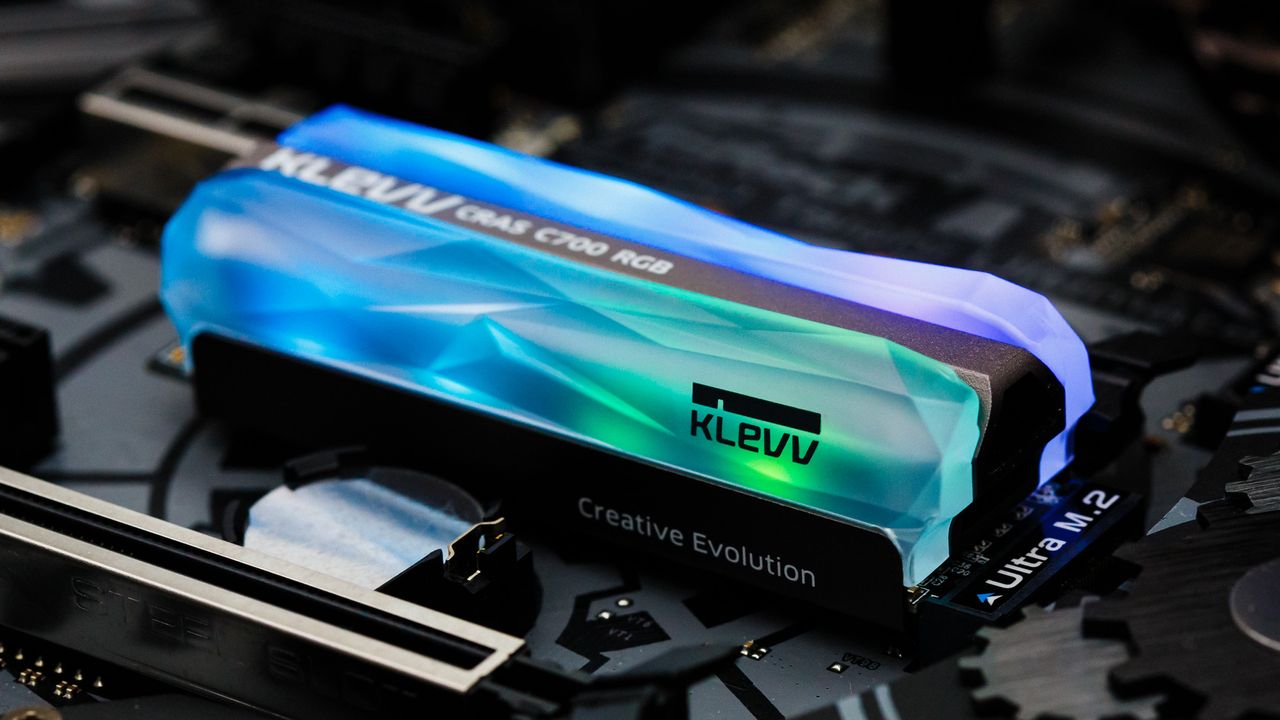

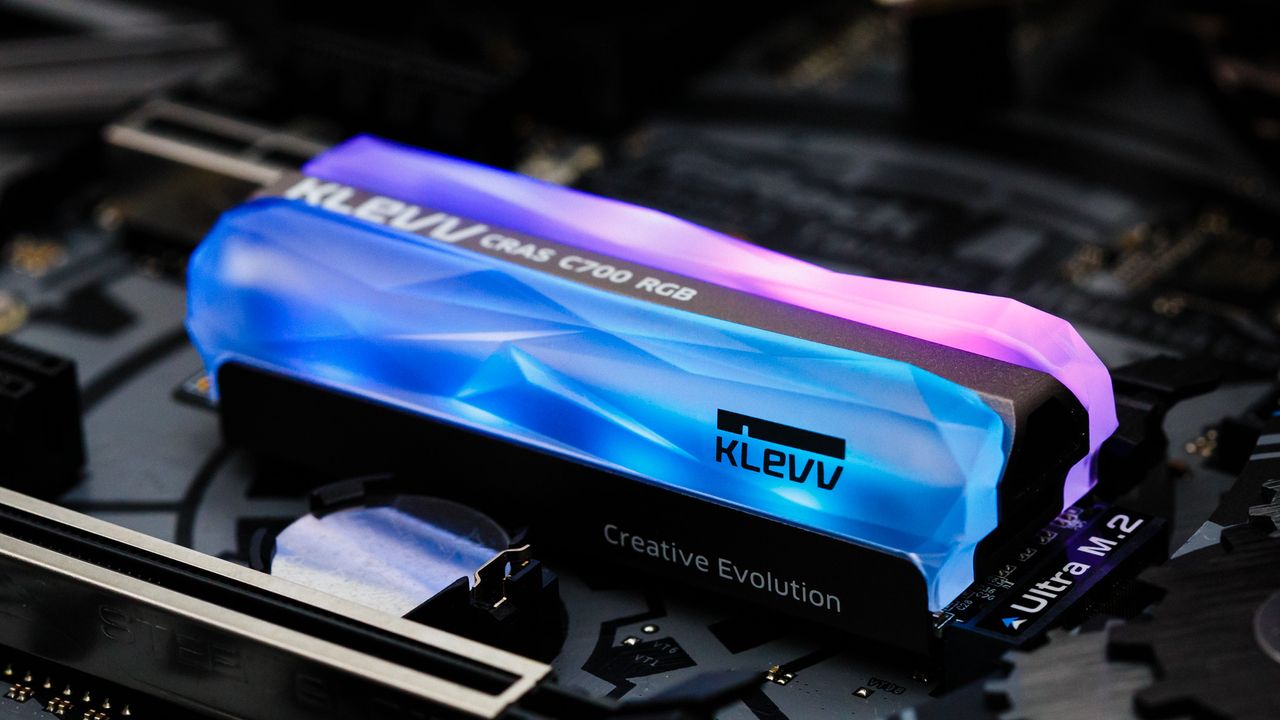

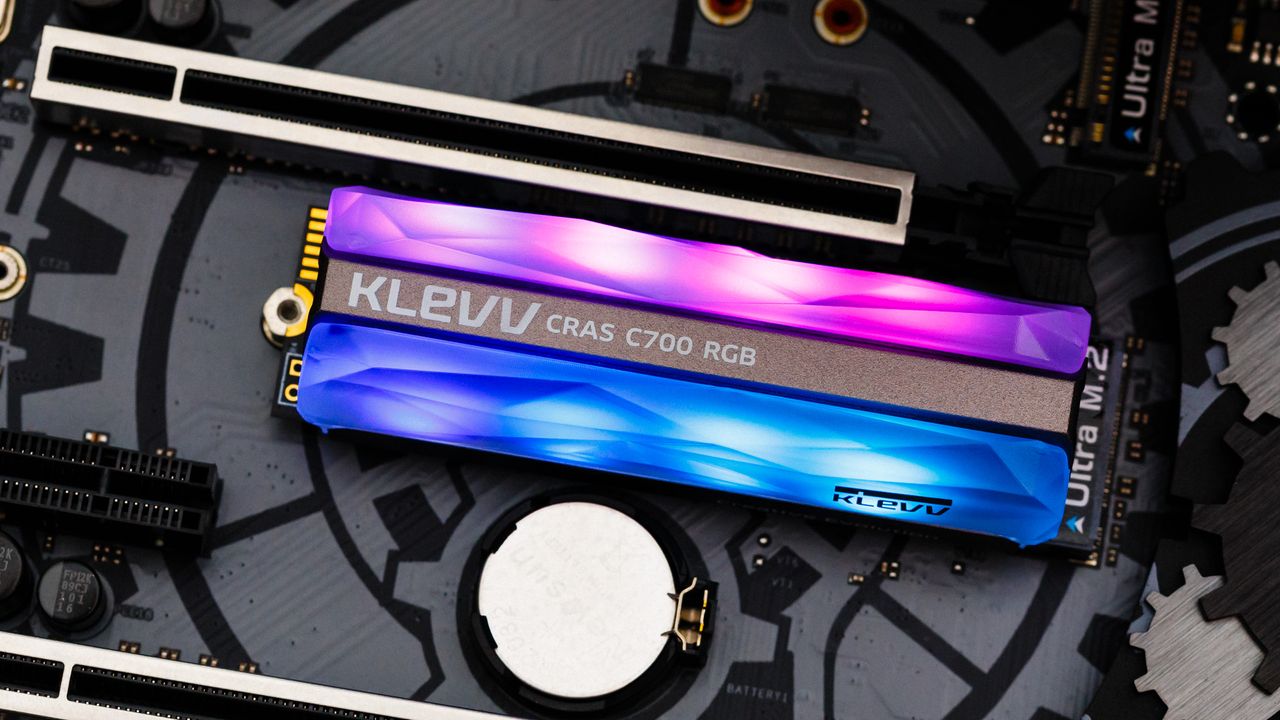

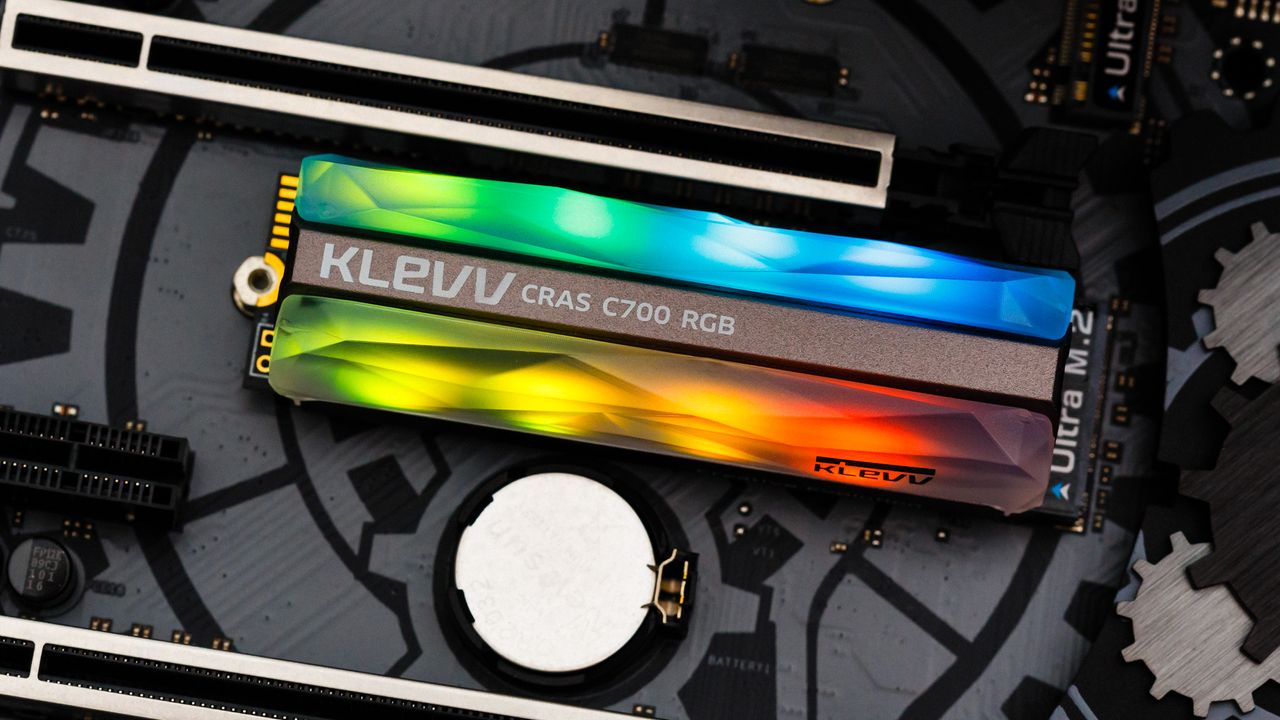

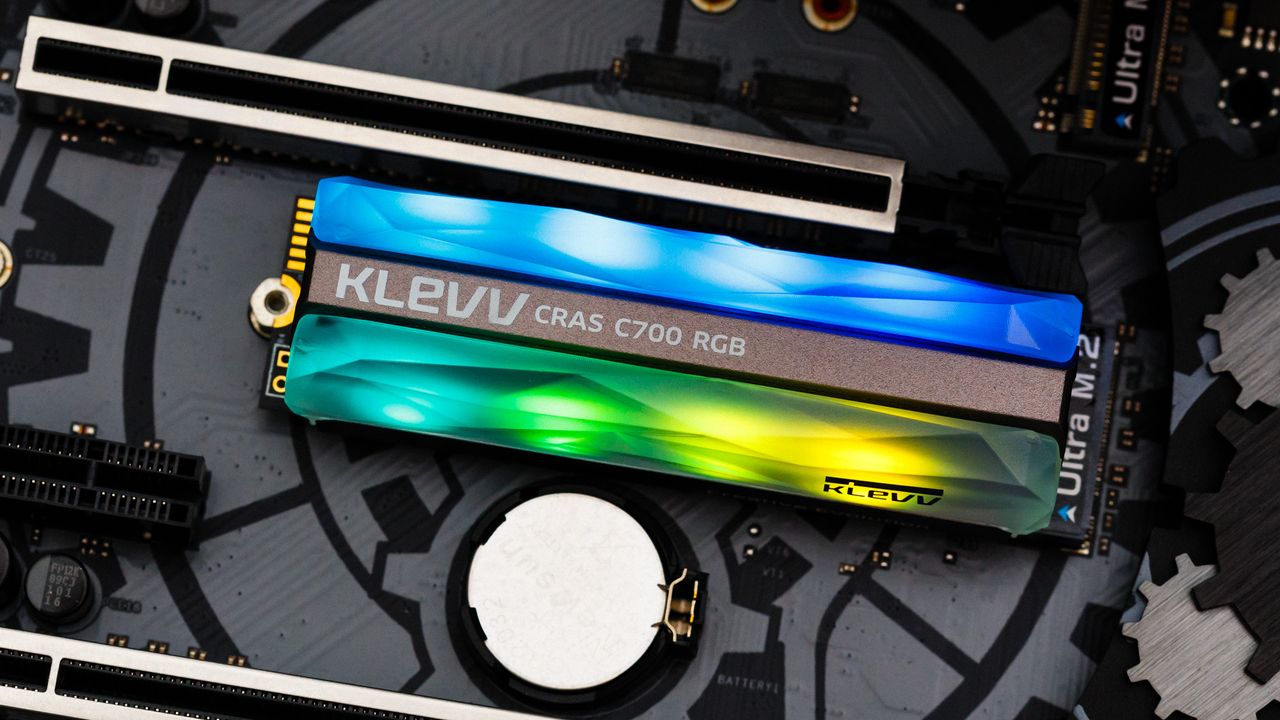

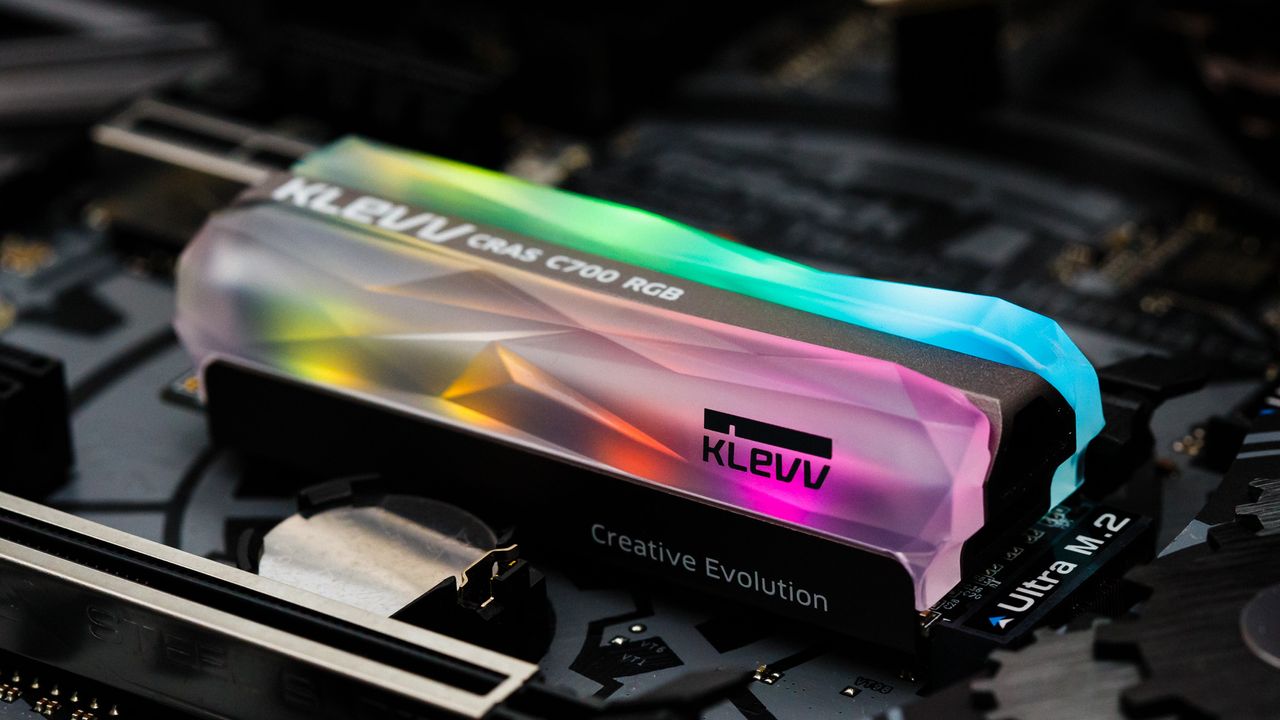

Klevv’s CRAS C700 RGB M.2 NVMe SSD is an M.2 2280 form factor SSD, but with its large heatsink, it comes in at 24mm thick and because of that, weighs in at 45 grams. Klevv claims the heatsink reduces the SSD’s core temps by 27%, so it should do well to keep cool even in systems with little airflow. Overall, we dig the gem-like aesthetics. The look and shape of the light diffuser helps to evenly illuminate the eight RGB LEDs in whatever color pattern you like. And even though it has a heatsink hiding most of it, the PCB is also black. This is a nice touch and the kind of attention to detail we like to see.
