MSI Creator TRX40 Review: Creative Competition

A board for creative types with a single GPU?

MSI Creator TRX40
(Image: © MSI)

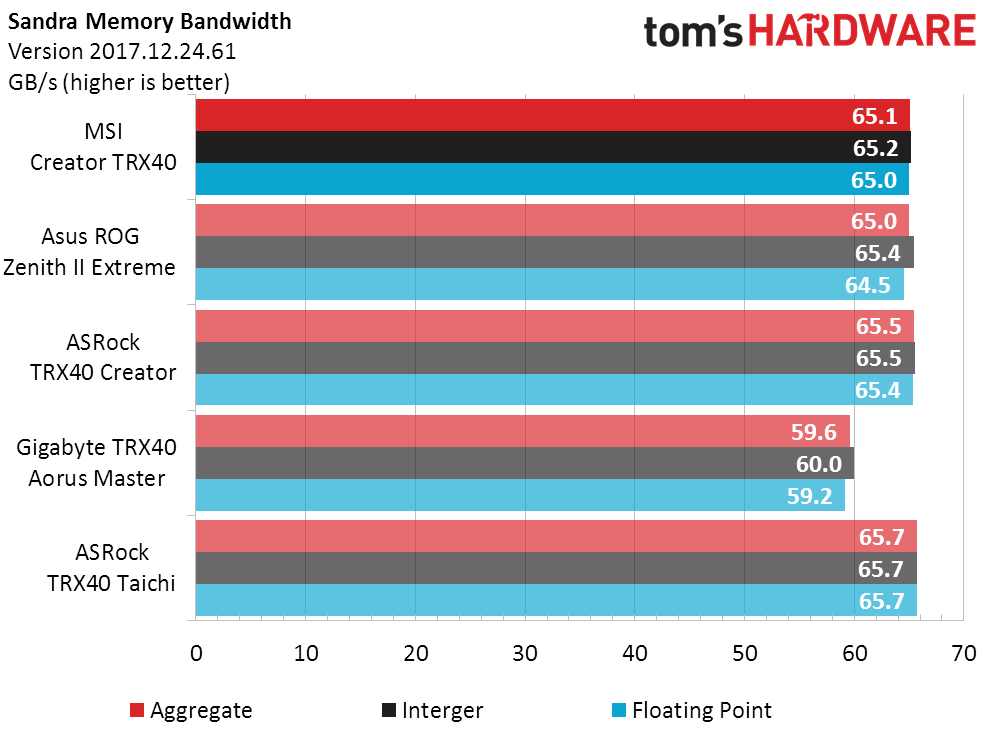

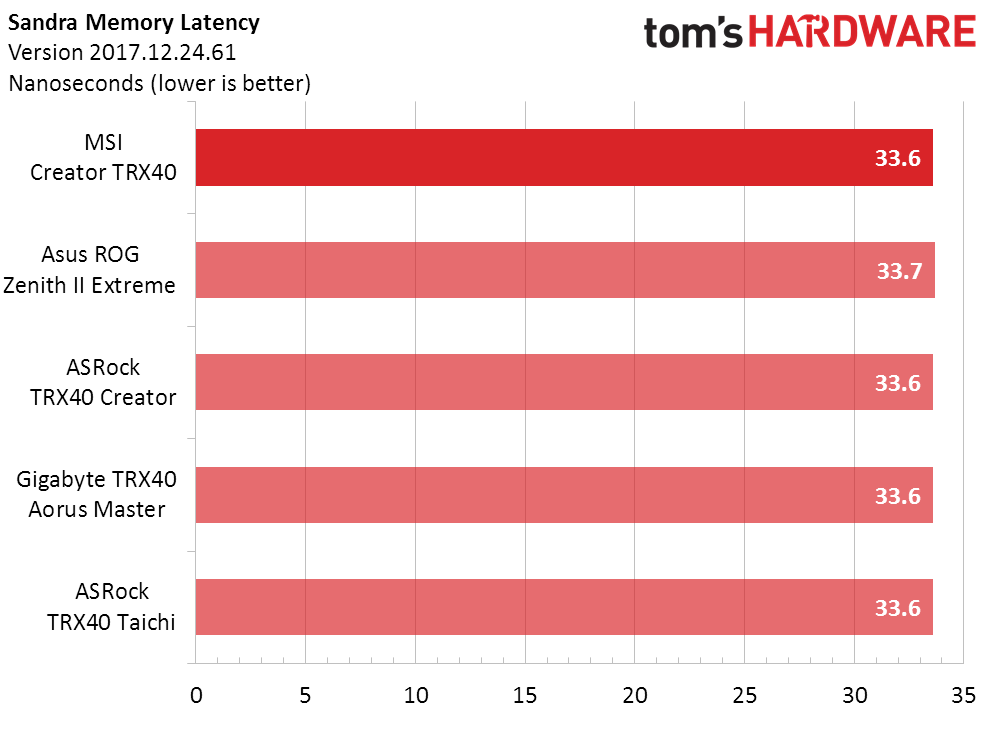

We enable XMP (or the motherboard manufacturer’s equivalent) when testing AMD products, so we shouldn’t be surprised to see the high quad-channel data rate coming from our four single-rank DDR4-3600 DIMMs. MSI, Asus and ASRock perform better at DDR4-3600 than they did in our memory overclocking test.

Image 1 of 2

(Image credit: Tom's Hardware)
Image 2 of 2

(Image credit: Tom's Hardware)

3DMark and PCMark

Image 1 of 6

(Image credit: Tom's Hardware)
Image 2 of 6

(Image credit: Tom's Hardware)
Image 3 of 6

(Image credit: Tom's Hardware)
Image 4 of 6

(Image credit: Tom's Hardware)
Image 5 of 6

(Image credit: Tom's Hardware)
Image 6 of 6

(Image credit: Tom's Hardware)

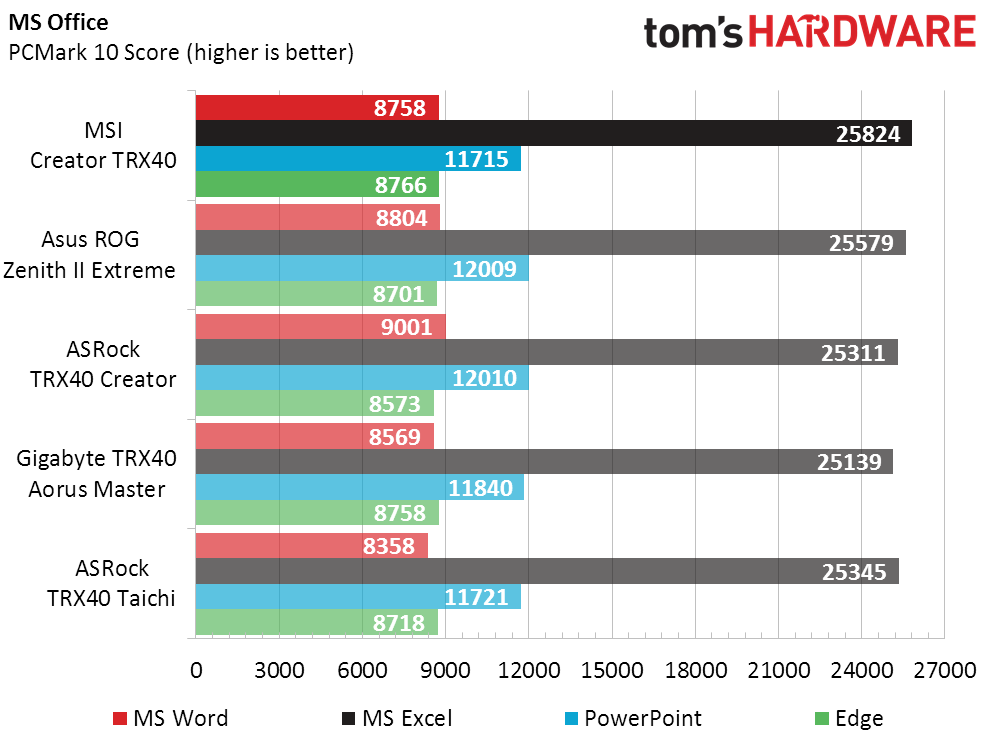

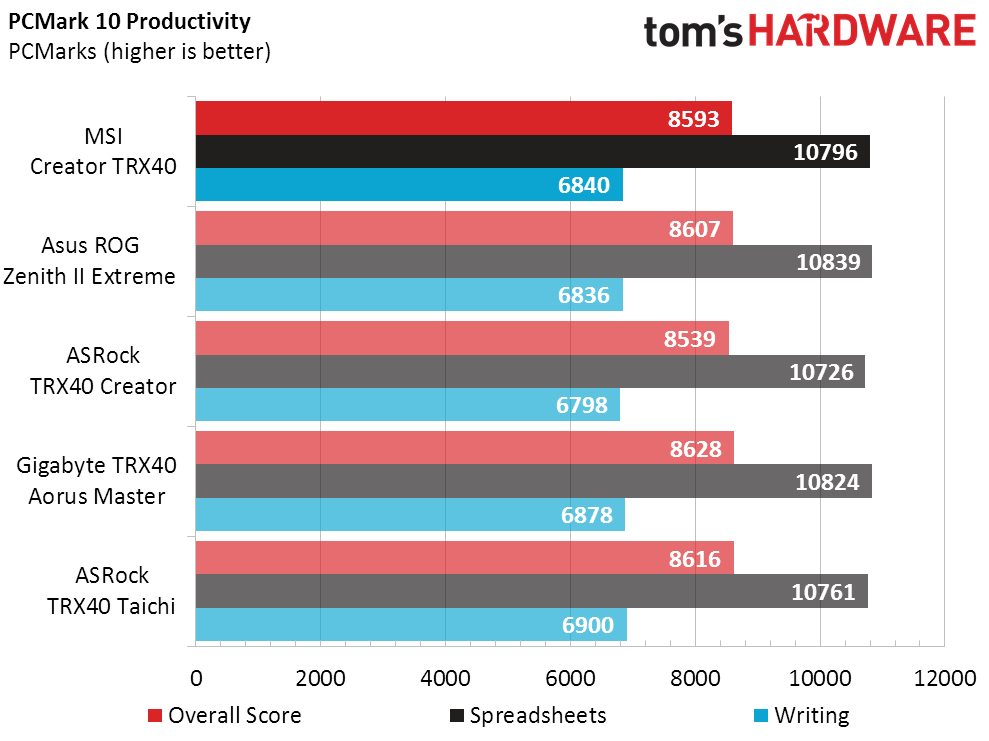

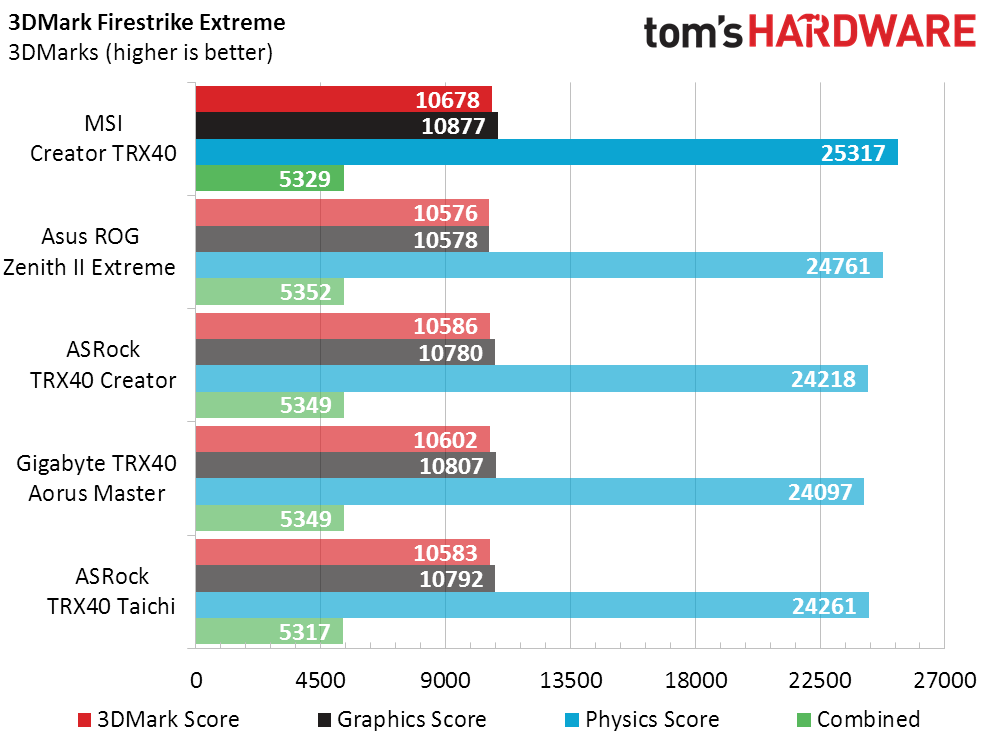

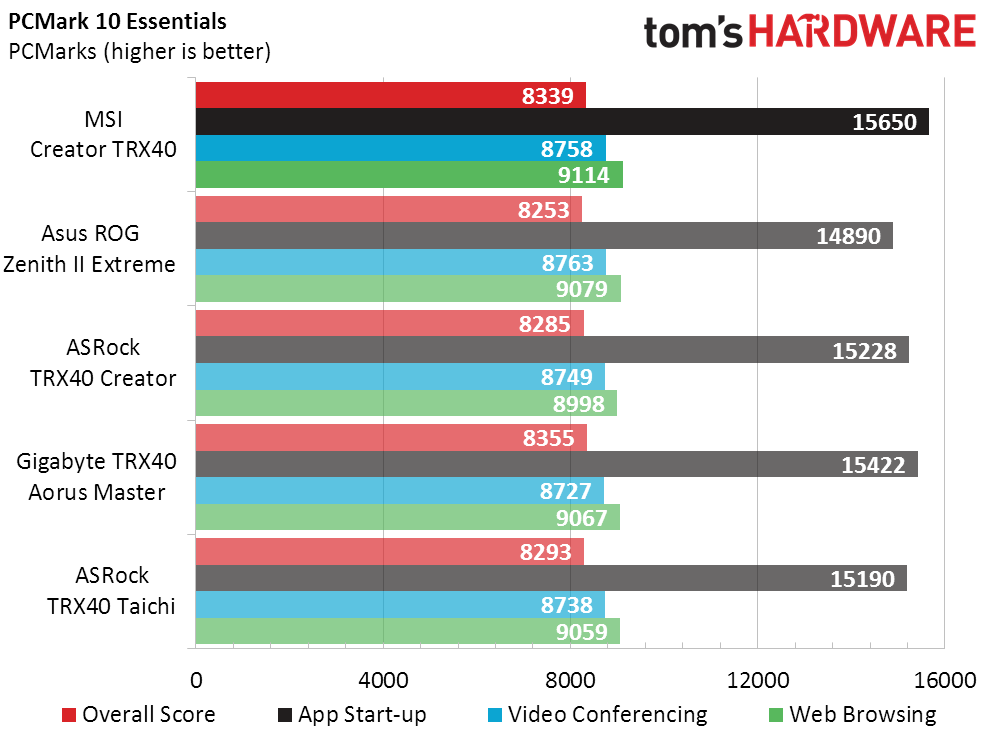

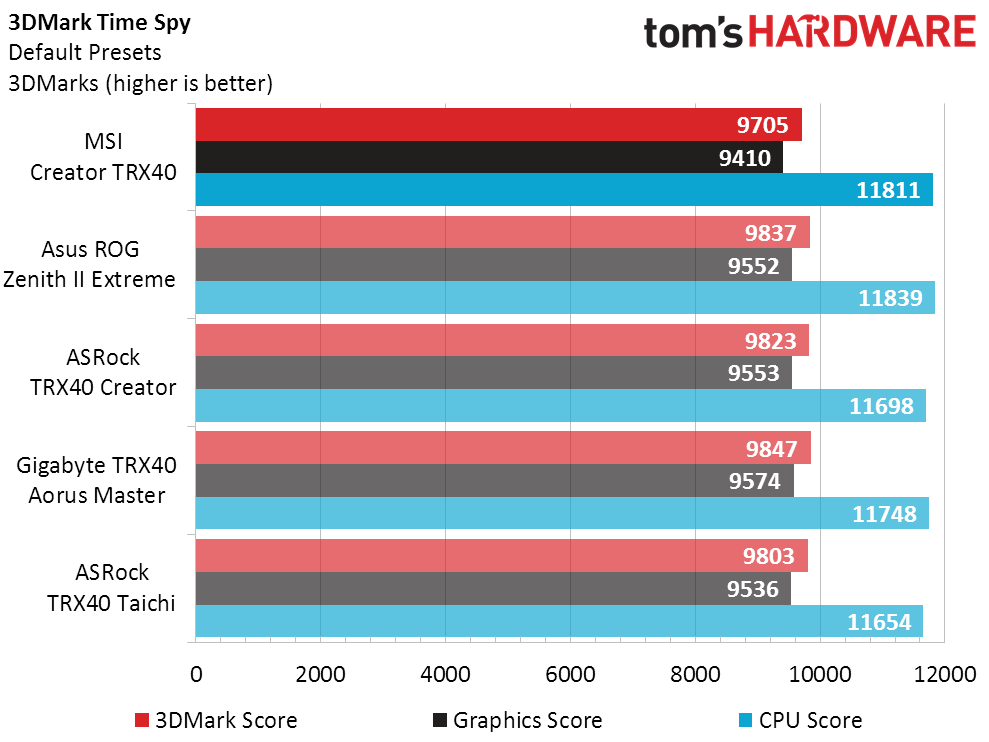

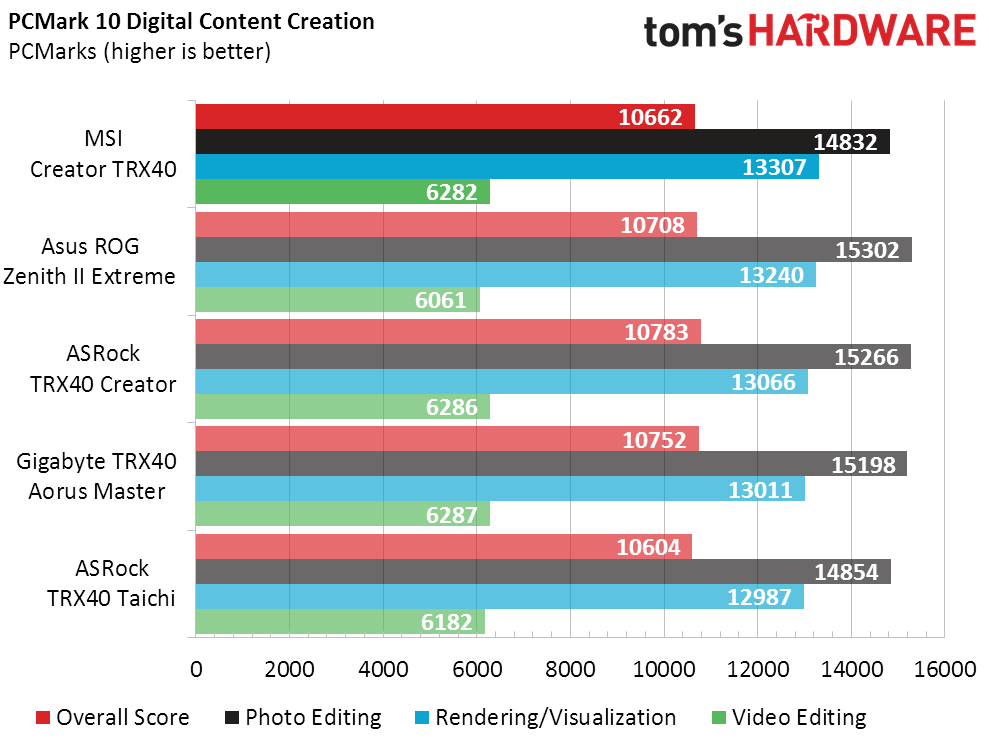

The Creator TRX40 started behind in our first 3DMark test but surged ahead in the second. More importantly, it finished with top marks in PCMark’s startup test. It also won in PCMark’s Excel and Edge tests, but appeared fairly average in others.

3D Games

Image 1 of 2

(Image credit: Tom's Hardware)
Image 2 of 2

(Image credit: Tom's Hardware)

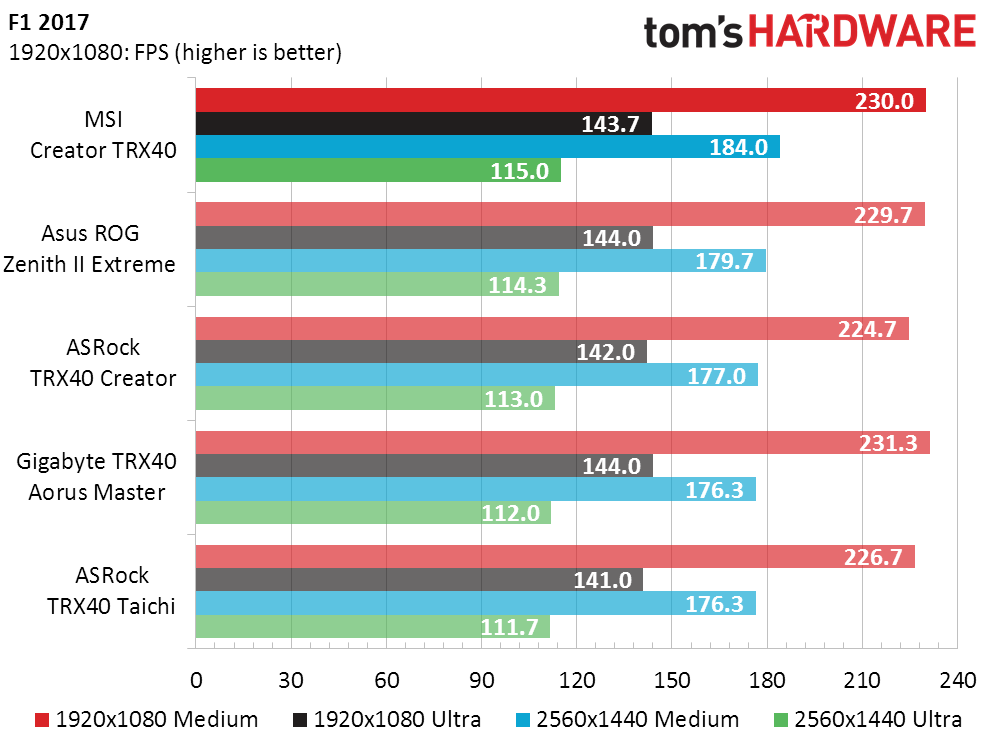

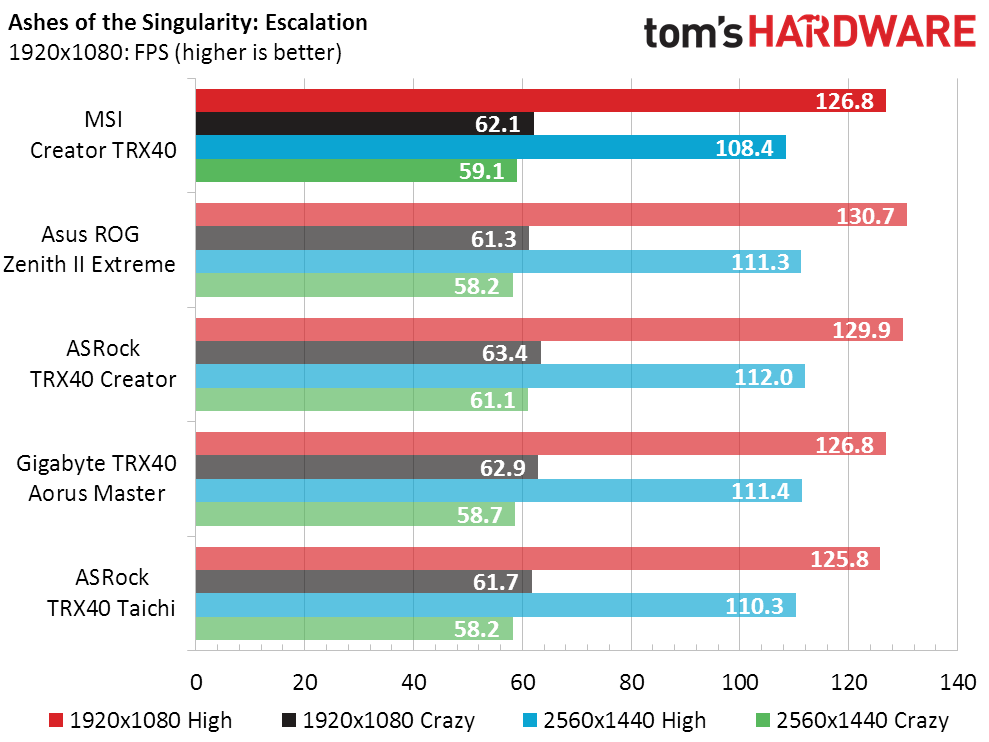

MSI’s Creator TRX40 takes third place overall in Ashes, but moves up to second in F1 2017. None of the differences are great enough to be noticed in game play.

Power, Heat and Efficiency

(Image credit: Tom's Hardware)

The two priciest boards in today’s charts also have the greatest power consumption at full load, though the Creator TRX40 offsets its average with lower idle energy. Anyone who thinks that the 10GbE of the top two boards might be responsible for that high power needs to consider that the TRX40 Creator also has this controller (though it also has a smaller CPU voltage regulator).

(Image credit: Tom's Hardware)

When considering chipset temperatures, also consider that the ROG Zenith II Extreme’s voltage regulator fans were not running, and that the Creator TRX40 doesn’t even have voltage regulator fans (though its heat pipe ties to the fan-regulated chipset sink).

(Image credit: Tom's Hardware)

The Creator TRX40 ties for first place performance with the TRX40 Aorus Master, and even though these victories are narrow, they contribute to slightly greater efficiency scores. That’s where MSI scores its greatest victory.

Final Thoughts

MSI’s Creator TRX40 is the second-most-expensive sTRX4 motherboard we’ve tested, and it has most of the onboard features of the highest-priced ROG Zenith II Extreme. Most noticeable of the Zenith II Extreme’s extra features are its onboard OLED display and its fan controller card.

(Image credit: Tom's Hardware)

The problem for MSI is that when we compared the Zenith II Extreme to other boards, it just seems expensive for its feature set. People who are willing to pay about $150 extra for the ROG motherboard’s exclusivity might not care about that, since no other board has its exact feature set, but it puts the Creator TRX40 in a difficult position. Perhaps we should instead consider what it gives you over the cheaper boards?

The Creator TRX40 has around twice as many voltage regulator components (and over 50% more ampacity) than ASRock’s TRX40 Creator, and that should make it a better match for AMD’s new 64-core 3990X processor.  But both the TRX40 Aorus Master and TRX40 Taichi also have big voltage regulators, and both of those boards cost $200 less.

Of the two $500 boards, only the Taichi includes a 4x M.2 adapter card for one of its PCIe slots. MSI’s card looks better of course, with its GPU-style double-slot cooler, but it’s intended to consume one of the board’s two PCIe x16 slots. The Taichi has a third x16 slot that’s perfectly suitable for its card, but that slot only exists because ASRock chose three x16 slots in its design, compared to MSI’s x16/x8/x16/x8 four-slot configuration. So, MSI’s design better serves third-party PCIe x8 storage cards than does ASRock’s. And the Taichi’s 2.5GbE loses out to the MSI Creator TRX40’s 10GbE.

We can find Aquantia’s own AQC107-equipped AQN-107 network card on Amazon for $80, so  even if we disregard any value of the Tachi’s 2.5GbE, we’re still looking at a $700 Creator TRX40 that should cost at most $100 more than the $500 TRX40 Taichi.

We would have appreciated the ability to chose ourselves whether to use the included four-drive adapter as a two-drive adapter in one of the board’s other slots, but MSI’s double-slot cooling design took that choice from us.
