MSI Creator TRX40 Review: Creative Competition

A board for creative types with a single GPU?

MSI Creator TRX40
(Image: © MSI)

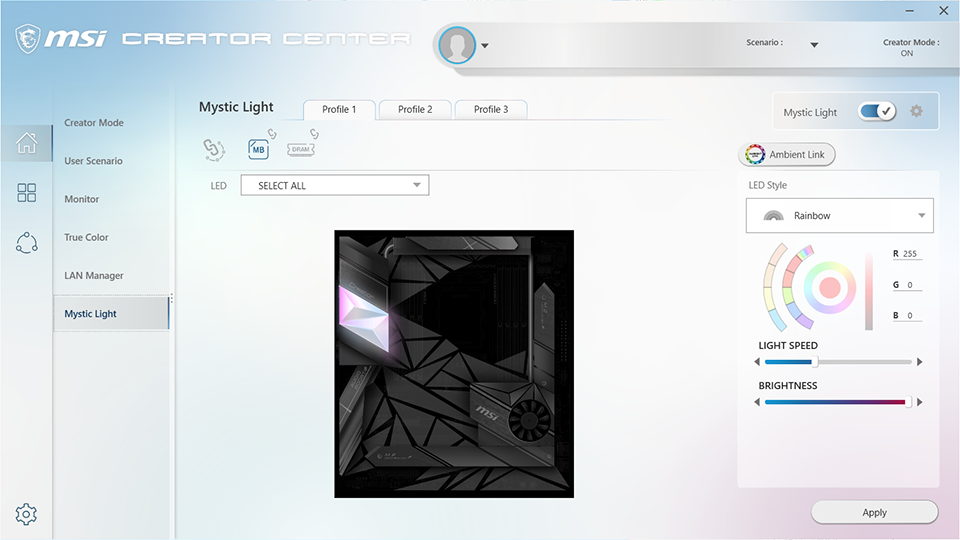

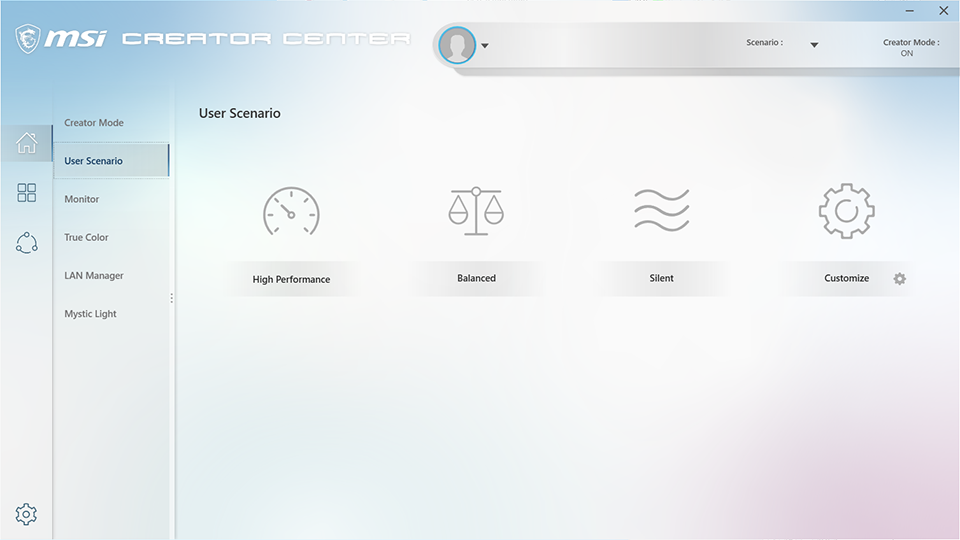

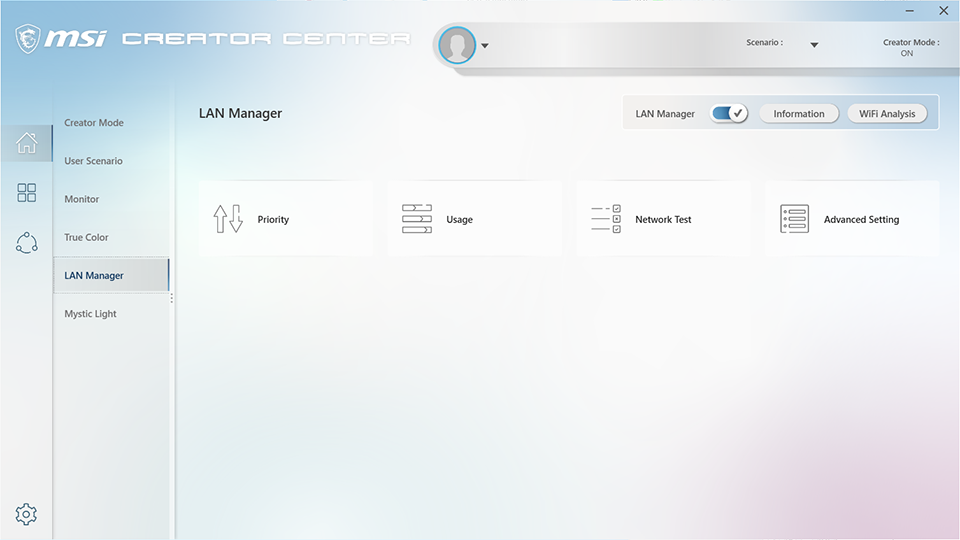

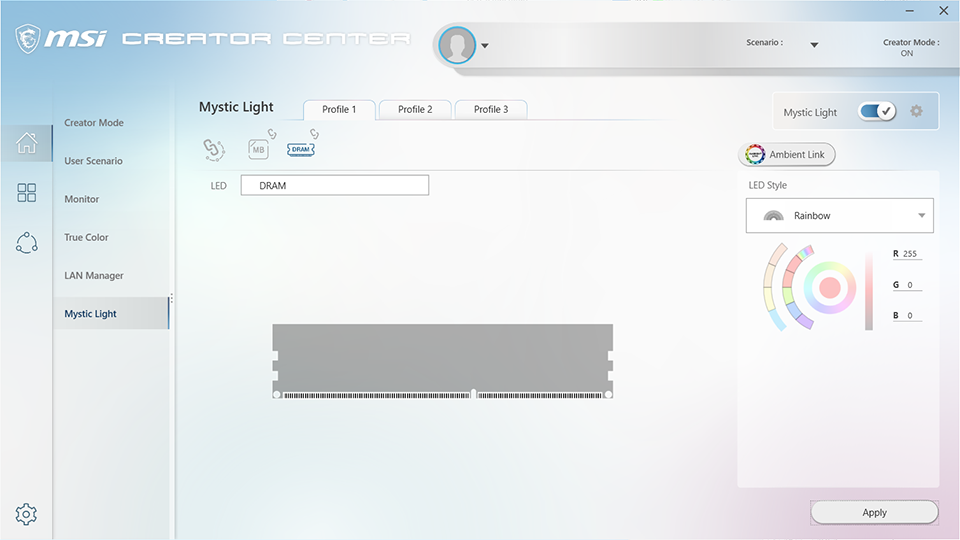

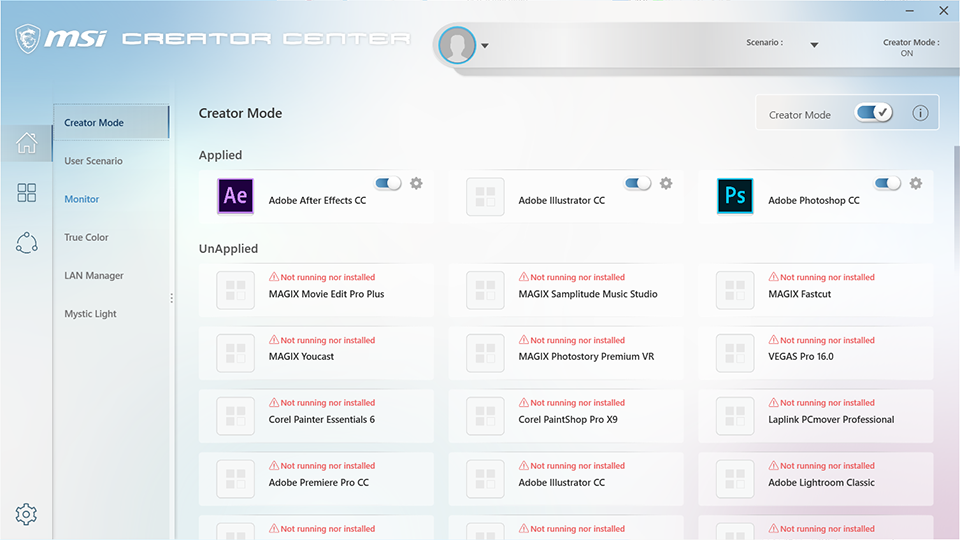

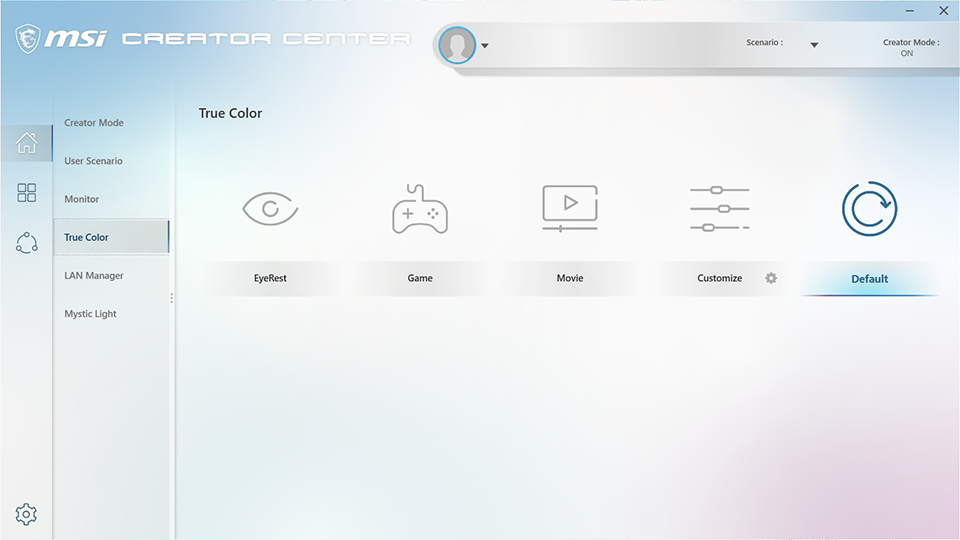

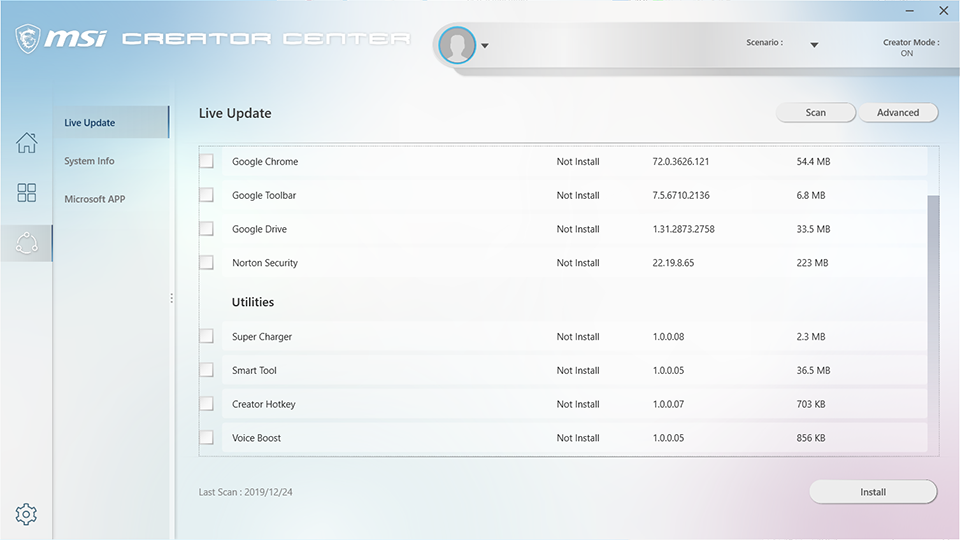

MSI Creator Center applications range from Creator Mode (enabled by default) for enhanced multi-threading to an “Update” menu that shows the approved applications that we haven’t installed yet. Mystic Light RGB control is also found here and functions as expected, which means that it’s unable to synchronize the rainbow-mode timings between the motherboard and our DRAM.

Image 1 of 8

(Image credit: Tom's hardware)
Image 2 of 8

(Image credit: Tom's hardware)
Image 3 of 8

(Image credit: Tom's hardware)
Image 4 of 8

(Image credit: Tom's hardware)
Image 5 of 8

(Image credit: Tom's hardware)
Image 6 of 8

(Image credit: Tom's hardware)
Image 7 of 8

(Image credit: Tom's hardware)
Image 8 of 8

(Image credit: Tom's hardware)

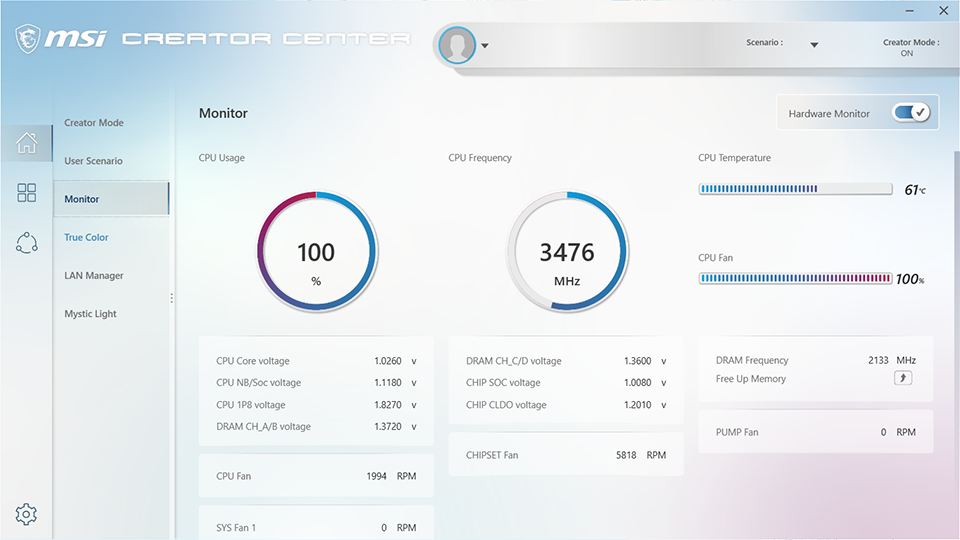

Enabling the Hardware Monitor checkbox from the Monitor menu of Creator Center brings up a miniature hardware monitor window, which has two pages of readings by default (we merged these into a single image).

(Image credit: Tom's Hardware)

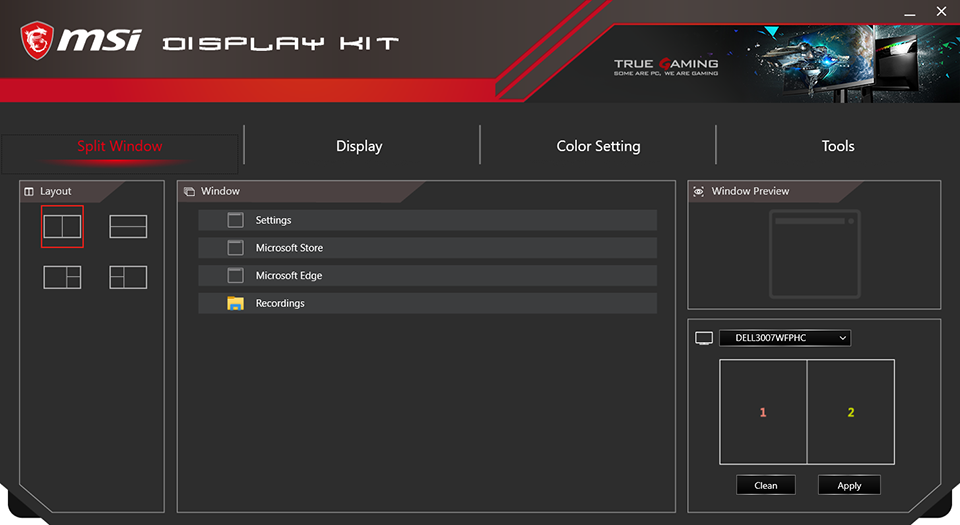

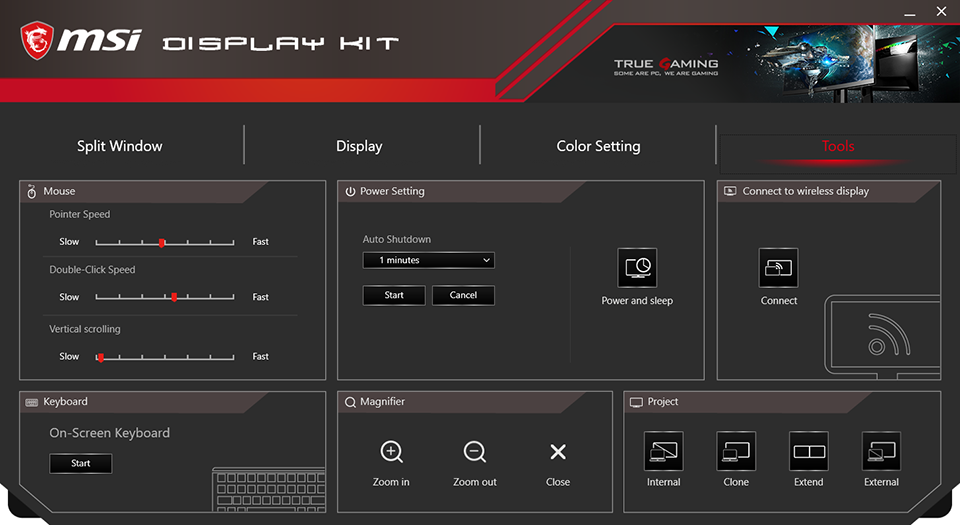

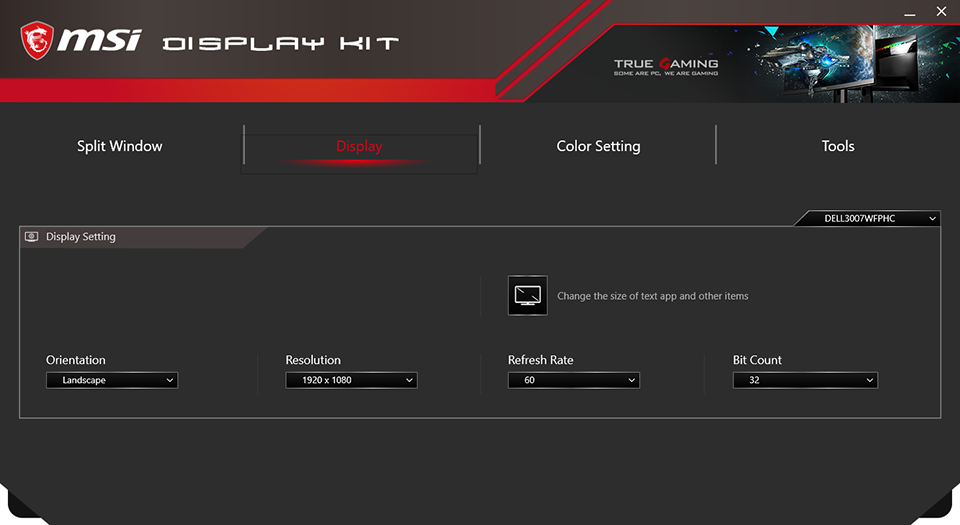

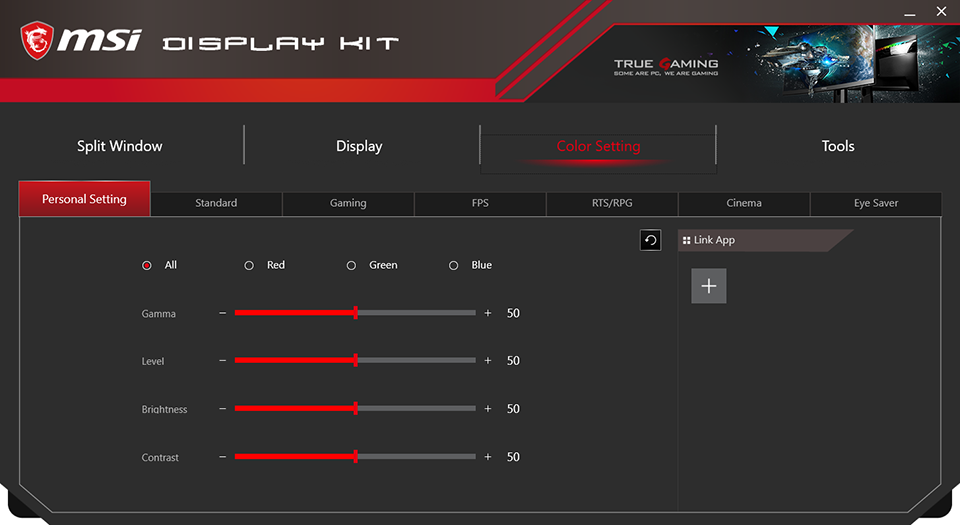

We also found interest in a utility that MSI included for splitting your giant high-resolution panel into a group of virtual displays, among other things. It appears a little more advanced than the split panes of Windows 10.

Image 1 of 4

(Image credit: Tom's Hardware)
Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

Firmware

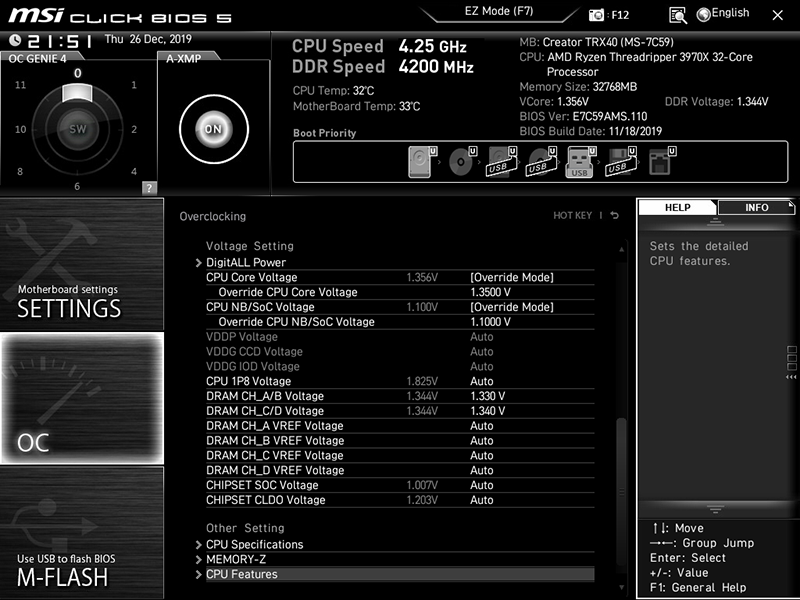

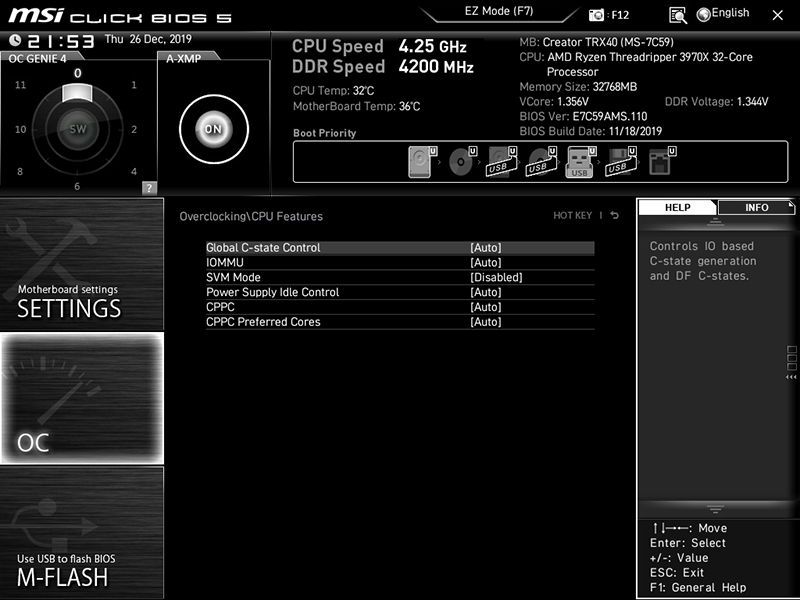

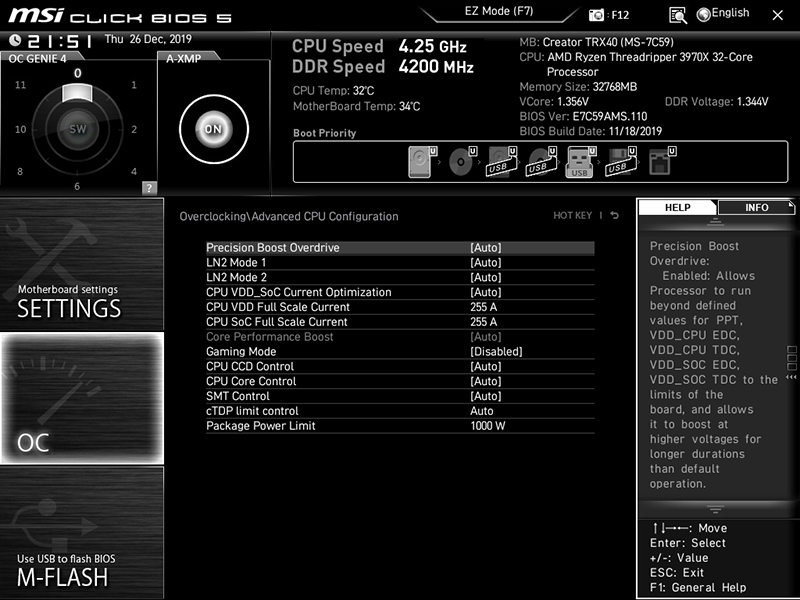

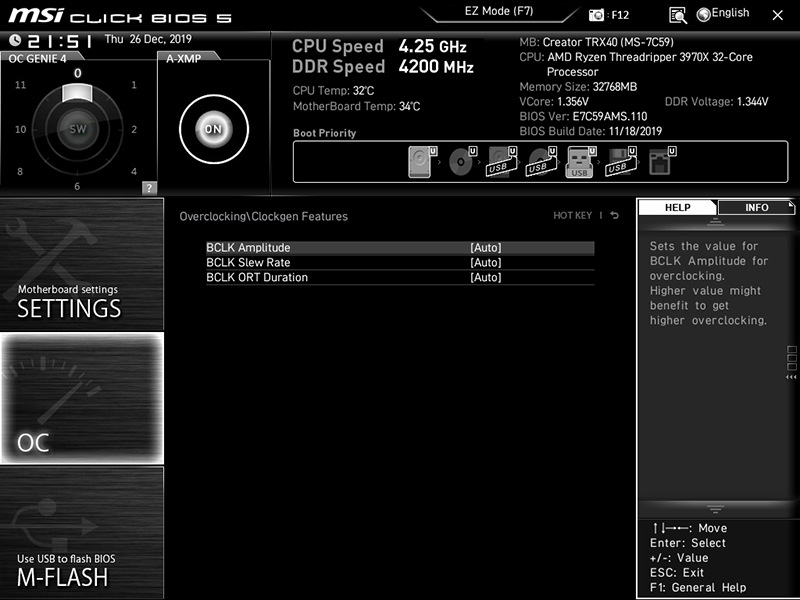

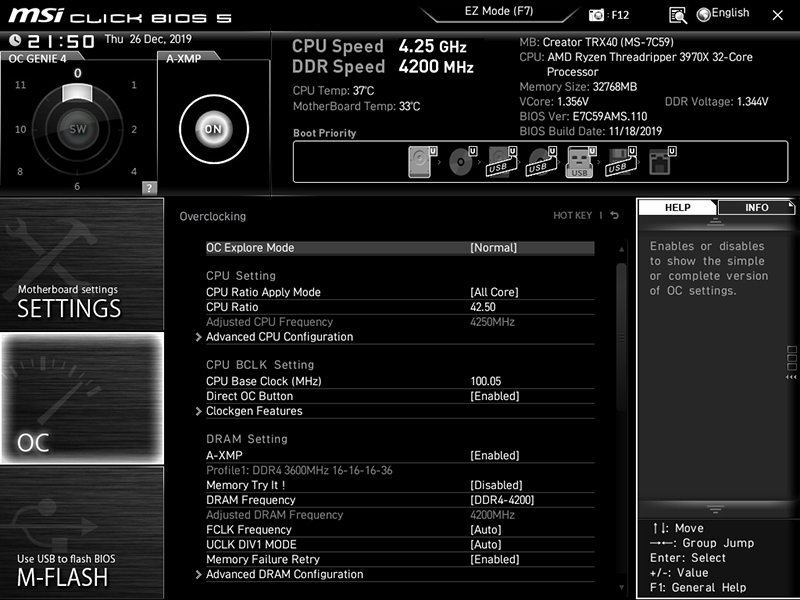

Creator TRX40 firmware defaults to its Advanced Mode interface, where we find an OC menu that provides all the key settings needed to put it in the running for our overclocking attempts. One thing of note is that the voltage settings for DRAM channels A/B and C/D are both under-measured and not synchronized to each other, so that the 1.330V A/B setting got us 1.347V while the 1.340V setting got us 1.354V, measured at the slots. Since we don’t allow any boards to exceed 1.355V in our competition, these were the closest settings we could use.

Image 1 of 4

(Image credit: Tom's Hardware)
Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

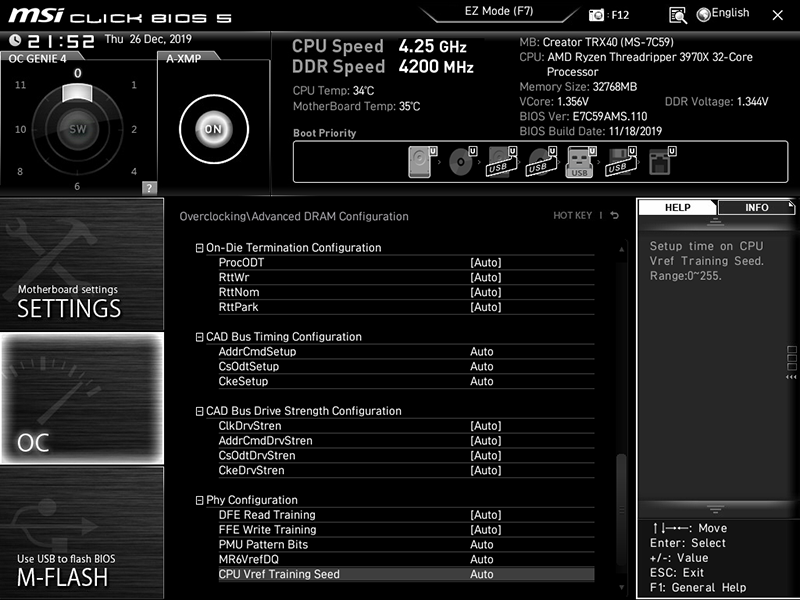

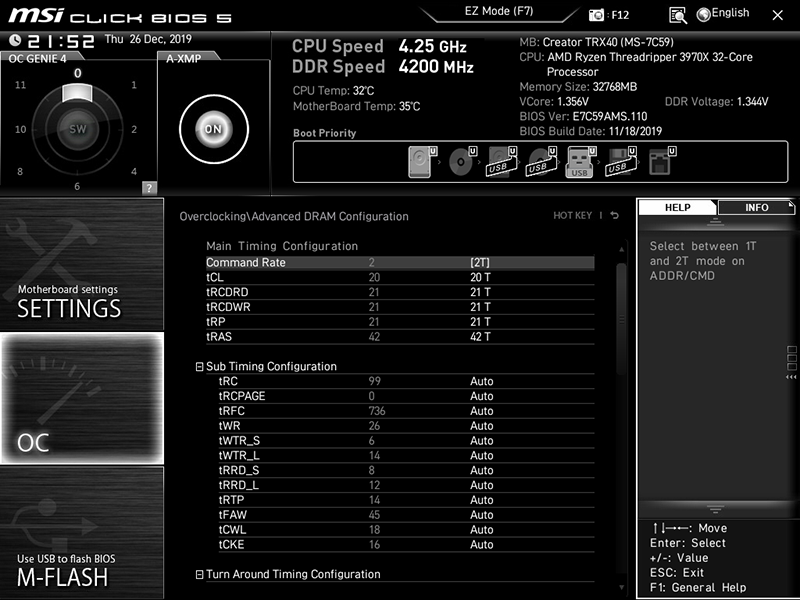

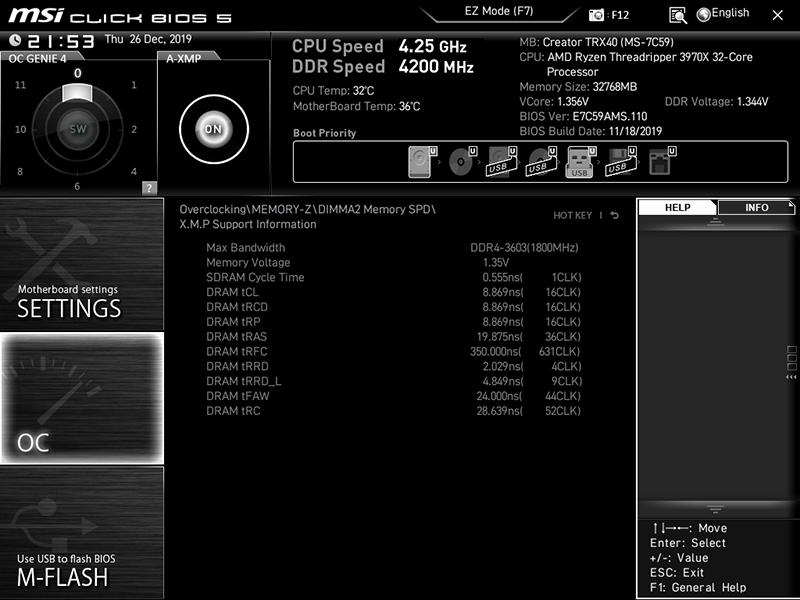

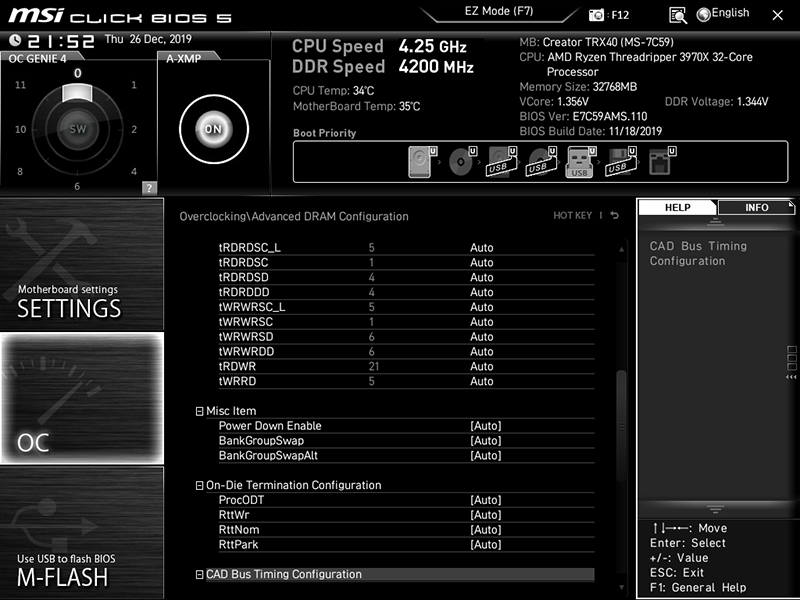

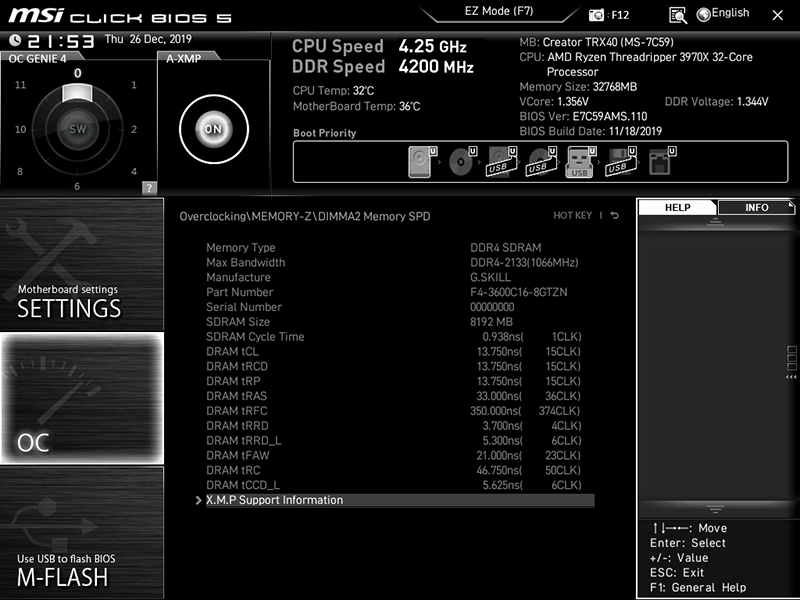

The Advanced DRAM Configuration submenu includes primary and secondary timings along with a few advanced settings to help memory tweakers get the best combination of increased frequency and reduced latency.

Image 1 of 3

(Image credit: Tom's Hardware)
Image 2 of 3

(Image credit: Tom's Hardware)
Image 3 of 3

(Image credit: Tom's Hardware)

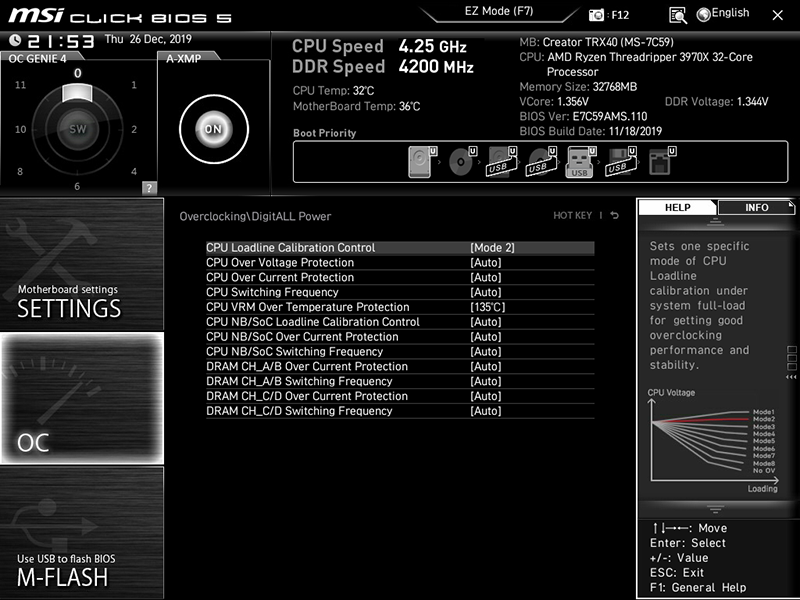

Under the DigitALL Power submenu, CPU Loadline Calibration got us closest to maintaining our desired core voltage under load, in a test configuration where thermal limits are the actual deciding factor.

Image 1 of 4

(Image credit: Tom's Hardware)
Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

Onboard flash has enough extra space to support up to six setting sets as custom profiles, and users are welcome to import or export these using a USB flash drive.

(Image credit: Tom's Hardware)

The firmware’s Hardware Monitor menu is primarily configured as a fan control center, where users can define their temperature-to-RPM curve using points on a graph. All nine fan headers can be manually configured for voltage or PWM-based RPM control or left in "Auto" mode to detect the PWM monitor on its own.

(Image credit: Tom's Hardware)

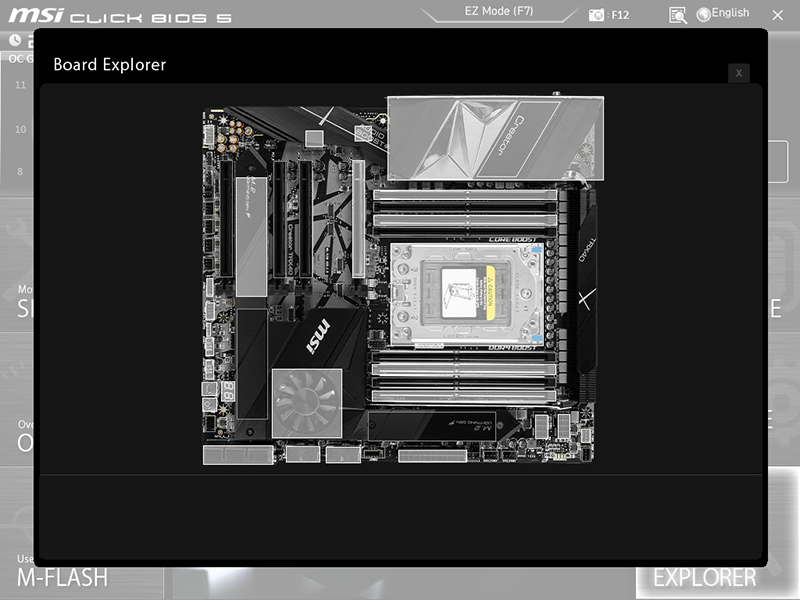

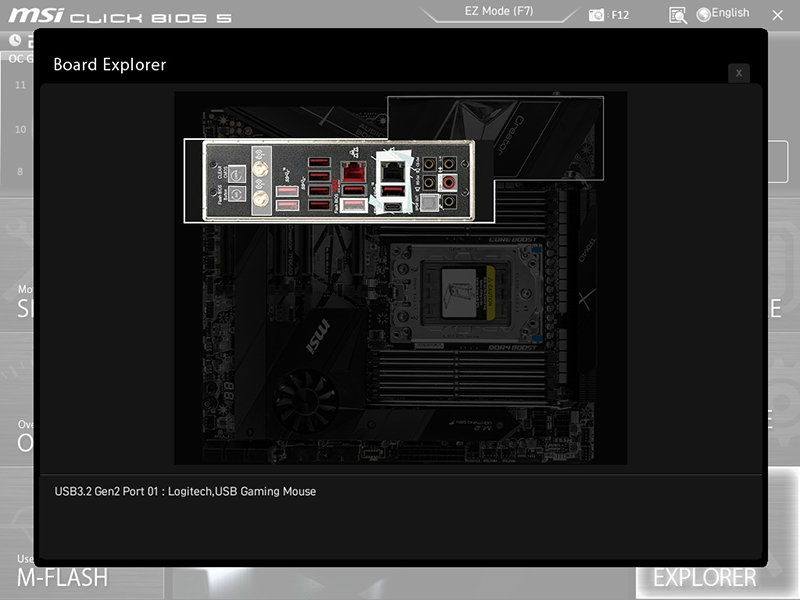

On the Board Explorer menu, users can see what is attached to the motherboard at any given time. This is particularly useful for determining whether a device the dropped out of Device Manager in Windows is still detectable in firmware.

Image 1 of 2

(Image credit: Tom's Hardware)
Image 2 of 2

(Image credit: Tom's Hardware)

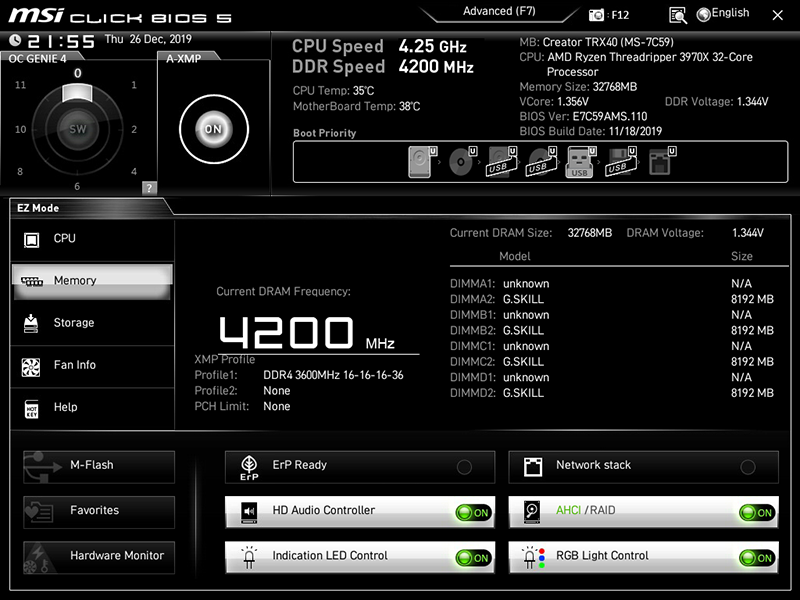

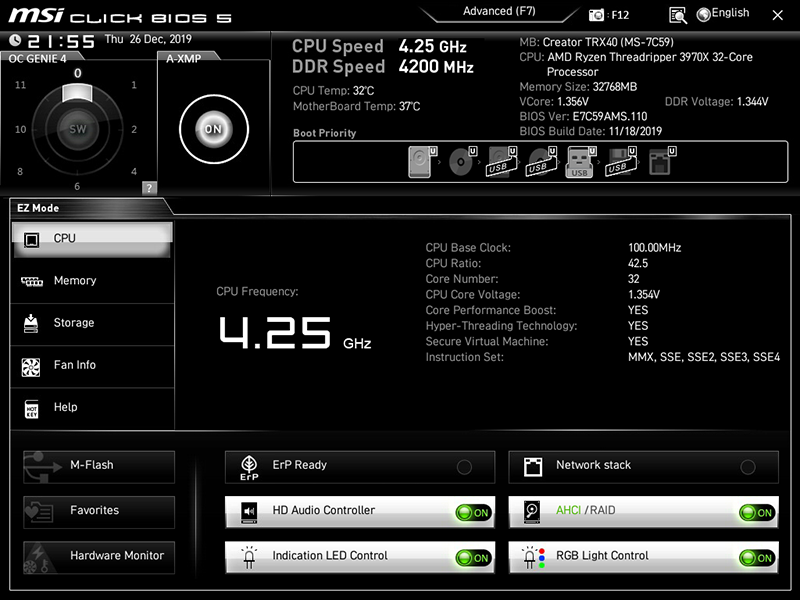

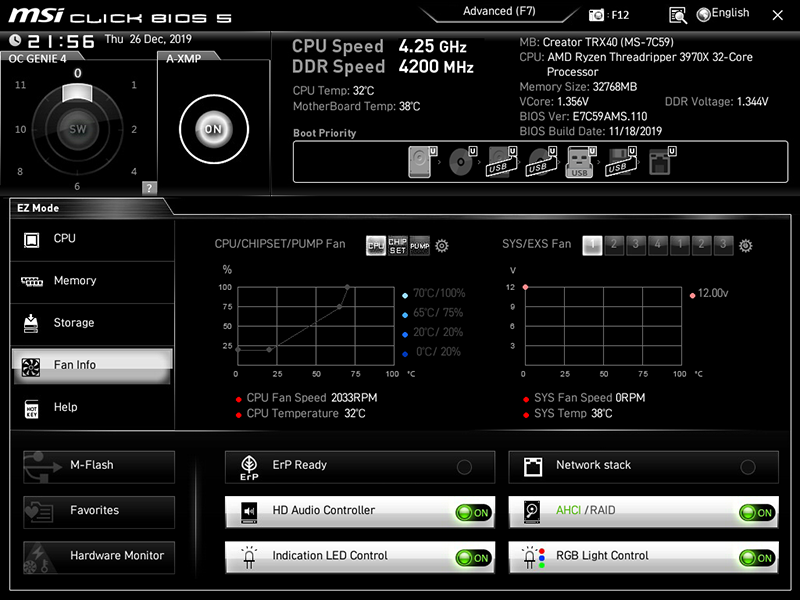

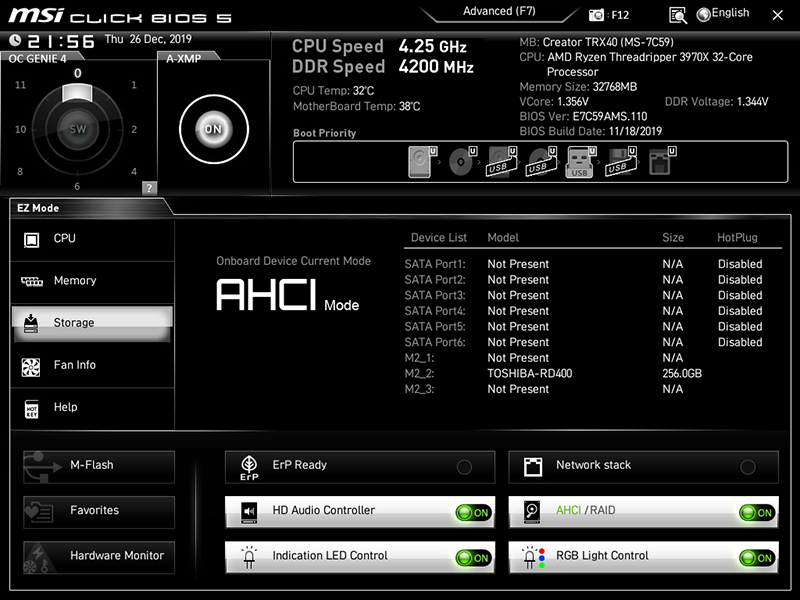

Selecting the F7 key from your keyboard switches Creator TRX40 firmware to “EZ” mode, where users can view CPU and memory settings, enable their memory’s XMP mode, change boot order and disable several onboard devices.

Image 1 of 4

(Image credit: Tom's Hardware)
Image 2 of 4

(Image credit: Tom's Hardware)
Image 3 of 4

(Image credit: Tom's Hardware)
Image 4 of 4

(Image credit: Tom's Hardware)

The OC Genie 4 selector still includes seven overclocking profiles, with the following results:

ModeFrequencyCore VoltageResult
Step 14.00 GHz1.256VPrime95 small-FFTs stable
Step 24.05 GHz1.280VP95 crashes 1 thread, CPU throttles
Step 44.10 GHz1.280VP95 crashes windows, AIDA64 stable
Step 64.15 GHz1.304VP95 crashes windows, AIDA64 stable
Step 84.20 GHz1.352VP95 crashes windows, AIDA64 stable
Step 104.20 GHz1.408VOverload Protection (Instant Off)
Step 114.25 GHz1.400VOverload Protection (Instant Off)

Comparison Hardware

MSI Creator TRX40 Asus ROG Zenith II ExtremeASRock TRX40 Creator
BIOS1.10 (11/18/2019)0602 (11/18/2019)L1.13 (11/22/2019)
Reference Clock80-200 MHz (50 kHz)40-300 MHz (0.2 MHz)100-200 MHz (1 MHz)
CPU Multiplier8-64x (0.25x)22-64x (0.25x)22-63x (0.25x)
DRAM Data Rates1600-2666/5000/6000 (267/66/100 MHz)1333-2666/5000/6000 (267/66/100 MHz)1866-2666/5000/6000 (267/66/100 MHz)
CPU Voltage0.90-2.10V (12.5 mV)0.75-1.70V (6.25 mV)0.90-1.60V (5 mV)
CPU SOC0.90-1.55V (12.5 mV)0.70-1.50V (6.25 mV)0.70-1.55V (10 mV)
VDDP-0.70-V (1 mV)0.70-1.55V (10mV)
DRAM Voltage0.80-2.10V (10 mV)0.50-2.15V (10 mV)1.10-1.80V (5 mV)
DDR VTTOffset -600 to +600 mV (10mV)Offset -600 to +600 mV (10mV)Offset -600 to +600 mV (10mV)
Chipset 1.05V0.85-1.50V (10 mV)0.70-1.40V (6.25 mV)-
CAS Latency8-33 Cycles5-33 Cycles8-33 Cycles
tRCDRD/RDCWR8-27 Cycles8-27 Cycles8-27 Cycles
tRP8-27 Cycles8-27 Cycles8-27 Cycles
tRAS21-58 Cycles8-58 Cycles21-58 Cycles

MSI’s $700 Creator TRX40 is the second most-expensive board we’ve tested, only behind the $850 ROG Zenith II Extreme. Meanwhile, the ASRock TRX40 Creator costs only $460. The other two boards fell in between at $500.

On our test system, Gigabyte’s GeForce RTX 2070 Gaming OC 8G, Toshiba’s OCZ RD400 and G.Skill’s Trident-Z DDR4-3600 feed AMD’s Ryzen Threadripper 3970X. Alphacool’s Eisbecher D5 pump/reservoir and NexXxoS UT60 X-flow radiator cool the CPU through Swiftech’s SKF TR4 Heirloom.

(Image credit: Tom's Hardware)
