We’ve seen how far I can push a six-core Haswell-E in our full-sized performance build, but can the same performance level fit into a mini cube?

Gaming

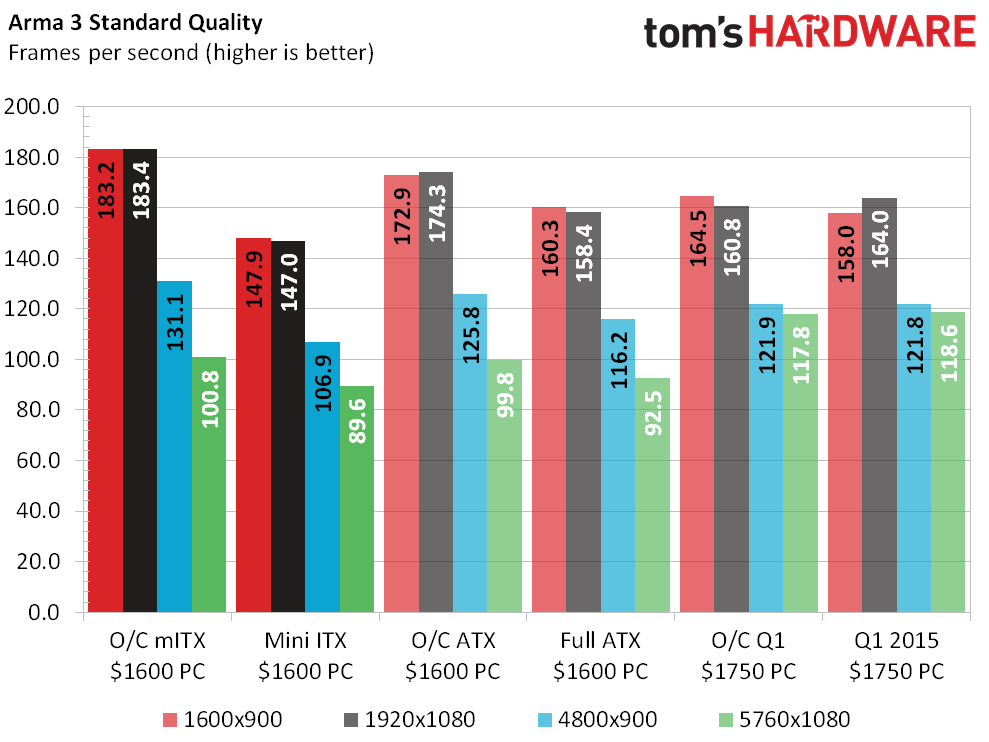

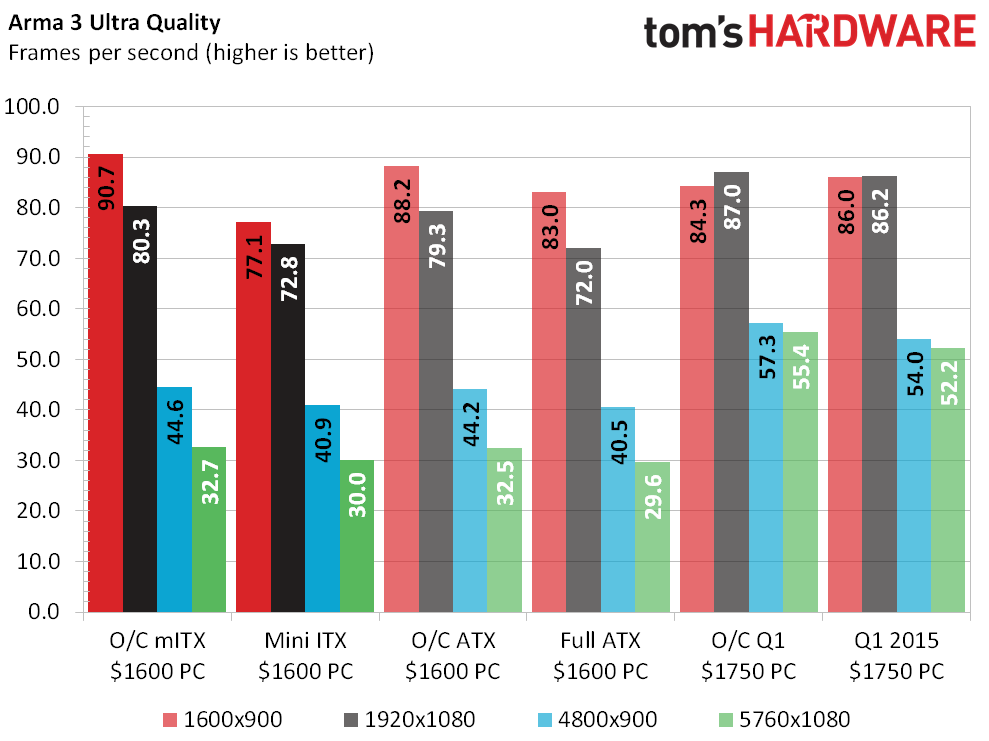

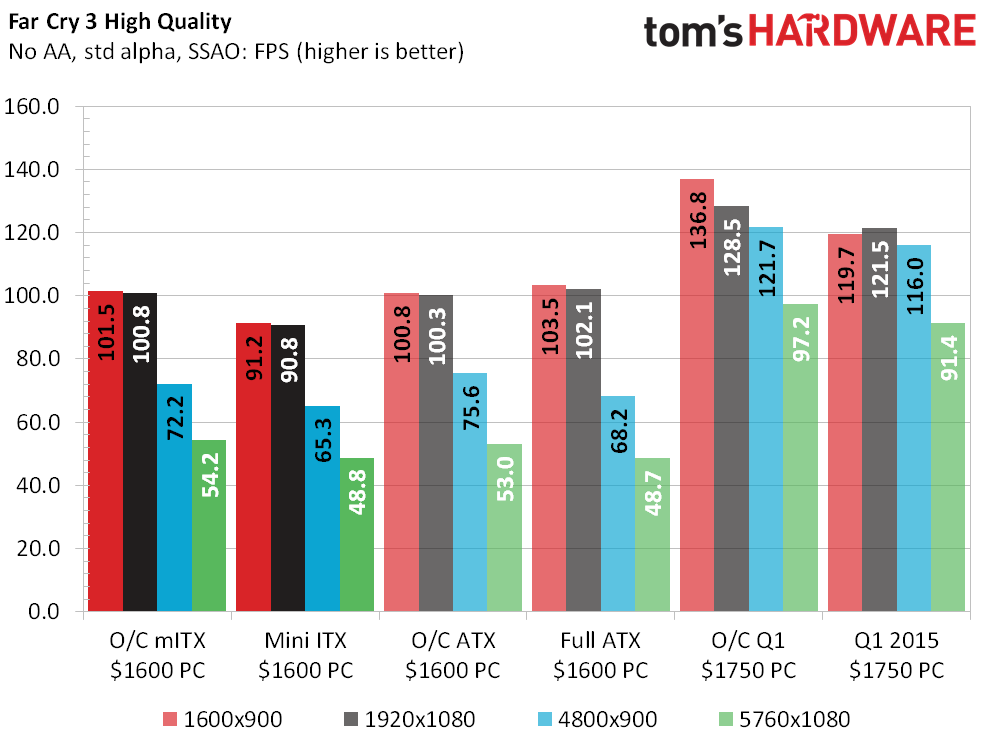

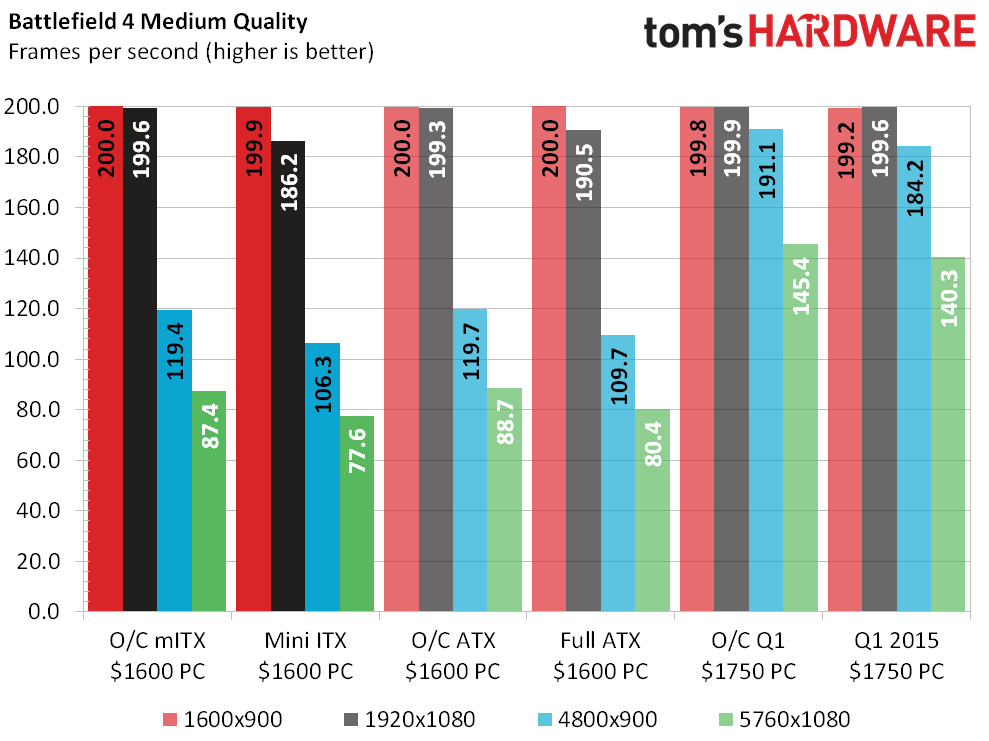

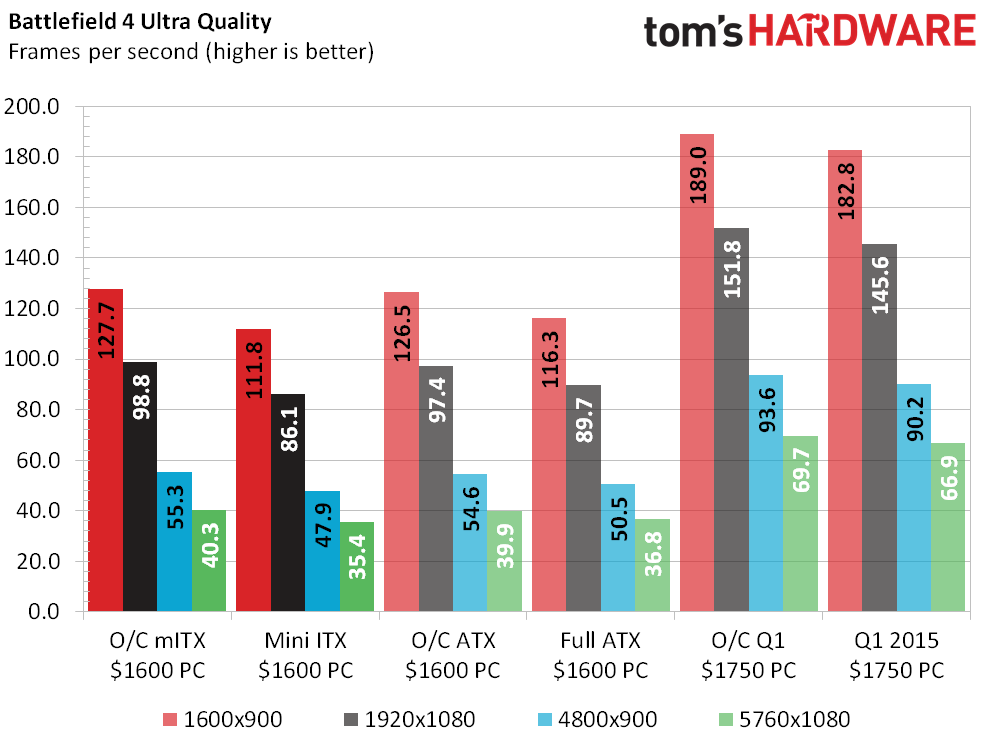

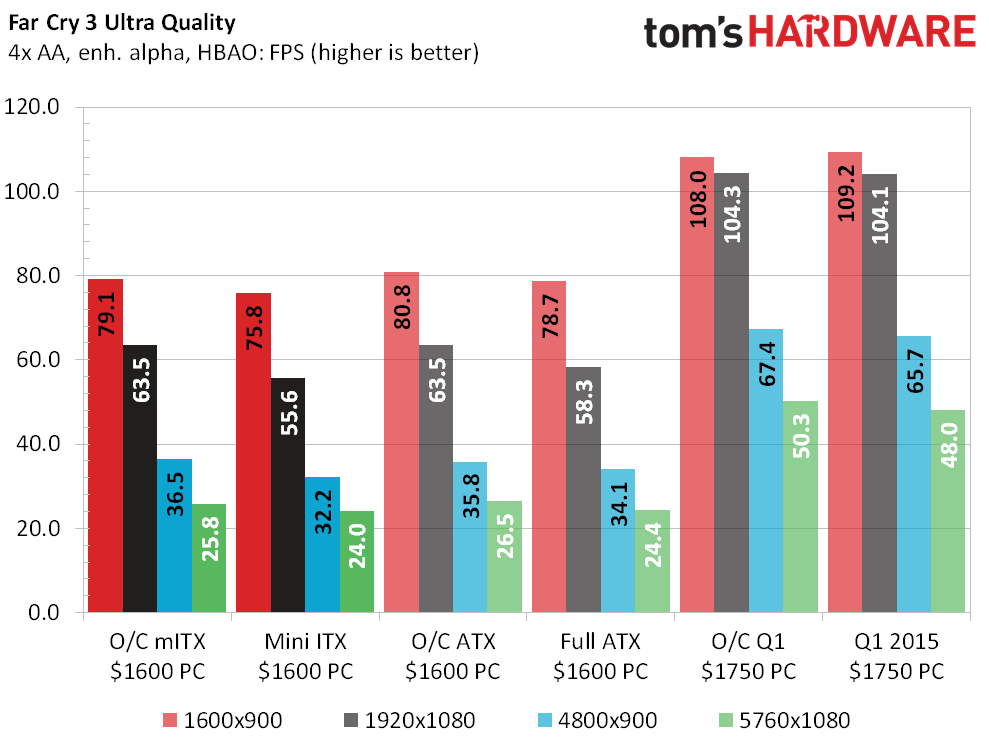

Arma 3 sees the weakest benefit from the Q1 system’s SLI configuration, while Battlefield 4 and Far Cry 3 get the most benefit from the extra card. The 200FPS cap in Battlefield 4 is a primary reason why SLI systems don’t do better in our SBM gaming tests, and a good reason why we have a separate value chart for gaming at high resolution. Unlike most other games, Far Cry 3 actually needed the second card to play Ultra Quality smoothly at 5760x1080.

Image 1 of 8

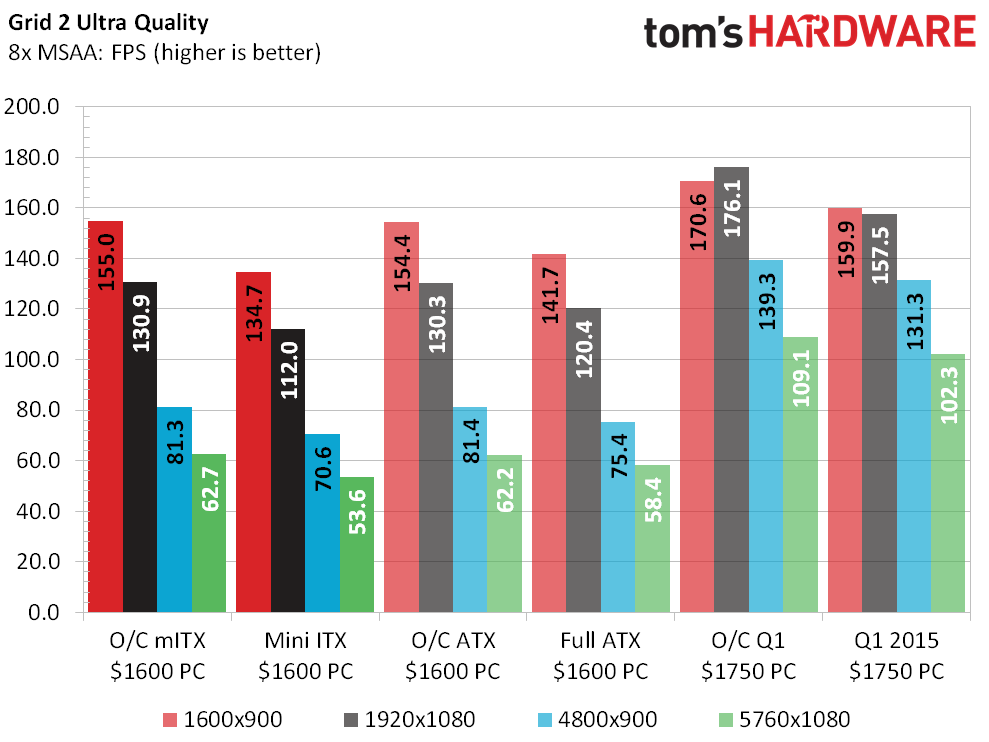

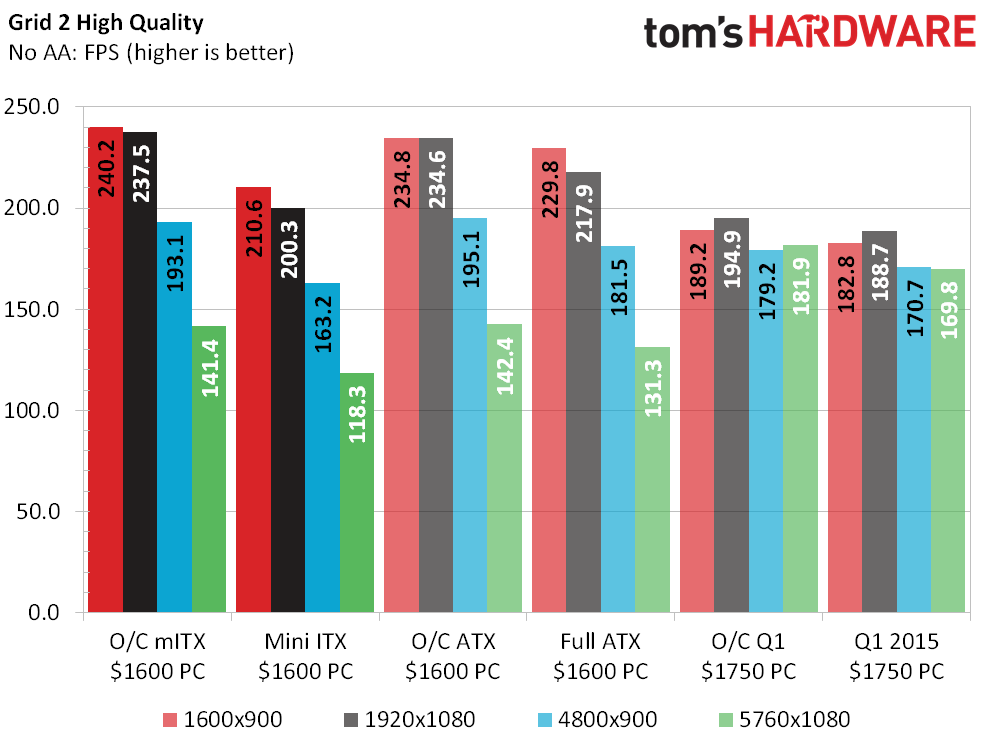

Grid 2’s “High Quality” is actually a fairly low setting for testing high-end graphics cards, and is typically limited first by memory performance, then by CPU performance. We indeed see the benefits of DDR4 at our lowest Grid 2 test settings, but surprisingly see little difference between dual-channel (Mini ITX) and quad-channel (Full ATX) configurations.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
