We’ve seen how far I can push a six-core Haswell-E in our full-sized performance build, but can the same performance level fit into a mini cube?

Component Selection

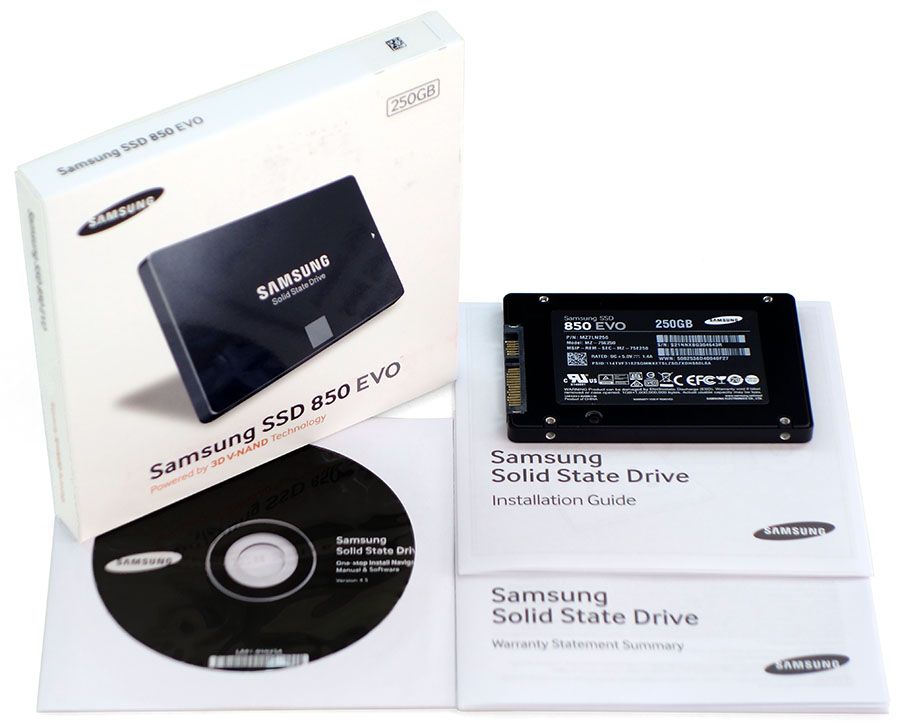

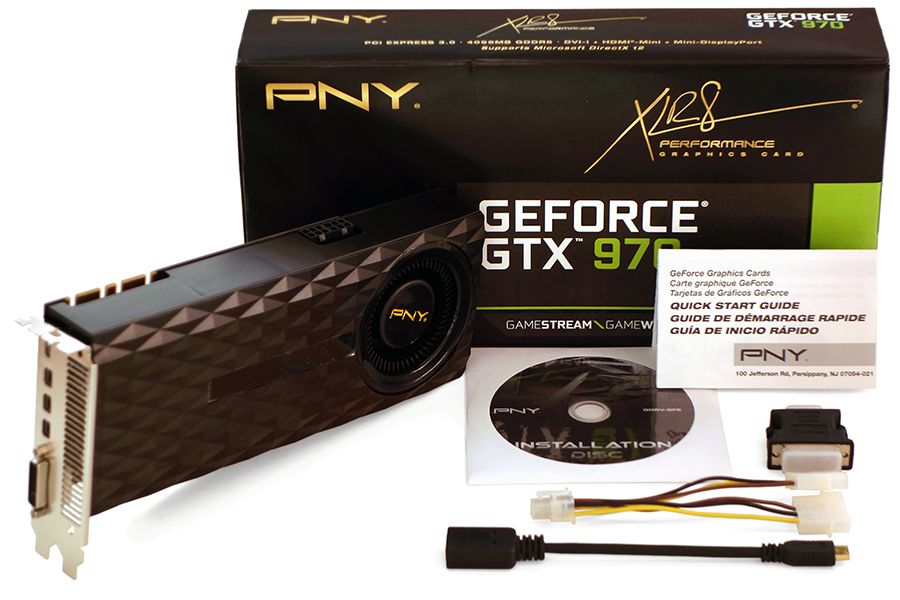

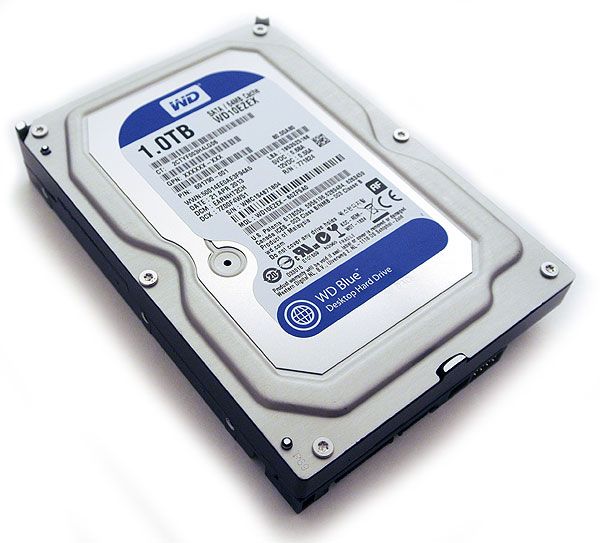

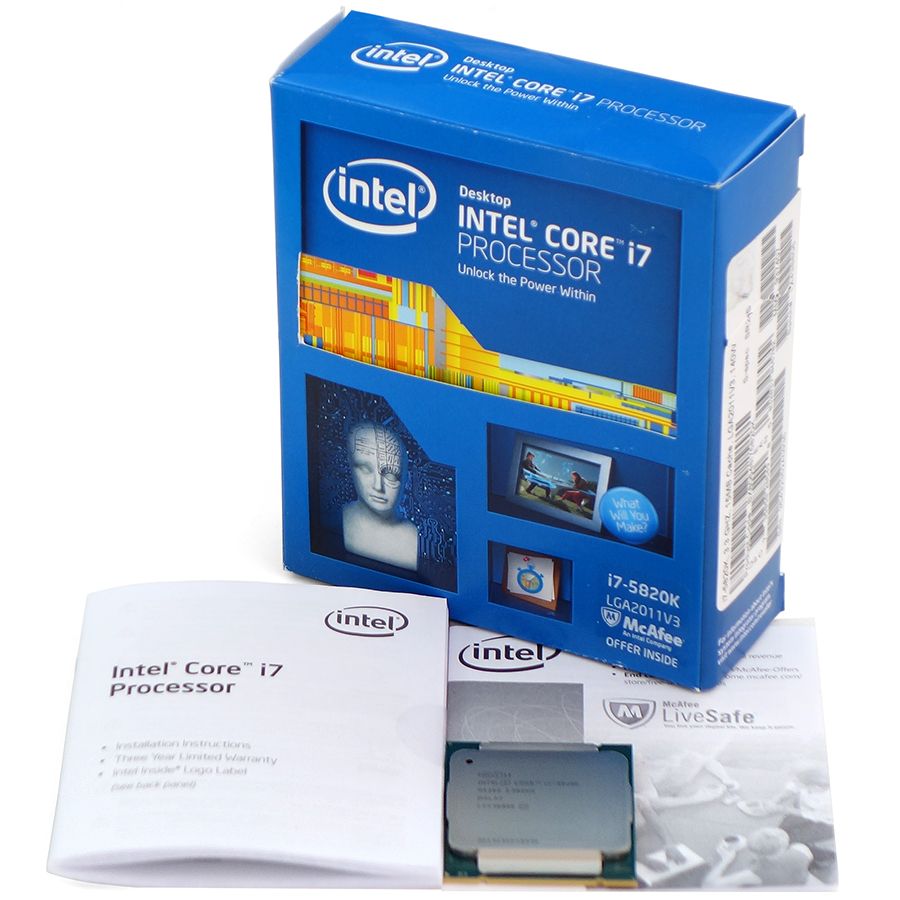

I’ve fully described my selection of parts in Monday’s $1600 Performance Build, which included the previously-promised Core i7-5820K six-core CPU, externally-exhausted PNY GeForce GTX 970, value-winning Samsung 850 Evo 250GB SSD, and reader’s-choice WD Blue 1TB storage drive. There’s no better way to match the performance of these parts than to continue using them.

Image 1 of 4

Now it’s time to face the strange!

ASRock X99E-ITX/ac
View Deal
G.Skill Ripjaws 4 (16GB)
View Deal
Rosewill RG630-S12
View Deal
DIYPC HTPC-Cube-BK Black
View Deal
Corsair Hydro Series H60
View Deal
Lite-On EBAU108 External DVD-Writer
View Deal
