We’ve seen how far I can push a six-core Haswell-E in our full-sized performance build, but can the same performance level fit into a mini cube?

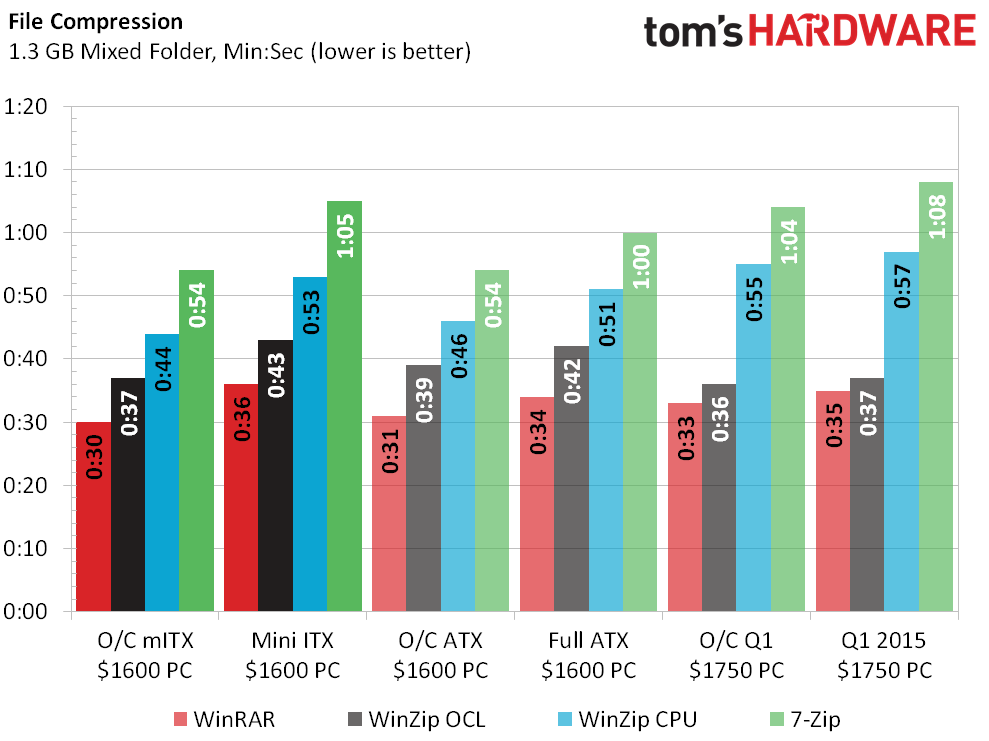

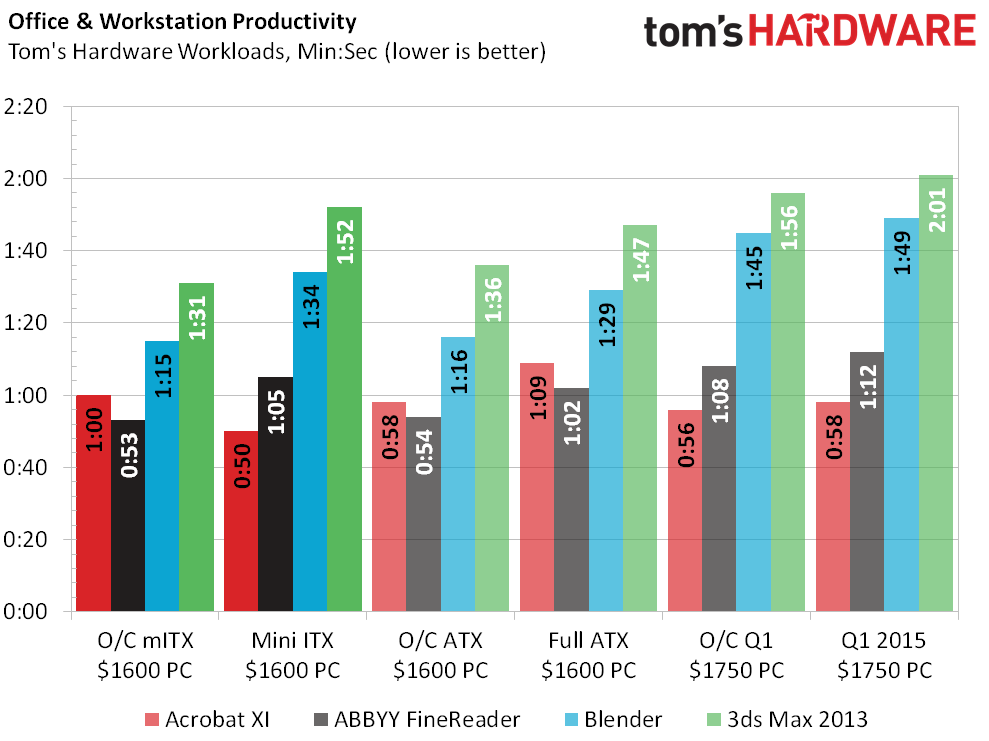

Media, Productivity And Compression

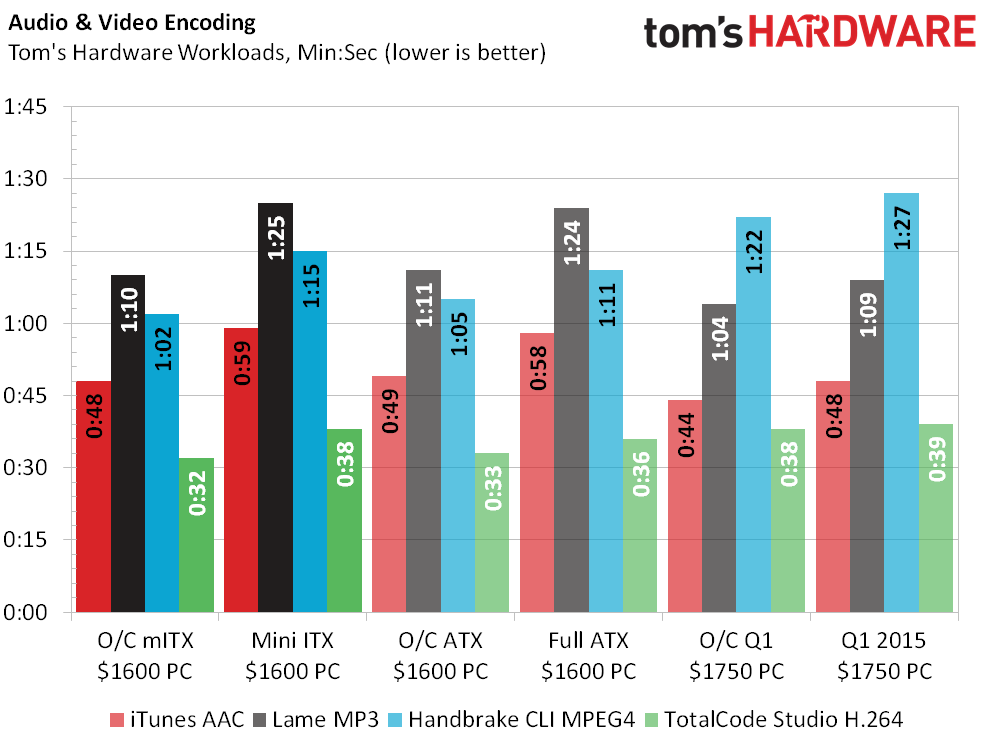

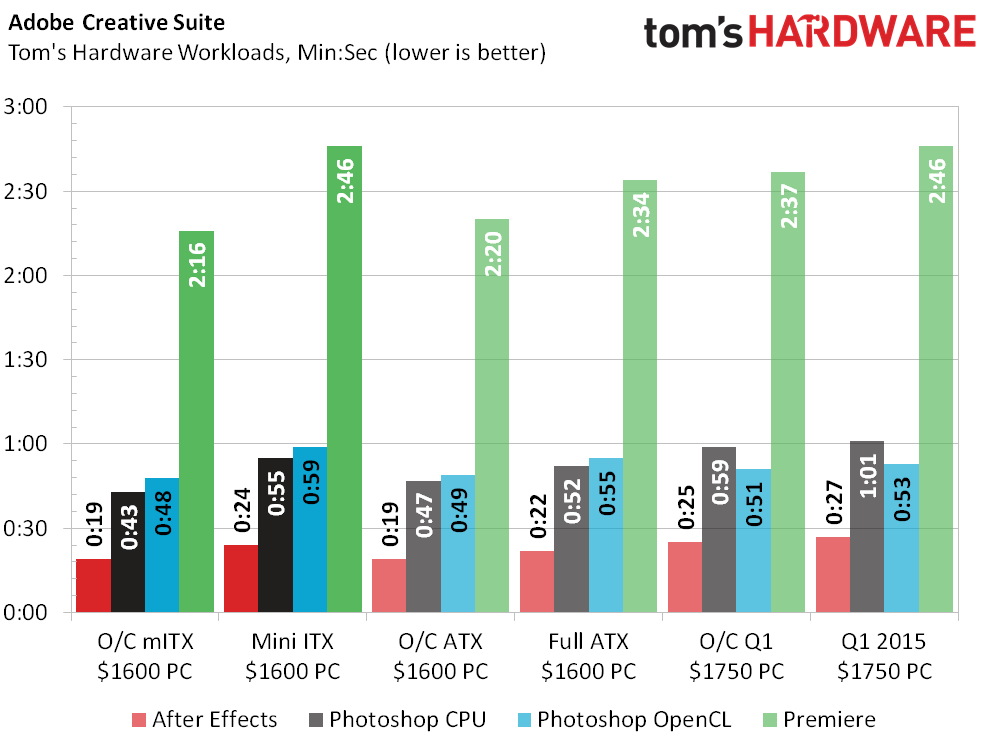

For the most part, single-threaded applications such as audio encoding favored the higher clock frequencies of the Q1 system, while multi-threaded benchmarks such as video encoding favor the six-core processors of both Q2 machines. The tiny system outperforms the big one when overclocked, because its processor was able to run at a fixed 4.3 GHz frequency.

Image 1 of 4

Remembering that less time is more performance in timed benchmarks, the Q2 ATX machine found the same “fixed frequency” –type advantage at stock speed due to its use of “Enhanced” turbo ratios.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
