Sapphire Nitro+ RX 5700 XT Review: Triple-Fan Cooling, Fast Clocks out of the Box

Sapphire's tri-fan Navi XT card is colorful, quiet, and speedy. But it's also pricier than most of its competition.

By Joe Shields
published
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Reaching 60 fps or more at 2560 x 1440 is a feat that many mid-range cards accomplish, including the reference Radeon RX 5700 XT. Board partner cards that include a factory overclock tend to yield a few more fps over the reference clocked GPUs and will continue to produce frames near that magic 60 FPS threshold or higher. Depending on the title, frame rates range from about 56 FPS (Final Fantasy XV, the GPU crusher), to nearly 130 fps when using Ultra/Very High Settings. If a card is 60+ fps capable at this resolution, it is high refresh rate capable at 1080p.

In our test group, all the cards fell nicely into their performance brackets with the RTX 2060 Super (Gigabyte Gaming OC version) running a few fps slower than our 5700 XT’s in this comparison. The RTX 2070 Super is a few to several percent faster than the RX 5700 XT in all titles not named Far Cry 5 and Metro: Exodus.

Our Nitro+ sample generally outpaced the Gigabyte RX 5700 XT and, at worst, it matched performance. With a 75 MHz clock speed advantage, the titles that rely more on the GPU show a greater a gap than some of the others. In all, the Nitro+ performed as expected.

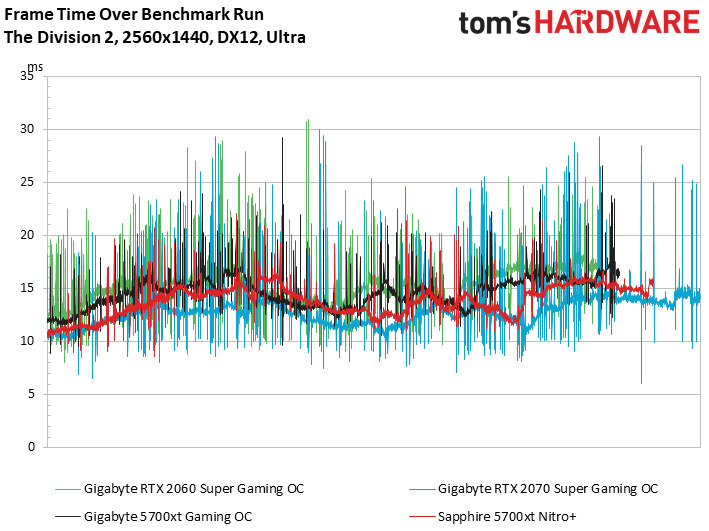

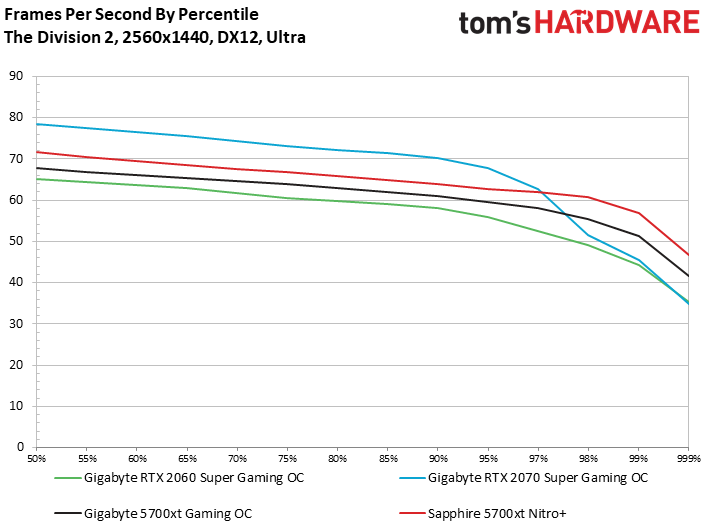

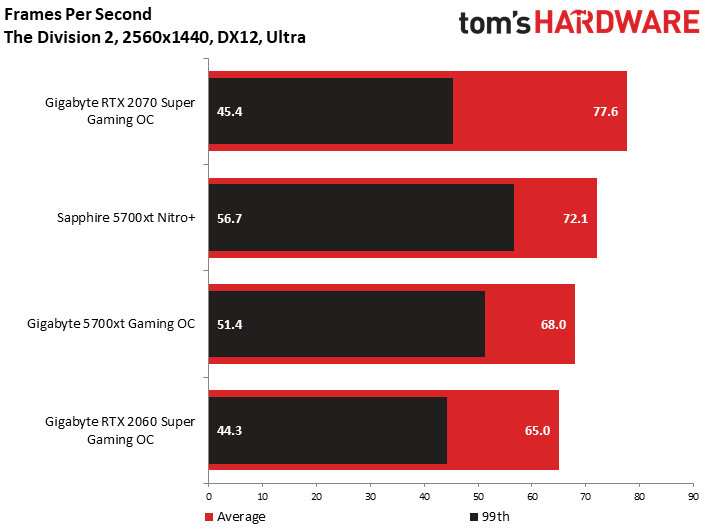

The Division 2

Image 1 of 3
(Image credit: Tom's Hardware)

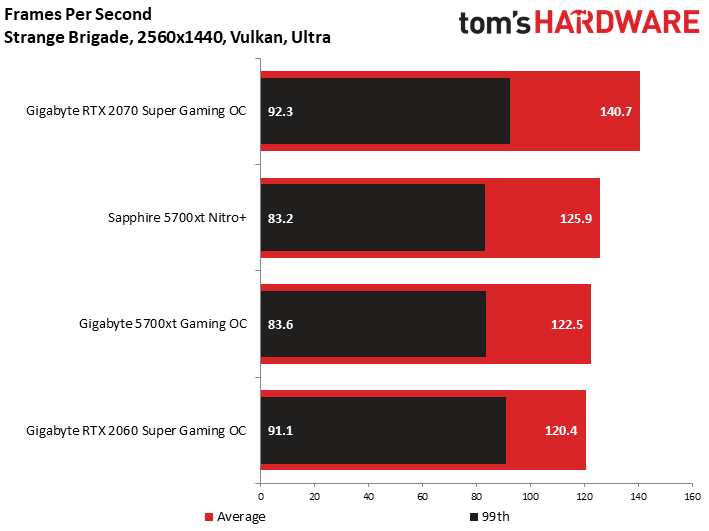

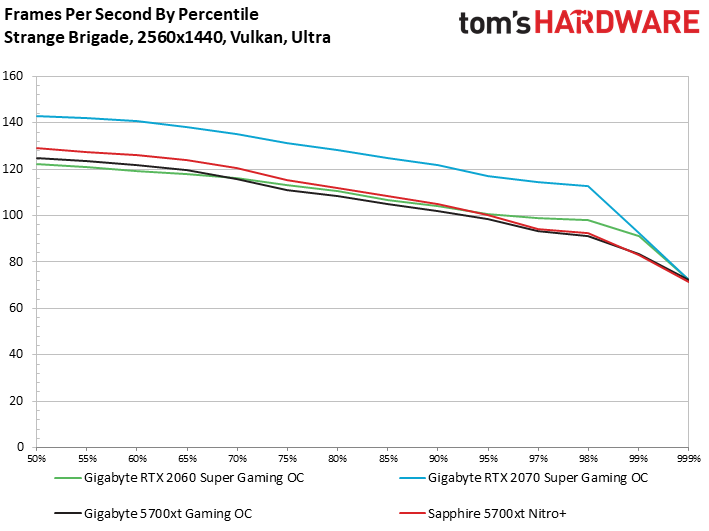

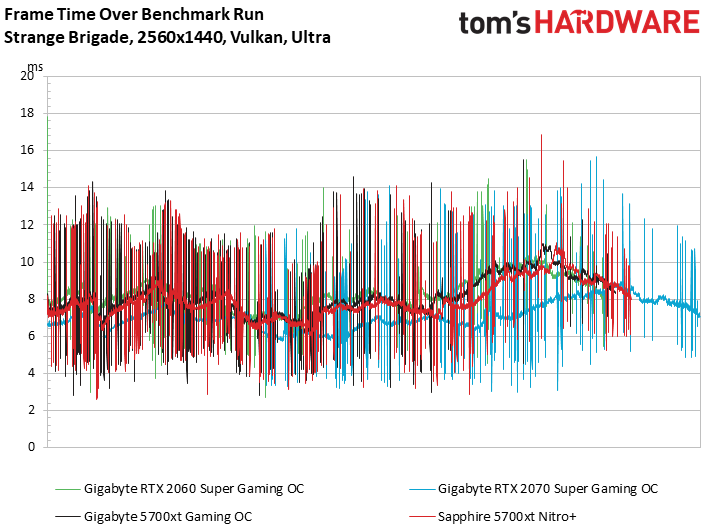

Strange Brigade

Image 1 of 3
(Image credit: Tom's Hardware)

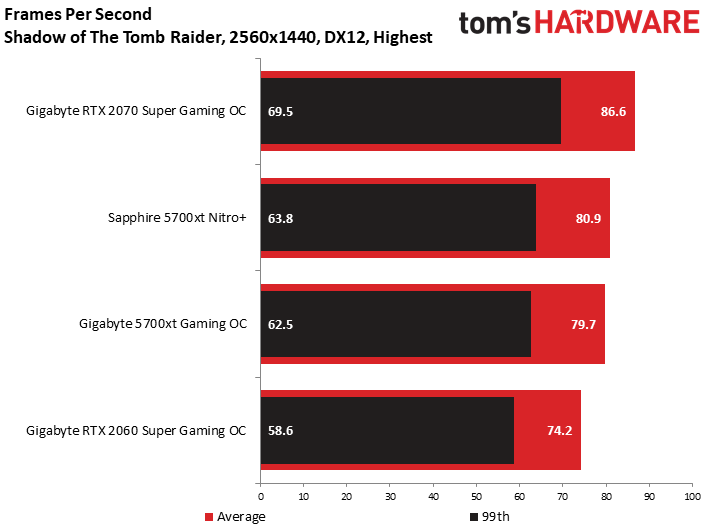

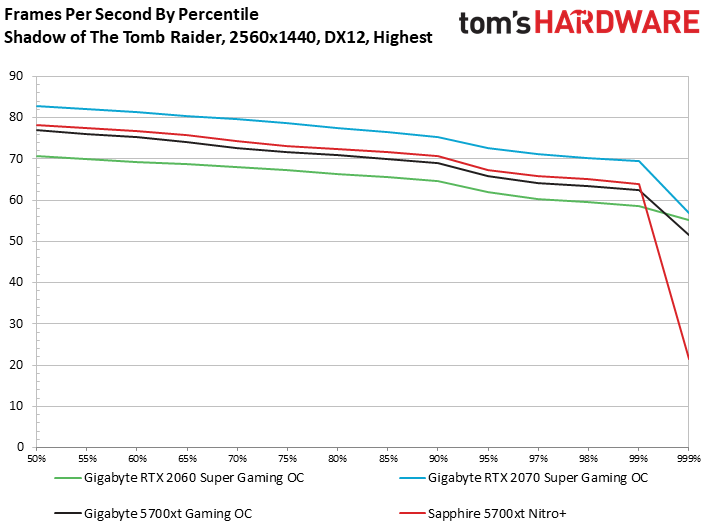

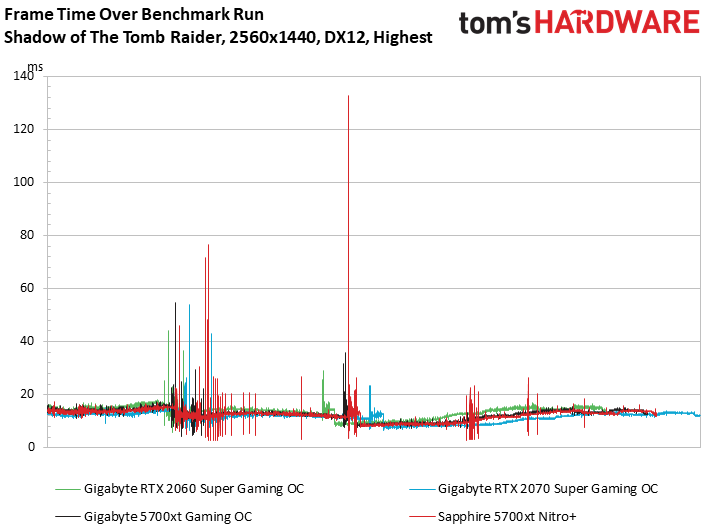

Shadow of the Tomb Raider

Image 1 of 3
(Image credit: Tom's Hardware)

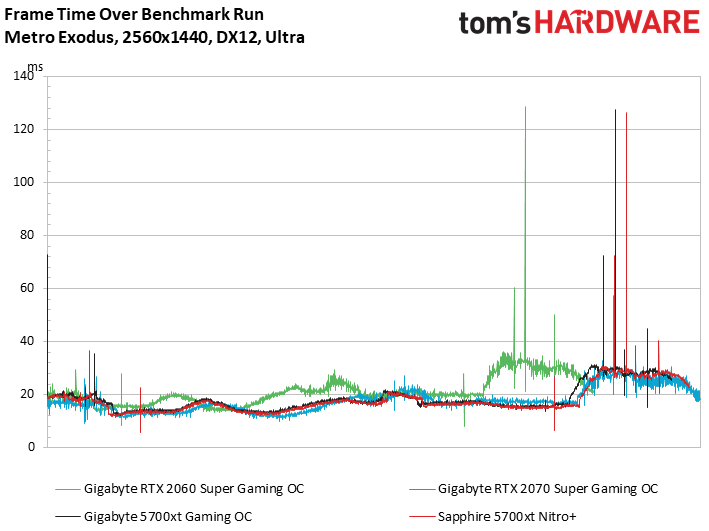

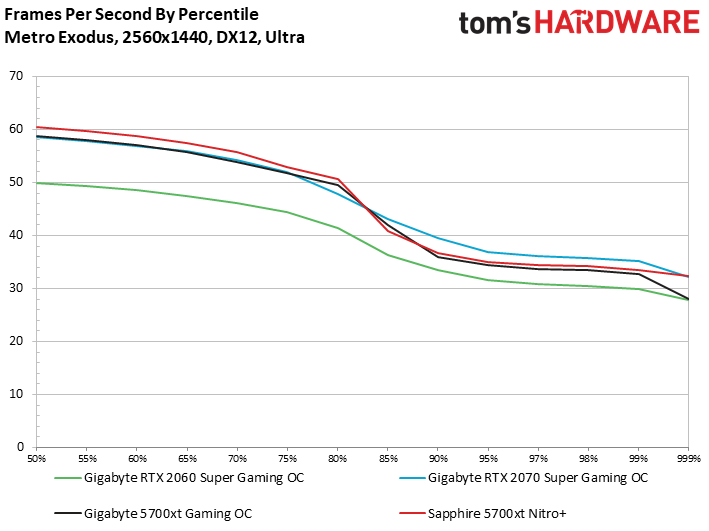

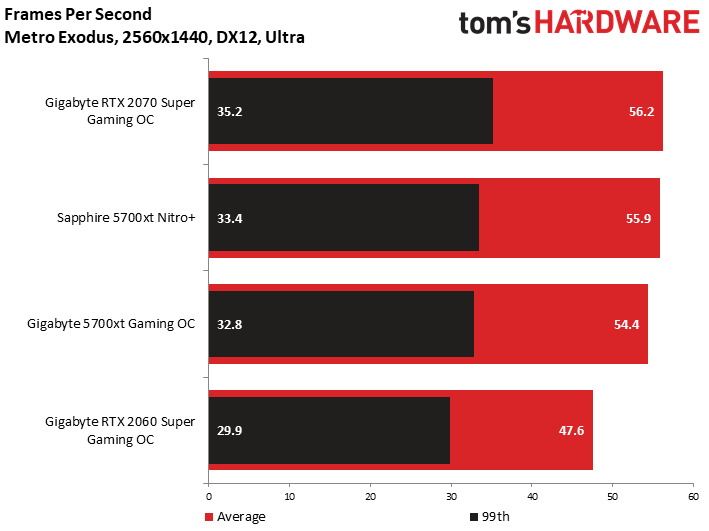

Metro Exodus

Image 1 of 3
(Image credit: Tom's Hardware)

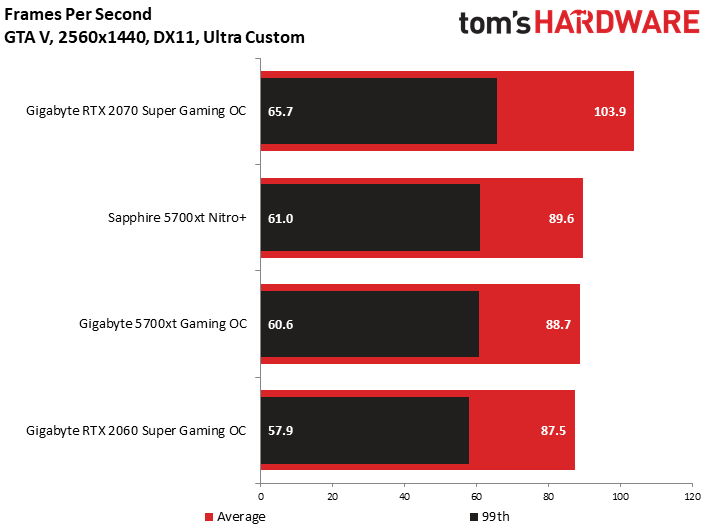

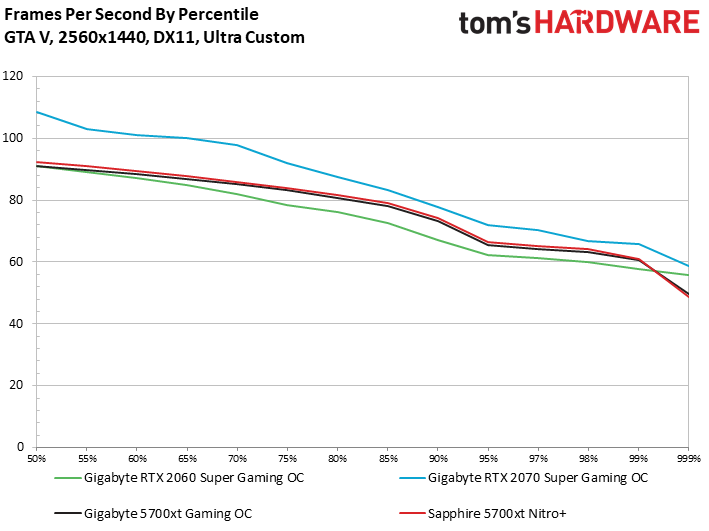

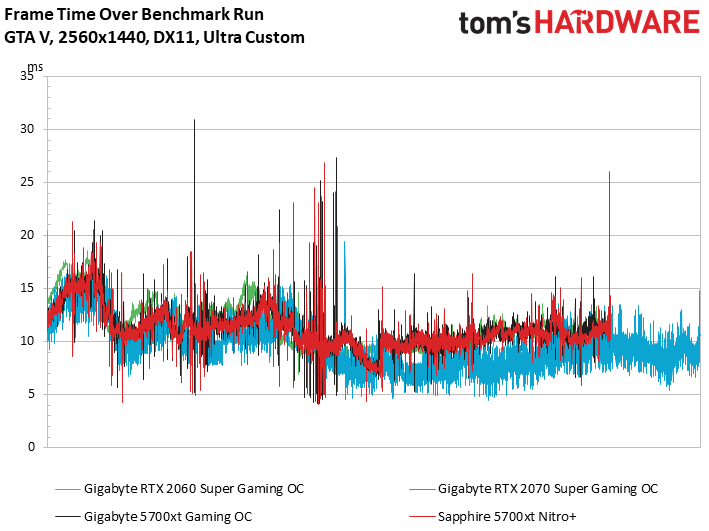

Grand Theft Auto V

Image 1 of 3
(Image credit: Tom's Hardware)

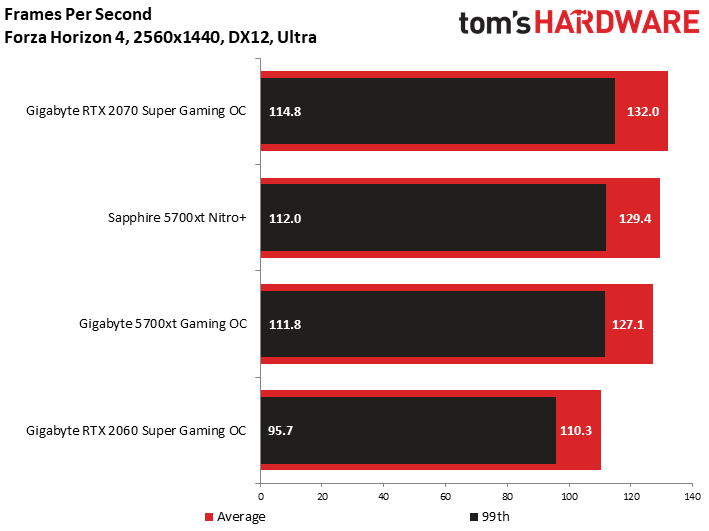

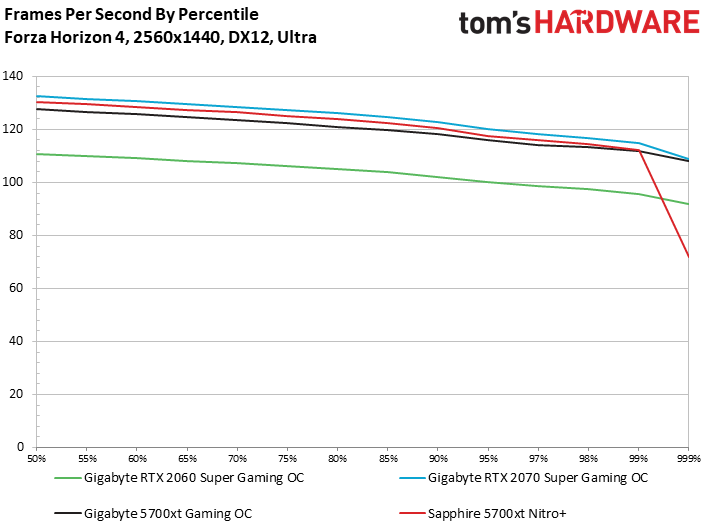

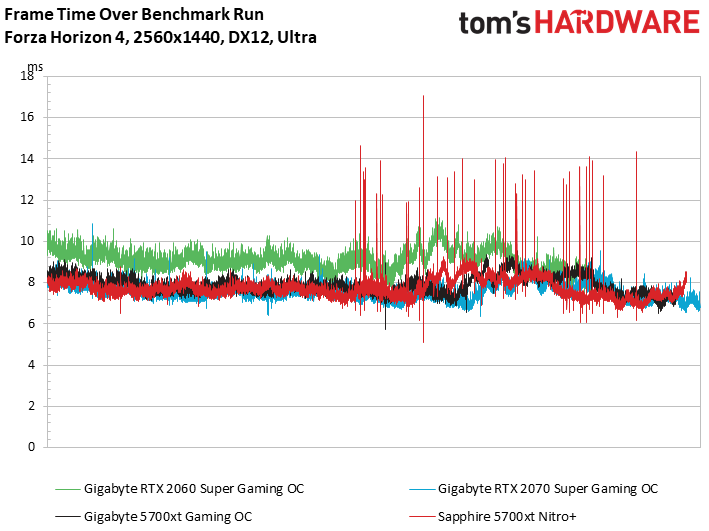

Forza Horizon 4

Image 1 of 3
(Image credit: Tom's Hardware)

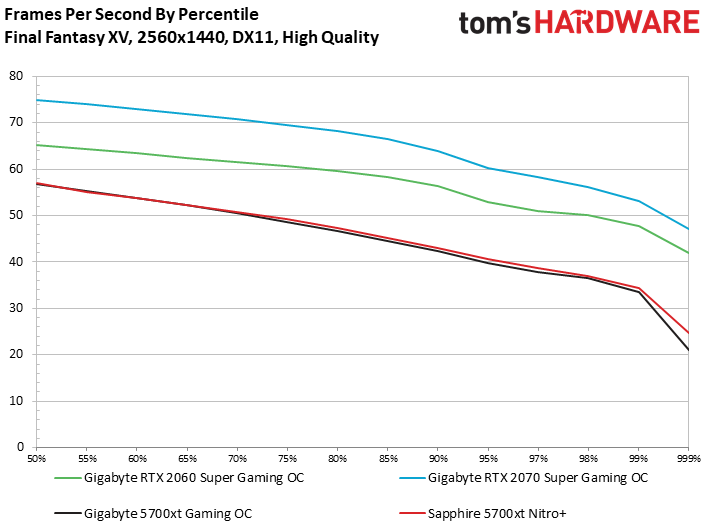

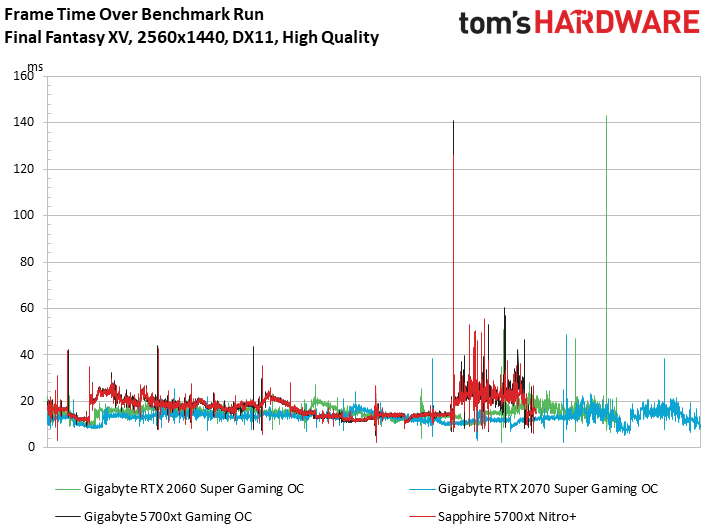

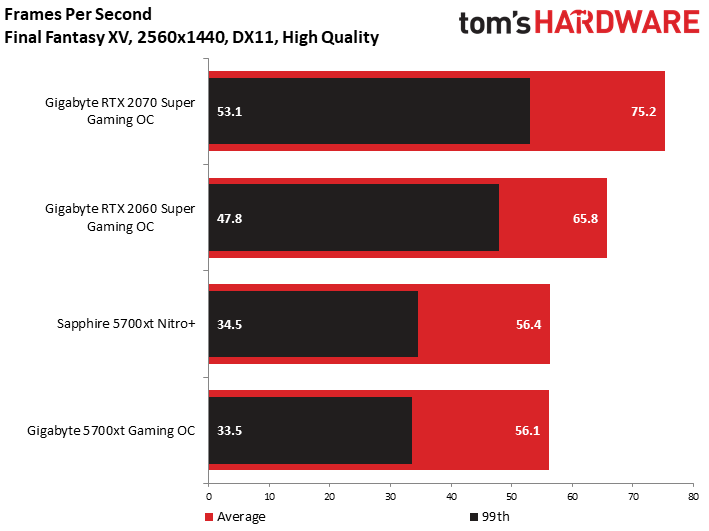

Final Fantasy XV

Image 1 of 3
(Image credit: Tom's Hardware)

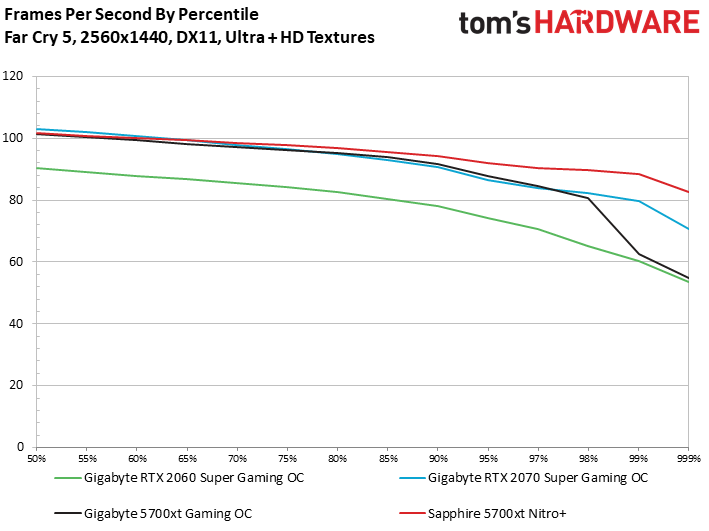

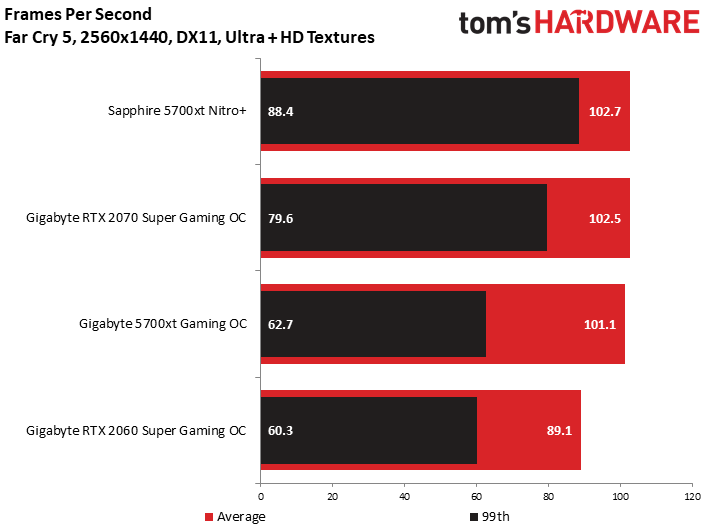

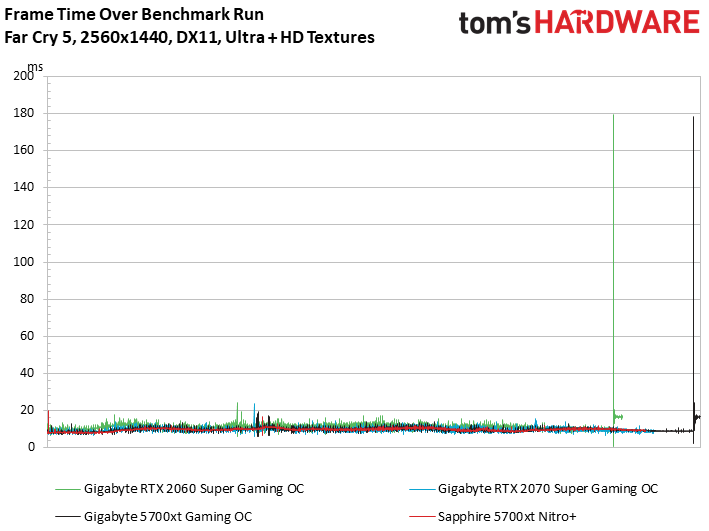

Far Cry 5

Image 1 of 3
(Image credit: Tom's Hardware)

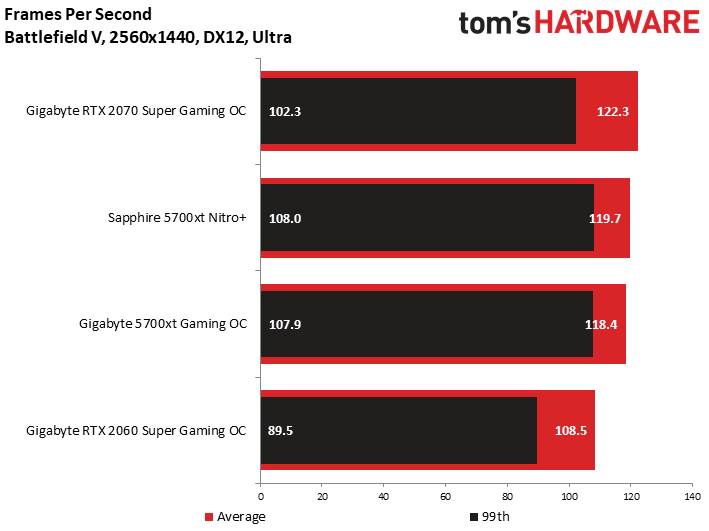

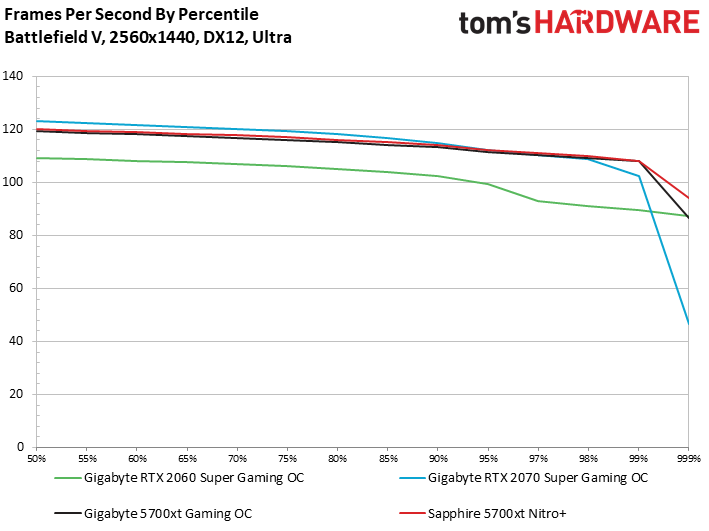

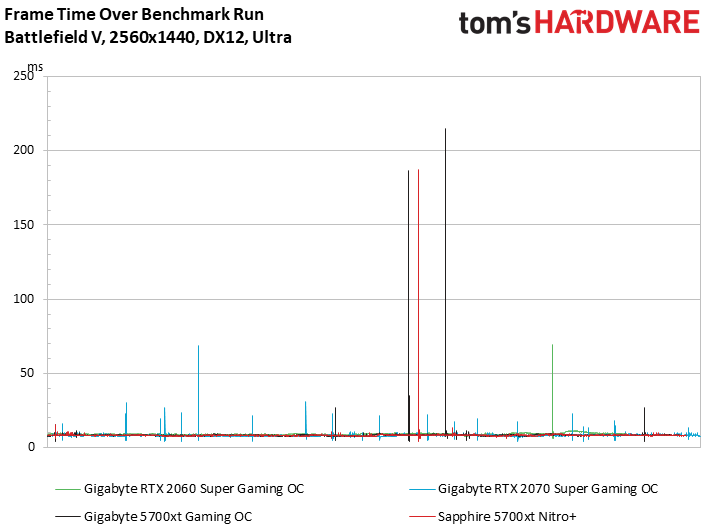

Battlefield V

Image 1 of 3
(Image credit: Tom's Hardware)

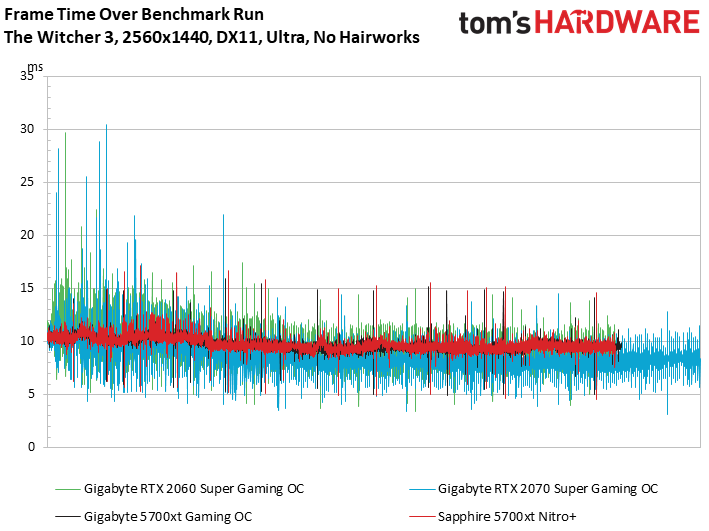

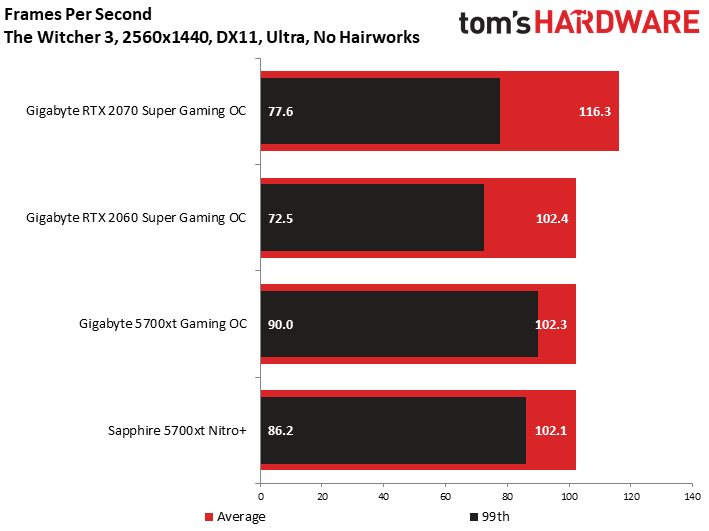

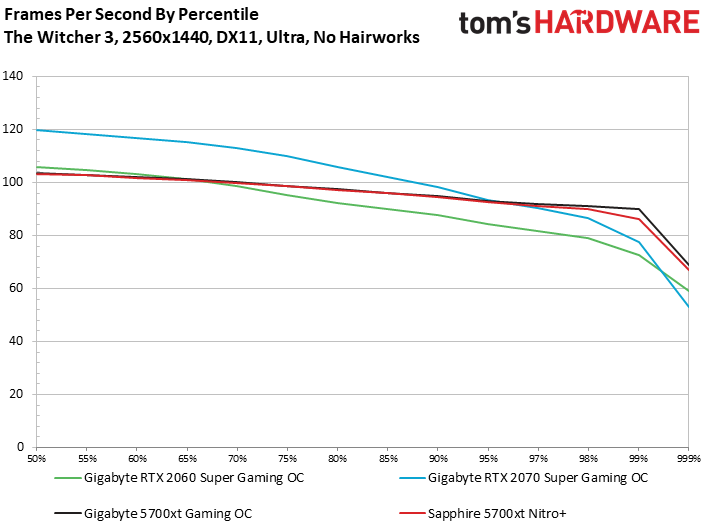

The Witcher 3

Image 1 of 3
(Image credit: Tom's Hardware)

MORE: Best Graphics Cards

MORE: Desktop GPU Performance Hierarchy Table

MORE: All Graphics Content
