Sapphire Nitro+ RX 5700 XT Review: Triple-Fan Cooling, Fast Clocks out of the Box

Sapphire's tri-fan Navi XT card is colorful, quiet, and speedy. But it's also pricier than most of its competition.

By Joe Shields
published
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

For years, trying to attain playable frame rates at 4K UHD resolution has been the domain of the flagship cards. Since the last generation or so, the ability to reach 60 FPS at Ultra/Very High settings has slowly come down the product stack a bit to mid-range or high-end-midrange SKUs. On the AMD side, the Vega 64 was in the ballpark and so is the RX 5700 XT. In around half of these tests, the magic 60 fps metric is met. Since a lot of titles reached that magic number, the results shown here are using the same Ultra/Very High settings.

In titles such as Metro: Exodus, Final Fantasy XV, The Division 2, and Shadow of the Tomb Raider, most will have to drop back on some settings to reach playable fps. The other titles are in fact playable at 4K UHD using Ulta/Very High settings. The RX 5700 XT, in any form, isn’t quite an Ultra 4k UHD card across the board, but will handle some of the more difficult titles with some image quality sacrifices.

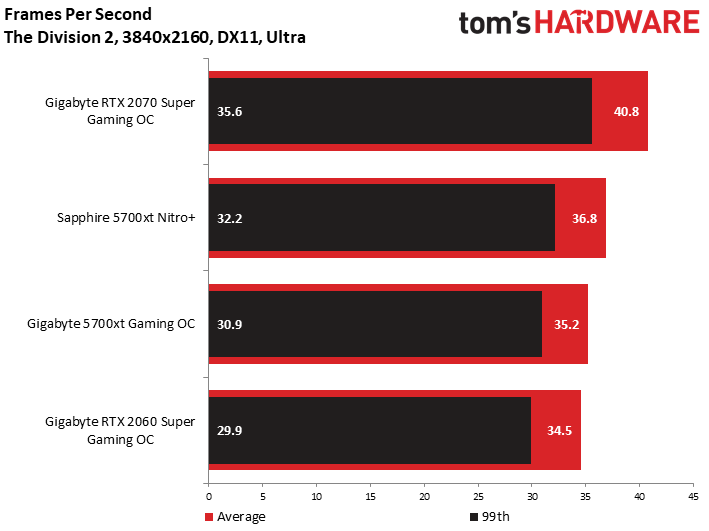

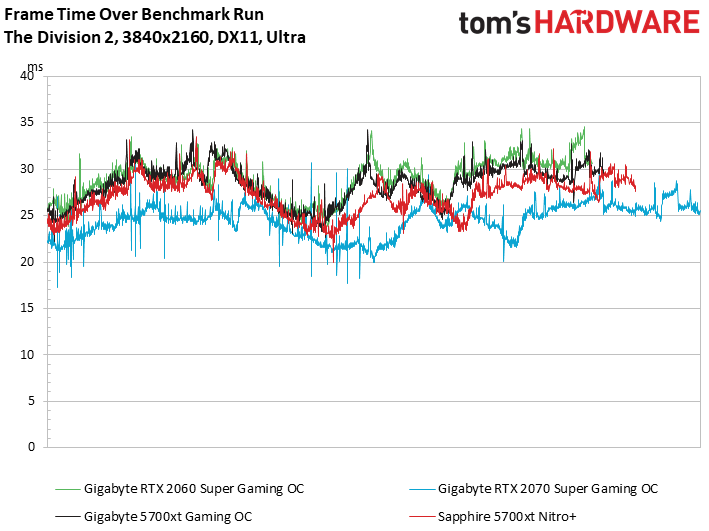

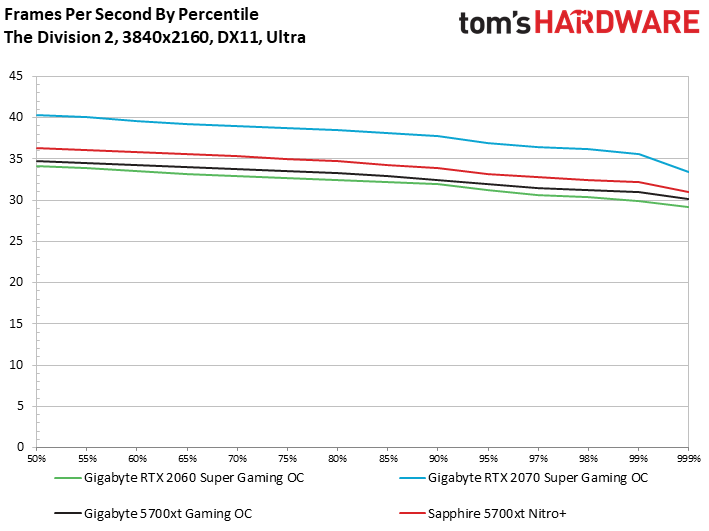

The Division 2

Image 1 of 3
(Image credit: Tom's Hardware)

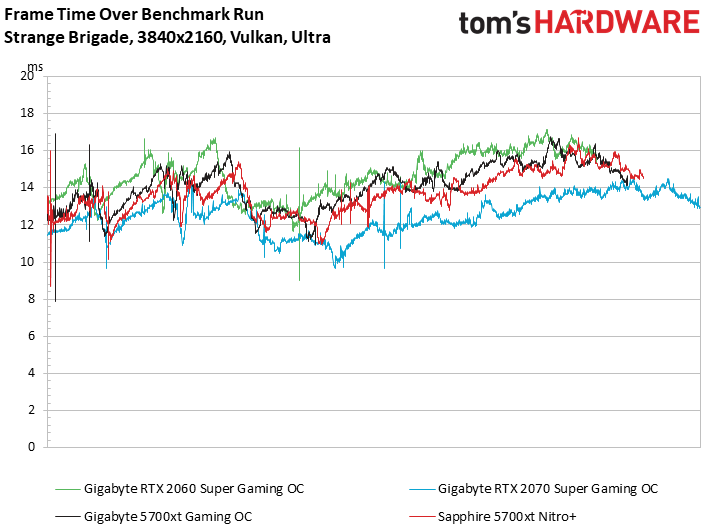

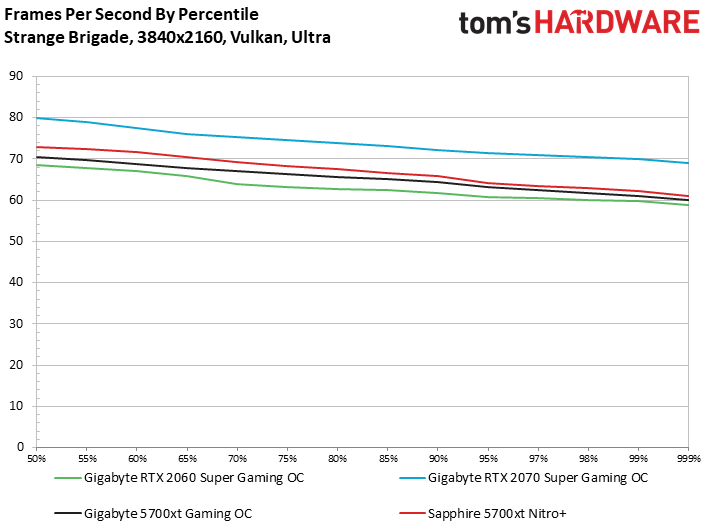

Strange Brigade

Image 1 of 3
(Image credit: Tom's Hardware)

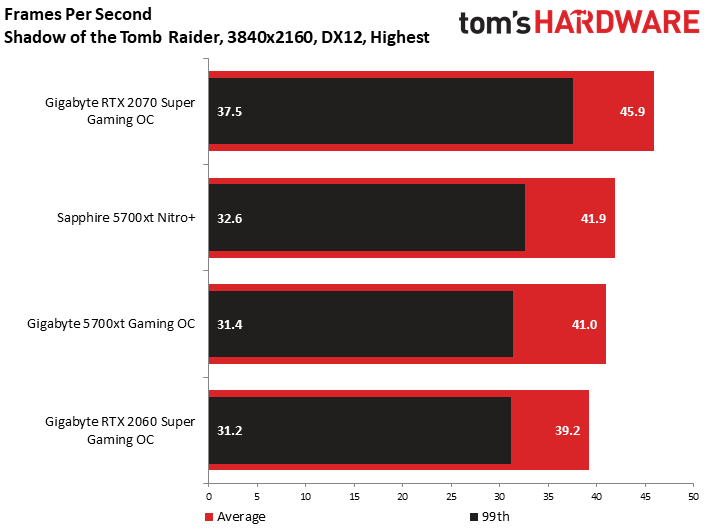

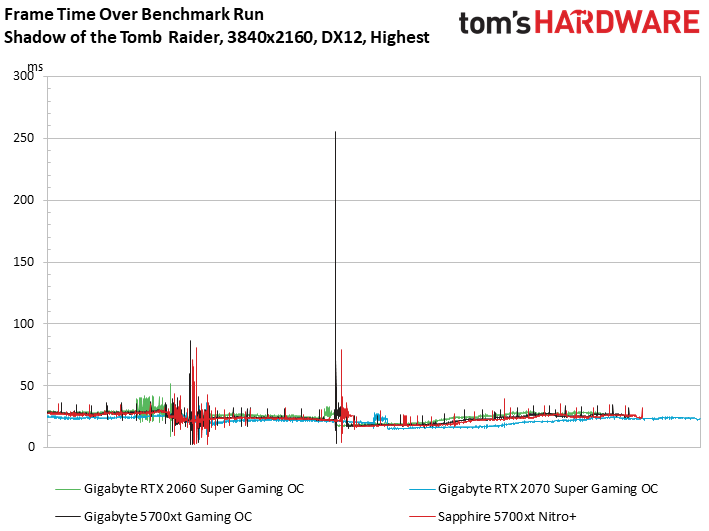

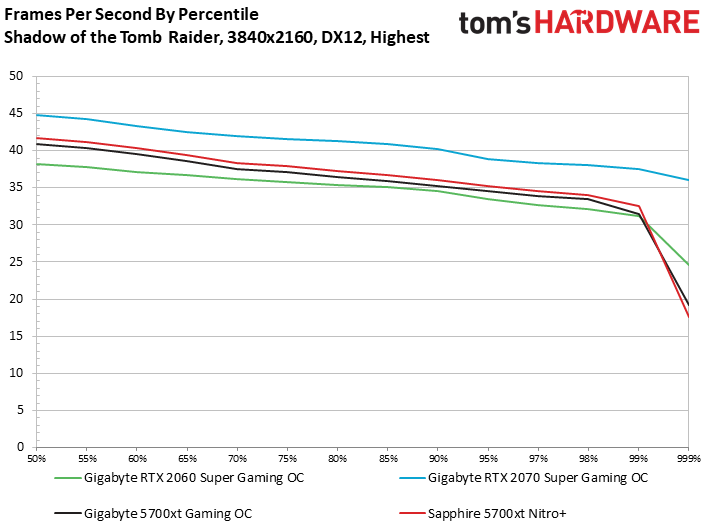

Shadow of the Tomb Raider

Image 1 of 3
(Image credit: Tom's Hardware)

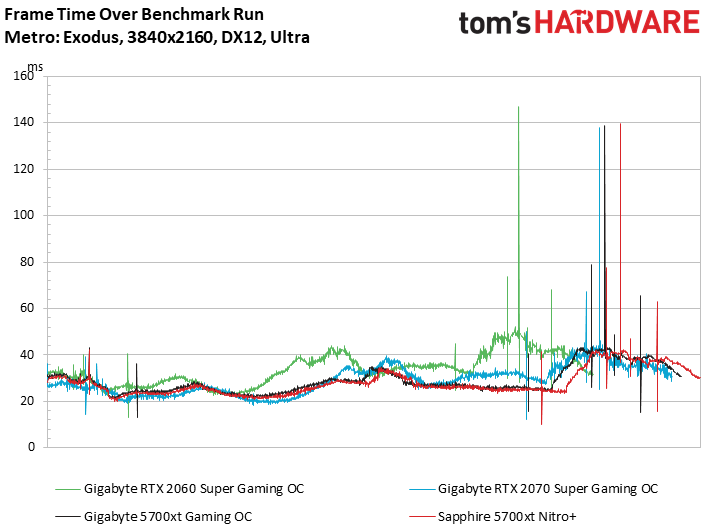

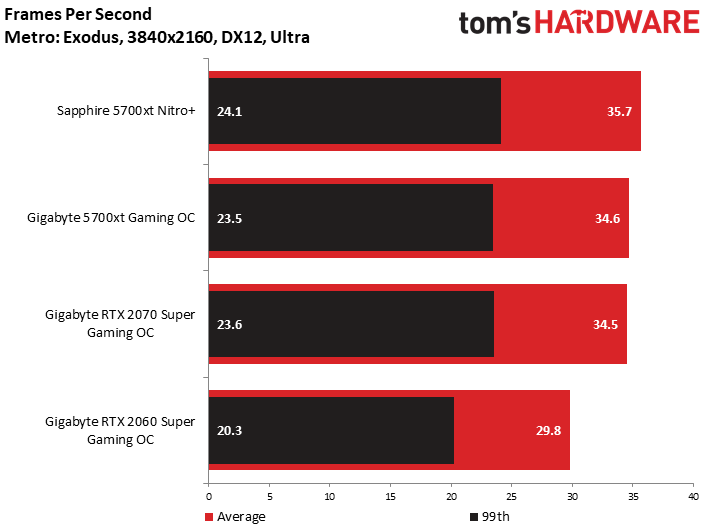

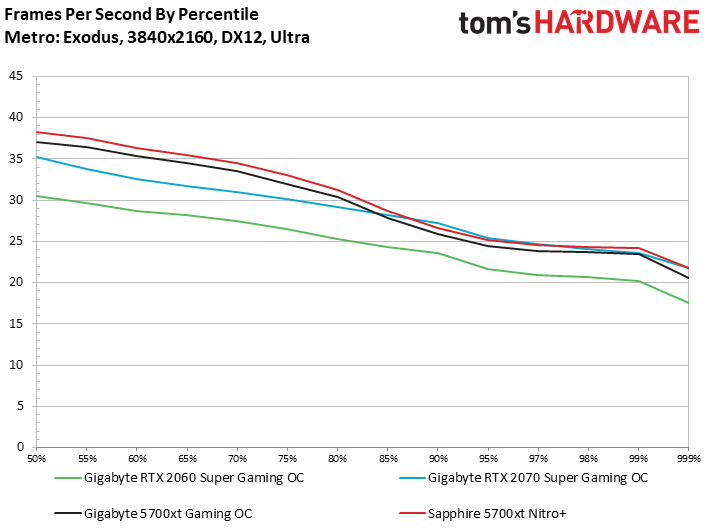

Metro Exodus

Image 1 of 3
(Image credit: Tom's Hardware)

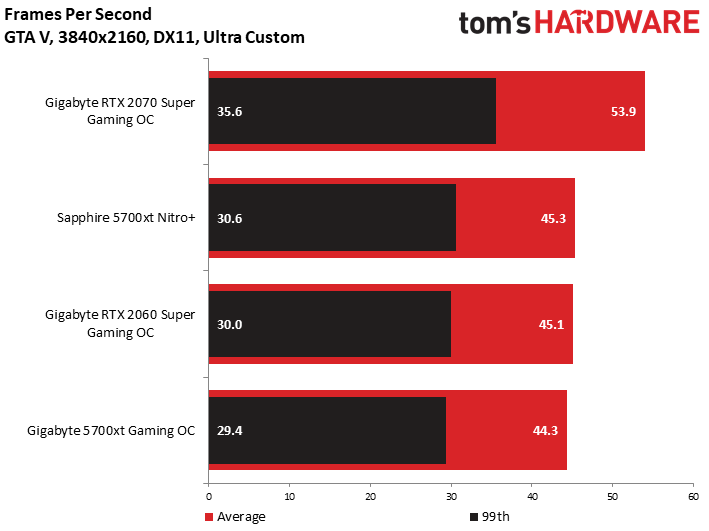

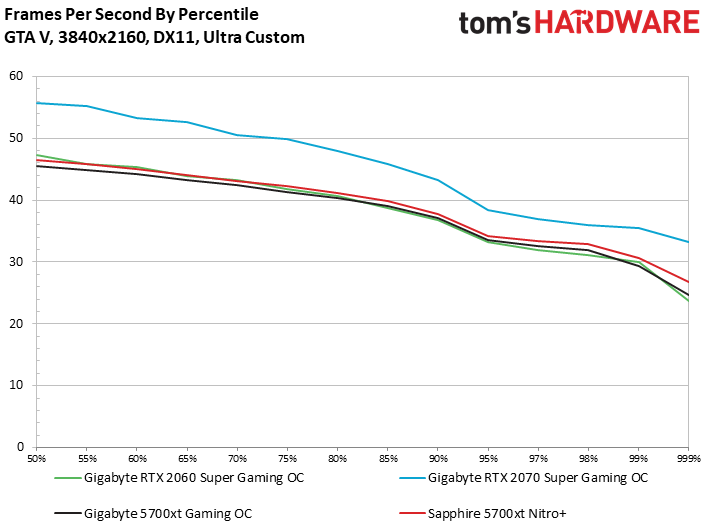

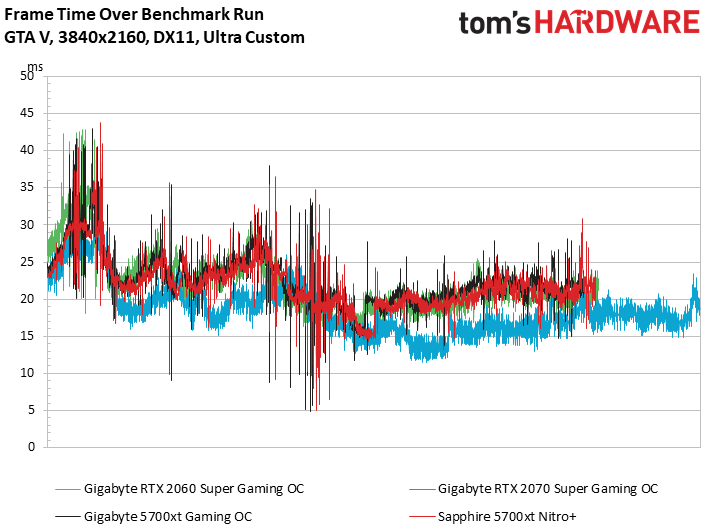

Grand Theft Auto V

Image 1 of 3
(Image credit: Tom's Hardware)

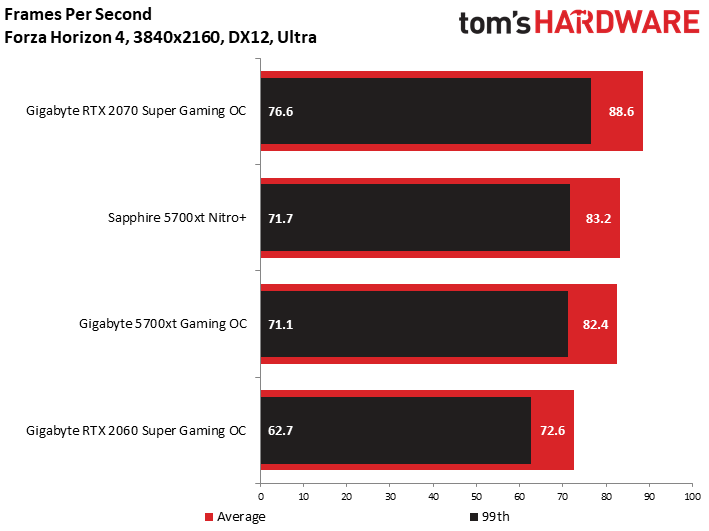

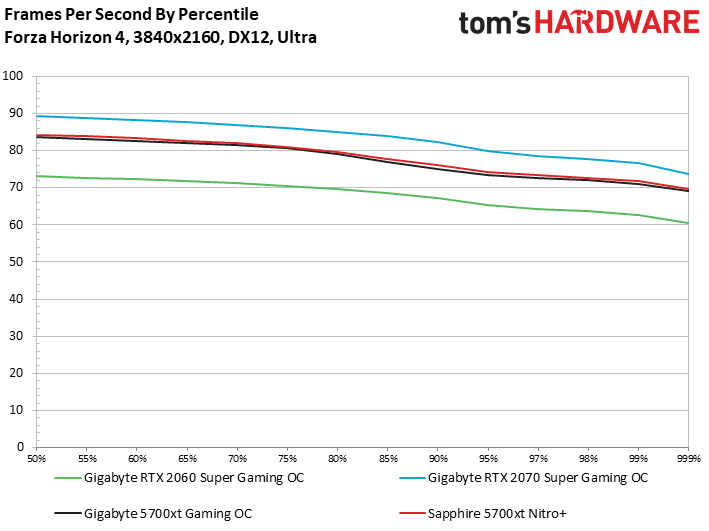

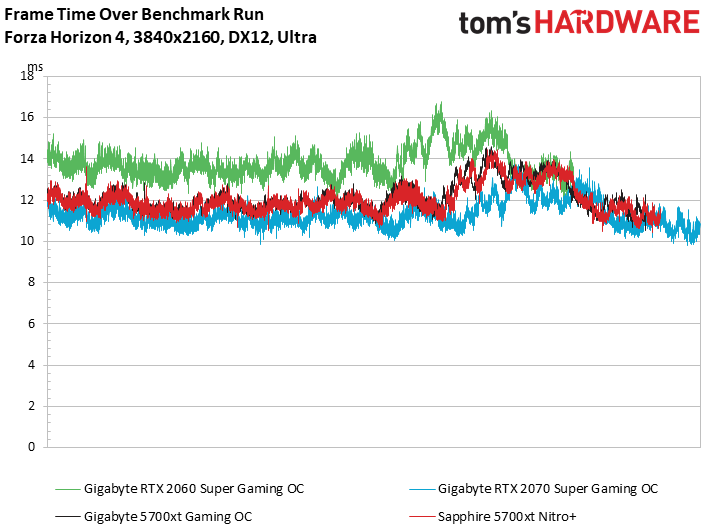

Forza Horizon 4

Image 1 of 3
(Image credit: Tom's Hardware)

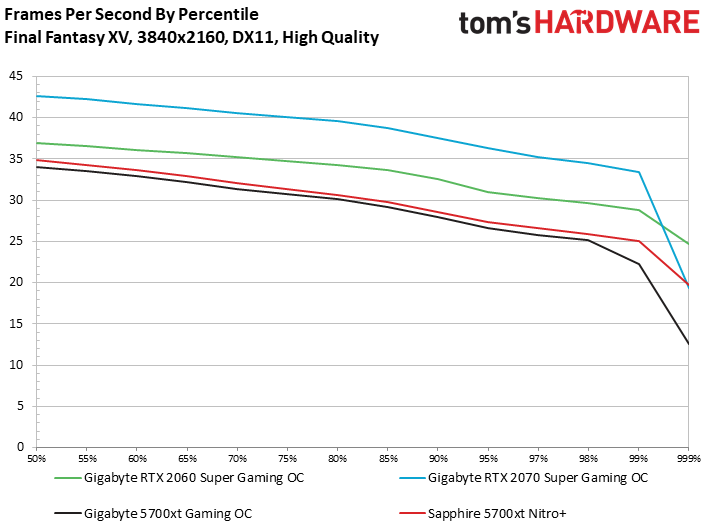

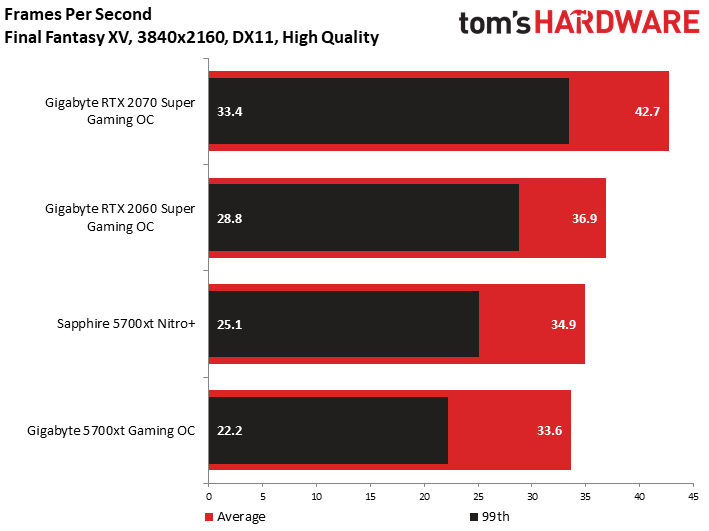

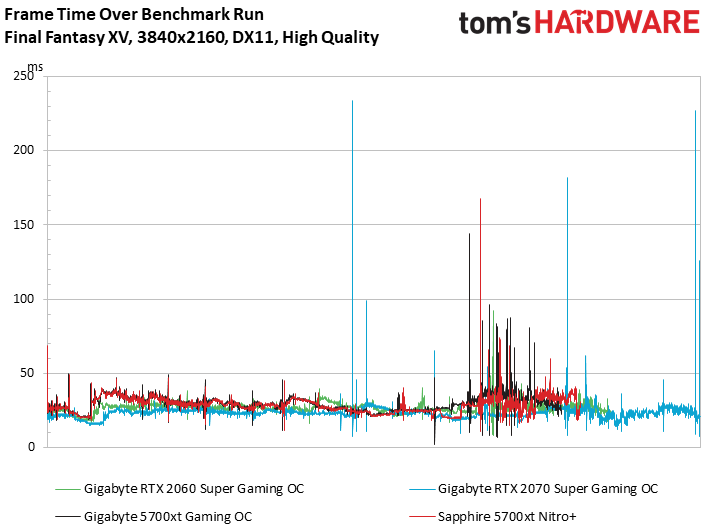

Final Fantasy XV

Image 1 of 3
(Image credit: Tom's Hardware)

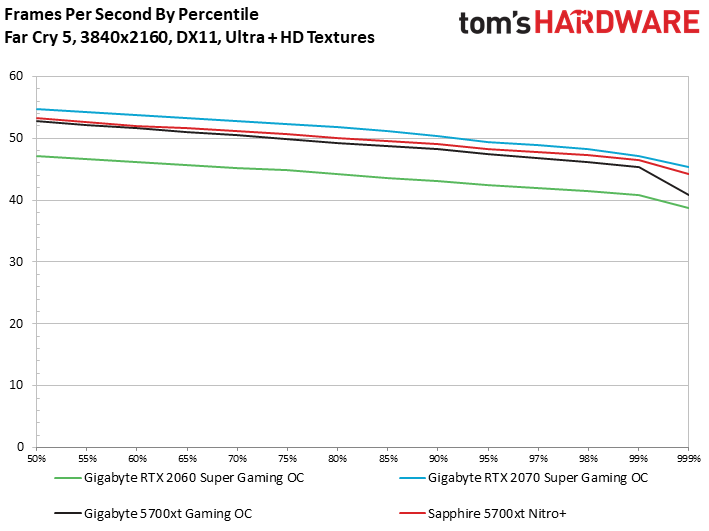

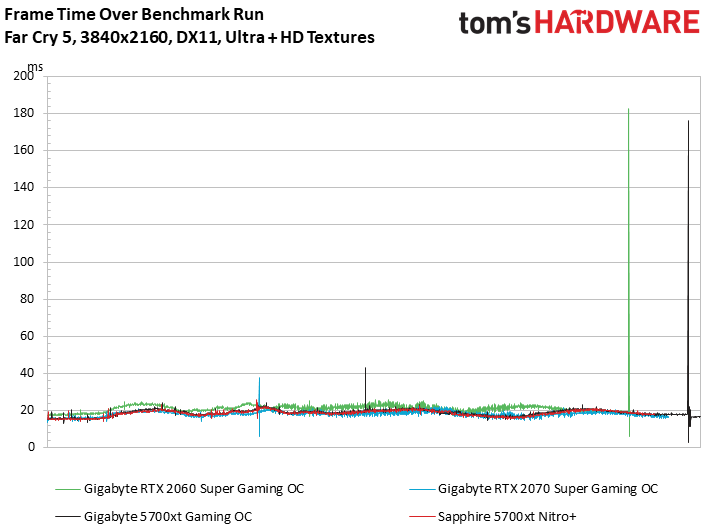

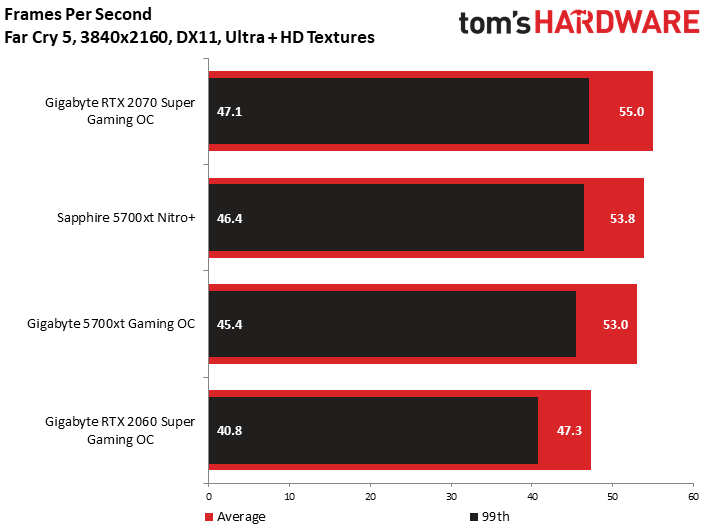

Far Cry 5

Image 1 of 3
(Image credit: Tom's Hardware)

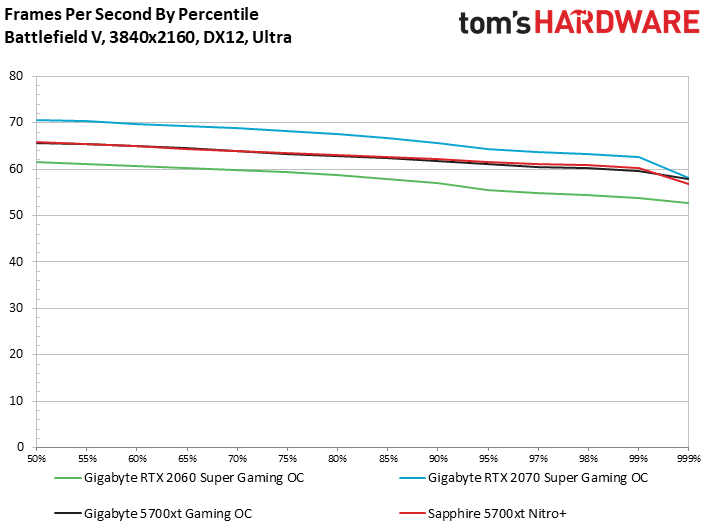

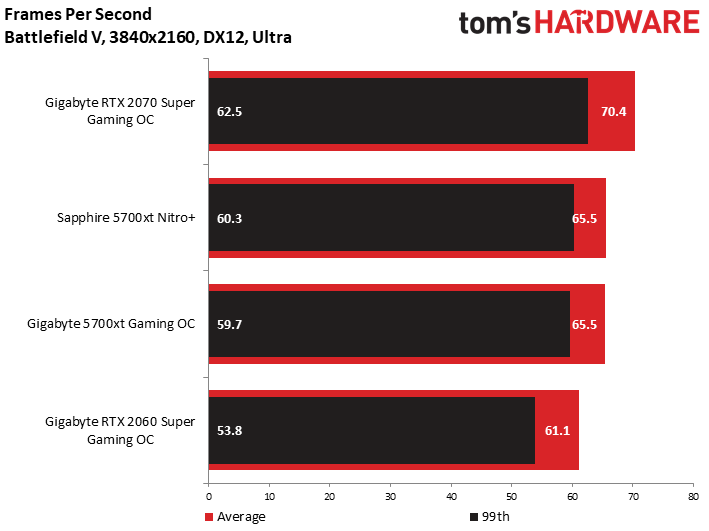

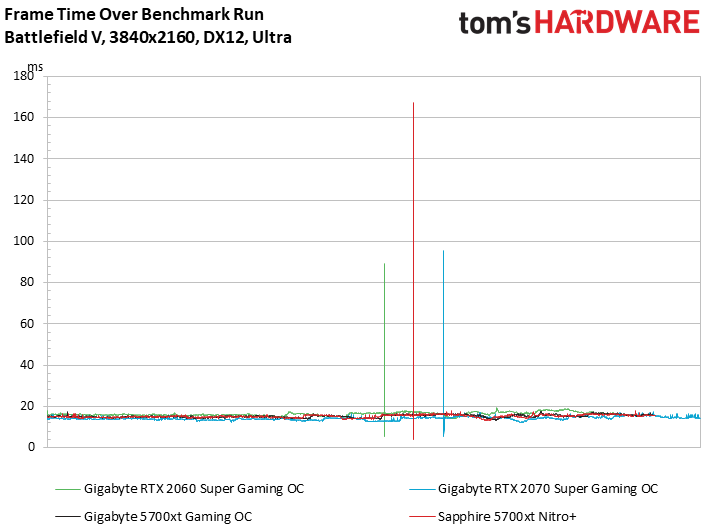

Battlefield V

Image 1 of 3
(Image credit: Tom's Hardware)

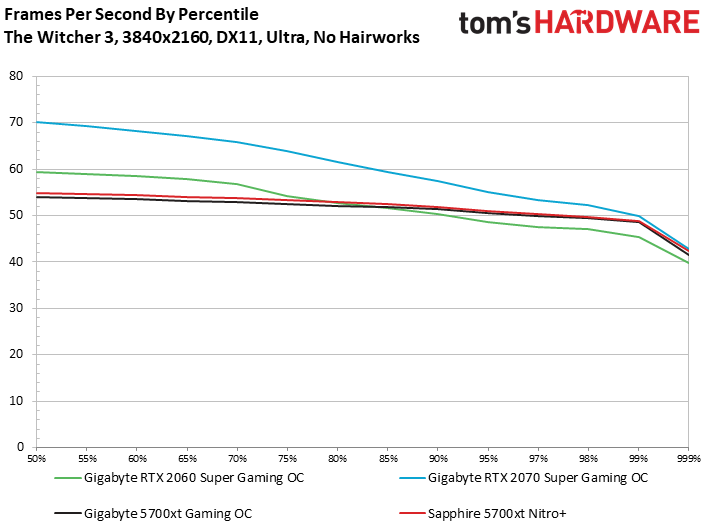

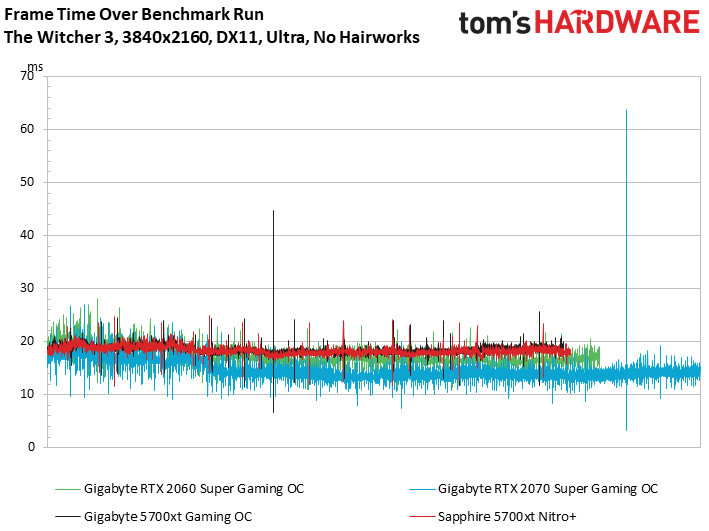

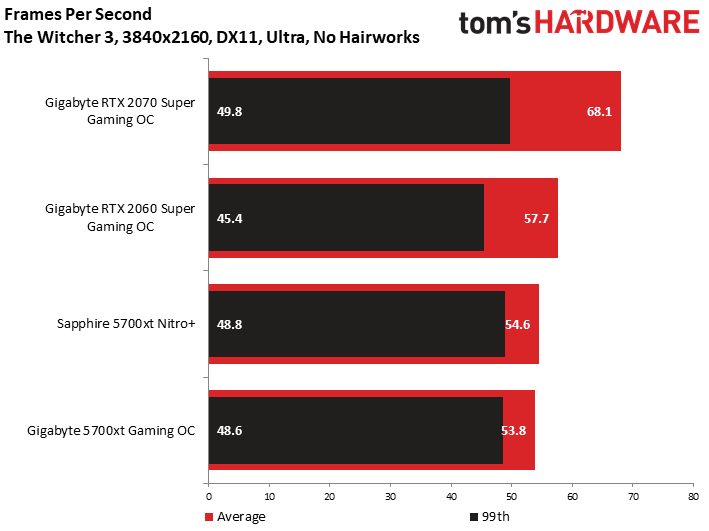

The Witcher 3

Image 1 of 3
(Image credit: Tom's Hardware)
