Seasonic Connect 750W Power Supply Review: The Solution To Cable Management Problems

Seasonic Connect is the first PSU with a backplane.

Reviews
By
last updated
Seasonic CONNECT Comprise PRIME
Editor's Choice
(Image: © Seasonic)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Performance Rating

(Image credit: Tom's Hardware)

The overall performance is pretty high. With a little better ripple performance, the Seasonic offering would be much closer to the RM750x.

Noise Rating

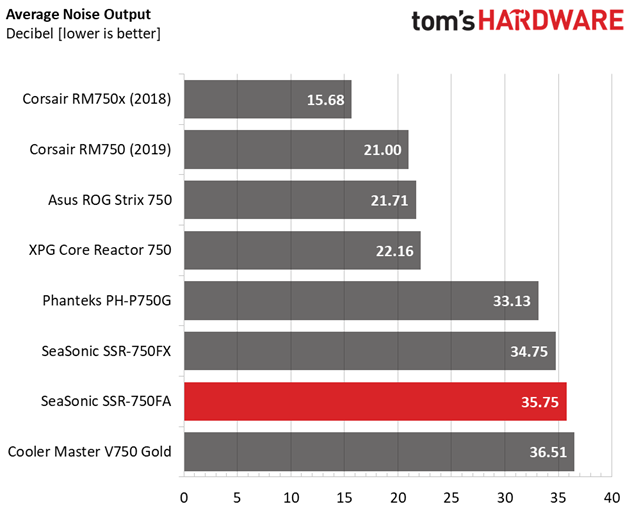

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).

Click to see more results (Image credit: Tom's Hardware)

The fan speed profile is aggressive, unfortunately, and this leads to noisy operation, especially under high loads and increased operating temperatures.

Efficiency Rating

The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.

(Image credit: Tom's Hardware)

The overall efficiency is satisfactory, but there is room for improvement in this section.

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content

Aris Mpitziopoulos
Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.
