SK hynix Gold P31 M.2 NVMe SSD Review: High-Performance, Unprecedented Efficiency (Updated)

The first SSD with 128-layer NAND, SK hynix’s Gold P31 sets the bar for efficiency

SK hynix Gold P31 2TB Update
Editor's Choice
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Comparison Products

Today we put the SK hynix Gold P31 up against the best mainstream SSDs on the market, including the Samsung 970 EVO Plus, WD_Black SN750, Crucial P5, Intel SSD 670p, and Silicon Power XD80. We also threw in the Seagate FireCuda 530 and Adata XPG Gammix S50 Lite for good measure.

Game Scene Loading - Final Fantasy XIV

Final Fantasy XIV Shadowbringers is a free real-world game benchmark that easily and accurately compares game load times without the inaccuracy of using a stopwatch.

(Image credit: Tom's Hardware)

Like the 1TB SK hynix Gold P31, the 2TB model is pretty snappy at loading game levels. It not only outperformed the Samsung 970 EVO Plus, WD_Black SN750, and Crucial P5, but it also edged ahead of the Adata XPG Gammix S50 Lite.

Transfer Rates – DiskBench

We use the DiskBench storage benchmarking tool to test file transfer performance with a custom dataset. We copy a 50GB dataset including 31,227 files of various types, like pictures, PDFs, and videos to a new folder and then follow-up with a reading test of a newly-written 6.5GB zip file.

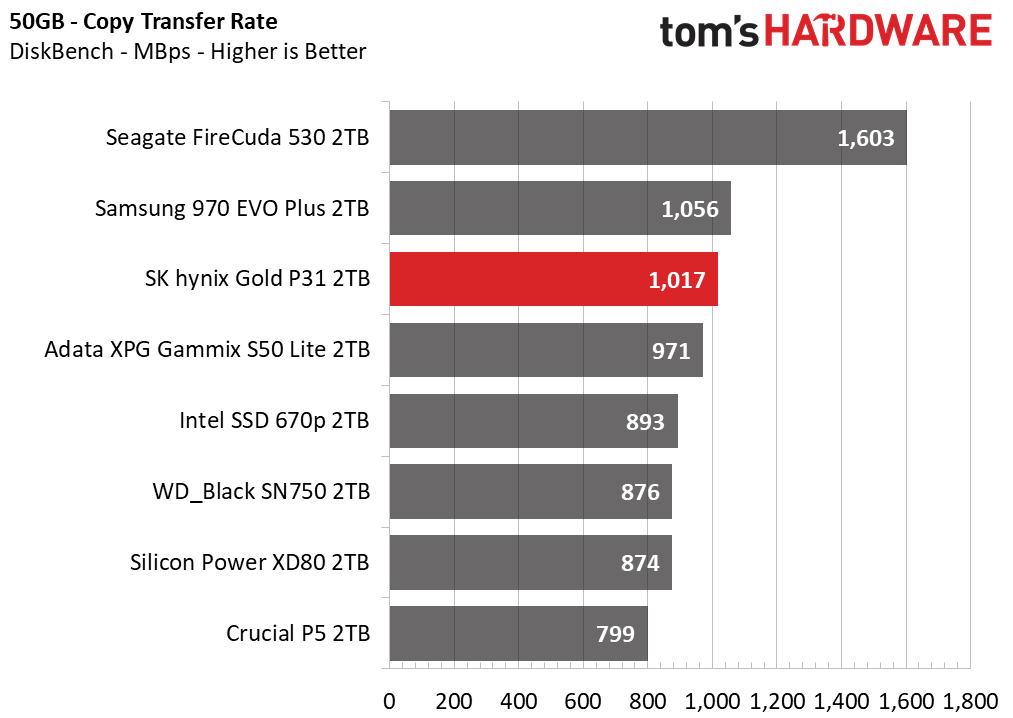

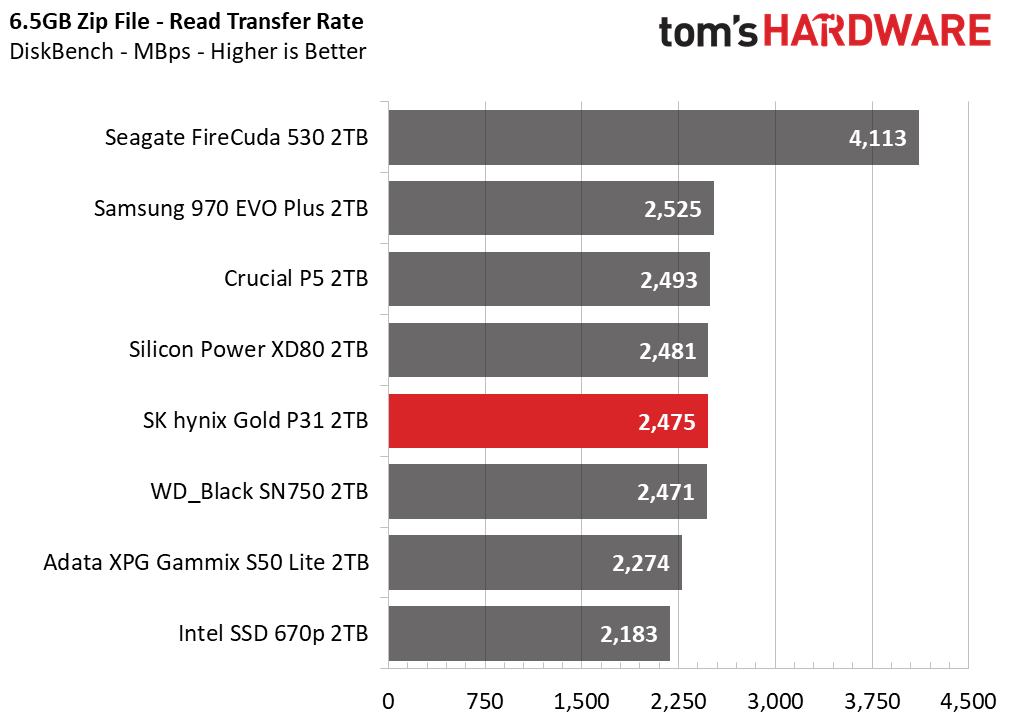

Whether you’re copying files on the SSD or just reading them back, the SK hynix Gold P31 should perform very well. In our testing, the Gold P31 scored third in the copy test and did very well when reading back our large test file.

Trace Testing – PCMark 10 Storage Test

PCMark 10 is a trace-based benchmark that uses a wide-ranging set of real-world traces from popular applications and everyday tasks to measure the performance of storage devices. The quick benchmark is more relatable to those who use their PCs for leisure or basic office work, while the full benchmark relates more to power users.

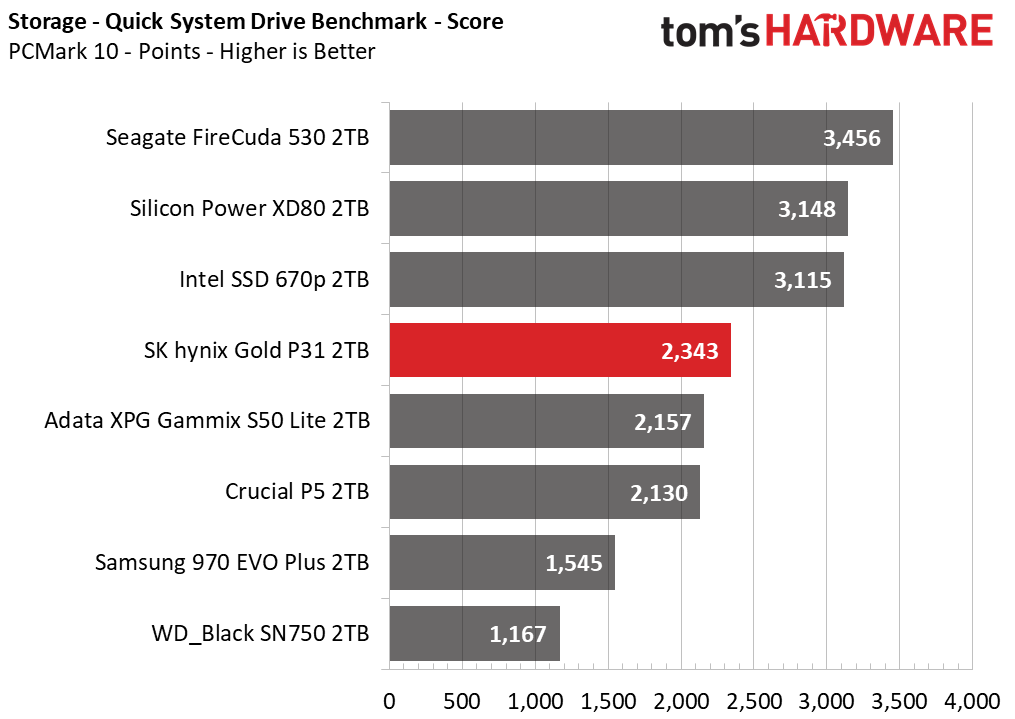

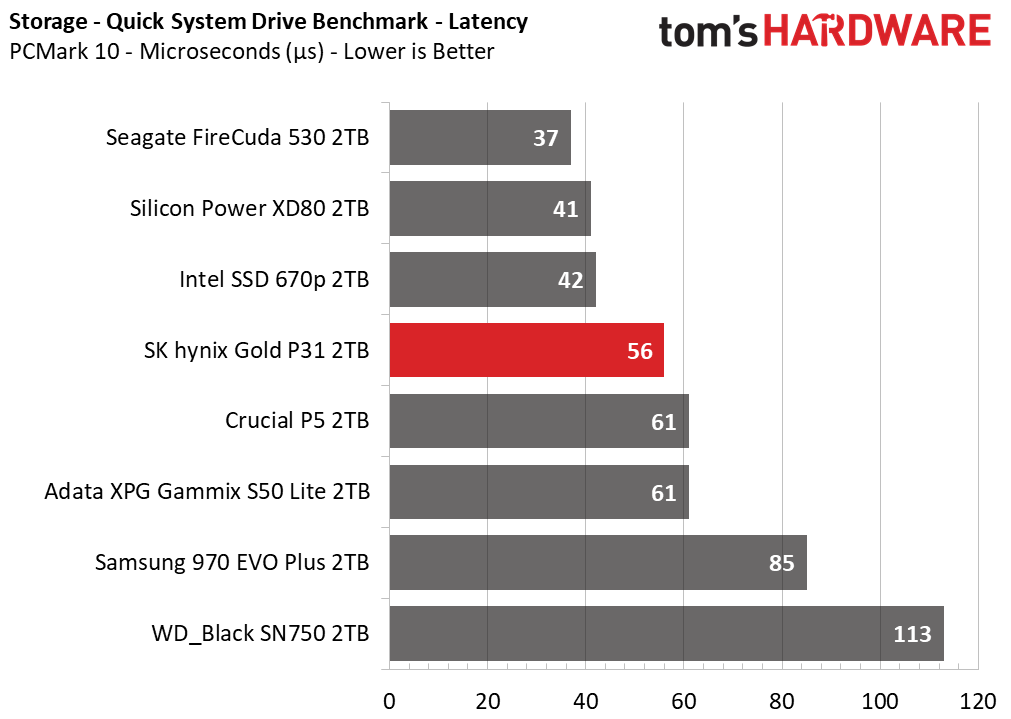

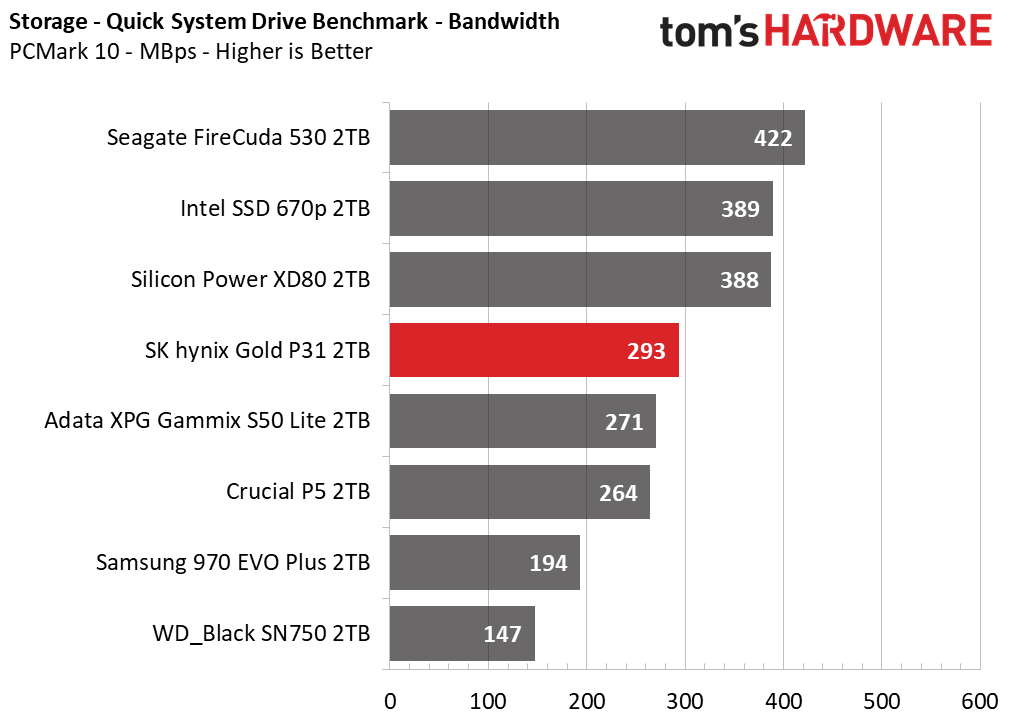

The SK hynix Gold P31 beat the Samsung and WD_Black in the light workloads during the quick test, but it couldn’t keep up with the Intel SSD 670p and Silicon Power XD80.

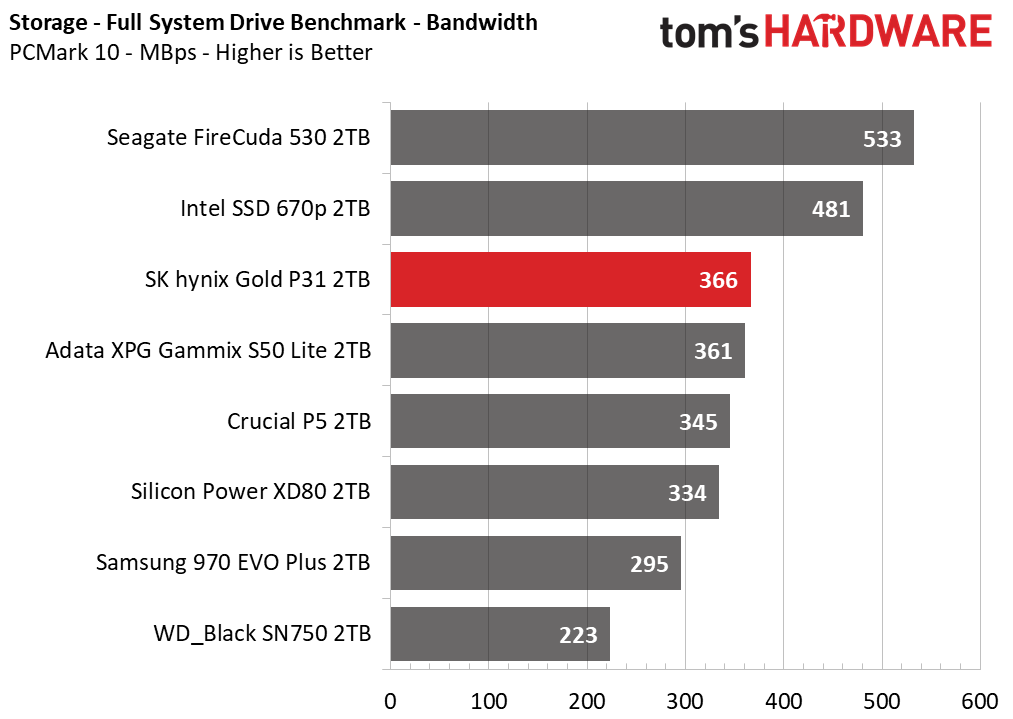

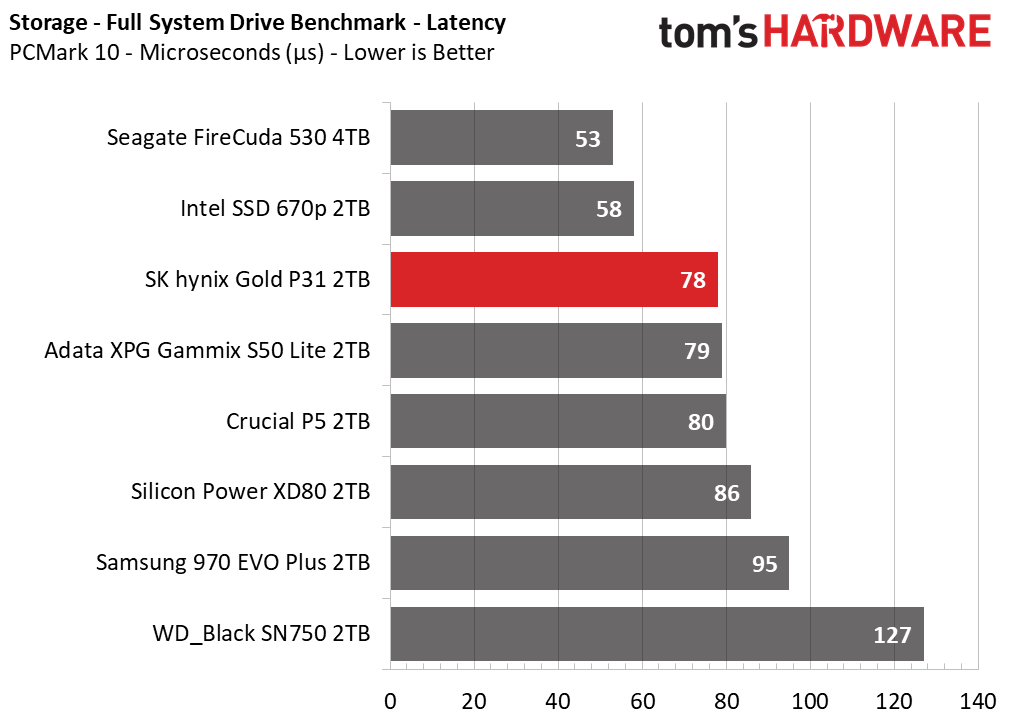

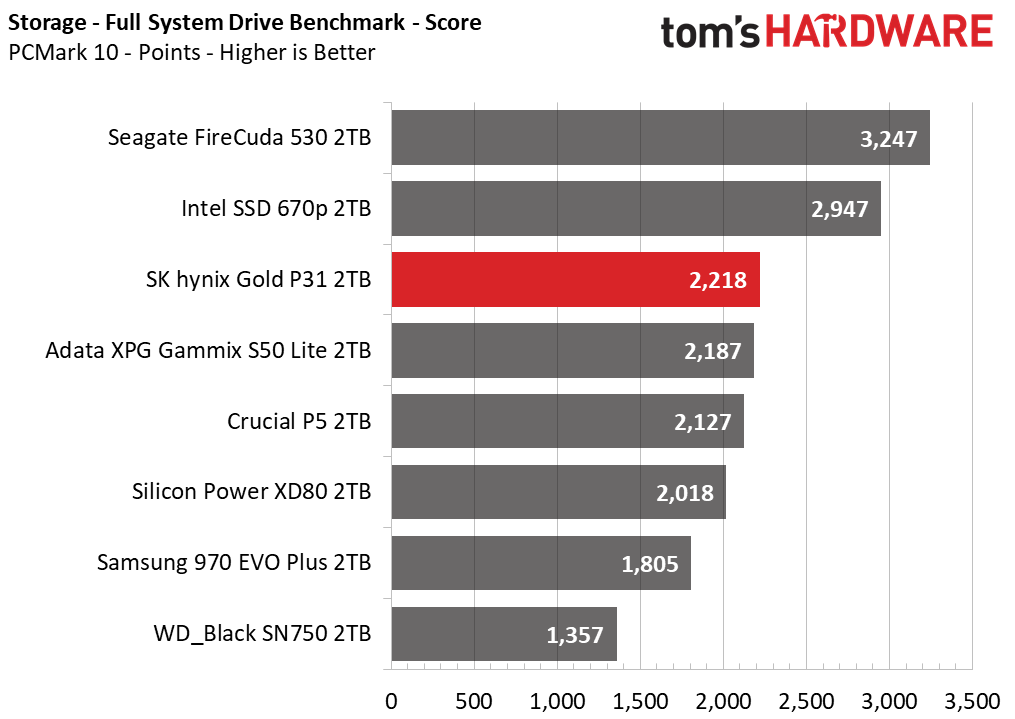

The much longer Full System Drive benchmark is more taxing. The P31 traded blows with the XD80, but it still fell behind the highly-tuned Intel SSD 670p and the wickedly-fast Seagate FireCuda 530.

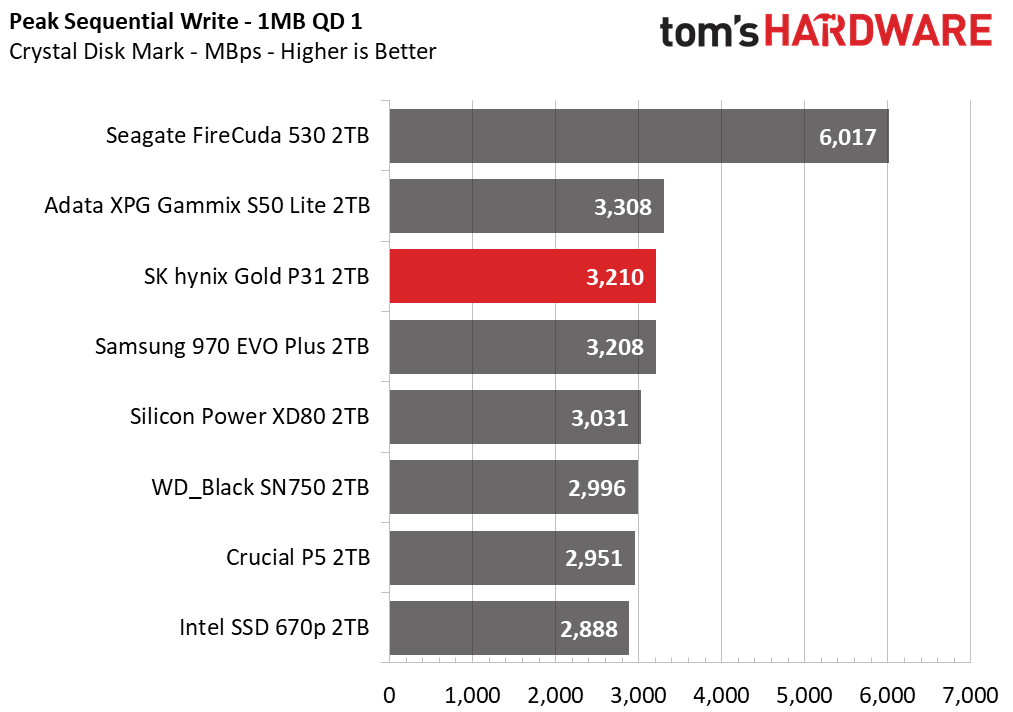

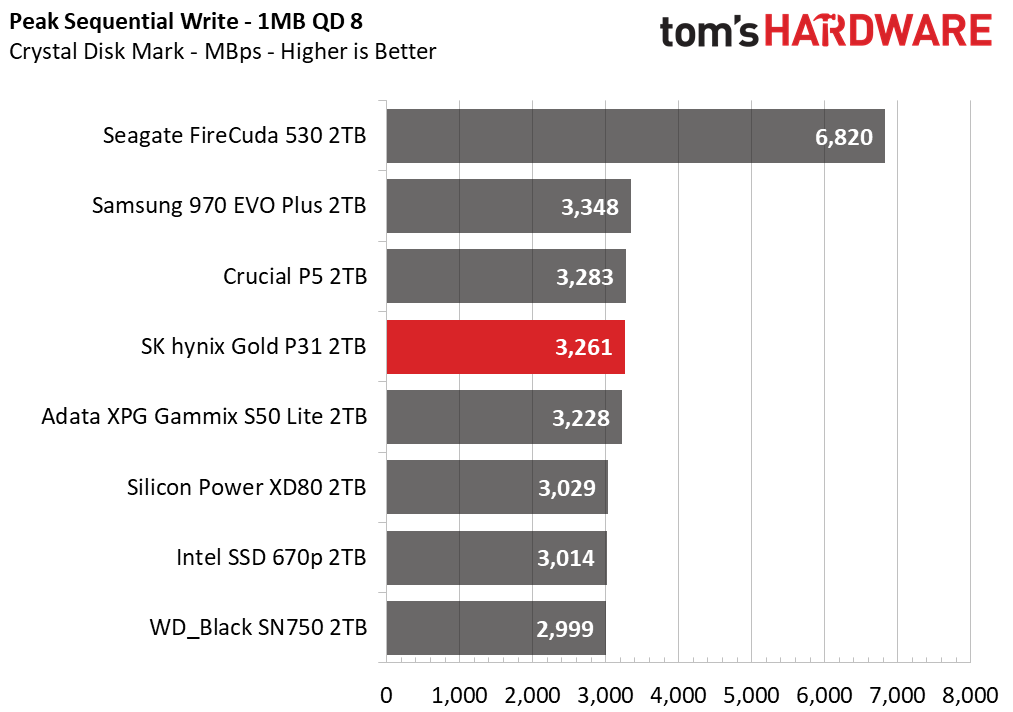

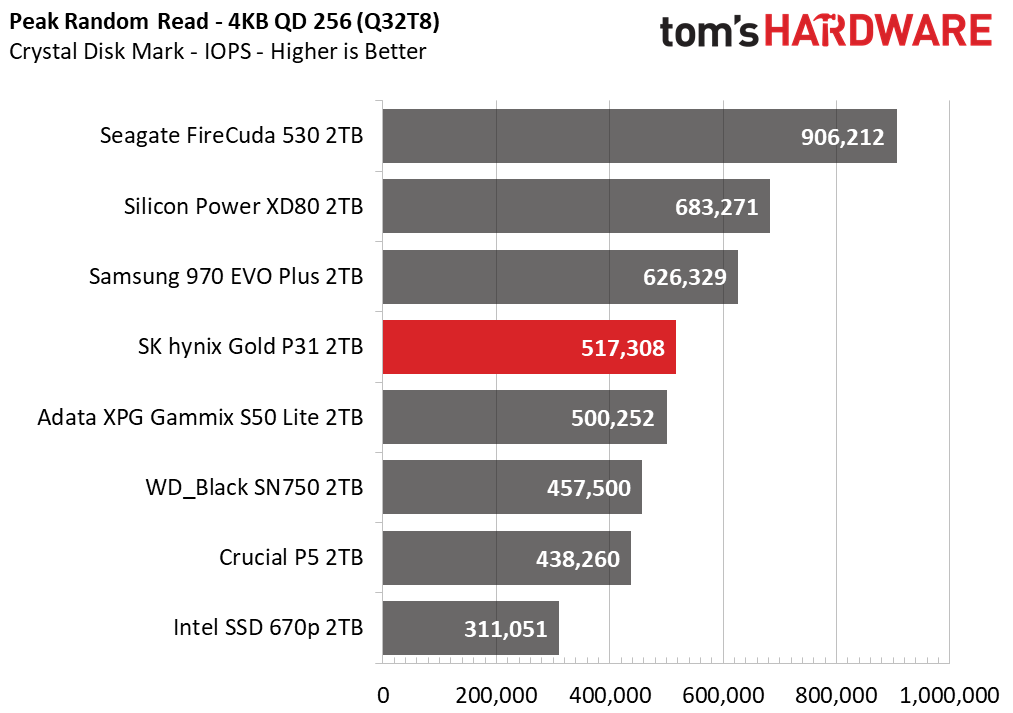

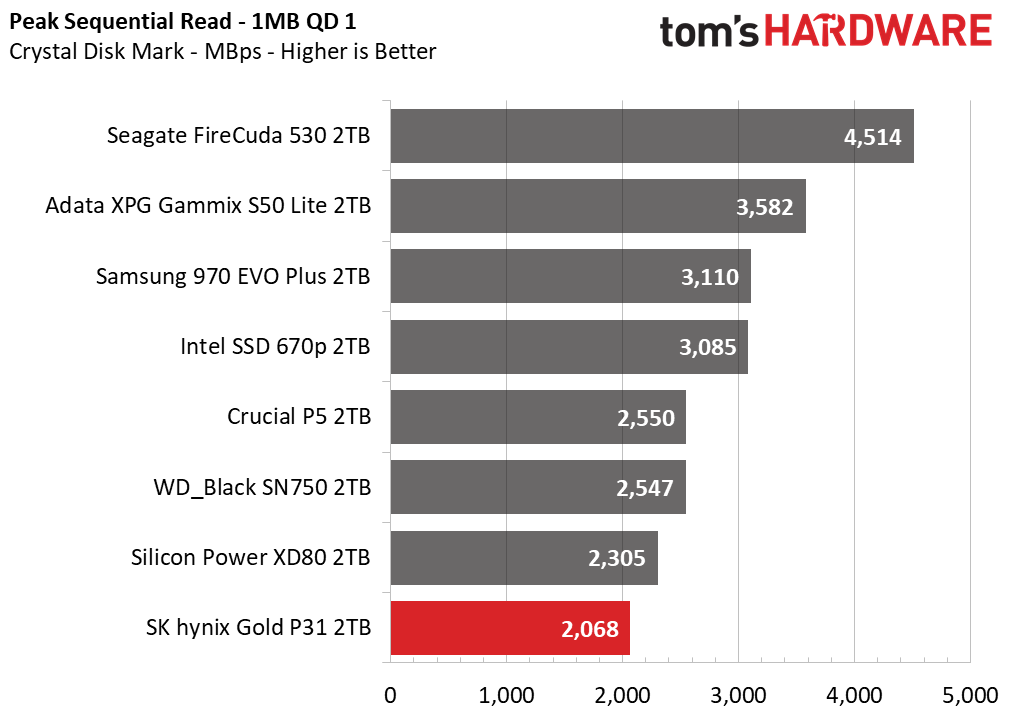

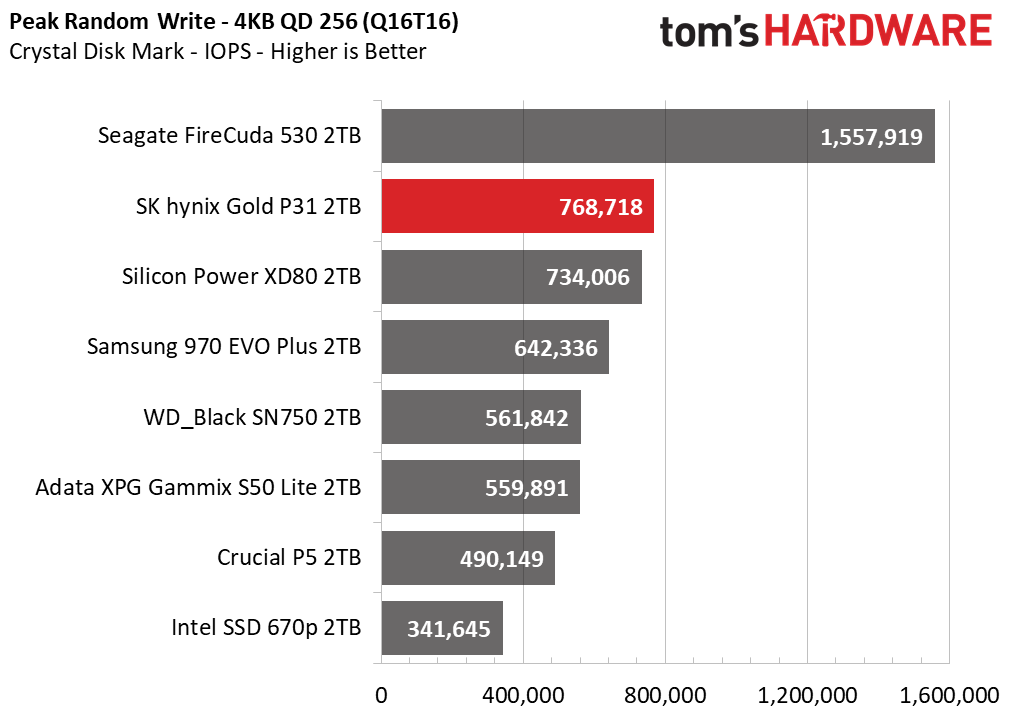

Synthetic Testing - ATTO / CrystalDiskMark

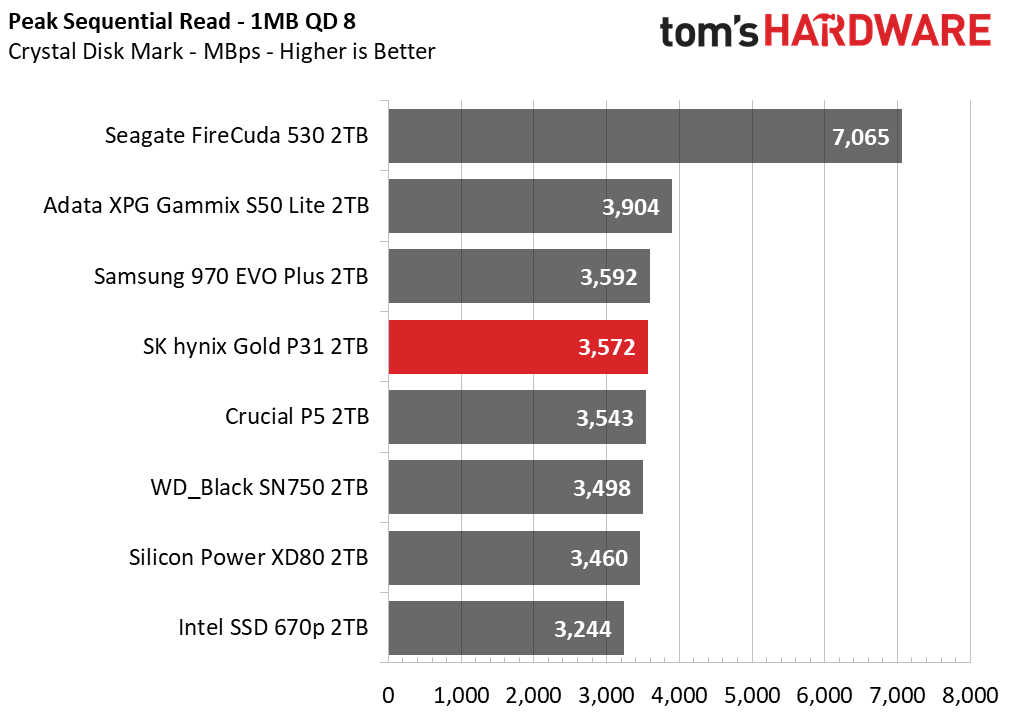

ATTO and CrystalDiskMark (CDM) are free and easy-to-use storage benchmarking tools that SSD vendors commonly use to assign performance specifications to their products. Both of these tools give us insight into how each device handles different file sizes.

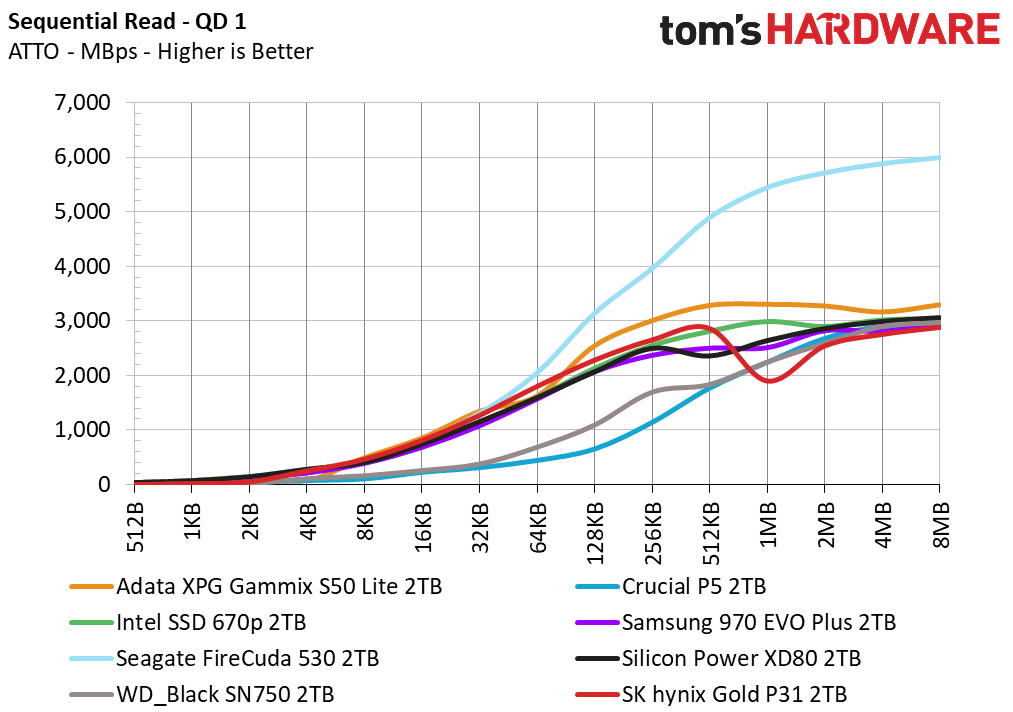

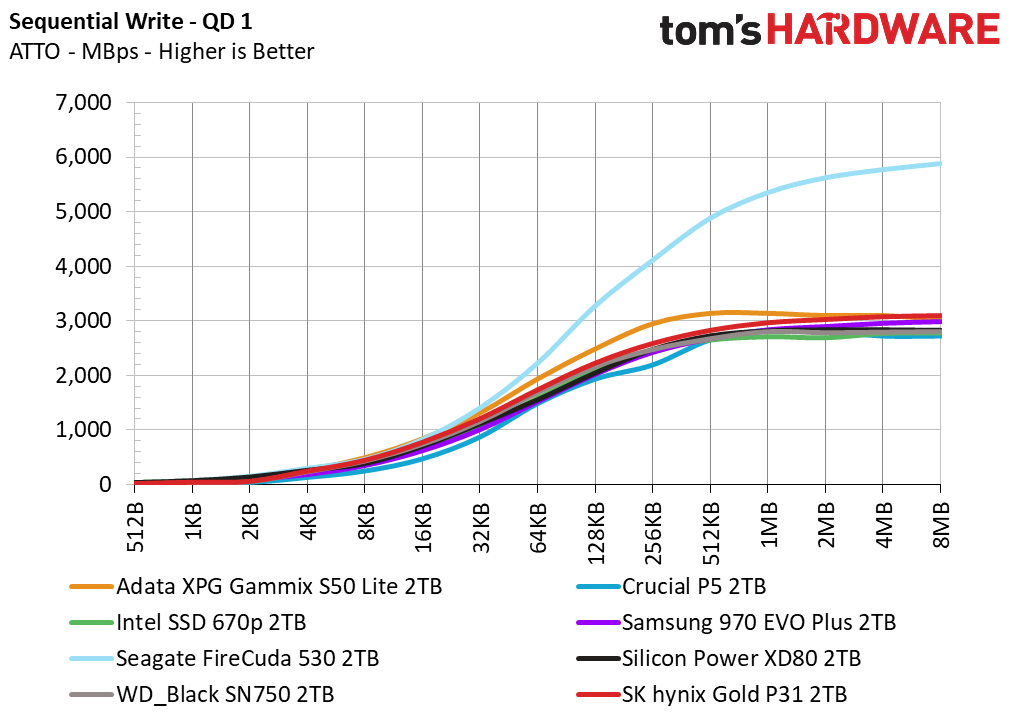

The Gold P31’s ATTO results at a queue depth of 1 (QD1) reveal fast performance across most block sizes. The drive struggled with 1MB blocks, but it returned to nearly full speed when tasked with even larger blocks.

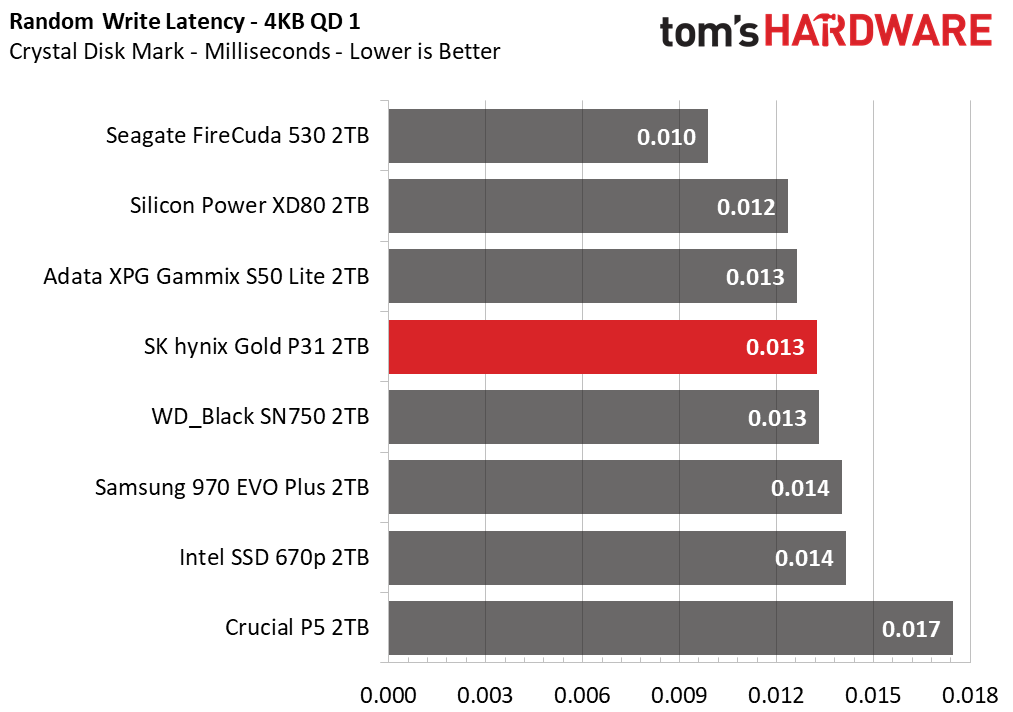

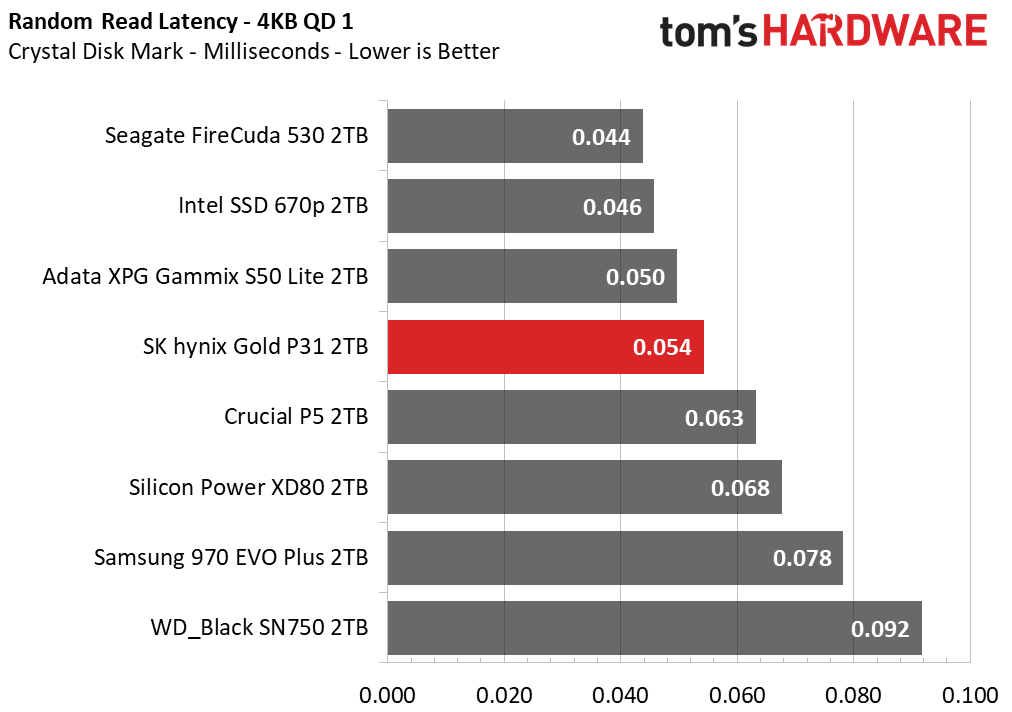

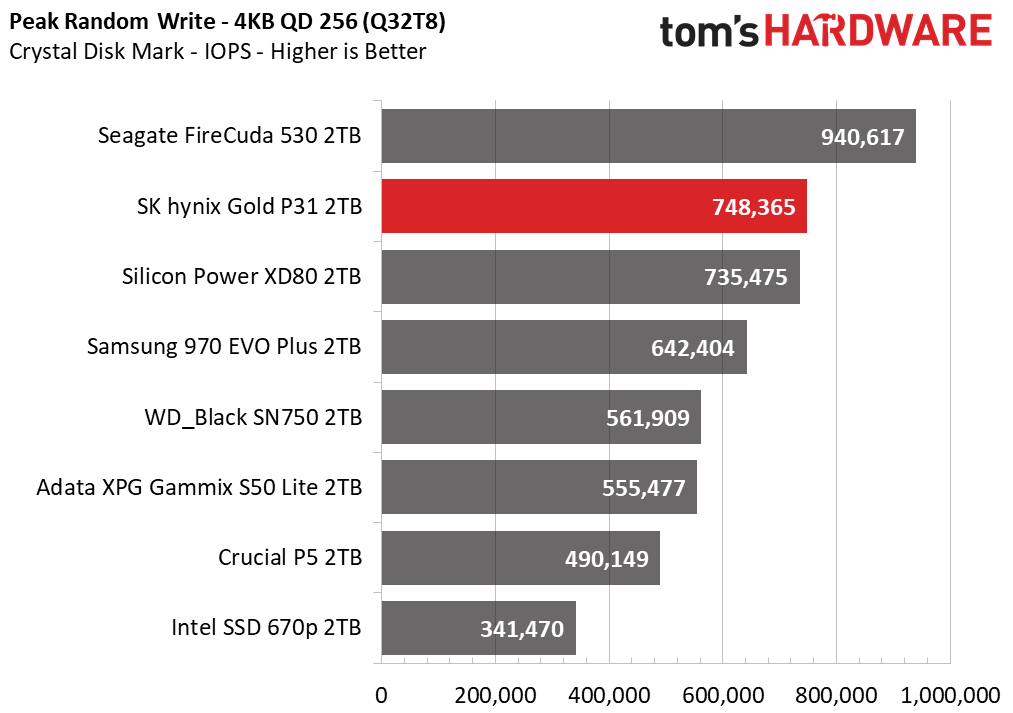

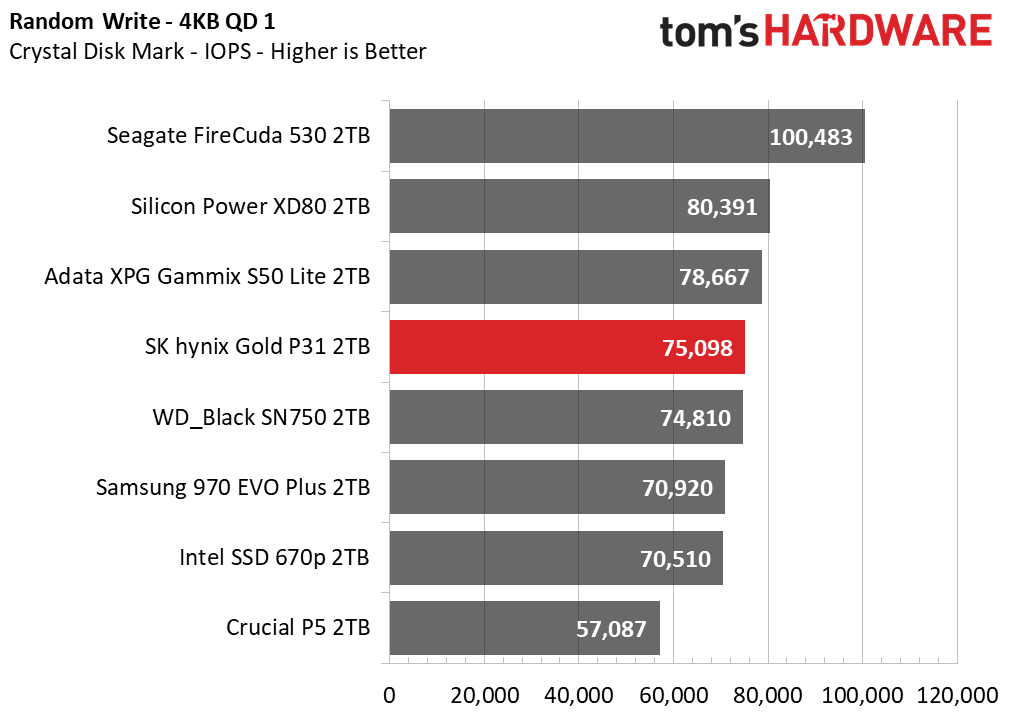

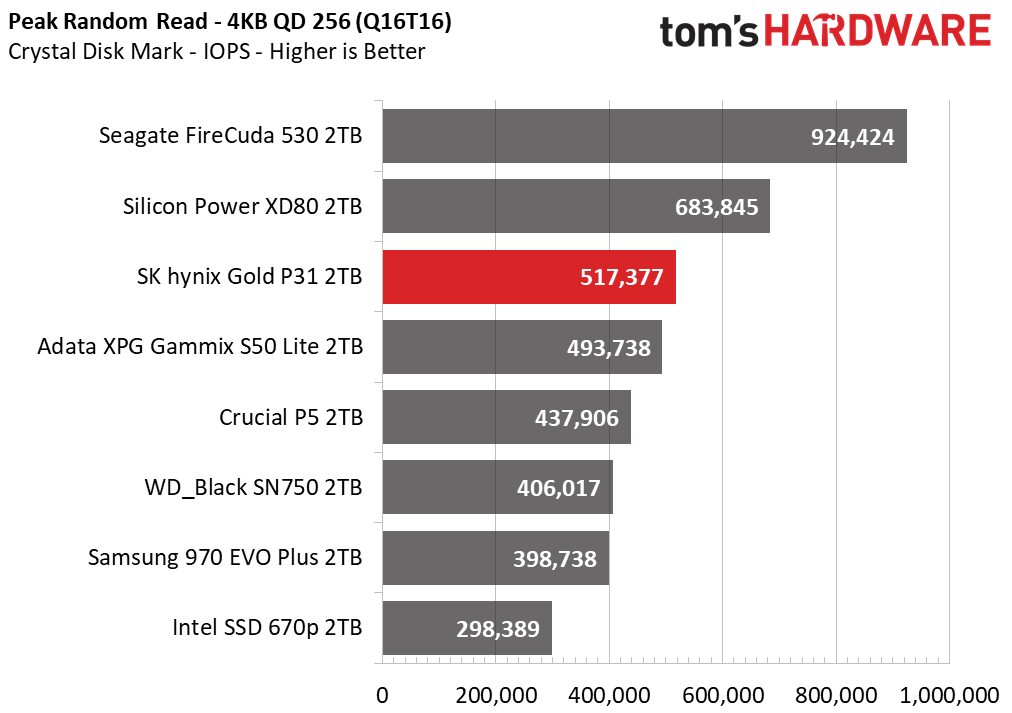

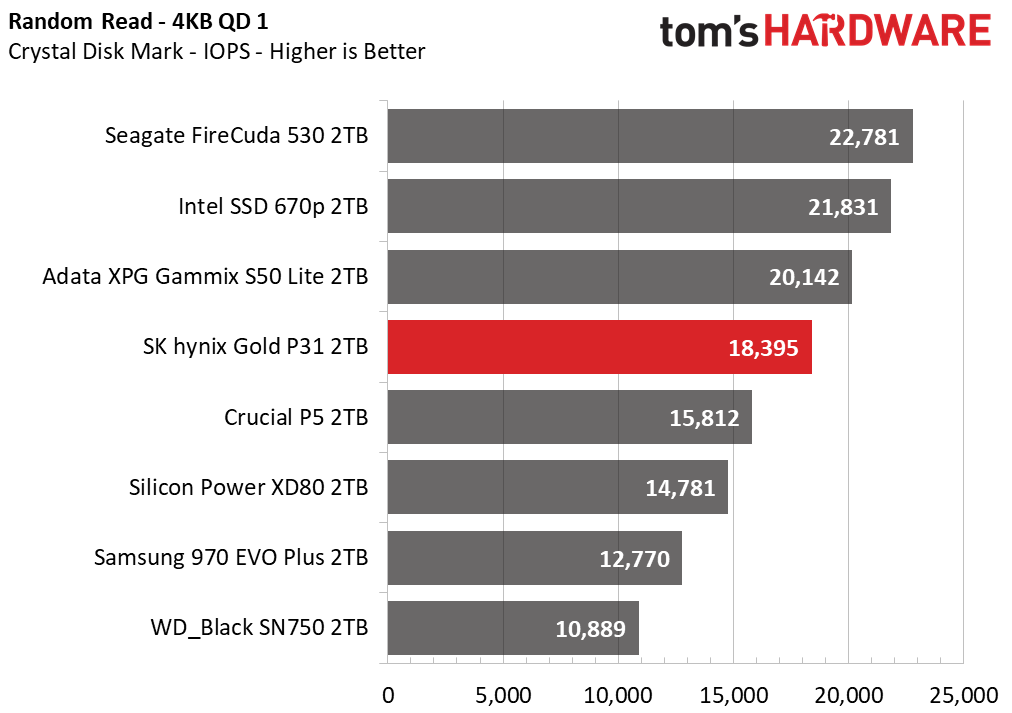

The P31’s performance in random workloads is respectable, but it isn’t quite as responsive as we hoped to see. The Adata XPG Gammix S50 Lite and Intel SSD 670p are both faster during this 4K random workload.

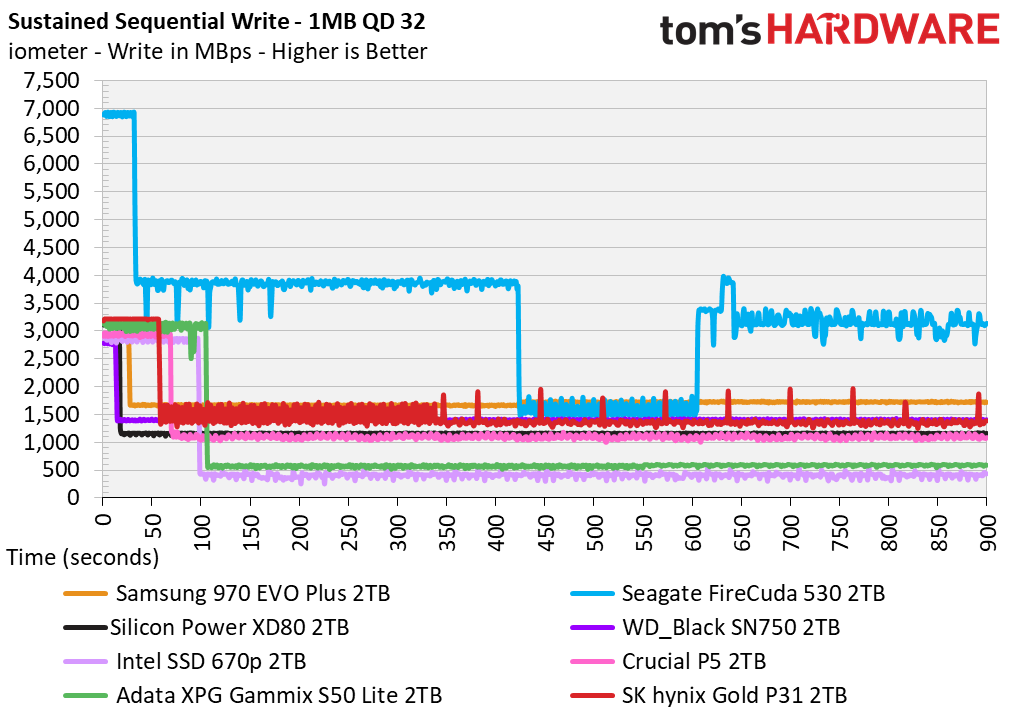

Sustained Write Performance & Cache Recovery

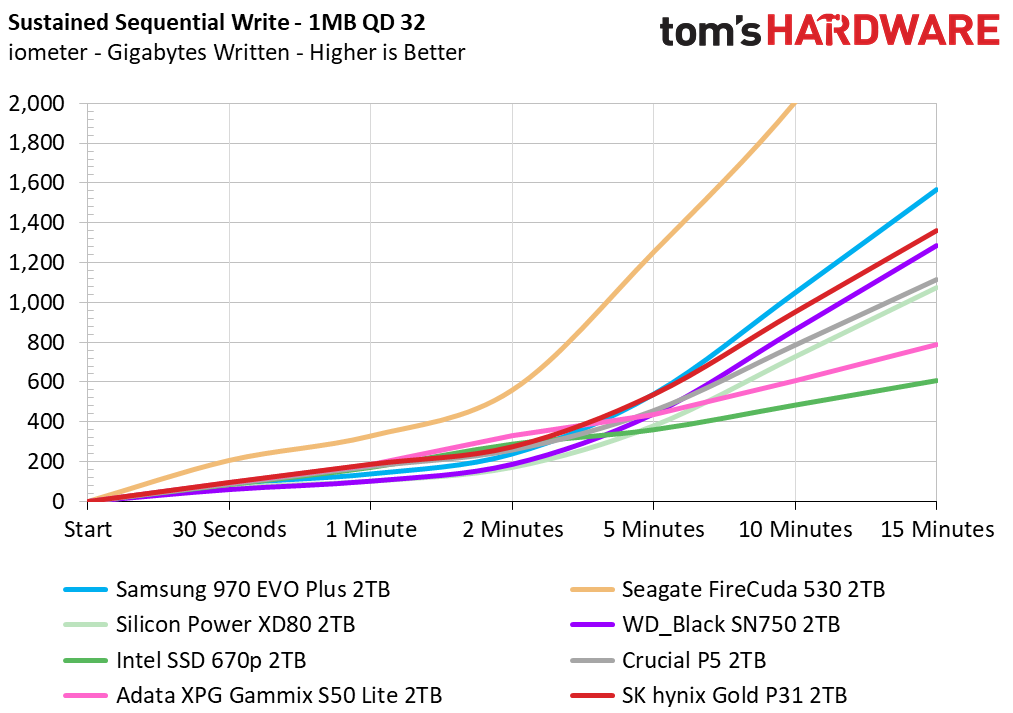

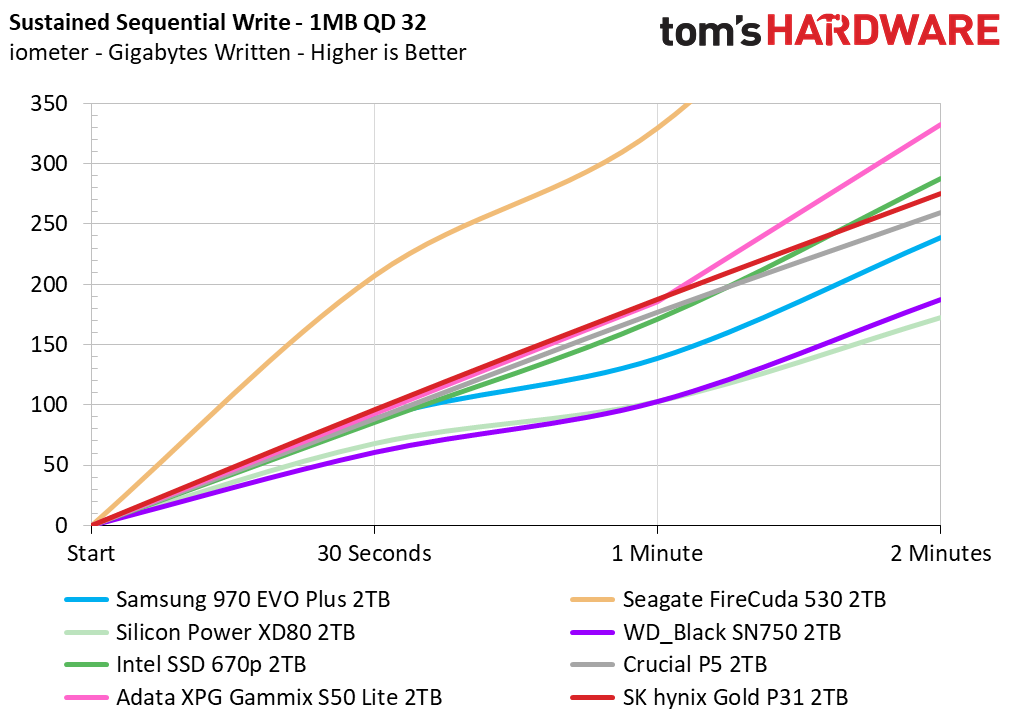

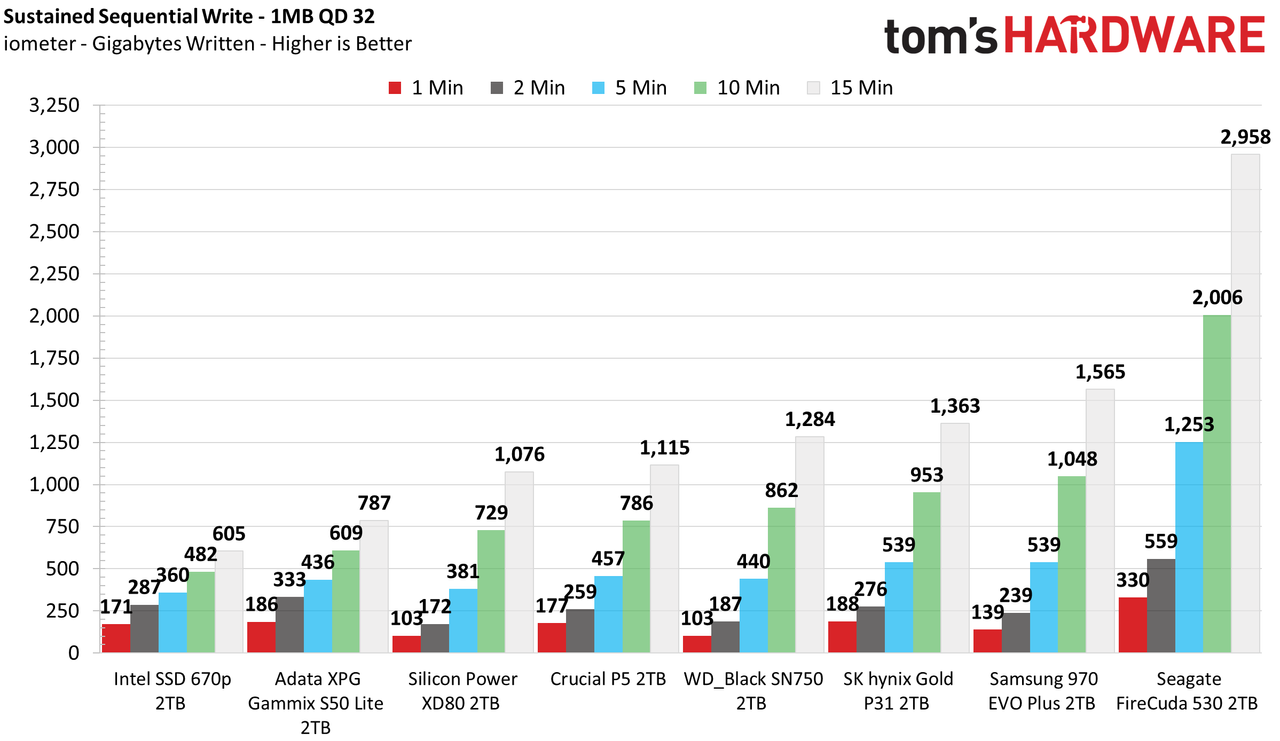

Official write specifications are only part of the performance picture. Most SSDs implement a write cache, a fast area of (usually) pseudo-SLC programmed flash that absorbs incoming data.  Sustained write speeds can suffer tremendously once the workload spills outside of the cache and into the "native" TLC or QLC flash. We use iometer to hammer the SSD with sequential writes for 15 minutes to measure both the size of the write cache and performance after the cache is saturated. We also monitor cache recovery via multiple idle rounds.

According to our measurements, the SK hynix Gold P31 has a large 185GB hybrid SLC cache and 12GB static cache, both of which are roughly twice the capacity of the 1TB models.

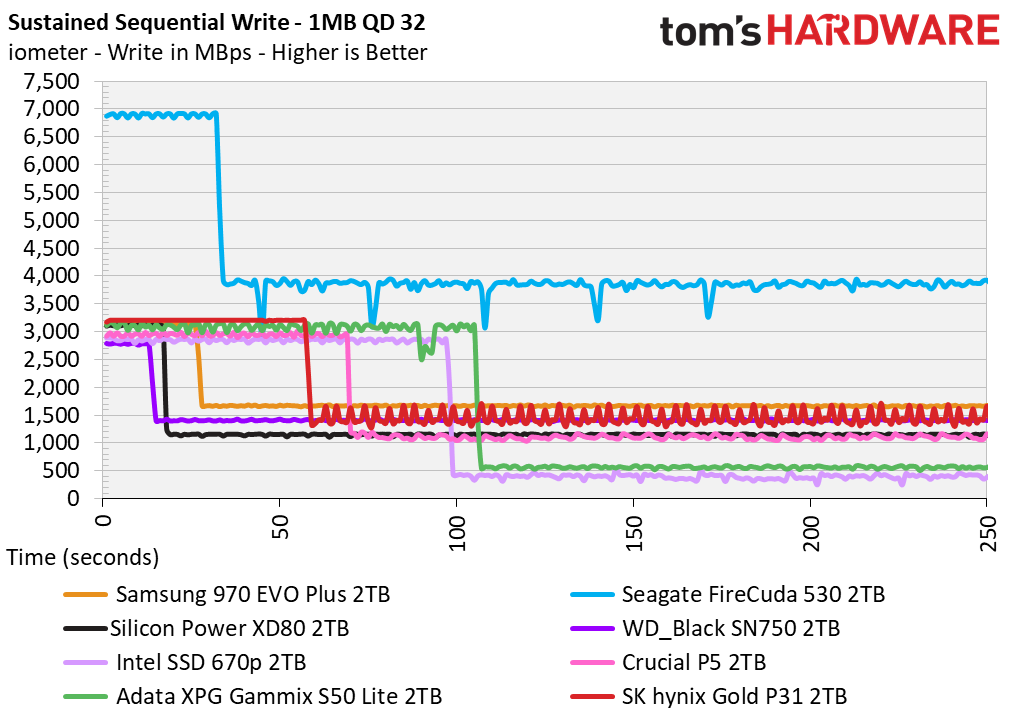

After the workload filled the SLC cache at a rate of 3.2 GBps, post-cache write speeds degraded to 1.4 GBps for the remainder of the test. We let the drive sit idle, but it didn’t recover any of the dynamic cache within the allocated 30-minute window. Instead, it only recovered the small static cache.

Power Consumption and Temperature

We use the Quarch HD Programmable Power Module to gain a deeper understanding of power characteristics. Idle power consumption is an important aspect to consider, especially if you're looking for a laptop upgrade. Some SSDs can consume watts of power at idle while better-suited ones sip just milliwatts. Average workload power consumption and max consumption are two other aspects of power consumption, but performance-per-watt is more important. A drive might consume more power during any given workload, but accomplishing a task faster allows the drive to drop into an idle state more quickly, ultimately saving energy.

We also monitor the drive’s temperature via the S.M.A.R.T. data and an IR thermometer to see when (or if) thermal throttling kicks in and how it impacts performance. Bear in mind that results will vary based on the workload and ambient air temperature.

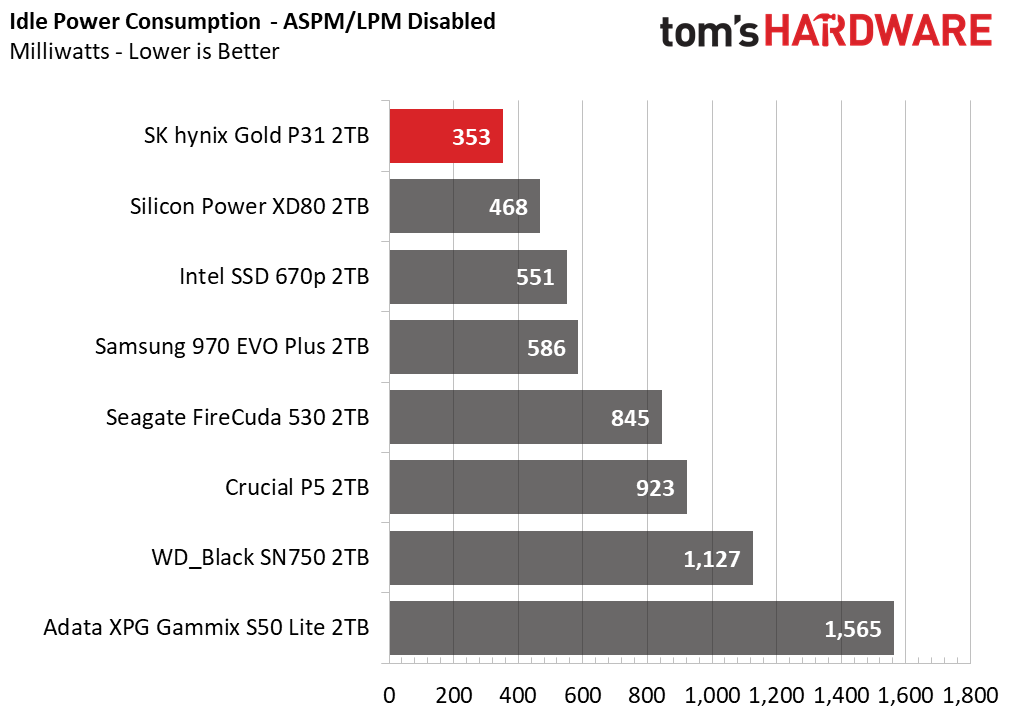

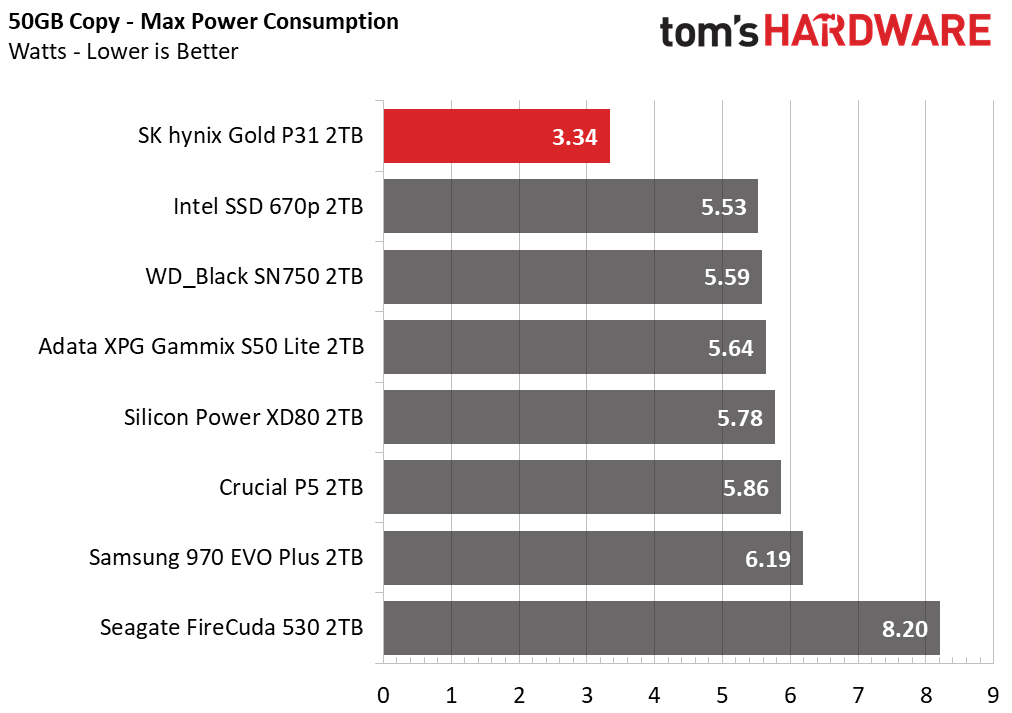

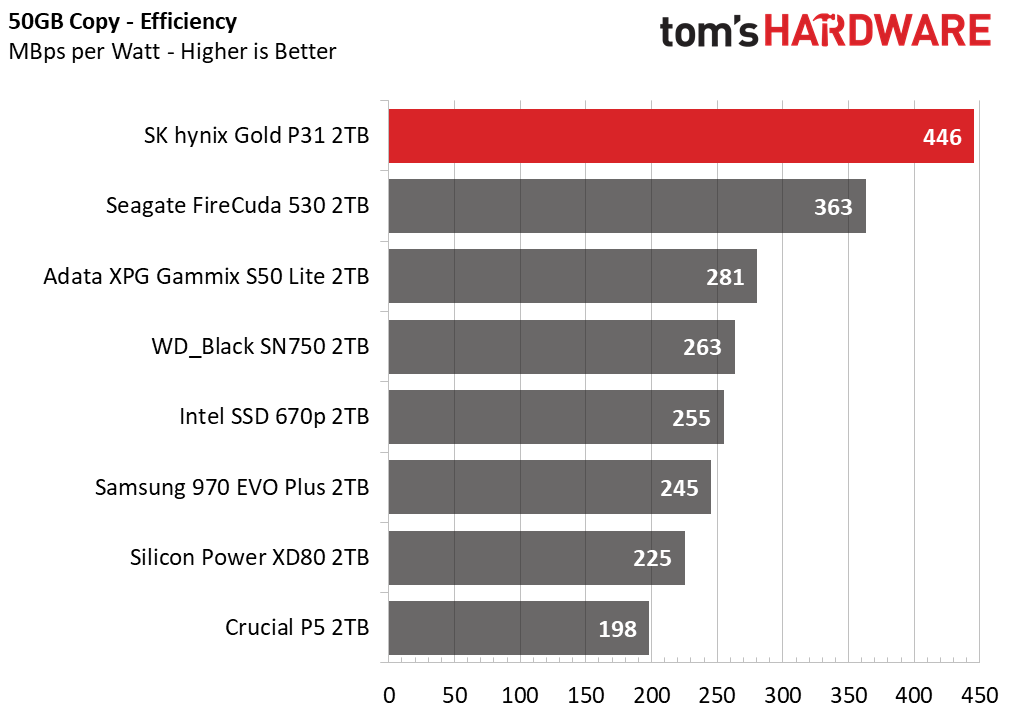

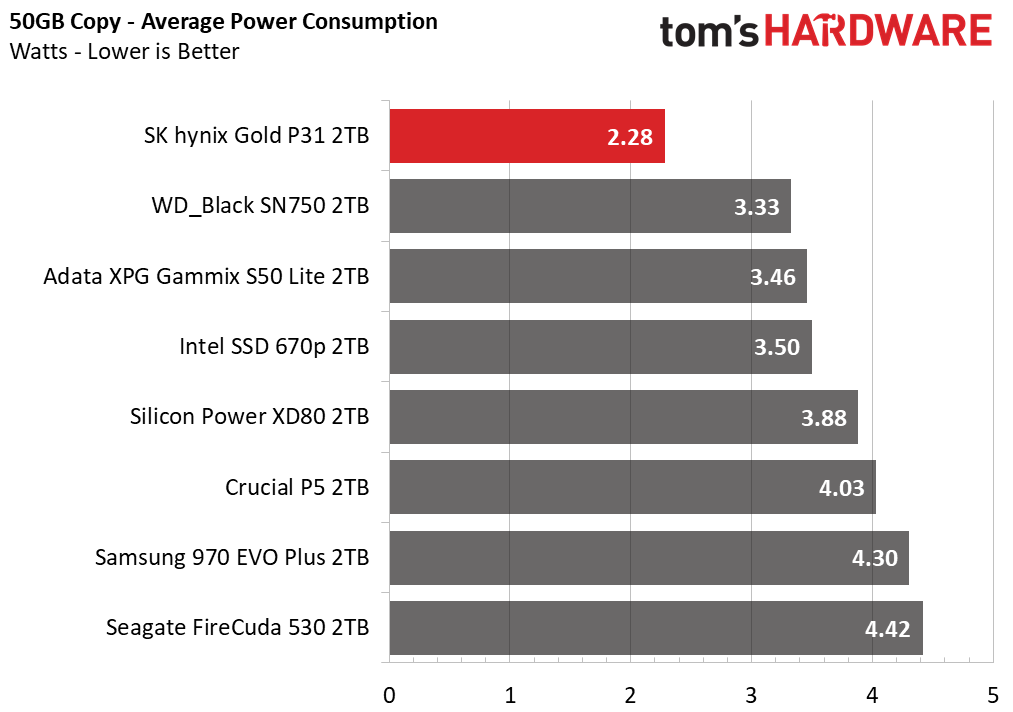

The 2TB SK hynix Gold P31 proved to be very power efficient, putting the rest of the comparison pool to shame with its exceptional efficiency score. The Gold P31’s average power consumption and peak consumption were the lowest in the group. It was also very conservative at idle, consuming just 353mW with ASPM disabled.

The SK hynix Gold P31 should perform throttle-free during most tasks, but very large sequential write workloads might trigger throttling if it doesn’t have active cooling or a heatsink. At idle in a 24 degree Celsius (C) room, the SSD reported temperatures of roughly 38-42C. After writing roughly 400GB of data to the SSD, write performance started to gracefully degrade after surpassing the thermal throttle point (83-84C according to the SSD’s S.M.A.R.T. data).

Test Bench and Testing Notes

Swipe to scroll horizontally
CPUIntel Core i9-11900K
MotherboardASRock Z590 Taichi
Memory2x8GB Kingston HyperX Predator DDR4 5333
GraphicsIntel UHD Graphics 750
CPU CoolingAlphacool Eissturm Hurricane Copper 45 3x140mm
CaseStreacom BC1 Open Benchtable
Power SupplyCorsair SF750 Platinum
OS StorageWD_Black SN850 2TB
Operating SystemWindows 10 Pro 64-bit 20H2

We use a Rocket Lake platform with most background applications such as indexing, windows updates, and anti-virus disabled in the OS to reduce run-to-run variability. Each SSD is prefilled to 50% capacity and tested as a secondary device. Unless noted, we use active cooling for all SSDs.


MORE: How We Test HDDs And SSDs

MORE: All SSD Content
