Over the past several weeks, we’ve looked at motherboards of all shapes, sizes, and price points. From flagship Z490 to less-pricey B550 motherboards, we’ve covered a wide variety from both camps, but it’s been a while since we looked at the low end. So we’ve gathered some of the least-expensive AMD B550 motherboards (in this case, they are all listed MicroATX form factor) to see if they can handle our Ryzen 9 3900X, what features they bring to the table and if they are worth it as an entry point to the platform. Will any of them land on our Best B550 Motherboards or best motherboards overall lists? Only time and testing will tell.
Specifically, we’ll be looking at the ASRock B550M-HDV ($80.99 (opens in new tab)), Gigabyte’s B550M DS3H ($94.99 (opens in new tab)), the MSI B550M Pro-VDH Wi-Fi ($109.99 (opens in new tab)), and our costliest contender, the Asus Prime B550M K ($120.99 (opens in new tab)). Compared to what we’ve looked at in the past on B550, these boards skip many of the accouterments we’re used to seeing, like RGB lighting, shrouds and heatsinks on some items, and premium power delivery.
That said, all of the boards here come with four SATA ports, 1 Gb Ethernet and at least one M.2 socket, but the similarities tend to stop there. And all are of the Micro ATX variety. Some boards have heatsinks on some of the VRMs (Gigabyte and MSI) and one even includes integrated Wi-Fi (MSI).
Power delivery on these bargain-basement SKUs are enough to get by in most cases, but not all. We had trouble with stability and or throttling on the Gigabyte and Asus boards when overclocked. The former is only able to maintain stability with our 3900X at 4.1 GHz, while the Asus displayed throttling. Even though the 3900X is on the support list for all of these motherboards, the reality is ASRock couldn’t handle it even at stock speeds. If you’re looking to go light on the motherboard but still use a beefy CPU like ours, you’ll need to look up a SKU or two in the product stack, or run the MSI Pro-VDH.
At stock speeds, most of the boards performed well in our test suite. The Gigabyte displayed a couple of sub-par results in PCMark testing, while the ASRock took one to the chin in Handbrake, throttling heavily. That said, our multi-threaded CPU heavy tests are shorter (and less stressful) than some activities. I’s the heavily multithreaded, long(er) running activities that put a hurting on some of the motherboards we looked at, like Handbrake and our stress tests. Let’s dig in on the details and see what makes these inexpensive MicroATX boards tick. We’ll start with Gigabyte.
Specifications - Gigabyte B550M DS3H
|Voltage Regulator||8 Phase (5+3)|
|Video Ports||(1) DVI-D, (1) HDMI (v2.1)|
|USB Ports||(4) USB 3.2 Gen 1 (10 Gbps), (4) 2.0|
|Network Jacks||(1) 1 GbE|
|Audio Jacks||(3) Analog|
|PCIe x16||(1) v4.0 (x16), (1) v3.0 (x4)|
|PCIe x1||(1) v3.0 (x1)|
|CrossFire/SLI||AMD 2-Way CrossFireX|
|DIMM slots||(4) DDR4 - DDR4 4733(OC)|
|M.2 slots||(1) PCIe 4.0 x4 / SATA + PCIe (up to 110mm), (1) PCIe 3.0 x2 / SATA + PCIe only (up to 80mm)|
|SATA Ports||(4) SATA3 6 Gbps (RAID0, 1, and 10)|
|USB Headers||(1) USB v3.2 Gen 1, (1) USB v2.0|
|Fan/Pump Headers||(3) 4-Pin|
|RGB Headers||(2) 4-pin aRGB, (2) 3-pin RGB, (1) 3-pin CPU cooler LED strip/RGB LED strip header|
|Other Interfaces||FP-Audio, TPM|
|Ethernet Controllers||(1) Realtek RTL8118 GbE|
|Wi-Fi / Bluetooth||✗|
|HD Audio Codec||Realtek ALC887|
|DDL/DTS Connect||✗ / ✗|

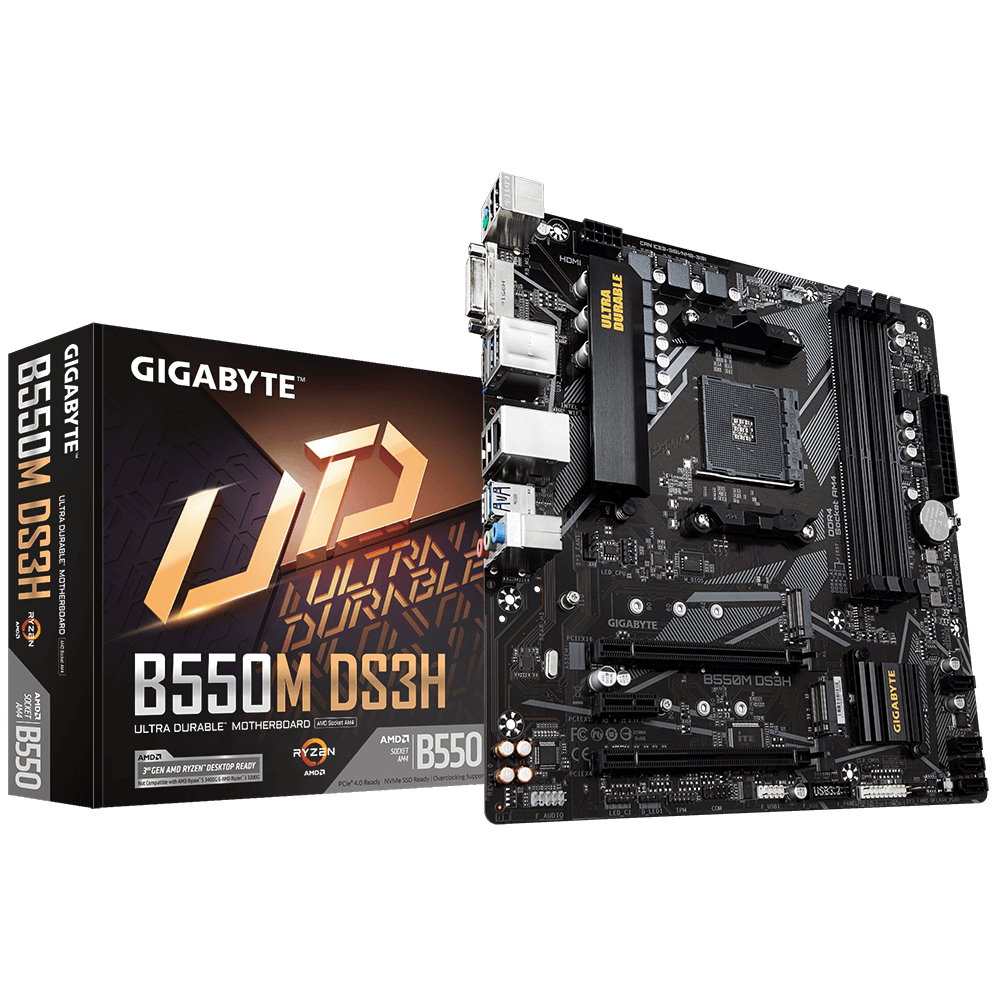

Starting with the included accessories, we didn’t expect a lot here due to the very low price point. We were not disappointed, as Gigabyte’s DS3H comes with the essentials, including the rear IO plate and a driver disk (the M.2 screws are already on the motherboard). There’s not much more here, not even a sticker. Here’s a full (short) list of what comes in the box with the board:
- Driver disk
- User Manual
- Rear I/O plate
- (2) SATA cables

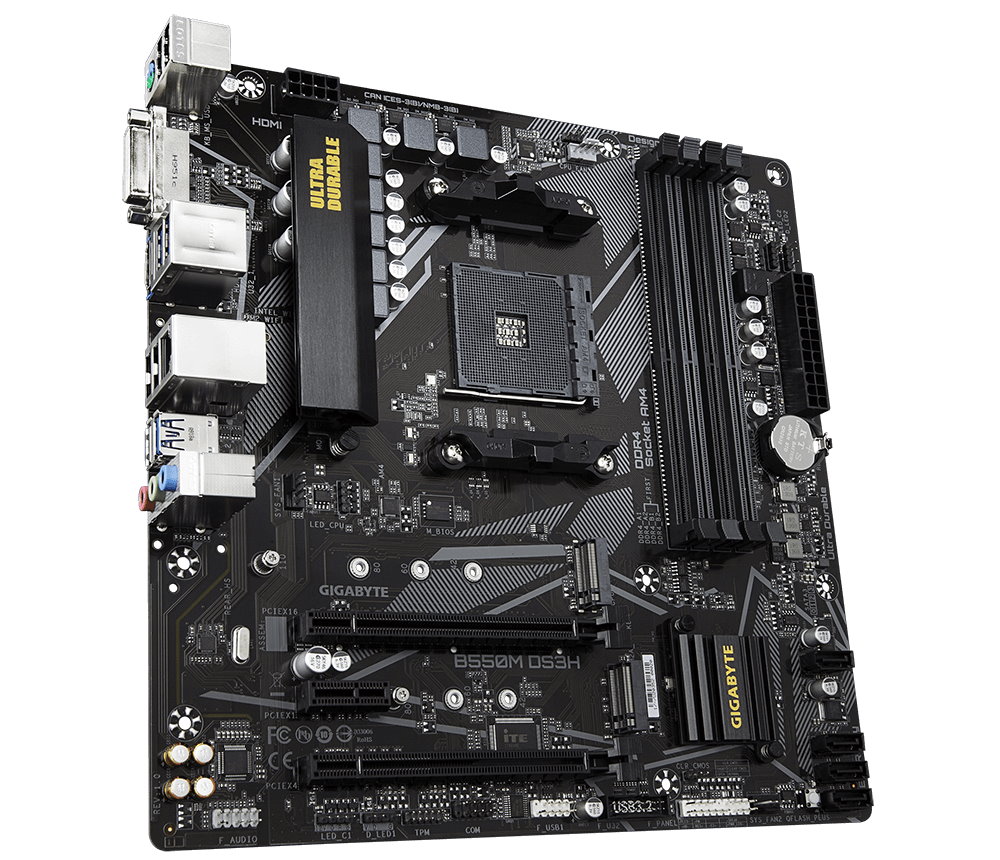

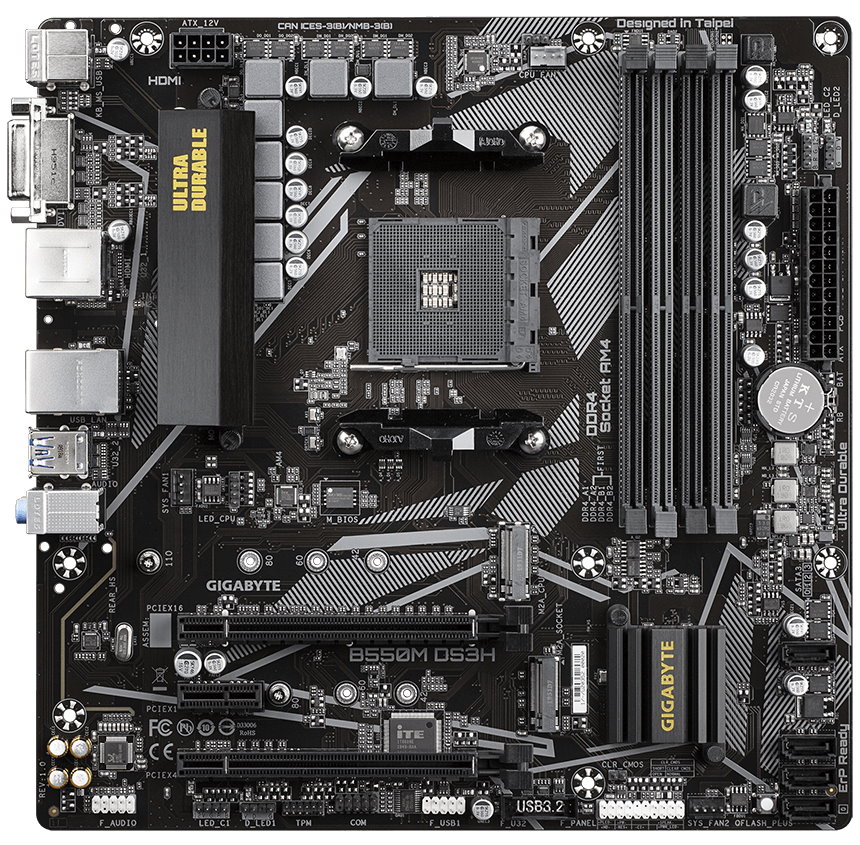

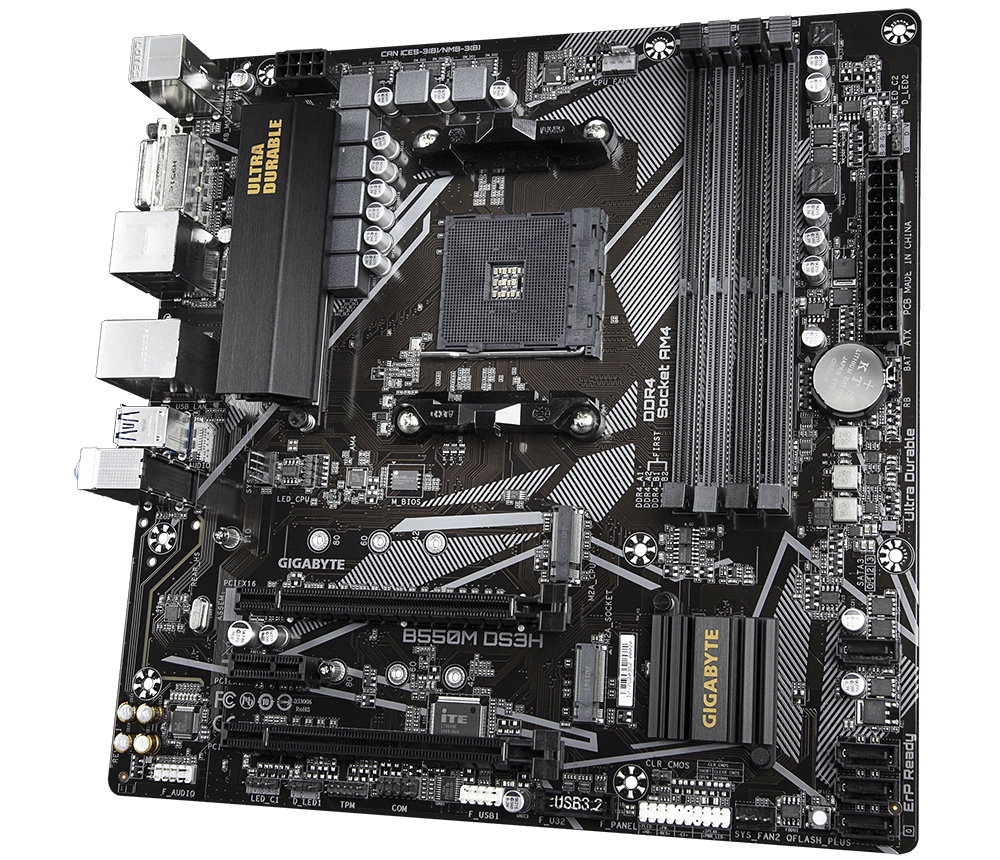

Looking at Gigabyte’s micro ATX board, we immediately notice very few shrouds and heatsinks. The motherboard itself is black/dark brown, along with some stenciled-on grey design cues scattered around the board. The small VRM heatsink and chipset heatsink are both black, with Gigabyte/Ultra Durable branding on both. This board isn’t a looker, but then again none of these boards are at this price. If you’re looking for RGB lighting, you’ll have to purchase strips and attach them to the onboard headers.

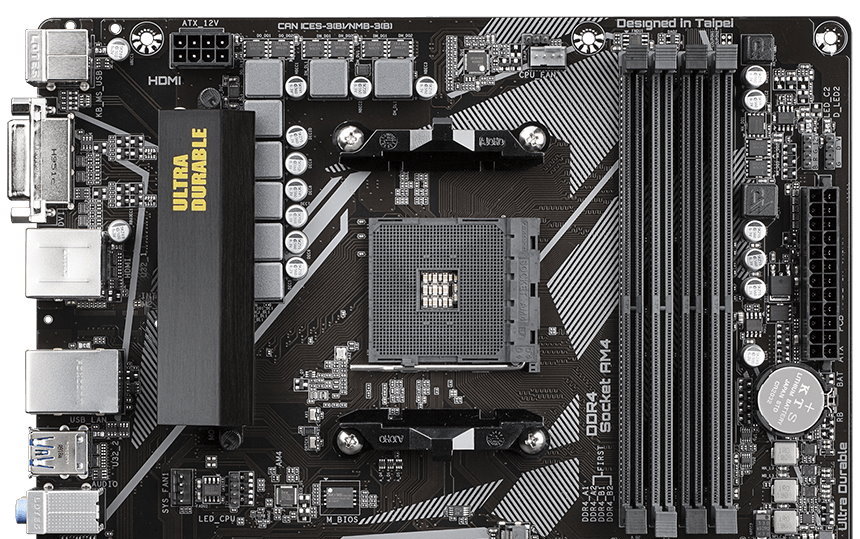

Zooming in on the top half of the board, we’re greeted by a lot of exposed PCB. There is a small heatsink attached via pushpins to the left VRM bank, while the top VRMs are left bare. I’m not a big fan of pushpin-attached heatsinks, as they don’t tend to hold as well as those that are screwed on. Power comes from a single 8-pin EPS connector, located next to the top VRM bank.
Just to the left of the DIMM slots is the first (of three) 4-pin fan headers. All fan headers support both PWM and DC control, but do not mention power output. We’ll assume the standard of 1A/12W. There are four DIMM slots that support up to 128GB of RAM at speeds up to DDR4 4000 (DDR4 4733 for latest generation Ryzen APUs). To the right of the DRAM slots are two (of four) RGB headers, a 3-pin and 4-pin for aRGB and RGB, respectively. Just below this is the 24-pin ATX connector that delivers power to the motherboard.
Power delivery on our Gigabyte B550M DS3H is listed as 5+3 (Vcore and SOC). Unlike more expensive motherboards, we don’t see DrMOS MOSFETs but separate high and low bits to make up a full phase. On the high side is an On Semiconductor 4C10N (46A) and 4C06 on the low side (67A) -- definitely not the most robust we’ve seen. The circuitry supported our Ryzen 9 3900X at stock speeds, but overclocking yielded 4.1 GHz, down 200 MHz from the 4.3 GHz we’re used to. We just weren’t able to stabilize this CPU at the higher clock. Due to the pushpin-attached heat sink, we did not remove it for a picture as they never seem to go back on properly.

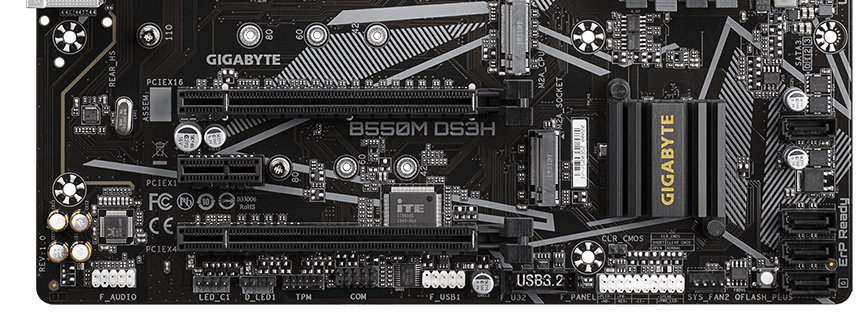

Moving to the bottom half of the board, on the left side are the audio bits. Fully exposed, we see the low-cost Realtek ALC887 audio IC, along with four audio caps. Get used to this, as none of these boards run the premium Realtek audio ICs. That said, the ALC887 should still be acceptable for most users. If you need better audio, you’ll need a better board or a separate DAC.
In the middle are the PCIe slots and M.2 sockets. There are two full-length PCIe slots and a single x1 slot. The top slot supports PCIe 4.0 x16 while the second slot is fed from the chipset and supports PCIe 3.0 x4. AMD CrossfireX is not listed as supported.
Just above and below the primary PCIe x16 slot are two M.2 sockets -- neither have a heatsink. The top slot, M2A_CPU, supports both SATA and PCIe devices up to 110mm in length. The bottom socket (M2B_SB) sources its lanes from the chipset and supports SATA and PCIe 3.0 x2 modules up to 80mm.
Finally, to the right of the small pushpin-attached chipset heatsink are four SATA3 6Gbps ports, oriented vertically. These ports support RAID0, 1 and 10 modes.
Running along the bottom edge of the motherboard are several headers ranging from audio to USB. Below is a full list ordered from left to right.
- Front panel audio
- 4-pin RGB header
- 3-pin ARGB header
- TPM header
- COM header
- USB 2.0 header
- USB 3.2 Gen1 header
- Front panel/speaker header
- Clear CMOS jumper
- System Fan header

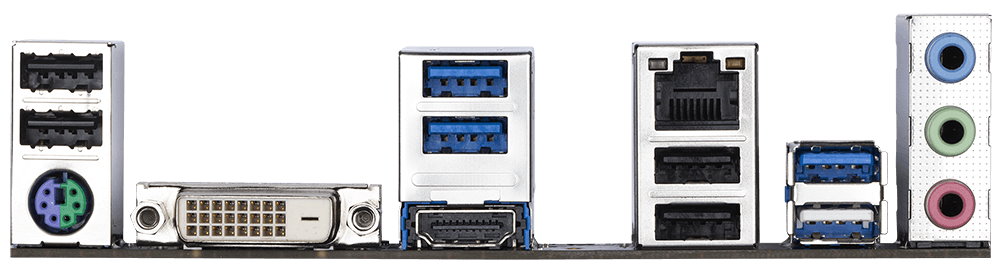

The rear IO area is fairly sparse, as far as connections go, but you get the typical smattering of video outputs, USB, network and audio plugs. In total there are eight USB ports, four USB 3.2 Gen 1 ports and four USB 2.0 ports. While the count is enough for most, I would like to have seen a USB 3.2 Gen2 port of some flavor on this board. Should you use an APU with integrated video, the board offers DVI-D and HDMI (v2.1) ports for video output. Outside of that is a legacy PS/2 port, Ethernet port, and a 3-plug analog audio stack.

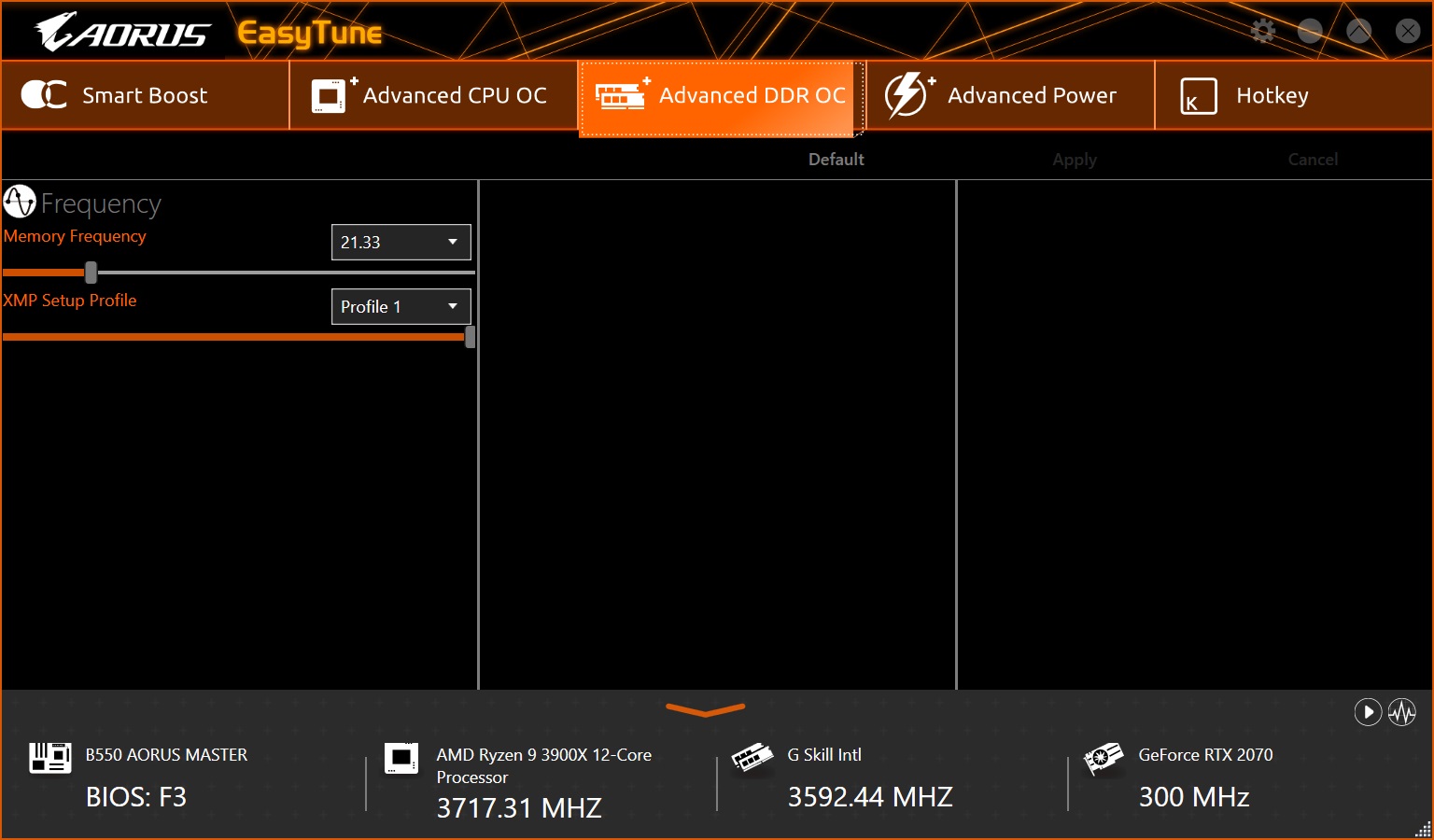

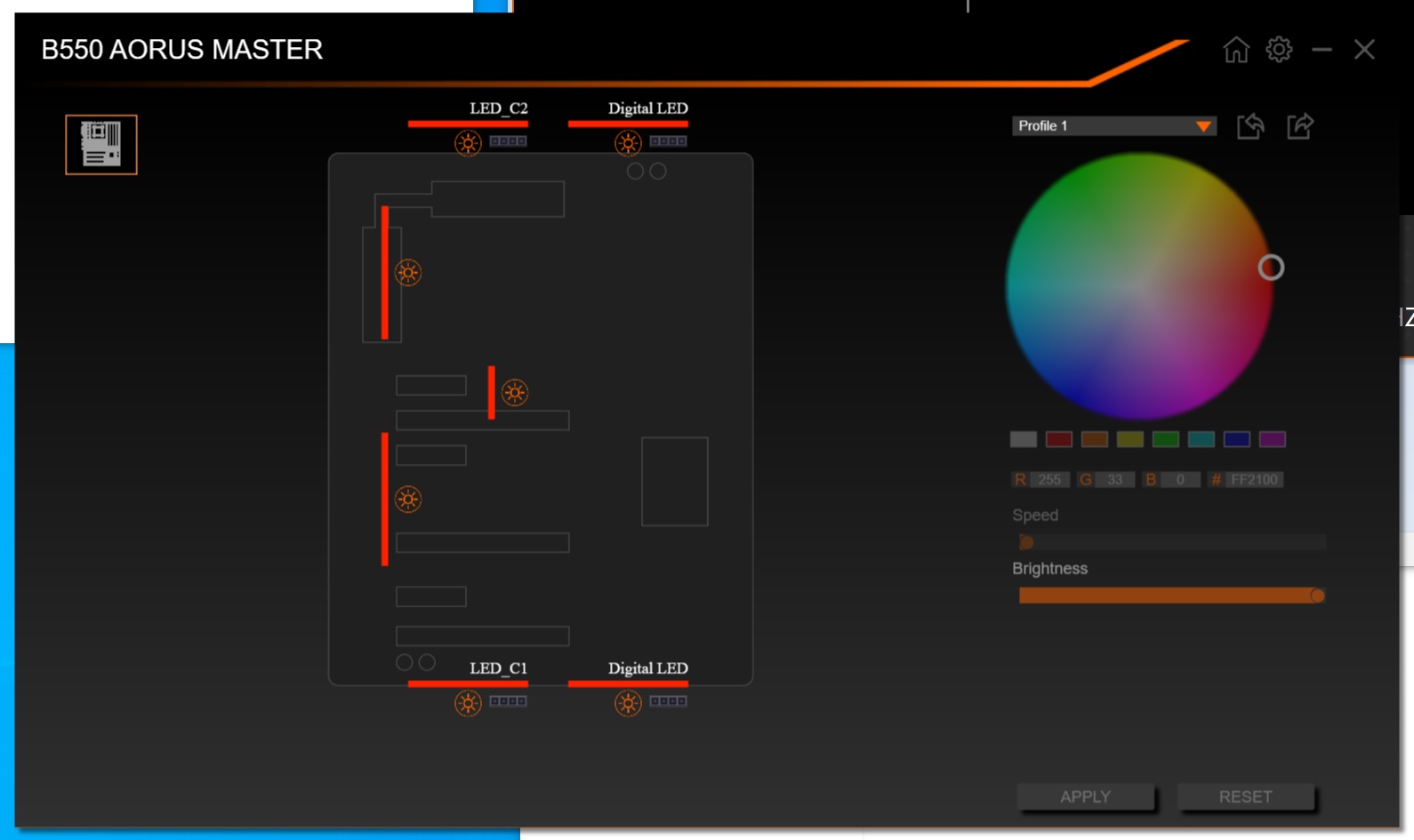

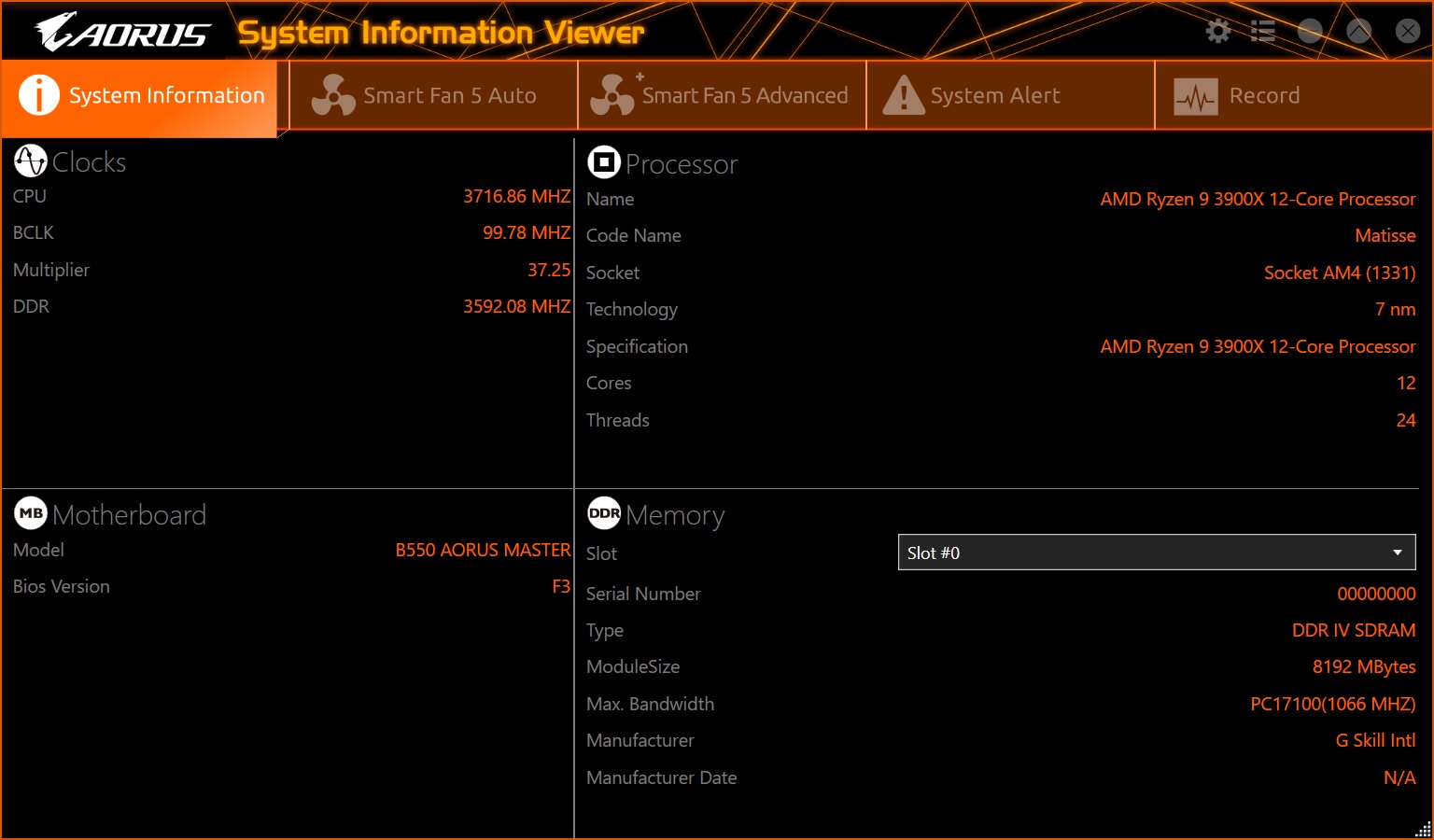

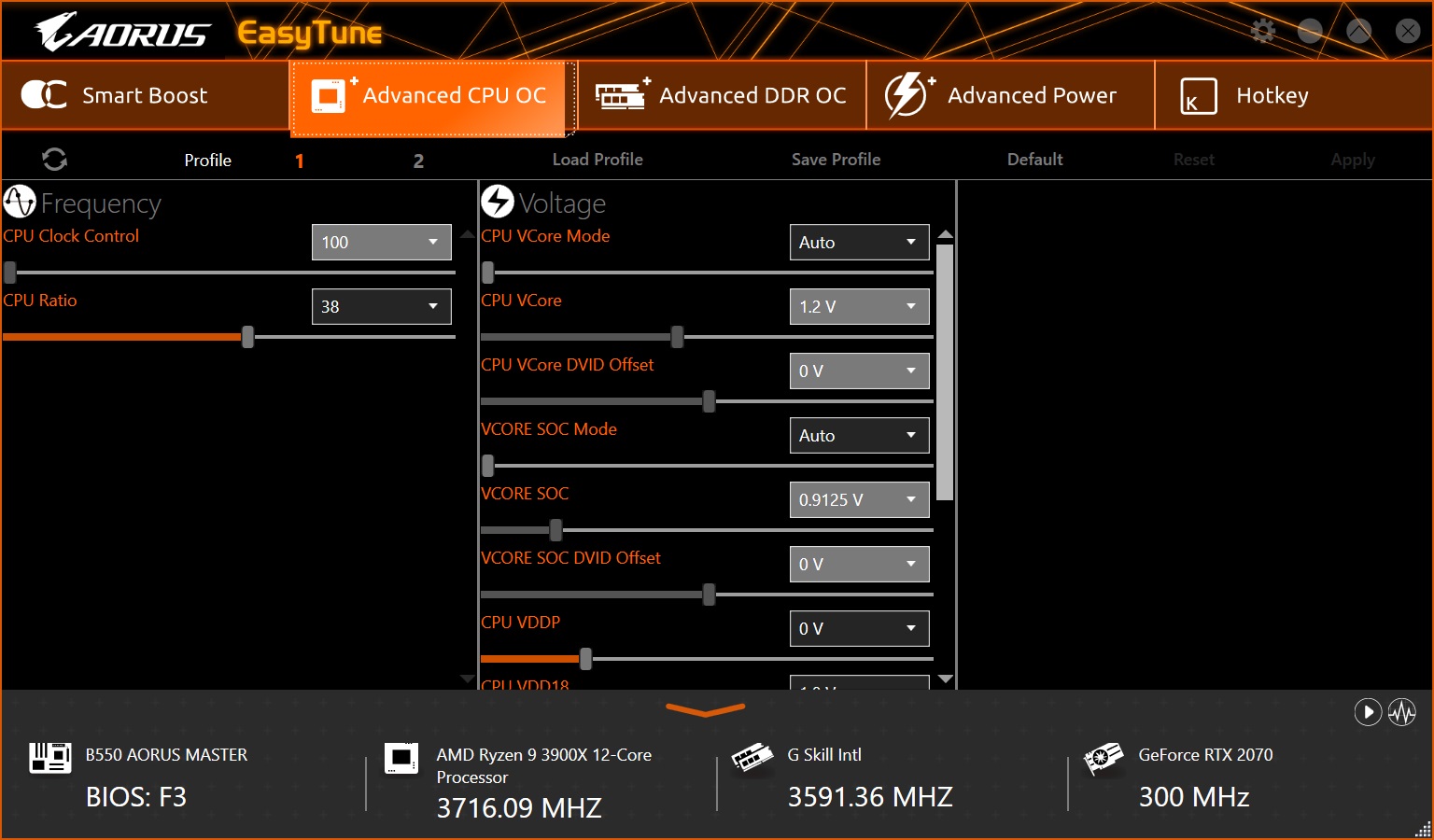

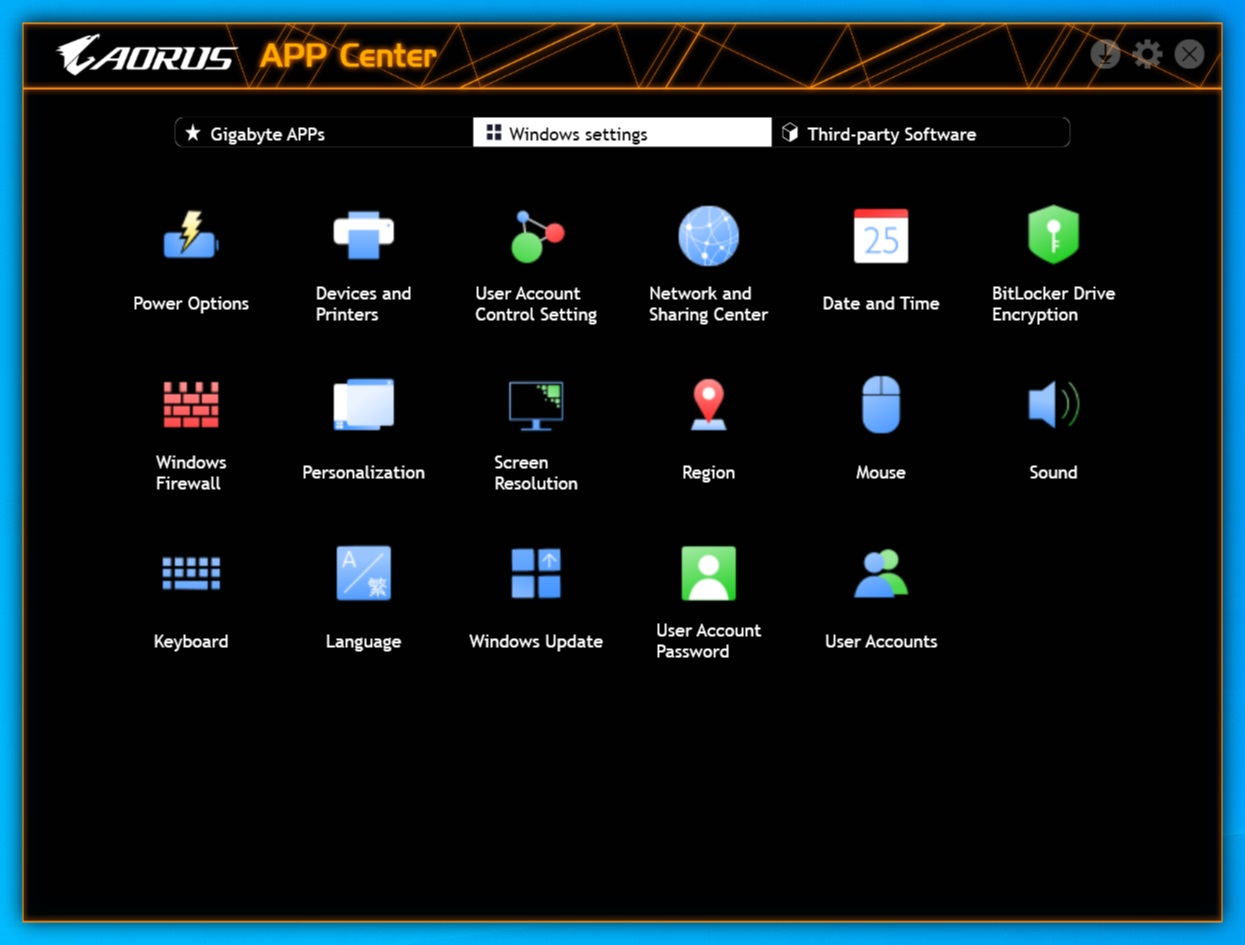

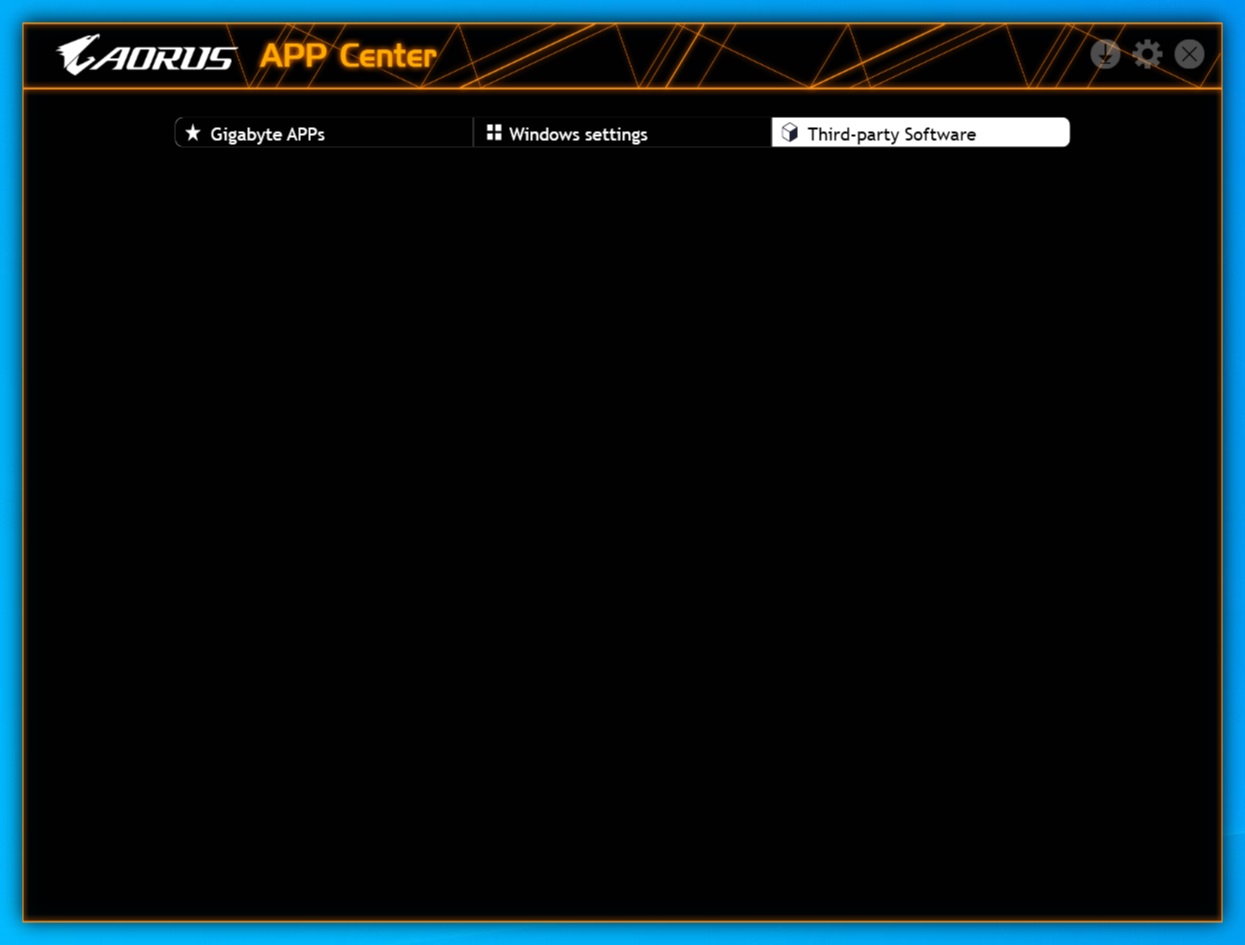

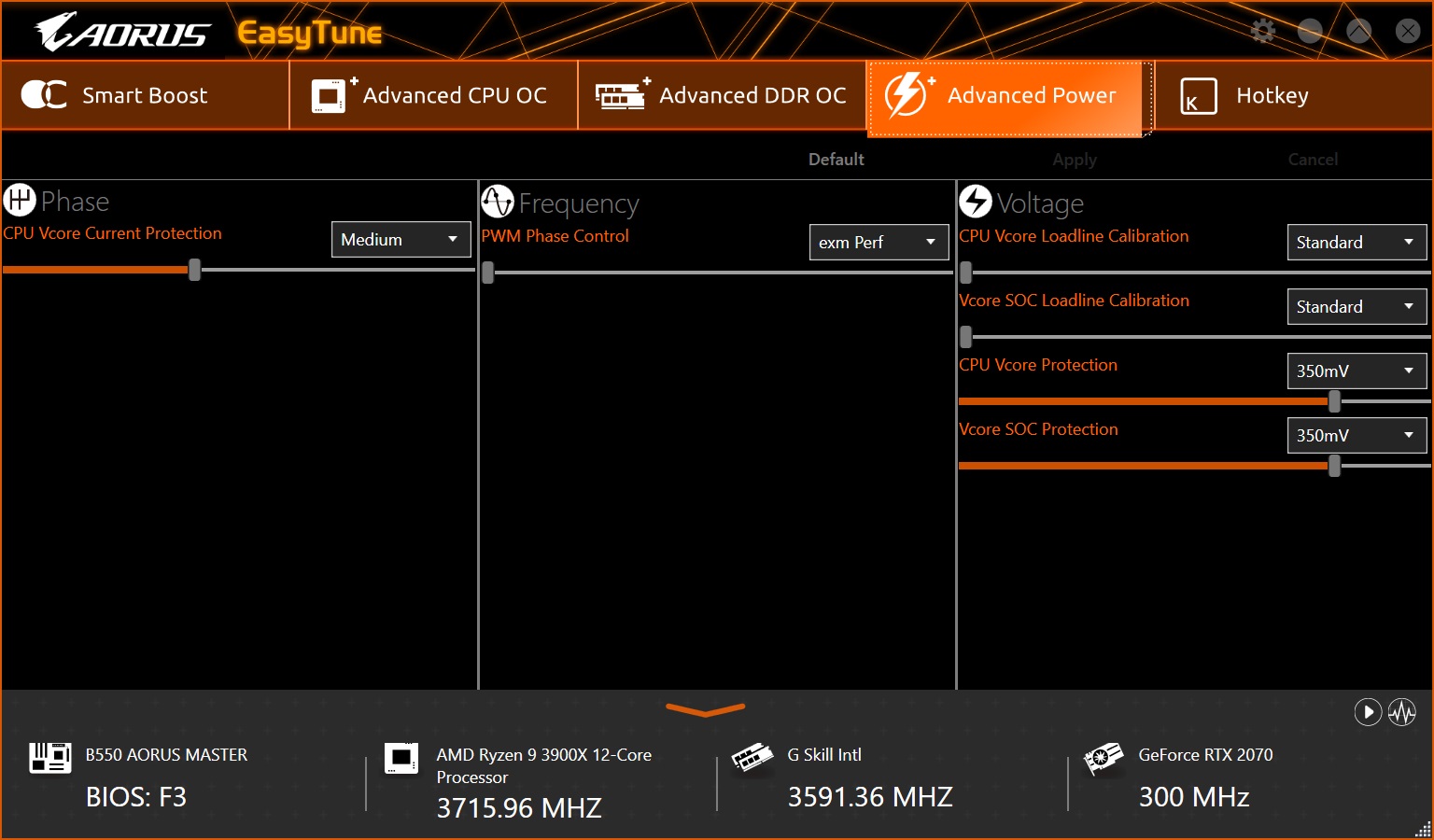

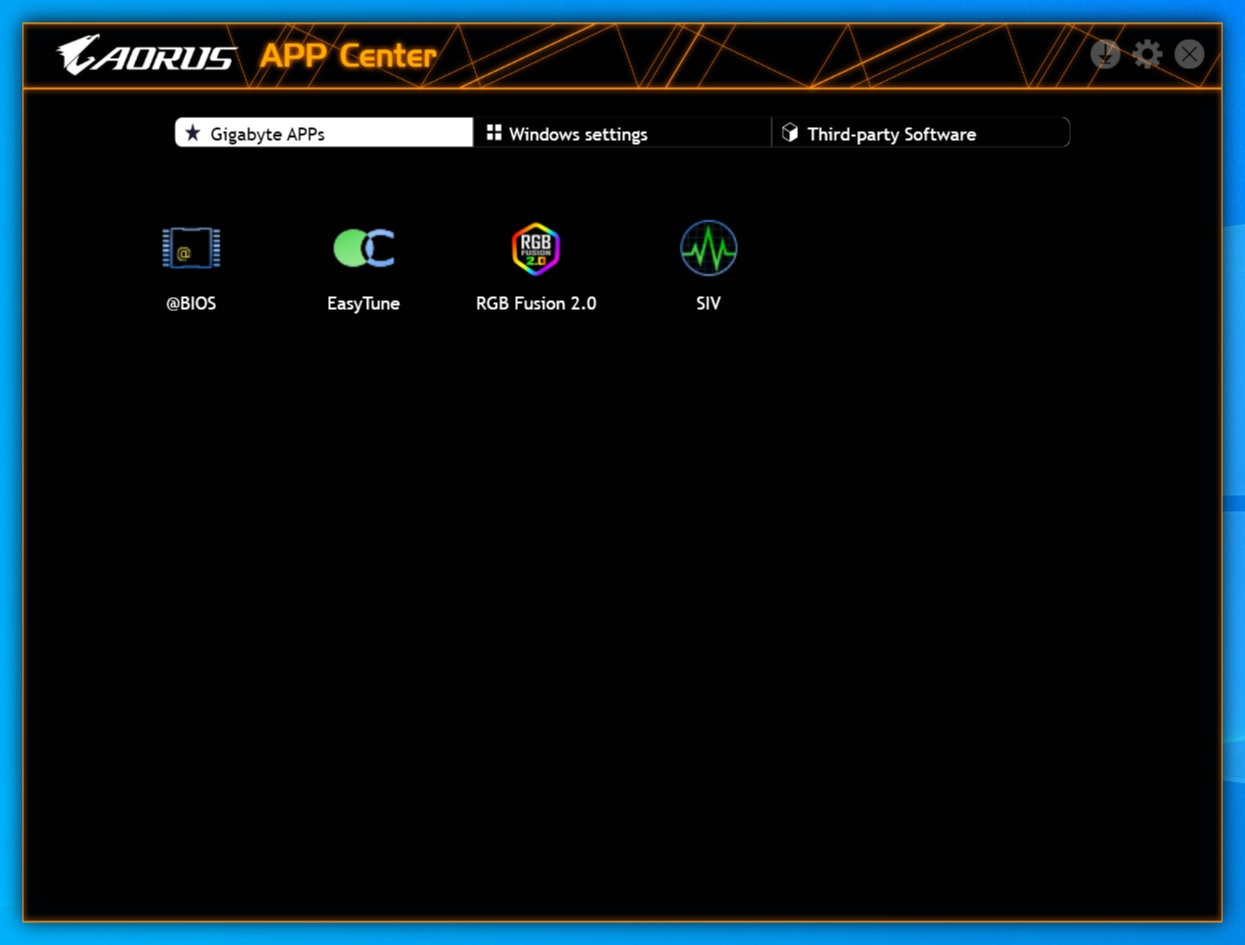

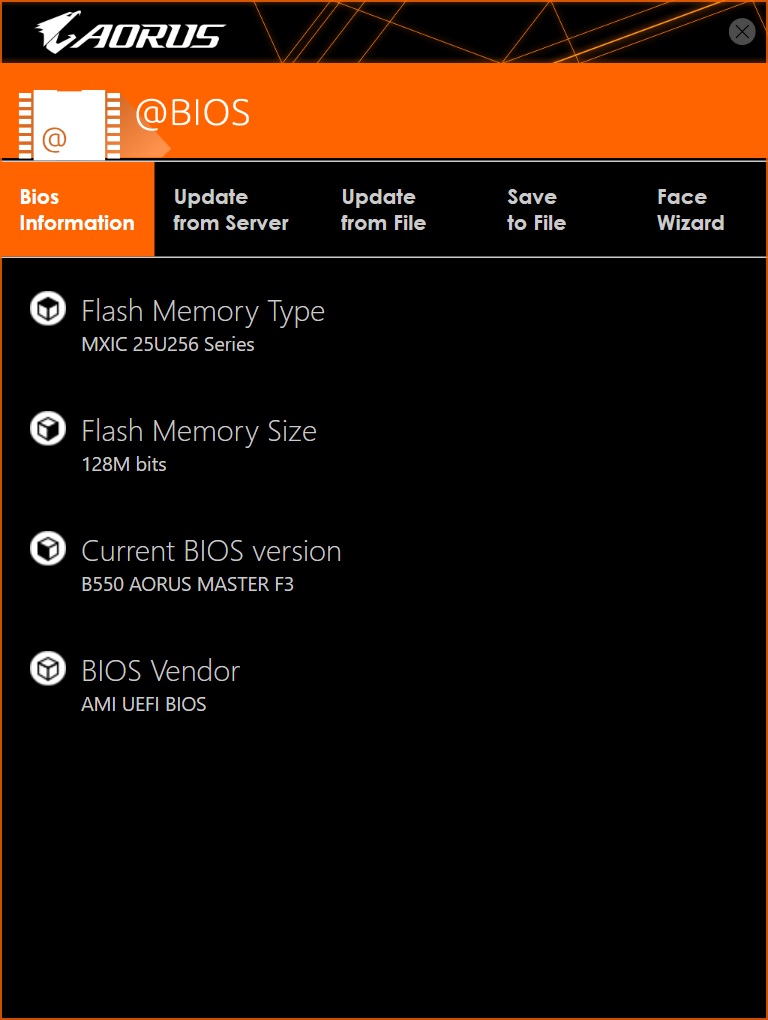

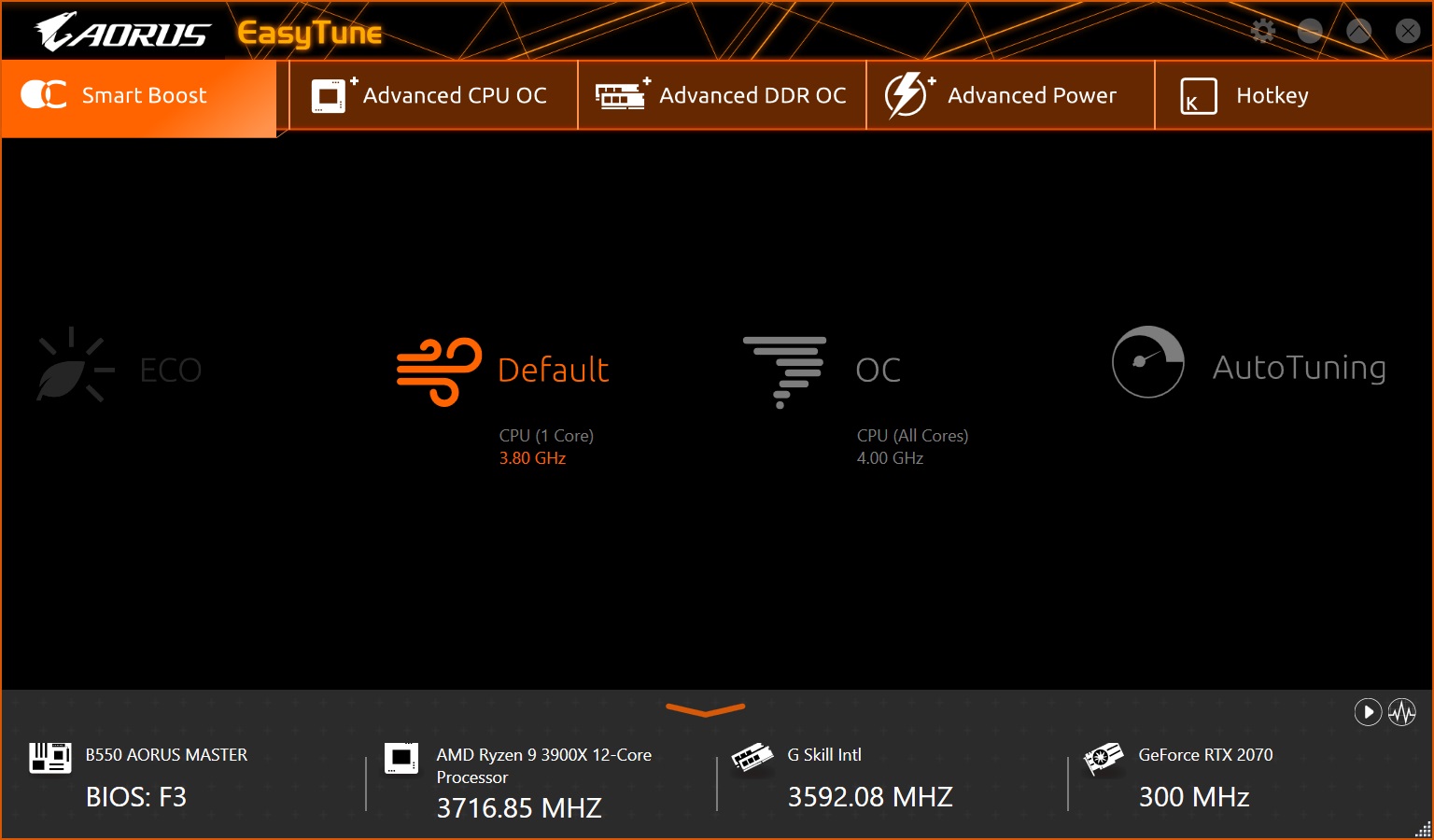

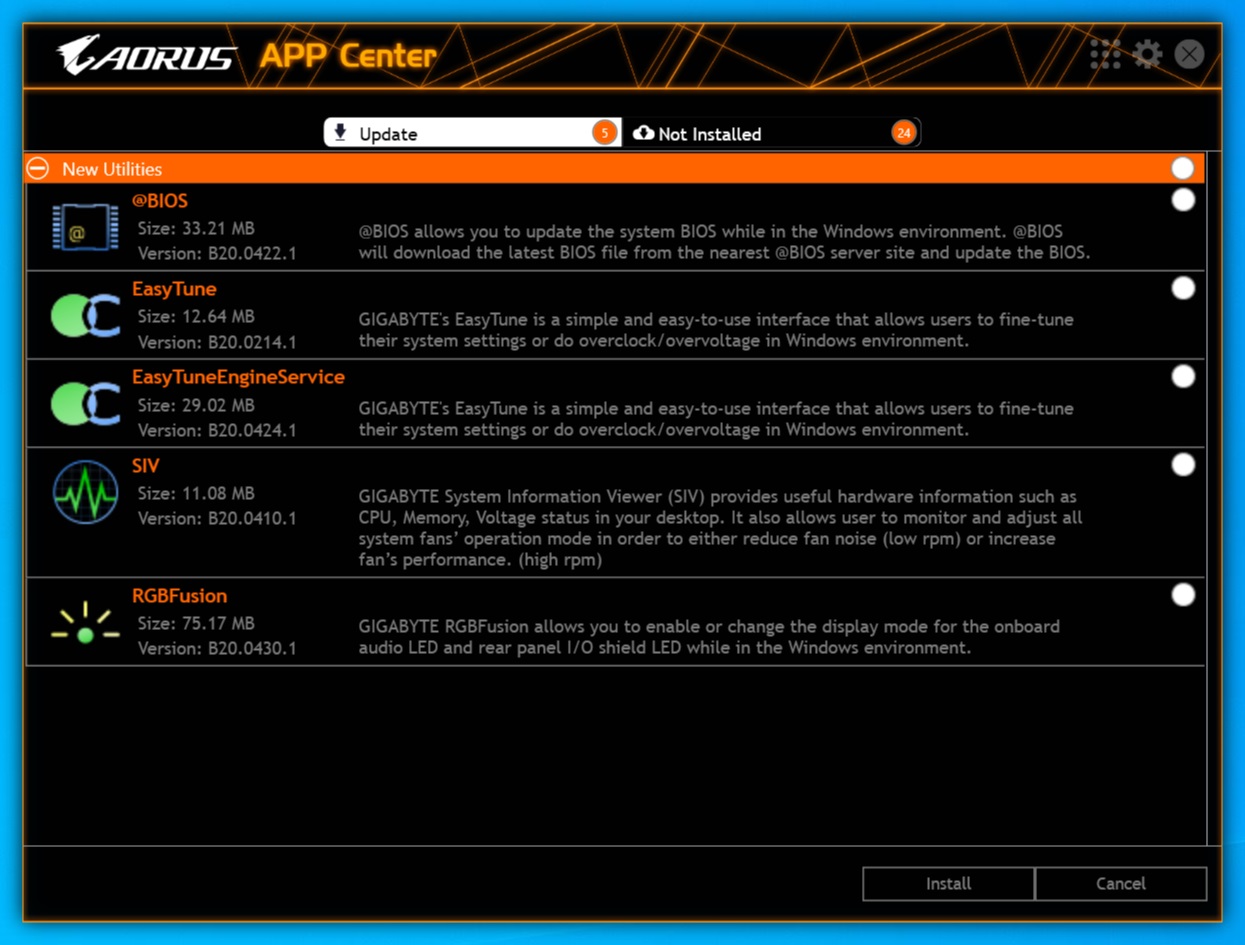

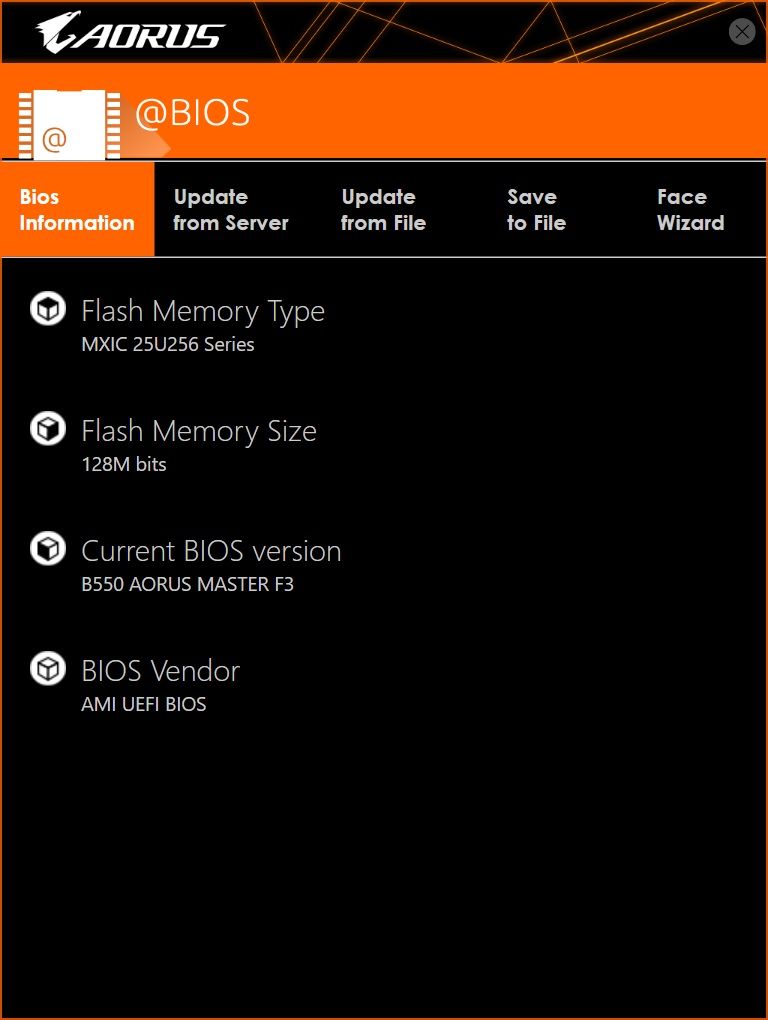

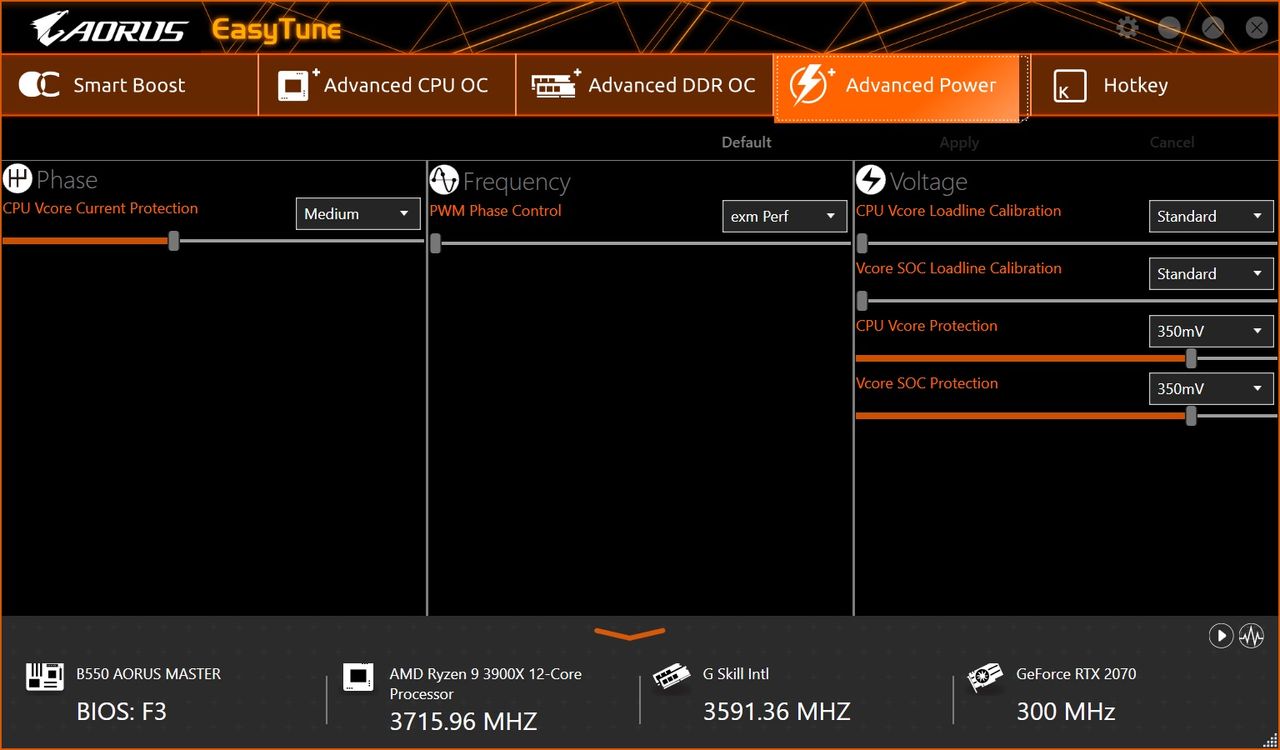

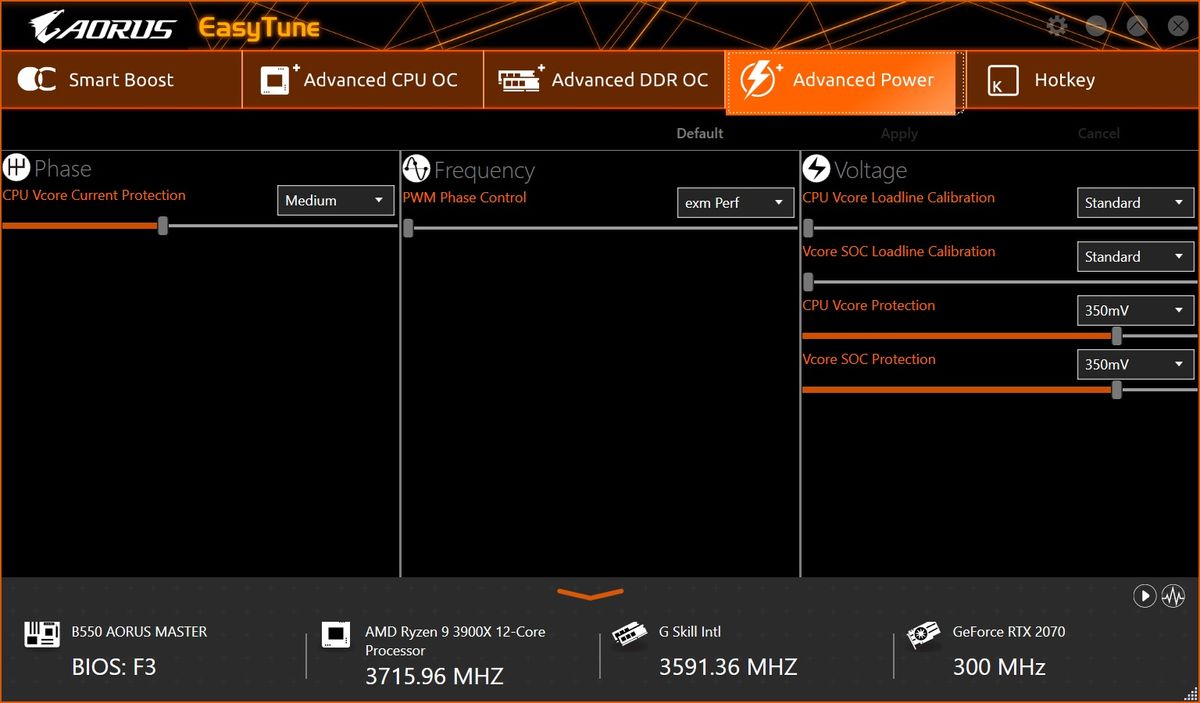

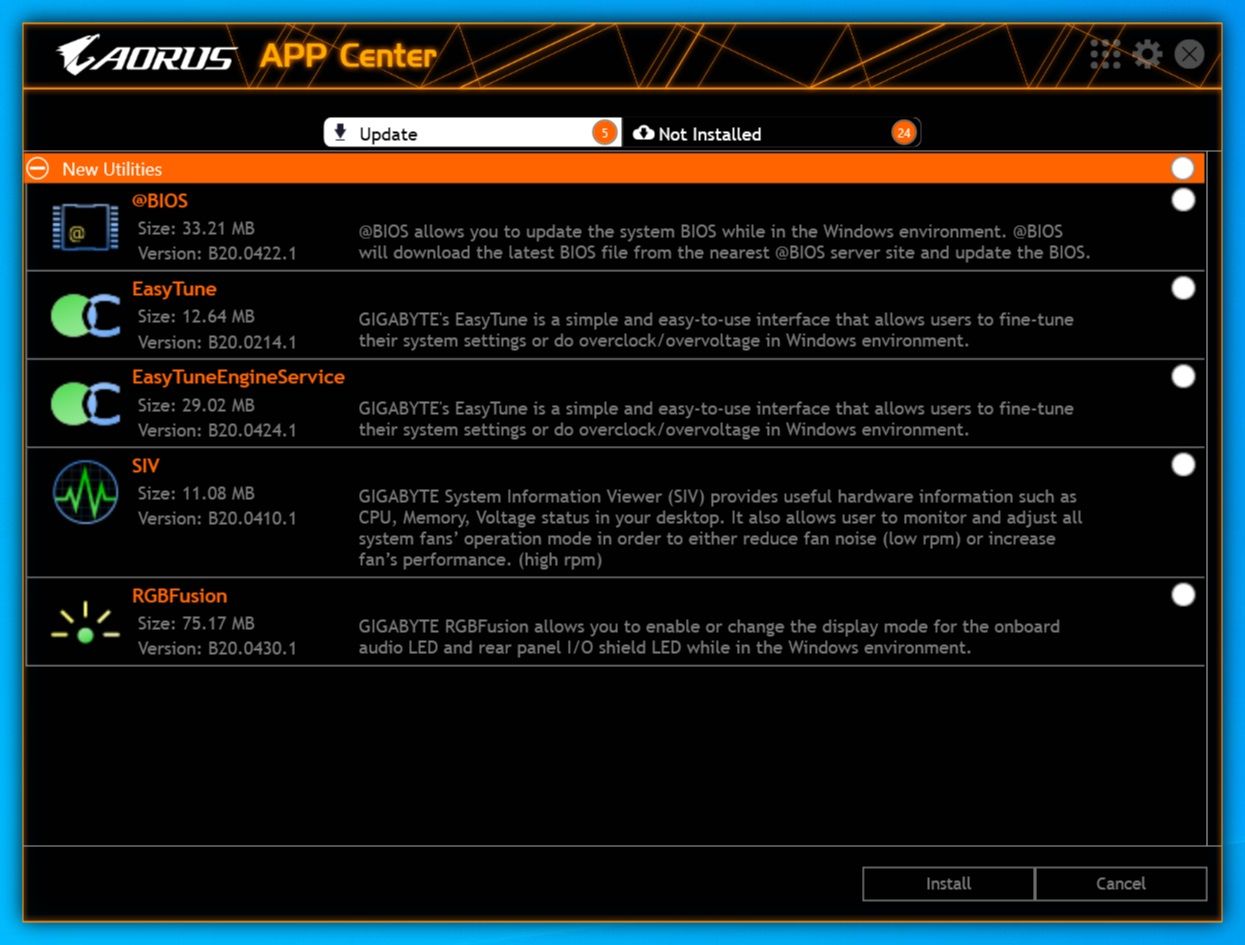

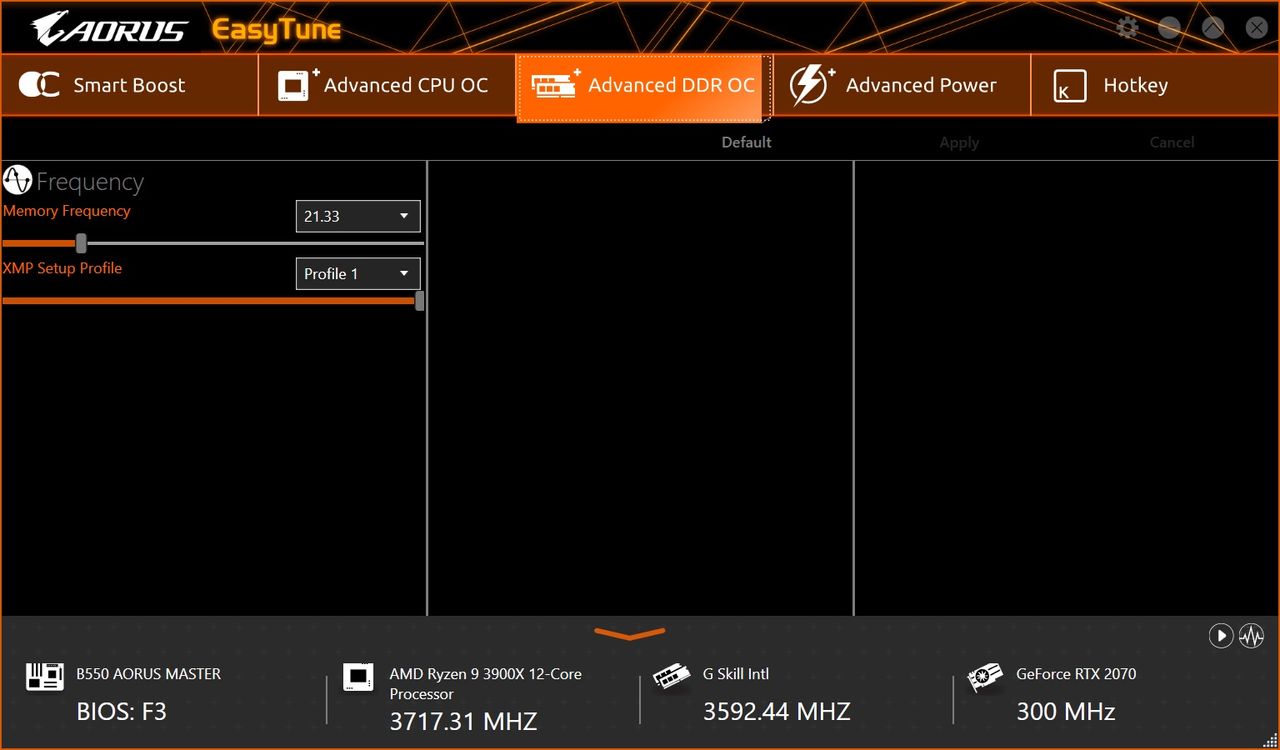

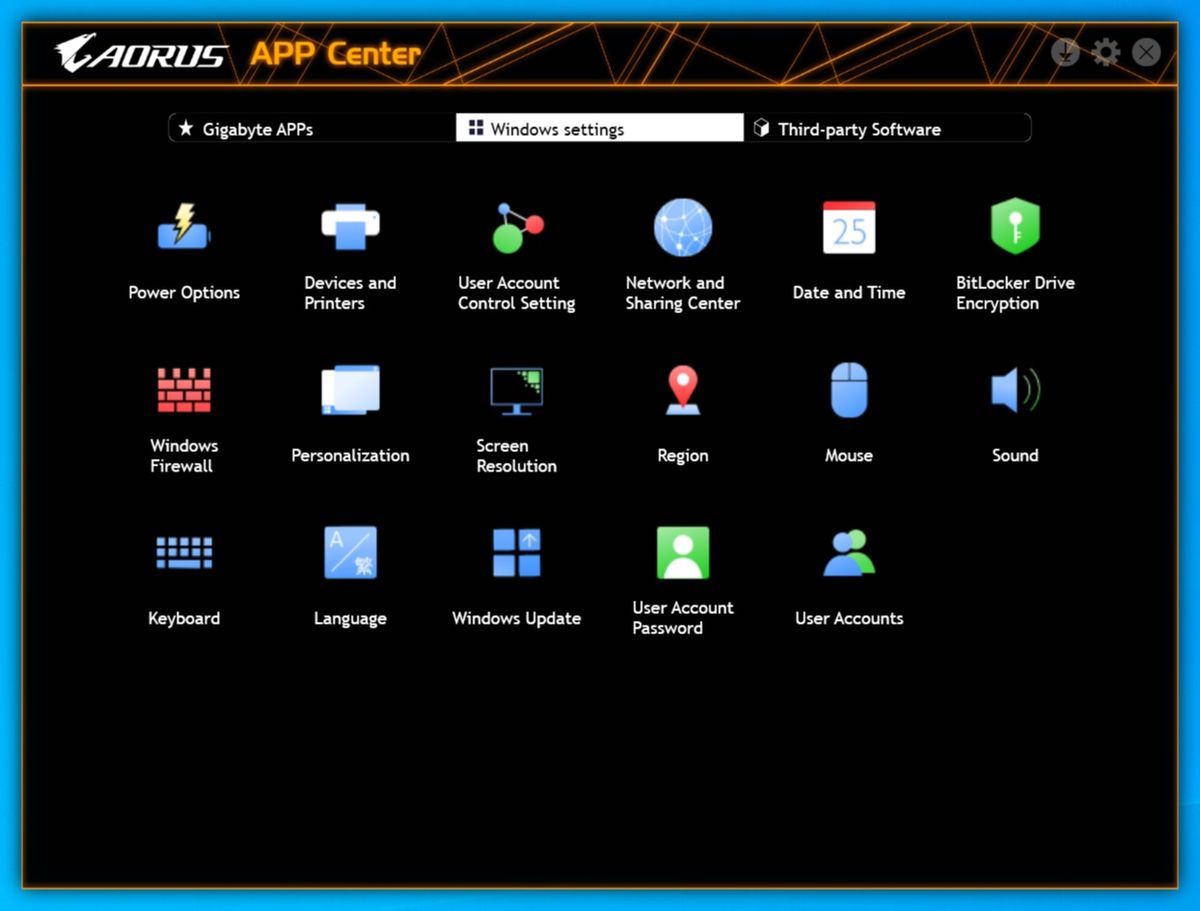

Gigabyte includes several applications designed for a variety of functions, including RGB lighting control, audio, system monitoring, and overclocking. Below, we’ve captured several screenshots of App Center, @BIOS, SIV, RGB Fusion and Easy Tune. Although we would like to see these combined into one application for ease of use, the App Center localizes things well to use these programs.

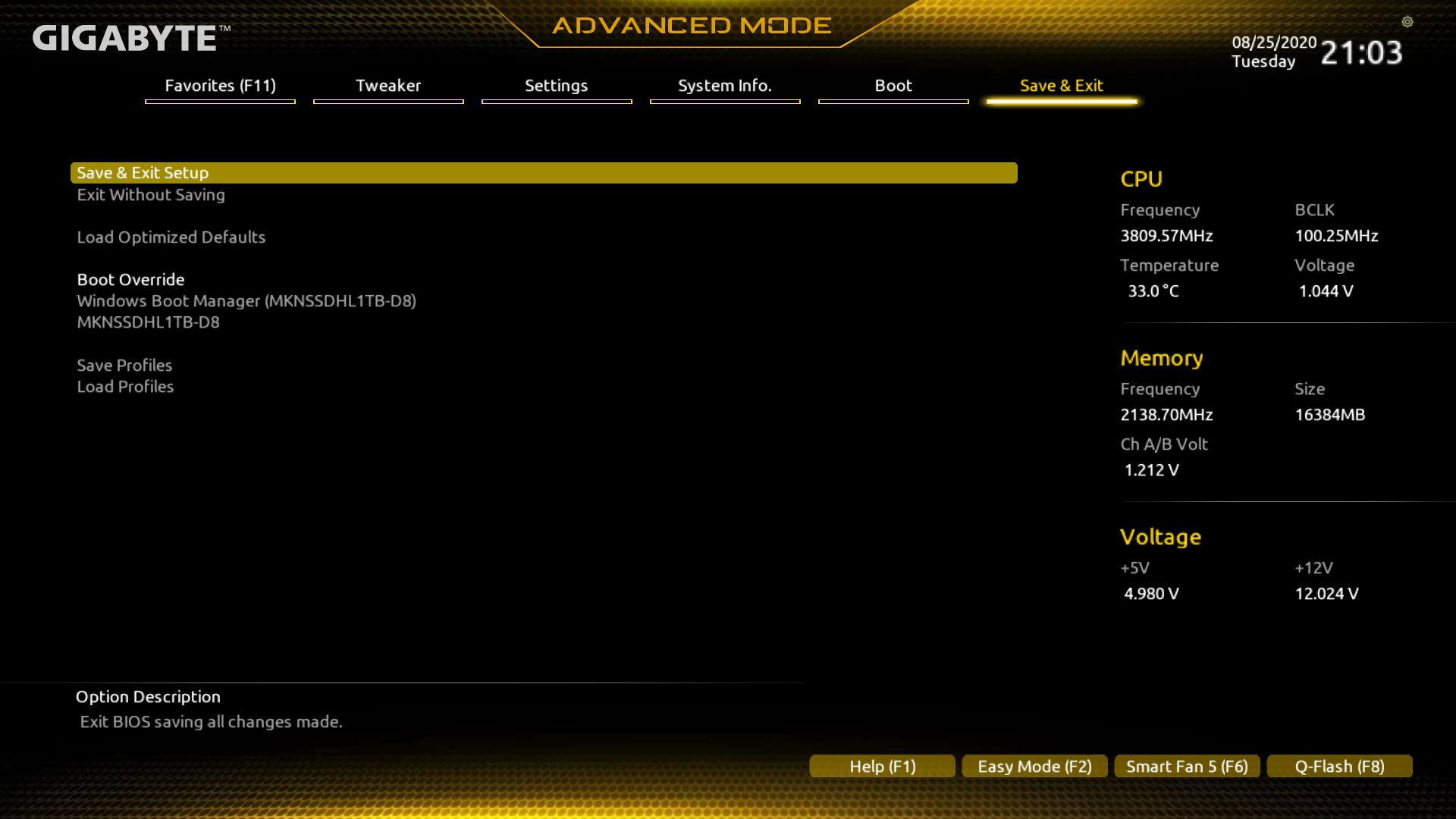

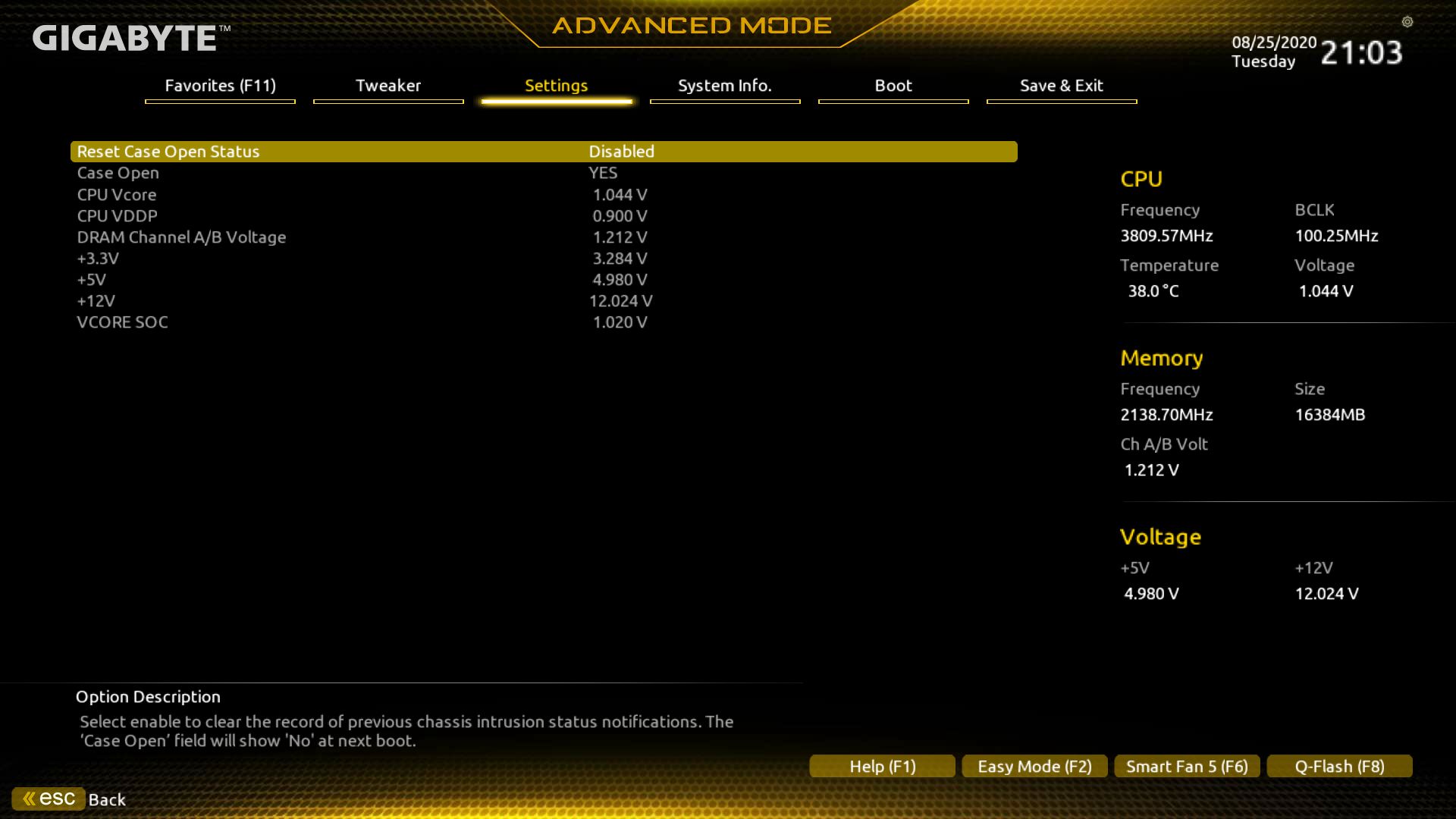

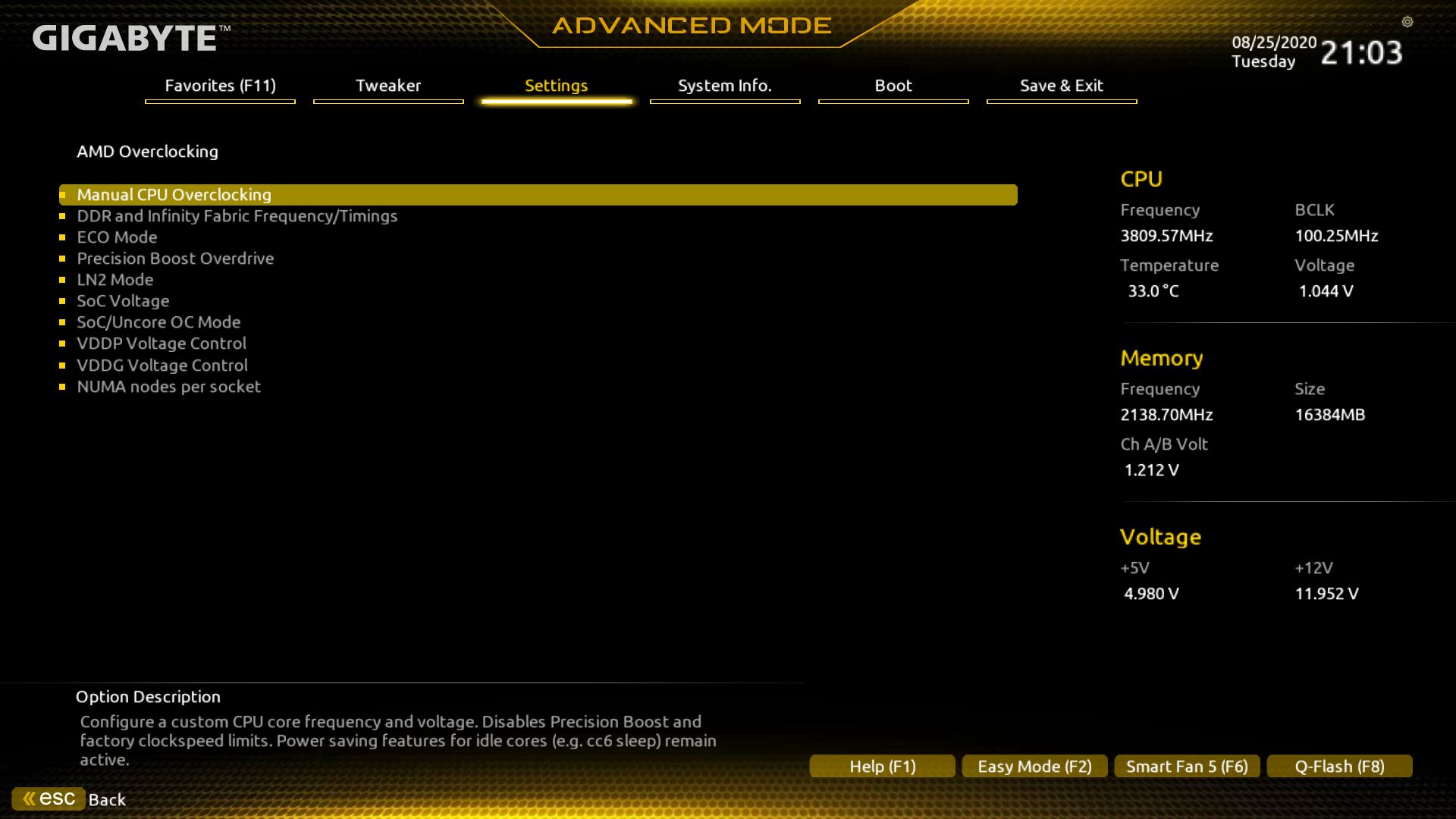

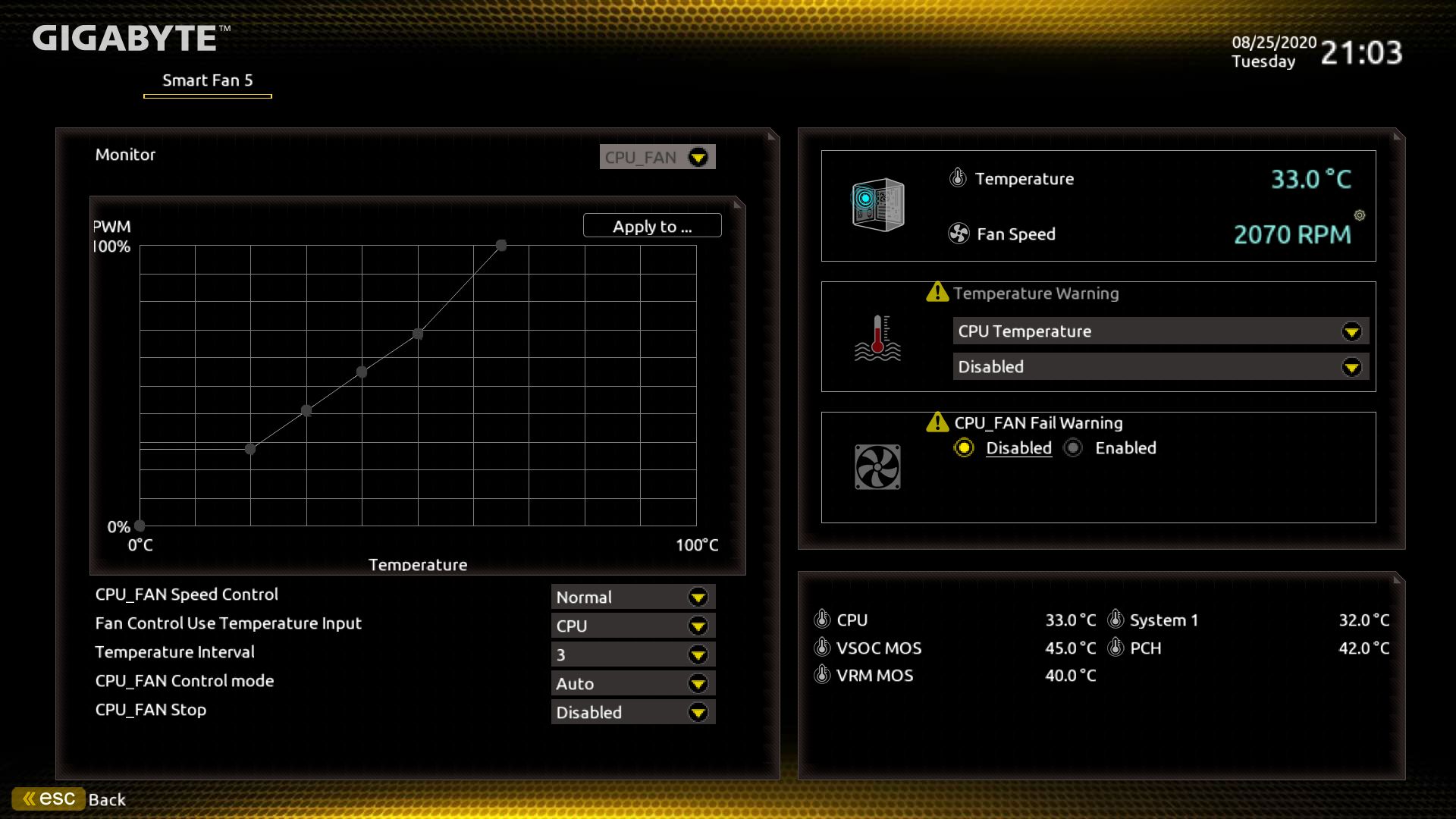

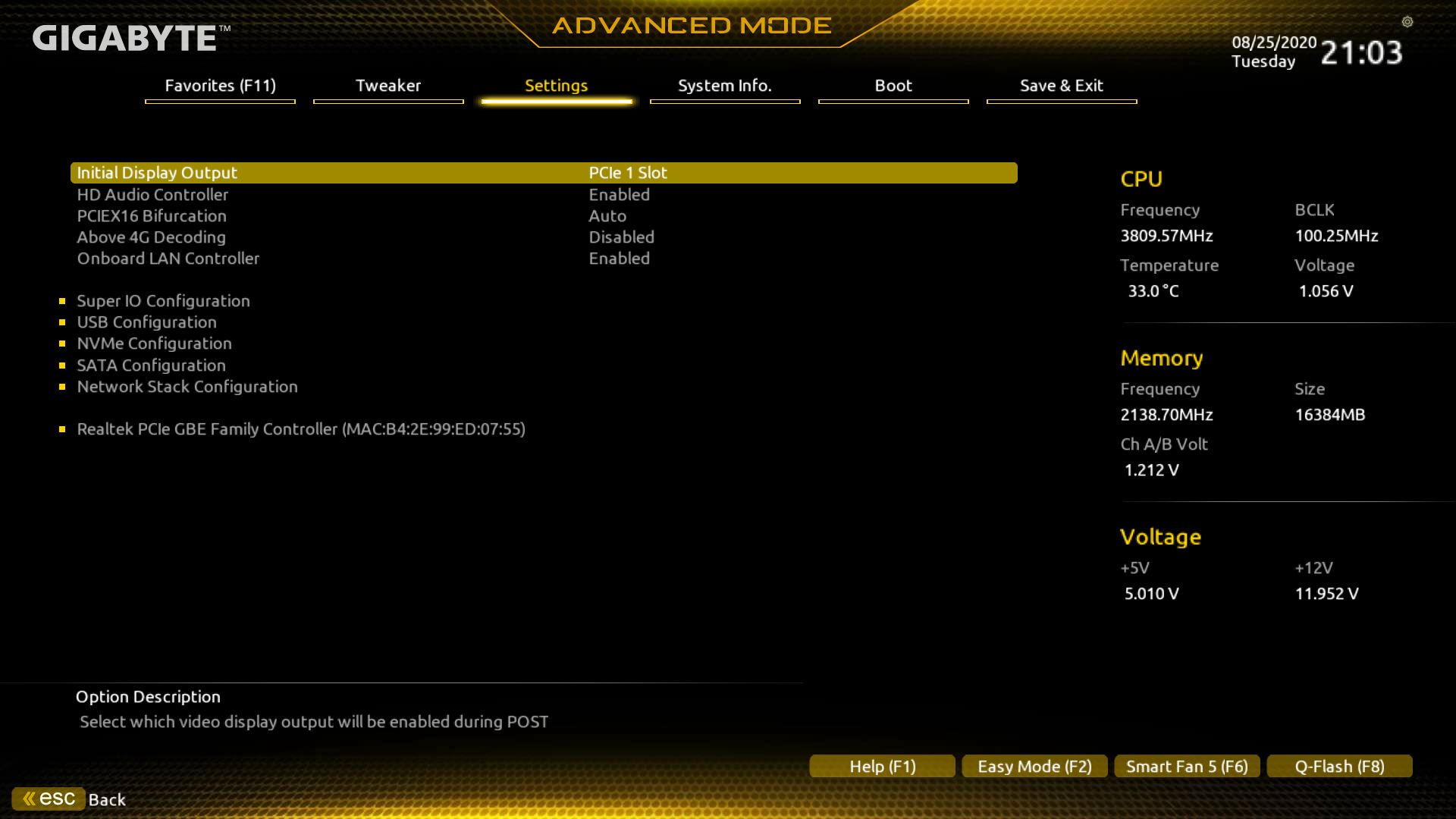

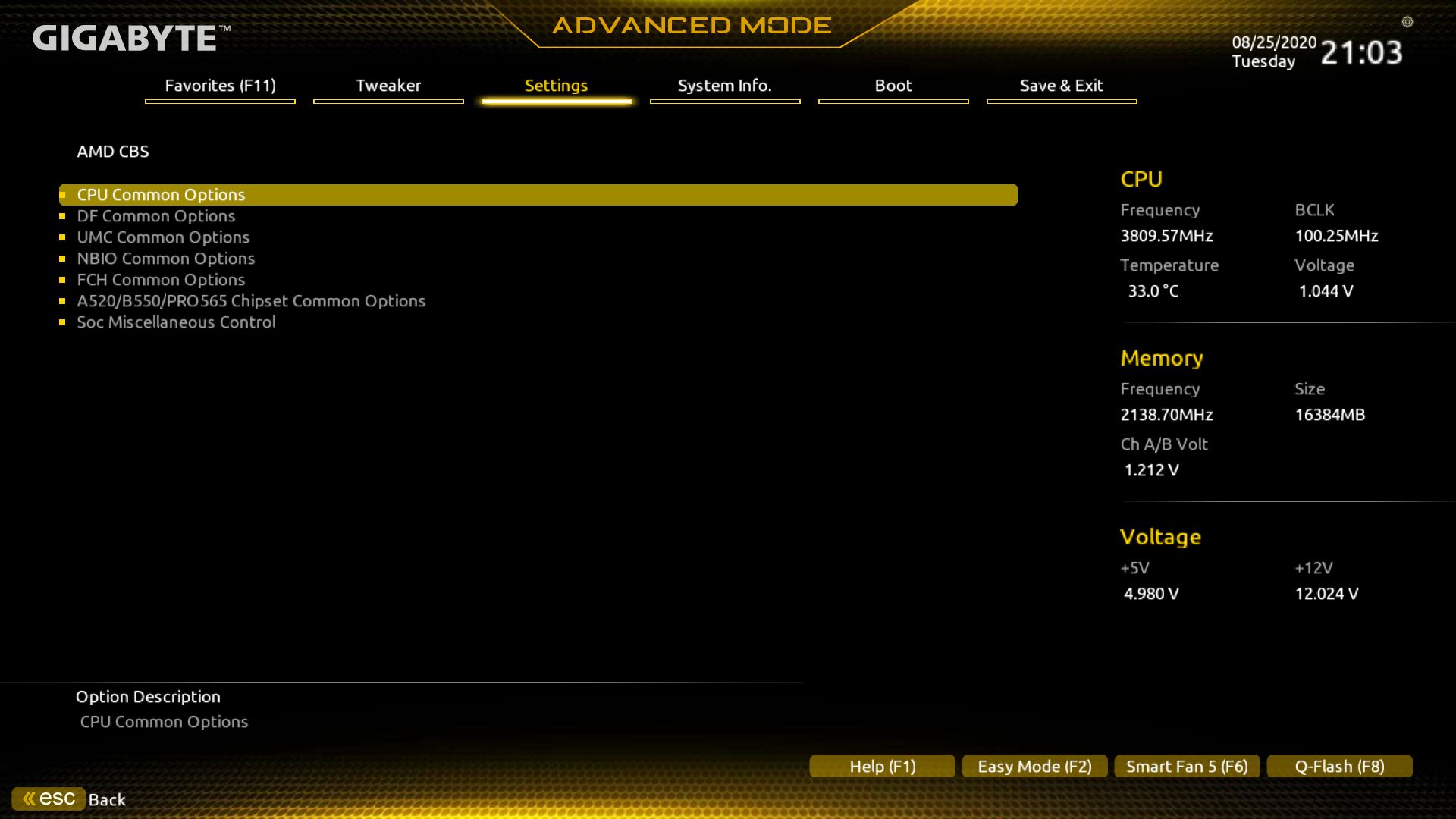

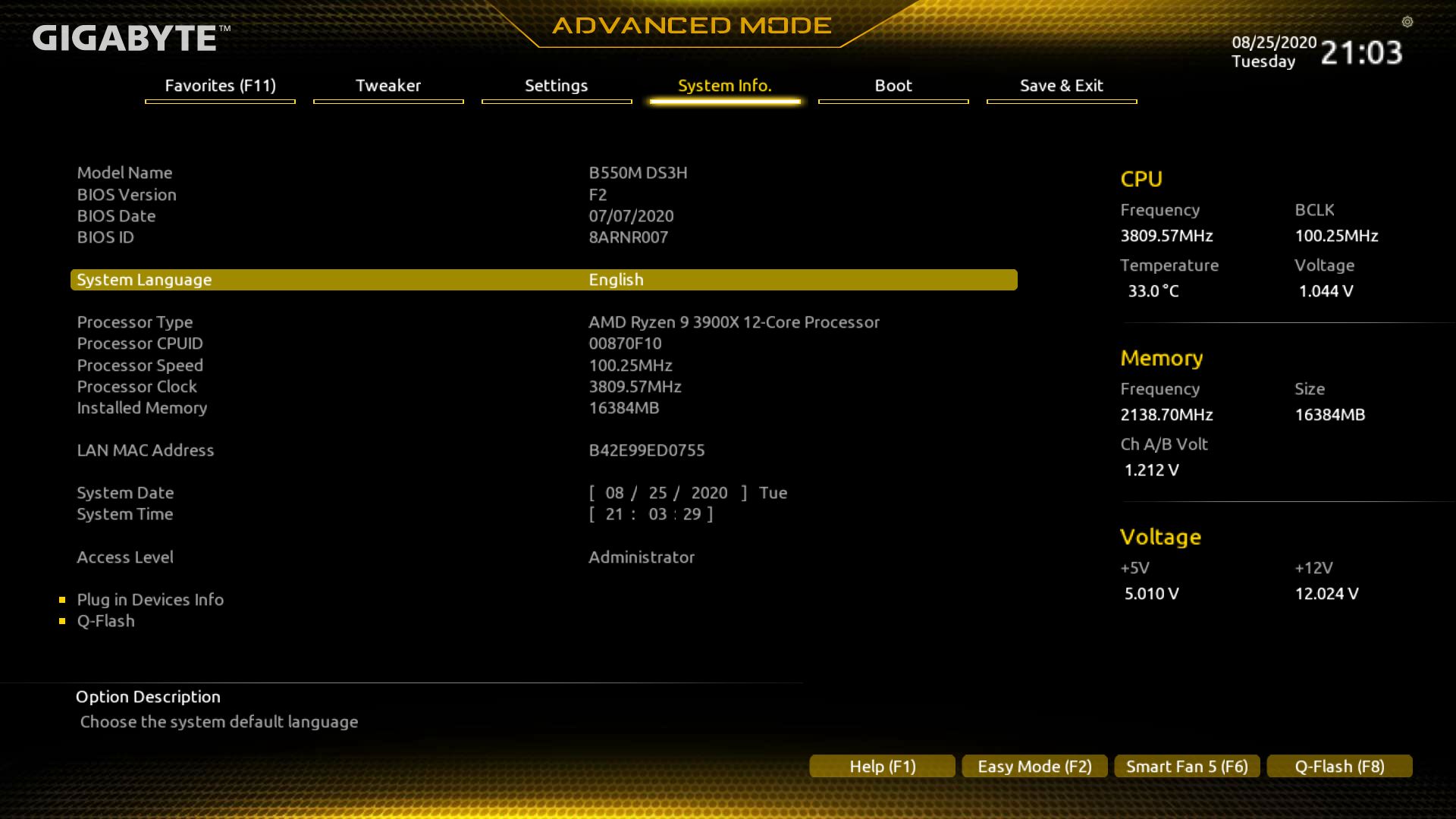

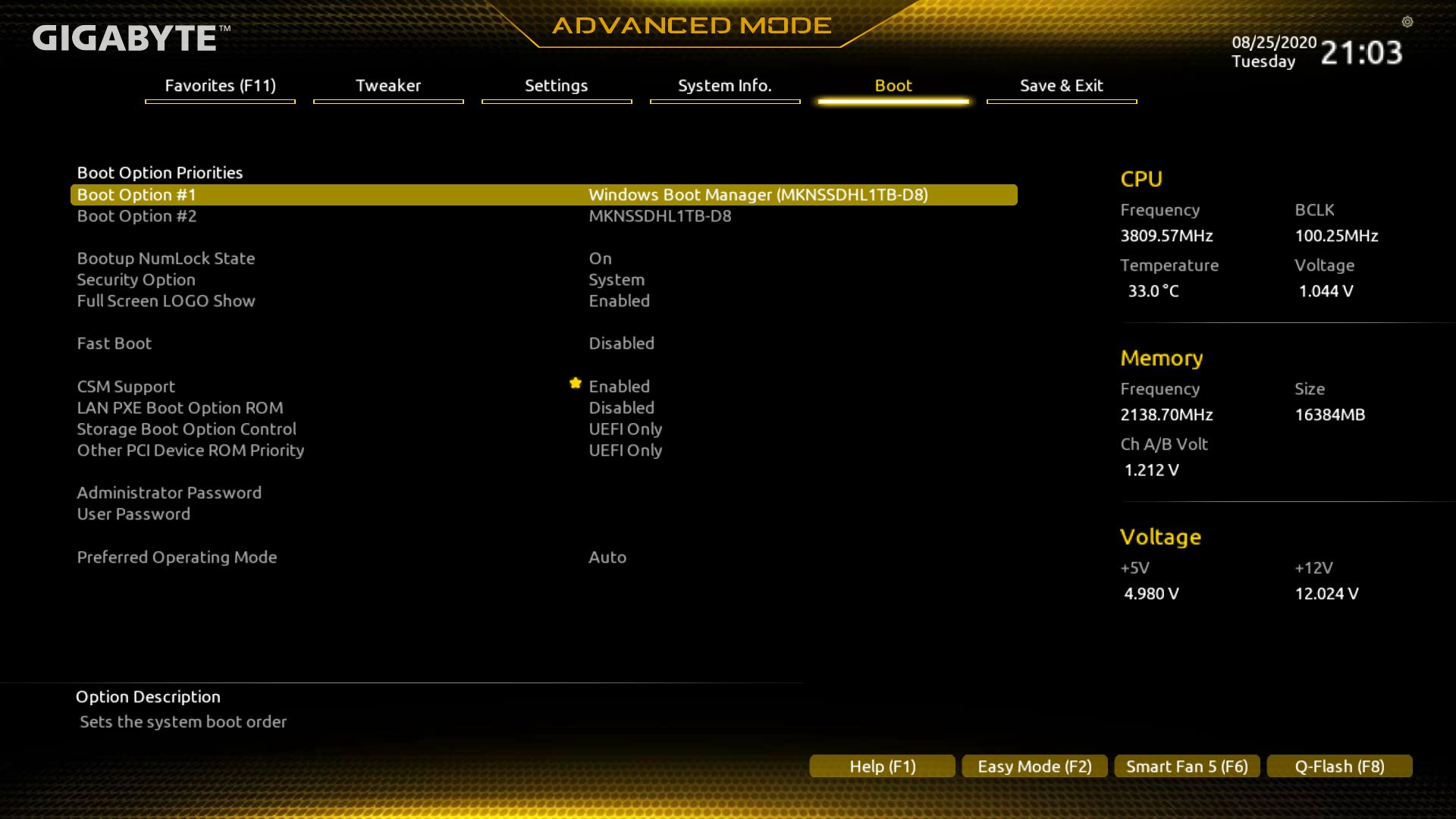

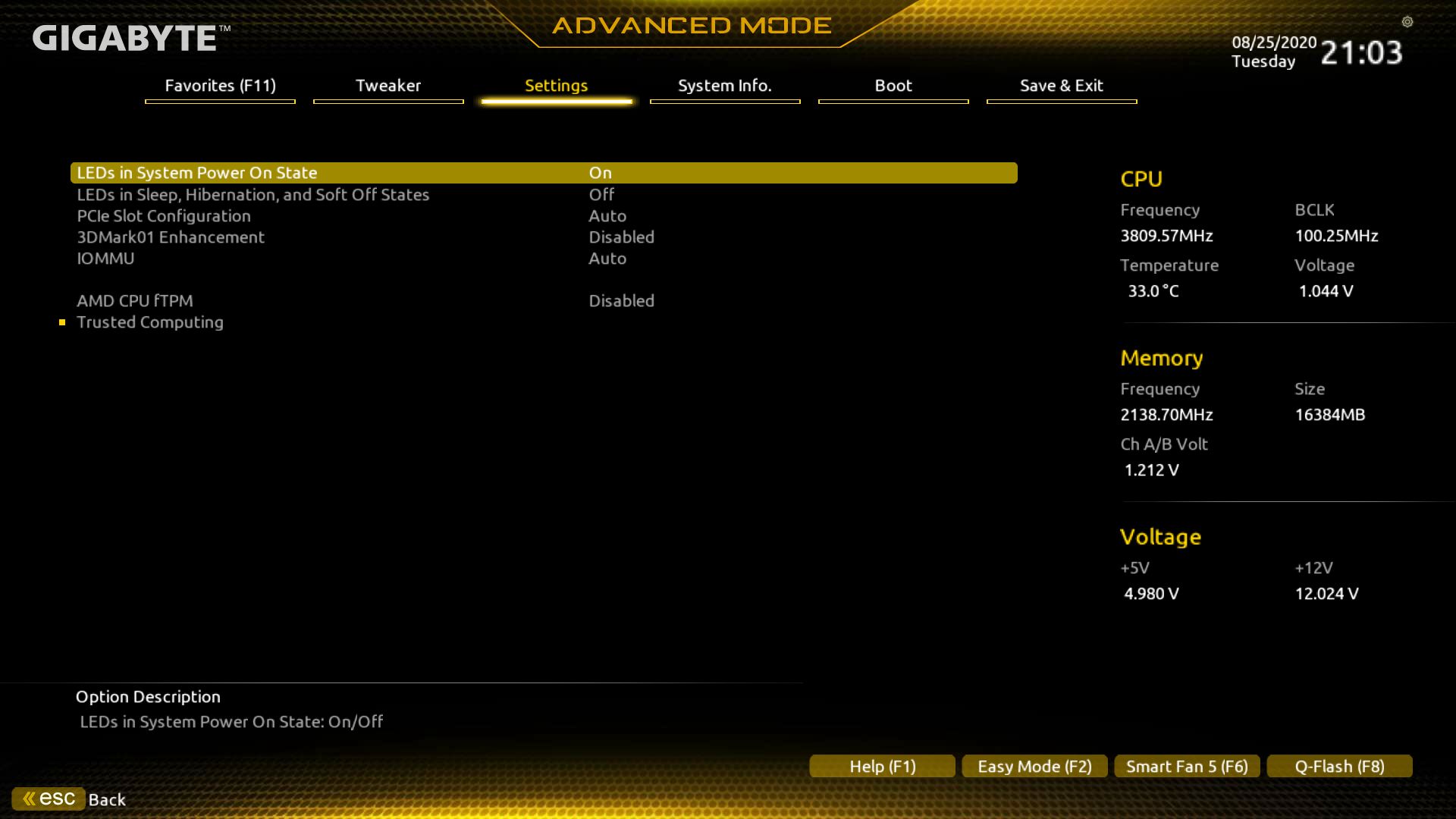

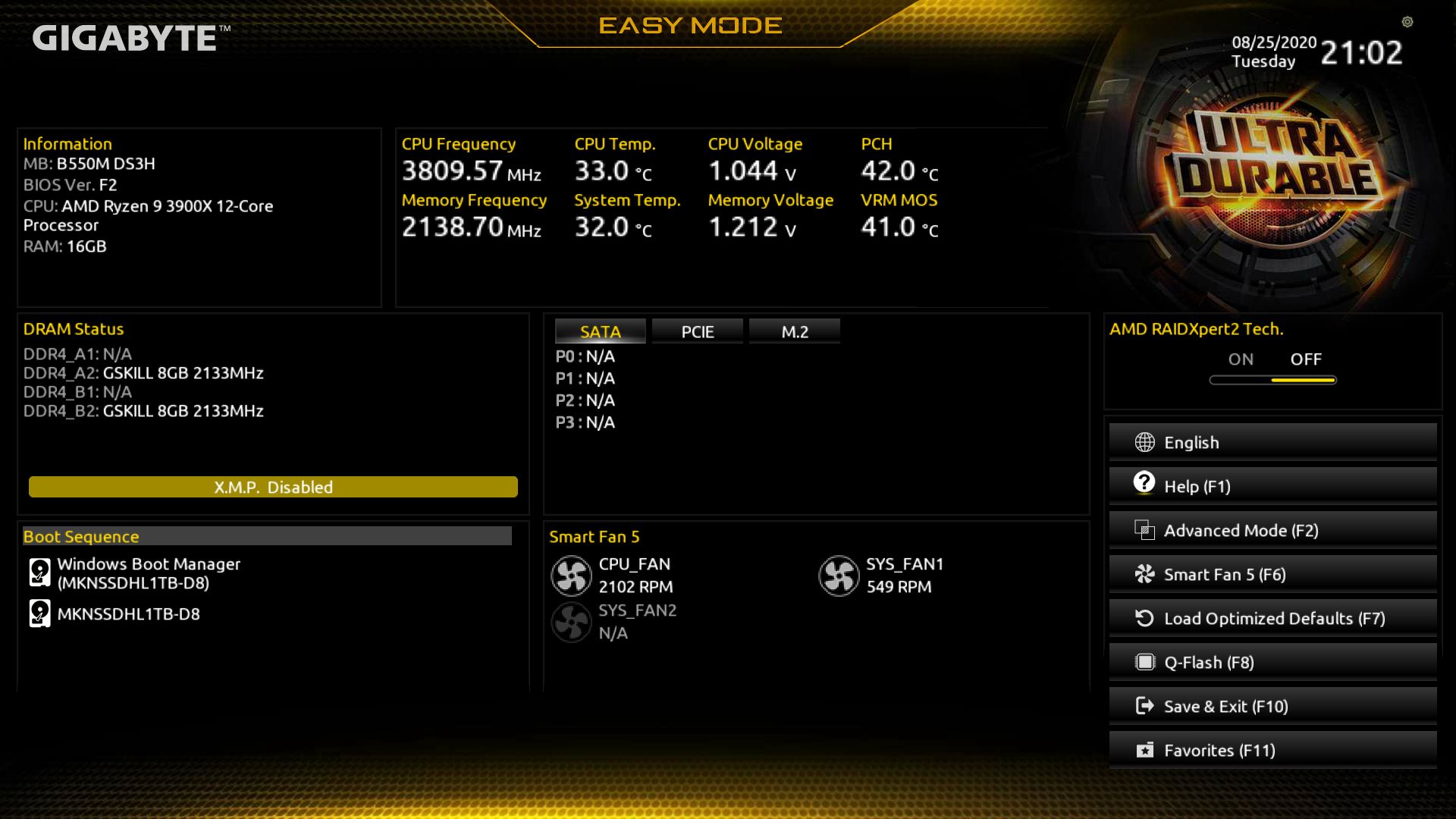

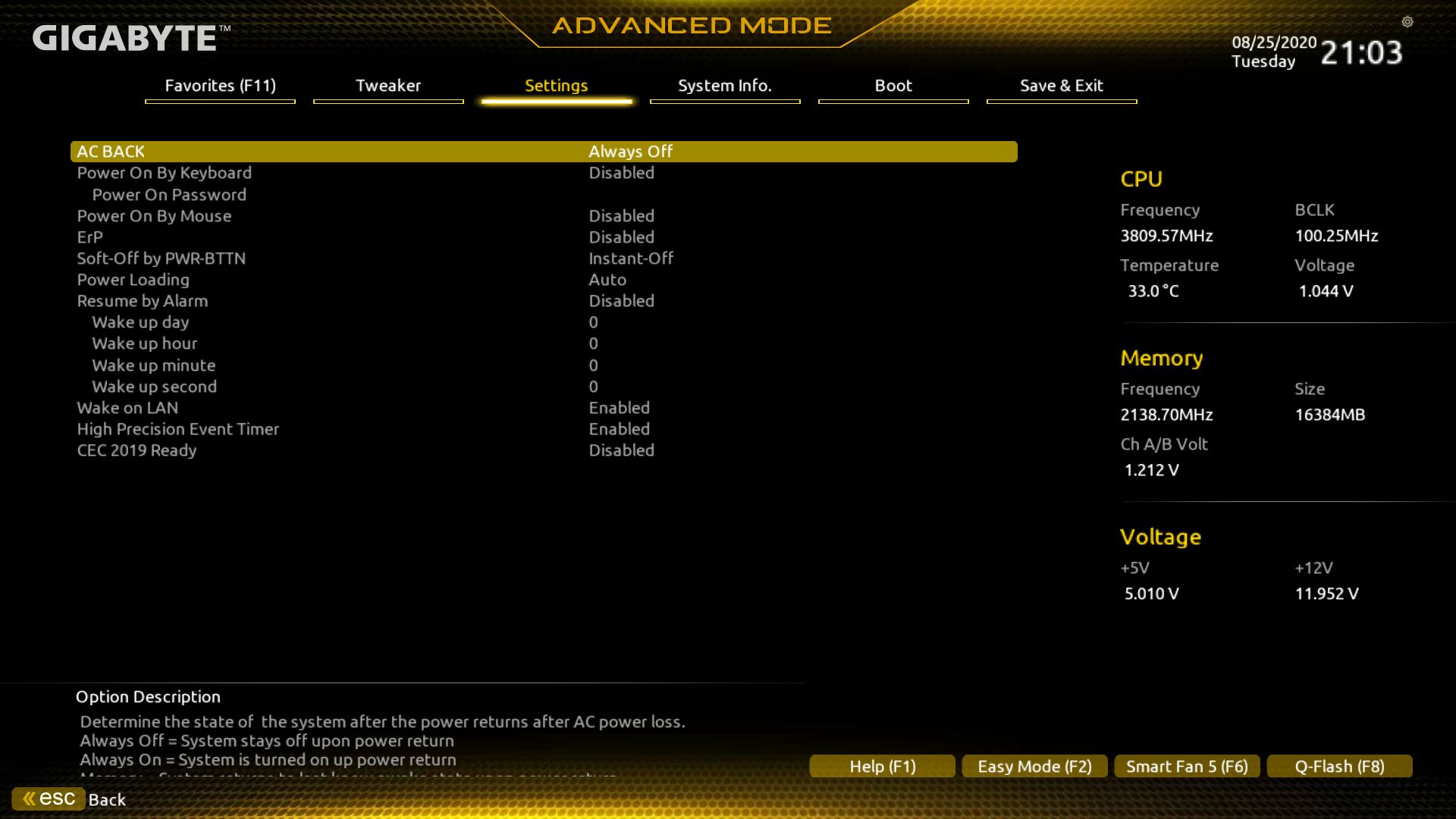

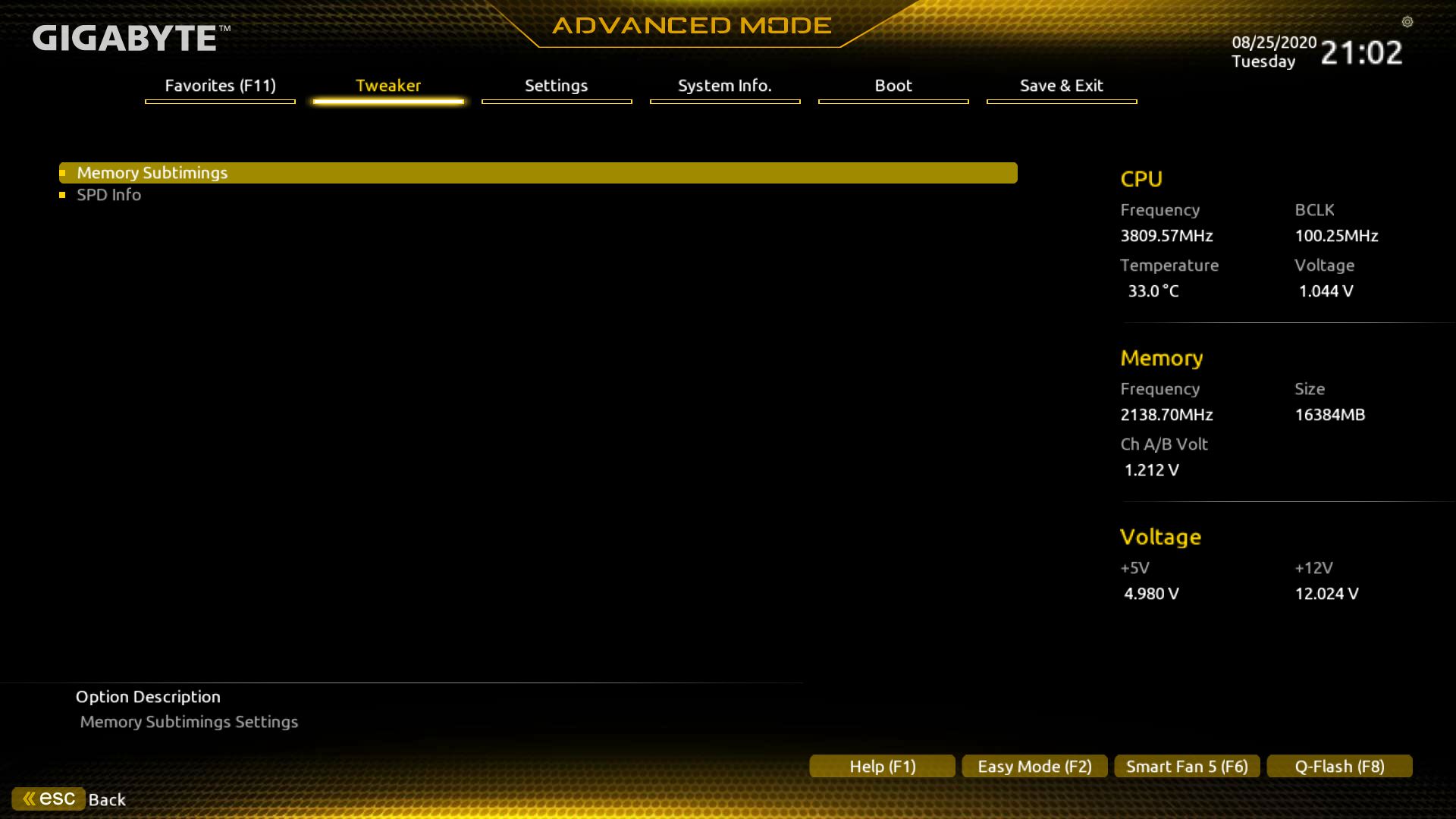

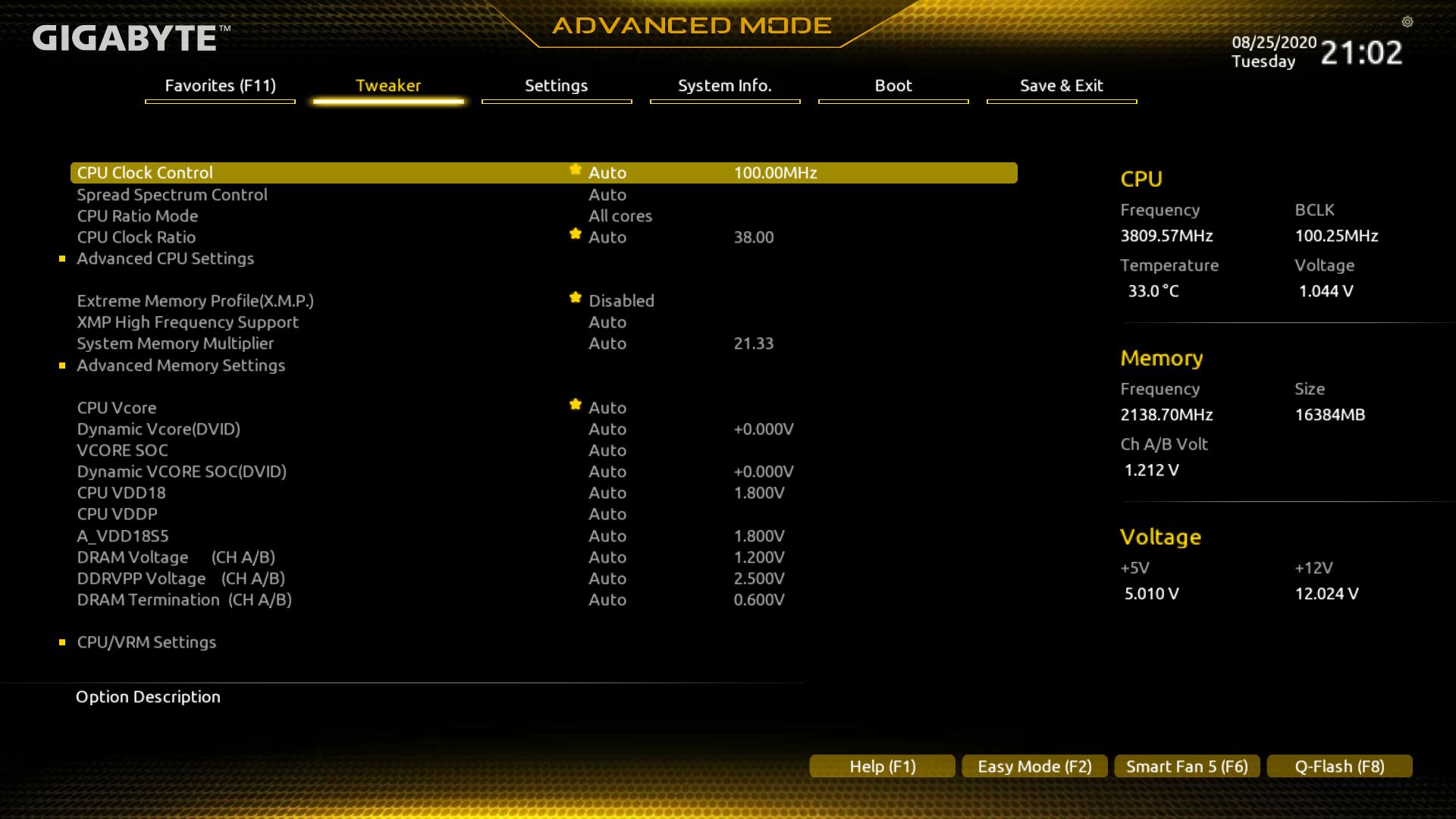

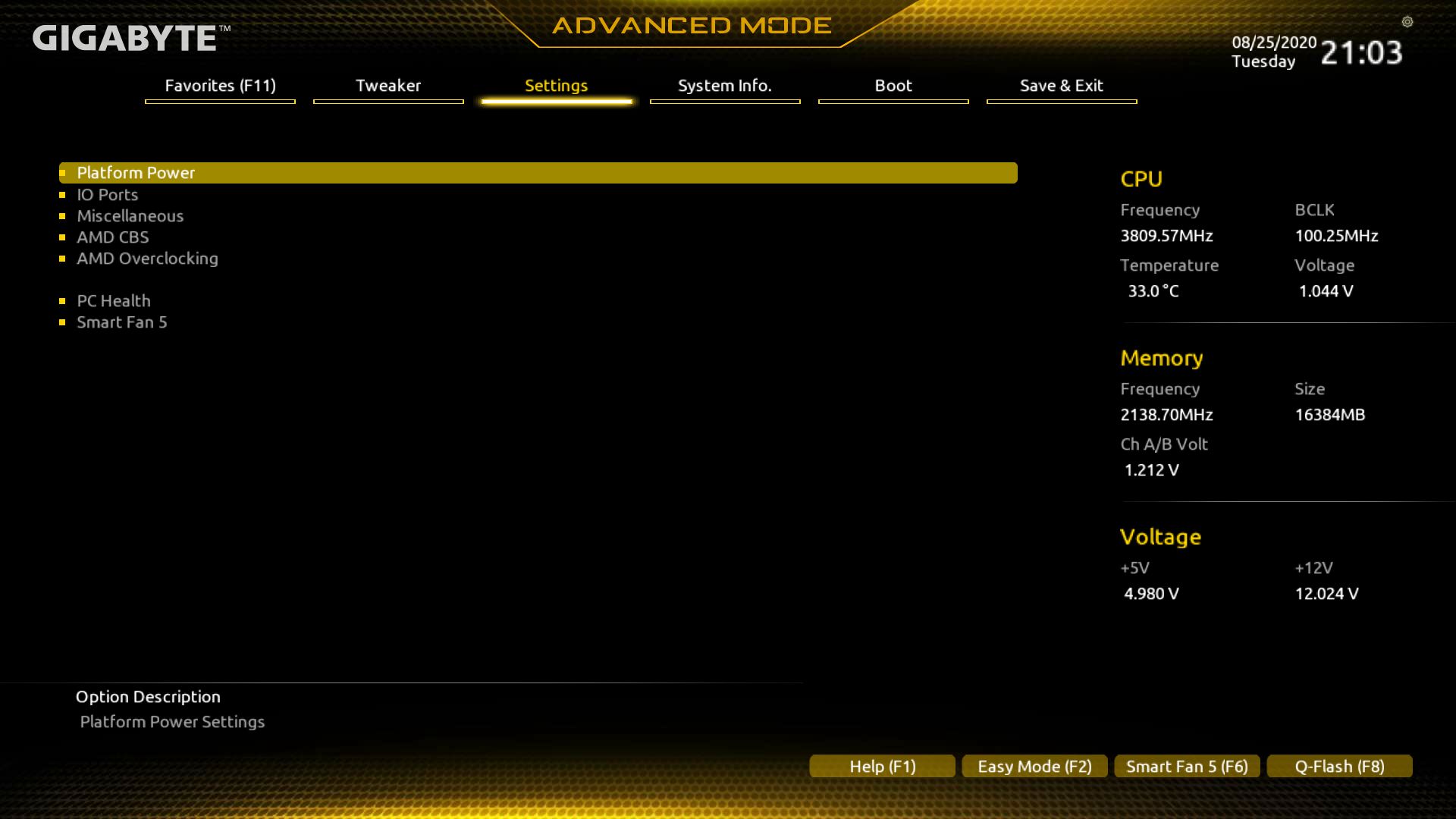

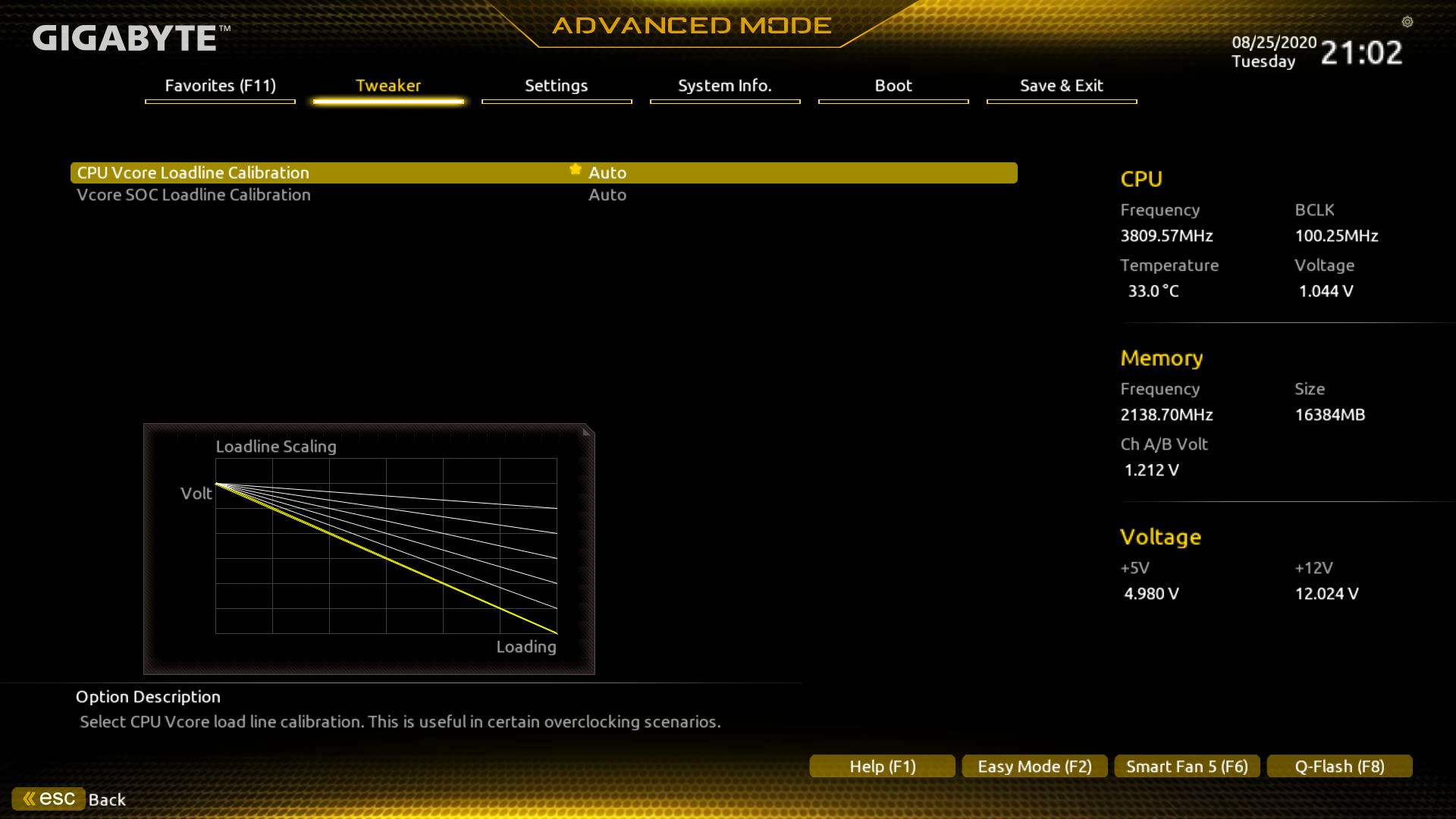

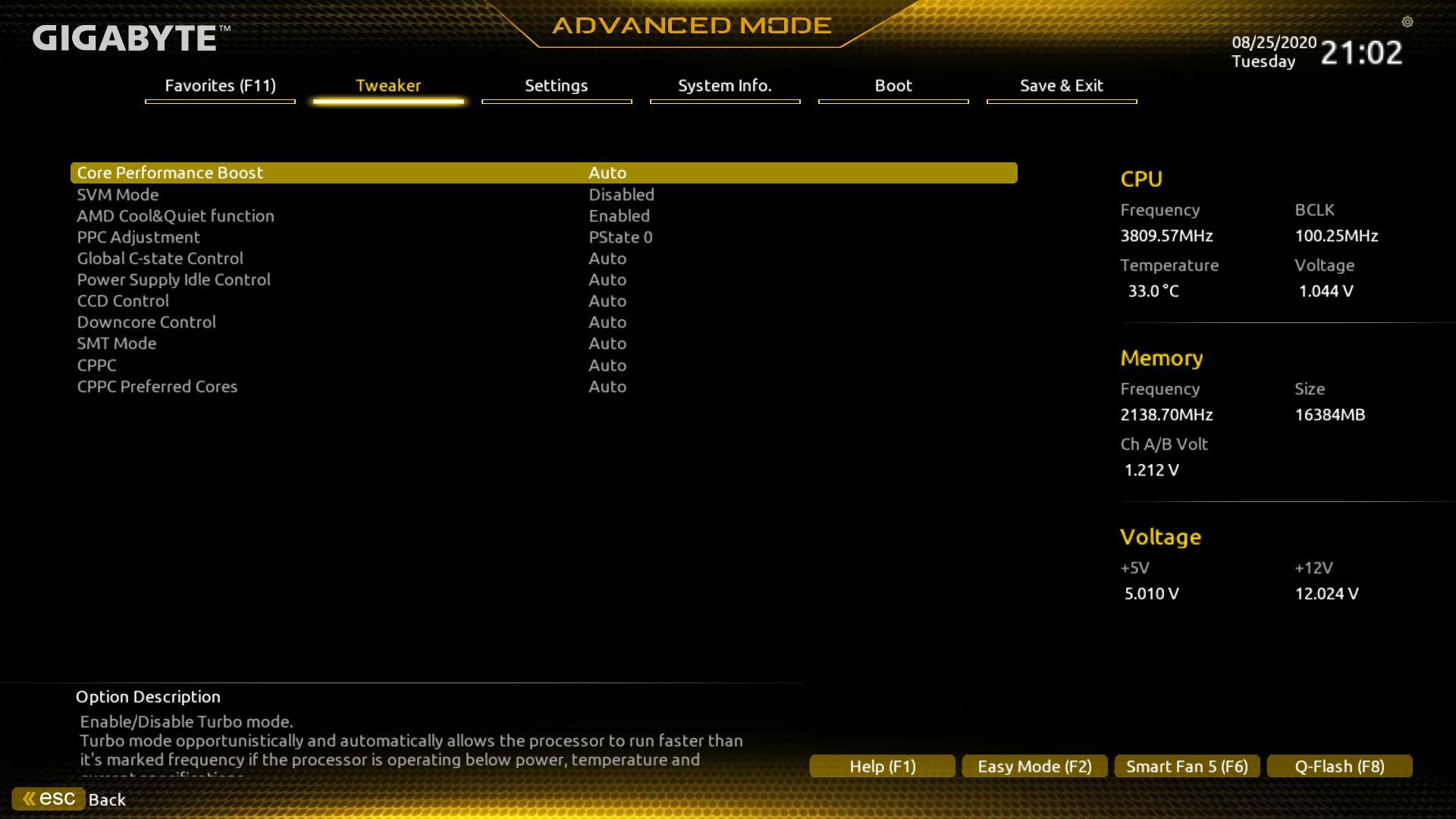

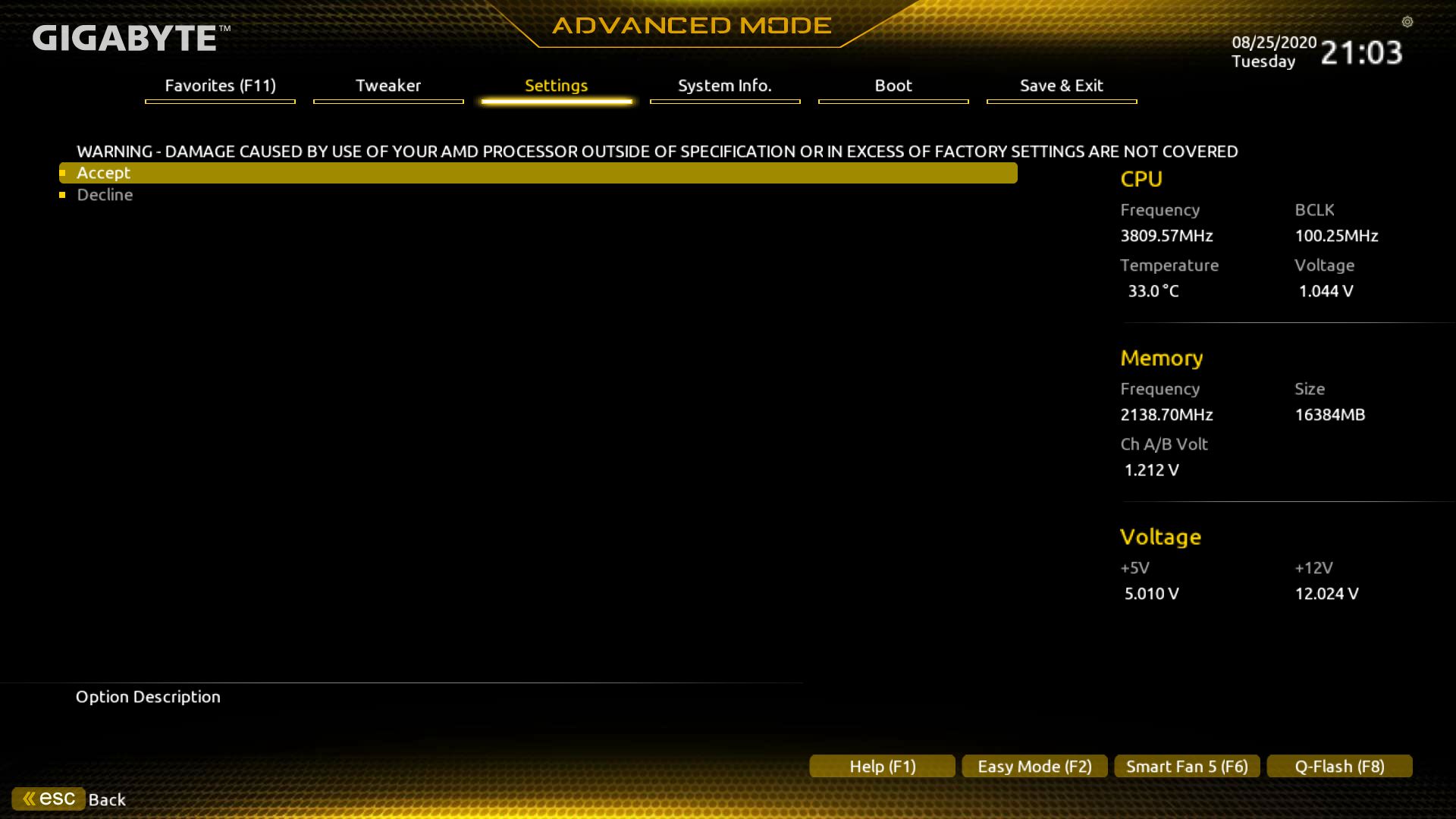

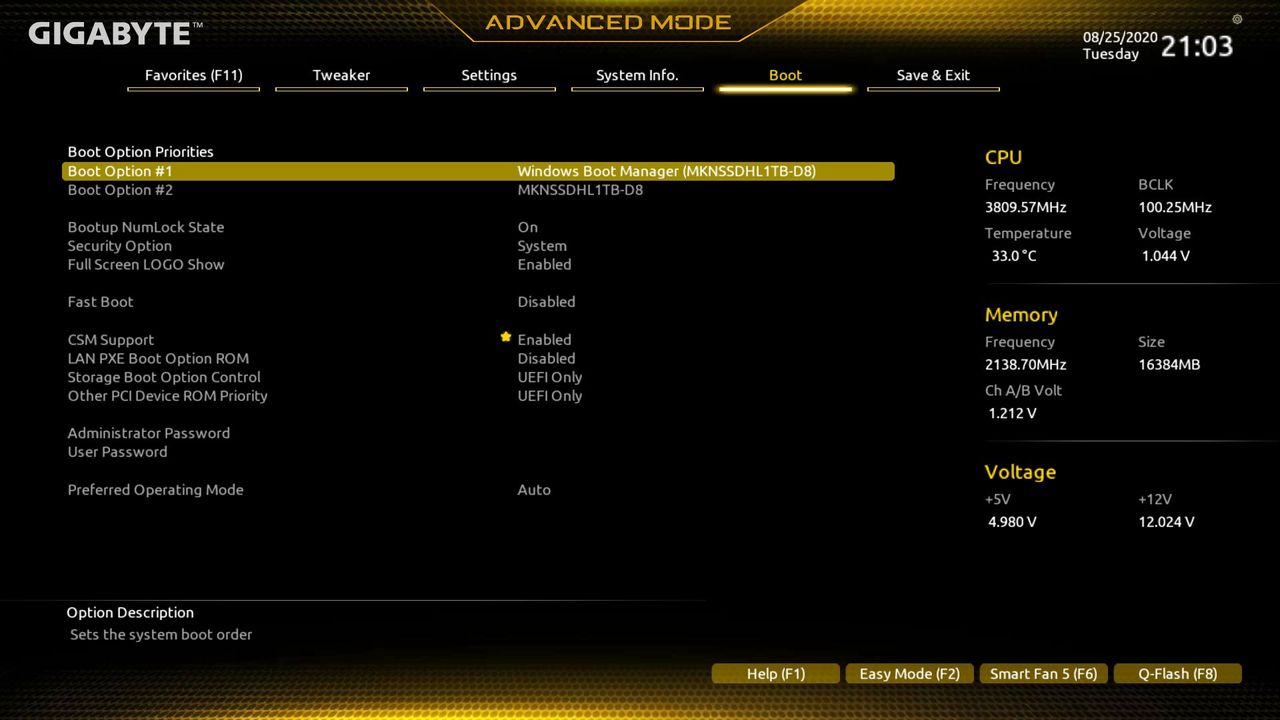

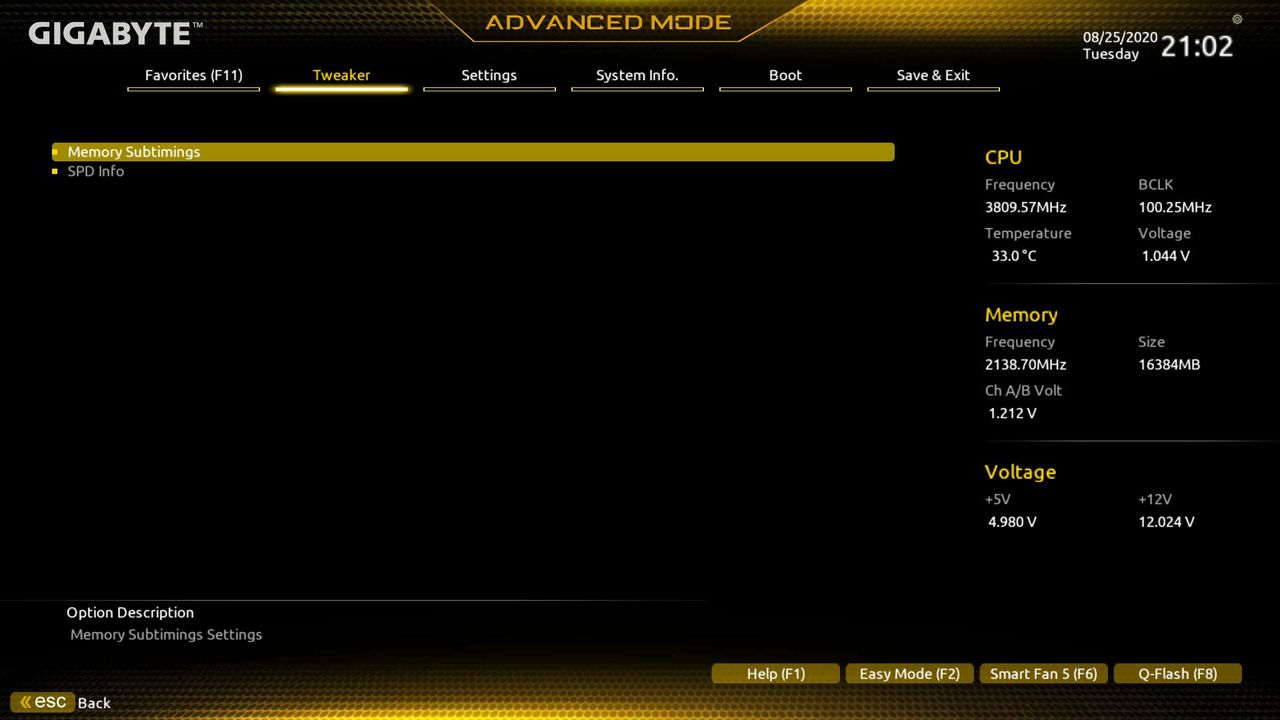

To give you a taste of the Firmware, we’ve gathered screenshots showing a majority of the BIOS screens. There’s not much here we haven’t seen before. One of the big differences you may notice from the other Gigabyte boards is the theme change to Ultra Durable. Where the Aorus based boards use a black and orange theme, this board uses black and yellow. That aside, you’ll find all of what you need easily within the Gigabyte BIOS.
